Technical Features	Decorative hood, 90 cm wide, powerful motor, 3 power levels
Airflow	Up to 700 m³/h
Noise Level	Max 65 dB
Filter Type	Charcoal filter and washable metal filter
Lighting	LED, efficient and economical lighting
Installation	Wall-mounted installation, mounting kit included
Maintenance	Dishwasher-safe filters, regular cleaning recommended
Energy Consumption	Energy class B
Safety	Overload protection, compliant with safety standards
Dimensions	90 x 50 x 30 cm
Weight	10 kg
Warranty	2 years

Frequently Asked Questions - Elio ECH 9364 GLX Elba

How do I clean the filters of my Elba Elio ECH 9364 GLX hood?

To clean the filters, carefully remove them from the hood and soak them in warm soapy water for about 30 minutes. Rinse with clear water and let dry before putting them back in place.

Why won\u0027t my hood turn on?

First, check if the hood is properly plugged in and if the circuit breaker hasn\u0027t tripped. If everything is fine, the bulb may be burnt out and need replacement.

What is the noise level of the Elba Elio ECH 9364 GLX hood?

The noise level of the hood is 65 dB at maximum power, which is standard for this type of product.

How do I adjust the suction power of the hood?

The hood has several power levels. Use the control panel to select the desired suction level according to your cooking needs.

What should I do if my hood doesn\u0027t filter odors properly?

Make sure the filters are clean and properly installed. If the charcoal filters are worn out, they should be replaced for better odor filtration.

Can the Elba Elio ECH 9364 GLX hood be installed in recirculation mode?

Yes, this hood can be installed in recirculation mode with charcoal filters, or in extraction mode if a vent duct is available.

What is the maximum suction power of the hood?

The maximum suction power of the Elba Elio ECH 9364 GLX hood is 700 m³/h.

How often should I replace the charcoal filters?

It is recommended to replace the charcoal filters every 6 months, depending on the usage of the hood.

How do I install my Elba Elio ECH 9364 GLX hood?

For installation, follow the instructions provided in the user manual. Make sure to respect the safety distances recommended by the manufacturer.

Can I use my hood without a vent duct?

Yes, you can use the hood in recirculation mode if you don\u0027t have a vent duct. Just make sure to use the appropriate filters.

What should I do if the hood light is blinking?

A blinking light may indicate an electrical problem. Check the wiring and if the problem persists, contact a qualified technician.

USER MANUAL Elio ECH 9364 GLX Elba

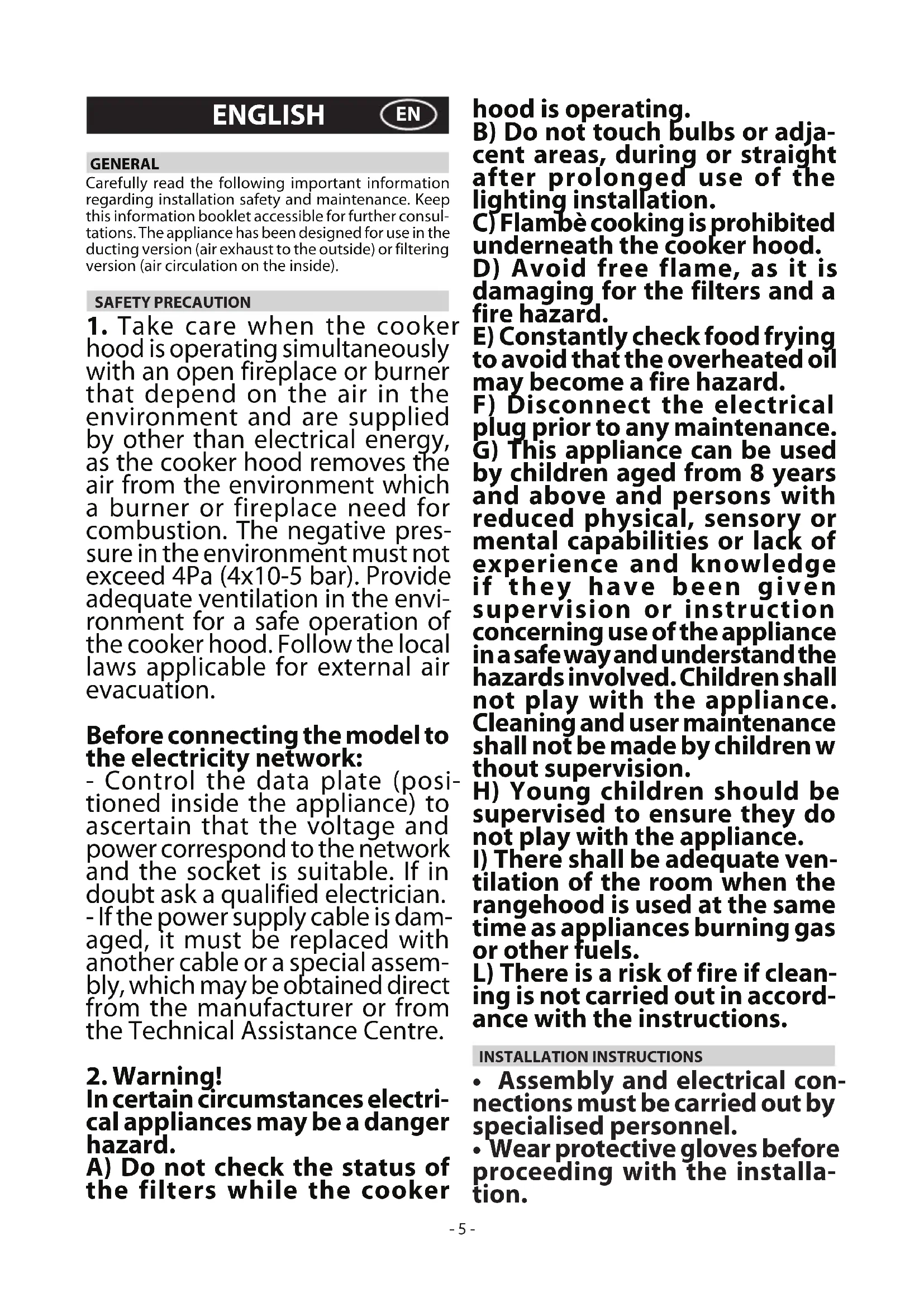

GENERAL Carefully read the following important information regarding installation safety and maintenance. Keep this information booklet accessible for further consul- tations. The appliance has been designed for use in the ducting version (air exhaust to the outside) or filtering version (air circulation on the inside). SAFETY PRECAUTION

1. Take care when the cooker

hood is operating simultaneously with an open fireplace or burner that depend on the air in the environment and are supplied by other than electrical energy, as the cooker hood removes the air from the environment which a burner or fireplace need for combustion. The negative pres- sure in the environment must not exceed 4Pa (4x10-5 bar). Provide adequate ventilation in the envi- ronment for a safe operation of the cooker hood. Follow the local laws applicable for external air evacuation. Before connecting the model to the electricity network: - Control the data plate (posi- tioned inside the appliance) to ascertain that the voltage and power correspond to the network and the socket is suitable. If in doubt ask a qualified electrician. - If the power supply cable is dam- aged, it must be replaced with another cable or a special assem- bly, which may be obtained direct from the manufacturer or from the Technical Assistance Centre.

In certain circumstances electri- cal appliances may be a danger hazard. A) Do not check the status of the filters while the cooker hood is operating. B) Do not touch bulbs or adja- cent areas, during or straight after prolonged use of the lighting installation. C) Flambè cooking is prohibited underneath the cooker hood. D) Avoid free flame, as it is damaging for the filters and a fire hazard. E) Constantly check food frying to avoid that the overheated oil may become a fire hazard. F) Disconnect the electrical plug prior to any maintenance. G) This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children w thout supervision. H) Young children should be supervised to ensure they do not play with the appliance.

I) There shall be adequate ven-

tilation of the room when the rangehood is used at the same time as appliances burning gas or other fuels. L) There is a risk of fire if clean- ing is not carried out in accord- ance with the instructions. INSTALLATION INSTRUCTIONS

• Assembly and electrical con- nections must be carried out by specialised personnel.

• Wear protective gloves before proceeding with the installa- tion.- 6 -

• Electric Connection: Note! Verify the data label placed inside the appliance: - If the symbol appears on the plate, it means that no earth connection must be made on the appliance, therefore follow the instructions concerning insulation class II. - If the symbol DOES NOT appear on the plate, follow the instructions concerning insulation class I. Insulation class II - The appliance has been manufactured as a class II, therefore no earth cable is necessary. The plug must be easily accessible after the instal- lation of the appliance. If the appliance is equipped with power cord without plug, a suitably dimensioned omnipolar switch with 3 mm minimum opening be- tween contacts must be fitted between the appliance and the electricity supply in compliance with the load and current regulations. - The connection to the mains is carried out as follows: BROWN = L line BLUE = N neutral. Insulation class I This is a class I, appliance and must therefore be con- nected to an effiecient earthing system. - The appliance must be connected to the electricity supply as follows: BROWN = L line BLUE = N neutral YELLOW/GREEN = earth. The neutral wire must be connected to the terminal with the N symbol while the YELLOW/GREEN, wire must be connected to the terminal by the earth symbol . When connecting the appliance to the electricity supply, make sure that the mains socket has an earth connection. After fitting the ducted cooker hood, make sure that the electrical plug is in a position where it can be accessed easily. If the appliance is connected directly to the electricity supply, an omnipolar switch with a minimum contact opening of 3 mm must be placed in between the two; its size must be suitable for the load required and it must comply with current legislation.

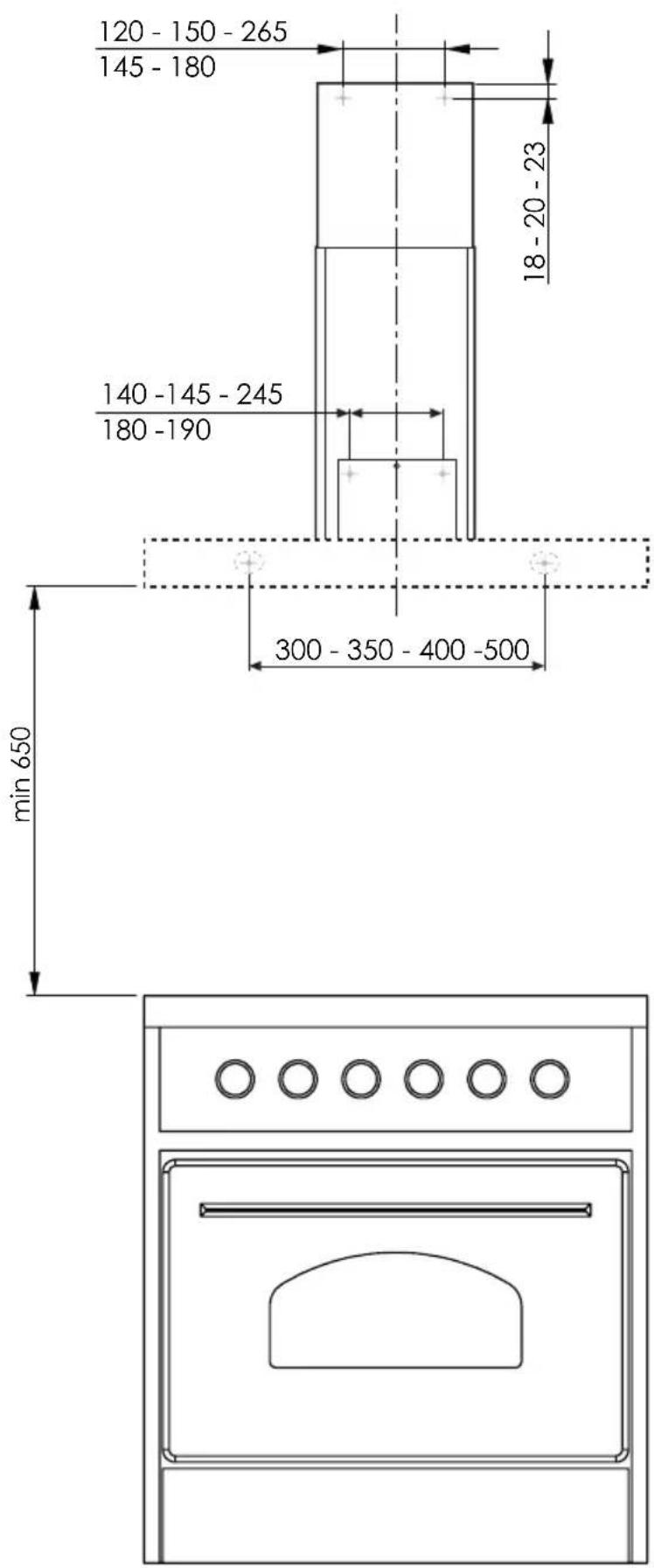

• The minimum distance between the support surfaces of the cooking pots on the cooker top and the lowest part of the cooker hood must be at least 65 cm. If a connection tube composed of two parts is used, the upper part must be placed outside the lower part. Do not connect the cooker hood exhaust to the same conductor used to circulate hot air or for evacuating fumes from other appliances generated by other than an electrical source. Before proceeding with the assembly operations, remove the anti-grease filter(s) (Fig.6) so that the unit is easier to handle. - In the case of assembly of the appliance in the suction version prepare the hole for evacuation of the air.

• We recommend the use of an air exhaust tube which has the same diameter as the air exhaust outlet hole. If a pipe with a smaller diameter is used, the efficiency of the product may be reduced and its operation may become noisier.

• Fixing to the wall: Drill holes A respecting the dimensions indicated (Fig.1Y). Fix device to wall and align it horizontally with the cupboards. When the appliance has been adjusted, definitely fix the hood using the screws A (Fig.1B). For the various installations use screws and screw anchors suited to the type of wall (e.g. reinforced concrete, plasterboard, etc.). If the screws and screw anchors are provided with the product, check that they are suitable for the type of wall on which the hood is to be fixed.

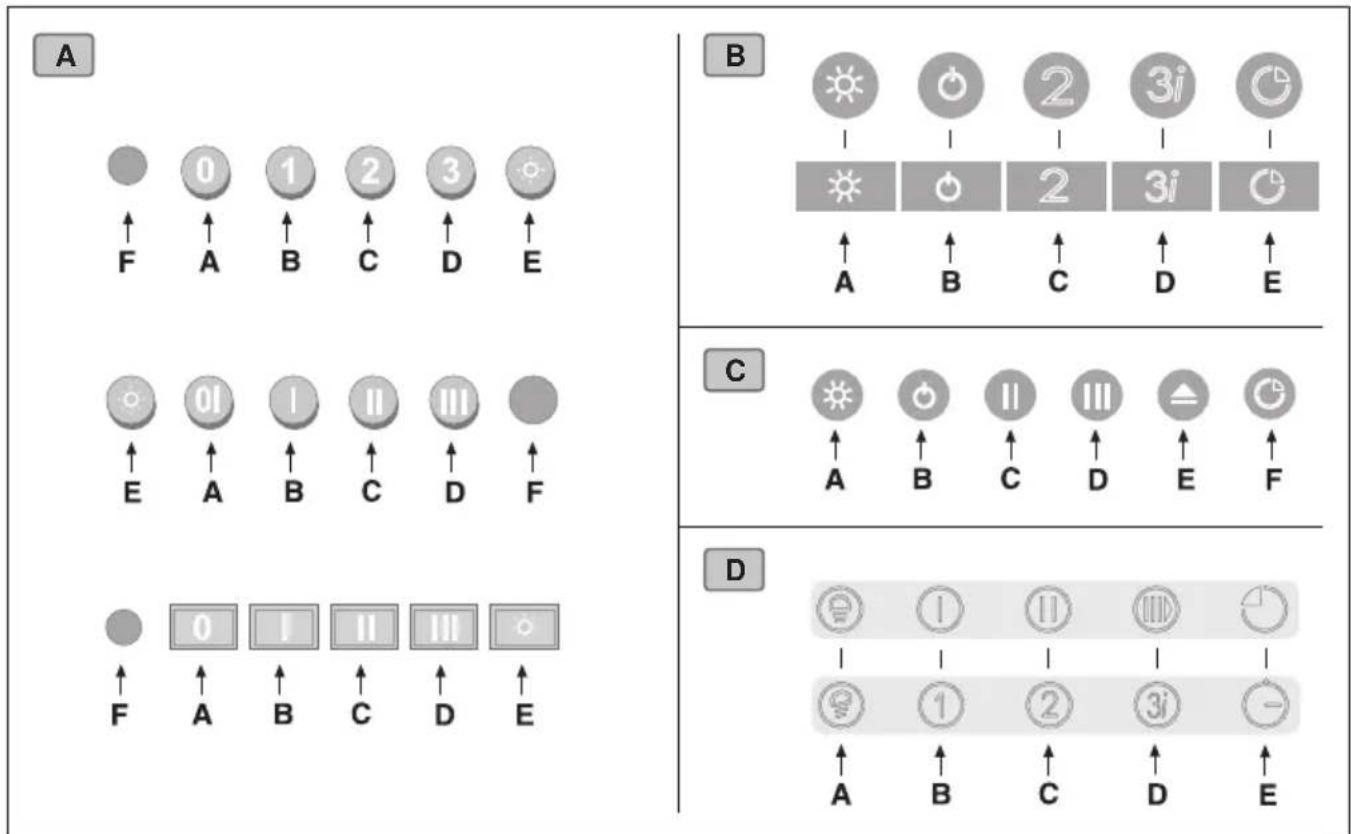

• Fixing the decorative telescopic flue: Arrange the electrical power supply within the dimen- sions of the decorative flue. If your appliance is to be installed in the ducting version or in the version with external motor, prepare the air exhaust opening. Install the upper decorative flue's support bracket and fix it on the wall using the screws A (Fig.1A) so it is in axis with your hood and respecting the distance from the ceiling shown in (Fig.1X). Connect flange C to air extraction hole via an air extraction pipe (Fig.1B). Insert upper decorative flue inside the lower decorative flue and rest them on top of the frame. Extract the upper flue up to the bracket and fix it with the screws Z (Fig.1A). To transform the hood from a ducting version into a filtering version, ask your dealer for the charcoal filters and follow the installation instructions. USE MECHANICAL PUSH BUTTON (Fig.2A) A: ON/FF B: speed 1 C: speed 2 D: speed 3 E: light F: motor working indicator ELECTRONIC PUSH BUTTON (Fig.2B) A: Press to switch on/off the light. B: Short pression: Motor ON at first speed. Long pression: Motor OFF. C: Short pression: Motor at second speed. D: Short pression: Motor at third speed. Long pression: intensive speed for 7’ (at the end of this time, the system will return to the speed set previously). E: Press to set up the timer of 5 minutes. After 5 minutes the cooker hood will be switched off automatically (motor and lighting). When the timer is activated the LED flashes. The timer can not be activated for intensive speed. CLEAN AIR: to preserve air quality --> push Timer button for 3'' with hood off. The hood turns on at first speed for 10' per hour. Push any button to disable the function. FILTER SATURATION ALARM: light button LED flashes every 30h of hood operation: the anti-grease filter shall be cleaned. To reset the hood when it is off push light button for 3’’. On/off button LED flashes every 120h of hood operation: the anti-odor filter shall be replaced (filter version). To reset the hood when it is off push light button for 3’’. ELECTRONIC PUSH BUTTON (Fig.2C) A: Press to switch on/off the light. B:Short pression: Motor ON at first speed. Long pression: Motor OFF. C:Short pression: Motor at second speed. D:Short pression: Motor at third speed.- 7 - E: Short pression: intensive speed for 7’ (at the end of this time, the system will return to the speed set previously). F:Press to set up the timer of 5 minutes. After 5 minutes the cooker hood will be switched off automatically (motor and lighting). When the timer is activated the LED flashes. The timer can not be activated for intensive speed. TOUCH CONTROL (Fig.2D) A: Press to switch on/off the light. B: Short pression: Motor ON at first speed. Long pression: Motor OFF. C: Short pression: Motor at second speed. D: Short pression: Motor at third speed. Long pression: intensive speed for 7’ (at the end of this time, the system will return to the speed set previously). E: Press to set up the timer of 5 minutes. After 5 minutes the cooker hood will be switched off automatically (motor and lighting). When the timer is activated the LED flashes. The timer can not be activated for intensive speed. CLEAN AIR: to preserve air quality --> push Timer button for 3'' with hood off. The hood turns on at first speed for 10' per hour. Push any button to disable the function. FILTER SATURATION ALARM: light button LED flashes every 30h of hood operation: the anti-grease filter shall be cleaned. To reset the hood when it is off push light button for 3’’. On/off button LED flashes every 120h of hood operation: the anti-odor filter shall be replaced (filter version). To reset the hood when it is off push light button for 3’’. TOUCH CONTROL (Fig.3): NOTE: with this command it is also possible to control the appliance using a remote control, to be requested as an accessory. A Button = Switches the hood on/off. The equipment switches on at the 1st speed. B Button = Decreases motor speed. C Display = Shows the selected motor speed and timer activation/intense speed/filter warning. D Button = Increases motor speed. Pressing the 4th speed button engages the intense function for 6 minutes, then the equipment goes back to working at the speed at which it was activated. Du- ring this function, the number 4 flashes on the display. - If you wish to deactivate the function before the 6 minutes, press the B button. Attention! Some models only work up to the 3rd speed and, therefore, do not have the intense function. E Button = Pressing this button activates the Timer function even with any of the 1-2-3 speeds engaged (except the Intense function speed). When the Timer function is active, the set speed must flash on the display when the timer is activated. After 15 minutes, at the end of the countdown, the hood switches off (motor and any lights if on). If the intense speed is engaged, the Timer cannot be activated. - If you wish to deactivate the function before the 15 minutes, press the E button. F Button = Switches the lights on/off.

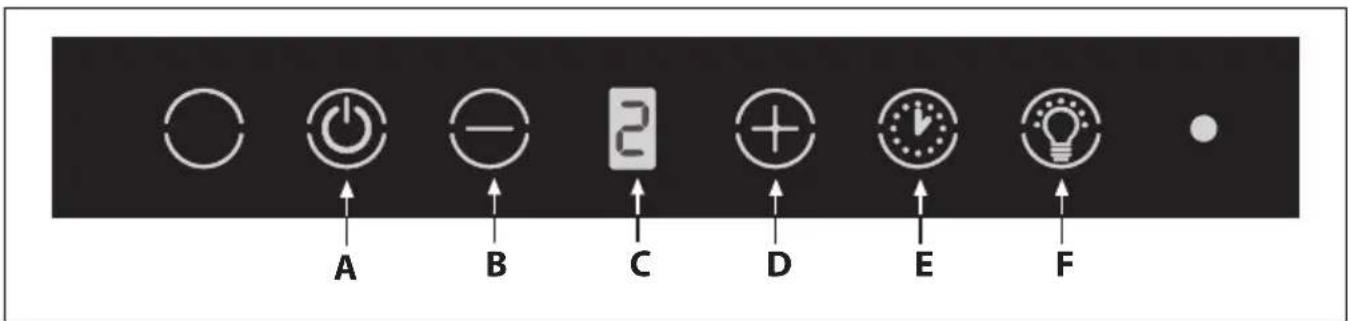

• Anti-grease/active charcoal filters saturation: - After 30 h of operation, when the C display flashes, alternating the working speed with the letter F (i.e. 2 and F), this means that you need to wash the anti grease filters. - After 120 h of operation, when the C display flashes, alternating the working speed with the letters C/F (i.e. 2 and C/F), this means that you need to wash or replace the charcoal filters. - Once you have repositioned the clean filter, you need to reset the electronic memory with the hood on, pressing the B button for about 3 seconds. After that time, the letter E appears on the display (reset confirmed) and the hood switches off. MAINTENANCE

• Use only a damp doth with neutral liquid detergent.

• Do not use wet sponges or cloths, water jets, thinners, solvents, hydrochloric acid, bleach, alcohol or abrasive substances.

• Unplug the appliance or switch off the circuit breaker before carrying out maintenance operations. Lamp Replacement

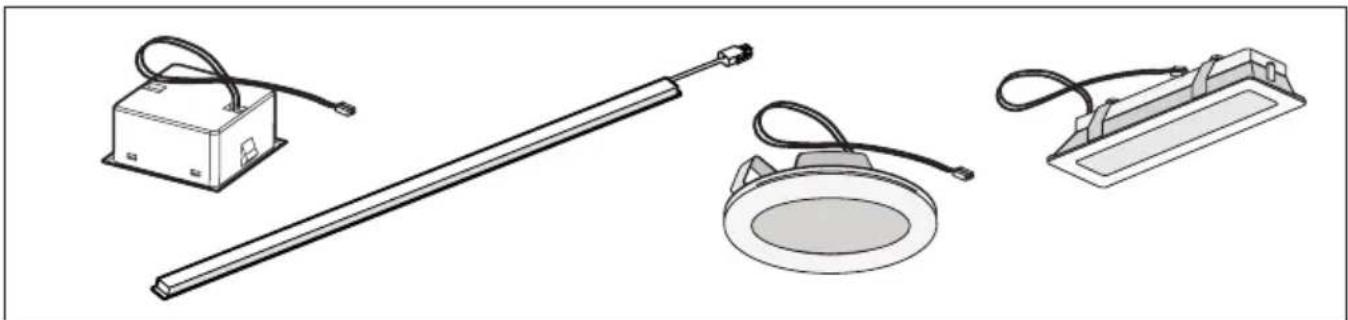

• Only use lamps of the same type and Wattage instal- led on the device. LED Replacement (Fig.4)

• If the appliance version is with LED lamps, the intervention of a specialised technician is necessary to replace them. Filters Replacement

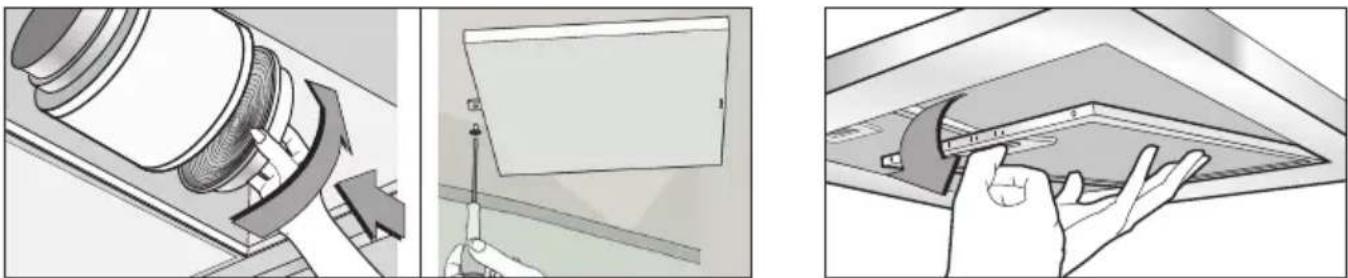

• ACTIVATED CARBON FILTERS (Only filtering types) (Fig. 5): - The filter assembly can not be regenerated and must be replaced at least every two months.

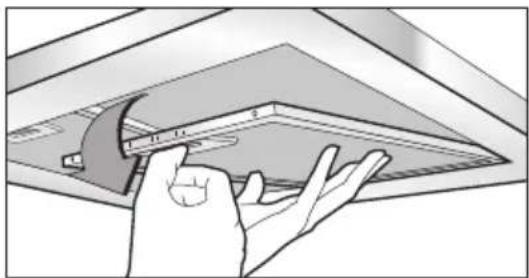

• METALLIC ANTI-GREASE FILTERS (Fig. 6): - The filters must be washed at least one a month with hot water and detergent. - It can also be washed in the dishwasher. - Open by means of the handle. Tips for Energy Saving

• Always use the cover corresponding to each pot. When cooking without a lid, the energy consumption is somewhat greater.

• Use a glass lid to see inside without having to lift it.

• Use containers flatbed. If the base is not flat, the energy consumption is greater.

• For small amounts, use small pans. A large bowl and filled just needs a lot of energy.

• For cooking, use a little water. Thus, it saves energy and preserves all the vitamins and minerals in vegetables.
