the Citrus Press SCP600 - Juicer SAGE - Free user manual and instructions

Technical Features	Pressure juice extractor, 160 W power, compact design, compatible with all citrus fruits.
Usage	Easy to use with a simple on/off button, ideal for preparing fresh juices at home.
Maintenance and Repair	Removable and dishwasher-safe parts, easy cleaning, 2-year warranty.
Safety	Overheat protection system, non-slip feet for stable use.
General Information	Compact dimensions, lightweight, ideal for daily use, modern design.

Frequently Asked Questions - the Citrus Press SCP600 SAGE

How do I clean the SAGE the Citrus Press SCP600 juice extractor?

To clean the juice extractor, disassemble the removable parts and wash them with warm soapy water. You can also place them in the dishwasher. Wipe the body of the device with a damp cloth.

The SAGE juice extractor won't start, what should I do?

Check that the device is properly assembled and that the lid is securely in place. Also ensure it is plugged into a working outlet.

Can I use citrus fruits of different sizes with this extractor?

Yes, the SAGE the Citrus Press SCP600 juice extractor is designed to accommodate citrus fruits of different sizes thanks to its adjustable cone.

What type of fruits can I use with the SAGE the Citrus Press SCP600?

This extractor is mainly designed for citrus fruits such as oranges, lemons, limes, and grapefruits.

Is there a warranty on the SAGE the Citrus Press SCP600?

Yes, the product generally comes with a 2-year warranty, but it is recommended to check the specific conditions on the manufacturer's website.

How do I get the maximum juice from my citrus fruits?

Cut the citrus fruits in half before pressing, and press slowly and firmly to extract the maximum juice.

The juice extractor makes a lot of noise, is that normal?

A certain level of noise is normal during the operation of the extractor. If the noise is excessive or unusual, check if the parts are properly secured.

Where can I buy spare parts for the SAGE the Citrus Press SCP600?

Spare parts can be purchased directly from the manufacturer's website or from authorized dealers.

Can I use this extractor for other fruits besides citrus?

It is recommended to use this extractor mainly for citrus fruits. For other fruits, a different juice extractor might be more appropriate.

What is the power of the SAGE the Citrus Press SCP600 juice extractor?

The extractor has a power of 160 watts, which is sufficient to efficiently press citrus fruits.

USER MANUAL the Citrus Press SCP600 SAGE

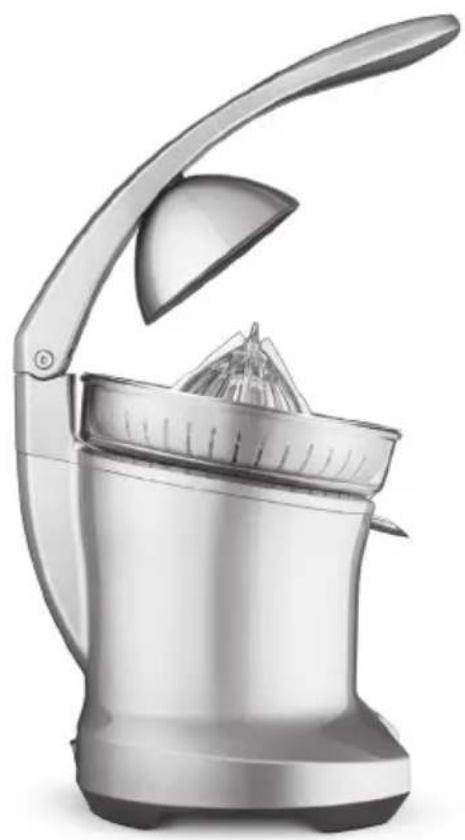

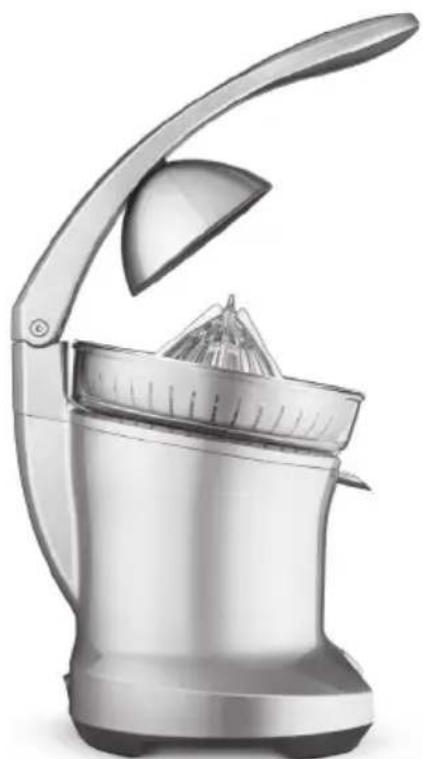

the Citrus Press ^M

BCP600/SCP600

Illustration of a stainless steel grater with a handle and lid, no text or symbols present

ENUSER GUIDE

FRGUIDE UTILISATEUR

ITMANUALE UTENTE

PTMANUAL DO UTILIZADOR

DEHANDBUCH

NLHANDLEIDING

ESGUÍA DEL USUARIO

PLINSTRUKCJA OBSŁUGI

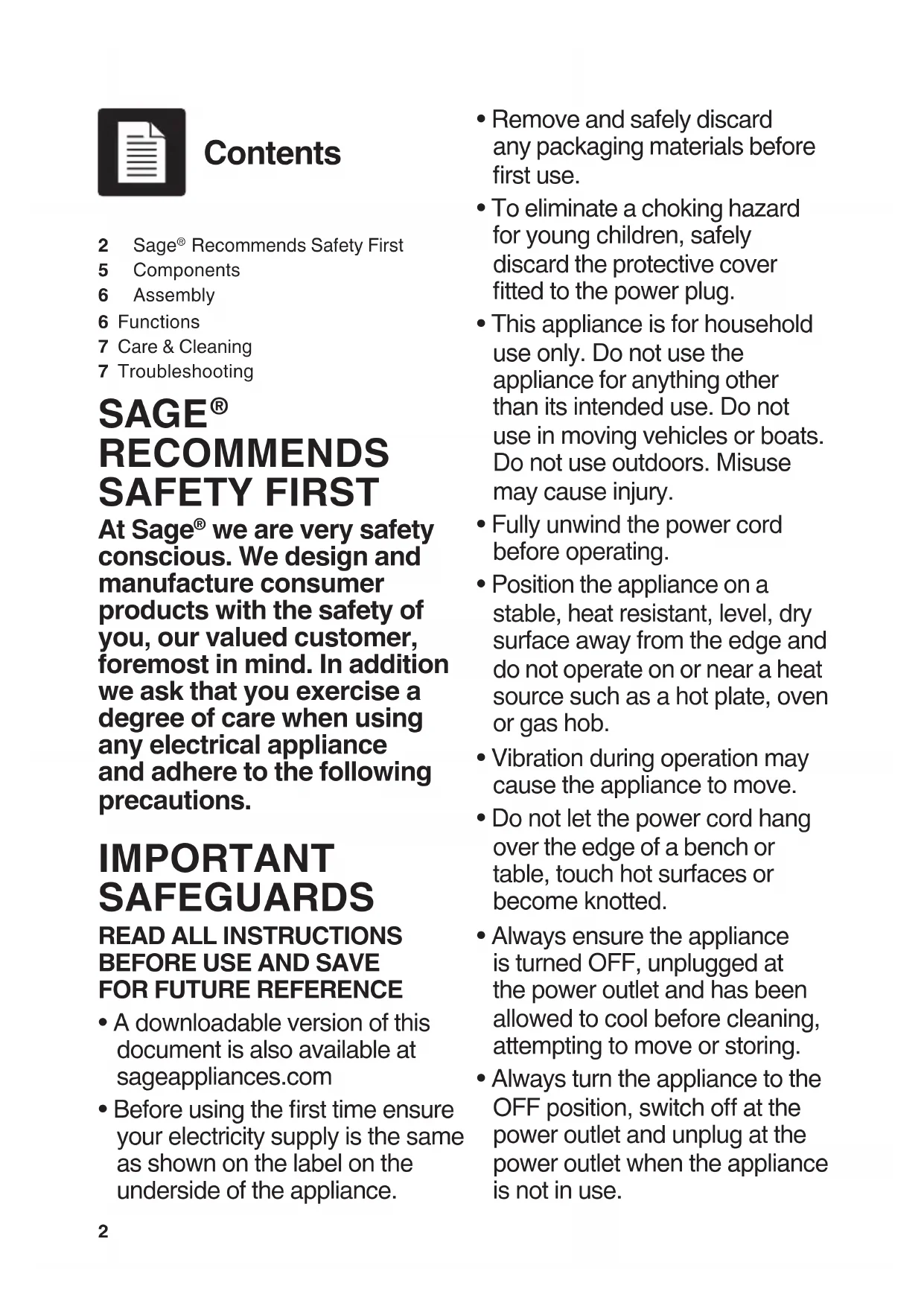

Contents

2 Sage® Recommends Safety First
5 Components
6 Assembly
6 Functions
7 Care & Cleaning
7 Troubleshooting

SAGE® RECOMMENDS SAFETY FIRST

At Sage® we are very safety conscious. We design and manufacture consumer products with the safety of you, our valued customer, foremost in mind. In addition we ask that you exercise a degree of care when using any electrical appliance and adhere to the following precautions.

IMPORTANT SAFEGUARDS

READ ALL INSTRUCTIONS BEFORE USE AND SAVE FOR FUTURE REFERENCE

• A downloadable version of this document is also available at sageappliances.com

• Before using the first time ensure your electricity supply is the same as shown on the label on the underside of the appliance.

• Remove and safely discard any packaging materials before first use.

• To eliminate a choking hazard for young children, safely discard the protective cover fitted to the power plug.
• This appliance is for household use only. Do not use the appliance for anything other than its intended use. Do not use in moving vehicles or boats. Do not use outdoors. Misuse may cause injury.
• Fully unwind the power cord before operating.
• Position the appliance on a stable, heat resistant, level, dry surface away from the edge and do not operate on or near a heat source such as a hot plate, oven or gas hob.
• Vibration during operation may cause the appliance to move.
• Do not let the power cord hang over the edge of a bench or table, touch hot surfaces or become knotted.
  • Always ensure the appliance is turned OFF, unplugged at the power outlet and has been allowed to cool before cleaning, attempting to move or storing.

• Always turn the appliance to the OFF position, switch off at the power outlet and unplug at the power outlet when the appliance is not in use.

• Do not use the appliance if the power cord, plug, or appliance becomes damaged in any way. If damaged or maintenance other than cleaning is required, please contact Sage Customer Service or go to sageappliances.com

• Any maintenance other than cleaning should be performed by an authorised Sage® service centre.
  • Children should not play with the appliance.
• Cleaning of the appliance should not be carried out by children unless they are 8 years or older and supervised.
• The appliance and its cord should be kept out of reach of children aged 8 years and younger.
• The installation of a residual current safety switch is recommended to provide additional safety when using all electrical appliances. Safety switches with a rated operating current not more than 30mA are recommended. Consult an electrician for professional advice.
  • Always ensure the appliance is properly assembled before use. The appliance will not operate unless properly assembled.

• Do not use the appliance on a sink drain board.

• Keep hands, fingers, hair, clothing as well as spatulas and other utensils away from moving or rotating parts during operation.

• Do not use the appliance for anything other than food and/or beverage preparation.
• In order to avoid the possible hazard of the appliance starting by itself due to inadvertent resetting of the overload protection, do not attach an external switching device (such as a timer) or connect the appliance to a circuit that can regularly switch the appliance on and off.
• Carefully read all instructions before operation and save for future reference.
• The appliance can be used by persons with reduced physical or mental capabilities or a lack of experience and knowledge, only if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• This appliance shall not be used by children.
• Allow the motor to rest for 1 minute between each use.
• Avoid placing hands or fingers near the hinge of the juice press arm when operating or moving the unit.

The symbol shown indicates that this appliance should not be disposed of in normal household waste.

It should be taken to a local authority waste collection centre designated for this purpose or to a dealer providing this service. For more information, please contact your local council office.

To protect against electric shock, do not immerse the power plug, cord or appliance in water or any liquid.

SAVE THESE INSTRUCTIONS

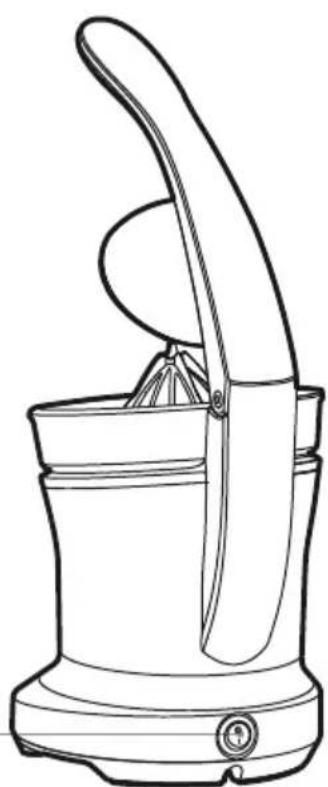

Components

Simple line drawing of a conical object with radial grooves, labeled 'A' (no text or symbols on the object itself)

Simple line drawing of a conical object with internal lines and labeled point B (no text or symbols on the object itself)

Line drawing of a woven basket with label 'C' pointing to the side (no other text or symbols)

D E

Line drawing of a mechanical device with a handle and central shaft (no text or symbols)

Rating Information 220-240V\~50Hz 110W

A. Fruit dome
B. Juicing cone

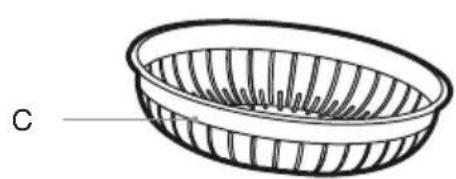

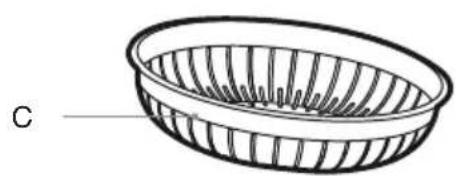

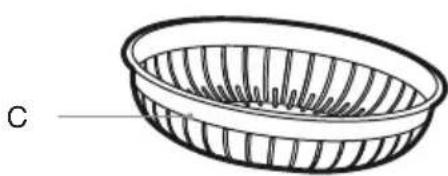

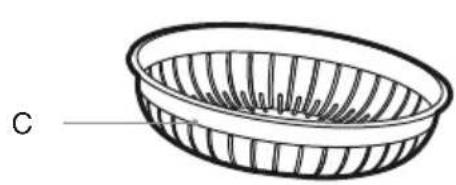

C. Juice filter Dishwasher safe.

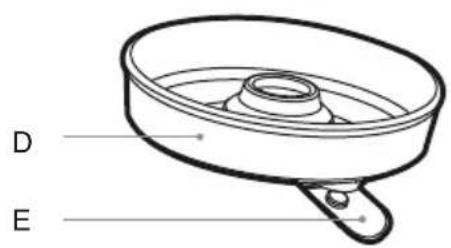

D. Juice collector Dishwasher safe.
E. Juice spout

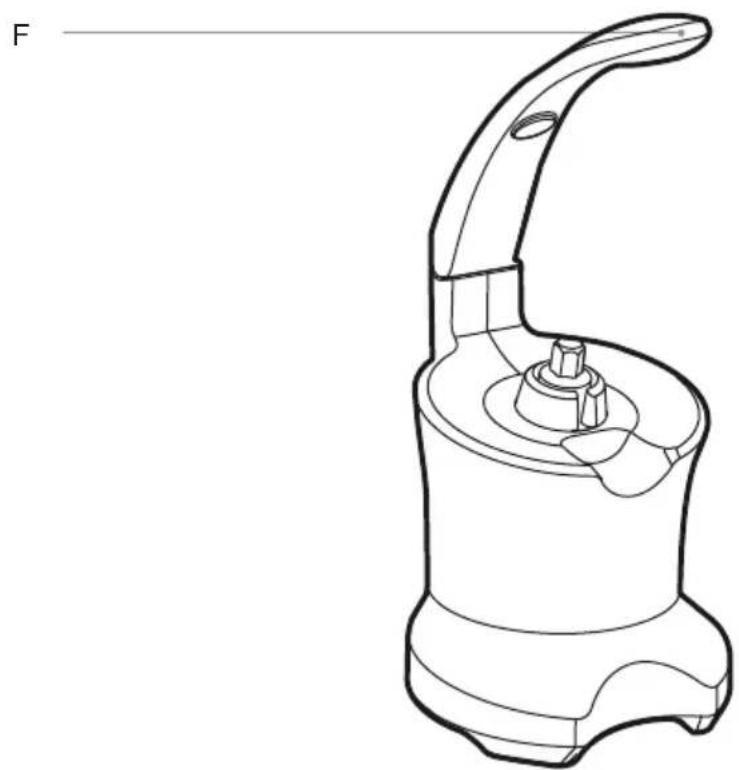

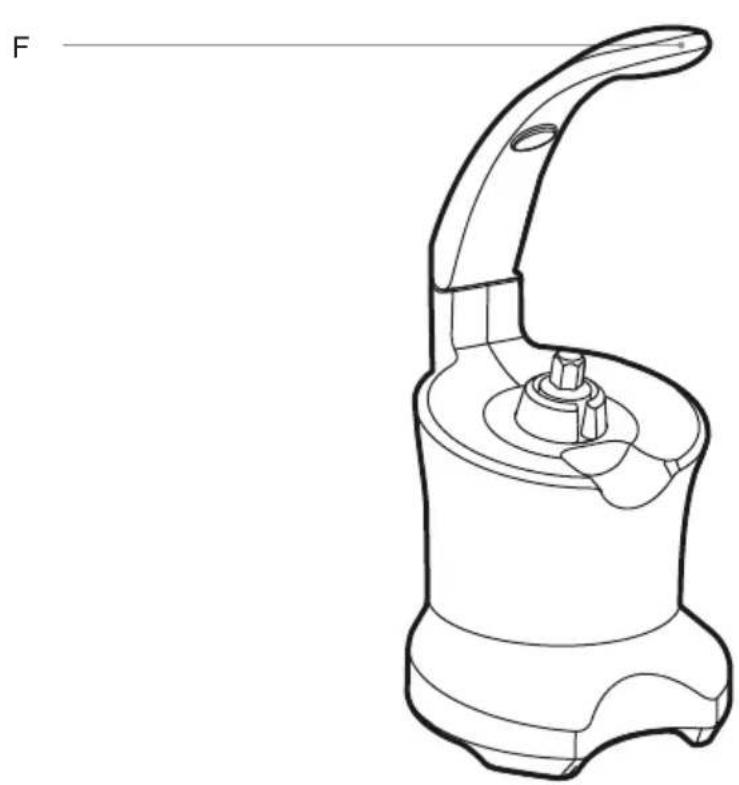

F. Juice press arm
G. ON/OFF switch
H. Cord storage (not shown)
I. Safety locking system (not shown)

G

Line drawing of a hand mixer with handle and spout (no text or symbols)

Assembly

ASSEMBLING THE JUICER

1. Pull the juice press arm up, away from the motor base, until fully extended.
2. Place the juice collector onto the drive shaft on top of the motor base, ensuring the juice spout fits into the semi-circular groove at the front of the motor base.
3. Insert the filter into the juice collector, aligning the indent with arrow in the bottom of the filter over the corresponding tab with arrow in the juice collector.
4. Place the juicing cone onto the drive shaft and press down lightly to lock the cone into position.
5. To insert the fruit dome, place it into the hole on the underside of the juice press arm. The fruit dome is magnetic and will stick into place.
6. Ensure the anti-drip juice spout is pushed down into the pouring position.

DISASSEMBLING THE JUICER

1. Turn the juicer OFF at the ON/OFF button, then unplug from the power outlet.
2. Pull the juice press arm up, away from the motor base, until fully extended. Close the anti drip spout by flipping it up.
3. Remove the fruit dome by pulling on it gently to release the magnet
4. Lift the juice collector from the base with the filter, juicing cone and fruit dome still in place. Remove the cone and filter from the juice collector over a sink for easier cleaning. Follow recommended care and cleaning guidelines.

Functions

1. Ensure the juicer is correctly assembled and a glass or jug is placed under the juice spout before juicing.
2. Cut the citrus fruit in half by cutting across the fruit segments, rather than across the tip ends, to ensure more efficient juicing.
3. Plug the power cord into a 220–240V power outlet, then press ON/OFF switch to ON.
4. Place a citrus fruit half, cut side down, onto the juice cone and push down lightly onto the spikes.
5. Grasp the handle and slowly lower the juice press arm. Press down (in a gentle but firm action) until the fruit dome is in contact with the fruit skin. The motor will automatically start and the juicing cone will begin to rotate. The juice will be extracted from the fruit and flow through the juice spout into the glass. The pulp and seeds will collect in the filter.
6. The juicer juices very quickly so each fruit half will be juiced in a few seconds. To automatically stop the motor, lift the juice press arm up to its extended position.
7. Remove the used fruit from the juicing cone. Empty excess pulp and seeds from the filter as required. Repeat Steps 3–7 to continue juicing.

NOTE

The filter should be emptied when full with pulp and seeds. The filter can be emptied during juicing by turning the juicer OFF at the ON/OFF switch and carefully removing the juicing cone and filter. Clean and replace filter and juicing cone before continuing to juice. Do not allow the filter to overfill as this may prevent correct operation or damage the unit.

Care & Cleaning

• Always ensure that the juicer is turned OFF at the ON/OFF switch and the plug is removed from the power outlet before cleaning, disassembling, assembling and storing the appliance.
• Follow these instructions to clean all surfaces or parts that come into contact with food during juicing.
• For easy cleaning immediately after each use rinse removable parts under warm water to remove wet pulp. Allow parts to air dry before reassembling.
• For thorough cleaning after disassembling the appliance, all removable parts should be washed in warm soapy water or on the top shelf of the dishwasher. The base and juice press arm should be wiped with a soft, damp cloth. All parts should be dried thoroughly before reassembling.
• Store the cleaned and reassembled juicer in an upright position in a cool, dry place. Do not place any items on top of the juicer while stored.

NOTE

- Never immerse the motor base in water or any other liquid. Do not use harsh abrasives.

Troubleshooting

POSSIBLE PROBLEM	EASY SOLUTION
Will not work	Switch not in the ON positionJuice press arm not loweredJuicing cone or fruit dome not assembled properlyFilter not assembled properlyMotor overload protection may have operated (see below)
Motor Overload Protection	The juicer is fitted with an overload protector to prevent damage to the Motor.If the Motor suddenly stops working after heavy or long periods of use, turn OFF at the ON/OFF button, unplug from the wall and allow the unit to cool for 15 minutes.Once the unit is cooled you will be able to use the juicer again as normal.NOTE: The unit MUST be unplugged from the supply to allow the protector to reset.Despite this overload protector we suggest juicing in smaller batches in order to protect the Motor.

Guarantee

2 YEAR LIMITED GUARANTEE

Sage Appliances guarantees this product for domestic use in specified territories for 2 years from the date of purchase against defects caused by faulty workmanship and materials. During this guarantee period Sage Appliances will repair, replace, or refund any defective product (at the sole discretion of Sage Appliances).

All legal warranty rights under applicable national legislation will be respected and will not be impaired by our guarantee. For full terms and conditions on the guarantee, as well as instructions on how to make a claim, please visit www.sageappliances.com.

the Citrus Press ^M

Illustration of a stainless steel grater with a handle and lid, no text or symbols present

DEHANDBUCH

Sage®

Inhalte

Simple line drawing of a conical object with radial grooves, labeled 'A' (no text or symbols on the object itself)

Simple line drawing of a conical object with internal lines and labeled point B (no text or symbols on the object itself)

Line drawing of a woven basket with label 'C' pointing to the side (no text or symbols on the basket itself)

D E

Line drawing of a mechanical device with a handle and central shaft (no text or symbols)

Line drawing of a hand mixer with handle and spout (no text or symbols)

Montage

the Citrus Press ^M

Illustration of a stainless steel grater with a handle and lid, no text or symbols present

FRGUIDE UTILISATEUR

Sage®

Table des matières

Simple line drawing of a conical fan or lid with a radial grille, labeled 'A' at the top (no text or symbols on the fan itself)

Simple line drawing of a conical object with internal lines and labeled point B (no text or symbols on the object itself)

Line drawing of a woven basket with label 'C' pointing to the side (no text or symbols on the basket itself)

D E

Line drawing of a mechanical switch or dial with handle and base (no text or symbols)

G

Line drawing of a hand mixer with handle and spout (no text or symbols)

the Citrus Press ^M

Illustration of a stainless steel grater with a handle and lid, no text or symbols present

NLHANDLEIDING

Sage®

Inhoud

Simple line drawing of a conical fan or lid with radial lines, labeled 'A' at the top (no text or symbols on the fan itself)

Simple line drawing of a conical object with internal lines and labeled point B (no text or symbols on the object itself)

Line drawing of a woven basket with label 'C' pointing to the side (no text or symbols on the basket itself)

D E

Line drawing of a mechanical device with an open lid and central shaft (no text or symbols)

Classificatiegegevens
220 - 240 V \~ 50 Hz 110 W

Line drawing of a hand mixer with handle and spout (no text or symbols)

Montage

DE CITRUSPERS IN ELKAAR ZETTEN

the Citrus Press ^M

Illustration of a stainless steel grater with a handle and lid, no text or symbols present

ITMANUALE UTENTE

Sage®

Sommario

Simple line drawing of a conical object with radial grooves, labeled 'A' (no text or symbols on the object itself)

Simple line drawing of a folded or folded object with no text, numbers, or symbols

Line drawing of a woven basket with label 'C' pointing to the side (no text or symbols on the basket itself)

D E

Line drawing of a mechanical device with a handle and central shaft (no text or symbols)

Line drawing of a hand mixer with handle and spout (no text or symbols)

Montaggio

MONTAGGIO DELLO SPREMIAGRUMI

the Citrus Press ^M

Illustration of a stainless steel grater with an orange juice pan on top (no text or symbols)

ESGUÍA DEL USUARIO

Sage®

Índice

Simple line drawing of a conical fan or horn-like object with radial ridges, labeled 'A' (no text or symbols on the diagram itself)

Simple line drawing of a conical object with internal lines and labeled point B (no text or symbols on the object itself)

Line drawing of a woven basket with label 'C' pointing to the side (no text or symbols on the basket itself)

D E

Line drawing of a mechanical device with a handle and central shaft (no text or symbols)

Line drawing of a hand mixer with handle and spout (no text or symbols)

Ensamblaje

Funciones

ENSAMBLAJE DEL EXPRIMIDOR

the Citrus Press ^M

Illustration of a stainless steel grater with a handle and lid, no text or symbols present

PTMANUAL DO UTILIZADOR

Sage®

Índice

Simple line drawing of a conical object with radial grooves, labeled 'A' (no text or symbols on the object itself)

Simple line drawing of a conical object with internal lines and labeled point B (no text or symbols on the object itself)

Line drawing of a woven basket with label 'C' pointing to the side (no text or symbols on the basket itself)

D E

Line drawing of a mechanical device with an open lid and central hub (no text or symbols)

Line drawing of a hand mixer with handle and spout (no text or symbols)

Montagem

MONTAR O ESPREMEDOR

the Citrus Press ^M

Illustration of a stainless steel grater with a handle and lid, no text or symbols present

PLINSTRUKCJA OBSŁUGI

Sage®

Spis treści

Simple line drawing of a conical fan or horn-like object with radial blades, labeled 'A' at the top (no text or symbols on the diagram itself)

Simple line drawing of a conical object with internal lines and labeled point B (no text or symbols on the object itself)

Line drawing of a woven basket with label 'C' pointing to the side (no other text or symbols)

D E

Line drawing of a mechanical switch or lever component (no text or symbols)

Line drawing of a hand mixer with handle and spout (no text or symbols)

BRG Appliances Limited

Unit 3.2, Power Road Studios,

114 Power Road, London, W4 5PY

Freephone (UK Landline): 0808 178 1650

Mobile Calls (National Rate): 0333 0142 970

DEU

Sage Appliances France SAS

www.sageappliances.com

Registered in England & Wales No. 8223512

Registered in Germany No. HRB 81309 (AG Düsseldorf)

Registered in France No. 879 449 866 RCS

EN Due to continued product improvement, the products illustrated or photographed in this document may vary slightly from the actual product.

Copyright BRG Appliances 2023
