Product type	Refrigerator
Total capacity	140 liters
Dimensions (HxWxD)	85 x 55 x 58 cm
Weight	40 kg
Energy class	A+
Noise level	42 dB
Cooling system	Static
Number of drawers	2 freezer drawers
Additional features	LED lighting, adjustable thermostat
Usage	Ideal for small spaces, offices, or studios
Maintenance	Manual defrost recommended
Annual energy consumption	200 kWh
Warranty	2 years
Safety measures	Protection against electrical overloads
Included accessories	Adjustable shelves, vegetable drawer

Frequently Asked Questions - GUF1400X Scandomestic

The Scandomestic GUF1400X refrigerator is not cooling properly. What should I do?

Check that the temperature is set correctly. Make sure the vents are not blocked and that the refrigerator is level. If the problem persists, check the door seals to ensure they are in good condition.

How do I clean the inside of the refrigerator?

Unplug the refrigerator. Remove all food and shelves. Use a mixture of lukewarm water and mild soap to clean the interior surfaces. Avoid abrasive products that could scratch the surfaces.

The refrigerator is making a strange noise. What should I do?

Check that the refrigerator is level and not in contact with other objects. The noises may also come from the compressor or fan. If the noise persists, contact a technician.

How do I adjust the temperature of the refrigerator?

Use the control panel inside the refrigerator to adjust the temperature. Refer to the user manual for recommended settings.

The lights inside the refrigerator do not turn on. What should I do?

Check if the refrigerator is plugged in. If the appliance is working but the lights do not turn on, the bulb may need to be replaced. Consult the manual for instructions.

How do I defrost the refrigerator?

Unplug the appliance and remove all food. Leave the door open to allow the ice to melt. Wipe up the water when defrosting is complete. Do not use sharp objects to remove the ice.

The Scandomestic GUF1400X refrigerator has an unpleasant odor. What should I do?

Check the food for any expired items. Clean the interior with a mixture of water and baking soda. Place a bowl of baking soda inside to neutralize odors.

What is the warranty period for the Scandomestic GUF1400X?

The warranty period is generally 2 years. Check the user manual or Scandomestic website for specific information.

USER MANUAL GUF1400X Scandomestic

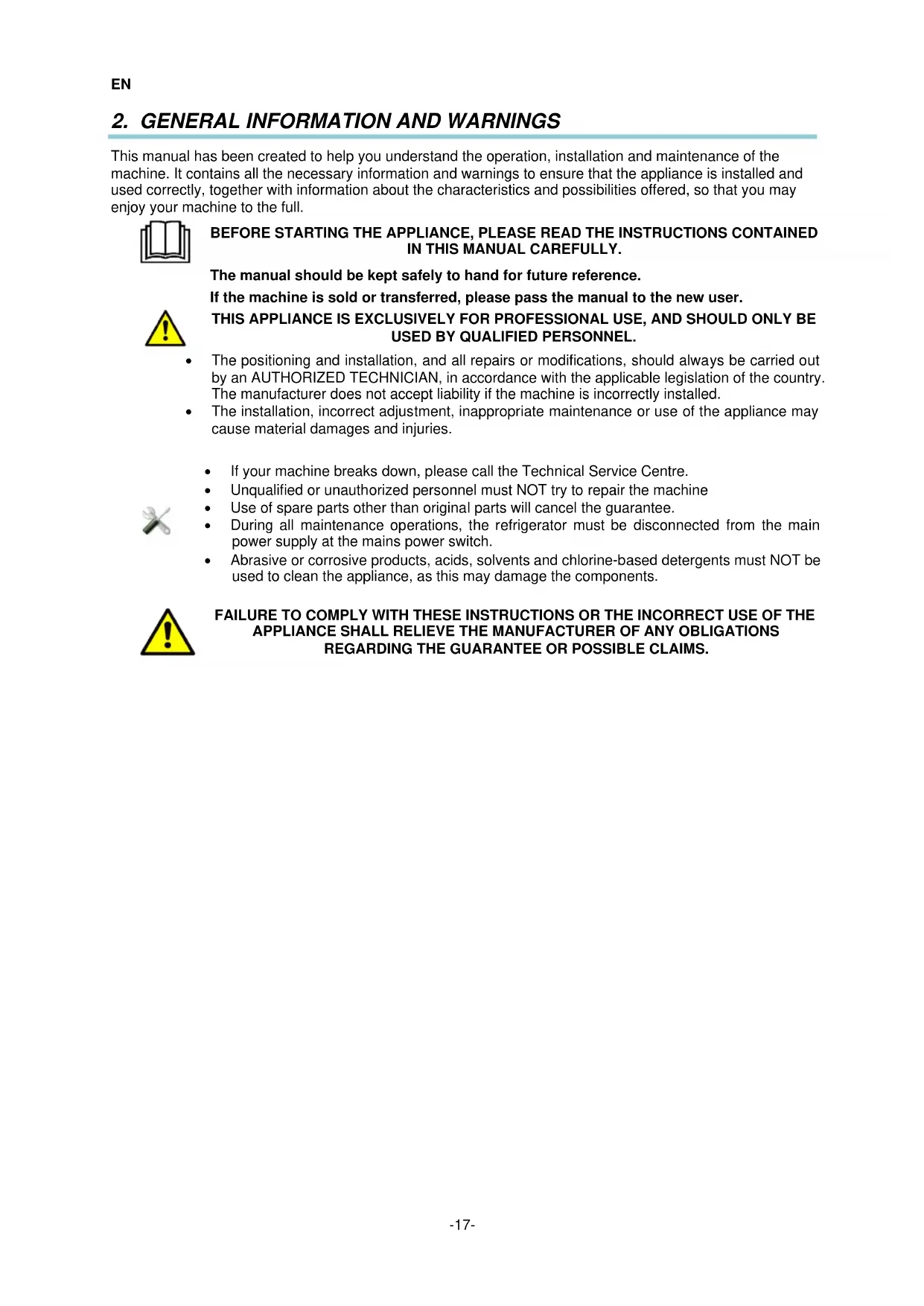

This manual has been created to help you understand the operation, installation and maintenance of the machine. It contains all the necessary information and warnings to ensure that the appliance is installed and used correctly, together with information about the characteristics and possibilities offered, so that you may enjoy your machine to the full.

The manual should be kept safely to hand for future reference. If the machine is sold or transferred, please pass the manual to the new user.

• The positioning and installation, and all repairs or modifications, should always be carried out by an AUTHORIZED TECHNICIAN, in accordance with the applicable legislation of the country. The manufacturer does not accept liability if the machine is incorrectly installed.

• The installation, incorrect adjustment, inappropriate maintenance or use of the appliance may cause material damages and injuries.

• If your machine breaks down, please call the Technical Service Centre.

• Unqualified or unauthorized personnel must NOT try to repair the machine

• Use of spare parts other than original parts will cancel the guarantee.

• During all maintenance operations, the refrigerator must be disconnected from the main power supply at the mains power switch.

• Abrasive or corrosive products, acids, solvents and chlorine-based detergents must NOT be used to clean the appliance, as this may damage the components.

All the appliances have a specification plate which identifies it and indicates its technical characteristics; it is located on one side of the machine. Don`t remove the specifications plate from the unit. Brief introduction to the plate sticked to the machine:

CLIMATIC CLASS (N=4)

Note: This plate is an example; reality might differ slightly from it. These details should be given when the technical service is called. General characteristics Adquired device is designed to preserve drinks and food. We recommend to avoid putting hot food or containers, chemical, corrosive products or medicines inside the refrigerator, and avoiding the incorrect use of the unit. Depending on the temperature that machine performs, it can be classified into the following families: CHILLER (+ 8 to -2°C) Machines to keep fresh or previously cooked food for short periods. Also used to chill drinks FISH DEPARTMENT (-6 to 2°C) For keeping fish covered in ice fresh for short periods of time. FREEZER (-18 a -22°C) Machines to keep food frozen for long periods. (up to 6 months)

The machine is designed to work under climate class 4 that consist of following conditions: Environmental conditions Limits Dry bulb temperature (ºC) +38°C Condensing temperature +54°C Relative Humidity (%) 60%

The versions with interior LED light contain a light source of energy efficiency class F. The light source of this product may only be replaced by a professional. Check Figure 1 to 16 to know the dimensions of the machine and table 1 for the general characteristics.EN

The location and installation, as well as all kind of repairs and transformation, always must be carried out by an AUTHORIZED TECHNICIAN, according to the regulation in force in each country Installation, incorrect adjustment, service or unappropriated maintenance of the device, as well as a wrong handling of it, may cause both material damages and injuries. Removal of packaging Remove packaging from the machine and check if any damage during transportation. If any damage is observed, immediately notify the supplier and the transport company. In the event of doubt, do not use the machine until the problem has been assessed.

Packaging (plastic, expanded polyurethane, staples, etc…) must not be left in the reach of children, they are a potential hazard.

The cabinet should not be overturned. If necessary, some cabinets can be overturned by the side that is indicated on the packaging. If not indicated, it cannot be overturned. Wait at least 2 hours to turn the machine on since the machine is placed in the right location. The machine should be moved using a fork-lift truck or similar to avoid damage to the structure. Transport the machine to the installation location and then remove packaging. All the packaging can be recycled. Dispose of packaging correctly. Positioning and levelling Make sure the place to store the machine is free and clean, avoiding the fan absorbing the dust nearby which might block the condenser reducing the efficency of the machine. Remove the pallet carefully, avoiding any scratch to the machine. Level the machine by using the adjustable feet. Once the machine is levelled, pill the protective film off by using a no sharp knife to avoid scratches in the stainless steel.

B: THREAD: Rotate clock wise to lower down the machine. Rotate counter- clock wise to elevate the machine.

The cabinet, once it is located definitively, backside must be placed 50mm from the wall, 30mm from sides lateral and 500mm from the ceiling as it is indicated in Fig.17. If the machine is provided with castors, make sure the floor is totally flat. In the commissioning make sure there is no any heat source nearby. For an optimum performance of the equipment, it is really important that all air intakes, both in the fan located inside the chamber and in the condenser, are not clogged. Do not install the device outdoors. Do not introduce any element from the fan protector or in the refrigeration equipment area.EN

Electrical connection Electrical connection must be carried out by an AUTHORISED TECHNICIAN The legal standards in force in each country regarding connection to the mains should be taken into account.

• Check that the mains voltage corresponds to that indicated on the nameplate.

• It is essential that the electrical installation where the cabinet is going to be connected has an EARTHING SOCKET, in addition to the appropriate magneto-thermal switch and differential protection (we recommend 30 mA)

• The appliance must be earthed using a differential protector. The manufacturer will not be held liable for damage originated by failure to observe this requirement.

• The cross-section of the power cable must be suitable for the rated current of the machine.

• The plug should be Schuko type with grounding and terminals of 4.8mm (F type) . It is forbidden to enlarge the plug for your safety. As optional, the equipment can be supplied with British type plugs (H type) or American type plugs (B type).

• If any faults are observed during the installation, the supplier should be notified immediately.

The manufacturer will not be held liable for any personal or material damage to the machine resulting from incorrect installation or failure to comply with the manufacturer’s specifications.

The electric specifications of the machine are shown in the specification plate. Section 3. There are 220V 60Hz and 115v 60 Hz versions, with the currents on the nameplate Drainage connection In fish storage cabinet, drainage hose of the cabinet should be connected to the water drainage network. Check figures 1 - 16 to see the position of the drainage. Recycling The product packaging consists of:

• A polypropylene band.

• Expanded polyethylene.

All the packaging used around the machine can be recycled; The correct disposal of these products will help to protect the environment. For further information regarding the recycling of these products, please refer to the relevant office of the local body. Dispose of these materials in accordance with current legislation.EN

THE APPLIANCE IS EXCLUSIVELY FOR PROFESSIONAL USE, AND SHOULD ONLY BE USED BY QUALIFIED PERSONNEL. Operation The steps required to optimize the operation of your machine are shown below, with all the available options. Control panel symbols The control panel has an On/ Off switch and one thermostat. In the Figure 18 and 19 you can see them in detail. Switching on the machine

• Once the machine is clean, connect the machine to the energy supply and turn the switch into ON position. The light will on.

• The thermostat displays the temperature inside the cabinet.

• Three minutes after switching ON the machine, the signal (Fig.19) of the compressor will light on until the device reaches set point temperature.

• In the begining the temperature of the displayed will be ambient one. After some time, if the doors are closed, the temperture will descend till the set temperature.

• In freezer cabinets the machine is set to make defrosting two hours after the start up.

• It is recommended to reach the set temperature before loading the cabinet. Performance of the machine This machine is dessigned for an optimum preservation of beverage and food. Therefore follow below advises:

1) In order to reach a proper performance, do not store warm products as well as beverage whose

container is not correctly closed.

2) Avoid storage of chemical products, corrosive staff or drugs.

3) Protect the food and the smells with a sealed package. Store the product allowing and optimum

4) Do not store unprotected/ unpacked food to avoid rust in the device.

5) As far as possible, avoid continuous opening of the doors and above all do not leave them open.

6) Do not load the device above the marked level.

7) Momentary power interruption. If the interruption does not exceed 20 minutes, no need to take any

precautions, avoid opening the doors only to the extent possible, in order to avoid loss of temperature. If the interruption lasts more than 20 minutes, check that food does not exceed the critical temperature, check that they are not altered and avoid opening the door Maximum temperatures so that food are not deteriorated are as follows:

Type of equipment Maximum Tª of the device Chiller + 10° C Fish + 2ºC Freezer - 15°C

8) The water of the defrost is directed by a pipe to the evaporation tray in the back side of the

container, where water is evaporated with the heat of the condenser.EN

1) Stability is guaranteed, even with open doors, but it is forbidden to stand on them.

2) Is not recommended to load Internal grids and trays over 40 kg. The load must be evenly

3) It is complete forbidden to sit or lean over the drawers.

4) In case of breakdown, it is not allowed to approach the refrigerator barefoot, wet soil or wet hands.

Switch off the machine Put the switch in OFF or in O position to switch off the machine, the light will off. Useful tips Read carefully the below advices so as to reach the full potential of the refrigeration cabinet. Maintenance Carry out necessary cleaning operation in order to enlarge the service life of the machine.

• Remove any waste from the machine at the end of each day. Before cleaning the machine, unplug the machine from the electricity supply and put the switch in OFF or O position. The cabinets include a drainage in the bottom of refrigerated chamber, to help the cleaning operation, as well as the eventual output of liquids from food. During the cleaning operation it is essential to remove the drain plug and clean it, to prevent clogging by solid elements. It prevents accumulated liquids from stagnating.

• Do not use abrasive, corrosive or acid products, chlorine-based detergents, solvents or petrol derivatives to clean the machine.

• Do not use pressurized water to clean the machine.

• Take precautions before accessing to the unit condenser zone, due to the high temperatures there might be risk of burns

• Cleaning the condenser: During cleaning, avoid any bending of the condenser aluminum fins. It could affect on the condenser air circulation, causing serious damage to the equipment, being the repair out of warranty in that case.

• Check that the doors close perfectly.

• If any change of wires is needed, do not change for a lower section one

• The assembly of the electrical installation cover in the control panel is important. If disassembling is needed, it must be tightened back as it was.

• Twice a year call the technical service to carry out the relevant revisions: o Review of the status of the joints. o Review of the state of the components.

• If the wire is damaged, it should be replaced by the manufacturer, its after sales service department or by an autorized technicial to avoid any personal or equipment damage. Prolonged non use If the machine is kept out of service for a long period of time (holidays, temporary closure…), please observe the following:

• Clean the equipment carefully.

The steps to be followed in the event of a fault or operating error are described below. The possible causes and possible solutions are listed in the following table. In the event of doubt, or if you are unable to resolve the problem, please contact the technical service.

Do not handle electrical components, as there is a risk of death as the components are under network voltage FAULT POSSIBLE CAUSE SOLUTIÓN The machine does not work There is no power supply. Check whether the circuit breaker has been triggered. If there is light in the switch the machine is powered. Insufficient temperature Location of the equipment Check there is not a heat source nearby Thermostat parameters Check the set temperature of the thermostat is around 0ºC in refrigerators and -20 ºC in freezers. Push “set” button to check it.

Ambient temperature Check that ambient temperatura is below +32ºC in freezer cabinets and +38 ºC in refrigeratios and fish storage cabinets. These are devices guaranteed maximum working temperature Door closing Check that the doors close correctly Food distribution inside the machine Check that food does not block the air ventilation and the time elapsed from the time the food is stored inside the cabinet is enough for cooling the products. Cleaning of the condenser Check that the condenser is clean. Consider that the cleaner the refrigerator is the more energy will be saved. The cleaning frequency will depend on the conditions of the location. In case the condenser is dirty call after sales service. Strange or loud noise Incorrect levelling and bad closing of the doors. Check the levelling and good closing of the doors. Friction in the movable zones Check there is nothing in touch with the movable elements of the refrigerator. Together with this manual, it is supplied the instructions of the thermostat.

7. RECYCLING THE PRODUCT

The European Directive 2012/19/EU relating to Waste Electrical and Electronic Equipment (WEEE) states that household appliances should not be disposed of using the normal solid urban waste cycle. Exhausted appliances should be collected separately in order to optimise the cost of re-using and recycling the materials inside the machine, while preventing potential damage to the atmosphere and to public health. The crossed-out dustbin is marked on all products to remind the owner of their obligations regarding separated waste collection. For more information, relating to the correct disposal of household appliances, owners should contact their local authorities or appliance dealer.

NOTE: If a fault occurs and is not listed in the above table, please call the technical service. The manufacturer reserves the right to modify the technical characteristics with prior warning.FR

KLASA KLIMATYCZNA (N=4)

3. PRODUCTBESCHRIJVING

KLIMAATKLASSE (N = 4)

Switching on the machine

package. Store the product allowing and optimum air circulation.

Access to professional repair, such as internet webpages, addresses, contact details. Model no: GUF700X Aftersales service station list: Address Scandomestic A/S Contact Number

Relevant information for ordering spare parts, directly or through other channels provided by the manufacturer, importer or authorised representative; Scandomestic A/S The minimum period during which spare parts, necessary for the repair of the appliance, are available; 8 years Instruction on how to find the model information in the product database, as defined in Regulation (EU) 2019/2019 by means of a weblink that links to the model information as stored in the product database or a link to the product database and information on how to find the model identifier on the product.) www.scandomestic.dk Note: The address or contact phone number of the service site is subject to change without prior notice. Please confirm whether the service station is a directly affiliated one of our company when requiring services.

Access to professional repair, such as internet webpages, addresses, contact details. Model no: GUF1400X Aftersales service station list: Address Scandomestic A/S Contact Number

Relevant information for ordering spare parts, directly or through other channels provided by the manufacturer, importer or authorised representative; Scandomestic A/S The minimum period during which spare parts, necessary for the repair of the appliance, are available; 8 years Instruction on how to find the model information in the product database, as defined in Regulation (EU) 2019/2019 by means of a weblink that links to the model information as stored in the product database or a link to the product database and information on how to find the model identifier on the product.) www.scandomestic.dk Note: The address or contact phone number of the service site is subject to change without prior notice. Please confirm whether the service station is a directly affiliated one of our company when requiring services.

Access to professional repair, such as internet webpages, addresses, contact details. Model no: GUR700GDX Aftersales service station list: Address Scandomestic A/S Contact Number

Relevant information for ordering spare parts, directly or through other channels provided by the manufacturer, importer or authorised representative; Scandomestic A/S The minimum period during which spare parts, necessary for the repair of the appliance, are available; 8 years Instruction on how to find the model information in the product database, as defined in Regulation (EU) 2019/2019 by means of a weblink that links to the model information as stored in the product database or a link to the product database and information on how to find the model identifier on the product.) www.scandomestic.dk Note: The address or contact phone number of the service site is subject to change without prior notice. Please confirm whether the service station is a directly affiliated one of our company when requiring services.

Access to professional repair, such as internet webpages, addresses, contact details. Model no: GUR700X Aftersales service station list: Address Scandomestic A/S Contact Number

Relevant information for ordering spare parts, directly or through other channels provided by the manufacturer, importer or authorised representative; Scandomestic A/S The minimum period during which spare parts, necessary for the repair of the appliance, are available; 8 years Instruction on how to find the model information in the product database, as defined in Regulation (EU) 2019/2019 by means of a weblink that links to the model information as stored in the product database or a link to the product database and information on how to find the model identifier on the product.) www.scandomestic.dk Note: The address or contact phone number of the service site is subject to change without prior notice. Please confirm whether the service station is a directly affiliated one of our company when requiring services.

Access to professional repair, such as internet webpages, addresses, contact details. Model no: GUR1400X Aftersales service station list: Address Scandomestic A/S Contact Number

Relevant information for ordering spare parts, directly or through other channels provided by the manufacturer, importer or authorised representative; Scandomestic A/S The minimum period during which spare parts, necessary for the repair of the appliance, are available; 8 years Instruction on how to find the model information in the product database, as defined in Regulation (EU) 2019/2019 by means of a weblink that links to the model information as stored in the product database or a link to the product database and information on how to find the model identifier on the product.) www.scandomestic.dk Note: The address or contact phone number of the service site is subject to change without prior notice. Please confirm whether the service station is a directly affiliated one of our company when requiring services.

22041:2020, RoHS, 2011/65/UE, 2015/863/EU, 1907/2006/EC, REACH References to the relevant harmonised standards used, or references to the specifications in relation to which conformity is declared: EN 61000-3-2 Additional information: The appliance is intended exclusively for storing food

EU DECLARATION OF CONFORMITY

Ref. Ares In accordance with EN ISO 17050-1:2004Model number (unique identification of the product): GUF1400X Name and address of the manufacturer or his authorised representative: Scandomestic A/S Linåvej 20 8600 Silkeborg Denmark This declaration of conformity is issued under the sole responsibility of the manufacturer (or installer): Scandomestic A/S Linåvej 20 8600 Silkeborg Denmark Object of the declaration (identification of product allowing traceability. It may include a colour image of sufficient clarity to enable the identification of the product) Product: Storage Freezer Brand: Scancool Colour: Stainless Steel The object of the declaration described in point 4 is in conformity with the relevant Union harmonisation legislation: 2006/42/EC, 2014/30/EU, 2004/108/EC, 89/336/EEC and its amendments 92/31/EEC and 93/68/EEC, EN 55014-1:2006 +A1:2009 +A2:2012, EN 61000 -3-2: 2014, EN 61000-3-3: 2013, EN 55014-2:2015, 2014/35/EU, 2006/95/EC, 73/23/EEC and its amendment 93/68/EEC, EN 60335-2- 89:2010 + A1:2016 + A2:2017, EN 60335-1:2012 + AC:2014 + A11:2014 +

A12:2017 + A13:2017, EN 62233:2009,1095/2015/ES, 1094/2015/EC, ISO

22041:2020, RoHS, 2011/65/UE, 2015/863/EU, 1907/2006/EC, REACH References to the relevant harmonised standards used, or references to the specifications in relation to which conformity is declared: EN 61000-3-2 Additional information: The appliance is intended exclusively for storing food

EU DECLARATION OF CONFORMITY

Ref. Ares In accordance with EN ISO 17050-1:2004Model number (unique identification of the product): GUR700GDX Name and address of the manufacturer or his authorised representative: Scandomestic A/S Linåvej 20 8600 Silkeborg Denmark This declaration of conformity is issued under the sole responsibility of the manufacturer (or installer): Scandomestic A/S Linåvej 20 8600 Silkeborg Denmark Object of the declaration (identification of product allowing traceability. It may include a colour image of sufficient clarity to enable the identification of the product) Product: Storage Refrigerator Brand: Scancool Colour: Stainless Steel The object of the declaration described in point 4 is in conformity with the relevant Union harmonisation legislation: 2006/42/EC, 2014/30/EU, 2004/108/EC, 89/336/EEC and its amendments 92/31/EEC and 93/68/EEC, EN 55014-1:2006 +A1:2009 +A2:2012, EN 61000 -3-2: 2014, EN 61000-3-3: 2013, EN 55014-2:2015, 2014/35/EU, 2006/95/EC, 73/23/EEC and its amendment 93/68/EEC, EN 60335-2- 89:2010 + A1:2016 + A2:2017, EN 60335-1:2012 + AC:2014 + A11:2014 +

A12:2017 + A13:2017, EN 62233:2009, 2019/2024/EC, EN ISO 23953-

2:2016, RoHS, REACH References to the relevant harmonised standards used, or references to the specifications in relation to which conformity is declared: EN 61000-3-2 Additional information: The appliance is intended exclusively for storing food

EU DECLARATION OF CONFORMITY

Ref. Ares In accordance with EN ISO 17050-1:2004Model number (unique identification of the product): GUR700X Name and address of the manufacturer or his authorised representative: Scandomestic A/S Linåvej 20 8600 Silkeborg Denmark This declaration of conformity is issued under the sole responsibility of the manufacturer (or installer): Scandomestic A/S Linåvej 20 8600 Silkeborg Denmark Object of the declaration (identification of product allowing traceability. It may include a colour image of sufficient clarity to enable the identification of the product) Product: Storage Refrigerator Brand: Scancool Colour: Stainless Steel The object of the declaration described in point 4 is in conformity with the relevant Union harmonisation legislation: 2006/42/EC, 2014/30/EU, 2004/108/EC, 89/336/EEC and its amendments 92/31/EEC and 93/68/EEC, EN 55014-1:2006 +A1:2009 +A2:2012, EN 61000 -3-2: 2014, EN 61000-3-3: 2013, EN 55014-2:2015, 2014/35/EU, 2006/95/EC, 73/23/EEC and its amendment 93/68/EEC, EN 60335-2- 89:2010 + A1:2016 + A2:2017, EN 60335-1:2012 + AC:2014 + A11:2014 +

A12:2017 + A13:2017, EN 62233:2009,1095/2015/ES, 1094/2015/EC, ISO

22041:2020, RoHS, 2011/65/UE, 2015/863/EU, 1907/2006/EC, REACH References to the relevant harmonised standards used, or references to the specifications in relation to which conformity is declared: EN 61000-3-2 Additional information: The appliance is intended exclusively for storing food

EU DECLARATION OF CONFORMITY

Ref. Ares In accordance with EN ISO 17050-1:2004Model number (unique identification of the product): GUR1400X Name and address of the manufacturer or his authorised representative: Scandomestic A/S Linåvej 20 8600 Silkeborg Denmark This declaration of conformity is issued under the sole responsibility of the manufacturer (or installer): Scandomestic A/S Linåvej 20 8600 Silkeborg Denmark Object of the declaration (identification of product allowing traceability. It may include a colour image of sufficient clarity to enable the identification of the product) Product: Storage Refrigerator Brand: Scancool Colour: Stainless Steel The object of the declaration described in point 4 is in conformity with the relevant Union harmonisation legislation: 2006/42/EC, 2014/30/EU, 2004/108/EC, 89/336/EEC and its amendments 92/31/EEC and 93/68/EEC, EN 55014-1:2006 +A1:2009 +A2:2012, EN 61000 -3-2: 2014, EN 61000-3-3: 2013, EN 55014-2:2015, 2014/35/EU, 2006/95/EC, 73/23/EEC and its amendment 93/68/EEC, EN 60335-2- 89:2010 + A1:2016 + A2:2017, EN 60335-1:2012 + AC:2014 + A11:2014 +

A12:2017 + A13:2017, EN 62233:2009,1095/2015/ES, 1094/2015/EC, ISO

22041:2020, RoHS, 2011/65/UE, 2015/863/EU, 1907/2006/EC, REACH References to the relevant harmonised standards used, or references to the specifications in relation to which conformity is declared: EN 61000-3-2 Additional information: The appliance is intended exclusively for storing food

EU DECLARATION OF CONFORMITY

Ref. Ares In accordance with EN ISO 17050-1:2004
