Product Type	Freestanding Refrigerator with Freezer Compartment
Model	BIC249WE
Brand	Scandomestic
Total Net Capacity	249 Litres
Refrigerator Net Capacity	190 Litres
Freezer Net Capacity	59 Litres
Energy Class	F (EU Energy Label)
Annual Energy Consumption	215 kWh/year
Noise Level	40 dB(A)
Climate Class	N-ST
Dimensions (H x W x D)	177.5 cm x 54.5 cm x 54.9 cm
Weight	48 kg
Power Supply	220-240 V, 50 Hz
Current	0.8 A
Refrigerant	R600a
Defrost Method	Automatic (refrigerator), Manual (freezer)
Temperature Control	Mechanical thermostat
Interior Light	LED
Shelves Material	Glass
Door Reversibility	Yes
Freezer Star Rating	4 stars
Freezing Capacity	4 kg/24h
Storage Time During Power Failure	10 hours
Maintenance and Cleaning	Clean interior with mild detergent; condenser coils every 6 months
Safety Features	Child lock; high temperature alarm; door open alarm
Spare Parts Availability	Available for 7 years after purchase
Warranty	2 years

Frequently Asked Questions - BIC249WE Scandomestic

How do I properly install my Scandomestic BIC249WE refrigerator?

Place the refrigerator on a level surface away from heat sources and direct sunlight. Allow at least 10 cm clearance on sides and back for ventilation. Let the appliance stand upright for 4 hours before connecting to power.

What should I do if the refrigerator is not cooling enough?

Check that the temperature setting is correct (recommended 3-5°C for fridge, -18°C for freezer). Ensure the door seals properly and the condenser coils are clean. If problem persists, contact customer service.

How do I defrost the freezer compartment?

The freezer must be manually defrosted when ice thickness exceeds 5 mm. Unplug the appliance, remove food, and leave the door open. Place towels to catch water. Never use sharp tools to remove ice.

Why is my refrigerator making unusual noises?

Normal noises include gurgling from coolant, clicking from thermostat, and fan sounds. If you hear loud knocking or vibrations, check that the appliance is level and items inside are stable.

How can I save energy with my BIC249WE?

Keep the appliance away from heat sources, set temperature to recommended levels, avoid frequent door openings, and ensure door seals are clean and intact.

What is the recommended temperature for the refrigerator and freezer?

Fridge temperature should be between 3°C and 5°C, freezer temperature at -18°C or lower.

Can I reverse the door opening direction?

Yes, the door is reversible. Refer to the user manual for step-by-step instructions on how to change the door swing.

How do I clean the condenser coils?

Unplug the refrigerator, remove the front grille, and use a vacuum cleaner or soft brush to gently clean the coils. Reattach the grille and plug back in.

What should I do if the refrigerator stops working?

First, check if the power cord is connected and the circuit breaker hasn't tripped. If it's still not working, contact Scandomestic customer service for assistance.

How long can food be stored during a power outage?

The freezer can keep food frozen for about 10 hours. Avoid opening the doors unnecessarily. Perishable items in the fridge should be consumed within 4 hours.

USER MANUAL BIC249WE Scandomestic

Simple line drawing of a trash bin with no text or symbols

Simple line drawing of a table with a pointer and rotation arrow (no text or symbols)

monteringen.

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Technical line drawing of a mechanical bracket with an inset showing a cylindrical component (no text or symbols)

Diagram showing a mechanical assembly with two views and an arrow indicating direction (no text or symbols)

Simple line drawing of a document with arrows indicating rotation around it (no text or symbols)

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Four technical illustrations of a mechanical bracket with mounting holes and fasteners, shown in sequence (no text or symbols)

Simple line drawing of a rotating mechanical setup with a vertical rod and base, no text or symbols present.

Isometric diagram of a rectangular box with a side panel and two arrows indicating direction (no text or symbols)

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

Simple line drawing of a crane frame with a pulley and rotational arrow (no text or symbols)

Diagram showing a curved pipe or fiber with an arrow indicating direction, alongside a magnified inset of the fiber detail (no text or symbols present)

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Diagram of a hand holding scissors inside a heart-shaped container with arrows indicating motion (no text or symbols)

In the interest your safety information

In the interest of your safety and to ensure the correct use, before installing and first using the appliance, read this user manual carefully, including its hints and warnings. To avoid unnecessary mistakes and accidents, it is important to ensure that all people using the appliance are thoroughly familiar with its operation and safety features. Save these instructions and make sure that they remain with the appliance if it is moved or sold, so that everyone using it through its life will be properly informed on appliance use and safety.

For the safety of life and property keep the precautions of these user's instructions as the manufacturer is not responsible for damages caused by omission.

Children and vulnerable people safety

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given super vision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Children aged from 3 to 8 years are allowed to load and unload this appliance.
• Children should be supervised to ensure that they do not play with the appliance.
• Cleaning and user maintenance shall not be made by children unless they are aged from 8 years and above and supervised.
• Keep all packaging well away from children. There is risk of suffocation.
• If you are discarding the appliance pull the plug out of the socket, cut the connection cable (as close to the appliance as you can) and remove the door to prevent playing children to suffer electric shock

or to close themselves into it.

- If this appliance featuring magnetic door seals is to replace an older appliance having a spring lock (latch) on the door or lid, be sure to make that spring lack unusable before you discard the old appliance. This will prevent it from becoming a death trap for a child.

General safety

WARNING! Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

WARNING! Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

WARNING

WARNING! Do not damage the refrigerant circuit.

WARNING! Do not use other electrical appliances (such as ice cream makers) inside of refrigerating appliances, unless they are approved for this purpose by the manufacture.

WARNING! Do not touch the light bulb if it has been on for a long period of time because it could be very hot.

WARNING! When positioning the appliance, ensure the supply cord is not trapped or damaged.

WARNING! Do not locate multiple portable socket-outlets or portable power suppliers at the rear of the appliance.

• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

• The refrigerant isobutane (R-600a) is contained within the refrigerant circuit of the appliance, a natural gas with a high level of environmental compatibility, which is nevertheless flammable.

• During transportation and installation of the appliance, be certain that none of the components of the refrigerant circuit become damaged.

• avoid open flames and sources of ignition thoroughly ventilate the room in which the appliance is situated
• It is dangerous to alter the specifications or modify this product in any way. Any damage to the cord may cause a short circuit, fire and/or electric shock.
• This appliance is intended to be used in household and similar applications such as
• staff kitchen areas in shops, offices and other working environments;
• farm houses and by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments;
• catering and similar non-retail applications.

WARNING! Any electrical components (plug, power cord, compressor and etc.) must be replaced by a certified service agent or qualified service personnel.

WARNING! The light bulb supplied with this appliance is a "special use lamp bulb" usable only with the appliance supplied. This "special use lamp" is not usable for domestic lighting.

• Power cord must not be lengthened.
- Make sure that the power plug is not squashed or damaged by the back of the appliance. A squashed or damaged power plug may overheat and cause a fire.
- Make sure that you can come to the mains plug of the appliance.
- Do not pull the mains cable.

• If the power plug socket is loose, do not insert the power plug. There is a risk of electric shock or fire.
• You must not operate the appliance without the lamp.
• This appliance is heavy. Care should be taken when moving it.
• Do not remove nor touch items from the freezer compartment if your hands are damp/wet, as this could cause skin abrasions or frost/freezer burns.
• Avoid prolonged exposure of the appliance to direct sunlight.

Daily use

• Do not put hot on the plastic parts in the appliance.
• Do not place food products directly against the rear wall.
• Frozen food must not be re-frozen once it has been thawed out.
• Store pre-packed frozen food in accordance with the frozen food manufactures instructions.
• Appliances manufactures storage recommendations should be strictly adhered to. Refer to relevant instructions.

Do not place carbonated of fizzy drinks in the freezer compartment as it creates pressure on the container, which may cause it to explode, resulting in damage to the appliance.

• Ice lollies can cause frost burns if consumed ^1 straight from the appliance.
• To avoid contamination of food, please respect the following instructions
• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.

• Clean regularly surfaces that can come in contact with food and accessible drainage systems.

• Clean water tanks if they have not been used for 48h; flush the water system connected to a water supply if water has not been drawn for 5 days.

• Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.
• Two-star frozen-food compartments (if they are presented in the appliance) are suitable for storing pre-frozen food, storing or making ice-cream and making ice cubes.
• One-, two- and three -star compartments (if they are presented in the appliance) are not suitable for the freezing of fresh food.
• If the appliance is left empty for long periods, switch off, defrost, clean, dry and leave the door open to prevent mount developing within the appliance.

Care and cleaning

• Before maintenance, switch off the appliance and disconnect the mains plug from the mains socket.
• Do not clean the appliance with metal objects.
• Do not use sharp objects to remove frost from the appliance. Use a plastic scraper.
• Regularly examine the drain in the refrigerator for defrosted water. If necessary, clean the drain.
• If the drain is blocked, water will collect in the bottom of the appliance.

Installation

Important! For electrical connection carefully follow the instructions given in specific paragraphs.

- Unpack the appliance and check if there are damages on it. Do not connect the appliance if it is damaged. Report possible damages

immediately to the place you bought it. In that case retain packing.

• It is advisable to wait at least four hours before connecting the appliance to allow the oil to flow back in the compressor.
• Adequate air circulation should be around the appliance, lacking this leads to overheating. To achieve sufficient ventilation follow the instructions relevant to installation.
• Wherever possible the spacers of the product should be against a wall to avoid touching or catching warm parts (compressor, condenser) to prevent possible burn.
• The appliance must not be located close to radiators or cookers.
• Make sure that the mains plug is accessible after the installation of the appliance.

Service

• Any electrical work required to do the servicing of the appliance should be carried out by a qualified electrician or competent person.
• This product must be serviced by an authorized Service Center, and only genuine spare parts must be used.

Energy saving

• Don't put hot food in the appliance;
• Don't pack food close together as this prevents air circulating;
• Make sure food don't touch the back of the compartment(s);
• If electricity goes off, don't open the door(s);
• Don't open the door(s) frequently;
• Don't keep the door(s) open for too long time;
• Don't set the thermostat on exceeding cold temperatures;
• All accessories, such as drawers, shelves balconies, should be kept

there for lower energy consumption.

Environment Protection

This appliance does not contain gasses which could damage the ozone layer, in either its refrigerant circuit or insulation materials. The appliance shall not be discarded together with the urban refuse and rubbish. The insulation foam contains flammable gases: the appliance shall be disposed according to the appliance regulations to obtain from your local authorities. Avoid damaging the cooling unit, especially the heat exchanger.

Correct Disposal of this product

Symbol of a trash bin crossed out by two crossed lines (no text or labels)

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmentally safe recycling.

Warnings for disposal

Refrigerant and cyclopentane foaming material used for the refrigerator are flammable. Therefore, when the refrigerator is scrapped, it shall be kept away from any fire source and be recovered by a special recovering company with corresponding qualification other than be disposed by combustion, so as to prevent damage to the environment or any other harm.

When the refrigerator is scrapped, disassemble the doors, and remove gasket of door and shelves; put the doors and shelves in a proper place, so as to prevent trapping of any child.

Overview

A Control panel and Light
B Glass shelves
C Crisper Cover(s)
D Crisper(s)
E Drawers
F Balconies

Note: Above picture is for reference only. Real appliance probably is different.

Reverse the door swing

Tool required: Philips screwdriver, Flat bladed screwdriver, Hexagonal spanner.

• Ensure the unit is unplugged and empty.
  • To take the door off, it is necessary to tilt the unit backwards. You should rest the unit on something solid so that it

will not slip during the door reversing process.

• All parts removed must be saved to do the reinstallation of the door.
• Do not lay the unit flat as this may damage the coolant system.
• It's better that 2 people handle the unit during assembly.

Simple line drawing of a table with a pointer and curved arrow indicating rotation (no text or symbols)

1 Unscrew the top hinge. Then lift the upper door and place it on a padded surface to avoid scratching.

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

2 Unscrew middle hinge and then lift bottom door and place it on a padded surface to avoid scratching.

Technical line drawing of a mechanical bracket with an inset showing a cylindrical component (no text or symbols)

3 Remove bottom hinge pin from right to left.

Pure mechanical diagram showing a bracket with a hanging component and an arrow indicating direction (no text or symbols)

4 move middle bracket from left to right. Then refit the bottom door.

Simple line drawing of a document with arrows indicating rotation or movement (no text or symbols)

5 Detach the Fridge and the Freezer door gaskets and then attach them after rotating.

Technical line drawing of a screwdriver securing a bracket (no text or symbols)

6 refit middle hinge to left side. Ensure bottom door is aligned horizontally and vertically, so that the seals are closed on all sides before finally tightening the middle hinge.

7 unscrew top hinge pin from

Four sequential diagrams showing a metal bracket with mounting holes and a screw, illustrating mechanical assembly or adjustment (no text or symbols present)

the hinge. Then turn the hinge over and screw hinge pin.

Simple line drawing of a rotating mechanical component with a central shaft and base, no text or symbols present.

8 Refit upper door and then upper hinge on left side. Ensure upper door is aligned horizontally and vertically, so that the seals are closed on all sides before finally tightening the upper hinge. If necessary, a spanner to tighten the hinge.

Kits for installation

	Guide x 4
	Slider x 4
	Slider Cover x 4
	Guide cover x 4
	hort Screw x 27
	Long screw x 2
	Rubber Seal x 1
	Middle bracket cover x 2

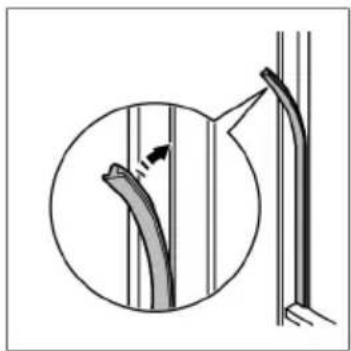

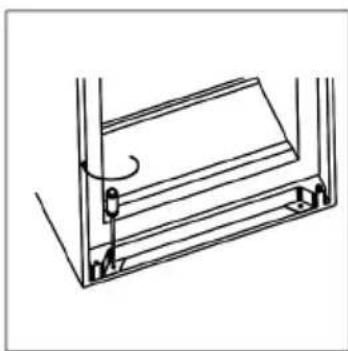

Install the appliance

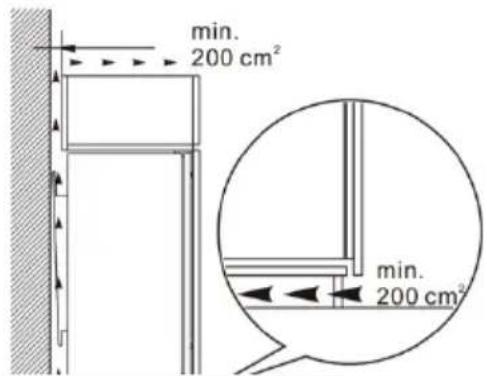

Ensure good ventilation around the cabinet.

Isometric diagram of a rectangular box with a side panel and two arrows indicating flow or movement (no text or symbols)

1 Slowly and carefully push the appliance into the cabinet. Ensure the opening side is as close to the cabinet wall as possible.

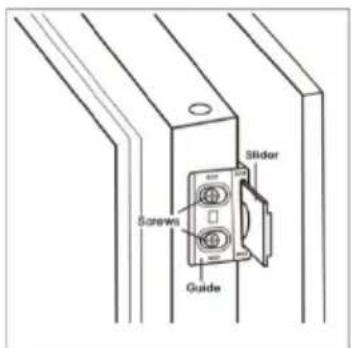

2 Screw a guide to holes in the side of appliance door with a short screw. Insert the slider into the guide, then fully open and close appliance door and wooden door to check whether wooden door can close correctly and smoothly.

3 Open appliance door and wooden door together and mark the position of slider when the slider can function well at all angle during door closes or opens. Take slider out of guide and fix slider with wooden door by two short screws. Then fix slider cover onto the slider.

4 Unscrew the guide from appliance door.

5 Repeat step 2 to 5 to fix the other three sliders and covers.

6 Fit four guides with sliders and fix the" with short screws. then fix guide covers with guides.

Technical line drawing of a mechanical assembly with no visible text or symbols

7 Double check the door can close and open smoothly, and the appliance is sealed well. If not, slightly adjust the unit. Then fix bottom bracket with wooden cabinet b, 2 long screws.

Simple line drawing of a crane frame with a pulley and rotational arrow (no text or symbols)

8 Fix the top bracket with wooden cabinet with short screws.

Diagram showing a curved pipe or fiber with an arrow indicating direction, alongside a magnified inset of the fiber detail (no text or symbols present)

9 Attached rubber seal to the gap between unit and wooden cabinet at door open side.

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

10 Screw two middle brackets with wooden cabinet b, short screws. Then fit middle bracket covers with brackets at two sides.

Positioning

Install this appliance at a location where the ambient temperature corresponds to the climate class indicated on the rating plate of the appliance for refrigerating appliances with climate class:

• extended temperate: this refrigerating appliance is intended to be used at ambient temperatures ranging from 10°C to 32°C; (SN)
• temperate: this refrigerating appliance is intended to be used at ambient temperatures ranging from 16°C to 32°C; (N)
• subtropical: this refrigerating appliance is intended to be used at ambient temperatures ranging from 16°C to 38°C; (ST)
• tropical: this refrigerating appliance is intended to be used at ambient temperatures ranging from 16°C to 43°C; (T)

Location

The appliance should be installed well away from sources of heat such as radiators, boilers, direct sunlight etc.

Warning: it must be possible to disconnect the appliance from the mains power supply; the plug must therefore be easily accessible after installation.

Electrical connection

Before plugging in, ensure that the voltage and frequency shown on the rating plate correspond to your domestic power supply. The appliance must be earthed. The power supply cable plug is provided with a contact for this purpose. If the domestic power supply socket is not earthed/ connect the appliance to a separate earth in compliance with current regulations/ consulting a qualified electrician.

The manufacturer declines all responsibility if the above safety

precautions are not observed. This appliance complies with the E.E.C. Directives.

First use

Cleaning the interior

Before using the appliance for the first time, wash the interior and all internal accessories with lukewarm water and some neutral soap so as to remove the typical smell of a brand new product, then dry thoroughly.

Important! Do not use detergents or abrasive powders, as these will damage the finish.

Control Panel

Buttons

B1 Press to adjust setting of fridge compartment in cycle of 1, 2, 3, 4 to 5.
B2 press to select mode from +mart, super and user setting.

Lights

L1 show the setting of fridge compartment.
L2 light on once smart mode is selected.
L3 light on once super mode is selected.

Operation

Temperature setting

Press mode button "B2" to select user setting.

Press adjust button "B1" to adjust the setting of fridge. power setting means lower temperature. The temperature of freezer is automatically controlled at around 18^ C.

Smart mode

Press mode button "B2" to select smart mode.

The appliance will run automatically according to ambient temperature around the appliance.

Super mode

Press mode button "B2" to select super mode.

The appliance will run to make freezer compartment coldest. after 54 hours, the original temperature set will be automatically restored.

Turn off the appliance

Press and hold adjust button "B1" for 5 seconds, the appliance will turn off. press 5 seconds again to turn on the appliance.

Door open alarm

The alarm will sound when door is left open for 90 seconds and it will not stop until the door is closed.

Recommended temperature setting

Environment Temperature	Fridge compartment
Summer	Set on 2~4
Normal	Set on 4
Winter	Set on 4~6

Impact on Food Storage

• Under recommended setting, the best storage time of fridge is no more than 3 days.
• Under recommended setting, the best storage time of freezer is no more than 1 month.
• The best storage time may reduce under other settings.
• Position different food in different compartments according to be below:

Door or balconies of fridge compartment

Foods with natural preservatives, such as jams, juices, drinks, condiments.

Do not store perishable foods.

Crisper drawer (salad drawer)

Fruits, herbs and vegetables should be placed separately in the crisper bin.

Do not store bananas, onions, potatoes, garlic in

Fridge shelf – middle

Dairy products, eggs

Fridge shelf – top

Foods that do not need cooking, such as ready-to-eat foods, deli meats, leftovers.

Freezer drawer(s)/shelf

Foods for long-term storage.

Bottom drawer/shelf for raw meat, poultry, fish. Middle drawer/shelf for frozen vegetables, chips. Top drawer/shelf for ice cream, frozen fruit, frozen goods

Freezing fresh food

• The freezer compartment is suitable for freezing fresh food and storing frozen and deep-frozen food for a long time.
• Place the fresh food to be frozen in the freezer compartment.
• The maximum amount of food that can be frozen in 24 hours is specified on the rating plate.
• The freezing process lasts 24 hours: during this period do not add other food to be frozen.

Storing frozen food

• When first starting up or after a period out of use, before putting the product in the compartment let the appliance run at least 2 hours on the higher settings.
• Important: in the event of accidental defrosting, for example the power has been off for longer than the value shown in the technical characteristics chart under “rising time”, the defrosted food must be consumed quickly or cooked immediately and then re-frozen (after cooked).

Thawing

Deep-frozen or frozen food, prior to be used, can be thawed in the fridge compartment or at room temperature, depending on the time available for this operation.

Small pieces may even be cooked still frozen, directly from the freezer. In this case cooking will take longer time.

Ice cube tray

This appliance may be equipped with one or more ice cube trays to produce ice cubes

Accessories

Movable shelves

The walls of the refrigerator are equipped with a series of runners so that the shelves can be positioned as desired.

Positioning the door balconies

To permit storage of food packages of various sizes, the door balconies can be removed. To make these adjustments proceed as follows: gradually pull the balcony in the direction of the arrows until it comes free.

Helpful hints and tips

To help you make the most of the freezing process, here are some important hints:

• The maximum quantity of food which can be frozen in 24 hrs. is shown on the rating plate;
• The freezing process takes 24 hours. No further food to be frozen should be added during this period;
• Only freeze top quality, fresh and thoroughly cleaned, foodstuffs;
• Prepare food in small portions to enable it to be rapidly and completely frozen and to make it possible subsequently to thaw only the quantity required;
• Wrap up the food in aluminium foil or polythene and make sure that the packages are airtight;
• do not allow fresh, unfrozen food to touch food which is already frozen, thus avoiding a rise in temperature of the latter;
• Lean foods store better and longer than fatty ones; salt reduces the storage life of food;
• Water ices, if consumed immediately after removal from the freezer compartment, can possibly cause the skin to be free e burnt;
• It is advisable to show the freezing in date on each individual pack to enable you removal from the freezer compartment, can possibly cause the skin to be free e burnt;
• It is advisable to show the freezing in date on each individual pack to enable you to keep tab of the storage time.

Hints for storage of frozen food

To obtain the best performance from this appliance, you should:

• Make sure that the commercially frozen food were adequately stored by the retailer;
• Be sure that frozen food are transferred from the food store to the freezer in the shortest possible time;
• Not open the door frequently or leave it open longer than absolutely necessary.
• Once defrosted, food deteriorates rapidly and cannot be re-frozen;
• Do not exceed the storage period indicated by the food manufacture.

Hints for fresh food refrigeration

To obtain the best performance:

• Do not store warm food or evaporating liquids in the refrigerator.
• Do cover or wrap the food, particularly if it has a strong flavour.
• Make (all types) wrap in polythene bags and place on the glass shelves above the vegetable drawer.
• For safety, store in this way only one or two days at the most.
• Cooked foods: cold dishes, etc.: these should be covered and may be placed on any shelf.

• Fruit and vegetables: these should be thoroughly cleaned and placed in the special drawer(s) provided.

• butter and cheese: these should be placed in special airtight containers or wrapped in aluminum foil or polythene bags to exclude as much air as possible.

• Milk bottles: these should have a cap and should be stored in the balconies on the door.
• Bananas, potatoes, onions and garlic, if not packed, must not be kept in the fridge.

Cleaning

For hygienic reasons the appliance interior, including interior accessories, should be cleaned regularly.

Caution: the appliance may not be connected to the mains during cleaning. Danger of electrical shock! Before cleaning switch the appliance off and remove the plug from the mains, or switch off or turn out the circuit breaker or fuse. <ever clean the appliance with a steam cleaner. Moisture could accumulate in electrical components, danger of electrical shock! Hot vapors can lead to the damage of plastic parts. The appliance must be dry before it is placed back into service.

Important: Ethereal oils and organic solvents can attack plastic parts, e.g. lemon juice or the juice form orange peel, butyric acid, cleanser that contain acetic acid.

• Do not allow such substances to come into contact the appliance parts.
• Do not use any abrasive cleaners
• Remove the food from the freezer. Store them in a cool place, well covered.
• Switch the appliance off and remove the plug from the mains,

or switch off or turn out the circuit breaker of fuse.

• Clean the appliance and the interior accessories with a cloth and lukewarm water. After cleaning wipe with fresh water and rub dry.
  • After everything is dried, place appliance back into service.

Clean drain hole

Diagram of a mechanical or fluidic system with rotating arrows and internal components (no text or symbols)

To avoid defrost water overflowing into the fridge, periodically clean the drain hole at back of fridge compartment. Use a cleaner to clean the hole as

showed in right picture.

Replace the lamp

The internal light is a LED type. to replace the lamp, please contact qualified technician.

Defrosting of the freezer

The freezer compartment, however, will become progressively covered with frost. This should be removed.

Never use sharp metal tools to scrape off frost from the evaporator as you could damage it.

However, when the ice becomes very thick on the inner liner, complete defrosting should be carried out as follows:

• Pull out the plug from the socket;

• Remove all stored food, wrap it in several layers of newspaper and put it in a cool place;

• Keep the door open, and placing a basin underneath of the appliance to collect the defrost water;

• When defrosting is completed, dry the interior thoroughly.
• Replace the plug in the power socket to run the appliance again.

Troubleshooting

Caution: before troubleshooting, disconnect the power supply. Only a qualified electrician of competent person must do the troubleshooting that is not in this manual.

Important: there are some sounds during normal use: compressor, refrigerant circulation.

Appliance does not work

• Appliance is turned off
• Press adjust button for 5 seconds to turn on the appliance.
• Mains plug is not plugged in or is loose
• Insert mains plug.
• Fuse has blown or is defective
• Check fuse, replace if necessary.
• Socket is defective
• Mains malfunctions are to be corrected by an electrician.

The food is too warm.

• Temperature is not properly set.
- Please look in the initial temperature setting.
- Door was open for an extended period.
- Open the door only as long as necessary.

• A large quantity of warm food was placed in the appliance within the last 2% hours.
• Turn the temperature regulation to a colder setting temporarily.
• The appliance is near a heat source.
• Please look in the installation location section.

Appliance cools too much

• Temperature is set too cold.
- Turn the temperature regulation knob to a warmer setting temporarily.

Unusual noises

• appliance is not level.
• adjust the wood cabinet if it's not level.
• the appliance is touching the wall or other objects.
• Move the appliance slightly.
• A component, e.g. a pipe, on the rear of the appliance is touching another part of the appliance or the wall.
• If necessary, carefully bend the component out of the way.

Water on the floor

• Water drain hole is blocked.
• See the Cleaning section.

If the malfunction shows again, contact the service center.

First use

Cleaning the interior

Before using the appliance for the first time, wash the interior and all internal accessor es with lukewarm water and some neutral soap so as to remove the typical smell of a brand new product, then dry thoroughly.

Important! Do not use detergents or abrasive powders, as these will damage the finish.

• Adjust the adjustable foot to keep the appliance stable.
• For the first usage, power on the appliance for 2-3 hours before putting in foods.

Symbol of a trash bin crossed out by two crossed lines (no text or labels)

Simple line drawing of a table with a pointer and rotation arrow (no text or symbols)

handhaben.

Technical line drawing of a mechanical clamp or bracket assembly with a screwdriver (no text or symbols)

Diagram showing two mechanical components with an arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical component with an inset showing a cylindrical component (no text or symbols)

Simple line drawing of a document with arrows indicating rotation or movement (no text or symbols)

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Four technical line drawings of a mechanical bracket with mounting holes and fasteners, shown in sequence (no text or symbols)

Simple line drawing of a rotating mechanical component with a central shaft and base, no text or symbols present.

Diagram of a cabinet with two arrows indicating directional flow or movement (no text or symbols)

Line drawing of a window frame with a scroll wheel and a hanging clip (no text or symbols)

Simple line drawing of a mechanical frame with a pulley and rotational arrow (no text or symbols)

Diagram showing a curved pipe or duct with an arrow pointing to it, enclosed in a circular inset (no text or symbols)

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Illustration showing a hand placing a shelf item into a rack, with arrows indicating upward movement (no text or symbols present)

Thawing

Diagram of a mechanical or electrical component with arrows indicating motion, no visible text or symbols

Simple line drawing of a trash bin with no text or symbols

Simple line drawing of a table with a pointer and rotation arrow (no text or symbols)

monteringen.

Technical line drawing of a mechanical clamp or bracket assembly with a screwdriver (no text or symbols)

Technical line drawing of a mechanical bracket with an inset showing a cylindrical component (no text or symbols)

Pure mechanical diagram showing a bracket with an arrow indicating direction (no text or symbols)

Simple line drawing of a document with arrows indicating rotation (no text or symbols)

Technical line drawing of a screwdriver clamping a bracket (no text or symbols)

Four technical line drawings of a mechanical bracket with mounting holes and fasteners, shown in sequence (no text or symbols)

Simple line drawing of a rotating mechanical setup with a vertical rod and base, no text or symbols present.

Isometric diagram of a rectangular box with two arrows indicating flow or movement, no text or symbols present.

Technical line drawing of a mechanical assembly with no visible text or symbols

Simple line drawing of a crane frame with a pulley and rotational arrow (no text or symbols)

Diagram showing a curved pipe or fiber with an arrow indicating direction, alongside a magnified inset of the fiber detail (no text or symbols present)

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Simple line drawing of a hand holding a tool with arrows indicating motion (no text or symbols)

För att undvika att

Access to professional repair, such as internet webpages, addresses, contact details.

Model no: BIC249WE

Aftersales service station list:

Address	Linåvej 20 . 8600 Silkeborg . Denmark	QR code
Contact Number	0045 7242 5571
Website	www.scandomestic.dk
Relevant information for ordering spare parts, directly or through other channels provided by the manufacturer, importer or authorised representative;			www.scandomestic.dk
The minimum period during which spare parts, necessary for the repair of the appliance, are available; (years)			7
defined in Regulation EU 2019/2016 by means of a weblink that links to the model information as stored in the product database or a link to the product database and information on how to find the model identifier on the product.)			www.scandomestic.dk

Note: The address or contact phone number of the service site is subject to change without prior notice. Please confirm whether the service station is a directly affiliated one of our company when requiring services.

SE
