USER MANUAL SB600BTS BIGBEN

SB600BTS PHOTO PRODUIT

AUDIO OUT AUX Headphone AUX

AUDIO OUT AUX Headphone AUX

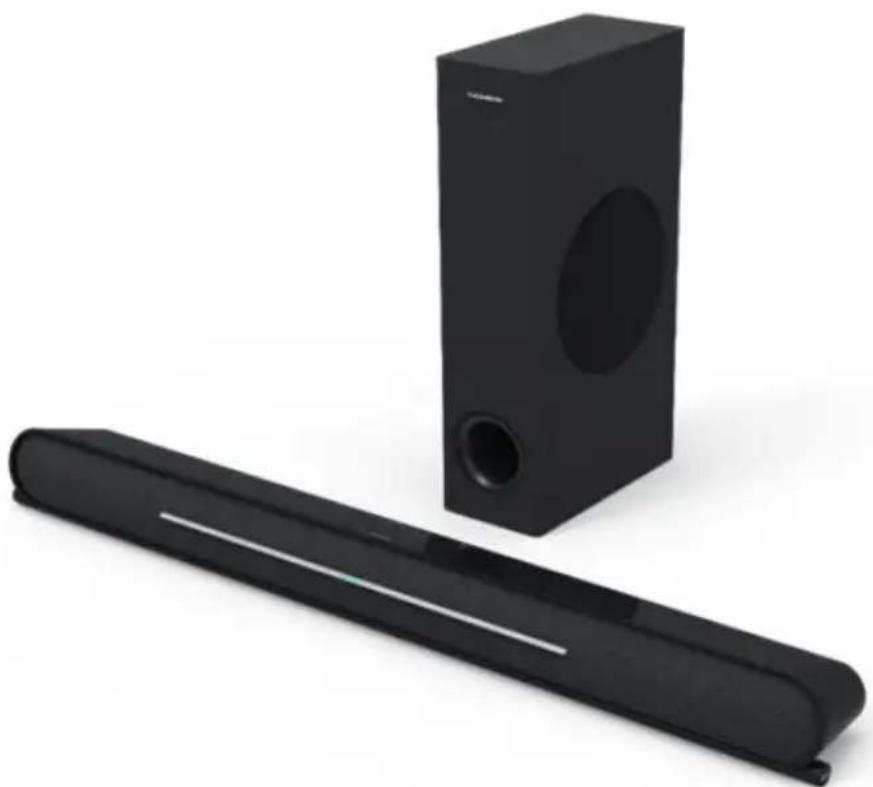

SOUNDBAR WITH WIRED SUBWOOFER

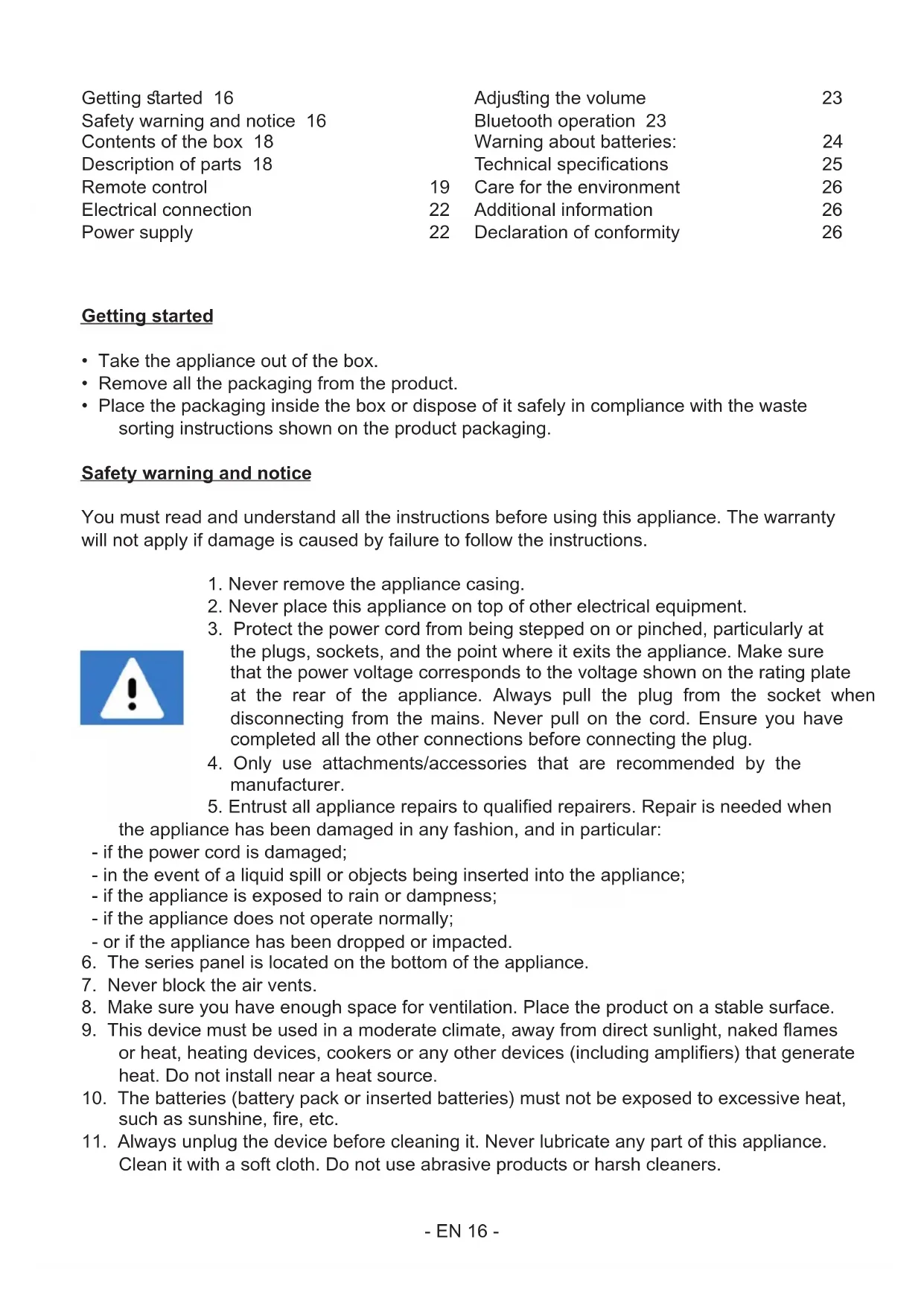

• Take the appliance out of the box.

• Remove all the packaging from the product.

• Place the packaging inside the box or dispose of it safely in compliance with the wa󰘵e sorting in󰘵ructions shown on the product packaging. Safety warning and notice You mu󰘵 read and under󰘵and all the in󰘵ructions before using this appliance. The warranty will not apply if damage is caused by failure to follow the in󰘵ructions.

1. Never remove the appliance casing.

2. Never place this appliance on top of other electrical equipment.

3. Protect the power cord from being 󰘵epped on or pinched, particularly at

the plugs, sockets, and the point where it exits the appliance. Make sure that the power voltage corresponds to the voltage shown on the rating plate at the rear of the appliance. Always pull the plug from the socket when disconnecting from the mains. Never pull on the cord. Ensure you have completed all the other connections before connecting the plug.

4. Only use attachments/accessories that are recommended by the

5. Entru󰘵 all appliance repairs to quali󰘰ed repairers. Repair is needed when

the appliance has been damaged in any fashion, and in particular: - if the power cord is damaged; - in the event of a liquid spill or objects being inserted into the appliance; - if the appliance is exposed to rain or dampness; - if the appliance does not operate normally; - or if the appliance has been dropped or impacted.

6. The series panel is located on the bottom of the appliance.

7. Never block the air vents.

8. Make sure you have enough space for ventilation. Place the product on a 󰘵able surface.

9. This device mu󰘵 be used in a moderate climate, away from direct sunlight, naked 󰘱ames

or heat, heating devices, cookers or any other devices (including ampli󰘰ers) that generate heat. Do not in󰘵all near a heat source.

10. The batteries (battery pack or inserted batteries) mu󰘵 not be exposed to excessive heat,

such as sunshine, 󰘰re, etc.

11. Always unplug the device before cleaning it. Never lubricate any part of this appliance.

Clean it with a soft cloth. Do not use abrasive products or harsh cleaners. Getting 󰀬arted 16 Safety warning and notice 16 Contents of the box 18 Description of parts 18 Remote control 19 Electrical connection 22 Power supply 22 Adju󰀬ing the volume 23 Bluetooth operation 23 Warning about batteries: 24 Technical specications 25 Care for the environment 26 Additional information 26 Declaration of conformity 26- EN 17 -

12. Ensure that you always have easy access to the power cord, plug or adaptor to disconnect

this appliance from the mains if necessary.

13. Do not use this appliance near water. It mu󰘵 not be dripped on or splashed. Do not use

this appliance in a damp or wet environment.

14. Disconnect this appliance in the event of a 󰘵orm or if you are not going to use it for a long

15. This appliance can be used by children aged 8 and over, and by persons with a physical

or sensory disability, learning di󰘲culties or a lack of experience and knowledge, provided they are supervised or have received in󰘵ructions on the safe use of the appliance, and they under󰘵and the risks involved. Children mu󰘵 not play with the appliance or power cord (risk of 󰘵rangulation). Children mu󰘵 not clean or maintain the appliance without supervision.

16. This device mu󰘵 only be supplied with very low safety voltage corresponding to the

marking on the device. The lightning bolt symbol within an equilateral triangle alerts users to the presence of dangerous uninsulated electrical voltages inside the device that are 󰘵rong enough to present a risk of electric shock. The exclamation mark inside a triangle indicates the presence of important operating and maintenance (repair) in󰘵ructions in the literature accompanying the appliance. Direct current Class II material Alternating current For indoor use only- EN 18 - Contents of the box Check and identify the contents of your box:

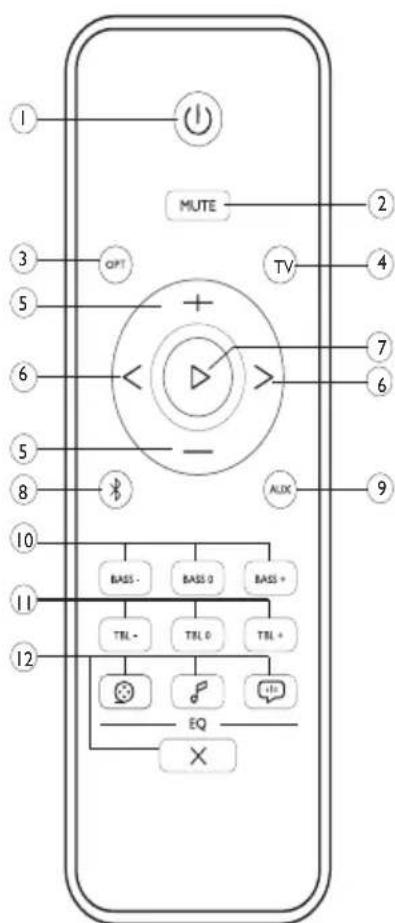

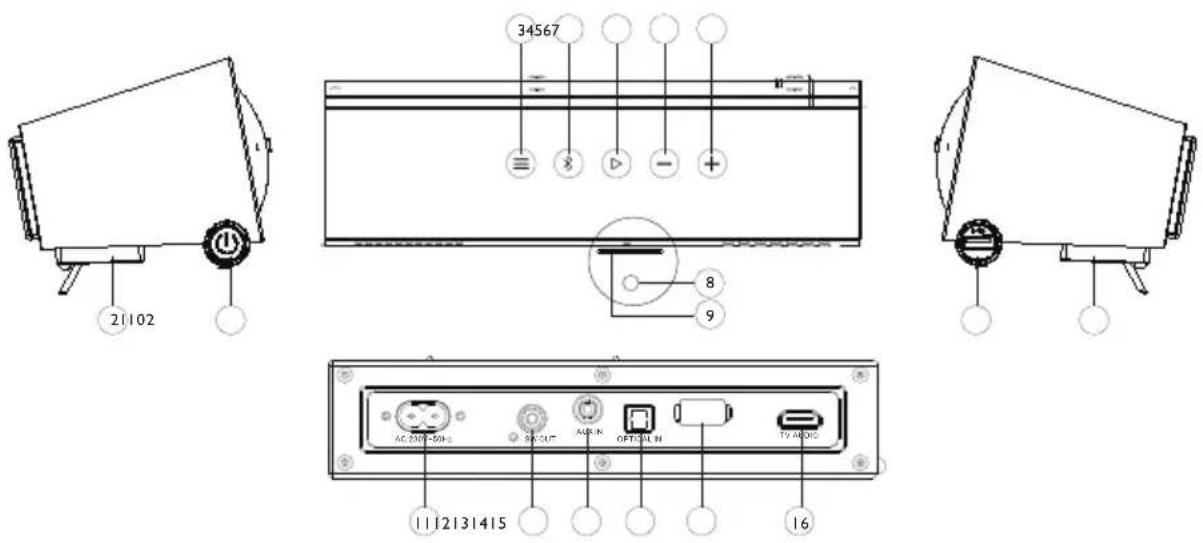

• In󰘵ruction manual Description of parts

2. Adju󰘵able feet: You can adju󰘵 the direction of the sound using the folding legs.

Press to search for a Bluetooth device

6. - Press to reduce the volume

7. + Press to increase the volume

The red light indicates that the soundbar is in 󰘵andby mode The yellow light indicates that the soundbar is in TV Audio mode The blue light indicates that the soundbar is in Bluetooth mode- EN 19 - The white light indicates that the soundbar is in Optical mode The green light indicates that the soundbar is in Aux In mode

10. 5V/1A USB charging port

11. Mains power supply ~ Connect to the power supply.

6. < / > (Previous/Next)

Skip to the previous or next track in BT mode

10. Adju󰘵ing the bass setting

Film Music Voice X Flat

INSERTING THE BATTERIES

Insert the batteries of the remote control

1. Press the battery compartment clip to slide it downwards and lift the cover.

2. Insert 2 x 1.5 V AAA/LR04/UM3 batteries (not supplied) with the + and - ends in the

right position as indicated on the battery compartment.

3. Place the farthe󰘵 end of the cover in position on top of the battery compartment. Then

push down on the close󰘵 end until you hear a click to indicate that it is securely in place.

Note: The batteries mu󰘵 be inserted correctly to avoid damaging the remote control. Always remove the batteries when the remote control is not in use for a prolonged period, as they may leak and damage the remote control. If you have to bring the remote control closer to the unit to make it work, it means that the batteries are low. In this case, replace the batteries Connection Place the unit in the required location and unwind the power cable. Connect to the TV AUDIO jack The soundbar works in TV Audio with the TV audio return channel (TV Audio). If your TV is compatible with the audio return channel, you can hear TV audio through the soundbar using a single TV audio cable. Equipment needed: An audio source with a TV audio output and a TV audio cable (included) 1 Using a high-speed TV audio cable, connect the TV audio from the soundbar to the TV audio connector on the TV.

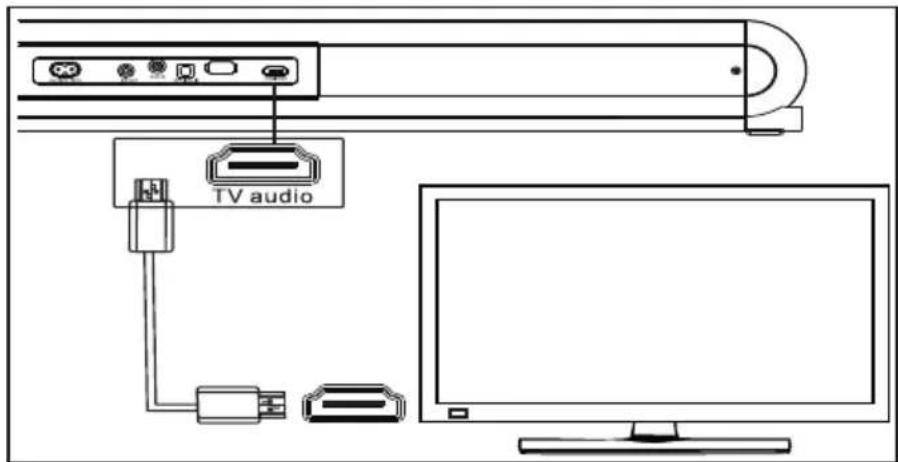

• The connector on the TV may be labelled di󰀨erently. For more information, consult the TV's user manual. 2 Turn on the television on your TV and the soundbar will synchronise operations. For more information, consult the TV's user manual. AUX Headphone AUX

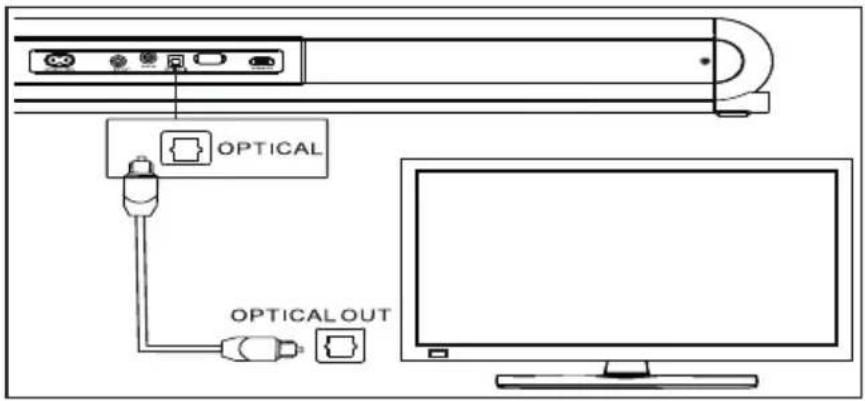

Connecting to the optical socket Using an optical cable, connect the Optical connector on your soundbar to the Optical out connector on the TV or other device. The digital optical connector may be labelled SPDIF or SPDIF OUT. Equipment needed: An audio source with an optical audio output and a digital optical audio cable (included). Be sure to select the Optical output in the settings of your TV or your device. Connecting to the AUX socket

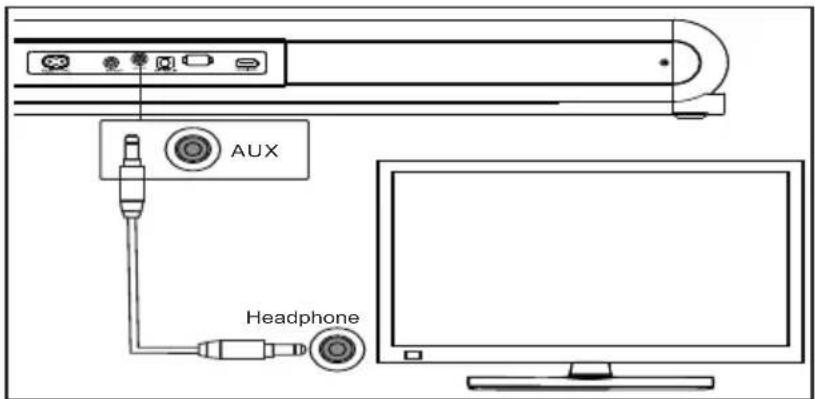

• Use a 3.5 to 3.5mm audio cable (included) to connect the earphone jack on the TV to the AUX jack on the unit.

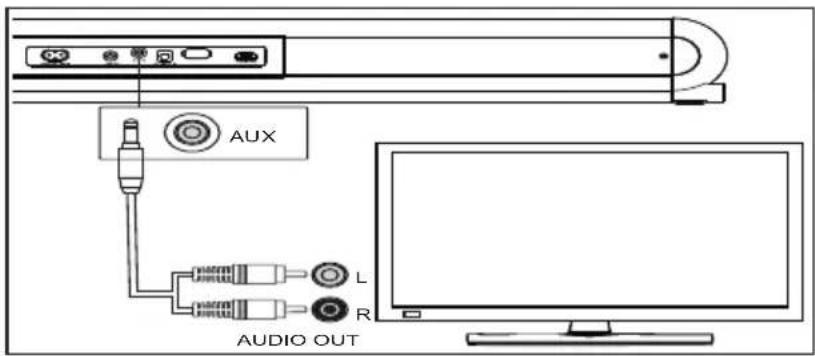

• Use an RCA to 3.5mm audio cable (not included) to connect the TV audio output jacks to the AUX jack on the unit. AUX Headphone AUX

AUDIO OUT AUX Headphone AUX

AUDIO OUT AUX Headphone AUX

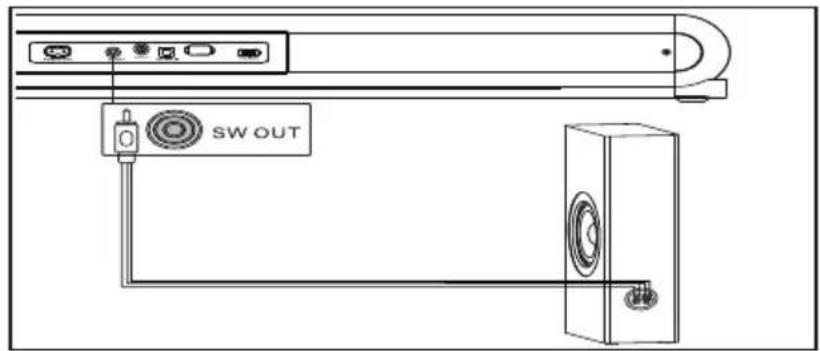

Connecting to the subwoofer Using a subwoofer cable, connect the SUB OUT connector to the soundbar. Electrical connection

• Make sure that all the other connections have been made before plugging in the power cable.

• Risk of damage to the product! Make sure the supply voltage matches the voltage printed on the back or base of the unit.

• Plug the power cord into the power socket on the unit and then into a wall outlet. Power supply Insert the mains adapter into the power outlet and turn the power on if necessary. Switch on and o󰀨

• When you 󰘰r󰘵 connect the unit to the mains, the unit is in 󰘵andby mode. The 󰘵andby indicator lights up.

• Press the button to turn the unit on or o󰘯.

• Unplug the power cord from the wall outlet if you want to turn the unit o󰘯 completely.

• If the TV Audio is connected, the unit will automatically turn on when the TV is turned on. Automatic standby When playing media from a connected device, the soundbar will automatically switch to stand- by mode if no button is pressed for 10 minutes or there is no audio from a connected device for 10 minutes. Mode selection Press the Source button on the device several times or press the Aux, Optical, TV audio, BT/ Pair buttons on the remote control to select the mode you want. The indicator light on the soundbar shows which mode is currently in use.

• Aux: The green light indicates that the soundbar is in Aux In mode.

• BT: The blue light indicates that the soundbar is in Bluetooth mode.

• Optical: The white light indicates that the soundbar is in Optical mode.

• TV Audio: The yellow light indicates that the soundbar is in TV Audio mode. AUX Headpho ne AUX

Select the Equaliser (EQ) effect Select the preset sound modes that match your video or music. Press the EQ button on the remote control to choose the preset equaliser e󰀨ects you want.

(Film) recommended for watching movies

(Music) recommended for li󰘵ening to music

(Voice) recommended for li󰘵ening to news or making the voices in movies louder

• X (Flat) Press the Flat button to return to the normal mode. Adjusting the volume 1 Press Vol+/Vol- (Volume) to increase or decrease the volume level.

• If you are connected to TV audio, you can also control the volume from the remote control of your TV. Bluetooth operation Via Bluetooth, connect the soundbar with your Bluetooth device (e.g. iPad, iPhone, iPod touch, Android phone or laptop), and you can li󰀬en to audio les 󰀬ored on the device or 󰀬reamed through the speakers of the soundbar. Equipment needed

• A Bluetooth device that works with the Bluetooth A2DP prole, AVRCP prole and Bluetooth version 4.2 + EDR.

• The maximum operational range between the soundbar and the Bluetooth device is approximately 10 metres (30 feet).

1. Press the Source button several times or press the BT button on the remote control to

put the soundbar in Bluetooth mode. The BT indicator ashes as it waits to pair.

2. On the Bluetooth device, switch to Bluetooth, nd and select SB600BTS to 󰀬art the

connection (see the user manual of the Bluetooth device for how to activate Bluetooth). While it is connecting, the BT indicator ashes.

3. Wait to hear the sound emitted from the soundbar.

When the connection is made, the BT indicator switches on (󰀬eady light).

4. Choose and play the audio les or music on your Bluetooth device.

• During playback, if you get a call, the music will pause. Playback resumes when the call ends.

• If your Bluetooth device runs with the AVRCP prole, you can press < / > to skip a track or press on the remote control to pause/resume playback.

5. To exit Bluetooth, choose another source.

• When you return to Bluetooth mode, the Bluetooth connection remains active.- EN 24 - Note:

• The live music 󰘵ream may be interrupted by ob󰘵acles located between the device and the soundbar, e.g. a wall, the metal casing of the device, or other nearby devices operating on the same frequency.

• If you want to connect your soundbar to another Bluetooth device, press and hold the BT/PAIR on the remote control to disconnect the previously connected Bluetooth device. AUX / OPTICAL / TV audio operation

• Make sure the unit is connected to the TV or audio device.

• Press the Source button several times on the unit or press the Aux, Optical and TV buttons on the remote control to choose the required mode.

• Adju󰘵 the playback functions directly on your audio device.

• Press the VOL+/– buttons to adju󰘵 the volume to the required level. Note:

• In OPTICAL or TV mode, if there is no audio output from the unit and the 󰘵atus light is 󰘱ashing, you may need to enable the PCM or Dolby Digital Signal output on your source device (TV, DVD or Blu-ray player). USB charging

• This soundbar has a USB charging port with a 5V, 1A output current. Warning about batteries: This product contains one or more batteries.

• Use batteries correctly to prevent any injury or 󰘰re caused by a leak, overheating, explosion, erosion or other damage.

• Keep new and used batteries out of the reach of children or any vulnerable person. Stop using the product if the battery compartment does not close properly.

• If the liquid from an alkaline battery comes into contact with the skin and/or eyes, rinse immediately with fresh water and consult a physician.

• If an alkaline battery leaks, wipe up the liquid with a cloth and replace the battery with a new one.

• Do not swallow the battery/ies. If swallowed, a battery can cause severe internal burns in 2 hours and can cause death. If batteries are swallowed, contact a poison centre immediately and consult a physician.

• Use AA Ni-MH, alkaline or lithium batteries.

• Do not charge these batteries. Charging non-rechargeable batteries causes gas and/or heat emissions that can cause explosions and/or 󰘰res.

• Do not use di󰘯erent types of battery or a mixture or new and old batteries at the same time.

• Insert the batteries according to the correct polarity (+ and -).

• Do not put the same battery poles in contact with each other.

• Remove dead batteries quickly. There is a risk of the battery exploding if this is not replaced correctly or if the appliance is not used for a period of time.

• Replace the battery with an identical or equivalent model.

• The batteries (or battery pack) mu󰘵 not be exposed to excessive heat, such as sunlight, 󰘰re, etc.

• Do not heat batteries and do not dispose of them in 󰘰re or water.- EN 25 -

• Do not use metal pliers or metal objects such as the point of a pen or tweezers to remove batteries. Avoid deforming, crushing or piercing batteries.

• Do not disassemble the batteries.

• Cover the ends of the batteries with tape to prevent explosions and combu󰘵ion when these need to be scrapped.

• Be environmentally friendly when scrapping batteries

• Do not dispose of batteries in ordinary household wa󰘵e.

Subwoofer: 470 x 250 x 120 mm Weight Main unit: 3.8 kg Subwoofer: 5.1 kg N.B.: The maximum operational range is approximately 10 metres. Place your Bluetooth speaker as close as possible to the device to avoid the connection being disrupted. In an environment with electro󰄋atic discharge, the device may turn o󰓐. The user mu󰄋 then recharge the battery and reset the device.- EN 26 - Care for the environment Your product has been designed and manufactured using high-quality materials and components that can be recycled and reused. Attention should be drawn to the environmental aspects of battery disposal. When this crossed-out wheelie bin symbol is applied to a product, it means that the product is covered by European Directive 2002/96/EC. Please 󰘰nd out about the local separate collection sy󰘵em for electrical and electronic products. Please act according to your local rules and do not dispose of your old products in your household wa󰘵e. By ensuring this product is disposed of correctly, you are also helping to prevent potentially negative consequences for the environment and human health. Additional information

• If you are li󰘵ening to music played on your mobile phone that is connected to the SB600BTS sy󰘵em and your receive an incoming call, the music is immediately paused while you answer the call and playback will resume once the call is ended (depending on the type of mobile phone, playback may sometimes remain paused after the end of the call).

• The Bluetooth® name, brand and logo are regi󰘵ered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Bigben Interactive is under licence. All other brands and trade names are the property of their respective owners.

• THOMSON is a trademark of Talisman Brands, Inc. used under licence by Bigben Interactive.

• This product is manufactured and sold under the responsibility of Bigben Interactive.

• THOMSON and the THOMSON logo are trademarks operated under licence by Bigben Interactive – for more information: www.thomson-brand.com.

• All other products, services, corporate names, trademarks, trade names, product names and logos referenced herein are the property of their respective owners. Declaration of conformity

• Bigben Interactive hereby declares that the SB600BTS electrical radio equipment is compliant with Directive 2014/53/EU. The full text of the EU declaration of conformity is available on the following website: https://www.bigben-interactive.co.uk/support/ Warranty This product is guaranteed by Bigben for a period of 2 years from the date of purchase, except in countries of the European Economic Area, which o󰘯er a longer warranty period. We recommend that you keep your receipt for any claims. The warranty covers breakdowns due to defective material, a missing element or manufacturing defect. In this case, contact our technical support. For any problem with a defective product, contact your point of purchase with your receipt. The warranty does not cover problems of improper use.- EN 27 - Support www.bigben-interactive.co.uk/support support@bigben.fr Made in China Manufactured by BIGBEN INTERACTIVE SA 396, Rue de la Voyette CRT2 – FRETIN CS 90414 59814 LESQUIN Cedex - France www.bigben.eu
