Product type	AS-i module
Brand	IFM
Model	AC2559
Category	Electronic module
AS-i profile	S-7.0.E
Maximum number of modules per master	31
AS-interface version	2.1
Number of ports	8 M12 ports
LED indicators	Yellow LED (input/output), green LED PWR, red LED FAULT, infrared receiver LED
Power supply	AS-i (yellow cable) and external auxiliary voltage
Protection	IP67 (with caps on unused ports)
Addressing	Free address 1-31; addressing via AC1144 unit or infrared
Default address	0
Tightening torque	0.8 Nm
Dimensions (estimated)	110 x 80 x 35 mm
Weight (estimated)	180 g
Main functions	Input/output management for sensors and actuators, AS-i communication
Safety	Do not remove the addressing plug while powered; cover unused ports
Maintenance	Clean with a dry, lint-free cloth
Spare parts	Bases (AC5011, AC5003), caps (AC3004), addressing unit (AC1144), infrared cable (E70211)
General information	Manual available in PDF at notice-facile.com

Frequently Asked Questions - AC2559 IFM

How to address the AC2559 module?

Addressing is done via the AC1144 addressing unit or by infrared. Assign a free address between 1 and 31. At delivery, the address is 0.

What to do if the red FAULT LED is on?

The red LED on indicates an AS-i communication error (e.g., address 0). If it flashes, it signals a peripheral fault (overload or short circuit). Check the power supply and connections.

What is the maximum number of modules per master?

The maximum number is 31 modules per AS-i master.

How to wire sensors and actuators?

Connect the connectors to M12 ports. For power, pin 1 (L+), pin 3 (L-), pin 4 (output), pin 5 (functional earth). Use AC3004 caps on unused ports to maintain IP67.

Can infrared addressing be used with any base?

No, infrared addressing requires the AC5011 base with integrated addressing port. For the AC5003 base, you must address the module before mounting via the AC1144 unit.

What do the yellow LEDs mean?

The 8 yellow LEDs indicate the status of inputs/outputs: on when the corresponding channel is switched.

How to protect the module if some ports are not used?

Cover the unused M12 ports with AC3004 caps to ensure IP67 protection.

What tightening torque for mounting on the base?

The recommended tightening torque is 0.8 Nm.

Does the module report faults to the AS-i master?

Yes, in version AS-i 2.1, overloads and short circuits are reported via the internal 'peripheral fault' bit in the status register.

Where to download the full manual?

You can download the PDF manual for free from notice-facile.com for the IFM AC2559 model.

USER MANUAL AC2559 IFM

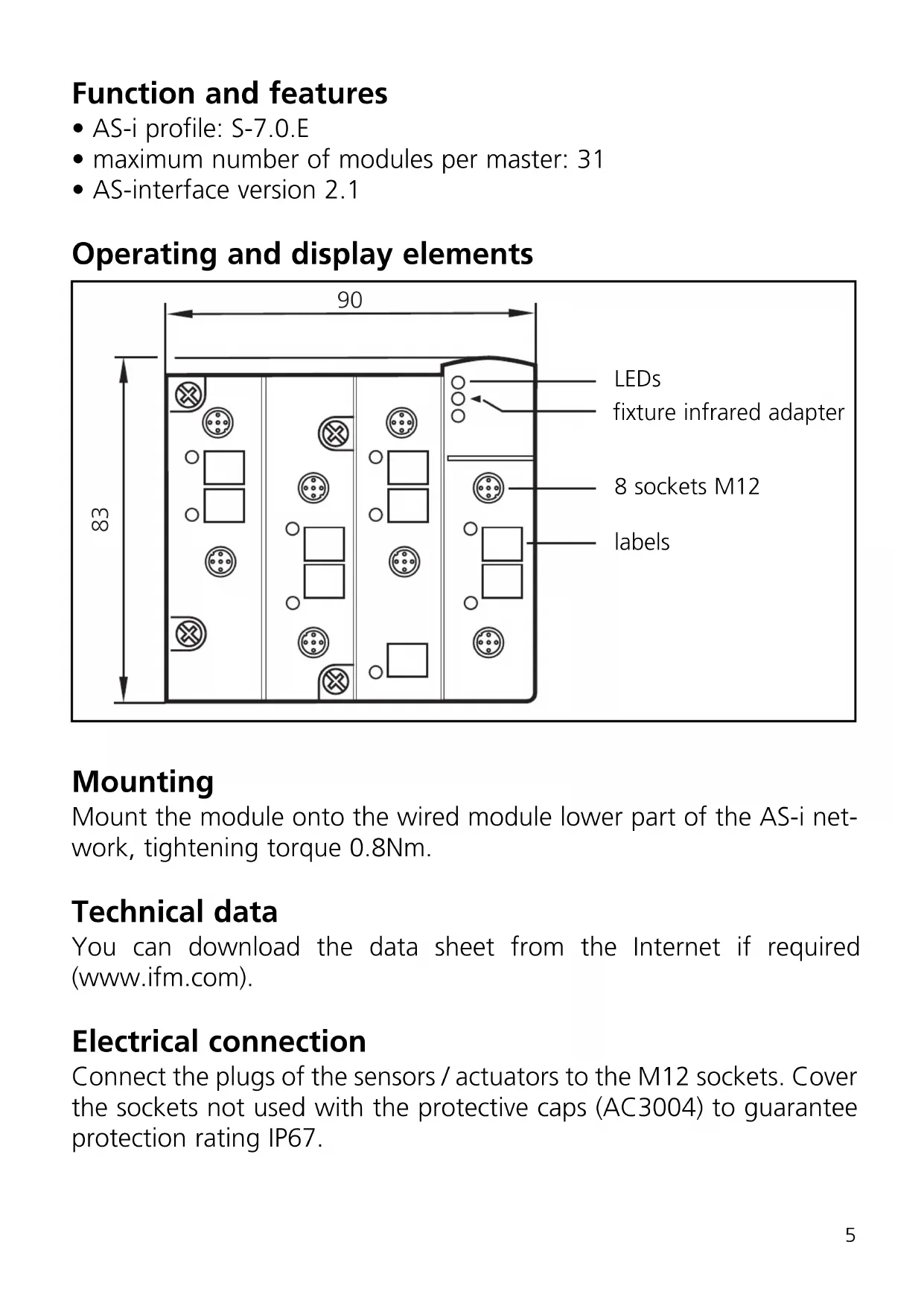

Diagram of a multi-panel electrical or electronic device layout with labeled components and symbols

Function and features

• AS-i profile: S-7.0.E
  • maximum number of modules per master: 31
• AS-interface version 2.1

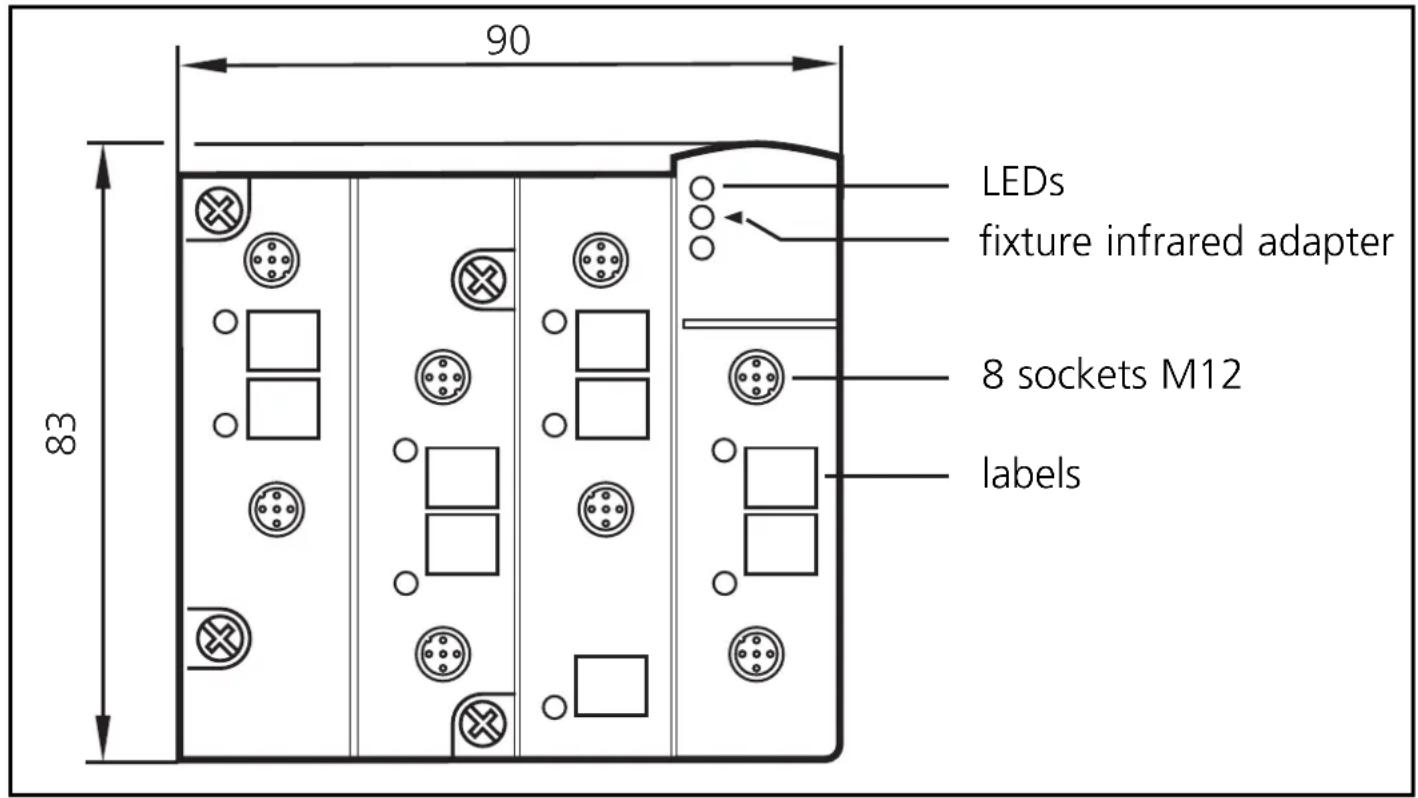

Operating and display elements

90 LEDs fixture infrared adapter 8 sockets M12 labels

Mounting

Mount the module onto the wired module lower part of the AS-i network, tightening torque 0.8Nm.

Technical data

You can download the data sheet from the Internet if required (www.ifm.com).

Electrical connection

Connect the plugs of the sensors / actuators to the M12 sockets. Cover the sockets not used with the protective caps (AC3004) to guarantee protection rating IP67.

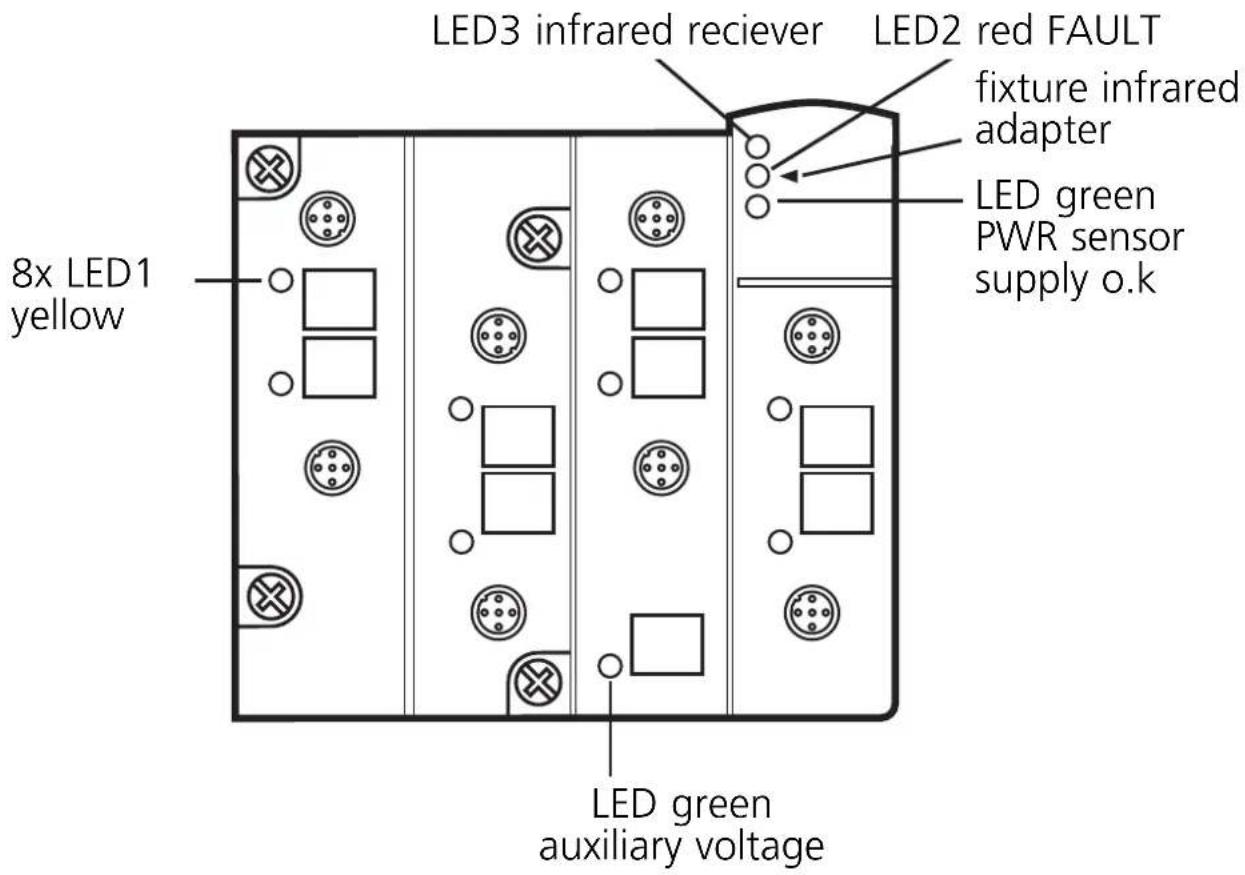

LED3 infrared reciever LED2 red FAULT fixture infrared adapter LED green PWR sensor supply o.k 8x LED1 yellow LED green auxiliary voltage

inputs

outputs

Socket M12 pin
sensor supply L+	1
sensor supply L- 3
data input 2+4
functional earth 5

Socket M12 pin
switching output +	4
external power - 3
functional earth 5
not connected 1,2

Addressing

Assign a free address between 1 and 31. At the factory the address is set to 0.

Addressing with the addressing unit AC1144

Do not remove the addressing plug while live.

If the mounted and wired module is used with the FC-E lower part AC5011 (with addressing socket), it can be addressed via the addressing cable (E70213).

If it is used with the FC-E lower part AC5003 (without addressing socket) the module must first be addressed via the addressing unit AC1144 and then mounted onto the lower part.

Infrared addressing

The AS-i module also offers the option of infrared addressing with the addressing unit AC1144.

The AS-i communication (yellow cable) must be switched off during the infrared addressing. To do so, disconnect the master.

Supply the slaves with voltage via the AS-i power supply. Addressing is carried out via the IR addressing cable E70211.

When the ifm AS-i power supplies SL are used the communication can be deactivated via a plug on the power supply.

Operation

Check the safe functioning of the unit. Display by LEDs:

• LED 1 yellow: input/output switched
• LED green: voltage supply o.k.
- LED 2 red is lit: AS-i communication error, slave does not participate in the “normal” data exchange, e. g. slave address 0
- LED 2 red flashing: periphery fault, e.g. sensor supply / over load or short circuit of the output
• LED 3: infrared receiver

Overload and short circuit of the input/output are signalled to the AS-i master (version 2.1) via the "periphery fault" flag in the status register.

Power supply	Input Rating	Output Rating
10...30V DC	31.6V DC250mA	30V DC, 200mA4 channels30V DC, 700mA per channel /2A total load
