Product Type	AS-i slave electronic module
Brand	IFM
Model	AC008A
Category	Electronic module
AS-i Profile	S-8.0.E
AS-Interface Version	2.1
Maximum number of modules per master	31
Supply voltage	26.5...31.6 V (AS-i) / 24 V DC (15...30 V DC) external
Current consumption	< 50 mA
Output current per output (DC13)	1 A (typ.), 2 A per module
Number of actuator outputs	4 (10...30 V DC)
External power supply	PELV (Protective Extra Low Voltage)
Addressing	Via addressing unit AC1144 (wired or infrared)
Default address	0
Address range	1 to 31
LED indications	Yellow (outputs activated), Green (power OK), Red 2 on (communication error), Red 2 flashing (peripheral fault)
Protection	Overload and short-circuit of outputs reported to master
Explosive area	Suitable for use in explosive areas (follow instructions)
Base compatibility	Base for flat cable with external power supply AC5003
Addressing accessories	Infrared cable E70211
Dimensions	Not specified in the manual
Weight	Not specified in the manual

Frequently Asked Questions - AC008A IFM

How to address the AS-i module AC008A?

Use the addressing unit AC1144 (wired or infrared). The default address is 0. Assign a free address between 1 and 31. When using with the base AC5003, first address the module then mount it on the base.

What do the LEDs on the module indicate?

Yellow LED: outputs activated. Green LED: power OK. Red 2 LED on: AS-i communication error (e.g., address 0). Red 2 LED flashing: peripheral fault (overload or short-circuit of an output).

What power supply is required for this module?

The module is powered by the AS-i cable (26.5...31.6 V) and requires an external 24 V DC power supply (range 15...30 V DC) for the actuators. Current consumption is less than 50 mA.

How to perform infrared addressing?

Disable AS-i communication (yellow cable). Power the slaves via the AS-i power supply unit. Use the addressing unit AC1144 with the infrared cable E70211. With ifm AS-i SL modules, disconnect the master to disable communication.

What is the maximum output current per output?

The output current per output (category DC13) is 1 A typical, and 2 A total for the module.

How to detect overload or short-circuit?

The red 2 LED flashes in case of peripheral fault. The fault is signaled to the AS-i master via the internal 'peripheral fault' bit in the status register (version 2.1).

Can I use this module in explosive areas?

Yes, the module is designed for use in explosive areas. Strictly follow the usage instructions provided in the manual.

How many AS-i modules can be connected to one master?

The maximum number of modules per master is 31.

What AS-Interface version is supported?

The module supports version AS-Interface 2.1.

How to clean or maintain the module?

The manual does not provide specific cleaning instructions. Disconnect power before any intervention. Use a dry lint-free cloth for the exterior. Avoid solvents.

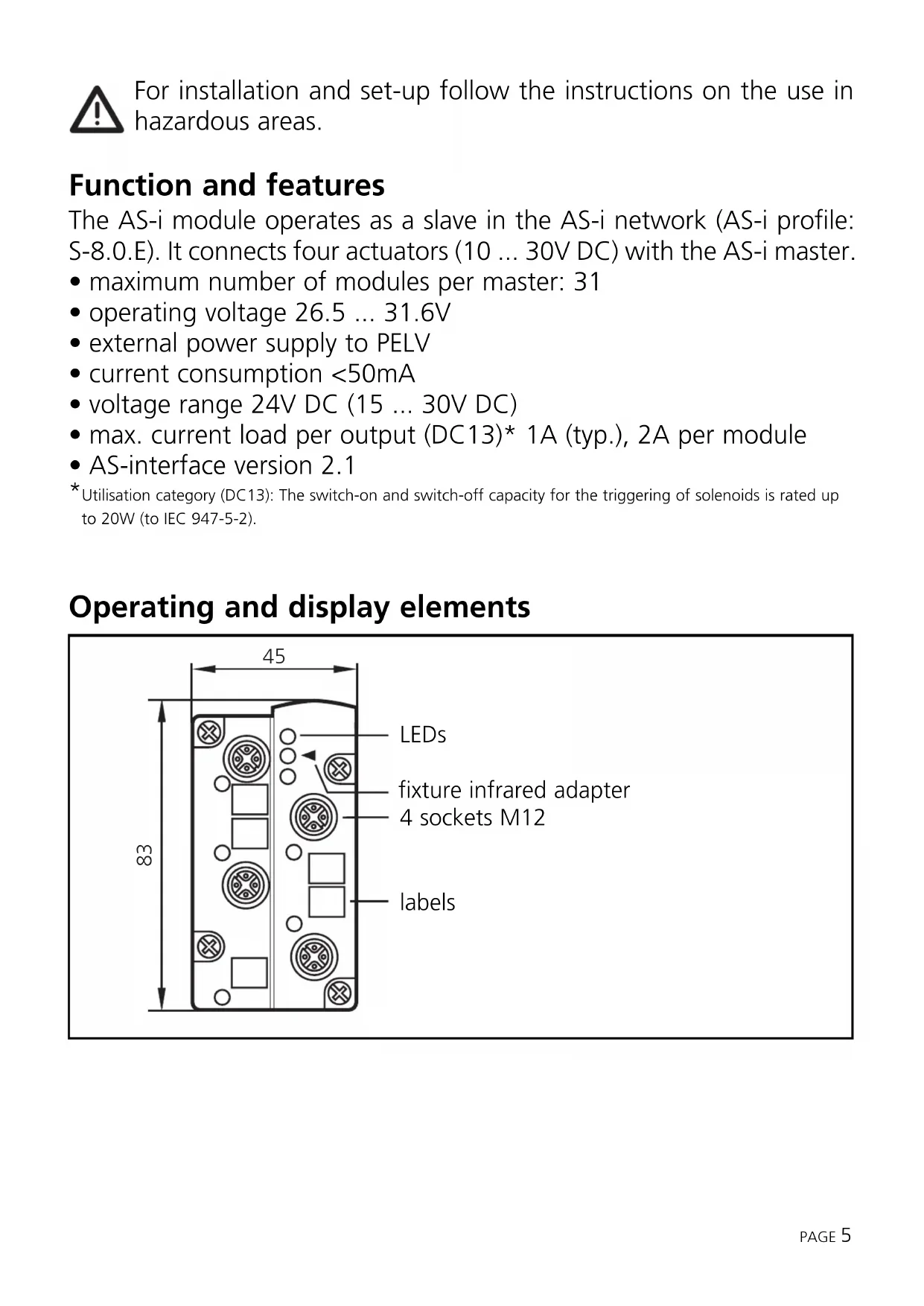

USER MANUAL AC008A IFM

Top-down schematic of a device panel with circular and square components, no text or symbols present

For installation and set-up follow the instructions on the use in hazardous areas.

Function and features

The AS-i module operates as a slave in the AS-i network (AS-i profile: S-8.0.E). It connects four actuators (10 ... 30V DC) with the AS-i master.

• maximum number of modules per master: 31
• operating voltage 26.5 ... 31.6V
• external power supply to PELV
• current consumption <50mA
• voltage range 24V DC (15 ... 30V DC)
- max. current load per output (DC13)* 1A (typ.), 2A per module
- AS-interface version 2.1

* Utilisation category (DC13): The switch-on and switch-off capacity for the triggering of solenoids is rated up to 20W (to IEC 947-5-2).

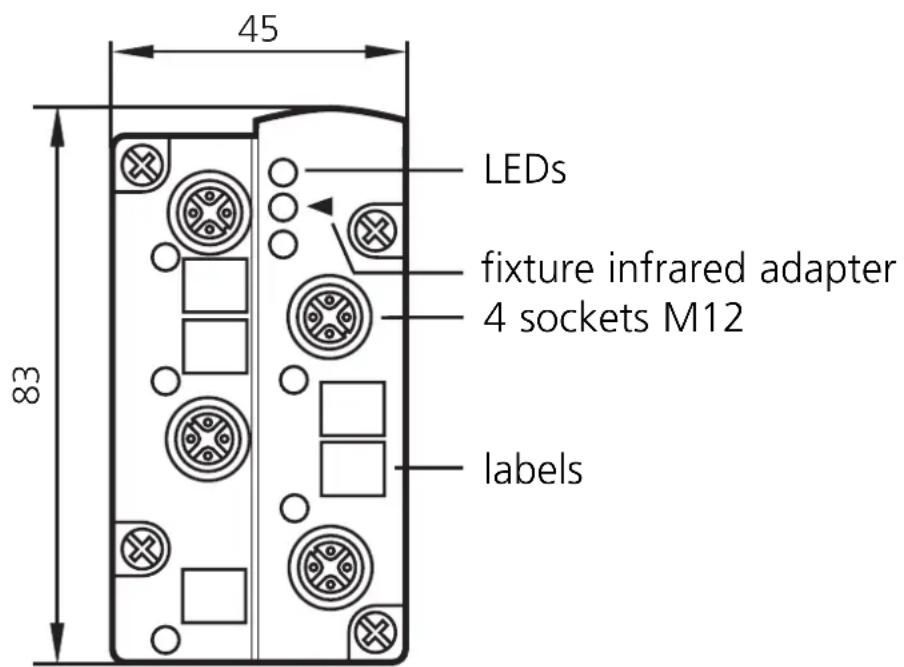

Operating and display elements

Addressing

Assign a free address between 1 and 31. At the factory the address is set to 0.

Addressing with the adressing unit AC1144

If it is used with the FC-E lower part AC5003 the module must first be addressed via the addressing unit AC1144 and then mounted onto the lower part.

Infrared addressing

The AS-i module also offers the option of infrared addressing with the addressing unit AC1144.

The AS-i communication (yellow cable) must be switched off during the infrared addressing.

Supply the slaves with voltage via the AS-i power supply. Addressing is carried out via the IR addressing cable E70211.

When the ifm AS-i power supplies type SL are used the communication can be deactivated via a plug on the power supply. To do so, disconnect the master.

Operation

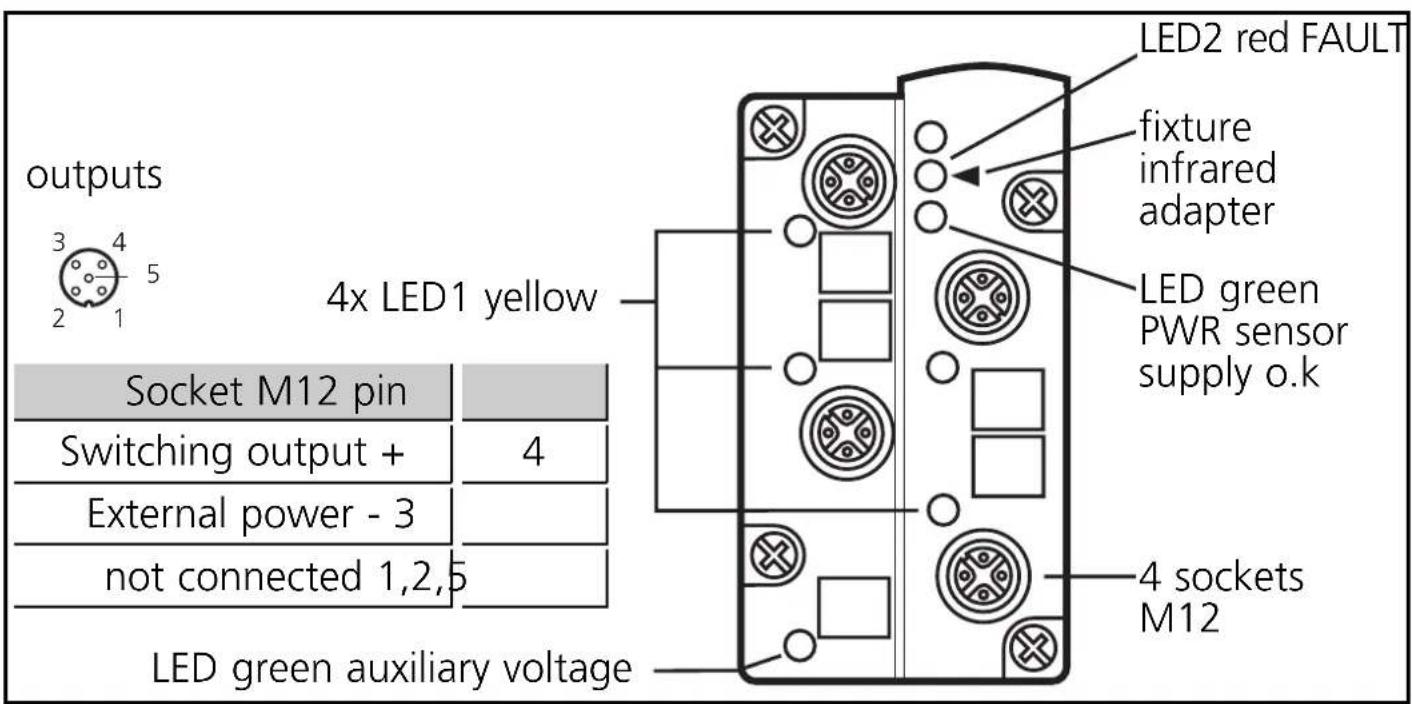

Check the safe functioning of the unit. Display by LEDs:

• LED 1 yellow: output switched
• LED green: voltage supply o.k.
- LED 2 red is lit: AS-i communication error, slave does not participate in the “normal” data exchange, e. g. slave address 0
- LED 2 red flashing: peripheral fault, e.g. overload or short circuit of the output

Overload and short circuit of the output are signalled to the AS-i master (version 2.1) via the "peripheral fault" flag in the status register.
