AC2508 - Electronic module IFM - Free user manual and instructions

Brand	IFM
Model	AC2508
Product type	AS-i module (actuator-sensor interface)
AS-interface version	2.1
AS-i profile	S-8.0.E
Max number of modules per master	31
Power supply	Via AS-i bus (30 V DC)
Number of outputs	4 (M12 sockets)
Slave addressing	1 to 31; default address 0
Addressing modes	AC1144 addressing unit or infrared (via cable E70211)
LED indicators	4x yellow (outputs), 1x green (sensor power), 1x red (communication/peripheral fault)
Protection	IP67 (with caps on unused sockets)
Mounting	On AS-i wiring base, torque 0.8 Nm
Electrical connection	Actuator connectors on M12 sockets
Diagnostic functions	Overload/short circuit indication via flashing red LED and internal bit
Maintenance and cleaning	Cover unused sockets with caps (AC73004) to maintain IP67
Safety	Do not remove the addressing plug under voltage; deactivate AS-i communication during infrared addressing
Spare parts / accessories	AC1144 addressing unit, addressing cable E70213, infrared cable E70211, caps AC73004, bases AC5011/AC5003
Repairability	Replacement of the complete module; no user-serviceable parts
General information	Manual available in several languages on notice-facile.com; technical data sheet at ifm-electronic.com

Frequently Asked Questions - AC2508 IFM

How to address the AC2508 module?

You can use the AC1144 addressing unit with cable E70213 (for base with plug) or infrared addressing via cable E70211. The address must be between 1 and 31; at delivery it is 0.

What to do if the red FAULT LED is on?

A red LED on indicates an AS-i communication error or a slave address of 0. Check the AS-i wiring and the module address.

How to install the AC2508 module?

Mount the module on the AS-i wiring base. Tighten the screws to 0.8 Nm. Then connect the actuator connectors to the M12 sockets.

What is the IP protection of the module?

The module offers IP67 protection provided that unused M12 sockets are sealed with caps (ref. AC73004).

Can I address the module while powered?

No, especially do not remove the addressing plug while powered. For infrared addressing, AS-i communication must be deactivated (disconnect the master or use an ifm power supply with shutdown function).

What does the flashing red LED mean?

A flashing red LED indicates a peripheral fault, such as an overload or short circuit on an output. The AS-i master receives this information via the internal 'peripheral fault' bit.

How many AC2508 modules can be connected to an AS-i master?

Each AS-i master can manage up to 31 slave modules, including the AC2508.

Is the AC2508 module compatible with AS-i bus version 2.1?

Yes, it is specified for AS-interface version 2.1 and supports profile S-8.0.E.

Where to find the detailed technical data sheet of the AC2508?

The technical data sheet is available for download at ifm-electronic.com. Enter AC2508 in the search.

Which accessories are recommended for addressing?

The AC1144 addressing unit, the addressing cable E70213 (for base with plug), and the infrared addressing cable E70211 are necessary depending on the chosen method.

USER MANUAL AC2508 IFM

Diagram of a device front view with circular components and square indicators, no text or symbols present

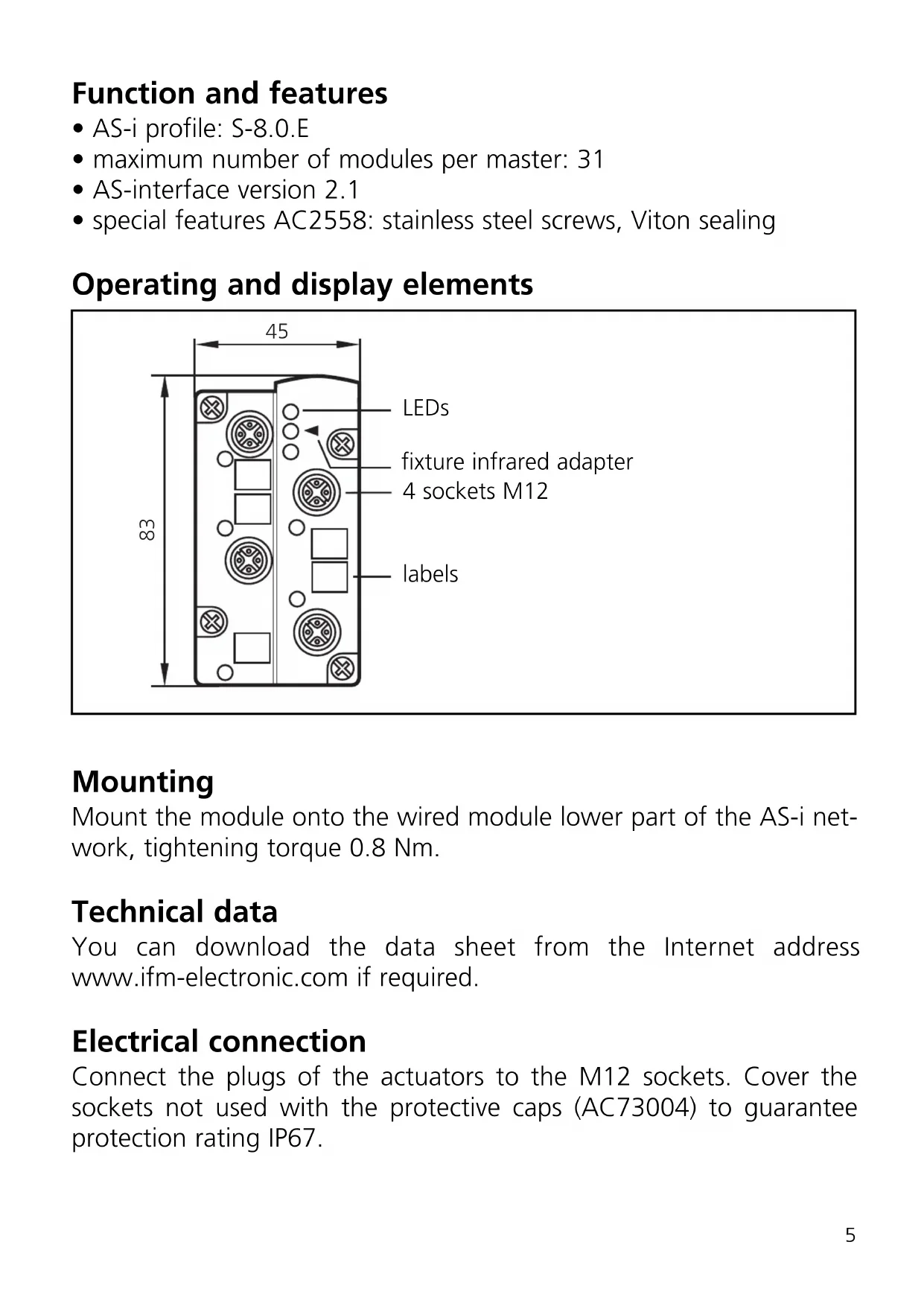

Function and features

• AS-i profile: S-8.0.E
  • maximum number of modules per master: 31
• AS-interface version 2.1
• special features AC2558: stainless steel screws, Viton sealing

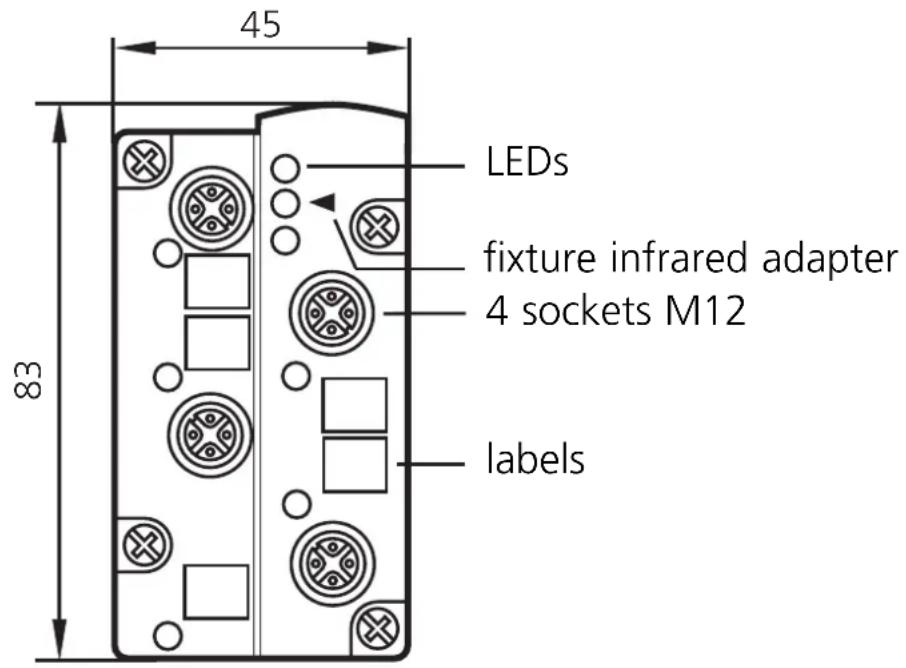

Operating and display elements

45 LEDs fixture infrared adapter 4 sockets M12 83 labels

Mounting

Mount the module onto the wired module lower part of the AS-i network, tightening torque 0.8 Nm.

Technical data

You can download the data sheet from the Internet address www.ifm-electronic.com if required.

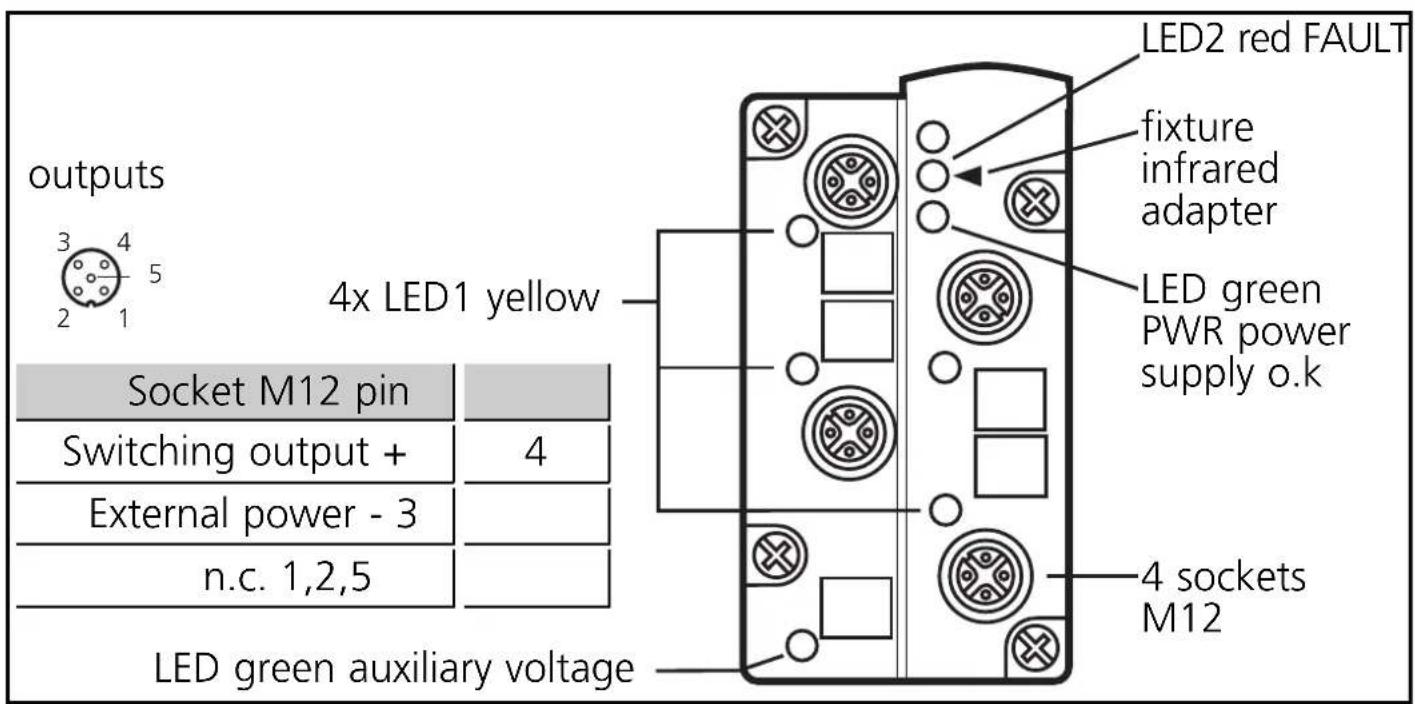

Electrical connection

Connect the plugs of the actuators to the M12 sockets. Cover the sockets not used with the protective caps (AC73004) to guarantee protection rating IP67.

4x LED1 yellow 6x 5x 3 4 2 1 Output LED green PWR power supply o.k 4x LED1 Socket M12 pin Switching output + External power - 3 n.c. 1,2,5 LED green auxiliary voltage LED2 red FAULT fixture infrared adapter 4 sockets M12

Addressing

Assign a free address between 1 and 31. At the factory the address is set to 0.

Addressing with the addressing unit AC1144

If the mounted and wired module is used with the FC-E lower part AC5011 (with addressing socket), it can be addressed via the addressing cable (E70213).

Do not remove the addressing plug while live.

If it is used with the FC-E lower part AC5003 (without addressing socket) the module must first be addressed via the addressing unit AC1144 and then mounted onto the lower part.

Infrared addressing

The AS-i module also offers the option of infrared addressing with the addressing unit AC1144.

The AS-i communication (yellow cable) must be switched off during the infrared addressing. To do so, disconnect the master.

Supply the slaves with voltage via the AS-i power supply. Addressing is carried out via the IR addressing cable E70211.

When the ifm AS-i power supplies SL are used the communication can be deactivated via a plug on the power supply.

Operation

Check the safe functioning of the unit. Display by LEDs:

• LED 1 yellow: output switched
• LED green: voltage supply o.k.
- LED 2 red is lit: AS-i communication error, slave does not participate in the “normal” data exchange, e. g. slave address 0
- LED 2 red flashing: peripheral fault, e.g. overload or short circuit of the output

Overload and short circuit of the output are signalled to the AS-i master (version 2.1) via the "peripheral fault" flag in the status register.

Input Rating	Output Rating	Power supply
31.6 V DC50 mA	4 channels 30 V DC,700 mA per channel /2 A total load	10...30 V DC
