34237 - Smoke detector CHACON - Free user manual and instructions

Product Type	Optical smoke detector
Brand	Chacon
Model	34237
Detection method	Optical (by light beam)
Power supply	Integrated non-replaceable sealed battery
Battery life	10 years
Alarm sound volume	Greater than 85 dB at 3 meters
Alarm sensitivity	0.123 - 0.170 dB/m
Monitored area	20 to 40 m²
Operating temperature	0°C to 40°C
Operating humidity	Less than 93% RH
Installation	On ceiling (ideally center) or on wall (with precautions)
Certifications	NF – Domestic Fire Safety (NF292), CE, EN 14604:2005
Operation indicator	Flashing LED every 40 seconds in normal mode
Low battery alarm	Beep and LED flash every 40 seconds for about 30 days
Alarm silence function	Yes, by pressing the test button (5 to 15 minutes)
Recommended weekly test	Press the test button until the beep
Monthly cleaning	Gently vacuum the vents with a brush
Total lifespan	10 years (replace the device after this period)
Repairability	Not repairable – replace if defective

Frequently Asked Questions - 34237 CHACON

Where to install the Chacon 34237 smoke detector?

Install it on the ceiling, preferably in the center of the room, at least 50 cm from walls and objects. In bedrooms, place it near sleeping areas. Avoid kitchens, bathrooms, and areas with strong drafts.

How to test the smoke detector?

Press the test button until you hear a beep. If no sound, the detector is defective and must be replaced. Perform this test once a week.

What to do when the detector beeps every 40 seconds?

Low battery signal. You can temporarily silence it (10h) by pressing the test button, but you must replace the device as soon as possible because the battery is sealed and non-replaceable.

How to disable a false alarm?

Press the test button once. The alarm will silence for 5 to 15 minutes, then the device resets automatically. Make sure there is no real danger before silencing the alarm.

Does the detector work during a power outage?

Yes, because it is powered by an internal sealed battery. It remains operational even without electricity.

How to clean the smoke detector?

Use a vacuum cleaner with a soft brush to vacuum the dust on the sides and cover. Do not remove the top cover. Clean it at least once a month.

What is the lifespan of the detector?

The total lifespan is 10 years. After this period or as soon as the low battery warning appears, replace the entire device.

Can the detector be installed in a leisure vehicle?

Yes, it is intended for installation in recreational accommodation vehicles (caravans, motorhomes). Follow the same installation rules.

What to do if the detector sounds without apparent reason?

Check that there is no smoke or steam (kitchen, shower). Dust can also cause false alarms. Clean the device. If the problem persists, replace it.

How to register the warranty?

Fill out the online form on www.chacon.com/warranty. Keep the proof of purchase.

USER MANUAL 34237 CHACON

Minimum

Optimal

Restrictions

Registering your warranty

To register your warranty, fill in the online form at www.chacon.com/warranty

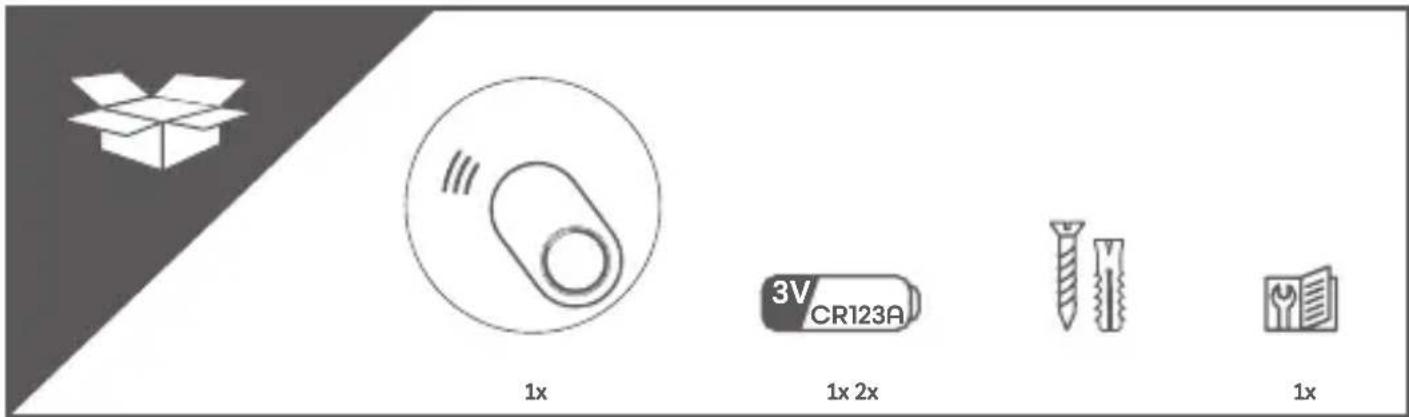

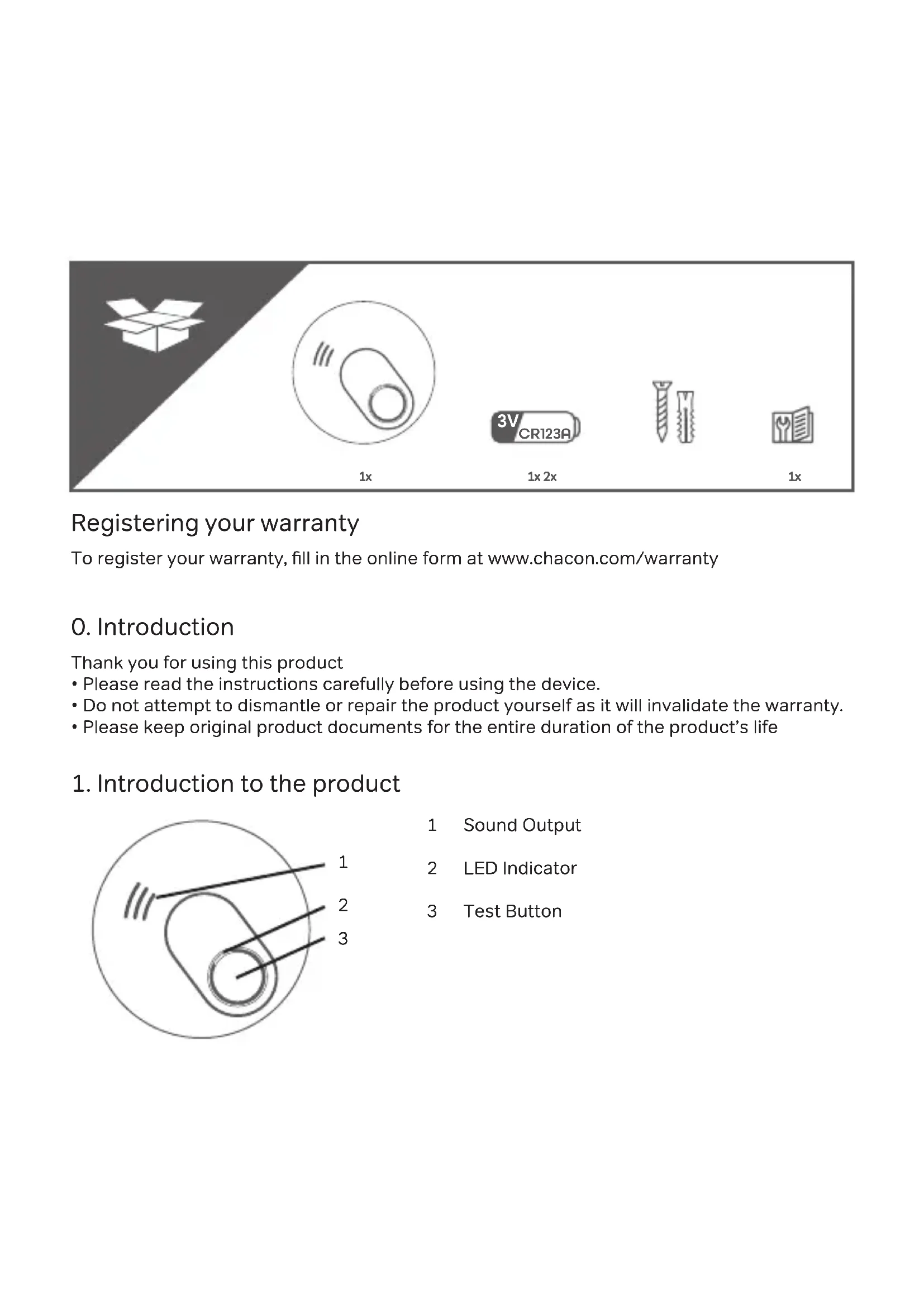

0. Introduction

Thank you for using this product

• Please read the instructions carefully before using the device.
• Do not attempt to dismantle or repair the product yourself as it will invalidate the warranty.
• Please keep original product documents for the entire duration of the product's life

1. Introduction to the product

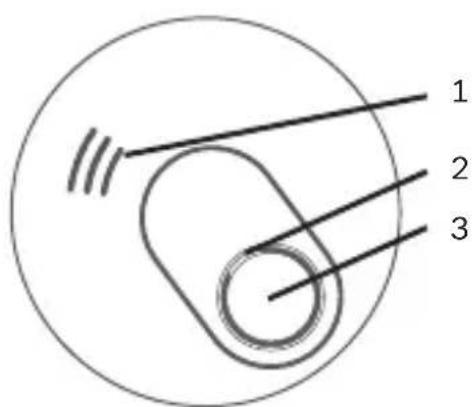

1 Sound Output
2 LED Indicator
3 Test Button

Before using the smoke detector for the first time, make sure you activate it and test it is working properly.

1) Place the battery in the battery compartment and connect it as shown in the picture above.
2) Place the mounting plate on the smoke detector and fix it in place by turning it clockwise.
3) Check that the battery is properly connected and your detector is activated by pressing the button until you hear a beep.

Note: If there is no sound, the smoke detector has not been correctly activated and must not be used!

2. Installation of smoke detector

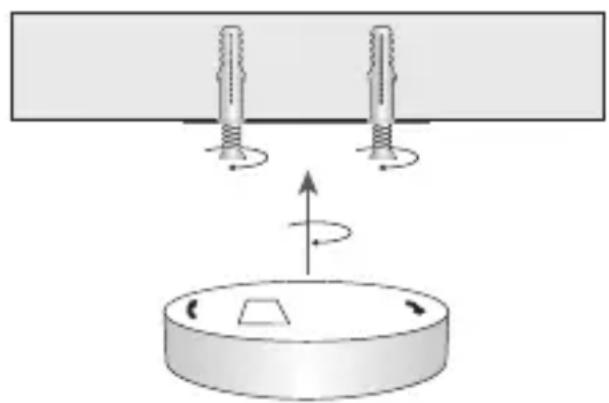

1. Remove the mounting plate from the smoke detector.
2. Place the mounting plate in the desired location and use a pencil to mark the position of the holes.
3. Remove the mounting plate and make two holes with a diameter of 5 millimetres.
4. Push the plastic wall plugs into the holes.

5. Insert the screws into the mounting plate and tighten them securely into the wall plugs.

6. Place the smoke plate on the mounting bracket and fix it in place by turning it clockwise.

7. Check that your detector is working properly by pressing the test button. If there is no sound, the smoke detector is not working correctly and must not be used!

3. Installation tips

3.1. Where to install the smoke detector

The smoke detectors must be installed so that they can detect smoke.

• Install in places where people sleep (especially children's bedrooms)

Install close to exits
- On the ceiling, in the middle of the room
- At least 50 cm from walls and other objects
Maximum installation height 6 m

3.2. Installing a smoke detector in a room with an unusual shape

• Corridors with a maximum length of 3m : Max. 15 m between 2 smoke detectors.
• Gabled rooms

o If the slope of the ceiling exceeds 20^ from the horizontal, the smoke detectors must be installed between 0.5 m and 1 m from the ceiling.
o Partially gabled rooms: if the flat ceiling has a width less than or greater than 1m , consider the slope of the ceiling to be greater than 20^ . If the width of the ceiling exceeds 1m , think of it as a conventional ceiling.

• Rooms with divided ceilings:

o If the height of the subdivisions (ceiling, beams, etc.) is less than or equal to 0.2m , a smoke detector can be installed either on the beams or on the ceiling.
o If the height of the subdivisions (ceiling, beams, etc.) is greater than 0.2m and the area of your ceiling panels is less than or equal to 36m^2 , use the ceiling as normal.
o If the height of the subdivisions (ceiling, beams, etc.) is greater than 0.2m and the service of the ceiling panels is greater than 36m^2 you must install a smoke detector on each ceiling panel.

3.3 Areas to avoid when installing a smoke detector

• In an environment with air draughts (e.g. near an air-conditioning or fan system).
• Areas where there are frequent fires, such as kitchens.
• Areas with high humidity, such as bathrooms, or near appliances such as dishwashers or washing machines.

4. Use of the product

Mode LED signal Sound signal
The device is working correctly 1 x every 40 seconds None

The device is in "test" mode 1 x every second 3 times, with a 1.5 second pause between each flash	1 x every second 3 times, with a 1.5 second pause between each beep
The device has detected smoke 1 x every second 3 times, with a 1.5 second pause between each flash	1 x every second 3 times, with a 1.5 second pause between each beep
The battery is low 1 x every 40 seconds (simultaneously with the "beep")	1 x every 40 seconds (simultaneously with the flash)
Low battery warning deactivated 1 x every 40 seconds None
The device is not working correctly	1 x every 40 seconds (alternatively with the "beep")

4.1. Battery low

When the battery is low, the smoke detector warns you by emitting a repetitive beep and flashing for around 30 days.

NOTE: This smoke detector has a non-replaceable battery. When you see and hear this warning, replace the device as soon as possible! The low battery warning beep can be deactivated for ten hours by pressing the test button. When the detector is in this mode, it remains operational, but we recommend that you change it promptly.

4.2. Fault warning mode

If the smoke detector is not working properly, it moves into "fault warning" mode. Attempt to clean the smoke detector (see maintenance). If you do not see any improvement and it remains in fault mode, replace the smoke detector!

4.3. Deactivating "alarm" mode

When the smoke detector has detected smoke and switches to alarm mode, you can deactivate the alarm for between 5 and 15 minutes by pressing the test button. After that, the smoke detector automatically reinitialises itself and returns to normal operating mode. If there are still combustion particles in the air, the smoke detector will revert to alarm mode.

NOTE: Before deactivating the "alarm" function, always identify the cause of the alarm and make sure the situation is safe.

5. Maintenance

• Test the smoke detector is working properly once a week using the test button. If the smoke detector is working correctly, you will hear a beep. Because the alarm is very loud, make sure you keep your distance from the unit while carrying out the test. If the smoke detector does not emit a beep, it must be replaced immediately!
• Clean the smoke detector at least once a month to get rid of grime, dust and debris. Use a vacuum cleaner with a soft brush and pass it over the sides and the lid of the smoke detector. Do not remove the upper cap on the smoke detector to clean the insides.
• Do not attempt to repair the smoke detector. If the smoke detector is damaged in a way that affects how it works, it must be replaced!
• False alarms are often caused by dust or steam.

6.Warnings

• To avoid injuries, this device must be securely fixed the ceiling in accordance with the instructions.
• The batteries must not be exposed to excessive heat, such as sunlight or fire.
• Do not paint or cover the smoke detector

7. Technical specifications

Detection method optical
Power supply Sealed battery (non-replaceable)
Battery life 10 years
Volume > 85 dB at 3 m
Alarm sensitivity 0.123 - 0.170 dB/m
Area monitored 20 - 40 m2
Operating temperature 0 °C - 40 °C
Operating humidity < 93%
Individual alarm indicator v
Low battery indicator v
Deactivate alarm options v
Can be installed in camper-vans and mobile homes	v
Installation ceiling or wall

Recycling

In accordance with European WEEE directives (2002/96/EC) and directives concerning accumulators (2006/66/EC), any electrical or electronic device or accumulator must be collected separately by a local organisation specialising in the collection of such waste.

Do not dispose of these products with ordinary waste. Check the regulations in force.

The logo shaped like a waste bin indicates that this product must not be disposed of with household waste in any EU country. To prevent any risk to the environment or human health due to uncontrolled scrapping, recycle the product in a responsible manner. This will promote the sustainable use of material resources. To return your used device, use the return and collection systems, or contact the original dealer. The dealer will recycle it in accordance with regulatory provisions.

Declaration of conformity

The CE mark affixed to this product confirms its compliance with the European Directives which apply to the product and, in particular, its compliance with the harmonized specifications of standard EN 14604:2005 relating to Construction Products Regulation 305/2011. The complete text of the EU declaration of conformity is available at the following Internet address: www.chacon.com/conformity

DoP:34237-0820

Ref:34237

EN 14604:2005+AC:2008

Support

www.chacon.com/support

www.afnor.org

EN: The NF - DOMESTIC FIRE SAFETY mark provides assurance as to safety and consistent quality inspected by experts. Through its rigorous and exhaustive inspections (holder's quality management system, product inspections, audits and monitoring tests, etc.), the NF mark represents a comprehensive guarantee for consumers that the certified products are compliant. The NF - DOMESTIC FIRE SAFETY mark confirms the product's compliance with certification rules NF 292.

DoP:34237-0820 Ref:34237

EN 14604:2005+AC:2008

www.afnor.org

In accordance with European WEEE directives (2002/96/EC) and directives concerning accumulators (2006/66/EC), any electrical or electronic device or accumulator must be collected separately by a local organisation specialising in the collection of such waste.

Do not dispose of these products with ordinary waste. Check the regulations in force.

The logo shaped like a waste bin indicates that this product must not be disposed of with household waste in any EU country. To prevent any risk to the environment or human health due to uncontrolled scrapping, recycle the product in a responsible manner. This will promote the sustainable use of material resources. To return your used device, use the return and collection systems, or contact the original dealer. The dealer will recycle it in accordance with regulatory provisions.

Support

www.chacon.com/support

20 C E 0786

DoP:34237-0820

Ref:34237

EN 14604:2005+AC:2008

www.afnor.org

Support www.chacon.com/support

Registrar a garantia
