34234 - Smoke detector CHACON - Free user manual and instructions
Find the device manual for free 34234 CHACON in PDF.
| Product type | Smoke detector |
| Brand | Chacon |
| Model | 34234 |
| Detection method | Optical |
| Power supply | Replaceable 9V battery (LR6LR61 or equivalent) |
| Battery life | Approximately 5 years |
| Sound level | >85 dB at 3 meters |
| Alarm sensitivity | 0.10 – 0.16 dB/m |
| Monitored area | Up to 40 m² |
| Operating temperature | 0°C to 40°C |
| Operating humidity | < 93% |
| Installation | Ceiling-mounted |
| Max installation height | 6 meters |
| LED indicator | Yes (flashes according to mode) |
| Test button | Yes |
| Low battery indication | Yes (beeps and flashes) |
| Fault indication | Yes (beeps and flashes) |
| Batteries included | Yes |
| Certification | NF (NF292), CE, EN 14604:2005 |
| Warranty | Registration at www.chacon.com/warranty |
| Maintenance | Weekly test, monthly cleaning (soft brush vacuum) |
| Battery replacement | Recommended models: Raymax 6LR61, Duracell MN1604, Gold Peak GP1604A |
Frequently Asked Questions - 34234 CHACON
User questions about 34234 CHACON
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Smoke detector in PDF format for free! Find your manual 34234 - CHACON and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. 34234 by CHACON.
USER MANUAL 34234 CHACON
 Minimum |  Optimal |  Restrictions |

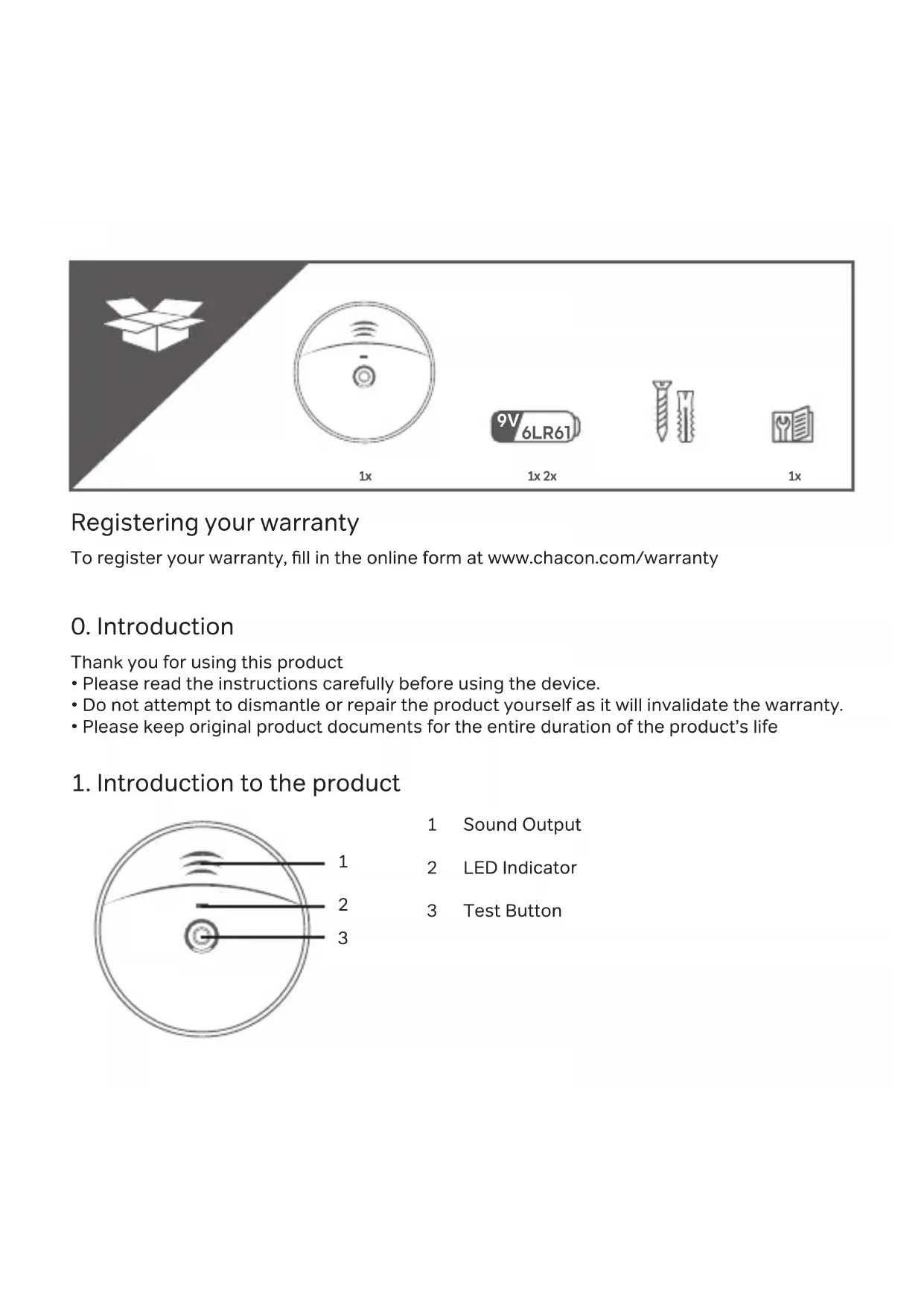

Registering your warranty
To register your warranty, fill in the online form at www.chacon.com/warranty

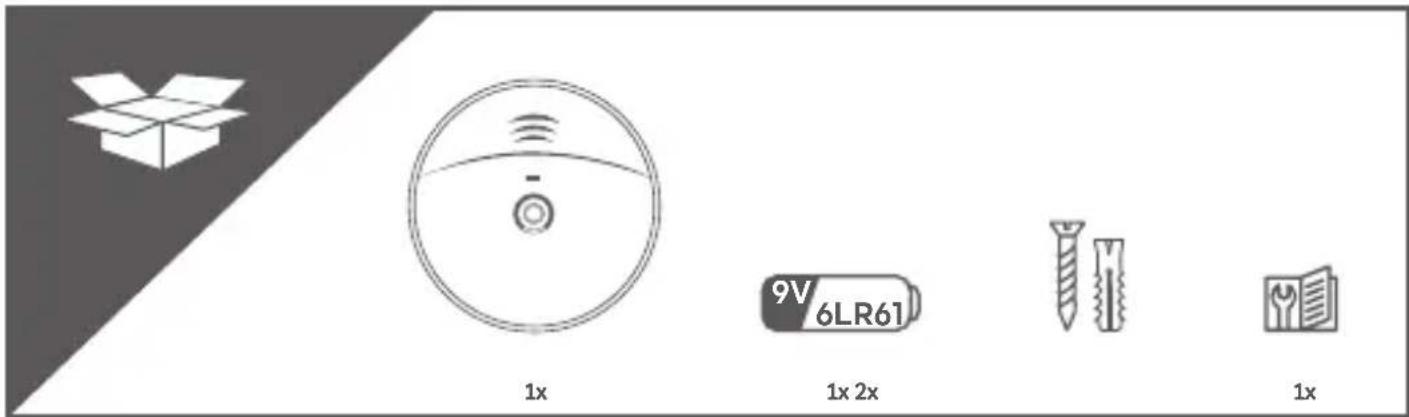

0. Introduction
Thank you for using this product
- Please read the instructions carefully before using the device.
- Do not attempt to dismantle or repair the product yourself as it will invalidate the warranty.
- Please keep original product documents for the entire duration of the product's life

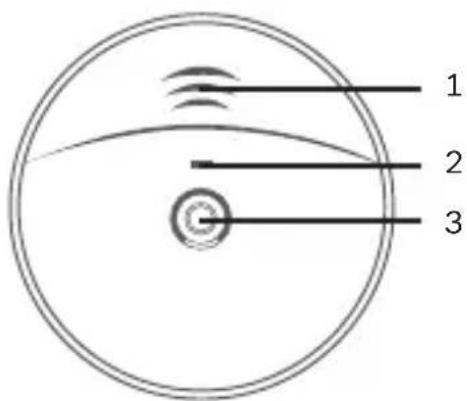

1. Introduction to the product
1 Sound Output
2 LED Indicator
3 Test Button
Before using the smoke detector for the first time, make sure you activate it and test it is working properly.
1) Place the battery in the battery compartment and connect it as shown in the picture above.
2) Place the mounting plate on the smoke detector and fix it in place by turning it clockwise.
3) Check that the battery is properly connected and your detector is activated by pressing the button until you hear a beep.
Note: If there is no sound, the smoke detector has not been correctly activated and must not be used!

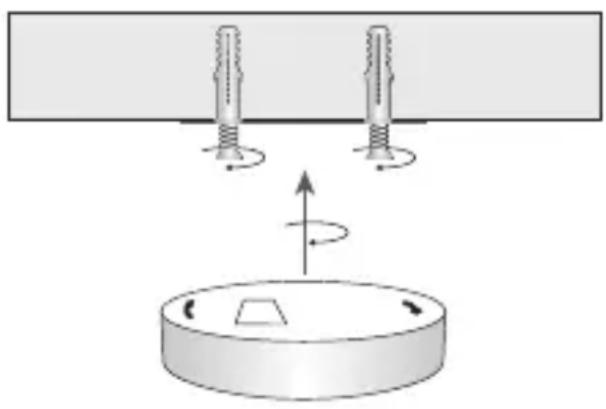

2. Installation of smoke detector
- Place the mounting plate in the desired location and use a pencil to mark the position of the holes.
- Remove the mounting plate and make two holes with a diameter of 5 millimetres.
- Push the plastic wall plugs into the holes.
-
Insert the screws into the mounting plate and tighten them securely into the wall plugs.
-
Place the smoke plate on the mounting bracket and fix it in place by turning it clockwise.
-
Check that your detector is working properly by pressing the test button. If there is no sound, the smoke detector is not working correctly and must not be used!
3. Installation tips
3.1. Where to install the smoke detector
The smoke detectors must be installed so that they can detect smoke.
- Install in places where people sleep (especially children's bedrooms)
- Install close to exits
- On the ceiling, in the middle of the room
- At least 50 cm from walls and other objects
- Maximum installation height 6 m
3.2. Installing a smoke detector in a room with an unusual shape
- Corridors with a maximum length of 3 m: Max. 15 m between 2 smoke detectors.
- Gabled rooms
o If the slope of the ceiling exceeds 20^ from the horizontal, the smoke detectors must be installed between 0.5 m and 1 m from the ceiling.
o Partially gabled rooms: if the flat ceiling has a width less than or greater than 1 m, consider the slope of the ceiling to be greater than 20^ . If the width of the ceiling exceeds 1 m, think of it as a conventional ceiling.
- Rooms with divided ceilings:
o If the height of the subdivisions (ceiling, beams, etc.) is less than or equal to 0.2 m, a smoke detector can be installed either on the beams or on the ceiling.
o If the height of the subdivisions (ceiling, beams, etc.) is greater than 0.2 m and the area of your ceiling panels is less than or equal to 36 m2, use the ceiling as normal.
o If the height of the subdivisions (ceiling, beams, etc.) is greater than 0.2 m and the service of the ceiling panels is greater than 36 m2, you must install a smoke detector on each ceiling panel.
3.3 Areas to avoid when installing a smoke detector
- In an environment with air draughts (e.g. near an air-conditioning or fan system).
- Areas where there are frequent fires, such as kitchens.
- Areas with high humidity, such as bathrooms, or near appliances such as dishwashers or washing machines.
4. Use of the product
| Mode LED signal Sound signal | ||
| The device is working correctly | 1 x every 32 seconds None | |
| The device is in “test” mode 1 | x every second 3 times, with a 1.5 second pause between each flash | 1 x every second 3 times, with a 1.5 second pause between each beep |
| The device has detected smoke | 1 x every second 3 times, with a 1.5 second pause between each flash | 1 x every second 3 times, with a 1.5 second pause between each beep |
| The battery is low 1 x every 32 | seconds 1 x every 32 seconds | |
| The device is not working correctly | 1 x every 32 seconds 1 x every 32 seconds | 32 seconds |
4.1. Battery low
When the battery is low, the smoke detector warns you by emitting a repetitive beep and flashing for around 30 days. Replace the batteries with one of the types recommended in the paragraph on “Technical specifications”
- Remove the smoke detector from mounting bracket by turning it anticlockwise.
- Install the new battery as shown in point 1. Introduction to the product
- Test the alarm using the test button every time you change the battery.
4.2. Fault warning mode
If the smoke detector is not working properly, it moves into “fault warning” mode. Attempt to clean the smoke detector (see maintenance). If you do not see any improvement and it remains in fault mode, replace the smoke detector!
5. Maintenance
- Test the smoke detector is working properly once a week using the test button. If the smoke detector is working correctly, you will hear a beep. Because the alarm is very loud, make sure you keep your distance from the unit while carrying out the test. If the smoke detector does not emit a beep, it must be replaced immediately!
- Clean the smoke detector at least once a month to get rid of grime, dust and debris. Use a vacuum cleaner with a soft brush and pass it over the sides and the lid of the smoke detector. Do not remove the upper cap on the smoke detector to clean the insides.
- Do not attempt to repair the smoke detector. If the smoke detector is damaged in a way that affects how it works, it must be replaced!
- False alarms are often caused by dust or steam.
6. Warnings
- To avoid injuries, this device must be securely fixed the ceiling in accordance with the instructions.
- The batteries must not be exposed to excessive heat, such as sunlight or fire.
- Do not paint or cover the smoke detector
- Proper operation of the Detector is ensured by the use of one of the following batteries: Raymax – 6LR61 (9 V 560 mAh) / Duracell – MN1604 (9 V 600 mAh) / Gold Peak – GP1604A (9 V 550 mAh)
7. Technical specifications
| Detection method optical | |
| Power supply replaceable | |
| Battery life 5 years | |
| Recommended batteries o Raymax – 6LR61 (9 V 560 mAh) | |
| o Duracell – MN1604 (9 V 600 mAh) | |
| o Gold Peak – GP1604A (9 V 550 mAh) | |
| Volume > 85 dB at 3 m | |
| Alarm sensitivity 0.10 – 0.16 dB/m | |
| Area monitored 40 m2 | |
| Operating temperature 0 °C - 40 °C | |
| Operating humidity < 93% | |
| Individual alarm indicator v | |
| Low battery indicator v | |
| Installation ceiling | |
Recycling
In accordance with European WEEE directives (2002/96/EC) and directives concerning accumulators (2006/66/EC), any electrical or electronic device or accumulator must be collected separately by a local organisation specialising in the collection of such waste.
Do not dispose of these products with ordinary waste. Check the regulations in force.
The logo shaped like a waste bin indicates that this product must not be disposed of with household waste in any EU country. To prevent any risk to the environment or human health due to uncontrolled scrapping, recycle the product in a responsible manner. This will promote the sustainable use of material resources. To return your used device, use the return and collection systems, or contact the original dealer. The dealer will recycle it in accordance with regulatory provisions.
Declaration of conformity
The CE mark affixed to this product confirms its compliance with the
European Directives which apply to the product and, in particular, its compliance with the harmonized specifications of standard EN 14604:2005
relating to Construction Products Regulation 305/2011
DoP:34234-0820 Ref:34234
EN 14604:2005+AC:2008
Support
www.chacon.com/support
