Product Type	Wireless Bluetooth Speaker
Brand	ECG
Model	BTS L1
Dimensions	220,3 × 102,5 × 102 mm
Weight	1,15 kg
Power	20 W (2 × 10 W)
Power Supply	Built-in battery 3,7 V / 6600 mAh, recommended adapter 5 V / 2 A
Battery Life	7 hours at 70% volume
Charging Time	5 hours (with 5 V / 2 A adapter)
Connectivity	Bluetooth 4.2, AUX input (3,5 mm), Micro SD (max 32 GB), USB (max 32 GB), FM radio
Main Functions	Hands-free, TWS (True Wireless Stereo), equalizer (normal/bass/treble), voice assistant
Protection Rating	IPX6 (resistant to water splashes)
Supported Audio Formats	MP3, WMA, WAV, APE, FLAC
Maintenance	Clean with a damp cloth, do not use liquid products or sprays
Safety	Do not open the casing, use only recommended accessories, avoid heat sources
Repairability	Have repairs carried out by qualified after-sales service personnel
Package Contents	Speaker, Micro USB cable, AUX-IN cable, user manual

Frequently Asked Questions - BTS L1 ECG

How to pair the speaker via Bluetooth?

Turn on the speaker and switch to Bluetooth mode (short press button ③). Enable Bluetooth on your device and search for BTS Elysium L1. Select it to connect. The 'Device paired' announcement confirms the connection.

What to do if the speaker does not connect to my phone?

Check that the speaker is in Bluetooth mode and that your device supports the A2DP profile. Move other Bluetooth devices away. If necessary, reset the speaker by long pressing button ① for 8 seconds.

How to use the TWS (True Wireless Stereo) function?

Turn on two BTS L1 speakers and set them to Bluetooth mode. Briefly press button ⑦ on one of the speakers to start searching. Once paired, the left speaker has a blue light, the right one orange. Then connect your phone to the left speaker to play in stereo.

Why is the Micro SD card not being read?

Check that the card is in FAT32 format and does not exceed 32 GB. Make sure the audio files are in supported formats: MP3, WMA, WAV, APE, FLAC. Try reformatting the card or using another one.

How to search for FM stations?

Switch to FM mode by short pressing button ②. Then long press button ② to start automatic search and save stations. Use buttons ④/⑤ to navigate between stations.

How to change the equalizer profile?

Briefly press button ⑥ (EQ) to switch between profiles: normal, bass and treble. The normal mode is active by default.

How to disable the voice assistant?

Long press button ⑥ (EQ) to disable the voice assistant. It announces modes and actions. Long press again to reactivate.

The speaker turns off by itself, why?

The speaker has an energy-saving function. It automatically turns off if no Bluetooth pairing occurs for 10 minutes, or if playback is paused in FM, AUX or SD card mode for more than 10 minutes. Long press button ① to turn it back on.

How to charge the speaker?

Use the supplied Micro USB cable and a quality power adapter (recommended 5 V / 2 A). The orange light indicates charging, it turns off when the battery is full. Charging time is about 5 hours.

How to reset the speaker in case of malfunction?

If all buttons are unresponsive, long press button ① for 8 seconds to reset the system. The speaker will restart.

USER MANUAL BTS L1 ECG

BTS Elysium L1 Black

CZ PRENOSNY BEZDRATOVY REPRODUKTOR NAVOD K OBSLUZE

SR/MNE PRENOSNI BEZICNI ZVUCNIK UPUTSTVO ZA UPOTREBU

SK PRENOSNY BEZDROTOV REPRODUKTOR NAVOD NA OBSLUHU

FR HAUT-PARLEUR MOBILE SANS FIL MODE D'EMPLOI

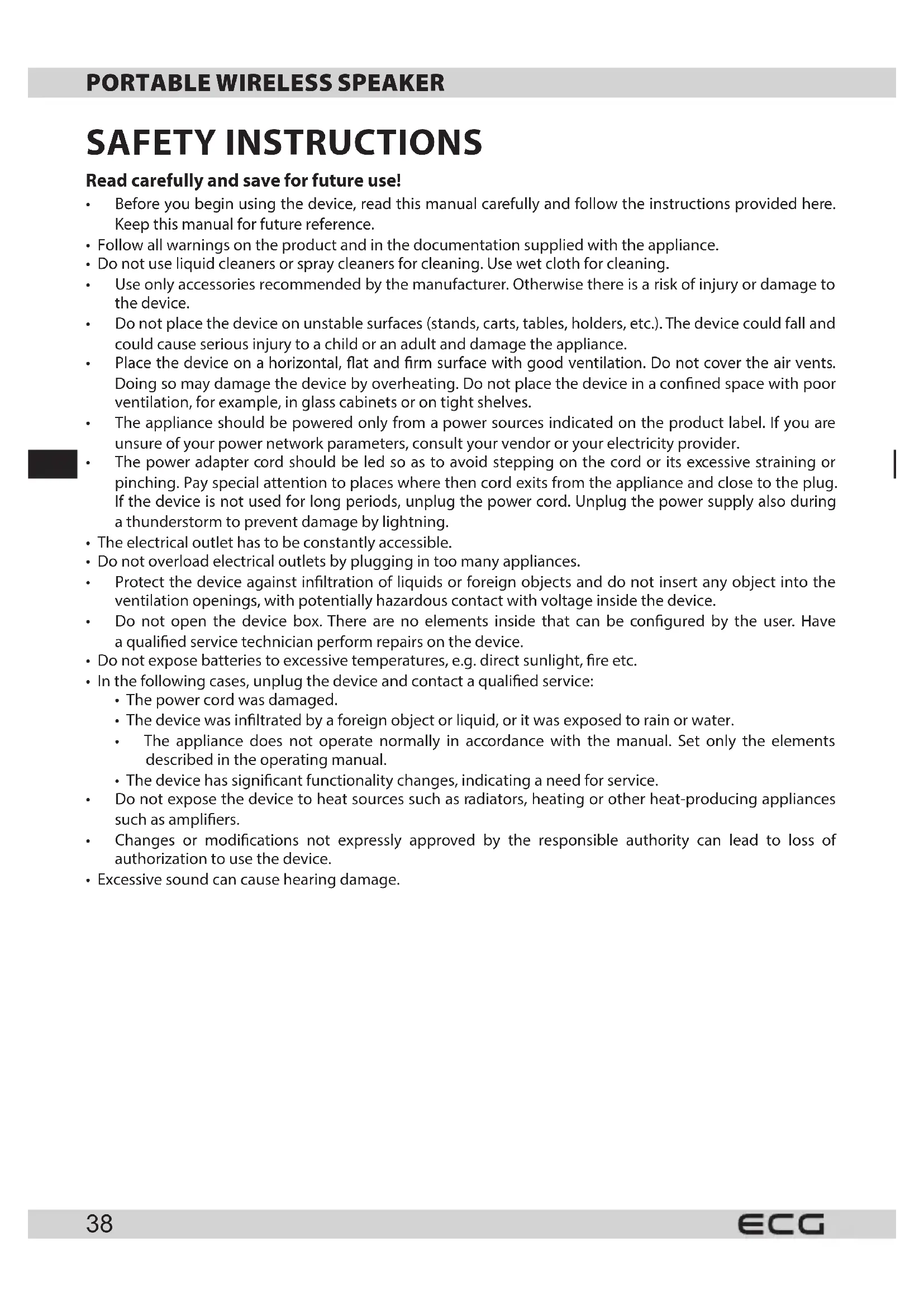

Read carefully and save for future use!

Before you begin using the device, read this manual carefully and follow the instructions provided here. Keep this manual for future reference.
- Follow all warnings on the product and in the documentation supplied with the appliance.
- Do not use liquid cleaners or spray cleaners for cleaning. Use wet cloth for cleaning.
Use only accessories recommended by the manufacturer. Otherwise there is a risk of injury or damage to the device.
- Do not place the device on unstable surfaces (stands, carts, tables, holders, etc.). The device could fall and could cause serious injury to a child or an adult and damage the appliance.
- Place the device on a horizontal, flat and firm surface with good ventilation. Do not cover the air vents. Doing so may damage the device by overheating. Do not place the device in a confined space with poor ventilation, for example, in glass cabinets or on tight shelves.
- The appliance should be powered only from a power sources indicated on the product label. If you are unsure of your power network parameters, consult your vendor or your electricity provider.
- The power adapter cord should be led so as to avoid stepping on the cord or its excessive straining or pinching. Pay special attention to places where then cord exits from the appliance and close to the plug. If the device is not used for long periods, unplug the power cord. Unplug the power supply also during a thunderstorm to prevent damage by lightning.
- The electrical outlet has to be constantly accessible.
- Do not overload electrical outlets by plugging in too many appliances.
- Protect the device against infiltration of liquids or foreign objects and do not insert any object into the ventilation openings, with potentially hazardous contact with voltage inside the device.
- Do not open the device box. There are no elements inside that can be configured by the user. Have a qualified service technician perform repairs on the device.
- Do not expose batteries to excessive temperatures, e.g. direct sunlight, fire etc.
- In the following cases, unplug the device and contact a qualified service:

• The power cord was damaged.
• The device was infiltrated by a foreign object or liquid, or it was exposed to rain or water.
• The appliance does not operate normally in accordance with the manual. Set only the elements described in the operating manual.

• The device has significant functionality changes, indicating a need for service.

• Do not expose the device to heat sources such as radiators, heating or other heat-producing appliances such as amplifiers.
  Changes or modifications not expressly approved by the responsible authority can lead to loss of authorization to use the device.

• Excessive sound can cause hearing damage.

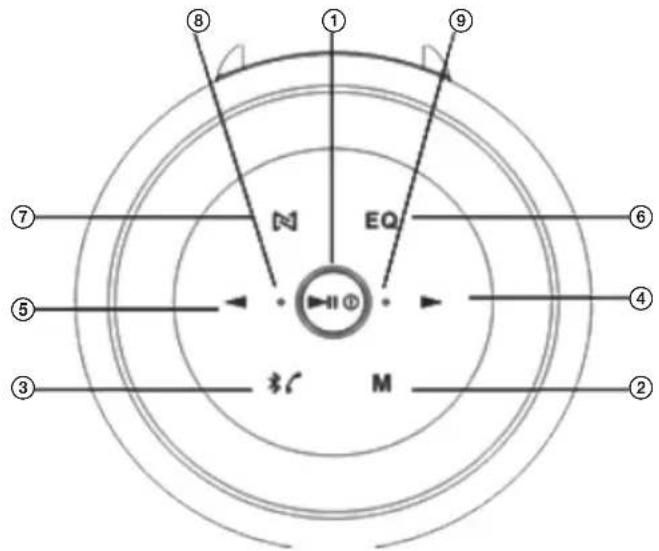

DESCRIPTION

GB

1. Long press: turn speaker ON/OFF

Short press: PLAY/PAUSE/MUTE

1. Short press: mode select - Bluetooth, FM, Micro SD memory card playback, AUX playback, USB playback

Long press: change directory during playback from Micro SD memory card and auto-search FM stations

1. Long press: unpair Bluetooth device / reject incoming phone call

Short press: turn Bluetooth ON / accept incoming phone call / hang up phone

Double short press: radial previously called number

1. Short press: next track / next FM station

Long press: increase volume

Double short press: switching call between phone and wireless speaker

1. Short press: previous track / previous FM station

Long press: decrease volume

Double short press: switching call between phone and wireless speaker

Short press: switching equalizer profiles - normal, bass, treble

1. Equalizer
   Long press: disable voice navigation
2. TWS (True wireless stereo)
   Short press: enable/disable TWS
   Long press: delete stored TWS pairing
3. Bluetooth and TWS LED indicator
4. LED charging indicator
5. Charging connector
6. Micro SD memory card slot
7. Analogue input AUX
8. USB flash drive connector

Features

• Wireless music playback (Bluetooth 4.2 stereo) and hands-free function
• Analogue input AUX-IN - available to use as an external computer speaker, mobile phone, PSP/MP3/MP4 player etc.
• Stored equalizer profiles - normal, bass, treble
• Micro SD memory card playback
  FM radio with integrated antenna, station auto-tune support
• Memory card reader and charging via the same USB cable
• USB flash drive music playback (MP3/WAV/WMA/FLAC/AP), capacity up to 32 GB
• Splash resistance - IPX 6 protection

Voice guide - for changing modes and overall control
- TWS support - pairing 2 of the same speakers delivers a stereo sound experience

Package contents

Wireless Bluetooth speaker, Micro USB cable, AUX-IN cable, Operating manual

USING THE SYSTEM

Before using the device for the first time, fully charge the integrated battery.

If you do not plan to use the speaker for a longer period of time, charge the device once a month to prevent the surfacing of problems or damage caused by an excessively discharged battery.

1. Turn the speaker ON/OFF

Long press ① for 2 seconds to turn the speaker ON or OFF.

After being turned OFF and ON again, the speaker remembers the settings, playback mode and volume from the previous session.

After each charging cycle, the volume is adjusted up to 40% of the maximum volume.

2. Bluetooth mode

1) Bluetooth pairing

Turn ON the speaker and enter Bluetooth mode, the LED indicator will begin flashing. Next, enable Bluetooth on your mobile phone or other device and initiate the search for Bluetooth devices. The BTS Elysium L1 device will appear among the available devices. Connect to this device. Once connected, the speaker will indicate "Device paired" and the LED indicator will stop flashing blue.

Short press ③ to quickly enable Bluetooth.

2) Wireless music playback

Simply start the playback on your mobile phone or music player and listen to music from your speaker.

3) Hands-free paired with your mobile phone

Accepting an incoming call

Short press ③ to accept an incoming call.

Hang up

Short press ③ again to hang up.

Redial

Double press ③ to initiate a call to the previously called number.

Private call

Press ④ or ⑤ to switch between speaker and phone during a call.

Reject an incoming call

Long press ③ to reject an incoming call.

4) Disconnect an existing Bluetooth connection

The speaker will automatically pair with the last known Bluetooth device. Long press ③ to disconnect from the current Bluetooth connection, the speaker will indicate "Device disconnected". The speaker is then ready to be paired with another device.

3. Voice guide

Once enabled, the speaker plays information regarding the current playback mode, e.g.: Bluetooth mode, Aux in mode, device paired, device disconnected etc.

The voice guide can be disabled by long pressing EQ ⑥.

4. TWS (Stereo playback)

Turn ON two BTS Elysium L1 speakers and switch both into Bluetooth mode.

Short press ⑦ on one of the speakers to begin searching the second BTS Elysium L1 speaker. The speaker's LED indicator flashes orange and blue during the search process. Both speakers are automatically paired. After a successful pairing, the LED indicator of the speaker playing the left channel turns blue and the LED indicator of the speaker playing right channel turns orange.

After 3 seconds, the LED indicator of the left speaker begins to flash. Next, enable Bluetooth on your mobile phone or other player and initiate the search for Bluetooth devices. "BTS Elysium L1" appears, connect the speakers. Once connected, the left speaker indicates "Device paired" and the LED indicator turns blue. You can then begin playing music on the Bluetooth speakers in stereo mode.

Both paired speakers can be disconnected from your mobile phone/player by short pressing ⑦. The speaker will indicate "TWS disconnected".

Long press ⑦ on any of the speakers to disable TWS. The speaker will indicate "TWS Cleared".

Note:

1. Two adapters are required for powering the speakers, one adapter for each.
2. Before pairing the speakers to use TWS, neither of the speakers shall be paired with any other device. LED indicators on both devices should flash blue.
3. If either of the two speakers is paired with another BTS Elysium L1 speaker, you must first unpair this connection, otherwise you will not be able to pair the speaker. Long press ⑦ on each speaker to delete the existing TWS connection.

5. Equalizer settings

The default setting is normal mode. Short press ⑥ to switch to bass mode or treble mode.

6. Playing music from micro SD card

After inserting your Micro SD card into the speaker, short press ② to switch the speaker into memory card playback mode and play music directly from the Micro SD card. The speaker will indicate "Memory card mode" before playing.

Warning: The speaker supports Micro SD cards with a maximum capacity of 32 GB and supports MP3, WMA, WAV, APE and FLAC audio formats.

short press: PLAY / PAUSE

short press: previous track

long press: decrease volume

long press: previous Micro SD directory

short press: next track

long press: increase volume

double press: next Micro SD directory

7. AUX IN mode

Connect the speaker to an audio source (PC, MP3MP4, mobile phone) via 3.5mm audio cable. Short press ② to enter "AUX IN" mode (speaker indicates "AUX IN"). Music begins to play from the audio source.

Notes:

• If you are connecting the speaker to a computer with a 3.5mm audio cable, we recommend using a genuine adapter (5 V/2 A) to charge the speaker instead of the computer USB port. Powering the device from the computer may be insufficient.
• Short press ① to lower the music volume. The source of music continues to play the music at a lower volume.

8. FM tuner

Short press ② to initiate FM mode (the speaker indicates "Mode FM"). While in FM mode, long press ② to initiate the auto-tuning of FM stations. Short press ④ / ⑤ to tune to previous/next station.

9.Card reader

Insert your Micro SD card into the speaker and switch OFF. Connect the speaker to the computer via USB cable. After the speaker switches to memory card mode, files can be read and written to the computer from the Micro SD card.

Note: The necessary computer driver is installed when using this feature for the first time.

10. Intelligent energy-saving feature

The speaker automatically switches OFF in the following cases:

• The speaker in Bluetooth mode waits longer than 10 minutes to pair.
• Press ① while in Memory card mode / FM mode / AUX IN mode to stop playback after a period exceeding 10 minutes.

Note:Longpress ① again to switch the speaker ON again.

11. Playing music from USB

Insert your flash drive into the USB slot. Short press ② repeatedly until the speaker indicates "USB mode" is active. Music files begin to play from the USB flash drive. Always make sure to first insert your USB flash drive into the USB connector, only then is it possible to switch to USB mode.

Warning: The speaker supports USB flash drives with a maximum capacity of 32 GB and supports MP3, WMA, WAV, APE and FLAC audio formats.

short press: PLAY / PAUSE

short press: previous track

long press: decrease volume

long press: previous USB flash drive directory

short press: next track

long press: increase volume

double press: next USB flash drive directory

12. Charging

If the speaker battery is almost empty, the speaker will indicate "battery low". Immediately charge the battery using the USB adapter. The orange LED charging indicator is on during the charging process. The LED indicator is turned off when the battery is fully charged.

Notes:

• Only use a quality adapter to charge the speaker.
• We recommend using an adapter with the following parameters: 5V / 2A
• Always charge the speaker immediately after the speaker indicates the battery is empty.
  The speaker can also be charged with a lower charging current. The charging cycle can take a very long time when the battery is charged via standard USB port with a current of 500mA .

TROUBLESHOOTING

Problem Solution
The speaker cannot connect to the Bluetooth device and play music.	1. Check the specifications / manual of the Bluetooth device (mobile phone or computer) and make sure the device supports A2DP stereo audio transmission. If the device does support A2DP, enable A2DP stereo mode. 2. Make sure the speaker is in Bluetooth mode. If there are many Bluetooth devices in your vicinity, it can be difficult to find the correct device. In such a case, turn off all other devices.
The Micro SD card / USB flash drive is not functioning.	1. Make sure the Micro SD card / USB flash drive are working properly. Check the audio files for supported format: MP3/WMA/WAV/APE/FLAC. 2. Besides the case above, there may be an issue with the Micro SD card / USB flash drive compatibility. When formatting the Micro SD card or USBB flash drive, we recommend using a FAT 32 file format.
The speaker stopped responding and no buttons will work.	The most likely cause is an internal speaker system defect. Try long-pressing ① and hold the button for 8 seconds. This resets the speaker.
The speaker does not play FM stations.	1. Make sure the speaker is in an area covered by FM signal. 2. Adjust the speaker orientation to improve the antenna direction. This may improve reception quality. 3. Make sure that, while in FM mode, you long pressed ① and activated the auto-tuning of FM stations.

GB

TECHNICAL SPECIFICATIONS

Speaker: Two 57mm diameter speakers, passive transmitter

Power: 20 W (2×10 W)

Power: DC 5 V / 2 A (Max)

Analogue input AUX IN: 3.5 mm

FM frequency range: 87.5-108 MHz

Integrated battery: 3.7V / 6600mAh

Size: 220.3 × 102.5 × 102 ~mm

Charging time: 5 hours (with 5V / 2 A adapter)

Playing time: 7 hours at 70% volume

Weight: 1.15kg

USE AND DISPOSAL OF WASTE

Wrapping paper and corrugated paperboard - deliver to scrapyard. Packing foil, PE bags, plastic elements - throw into plastic recycling containers.

DISPOSAL OF PRODUCTS AT THE END OF LIFETIME

Disposal of electric and electronic equipment (valid in EU member countries and other European countries with an implemented recycling system)

The represented symbol on the product or package means the product shall not be treated as domestic waste. Hand over the product to the specified location for recycling electric and electronic equipment. Prevent negative impacts on human health and the environment by properly recycling your product.

Recycling contributes to preserving natural resources. For more information on the recycling of this product, refer to your local authority, domestic waste processing organization or store, where you purchased the product.

Hereby, K+B Progres, a.s. declares that the radio equipment type ECG BTS Elysium L1 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.ecg-electro.eu.

08/05

The instruction manual is available at website www.ecg-electro.eu. Changes in text and technical parameters reserved.

SIGURNOSNE UPUTE

Appui bref : lecture/pause/silence

Alimentation: DC 5 V / 2 A (Max)

Entree analogue AUX IN : 3,5 mm

250 69 Klicany, Czech Rep. e-mail: [e-mail]

K+B Progres, a.s.

U Expertu 91 tel.: [phone]

250 69 Klicany, Czech Rep. e-mail: [e-mail]

250 69 Klicany, Czech Rep. e-mail: [e-mail]

K+B Progres, a.s.

U Expertu 91 tel.: [phone] (English)

250 69 Klicany, Czech Rep. e-mail: [e-mail]

K+B Progres, a.s.

U Expertu 91 tel.: [phone] (English)

250 69 Klicany, Czech Rep. e-mail: [e-mail]

K+B Progres, a.s.

U Expertu 91 tel.: [phone]

250 69 Klicany, Czech Rep. e-post: [e-mail]

K+B Progres, a.s.

U Expertu 91 tel.: [phone]

250 69 Klicany, Czech Rep. el. pastas: [e-mail]

K+B Progres, a.s.

U Expertu 91 tel.: [phone]

250 69 Klicany, Czech Rep. e-pasts: [e-mail]
