Barista Crema 1883 - Coffee grinder CASO - Free user manual and instructions

Technical Features	Coffee grinder with conical burrs, 150 W power, 250 g coffee bean hopper capacity.
Grinding Modes	Grind adjustment with 15 levels of fineness, suitable for espresso, filter, and French press.
Usage	Easy to use with a start button and automatic stop after grinding.
Maintenance	Easy cleaning thanks to a removable hopper and accessible burrs for regular maintenance.
Safety	Safety system preventing operation if the hopper is not properly installed.
General Information	Compact design, ideal for small kitchens, 2-year warranty, suitable for daily use.

Frequently Asked Questions - Barista Crema 1883 CASO

How do I clean the CASO Barista Crema 1883 coffee grinder?

To clean the grinder, first unplug it. Remove the bean hopper and empty it. Use a soft brush to remove coffee residues from the burrs. Wipe the exterior with a damp cloth. Do not immerse the grinder in water.

Why is my coffee grinder not working?

Check that the grinder is properly plugged in and that the power outlet is working. Make sure the bean hopper is correctly in place and filled. If the grinder still does not work, contact customer service.

How do I adjust the coffee grind?

The CASO Barista Crema 1883 has a grind adjustment. Turn the grind adjustment knob to achieve the desired fineness. Test different grinds to find the one that best suits your brewing method.

What type of coffee can I use with this grinder?

You can use any type of coffee beans with the CASO Barista Crema 1883. Make sure the beans are dry and of good quality for better taste.

The coffee grinder makes noise, is that normal?

A certain level of noise is normal when grinding beans. However, if the noise seems excessive or abnormal, check that the grinder is clean and that no beans are blocking the burrs.

How do I store the coffee grinder when not in use?

Keep the grinder in a dry and cool place. It is recommended not to leave it exposed to direct sunlight. If possible, cover it to avoid dust.

Is there a warranty for the CASO Barista Crema 1883 coffee grinder?

Yes, the grinder usually comes with a 2-year warranty. Check the user manual for specific warranty details and eligibility conditions.

What should I do if the coffee grinder jams?

If the grinder jams, unplug it and check if beans are stuck in the burrs. Remove the stuck beans and clean the grinder. Do not force operation.

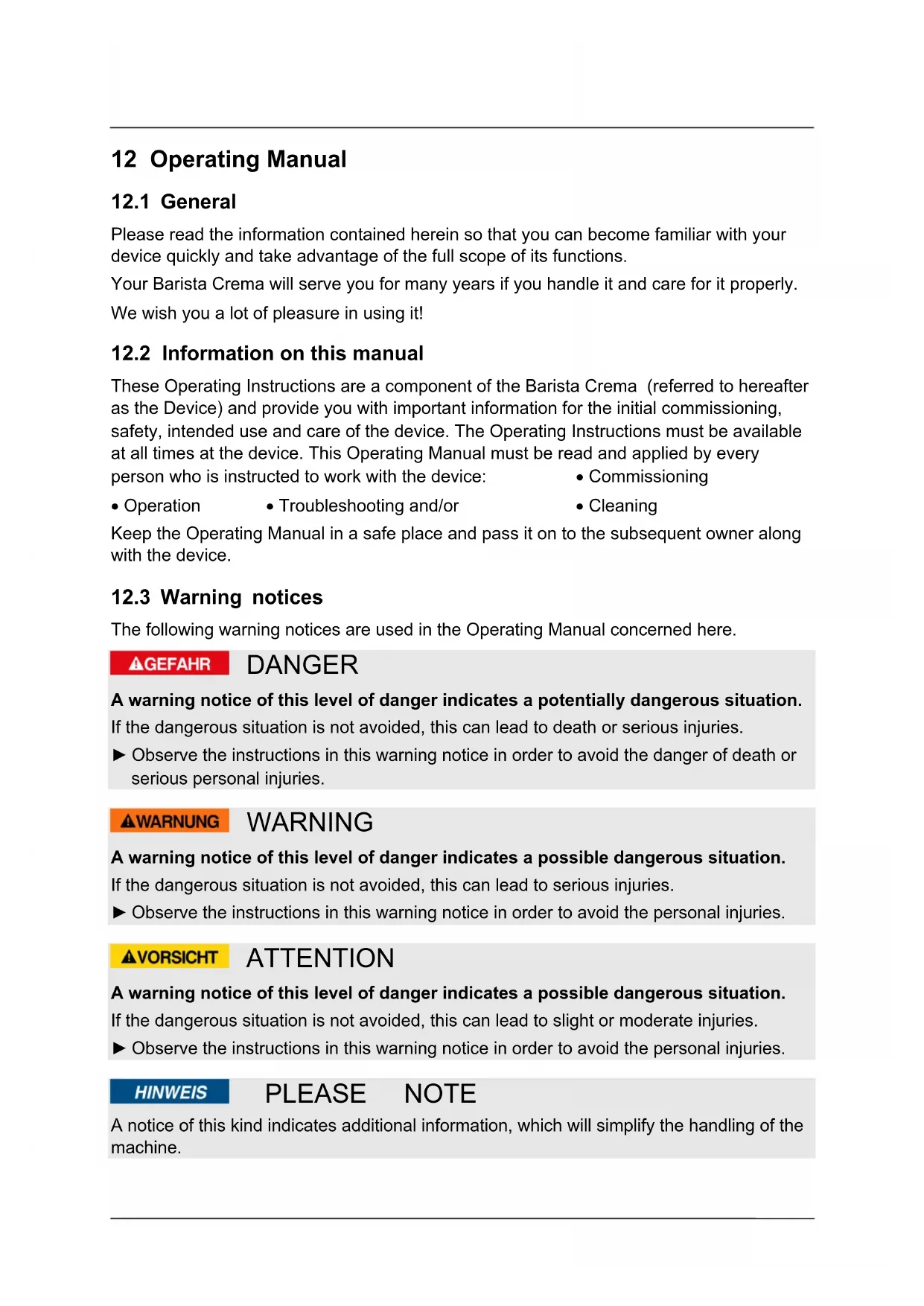

USER MANUAL Barista Crema 1883 CASO

Please read the information contained herein so that you can become familiar with your device quickly and take advantage of the full scope of its functions. Your Barista Crema will serve you for many years if you handle it and care for it properly. We wish you a lot of pleasure in using it!

12.2 Information on this manual

These Operating Instructions are a component of the Barista Crema (referred to hereafter as the Device) and provide you with important information for the initial commissioning, safety, intended use and care of the device. The Operating Instructions must be available at all times at the device. This Operating Manual must be read and applied by every person who is instructed to work with the device: Commissioning Operation Troubleshooting and/or Cleaning Keep the Operating Manual in a safe place and pass it on to the subsequent owner along with the device.

12.3 Warning notices

The following warning notices are used in the Operating Manual concerned here. DANGER A warning notice of this level of danger indicates a potentially dangerous situation. If the dangerous situation is not avoided, this can lead to death or serious injuries. ► Observe the instructions in this warning notice in order to avoid the danger of death or serious personal injuries. WARNING A warning notice of this level of danger indicates a possible dangerous situation. If the dangerous situation is not avoided, this can lead to serious injuries. ► Observe the instructions in this warning notice in order to avoid the personal injuries. ATTENTION A warning notice of this level of danger indicates a possible dangerous situation. If the dangerous situation is not avoided, this can lead to slight or moderate injuries. ► Observe the instructions in this warning notice in order to avoid the personal injuries. PLEASE NOTE A notice of this kind indicates additional information, which will simplify the handling of the machine.26 13 Safety This chapter provides you with important safety notices when handling the device. The device corresponds with the required safety regulations. Improper use can result in personal or property damages.

This device is only intended for use in households in enclosed spaces for Milling of coffee beans. This device is intended for use in the household and for similar applications such as: in kitchens for employees in shops, offices, and other commercial areas; in agricultural estates; by customers in hotels, motels and other residential establishments; - in B&Bs. Uses for a different purpose or for a purpose which exceeds this description are considered incompatible with the intended or designated use. Do not chop very hard ingredients such as ice. Warning Danger due to unintended use! Dangers can emanate from the device if it is used for an unintended use and/or a different kind of use. ► Use the device exclusively for its intended use. ► Observe the procedural methods described in this Operating Manual. Claims of all kinds due to damages resulting from unintended uses are excluded. The User bears the sole risk.

13.2 General Safety information

Please note Please observe the following general safety notices with regard to the safe handling of the device. ► Examine the device for any visible external damages prior to using it. Never put a damaged device into operation. ► If the power cable or plug are damaged, then they must be replaced by the manufacturer or its service agent in order to avoid a hazard. ► Do not leave the device unsupervised when it is in operation.27 Please note ► This device may be used by children aged 8 and above, if they are supervised or have been instructed at to the safe use of the device and have understood the resulting hazards. ► Cleaning and maintenance by the user must not be performed by children unless they are at least 8 years old and are supervised. ► Children are not allowed to play with the device. ► The device and its connecting cable must be kept away from children who are less than 8 years old. ► The device may be used by individuals with reduced physical, sensory or mental capabilities or a lack of experience and / or knowledge of their use if they are supervised or have been instructed at to the safe use of the device and have understood the resulting hazards. ► Do not operate the appliance with wet hands and do not run at no-load. ► Make sure that the mains connection cable does not come into contact with sharp edges and/or hot surfaces. ► Only customer service departments authorized by the manufacturer may carry out repairs on the device, as otherwise the guarantee entitlements will be null and void in the event of any subsequent damages. Improperly performed repairs can cause considerable dangers for the user. ► Defective components must always be replaced with original replacement parts. Only such parts will guarantee that the safety requirements are fulfilled.28 Please note ► Switch off the appliance and disconnect from supply before changing accessories or approaching parts which move in use. Pull the power plug when the device is unsupervised, before every cleaning and before you detach or install any parts. ► Device is not intended to be operated by means of an external timer or separate remote-control system. ► The device is not intended for liquid or hot ingredients. ► Do not leave the device unsupervised when it is in operation. ► Do not wind the cord around the appliance and do not bend it. ► Do not fill the device beyond the edge of bean container. Do not operate the device when it is idle. ► For your own safety, only use manufacturer accessories and spare parts suited to your machine. ► Check the grinding container for foreign objects before using the device.

13.3 Sources of danger

Danger of injury Warning By careless use of the device risk of injury exist because of sharp edges. Note the following warnings to avoid injury. ► Avoid contacting moving parts. ► Never fill hot food / hot liquids into the device. Risk of injury! The device could be damaged.29 Dangers due to electrical power Mortal danger due to electrical power! Mortal danger exists when coming into contact with live wires or subassemblies! Observe the following safety notices to avoid dangers due to electrical power: ► Do not operate this device if it has a damaged cable or plug, if it is not working properly or if it has been damaged or dropped. If the power cable or plug are damaged, then they must be replaced by the manufacturer or its service agent in order to avoid a hazard. ► Do not open the housing on the device under any circumstances. There is a danger of an electrical shock if live connections are touched and the electrical or mechanical structure is altered. In addition, functional faults on the device can also occur. ► Do not immerse the device, cord or plug in water or other liquids and do not place in the dishwasher. ► When disconnect, please unplug by grasp the plug and not the cord, do not cary the device at its cord..

13.4 Limitation of liability

All the technical information, data and notices with regard to the installation, operation and care are completely up-to-date at the time of printing and are compiled to the best of our knowledge and belief, taking our past experience and findings into consideration. No claims can be derived from the information provided, the illustrations or descriptions in this manual. The manufacturer does not assume any liability for damages or injuries arising as a result of the following: Non-observance of the manual Uses for non-intended purposes Improper repairs Technical alterations Use of unauthorized spare parts, modifications of the device Use of unauthorized attachments. Modifications of the device are not recommended and are not covered by the guarantee. All translations are carried out to the best of our knowledge. We do not assume any liability for translation errors, not even if the translation was carried out by us or on our instructions. The original German text remains solely binding.30

13.5 Copyright protection

This document is copyright protected. CASO GmbH reserves all the rights, including those for photomechanical reproduction, duplication and distribution using special processes (e.g. data processing, data carriers, data networks), even partially. Subject to content and technical changes. 14 Commissioning This chapter provides you with important safety notices during the initial commissioning of the device. Observe the following notices to avoid dangers and damages:

14.1 Safety information

Warning ► Packaging materials may not be used for playing. There is a danger of suffocation.

14.2 Delivery scope and transport inspection

As a rule, the Barista Crema is delivered with the following components: Barista Crema bean container with lid cleaning brush Container for coffee powder with lid grinder operating Instructions Please note ► Examine the shipment for its completeness and for any visible damages. ► Immediately notify the carrier, the insurance and the supplier about any incomplete shipment or damages as a result of inadequate packaging or due to transportation.

To unpack the device, proceed as follows: Remove the device out of the carton and remove the packaging material.

14.4 Disposal of the packaging

The packaging protects the device against damages during transit. The packaging materials are selected in accordance with environmentally compatible and recycling- related points of view and can therefore be recycled. Returning the packaging back to the material loop saves raw materials and reduces the quantities of accumulated waste. Take any packaging materials that are no longer required to “Green Dot” recycling collection points for disposal. Please note ► If possible, keep the original packaging for the device for the duration of the guarantee period of the device, in order that the device can be re-packaged properly in the event of a guarantee claim.31

14.5 Setup location requirements:

In order to ensure the safe and trouble-free operation of the device, the setup location must fulfil the following prerequisites: Place the device on a firm and even work surface. Do not use the device outdoors. Choose the setup location in such a way that children cannot reach the device. The device is not intended to be installed in a wall or a built-in cupboard. Do not set up the device in a hot, wet or extremely damp environment or near flammable material. The installation and assembly of this device in non-stationary setup locations (e.g. on ships) must be carried out by specialist companies / electricians, provided they guarantee the prerequisites for the safe use of this device.

14.6 Electrical connection

In order to ensure the safe and trouble-free operation of the device, the following instructions must be observed for the electrical connection: Before connecting the device, compare the connection data (voltage and frequency) on the rating plate with those of your electrical network. This data must agree in order that no damages occur in the device If in doubt, ask your qualified electrician. The connection between the device and the electrical network may employ a 3 meter long (max.) extension cable with a cross-section of 1.5 mm². The use of multiple plugs or gangs is prohibited because of the danger of fire that is involved with this. Make sure that the power cable is undamaged and has not been installed under the device or over hot or sharp surfaces. The electrical outlet must be protected by a 16A safety cut-out switch. The electrical safety of the device is only guaranteed if the device is connected to a properly installed protective conductor system. If in doubt, have the house installation checked over by a qualified electrician. The manufacturer cannot be made responsible for damages that are caused by a missing or damaged protective conductor. 15 Design and Function This chapter provides you with important safety notices on the design and function of the device.32

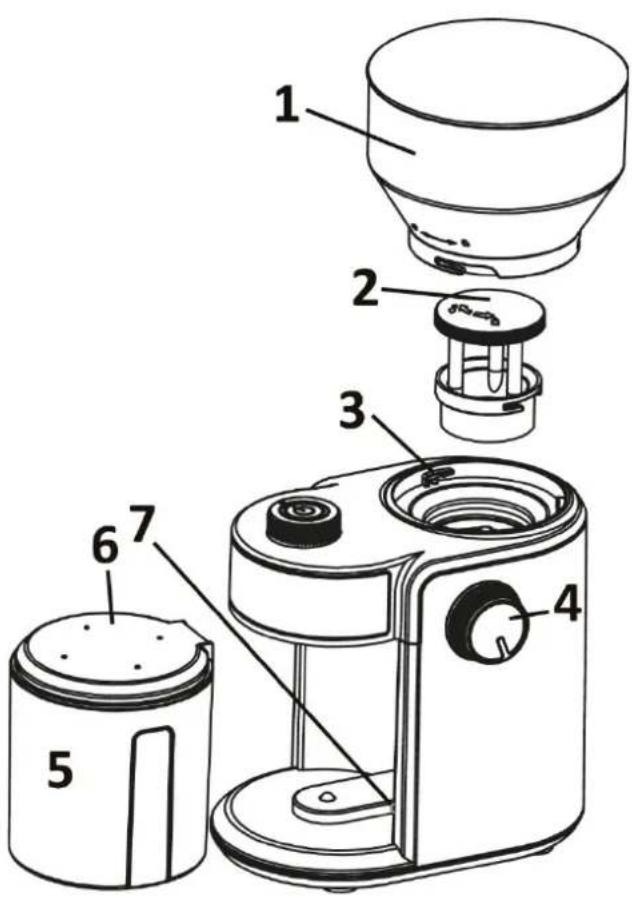

15.1 Complete overview

1 lid of bean container with bean container 2 grinder 3 safety switch 4 knob for coarseness 5 ground coffee container 6 lid of ground coffee container 7 safety switch 8 knob for duration of grinding (amount of cups) 9 indicator ring 10 start/stop button

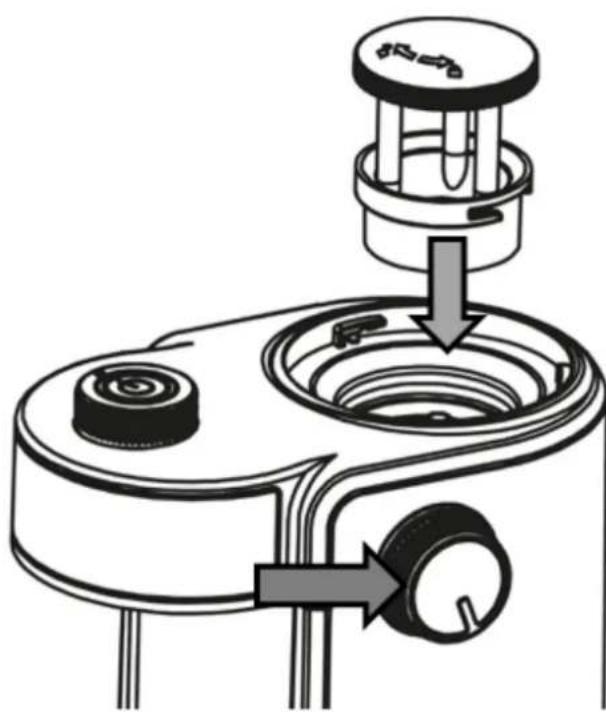

15.2 Assembly of the grinder

Place the grinder and the turn it slightly back and forth so that the grinder will slides down into the guidance Then hold the knob for the coarseness and turn the grinder counterclockwise until it latches.

The rating plate with the connection and performance data can be founded beneath the device. 16 Operation and Handing This chapter provides you with important notices with regard to operating the device. Observe the following notices to avoid dangers and damages.

The recommended maximum continuous operation time for this device is 60 seconds followed by a 60 seconds cool down time.

16.2 Before first use

Clean the the device as shown in chapter cleaning. Please note ► When using for the first time little smell occurs. This is harmless and disappears after a while.

1. Place the coffee grinder on a flat surface.

2. Place bean container with lid in such a way that the arrow on the bean container

is placed above the opened lock icon on top of the device. Tighten counterclockwise to the closed lock symbol .34

3. Disassemble accordingly clockwise, turn to the open lock symbol:

4. Insert the ground coffee container with the lid until it latches.

Please note ► The device is equipped with microswitch so that it must be assembled correctly before operation or the device will not work. ► Only remove the bean container from the motor housing when it is empty. Otherwise the beans would fall out of the open container bottom.

5. Pour appropriate amount of coffee beans into the bean container.

Please note ► Do not fill more than 190 g of beans in the bean container. ► Do not grind nutmegs, dry bread, gristles or stones. ► Run the device in intervals of 60 seconds of operation, 60 seconds cool down time ► After 2 intervalls let the device cool down for 5 minutes.

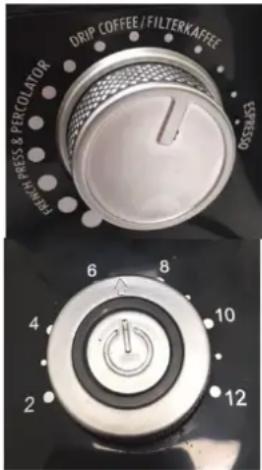

8. Turn the knob for coarseness to set the grinder to the desired

9. Turn the knob for duration of grinding to set to the desired

amount of cups Please note ► The maximum amout of coffee ground in container for coffee ground is 140 g. Ensure that the coffee ground will not overflow.

10. Press the Start/Stopp button on the top of the device. The indicator ring lights

up. Please note ► Different cup sizes, bean type, coarseness, personal taste etc. influence the required serving size.. So check out the amount of coffee ground hat is optimal for you.

11. When the desired grinding time is reached, then the device stops automatically and

switches to standby mode.

13. You can stop the operation with start/stop button at any time.35

Grind coffee ground freshly for amount of cups you want to make. Coffee beans stay fresh up to 2 months in freezer in airtight container. Only grind coffee beans. The device is not intended for wet, oily or extremely hard ingredients. Do not grind strong spice, they can affect the flavor of the coffee ground. 17 Cleaning and Maintenance This chapter provides you with important notices with regard to cleaning and maintaining the device. Please observe the notices to prevent damages due to cleaning the device incorrectly and to ensure trouble-free operation.

17.1 Safety information

Attention Please observe the following safety notices, before you commence with cleaning the device: ► Unplug the plug from the wall power outlet prior cleaning of the device. ► If dampness penetrates into the device, this can damage the electronic components. ► Clean the device directly after use. Extended waiting unnecessarily complicates cleaning and can make it impossible in extreme cases. Excessive accumulations of dirt can even damage the device under certain circumstances. ► Do not use any aggressive or abrasive cleaning agents or solvents. ► Do not scrape off stubborn dirt with hard items. ► Never immerse the device, cord or plug in water or other liquids and do not place in the dishwasher.

Disassemble the bean container and rinse it and the lid of bean container, the container for coffee ground and lid of container for coffee ground with water and thoroughly dry it after this. Grinder Clean the grinder carefully with the cleaninig brush. Warning ► Be careful with grinder and grinding snake. They could be sharp. Danger of injuiry. Housing Clean the housing with a damp cloth. 18 Troubleshooting This chapter provides you with important notices with regard to operating the device. Observe the following notices to avoid dangers and damages.36

Attention ► Only qualified electricians, who have been trained by the manufacturer, may carry out any repairs on electrical equipment. ► Improperly performed repairs can cause considerable dangers for the user and damages to the device. 19 Disposal of the Old Device Old electric and electronic devices frequently still contain valuable materials. However, they also contain damaging substances, which were necessary for their functionality and safety. If these were put in the non-recyclable waste or were handled incorrectly, they could be detrimental to human health and the environment. Therefore, do not put your old device into the non-recyclable waste under any circumstances. Please note ► Utilise the collection point, established in your town, to return and recycle old electric and electronic devices. If necessary, contact your town hall, local refuse collection service or your dealer for information. ► Ensure that your old device is stored safely away from children until it is taken away. 20 Guarantee We provide a 24-month guarantee for defects caused by production or material faults, beginning on the date of purchase. Our guarantee is valid for Germany, Austria and the Netherlands. For all other countries, please contact us. Your legal guarantee claims as per Art. 437 ff. German Civil Code (BGB) will remain unaffected by this. You may exercise your statutory guarantee rights free of charge. The guarantee does not cover damage caused by improper handling or use of the product or defects which have only a minor impact on the product’s functionality or value. In addition to this, the guarantee also excludes parts which are subject to wear and tear; transport damages insofar as we are not responsible for them and damages caused by repairs which were not carried out by us. This product has been constructed for non-commercial use (domestic use) and its performance is designed to meet the corresponding needs. The guarantee only covers commercial use insofar as it is comparable to domestic use. The product is not intended for any other type of commercial use. In the case of legitimate complaints we may either repair the defective product or replace it with a defect-free product at our discretion. Obvious defects must be notified to us within 14 days of the product’s delivery. Any further claims are excluded. When making a guarantee claim please contact us before you return the product (always with the purchase receipt!). Our contact details (“Guarantor”) are provided at the beginning of this instruction manual.37 21 Technical Data Device Electric Coffee Grinder Name Barista Crema Item No.: 1833 Mains data 220-240 V, 50/60 Hz Power consumption 150 W Net weight 1,2 kg Measures (W/H/D) 130 x 250 x 180 mm38 Râpe multifonction esthétique Mode d´emploi Moulin à café électrique Barista Crema (1833)39 22 Mode d´emploi
