USER MANUAL Coffee & Kitchen Flavour 1831 CASO

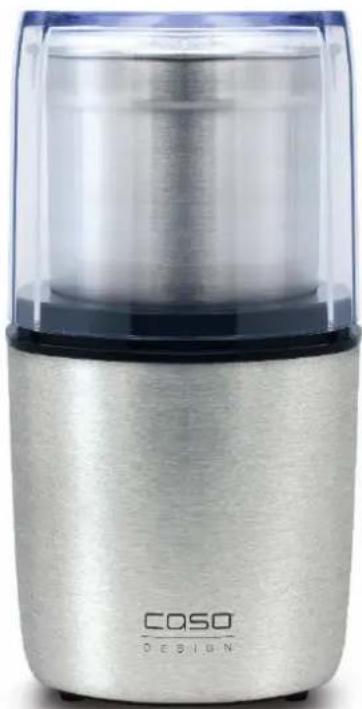

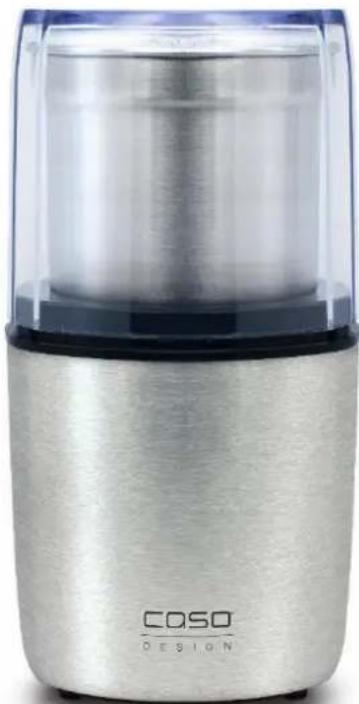

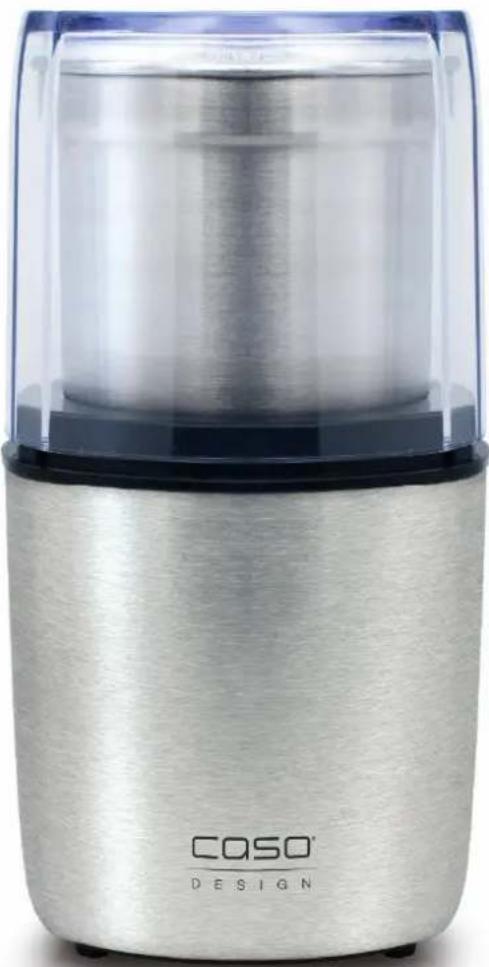

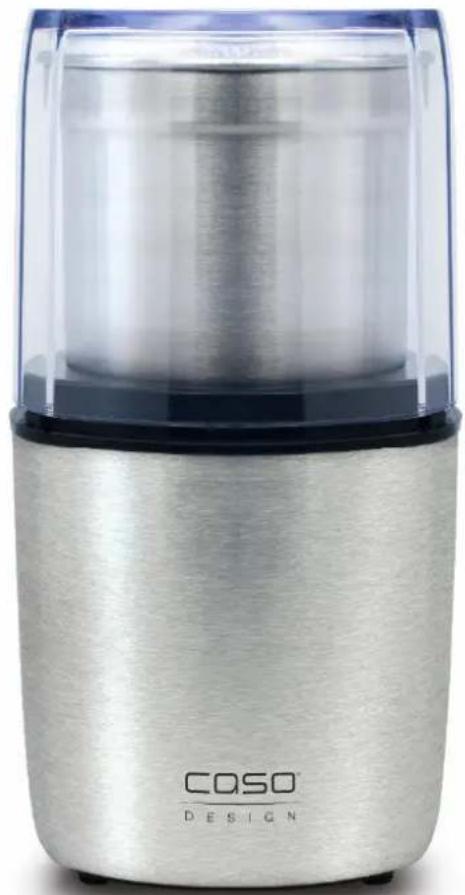

Coffee & Kitchen Flavour (1831)
Raiffeisenstraße 9
D-59757 Arnsberg
Service-Hotline International:
Tel.: +49 (0) 29 32 / 80 55 4 - 99
Fax: +49 (0) 29 32 / 80 55 4 - 77
eMail: kundenservice@caso-germany.de
Internet: www.caso-germany.de
11.3 Warning notices....23
12 Safety....24
12.1 Intended use....24
12.2 General Safety information 24
12.3 Sources of danger....26
12.3.1 Danger of injury....26
12.3.2 Dangers due to electrical power....27
12.4 Limitation of liability 27
12.5 Copyright protection....28
13 Commissioning....28
13.1 Safety information....28
13.2 Delivery scope and transport inspection....28
13.3 Unpacking....29
13.4 Disposal of the packaging....29
13.5 Setup location requirements: 29
13.6 Electrical connection....29
14 Design and Function 30
14.1 Complete overview 30
14.2 Rating plate 31
15 Operation and Handing 31
15.1 Short term operation....31
15.2 Before first use....31
15.3 Operation....31

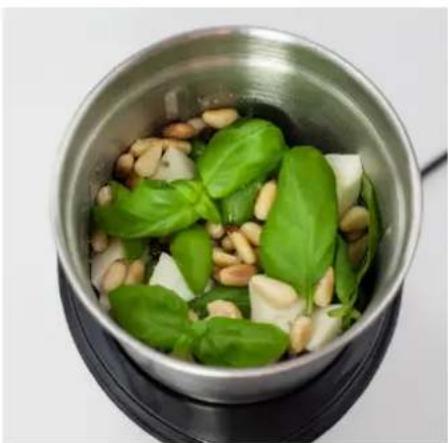

15.4 Recipe for Pesto....32
16 Cleaning and Maintenance....32
16.1 Safety information....32
16.2 Cleaning....32
17 Troubleshooting 33
17.1 Safety notices....33
18 Disposal of the Old Device....33
19 Guarantee ....33
20 Technical Data 34
21 Mode d'emploi 36
21.1 Généralités ....36
21.2 Informations relatives à ce manuel ....36
21.3 Avertissements de danger 36
22 Sécurité....37
22.1 Utilisation conforme ....37
• Coffee Flavour / Coffee & Kitchen Flavour
- transparenter Deckel
Please read the information contained herein so that you can become familiar with your device quickly and take advantage of the full scope of its functions.
Your Coffee Flavour / Coffee & Kitchen Flavour will serve you for many years if you handle it and care for it properly.
We wish you a lot of pleasure in using it!
11.2 Information on this manual
These Operating Instructions are a component of the Coffee Flavour / Coffee & Kitchen Flavour (referred to hereafter as the Device) and provide you with important information for the initial commissioning, safety, intended use and care of the device.
The Operating Instructions must be available at all times at the device. This Operating Manual must be read and applied by every person who is instructed to work with the device:
- Commissioning
- Operation
- Troubleshooting and/or
- Cleaning
Keep the Operating Manual in a safe place and pass it on to the subsequent owner along with the device.
11.3 Warning notices
The following warning notices are used in the Operating Manual concerned here.
▲GEFAHR DANGER
A warning notice of this level of danger indicates a potentially dangerous situation. If the dangerous situation is not avoided, this can lead to death or serious injuries.
▶ Observe the instructions in this warning notice in order to avoid the danger of death or serious personal injuries.
▲WARNUNG WARNING
A warning notice of this level of danger indicates a possible dangerous situation. If the dangerous situation is not avoided, this can lead to serious injuries.
▶ Observe the instructions in this warning notice in order to avoid the personal injuries.
▲VORSICHT ATTENTION
A warning notice of this level of danger indicates a possible dangerous situation. If the dangerous situation is not avoided, this can lead to slight or moderate injuries.
▶ Observe the instructions in this warning notice in order to avoid the personal injuries.
HINWEIS
PLEASE NOTE
A notice of this kind indicates additional information, which will simplify the handling of the machine.
12 Safety
This chapter provides you with important safety notices when handling the device.
The device corresponds with the required safety regulations. Improper use can result in personal or property damages.
12.1 Intended use
This device is only intended for use in households in enclosed spaces for
- Milling of coffee beans - Processing of nuts (shelled), spices & herbs and preparation of pesto. Uses for a different purpose or for a purpose which exceeds this description are considered incompatible with the intended or designated use.
Do not chop very hard ingredients such as ice.
⚠️WARNUNG
Warning Danger due to unintended use!
Dangers can emanate from the device if it is used for an unintended use and/or a different kind of use.
▶ Use the device exclusively for its intended use.
⚠️WARNUNG
Warning
▶ Observe the procedural methods described in this Operating Manual.
Claims of all kinds due to damages resulting from unintended uses are excluded.
The User bears the sole risk.
12.2 General Safety information
HINWEIS
Please note
Please observe the following general safety notices with regard to the safe handling of the device.
▶ Examine the device for any visible external damages prior to using it. Never put a damaged device into operation.
▶ If the power cable is damaged, it must be replaced by the manufacturer, its service department or a similarly qualified person, in order to prevent any hazards. Do not leave the appliance unattended during operation.
HINWEIS
Please note
▶ Do not leave the device unsupervised when it is in operation.
This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
▶ Children shall not play with the appliance.
▶ Cleaning and user maintenance shall not be made by children without supervision.
▶ Do not operate the appliance with wet hands and do not run at no-load.
▶ Make sure that the mains connection cable does not come into contact with sharp edges and/or hot surfaces.
▶ Only qualified electricians, who have been trained by the manufacturer, may carry out any repairs that may be needed. Improperly performed repairs can cause considerable dangers for the user.
▶ Only customer service departments authorized by the manufacturer may carry out repairs on the device during the guarantee period, as otherwise the guarantee entitlements will be null and void in the event of any subsequent damages.
▶ Defective components must always be replaced with original replacement parts. Only such parts will guarantee that the safety requirements are fulfilled.
▶ Always pull the power plug out of the outlet when the appliance is unattended, not in use or will be cleaned.
HINWEIS
Please note
▶ Device is not intended to be operated by means of an external timer or separate remote-control system.
▶ The device is not intended for liquid or hot ingredients.
▶ Do not leave the device unsupervised when it is in operation.
▶ When disconnect, please unplug by grasp the plug and not the cord, do not cary the device at its cord..
▶ Do not wind the cord around the appliance and do not bend it.
▶ Do not fill the device beyond the MAX-marking. Do not operate the device when it is idle.
12.3 Sources of danger
12.3.1 Danger of injury
⚠️WARNUNG
Warning
By careless use of the device risk of injury exist because of sharp edges. Note the following warnings to avoid injury.
▶ The blades can be sharp, do not touch them.
▶ Avoid contacting moving parts.
▶ Never fill hot food / hot liquids into the device. Risk of injury! The device could be damaged.
12.3.2 Dangers due to electrical power
⚠️GEFAHR
Danger
Mortal danger due to electrical power!
Mortal danger exists when coming into contact with live wires or subassemblies!
Observe the following safety notices to avoid dangers due to electrical power:
▶ If the power cable is damaged, it must be replaced by the manufacturer, its service department or a similarly qualified person, in order to prevent any hazards. Do not leave the appliance unattended during operation.
▶ Do not operate this device if its power cable or plug is damaged, if it does not work properly or if it is damaged or has been dropped. If the power cable is damaged, it will need to be replaced by the manufacturer or his service agency or a similar qualified person, to avoid any dangers.
▶ Do not let cord hang over edge of table or counter, or touch hot surfaces (like stove, e.g.)
▶ Do not open the housing on the device under any circumstances. There is a danger of an electrical shock if live connections are touched and the electrical or mechanical structure is altered. In addition, functional faults on the device can also occur.
▶ Do not immerse the device, cord or plug in water or other liquids and do not place in the dishwasher.
12.4 Limitation of liability
All the technical information, data and notices with regard to the installation, operation and care are completely up-to-date at the time of printing and are compiled to the best of our knowledge and belief, taking our past experience and findings into consideration.
No claims can be derived from the information provided, the illustrations or descriptions in this manual. The manufacturer does not assume any liability for damages or injuries
arising as a result of the following:
• Non-observance of the manual
• Uses for non-intended purposes
- Improper repairs
- Technical alterations
- Use of unauthorized spare parts, modifications of the device
- Use of unauthorized attachments.
Modifications of the device are not recommended and are not covered by the guarantee.
All translations are carried out to the best of our knowledge. We do not assume any liability for translation errors, not even if the translation was carried out by us or on our instructions. The original German text remains solely binding.
12.5 Copyright protection
This document is copyright protected.
Braukmann GmbH reserves all the rights, including those for photomechanical reproduction, duplication and distribution using special processes (e.g. data processing, data carriers, data networks), even partially. Subject to content and technical changes.
13 Commissioning
This chapter provides you with important safety notices during the initial commissioning of the device. Observe the following notices to avoid dangers and damages:
13.1 Safety information
⚠️WARNUNG
Warning
Personal and property damages can occur during commissioning of the device!
Observe the following safety notices to avoid such dangers:
▶ Packaging materials may not be used for playing. There is a danger of suffocation.
13.2 Delivery scope and transport inspection
As a rule, the Coffee Flavour / Coffee & Kitchen Flavour is delivered with the following components:
• Coffee Flavour / Coffee & Kitchen Flavour
- Grinding container with 2-fold
blades for the grinding and crushing of coffee beans, processing of nuts (shelled), dry spices and herbs
- container with 4-fold blades for processing of nuts
(shelled), wet spices & herbs and
preparation of pesto.
- transparent lid
- operating Instructions
HINWEIS
Please note
▶ Examine the shipment for its completeness and for any visible damages.
▶ Immediately notify the carrier, the insurance and the supplier about any incomplete shipment or damages as a result of inadequate packaging or due to transportation.
13.3 Unpacking
To unpack the device, proceed as follows:
- Remove the device out of the carton and remove the packaging material.
13.4 Disposal of the packaging
The packaging protects the device against damages during transit. The packaging materials are selected in accordance with environmentally compatible and recycling-related points of view and can therefore be recycled.
Returning the packaging back to the material loop saves raw materials and reduces the quantities of accumulated waste. Take any packaging materials that are no longer required to “Green Dot” recycling collection points for disposal.
HINWEIS
Please note
If possible, keep the original packaging for the device for the duration of the guarantee period of the device, in order that the device can be re-packaged properly in the event of a guarantee claim.
13.5 Setup location requirements:
In order to ensure the safe and trouble-free operation of the device, the setup location must fulfil the following prerequisites:
- Place the device on a firm and even work surface.
- Do not use the device outdoors.
- Choose the setup location in such a way that children cannot reach the device.
- The device is not intended to be installed in a wall or a built-in cupboard.
- Do not set up the device in a hot, wet or extremely damp environment or near flammable material.
- The installation and assembly of this device in non-stationary setup locations (e.g. on ships) must be carried out by specialist companies / electricians, provided they guarantee the prerequisites for the safe use of this device.
13.6 Electrical connection
In order to ensure the safe and trouble-free operation of the device, the following instructions must be observed for the electrical connection:
- Before connecting the device, compare the connection data (voltage and frequency) on the rating plate with those of your electrical network. This data must agree in order that no damages occur in the device If in doubt, ask your qualified electrician.
- The electrical outlet must be protected by a 16A safety cut-out switch.
- The connection between the device and the electrical network may employ a 3 meter long (max.) extension cable with a cross-section of 1.5 mm^2 . The use of multiple plugs or gangs is prohibited because of the danger of fire that is involved with this.
- Make sure that the power cable is undamaged and has not been installed under the device or over hot or sharp surfaces.
- The electrical safety of the device is only guaranteed if the device is connected to a properly installed protective conductor system. Operations using an electrical outlet without a protective conductor are prohibited. If in doubt, have the house installation checked over by a qualified electrician.
The manufacturer cannot be made responsible for damages that are caused by a missing or damaged protective conductor.
14 Design and Function
This chapter provides you with important safety notices on the design and function of the device.


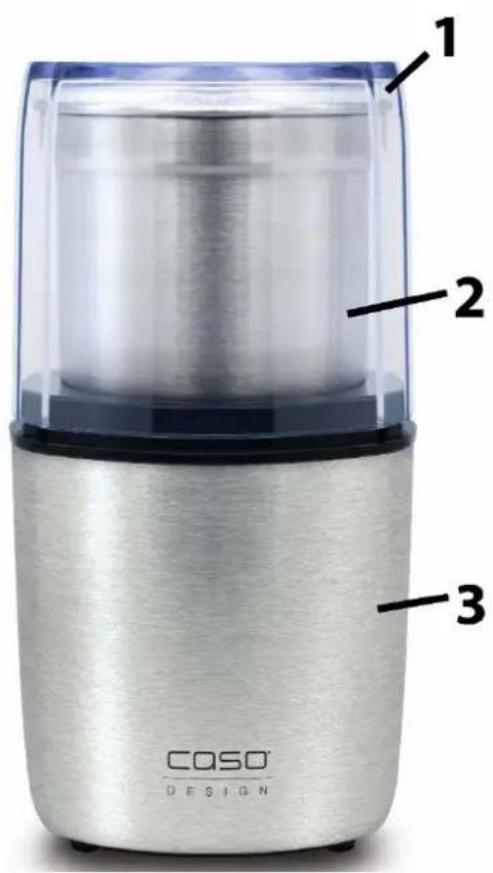

1 2 3 COSO® DESIGN14.1 Complete overview

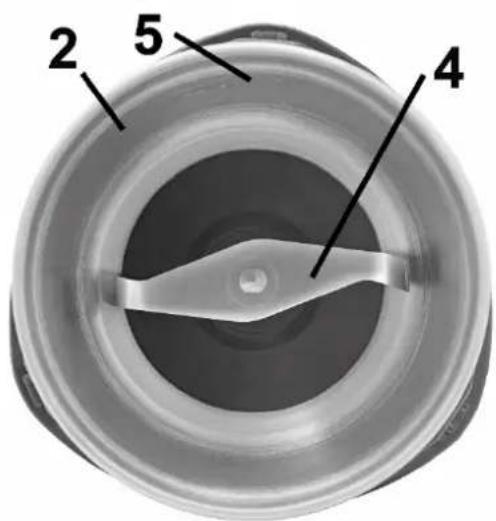

1 transparent lid
2 grinding container with 2-fold blades for the grinding and crushing of coffee beans, processing of nuts (shelled), dry spices and herbs
3 base with power cord
4 blades
5 marking (lowest = 4 cups, middle= 8 cups, maximum)


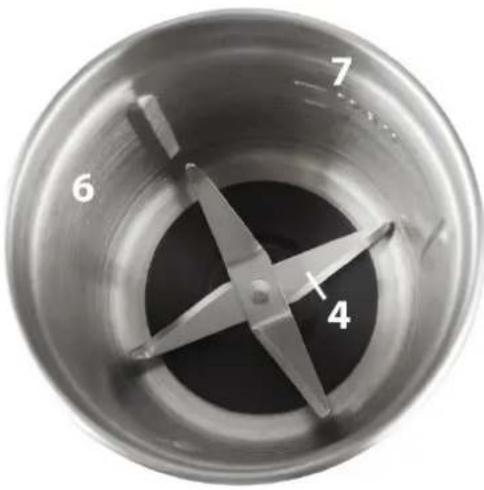

6 container with 4-fold blades for processing of nuts (shelled), wet spices & herbs and preparation of pesto.
7 max-marking
▲WARNUNG
Warning
▶ The blades can be sharp, do not touch them.
▶ Keep your fingers, hair and clothing away from the blades.
▶ Do not touch the blades when cleaning the unit.
14.2 Rating plate
The rating plate with the connection and performance data can be founded beneath the device.
15 Operation and Handing
This chapter provides you with important notices with regard to operating the device. Observe the following notices to avoid dangers and damages.
15.1 Short term operation
The device is intended only for short term operation.
Run the device in intervals of 30 seconds of operation, 1 minute cool down time, to avoid overheating. Otherwise the motor could be damaged. After 3 intervals let the device cool down for 30 minutes.
15.2 Before first use
Clean the base and the grinding container with a damp cloth.
HINWEIS
Please note
When using for the first time little smell occurs. This is harmless and disappears after a while.
15.3 Operation
Use the container with 2-fold blades for the grinding and crushing of coffee beans, processing of nuts (shelled), dry spices and herbs.
Use the container with 4-fold blades for processing of nuts (shelled), wet spices & herbs and preparation of pesto. Please add a teaspoon of liquid (such as oil) when processing ingredients with little moisture.
Fill in coffee benas, nuts (without shell) or spices in the grinding container.
Do not fill beyond MAX-marking.
Plug in the power cord. Place transparent lid on the grindind container.
To switch on press down the transparent lid. A microswitch will be activated and the motor will start the operation. Hold the device steady.
HINWEIS
▶ Do not grind nutmegs, dry bread, gristles or stones.
▶ Run the device in intervals of 30 seconds of operation, 1 minute cool down time
▶ After 3 intervals let the device cool down for 30 minutes.
15.4 Recipe for Pesto
3 bunch of basil ca. 150 g 40g pine nuts 1 fresh garlic 1/2 tsp coarse sea salt 1 pinch of pepper 100 ml grapeseed oil 50 g parmesan
This chapter provides you with important notices with regard to cleaning and maintaining the device. Please observe the notices to prevent damages due to cleaning the device incorrectly and to ensure trouble-free operation.
16.1 Safety information
▲VORSICHT
Attention
Please observe the following safety notices, before you commence with cleaning the device:
▶ Unplug the plug from the wall power outlet prior cleaning of the device.
▶ Clean the device directly after use. Extended waiting unnecessarily complicates cleaning and can make it impossible in extreme cases. Excessive accumulations of dirt can even damage the device under certain circumstances.
▶ If dampness penetrates into the device, this can damage the electronic components.
▶ Do not use any aggressive or abrasive cleaning agents or solvents.
▶ Do not scrape off stubborn dirt with hard items.
▶ Never immerse the device, cord or plug in water or other liquids and do not place in the dishwasher.
▶ The blades can be sharp, do not touch them.
For safety reason, the blades are not suited for removing them.
16.2 Cleaning
◆ Base and grinding container
Clean the base and exterior of the grinding container with a damp cloth.
Detach the grinding container by turning counterclockwise and clean the interior of the grinding container under running water. Then dry the interior of the grinding container with a soft cloth.
Attach the grinding container by turning it clockwise until it locks (see "Bowl – LOCK").
◆ Transparent lid
Clean the lid with warm water and a drop of cleaning agent. Then dry it with a soft cloth.
17 Troubleshooting
This chapter provides you with important notices with regard to operating the device. Observe the following notices to avoid dangers and damages.
17.1 Safety notices
▲VORSICHT Attention
▶ Only qualified electricians, who have been trained by the manufacturer, may carry out any repairs on electrical equipment.
▶ Improperly performed repairs can cause considerable dangers for the user and damages to the device.
18 Disposal of the Old Device
Old electric and electronic devices frequently still contain valuable materials. However, they also contain damaging substances, which were necessary for their functionality and safety.
If these were put in the non-recyclable waste or were handled incorrectly, they could be detrimental to human health and the environment. Therefore, do not put your old device into the non-recyclable waste under any circumstances.
HINWEIS Please note
- Utilise the collection point, established in your town, to return and recycle old electric and electronic devices. If necessary, contact your town hall, local refuse collection service or your dealer for information.
▶ Ensure that your old device is stored safely away from children until it is taken away.
19 Guarantee
We provide a 24 month guarantee for this product, commencing from the date of sale, for faults which are attributable to production or material faults.
Your legal guarantee entitlements in accordance with § 439 ff. BGB-E remain unaffected by this.
The guarantee does not include damages, which were incurred as a result of improper handling or use, as well as malfunctions which only have a minor effect on the function or the value of the device. Consumables, transit damages, inasmuch as we are not responsible for these, as well as damages, which were incurred as a result of any repairs that were not performed by us, are also excluded from the guarantee entitlements.
This device is designed for use in domestic situations and has the appropriate performance levels.
Any use in commercial situations is only covered under the guarantee to the extent that it would be comparable with the stresses of being used in a domestic situation. It is not intended for any additional, commercial use.
In the event of justified complaints, we will repair the faulty device at our discretion or replace it with a trouble-free device.
Any pending faults must be reported within 14 days of delivery.
All further claims are excluded.
To enforce a guarantee claim, please contact us prior to returning the device (always provide us with proof of purchase).
20 Technical Data
| Device Electric Coffee & Spice Grinder |
| Name Coffee Flavour / Coffee & Kitchen Flavour |
| Item No.: 1830 / 1831 |
| Mains data 220-240 V, 50/60 Hz |
| Power consumption 200 W |
| Net weight 0,95 kg |
| Measures (W/H/D) 10,7 x 20,5 x 10,7 cm |
Mode d'emploi
Coffee & Kitchen Flavour (1831)
Intertek
21 Mode d'emploi
21.1 Généralités
31.1 In generale
Top-down view of a metallic cylindrical container with seven numbered star-shaped blades (1–7), no text or symbols visible.Coffee Kitchen & Flavour:
Top-down view of a metallic cylindrical container with seven numbered markings (1–7) and internal blades, no text or symbols present.Coffee Kitchen & Flavour:
Exterior view of a CASO Design blender with clear glass and black casing (no text or symbols on device body)
