Technical specifications	Bag vacuum cleaner, 800 W power, 3.5 L bag capacity
Filtration type	HEPA filtration
Included accessories	Brush for hard floors, brush for carpets, narrow nozzle
Usage	Suitable for hard surfaces and carpets, ideal for allergies thanks to HEPA filtration
Maintenance	Bag replacement needed when full, regular filter cleaning recommended
Safety	Overheat protection, safety power cable
General information	Weight: 5 kg, noise level: 78 dB, 2-year warranty

Frequently Asked Questions - AS3103 SOLAC

How can I clean or replace the filter of the SOLAC AS3103 vacuum cleaner?

To clean or replace the filter, open the filter compartment located at the back of the vacuum cleaner. Remove the filter, clean it under lukewarm water if necessary, or replace it with a new filter. Make sure it is completely dry before reinstalling it.

Why won\u0027t my SOLAC AS3103 vacuum cleaner start?

First, check that the vacuum cleaner is properly plugged into a working outlet. Also, make sure the power cable is not damaged. If everything seems fine, check if the dust bag is full or if the filter is clogged, as this can prevent it from starting.

How can I increase the suction power of my vacuum cleaner?

Make sure the dust bag is not full and the filter is clean. You can also check the brushes and accessories to ensure they are not blocked. If your model has a power setting, try increasing it.

The SOLAC AS3103 vacuum cleaner makes an unusual noise, what should I do?

An unusual noise may indicate an object stuck in the hose or brush. Turn off the vacuum cleaner, unplug it, and check the hose and accessories for obstructions. If the problem persists after checking, contact customer service.

What is the dust bag capacity of the SOLAC AS3103 vacuum cleaner?

The dust bag of the SOLAC AS3103 vacuum cleaner has a capacity of 2.5 liters. It is recommended to empty it regularly to maintain optimal performance.

Where can I buy spare parts for my SOLAC AS3103 vacuum cleaner?

Spare parts can be purchased on the official SOLAC website, in specialized appliance stores, or from authorized dealers. Always check the model and part reference before purchasing.

How can I maintain my SOLAC AS3103 vacuum cleaner?

For optimal maintenance, empty the dust bag regularly, clean the filter every month, check and clean the brushes and hoses to avoid blockages, and wipe the exterior of the device with a soft cloth.

My vacuum cleaner emits an unpleasant odor, what should I do?

An unpleasant odor may come from a full dust bag or a dirty filter. Replace the bag and clean or replace the filter. If the odor persists, check if something has been sucked in and is stuck inside.

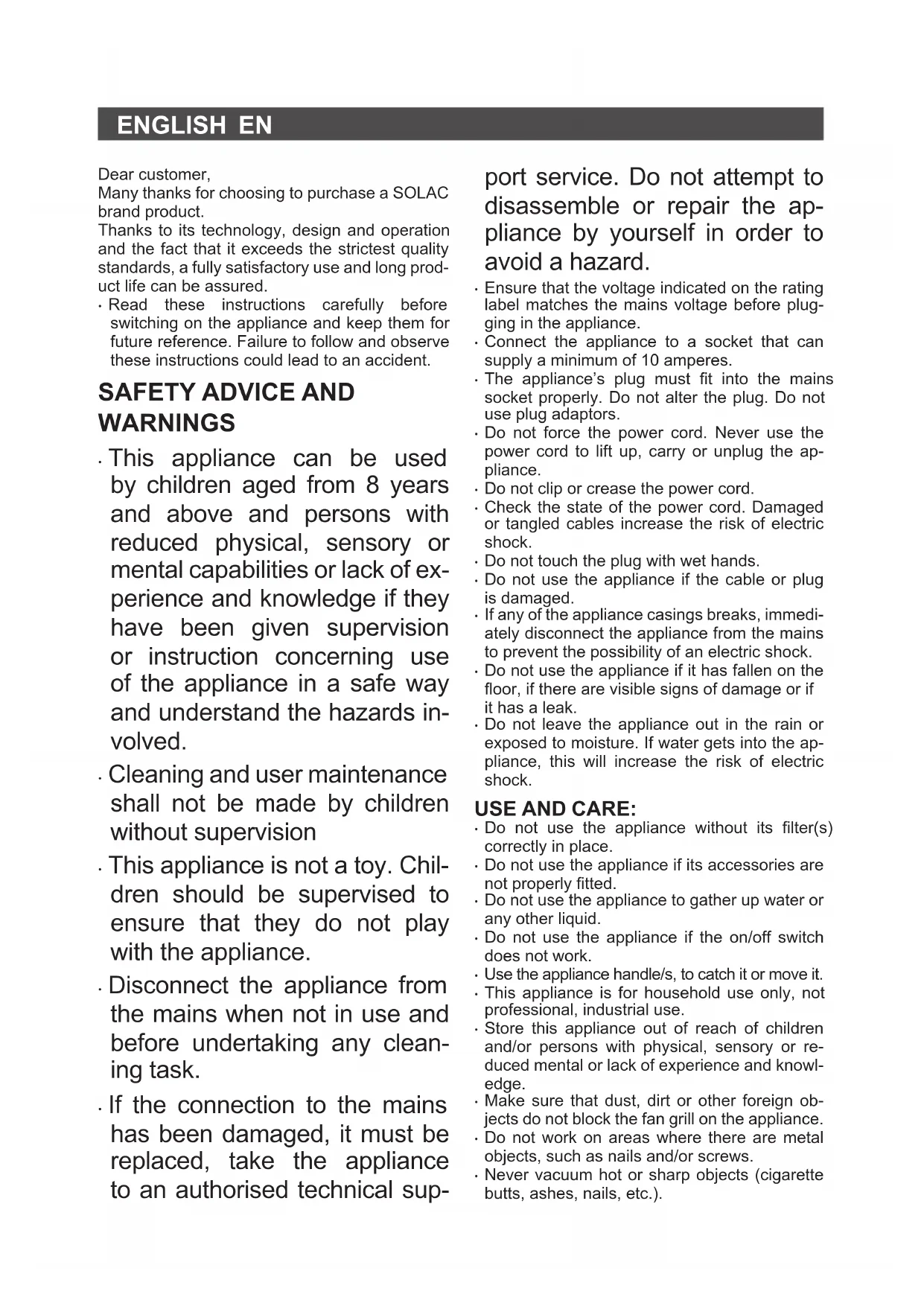

USER MANUAL AS3103 SOLAC

Many thanks for choosing to purchase a SOLAC brand product.

Thanks to its technology, design and operation and the fact that it exceeds the strictest quality standards, a fully satisfactory use and long product life can be assured.

• Read these instructions carefully before switching on the appliance and keep them for future reference. Failure to follow and observe these instructions could lead to an accident.

SAFETY ADVICE AND WARNINGS

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
- Cleaning and user maintenance shall not be made by children without supervision
This appliance is not a toy. Children should be supervised to ensure that they do not play with the appliance.
- Disconnect the appliance from the mains when not in use and before undertaking any cleaning task.
If the connection to the mains has been damaged, it must be replaced, take the appliance to an authorised technical sup

port service. Do not attempt to disassemble or repair the appliance by yourself in order to avoid a hazard.

• Ensure that the voltage indicated on the rating label matches the mains voltage before plugging in the appliance.
• Connect the appliance to a socket that can supply a minimum of 10 amperes.
• The appliance's plug must fit into the mains socket properly. Do not alter the plug. Do not use plug adaptors.
• Do not force the power cord. Never use the power cord to lift up, carry or unplug the appliance.
• Do not clip or crease the power cord.
• Check the state of the power cord. Damaged or tangled cables increase the risk of electric shock.
• Do not touch the plug with wet hands.
• Do not use the appliance if the cable or plug is damaged.
• If any of the appliance casings breaks, immediately disconnect the appliance from the mains to prevent the possibility of an electric shock.
• Do not use the appliance if it has fallen on the floor, if there are visible signs of damage or if it has a leak.
• Do not leave the appliance out in the rain or exposed to moisture. If water gets into the appliance, this will increase the risk of electric shock.

USE AND CARE:

• Do not use the appliance without its filter(s) correctly in place.
• Do not use the appliance if its accessories are not properly fitted.
• Do not use the appliance to gather up water on any other liquid.
• Do not use the appliance if the on/off switch does not work.
• Use the appliance handle/s, to catch it or move it.
• This appliance is for household use only, not professional, industrial use.
• Store this appliance out of reach of children and/or persons with physical, sensory or reduced mental or lack of experience and knowledge.
• Make sure that dust, dirt or other foreign objects do not block the fan grill on the appliance.
• Do not work on areas where there are metal objects, such as nails and/or screws.
• Never vacuum hot or sharp objects (cigarette butts, ashes, nails, etc.).

ENGLISH EN

• Only use the appliance for carrying out dry tasks.
• Never leave the appliance connected and unattended if is not in use. This saves energy and prolongs the life of the appliance.
• Do not use the appliance on any part of the body of a person or animal.

SERVICE:

• Any misuse or failure to follow the instructions for use renders the guarantee and the manufacturer's liability null and void.

DESCRIPTION

1 Main body.

2 Power cord.

3 On/Off pedal switch.

4 Air outlet filter grille.

5 Groove for attaching the brush during a temporary stop.

6 Air outlet HEPA filter.

7 Cord-winder pedal button.

8 Carry handle.

9 Dust container.

10 Flexible hose connection.

11 Flexible hose.

12 Motor protection filter

13 Dust container removal button.

14 Dust container handle.

15 Dust container cover opening button.

16 Dust container cover.

17 Cyclone filter.

18 Maximum fill level of the container.

19 Telescopic metal tube.

20 Height adjustment for the telescopic tube.

21 Retractable brush button.

22 Universal floor and carpet brush.

23 Hook for temporary stop.

24 Suction head for vacuuming grooves and corners.

• (^*) Only available in the model...

• If the model of your appliance does not have the accessories described above, they can also be bought separately from the Technical Assistance Service.

INSTRUCTIONS FOR USE BEFORE USE:

• Make sure that all products' packaging has been removed.

VACUUMING FUNCTION:

• Fit the hose unit to the vacuum cleaners air intake.

INSERTION OF ACCESSORIES INTO THE APPLIANCE'S GRIP:

• The appliance's grip is designed in such a way that it allows the insertion of the following accessories (use the combination that best meets your requirements):

-Extendible tube: designed to provide access to surfaces which are out of reach and make floor cleaning comfortable, its length can be adjusted by using the adjustment control.

-Head: specially designed for cleaning floors (both rugs and carpets and hard floors), its base has a retractable brush that can be adjusted to two heights for greater efficiency on these floors. It is advisable to have the brush out for hard floors and the brush in for rugs and carpets.

-Lance: specially designed for getting into cracks and difficult corners.

USE:

• Take the length of cable required out of the housing.
• Connect the appliance to the mains.
• Turn the appliance on, by using the on/off button.

ONCE YOU HAVE FINISHED USING THE APPLIANCE:

• Turn the appliance off using the on/off button.
• Unplug the appliance from the mains.
• Retract the cable by pressing the roller cable button and guide the cable into the appliance.
  Clean the appliance.

CARRY HANDLE/S:

• This appliance has a handle on the upper part of the body, which facilitates comfortable transportation (Fig.1).

PARKING POSITION:

• This appliance has its own parking position for comfortable and straightforward storage.
• To make use of the horizontal parking hook the head's hook onto the hook that is to be found on the lower part of the appliance (Fig.2).

CLEANING

• Disconnect the appliance from the mains and allow it to cool before undertaking any cleaning task.
• Clean the equipment with a damp cloth with a few drops of washing-up liquid and then dry.
• Do not use solvents, or products with an acid or base pH such as bleach, or abrasive products, for cleaning the appliance.
• Never submerge the appliance in water or any other liquid or place it under running water.

• Empty the dust box when it is full (observation facilitated by transparent windows), or when vacuuming power is notably reduced.
• Disconnect the hose from the vacuum cleaners air intake.

EN

• Disconnect the dust box from the appliance (Fig.3).
• Open the lid of the dust box and empty the contents into the appropriate waste disposal receptacle. (Fig.4).
• Close the lid of the dust box.
• Check the condition of the motor filter.
• Connect the hose to the vacuum cleaners air intake.

CHANGING THE FILTERS:

• Motor filter, it is advisable to be changed at least once a year or every 50 hours of the appliance's use.
  Air outlet HEPA filter (high efficiency air filter that efficiently retains spores, ash, sawdust, pollen...), it is advisable to change it a least once a year or after every 50 hours of use.

TO REMOVE THE FILTERS:

MOTOR FILTER:

• Disconnect the dust box from the appliance (Fig.3).
• Remove the filter from its housing (Fig.5).

OUTLET FILTER:

• Open the air outlet grate. To access the filter (Fig.6).
• Remove the filter from its housing.
• To reassemble the filter, proceed with the above instructions, in reverse order.

SUPPLIES

• Supplies can be acquired from distributors and authorised establishments (such as filters, etc...) for your appliance model.
• Always use original supplies, designed specifically for your appliance model.
• These supplies are available in specialist shops.

ANOMALIES AND REPAIR

• Take the appliance to an authorised technical support service if product is damaged or other problems arise. Do not attempt to disassemble or repair the appliance yourself as this may be dangerous.

FOR EU PRODUCT VERSIONS AND/OR IN CASE THAT IT IS REQUESTED IN YOUR COUNTRY:

ECOLOGY AND RECYCLABILITY OF THE PRODUCT

• The materials of which the packaging of this appliance consists are included in a collection, classification and recycling system. Should you wish to dispose of them, use the appropriate public recycling bins for each type of material.
  The product does not contain concentrations

of substances that could be considered harmful to the environment.

This symbol means that in case you wish to dispose of the product once its working life has ended; take it to an authorised waste agent for the selective collection of Waste Electric and Electronic Equipment (WEEE).

The following information is regarding to energy labelling and ecodesign:

Product fiche
Trade mark: SOLAC
Model: AS3103
Efficiency class A
Annual energy consumption: Indicative annual energy consumption (kWh per year), based on 50 cleaning tasks. Actual annual energy consumption will depend on how the appliance is used	24.6 kWh/year
Carpet cleaning performance class	D
Hard floor cleaning performance class	A
Dust re-emission class A
Sound power level	76 dB
Rated input power	800 W

To establish compliance with the ecodesign requirements and for calculation of energy labelling parameters the appliance is considered as general purpose vacuum cleaner and the European standards EN 60312-1, EN 60704-2-1, EN 60335-2-2 are used as reference.

This appliance complies with Directive 2014/35/EU on Low Voltage, Directive 2014/30/EU on Electromagnetic Compatibility, Directive 2011/65/EU on the restrictions of the use of certain hazardous substances in electrical and electronic equipment and Directive 2009/125/EC on the ecodesign requirements for energy-related products.
