Turbobat Expert Pro 22.2V AE2506 - Vacuum Cleaner SOLAC - Free user manual and instructions

Product type	Cordless stick vacuum
Brand	Solac
Model	Turbobat Expert Pro 22.2V AE2506
Charger model number	CS13A270050FGF
Power supply	Rechargeable lithium-ion battery 22.2 V (model CBL-SV1607-6S)
Charger input voltage	100-240 V ~, 50/60 Hz
Charger output voltage	27 V DC, 0.5 A
Charger output power	13.5 W
Estimated runtime	Approximately 30-40 minutes (depending on use)
Dust tank capacity	0.6 L (estimated)
Filtration system	Washable filter (cyclonic type)
Brush type	Motorized brush (turbo brush)
Main features	Powerful suction, motorized brush, cordless use, long runtime
Dimensions (L x W x H) estimated	110 x 25 x 20 cm
Estimated weight	2.8 kg
Maintenance and cleaning	Clean the filter regularly, empty the tank after each use, do not immerse the appliance
Safety	Unplug before cleaning, do not use if damaged, keep out of reach of children
Spare parts and repairability	Removable replaceable battery, spare filter available, contact authorized service center
Warranty	Manufacturer warranty (see conditions, improper use voids warranty)
Standards and certifications	CE directives (Low Voltage, EMC, RoHS, Ecodesign)
General information	Household use only, do not use without filter, recycle at end of life

Frequently Asked Questions - Turbobat Expert Pro 22.2V AE2506 SOLAC

How to charge the battery?

Plug in the included charger (model CS13A270050FGF) into a 100-240 V~ socket, then connect it to the vacuum. Full charge time is approximately 4 to 5 hours. Use only the original charger.

What is the battery runtime?

The runtime varies by usage mode: approximately 30 minutes in normal mode and 20 minutes in boost mode. To extend battery life, fully charge the battery before first use.

How to clean the vacuum filter?

Remove the dust tank and filter. Gently tap to remove dust, then wash it with warm water (no detergent). Let it dry completely in the air before reinstalling. Do not use a hairdryer.

What to do if suction decreases or is weak?

Check that the dust tank is not full and the filter is not clogged. Clean the filter if necessary. Also ensure the brush is not blocked by hair or debris. If the problem persists, contact customer service.

Can I replace the battery myself?

Yes, the battery is removable. Unplug the appliance, then remove the battery by pressing the release latch. Use only a genuine Solac replacement battery (model CBL-SV1607-6S). Do not dispose of the old battery in household trash.

What to do if the vacuum does not turn on?

Check that the battery is correctly inserted and charged. If the charger indicator does not light up, test the power outlet. If the appliance remains inactive, contact an authorized service center.

How to maintain the motorized brush?

Unplug the vacuum, then remove the brush. Use scissors or a tool to cut tangled hair and fibers around the roller. Clean regularly to avoid performance decrease.

Can I use the vacuum on hard floors and carpets?

Yes, the vacuum is suitable for all floor types: hardwood, tile, carpet, and rugs. The motorized brush adjusts automatically. Avoid very rough or wet surfaces.

What to do if a part breaks?

Contact Solac customer service or an authorized dealer for original spare parts (filter, brush, battery, etc.). Do not attempt to repair the appliance yourself.

How to dispose of the appliance at end of life?

In accordance with the WEEE directive, do not dispose of the vacuum with household waste. Remove the battery and place it in a battery collection container. Take the rest of the appliance to an authorized collection center for electrical and electronic equipment.

USER MANUAL Turbobat Expert Pro 22.2V AE2506 SOLAC

Black and white photo of a handheld vacuum cleaner (no visible text or symbols)

• VEILIGHEIDSADVIES EN WAARSCHUWINGEN

- RECOMANDĂRI SIGURANȚĂ ȘI AVERTIZĂRI

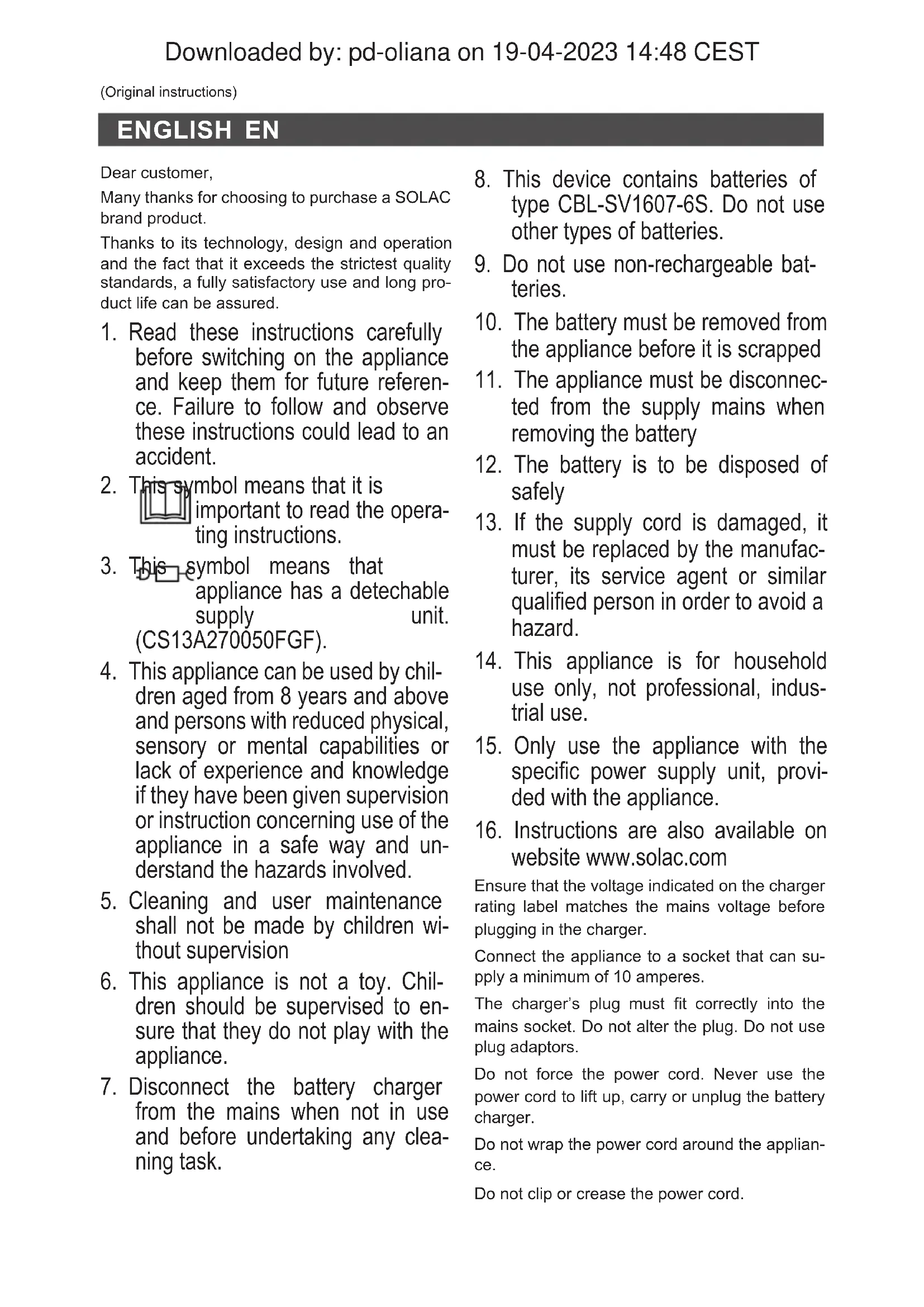

Many thanks for choosing to purchase a SOLAC brand product.

Thanks to its technology, design and operation and the fact that it exceeds the strictest quality standards, a fully satisfactory use and long product life can be assured.

1. Read these instructions carefully before switching on the appliance and keep them for future reference. Failure to follow and observe these instructions could lead to an accident.
2. This symbol means that it is important to read the operating instructions.
3. This symbol means that appliance has a detectable supply unit. (CS13A270050FGF).
4. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
5. Cleaning and user maintenance shall not be made by children without supervision
6. This appliance is not a toy. Children should be supervised to ensure that they do not play with the appliance.

7. Disconnect the battery charger from the mains when not in use and before undertaking any cleaning task.

8. This device contains batteries of type CBL-SV1607-6S. Do not use other types of batteries.

9. Do not use non-rechargeable batteries.
10. The battery must be removed from the appliance before it is scrapped
11. The appliance must be disconnected from the supply mains when removing the battery
12. The battery is to be disposed of safely
13. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similar qualified person in order to avoid a hazard.
14. This appliance is for household use only, not professional, industrial use.
15. Only use the appliance with the specific power supply unit, provided with the appliance.
16. Instructions are also available on website www.solac.com

Ensure that the voltage indicated on the charger rating label matches the mains voltage before plugging in the charger.

Connect the appliance to a socket that can supply a minimum of 10 amperes.

The charger's plug must fit correctly into the mains socket. Do not alter the plug. Do not use plug adaptors.

Do not force the power cord. Never use the power cord to lift up, carry or unplug the battery charger.

Do not wrap the power cord around the appliance.

Do not clip or crease the power cord.

EN

Check the state of the power cord. Damaged or tangled cables increase the risk of electric shock.

Do not touch the plug with wet hands.

Do not use the appliance if the cable or plug is damaged.

If any of the appliance casings breaks, immediately disconnect the appliance from the mains to prevent the possibility of an electric shock.

Do not use the appliance if it has fallen on the floor, if there are visible signs of damage or if it has a leak.

Avoid all contact with the liquid that could be released from the battery. In case of contact with eyes, wash them thoroughly and seek medical advice. The liquid spilled from the battery may cause irritation or burns.

SERVICE

Any misuse or failure to follow the instructions for use renders the guarantee and the manufacturer's liability null and void.

ANOMALIES AND REPAIR

Take the appliance to an authorised technical support service if problems arise. Do not try to dismantle or repair without assistance, as this may be dangerous.

FOR EU PRODUCT VERSIONS AND/OR IN THE CASE THAT IT IS REQUESTED IN YOUR COUNTRY:

ECOLOGY AND RECYCLABILITY OF THE PRODUCT

The materials of which the packaging of this appliance consists are included in a collection, classification and recycling system. Should you wish to dispose of them, use the appropriate public containers for each type of material.

The product does not contain concentrations of substances that could be considered harmful to the environment.

- This symbol means that in case you wish to dispose of the product once its working life has ended, take it to an authorised waste agent for the selective collection of waste electrical and electronic equipment (WEEE).

- This symbol means that product may include a battery or batteries; user must to remove them before disposing of the product. Remember that batteries must be disposed of in duly authorised containers. Do not dispose of them in fire.

This appliance complies with Directive 2014/35/EU on Low Voltage, Directive 2014/30/EU on Electromagnetic Compatibility, Directive 2011/65/EU on the restrictions of the use of certain hazardous substances in electrical and electronic equipment and Directive 2009/125/EC on the ecodesign requirements for energy-related products.

EN

• The following information is regarding to energy labelling and ecodesign:

Trademark and address Solac Small Electro, S.L.U.	Av. De los Olmos, N° 1, Ed. D IV, Of.142, 01013. VITORIA-GASTEIZ. ALAVA.
Model CS13A270050FGF (AE2506, Turbobat Expert Pro)
Input Voltage 100-240 V ~
Input AC frequency 50/60 Hz
Output voltage 27,0 Vdc
Output current 0,5 A
Output power 13,5 W
Average Active Efficiency 85,52%
Efficiency at low load (10%) 73,91%
No-load power consumption 0,08 W

To establish compliance with the ecodesign requirements and for calculation of energy labelling parameters the appliance the European standard EN 50563 is used as reference.
