Technical specifications	SILVERCREST SWC 1000 C1 curling iron, power of 1000 W, barrel diameter of 25 mm, ceramic coating.
Usage	Ideal for creating curls and waves, with a fast heating time and easy use thanks to its ergonomic design.
Maintenance and repair	Regularly clean the coating with a soft cloth, do not immerse in water. In case of malfunction, contact customer service.
Safety	Equipped with an automatic shut-off system after 60 minutes of inactivity, insulated handle to prevent burns.
General information	3-year warranty, user manual included, available in several colors.

Frequently Asked Questions - SWC 1000 C1 SILVERCREST

How do I use the SILVERCREST SWC 1000 C1 curling iron?

To use the curling iron, plug in the device and wait until it reaches the desired temperature. Take a strand of hair, wrap it around the barrel, and hold it in place for a few seconds before releasing.

What is the maximum temperature of the curling iron?

The SILVERCREST SWC 1000 C1 curling iron reaches a maximum temperature of 200 6C.

Is the curling iron suitable for all hair types?

Yes, the curling iron is designed to be used on all hair types, but it is recommended to adjust the temperature according to your hair texture.

How do I clean the curling iron after use?

To clean the curling iron, make sure it is unplugged and cooled down. Use a soft, slightly damp cloth to wipe the barrel. Do not immerse the device in water.

What should I do if the curling iron does not heat up?

Check that the device is properly plugged in and that the outlet is working. If the problem persists, it may be necessary to contact customer service.

Does the curling iron have an automatic shut-off function?

Yes, the SILVERCREST SWC 1000 C1 is equipped with an automatic shut-off function that activates after a period of inactivity to ensure safety.

What is the length of the power cord?

The SILVERCREST SWC 1000 C1 curling iron is equipped with a 1.8 m long power cord.

Can I use the curling iron on wet hair?

No, it is recommended to use the curling iron only on dry hair to avoid damaging the hair and the device.

Is the curling iron compatible with a voltage converter?

The SILVERCREST SWC 1000 C1 is designed to operate at a voltage of 220-240 V. Using a voltage converter is not recommended.

USER MANUAL SWC 1000 C1 SILVERCREST

Operating instructions

SE

VARMLUFTSBORSTE

Bruksanvisning

FR BE

BROSSE CHAUFFANTE

Mode d'emploi

DE AT CH

MULTI-WARMLUFT-STYLER

Bedienungsanleitung

F

HIUSTENMUOTOILIJA

Käytööhje

DK

MULTI-VARMLUFTSTYLER

Betjeningsveiledning

NL BE

MULTIFUNCTIONE WARME-LUCHT STYLER

Gebruiksaanwijzing

IAN 107211

GB IE

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

F

GB/IE Operating instructions Page 1

FI	Käytööhje	Sivu	15
SE	Bruksanvisning	Sidan	29
DK	Betjeningsvejledning	Side	43
FR/BE Mode d'emploi Page 57
NL/BE Gebruiksaanwijzing Pgina 71
DE/AT/CH	Bedienungsanleitung			Seite 85

Index

Introduction 2

Copyright 2
Limited liability. 2

Intended use 2

Items supplied 3

Unpacking 3

Disposal of the packaging. 3

Appliance description 4

Technical data. 4

Safety instructions 5

First use 8

Attachment fitting/removal. 8

Fitting Attachments. 8

Removing attachments. 8

Switching on/off/Selecting a heat level 9

Using the attachments 9

Large round brush 9

Small round brush 9

Curling tongs 10

Double brush 10

Half round brush 10

Styling jet 10

Cleaning and Care 11

Storage 11

Tips for the perfect hairstyle 11

Disposal of the appliance 12

Troubleshooting 12

Warranty 12

Service 13

Importer 13

Introduction

Congratulations on the purchase of your new appliance.

You have clearly decided in favour of a high-quality product. These operating instructions are a part of this product. They contain important information in regard to safety, use and disposal. Before using the product, familiarise yourself with all of these operating and safety instructions. Use this appliance only as described and only for the specified areas of application. In addition, pass these operating instructions on to whoever might acquire the appliance at a future date.

Copyright

This documentation is copyright protected.

Any copying or reproduction of it, including as extracts, as well as the reproduction of images, also in an altered state, is only permitted with the written authorisation of the manufacturer.

Limited liability

All technical information, data and information for the connection and operation contained in these operating instructions correspond to the latest at time of printing and, to the best of our knowledge, take into account our previous experience and know-how.

No claims can be derived from the details, illustrations and descriptions in these instructions.

The manufacturer assumes no responsibility for damage caused by failure to observe these instructions, improper use, incompetent repairs, making unauthorised modifi cations or for using unapproved replacement parts.

Intended use

This appliance is intended for human hair care and only for use in domestic households.

It is not intended for use on animals or in commercial or industrial environments.

This appliance is not intended for any other use or for uses beyond those mentioned. Claims of any kind for damage resulting from unintended use will not be excepted. The operator alone bears liability.

Items supplied

This appliance is supplied with the following components as standard:

Multi-Function Hot Air Styler
Storage case
- Small round brush
Large round brush
Half round brush
- Curling tongs
Double brush
Styling jet
- Operating instructions

NOTICE

• Check the contents to ensure that everything is present and for signs of visible damage.
  If the contents are not complete or are damaged due to defective packaging or through transportation contact the Service Hotline (see chapter Service).

Unpacking

Remove all parts of the appliance and the operating instructions from the carton.
Remove all packing material.

WARNING! RISK OF SUFFOCATION!

• Packaging materials should not be used as a play thing. There is a risk of suffocation.

Disposal of the packaging

The packaging protects the appliance against transport damage. The packaging materials are selected from the point of view of their environmental friendliness and disposal technology and are therefore recyclable.

The recirculation of packaging into the material circuit saves raw material and reduces the amount of waste generated. Dispos of packaging material that is no longer needed as per the regionally established regulations.

NOTICE

If possible, preserve the appliance's original packaging during the warranty period, so that in the event of a warranty claim you can package the appliance ideally for its return.

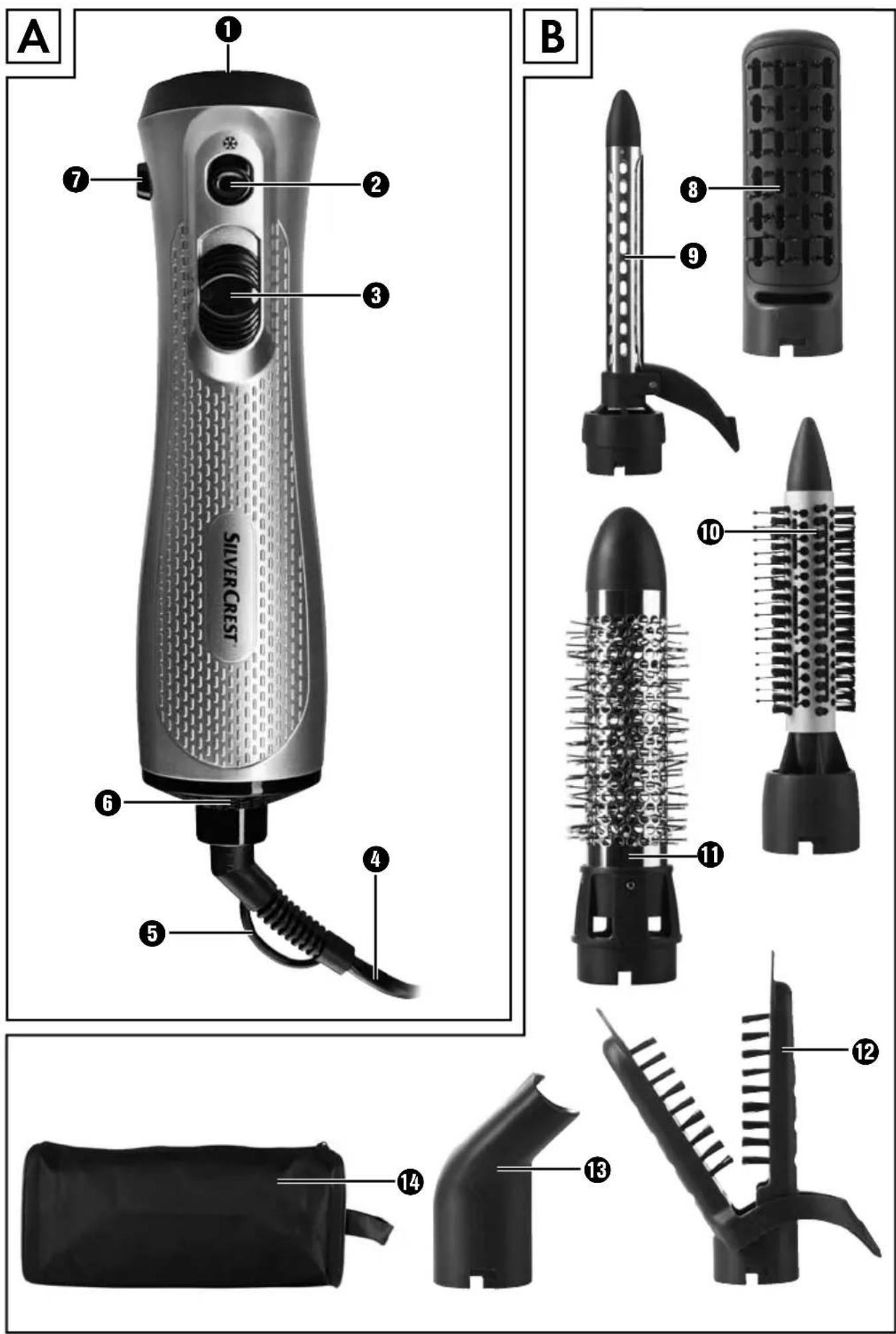

Appliance description

Figure A:

Attachment insertion slot
② Slide switch Cool Shot
3 Level switch
4 Power cable
Suspension loop
6 Air intake grill
7 Release button "push"

Figure B:

8 Half-round brush
Curling tongs
10 Small round brush
1 Large round brush
Double brush
Styling jet
Storage bag

Technical data

Mains voltage 220 - 240 V ~, 50/60 Hz
Power consumption 1000 W
Protection class	II ☐

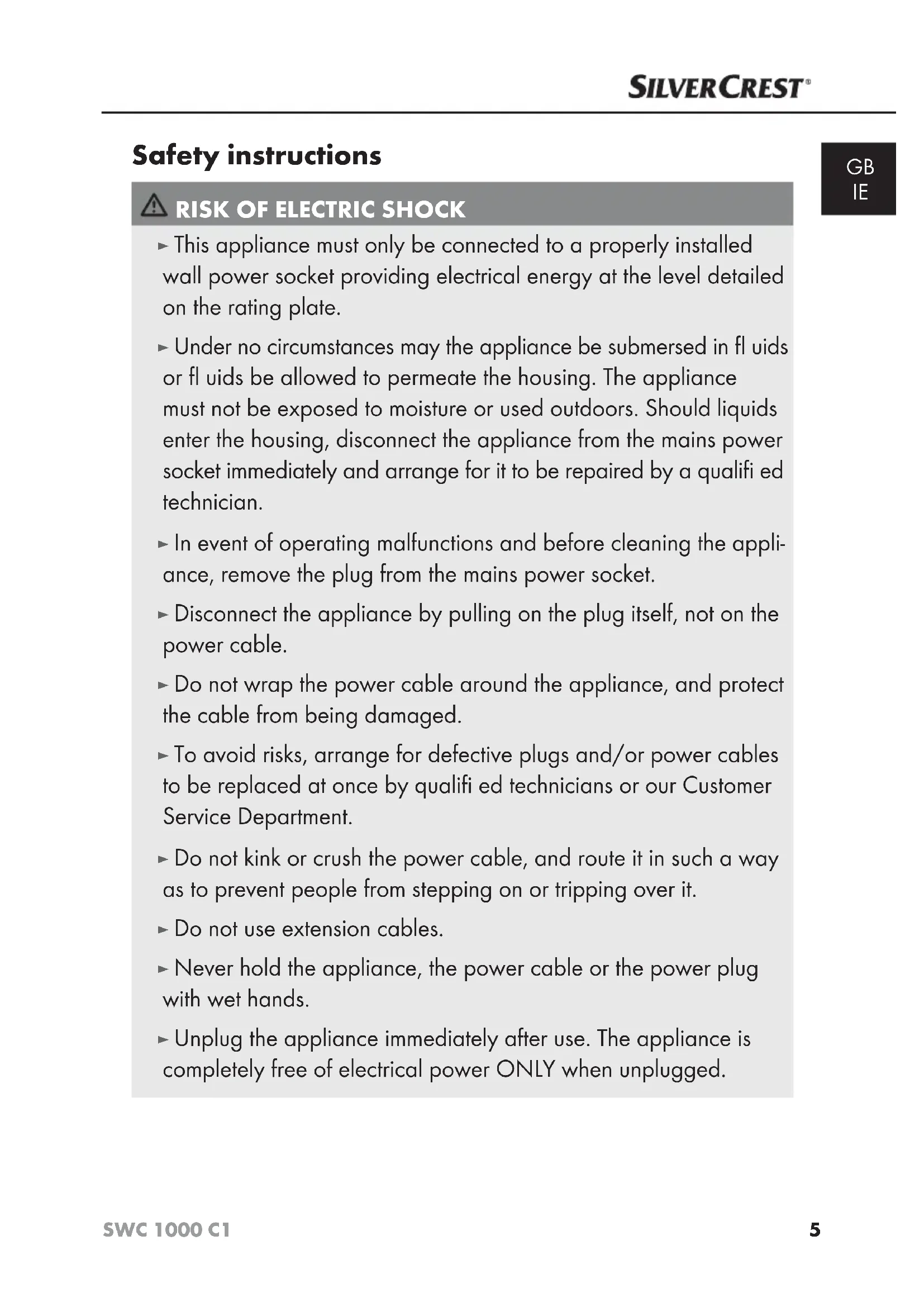

Safety instructions

RISK OF ELECTRIC SHOCK

This appliance must only be connected to a properly installed wall power socket providing electrical energy at the level detailed on the rating plate.
- Under no circumstances may the appliance be submersed in fluids or fluids be allowed to permeate the housing. The appliance must not be exposed to moisture or used outdoors. Should liquids enter the housing, disconnect the appliance from the mains power socket immediately and arrange for it to be repaired by a qualified technician.
In event of operating malfunctions and before cleaning the appliance, remove the plug from the mains power socket.
- Disconnect the appliance by pulling on the plug itself, not on the power cable.
- Do not wrap the power cable around the appliance, and protect the cable from being damaged.
- To avoid risks, arrange for defective plugs and/or power cables to be replaced at once by qualified technicians or our Customer Service Department.
- Do not kink or crush the power cable, and route it in such a way as to prevent people from stepping on or tripping over it.
Do not use extension cables.
- Never hold the appliance, the power cable or the power plug with wet hands.
- Unplug the appliance immediately after use. The appliance is completely free of electrical power ONLY when unplugged.

RISK OF ELECTRIC SHOCK

• You must not open the device housing or attempt to repair the device yourself. Should you do so, the safety of the appliance is no longer assured and the warranty will become void. Only allow authorised technicians to repair a defective appliance.
• Ensure that the power cable 4 does not become wet or moist during use. Route the cable in such a way that it cannot be crushed or damaged.
• Ensure that objects can never penetrate into the inside of the appliance, particularly not metal hair clips, grips or hairpins.

Never use the appliance near water, particularly not near sinks, bathtubs or similar vessels. The proximity of water presents a risk, even when the appliance is switched off. Always disconnect the plug from the mains power socket after use. As additional protection, the installation of a residual current circuit-breaker with an activation power rating of not more than 30mA is recommended for the power circuit in the bathroom. Ask your electrician for advice.

WARNING! RISK OF INJURY!

This appliance may be used by children of the age of 8 years or over and by persons with reduced physical, sensory or mental capabilities or lack of experience and/or knowledge if they are supervised or, in regard to the safe use of the appliance, have been instructed in its use and have understood the potential risks.
Children must not play with the appliance.
- Cleaning and user maintenance tasks should not be carried out by children, unless they are at least 8 or more years old and are supervised.

WARNING! RISK OF INJURY!

• Never put the appliance down when it is switched on, and never leave a switched-on appliance unsupervised.
• Never place the appliance close to sources of heat, and protect the power cable against potential damage.

• Do not operate the appliance if it has sustained a fall or is damaged in any way. Have the appliance checked and/or repaired by qualified technicians.

• Do not cover the air intake grille while operating the appliance. Clean the grille at regular intervals.

• The appliance and its accessories can become hot when in use. Therefore, only touch the handle and the buttons.
  Always use the appliance with the attachments fitted, never on its own, since the attachment point ① becomes hot during operation.

• Allow the appliance to cool down before attaching or detaching attachments.
• Use only the supplied original accessories, since these have been optimised for interaction with the appliance. Other parts may not be adequately safe.
• Keep the air inlet and outlet openings clear so as to have unimpaired air flow. Otherwise the appliance may overheat.
  Exercise caution when using hair spray, water atomizers etc. The air flow may blow these substances directly into your eyes. On the other hand, these substances must not be allowed to penetrate the appliance, since they may be infl ammable, aggressive or electrically conductive.

First use

Before taking the appliance into use ensure that ...

• the appliance and its accessory parts are in perfect working condition,

• all packaging materials have been removed.

Clean all of the attachments as described under "Cleaning and care".

Attachment fitting/removal

WARNING!RISKOFINJURY！

After operation, the appliance components may be hot!

Fitting Attachments

Insert the desired attachment into the attachment insertion slot 1, so that the front arrow symbol on the attachment points at the arrow symbol on the attachment insertion slot 1

Turn the attachment clockwise until it clicks into place. The back aaw on the attachment now points at the arrow on the attachment insertion slot 1

Removing attachments

■ First switch the appliance off and allow it to cool down..

Press the release button "push" ⑦ and turn the attachment anti-clockwise

The attachment can now be removed by pulling it out of the attachment insertion slot 1.

Switchingon/off / Selecting a heat level

When you have inserted the required attachment and connected the plug with the mains power socket, you can now switch the appliance on with the level switch 3 and select the output level:

• "O" The appliance is switched off
• "1" for a reduced air-flow strength with heat
• "2" for a high air-flow strength with heat

You switch the appliance off by sliding the level switch ③ to the position "0" (= appliance off).
To fix the styling, you can use the slide switch Cool Shot 2. The styling will be fixed by the cool air stream:

During operation, slide the slide switch Cool Shot ±b2 upwards. The air flow will be cooler.

• When you want to deactivate the cool air stream, slide the slide switch Cool Shot ② downwards.

Using the attachments

Large round brush 11

This attachment gives the hair more volume or large curls.

Wind a slightly damp strand of hair around the large round brush 11.
Switch the appliance on at level 1 or 2.
When the strand is dry, slide the slide switch Cool Shot 2 upwards. Wait until the strand has cooled.
Unwind the large round brush 1 from the strand.
■ Proceed with the other strands in the same way.

Small round brush 10

With this attachment you can put curls or waves into your hair.

■ Wind a slightly damp strand of hair around the small round brush 10.
Switch the appliance on at level 1 or 2.
When the strand is dry, slide the slide switch Cool Shot 2 upwards. Wait until the strand has cooled.

Unwind the small round brush 10 from the strand.

■ Proceed with the other strands in the same way.

Curling tongs 9

With this attachment you can put small spiral curls (angel curls) into your hair.

Secure the tip of the strand with the clip on the curling tongs 9.
Then wind the slightly damp strand of hair around the curling tongs 9.

Switch the appliance on at level 1 or 2.
When the strand is dry, slide the slide switch Cool Shot 2 upwards. Wait until the strand has cooled.
Pull the curling tongs out of the strand.
■ Proceed with the other strands in the same way.

Double brush 12

This attachment is suitable for drying particularly long hair.

Take up a lock of hair near the root using the open double brush 12, close the double brush 12 and keep it closed.
Switch the appliance on at level 1 or 2.
Pull the hair slowly through the double brush 12 so that the lock is dried all the way to the ends.
■ Proceed with the other strands in the same way.

Half round brush 8

The half-round brush 8 is suitable for combing and simultaneous blow drying of the hair.

Styling jet 13

With this attachment you can target parts of your hair for styling and blow-drying.

Cleaning and Care

RISK OF ELECTRIC SHOCK

Before cleaning the appliance, always disconnect the power cable from the mains power socket. There is a risk of receiving an electric shock!

WARNING! RISK OF INJURY!

• Allow the appliance to cool sufficiently before cleaning it. Risk of Burns!

CAUTION - PROPERTY DAMAGE!

• Do not use any aggressive, abrasive or chemical cleaning agents! These could damage the upper surfaces of the appliance.

Clean the appliance only with a lightly moistened cloth.
■ Allow the appliance to dry completely before re-use or before storing it.

If necessary, wipe the storage bag 14 or the attachments 8/9/10/11/12/13 with a damp cloth.

Clean the air intake grill 6 aegular intervals with a soft brush.

Storage

You can also hang the appliance up by the suspension loop 5.

If you are intending to not use the appliance for an extended period, store it in the storage bag 14. The appliance must be cooled down for this!

Tips for the perfect hairstyle

Only style your hair when it is already almost dry.
Divide your hair into individual strands for more volume.
■ You will achieve additional volume by starting to dry your hair at the hairline and working down towards the ends.
After switching the appliance off, wait for a few seconds before releasing the curl.
Let your hair cool down sufficiently before combing it out.
Fix the hair with a little hairspray.

Disposal of the appliance

Do not dispose of the appliance in your normal domestic waste. This product is subject to the provisions of European Directive 2012/19/EU-WEEE (Waste Electrical and Electronic Equipment).

Dispos of the appliance through an approved disposal centre or at your community waste facility. Pay heed to the currently applicable regulations. In case of doubt, please contact your waste disposal centre.

Troubleshooting

Problem Cause Remedy
The appliance does not function.	• The plug is not inserted into a power socket. • Insert the plug into a mains power socket.
	• The appliance is not switched on. • Switch on the appliance.
	• The appliance is defective. • In this case, contact Customer Services.
The appliance does not get hot.	• The slider switch Cool Shot ② is in the upwards position. • Slide the slider switch Cool Shot ② downwards.
	• The appliance is defective. • In this case, contact Customer Services.

Warranty

The warranty for this appliance is for 3 years from the date of purchase. The appliance has been manufactured with care and meticulously examined before delivery.

Please retain your receipt as proof of purchase. In the event of a warranty claim, please make contact by telephone with our Customer Service department. Only in this way can a post-free despatch for your goods be assured.

NOTICE

The warranty covers only claims for material and manufacturing defects, it is not applicable for transport damages, parts subject to wear and tear or for damage to fragile components, e.g. bulbs and switches.

This appliance is intended solely for private domestic use, not for commercial applications. If this product has been subjected to improper or inappropriate handling, abuse, or modifications not carried out by one of our authorised service centres, the warranty will be considered void.

Your statutory rights are not restricted in any way by this warranty. The warranty period is not extended by repairs made under the warranty. This applies also to replaced and repaired parts.

Damages and defects extant at the time of purchase must be reported immediately after unpacking, resp. no later than two days after the date of purchase.

Repairs made after the lapse of the warranty period are subject to charge.

Service

GB Service Great Britain

Tel.: [phone] (£ 0.10/Min.)

E-Mail: [e-mail]

IAN 107211

IE Service Ireland

Tel.: [phone]

(0,08 EUR/Min., (peak))

(0,06 EUR/Min., (off peak))

E-Mail: [e-mail]

IAN107211

Hotline availability: Monday to Friday 08:00 - 20:00 (CET)

Importer

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Sisällysluettelo

Johdanto 16

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Indholdsfortegnelse

Introduktion 44

Ophavset 44
Ansvarsbegransing 44

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Sommaire

Introduction 58

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Inhoud

Inleiding 72

WAARSCHUWING! VERSTIKKINGSGEVAAR!

WAARSCHUWING! LETSELGEVAAR!

WAARSCHUWING! LETSELGEVAAR!

WAARSCHUWING! LETSELGEVAAR!

VAARSCHUWING! LETSELGEVAAR!

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Inhaltsverzeichnis

Einleitung 86

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

DEUTSCHLAND/GERMANY

www.kompernass.com

Last Information Update · Tietojen tila · Informationsstatus

Tilstand af information · Version des informations

Stand van de informatie · Stand der Informationen:

03/2015·Ident.-No.:SWC1000C1-012015-2
