SV 1010 - Iron Orbegozo - Free user manual and instructions

Product type	Iron
Brand	Orbegozo
Model	SV 1010
Power supply	110-120 V / 220-240 V, 50-60 Hz
Power	1000 W
Water tank capacity	Approximately 200 ml
Soleplate	Stainless steel soleplate
Ironing functions	Dry ironing, variable steam, steam burst, spray
Settings	Adjustable thermostat, steam control
Handle	Foldable handle with lock
Safety	Heating indicator, auto shut-off not specified
Maintenance	Empty tank after use, clean soleplate with a damp cloth
Weight	Approximately 1.2 kg
Color	Not specified
Included accessories	Base (integrated), user manual

Frequently Asked Questions - SV 1010 Orbegozo

How to adjust the temperature on the Orbegozo SV 1010 iron?

Turn the thermostat control (F) to select the desired temperature. The positions are indicated by dots (., ..., ...). Wait for the indicator light (H) to go out before starting to iron.

How to use the steam function?

Make sure the tank is filled. Set the steam control (A) to the desired position and the thermostat to a temperature suitable for steam (., ..., ...). When the indicator light goes out, the steam is ready.

What to do if the iron does not heat up?

Check that the appliance is plugged in and that the voltage selector is set to your mains voltage (110-120V or 220-240V). If the problem persists, contact an authorized technical service.

How to fill the water tank?

Unplug the iron. Set the steam control to minimum. Open the filling hole cover (D) and pour water up to the maximum level. Close the cover.

Why is steam not coming out?

Check the water level in the tank and that the steam control is not set to 0. Make sure the temperature is sufficient (indicator light off). If the steam is weak, there may be limescale; descale the iron.

How to clean the iron soleplate?

Unplug the iron and let it cool down. Clean the soleplate with a damp, non-abrasive cloth. Do not use harsh chemicals or metal scouring pads.

Is the iron leaking water?

If the iron leaks, check that the tank is not overfilled and that the steam control is on the minimum position during filling. Make sure the cover is tightly closed. If the leak persists, stop using and contact technical service.

How to fold the iron handle?

To fold the handle, press the folding handle lock located under the handle. To unfold it, pull upward without touching the lock until it clicks into place.

How to descale the Orbegozo SV 1010 iron?

Fill the tank with a mixture of half water and half white vinegar. Plug in the iron and set the steam to maximum. Let it heat and produce steam for a few minutes. Unplug, empty and rinse with clean water. Repeat if necessary.

How to change the voltage selector on the iron?

Before plugging in the iron, check that the voltage selector switch (located near the plug) is set to your mains voltage (110-120V or 220-240V). Use a screwdriver to turn it if necessary.

USER MANUAL SV 1010 Orbegozo

Read this manual carefully before running this appliance and save it for reference in order to obtain the best results and ensure safe use.

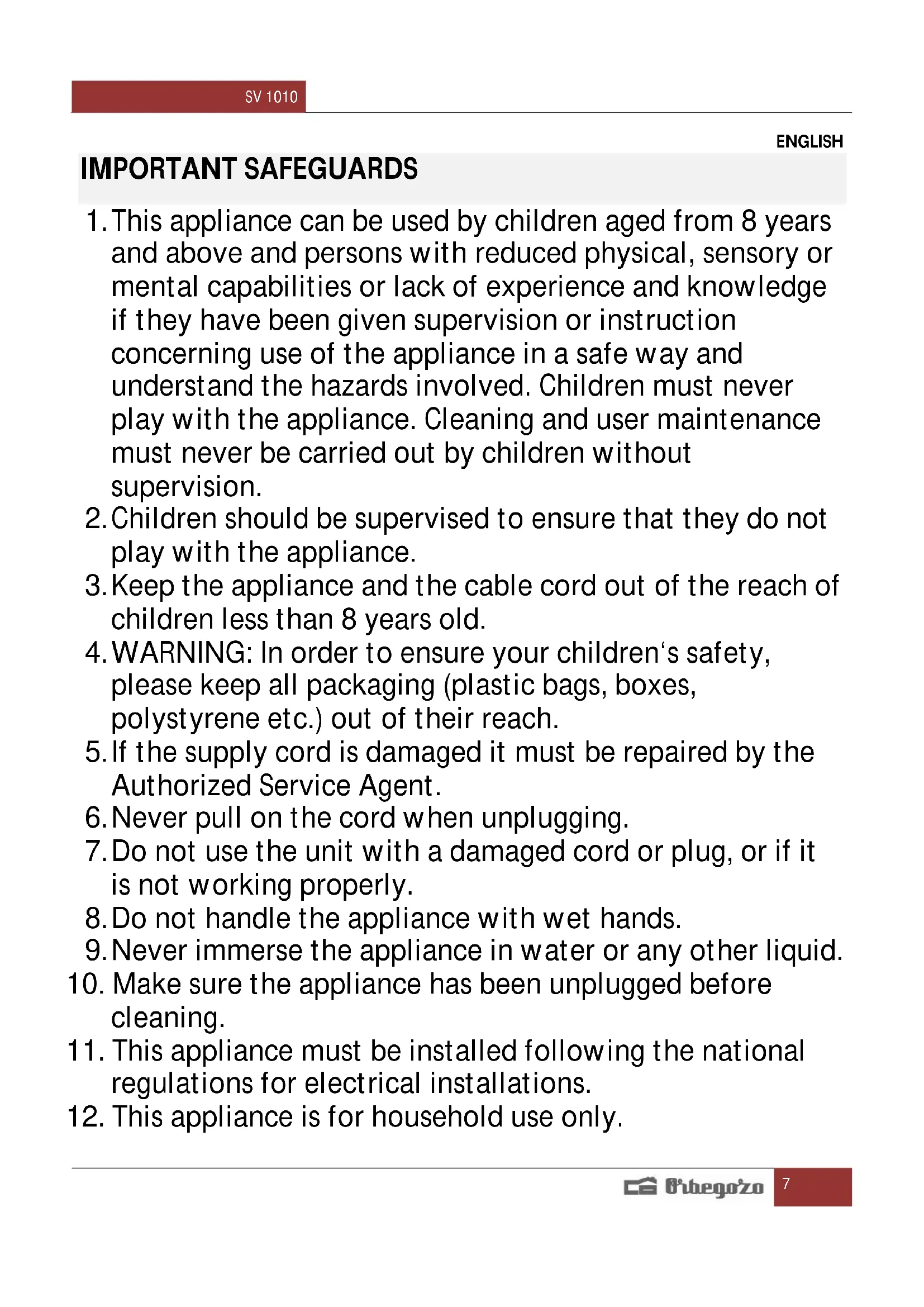

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must never play with the appliance. Cleaning and user maintenance must never be carried out by children without supervision.

2. Children should be supervised to ensure that they do not play with the appliance.

3. Keep the appliance and the cable cord out of the reach of children less than 8 years old.
4. WARNING: In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.
5. If the supply cord is damaged it must be repaired by the Authorized Service Agent.
6. Never pull on the cord when unplugging.
7. Do not use the unit with a damaged cord or plug, or if it is not working properly.
8. Do not handle the appliance with wet hands.
9. Never immerse the appliance in water or any other liquid.
10. Make sure the appliance has been unplugged before cleaning.
11. This appliance must be installed following the national regulations for electrical installations.

12. This appliance is for household use only.

13. In case that you need a copy of the instruction manual, you can ask for it writing an email to [e-mail].

14. WARNING: In case of misuse, there is a risk of possible injury.

15. Check if the voltage indicated on the type plate corresponds to the local mains voltage before you connect the appliance.

16. Only connect the appliance to an earthed wall socket.
17. Do not use the appliance if the plug, the cord or the appliance itself shows visible damage, or if the appliance has been dropped or is leaking.
18. Check the cord regularly for possible damage.
19. The soleplate can heat up a lot and, if it is touched, can cause burns.
20. Do not let the cord contact with soleplate when it is hot.
21. When you have finished ironing, clean the appliance, fill or empty the water tank or when you leave the iron even if only for a moment, set the steam control to 0 position, put the iron on its base support and unplug of the mains.
22. Always place and use the iron on stable and horizontal surface.
23. The iron must not be left unattended while it is connected to the supply mains.
24. Remove the plug from the socket before filling the appliance with water.
25. The filling hole should not be open during operation
26. The appliance must be used and placed on a stable surface.

27. When placed on its stand, make sure that the surface on which the stand is placed is stable.

28. The iron should not be used if it has been dropped, if there are visible signs of damage or if it is leaking water.

29. Keep the iron and its cord out of reach of children less than 8 years of age when it is energized or cooling down.
30. The travelling irons are not designed for a regular use.
31. ATTENTION. Hot surface.
32. The surface can become hot during operation

CHARACTERISTICS AND STRUCTURE

The product has many functions such as temperature regulating, spraying, dry ironing, variable steam, bursting steam, etc. And it with characteristics: luxury shape, high heat efficiency, easy using, good ironing result, work saving and time saving, and so on.

IMPORTANT SAFETY PRECAUTIONS

Check that the voltage rating on the product's nameplate matches the mains supply voltage. Choose within the range between 120 V and 230 V by turning the "voltage selector" switch. Before plugging the iron into the mains, check that the "voltage selector" switch is in the right position.. Please remember that if the switch is in the wrong setting, it may cause a failure or the required temperature may not be reached.

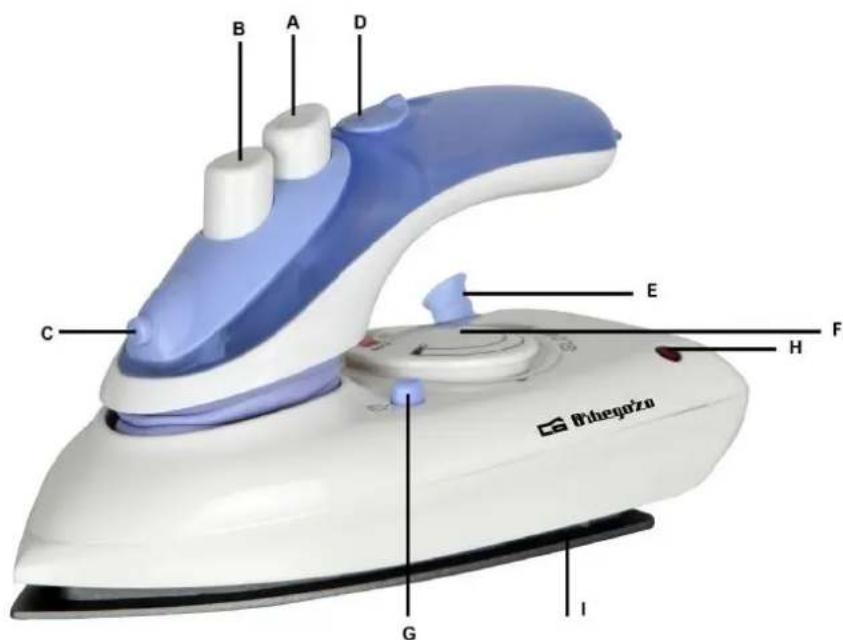

A.Strongsteam button.

B. Spraying button

C. Spraying mouth

D. Water filling cap

E. Power code

F. Temperature control

G. Foldable Handle lock

H. Indicator

I. Base plate

How to use the foldable handle lock: When you want to fold the handle, please press the lock down; if you want open the foldable handle, please pull up the handle without touching the lock.

FILLING WATER

1. Before filling water, please pull out the plug first.
2. Set the steam control to the minimum position.
3. Pull down the cover of water filling mouth, and then fill water.

SPRAYING

Press the spraying button, steam will be sprayed out from the spraying nozzle. At that time, you should keep enough water in the water tank.

STEAM IRONING

1. Use steam ironing, turn the steam control to minimum position and set the temperature control at the “,” “” or “...” position.
2. After the indicator goes out, turn the steam control to the suitable position, steam will be sprayed, ironing can start.

DRY IRONING

Turn the steam control to minimum position, set the temperature control to the suitable position, you can dry ironing.

STORAGE

After using, pull out the plug, pour out the remaining water, turn the steam control to minimum, turn the temperature control to "min", let the iron cool down, put the iron on the safe and dry place vertically.

MAIN TECHNICAL PARAMETERS

Appliance	Voltage	Frequency	Power
SV 1010	110-120V/220-240V	50-60 Hz	1000 W

Disposal of old electrical appliances.

The European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected.

Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

DECLARATION OF CONFORMITY:

This device complies with the requirements of the Low Voltage Directive 2006/95/EC and the requirements of the EMC directive 2004/108/EC.
