RBCP 3383 D - Fridge ROSIERES - Free user manual and instructions

Product type	Built-in fridge-freezer
Brand	Rosieres
Model	RBCP 3383 D
Dimensions (W x D x H)	560 x 540 x 1776 mm
Power supply	220-240 V, 50 Hz
Climate class	N (ambient temperature 16-32°C)
Freezing capacity	Up to 24 kg/24h (depending on model)
Power failure autonomy	Approximately 12 hours
Main functions	Quick freezing (SUPER), electronic temperature control, temperature alarm
Control panel	LED display with buttons to turn freezer on/off, set temperature, activate SUPER
Indicator lights	Temperature LED (2 intensities), red alarm light (temperature > -7°C), orange SUPER light
Defrosting	Automatic for fridge, manual for freezer (when frost exceeds 3 mm)
Water drainage system	Drain lever and collection tray (not supplied)
Reversible door opening direction	Possible, with supplied kit (hinges and cover)
Column installation	Requires column with ventilation chimney, gasket and grille supplied
Maintenance and cleaning	Clean the drain pipe regularly, avoid food contact with the wall
Safety	15-second delayed shutdown to prevent accidental stops; SUPER function limited to 50 hours
Spare parts and repairability	Contact Rosieres after-sales service; provide the rating plate

Frequently Asked Questions - RBCP 3383 D ROSIERES

How to set the freezer temperature?

Use buttons (2) and (3) on the freezer control panel. Button (2) decreases temperature, button (3) increases it. The LEDs indicate the level: the more LEDs lit and the higher their intensity, the lower the temperature.

How to activate the SUPER function for quick freezing?

Press button (2) several times until all LEDs are at high intensity, then press again until the orange light turns on. The function lasts a maximum of 50 hours. To deactivate it earlier, press button (3).

What does the red light on the panel mean?

The red alarm light turns on when the freezer temperature reaches -7°C or higher. It turns off automatically when the temperature drops below -8°C. During first start-up or after a long shutdown, it may remain on until the temperature drops.

How to defrost the fridge and freezer?

The fridge defrosts automatically during compressor pauses. For the freezer, defrost manually when the frost layer exceeds 3 mm. Use the drain lever for defrost water and place a collection tray.

Can the door opening direction be reversed?

Yes, it is possible. Follow the steps in the manual: remove the top pin, disassemble the doors, move the bottom hinge, reassemble the hinges and doors in reverse order. Covers are supplied.

How to install the appliance in a column?

Attach the gasket on the side opposite the hinges, insert the appliance, secure it at the top and bottom with the supplied screws, then clip on the ventilation grille. Ensure the column has a rear ventilation chimney and a front slot with grille.

What to do if the appliance does not turn on after plugging in?

Press button (1) to turn on the freezer. The electronic board remembers settings, so after a power cut, simply press (1) again. Also check that the socket is powered.

Why does the compressor not stop immediately after turning off the freezer?

The appliance has a 15-second delayed shutdown to prevent accidental stops. If you press again during this period, operation continues. This allows cleaning without cutting power.

What is the maximum amount of food to freeze?

The maximum quantity is indicated on the appliance's data plate. For optimal freezing, use the SUPER function and remove the drawers except the bottom one if necessary.

How to reduce frost buildup in the fridge?

Avoid food touching the back wall. If the ambient temperature is very high, set the fridge thermostat to a lower number (1-2) to prevent continuous operation and excessive frost formation.

USER MANUAL RBCP 3383 D ROSIERES

MATERIALS IN COMPLIANCE WITH REQUIREMENTS OF EU DIRECTIVE 2002/95/CE + AMENDMENTS
ALL RIGHTS RESERVED, THE REPRODUCTION OF ANY PART WITHOUT OUR WRITTEN CONSENT IS FORBIDDEN

						RELEASE LEVEL
						VALIDO PER PRODUZIONE
	(E)
	(D)
	(C)
	(B)
37627	(A)	26-11-13	Insert I33 dimension
CL N° REV. DATE			MODIFY DESCRIPTION					MODIFIED BY
SPECIFICATION			DATE SIGNATURE			PROPERTY OF CANDY·HOOVER GROUP
GENERAL TOLERANCEISO 2768 - m			DRAWN TAGLIABUE16-05-2009 Z STUDIO
			CHECKED26-11-2013 L.Carioni			NAMEMANUAL INSTRUCTION COMBI BUILT INONE/DOUBLE COMPRESSOR - 14 LANGUAGES
BASE CODE			FORCOMBI INCAS.MONO/BICOMP. - Y54			(LOCAL LANGUAGE)SCHEDA TECNICA COMBI INCASSO MONO/BICOMPRESS. - 14L
-
			WEIGHT SCALE		PART CODE			SHEET
TREATMENT			Kg.	1:1	4 1 0 2 8 5 6			8
-
MATERIAL			SIZE		REPLACE No ORIGIN CL No Class Specification
-			A4	FR		----	CL 15440	SC 000-000
					35

BULT-IN FRIDGE FREEZER...... page 5 to page 8 EN

COMBINÉ ENCASTRABLE de page 9 à page 12 FR

Line drawing of a double refrigerator with two doors, no text or symbols present

COMBINATO INCASSO

QUADRO COMANDI VANO FREEZER DEL FRIGORIFERO BICOMPRESSORE

Line drawing of a kitchen appliance with handle, ventilation slots, and a knob (no text or symbols)

SBRINAMENTO

(Figura 2)

Line drawing of a refrigerator with shelves and doors (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Smontare la cerniera centrale e le relative rondelle.

3

Line drawing of a window with a scroll wheel and control panel (no text or symbols)

Simple line drawing of a door with a handle and lid, no text or symbols present

Technical line drawing of a mechanical component with no visible text or symbols

Diagram of a refrigerator with two doors and a side door, showing airflow direction (no text or labels)

Line drawing of a refrigerator with two doors and an arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical component with a fastener inserted (no text or symbols)

Technical line drawing of a mechanical assembly with a rod inserted into a bracket (no text or symbols)

Technical line drawing of a mechanical assembly with screws and a fastener (no text or symbols)

Open the top door of the fridge-freezer to access the control panel.

Press button (1) to turn the freezer compartment on/off.

The manufacturer normally supplies the appliance with the temperature on an intermediate setting, so you simply have to connect the appliance.

NOTE: if no temperature is displayed when you connect the appliance, press button (1) to turn on the freezer compartment.

The appliance's electronic memory stores the control panel settings when you turn off the appliance, so you simply have to press button (1) to turn the freezer compartment on again.

If the appliances stops because the electricity goes off, press button (1) to start up the fridge-freezer when the electricity comes back on.

NOTE: When you press the button and the freezer compartment is turned off, the compressor takes 15 seconds before it stops. If you press in the button again this time, the appliance will keep working. This prevents the appliance being accidentally turned off, when cleaning it for example.

Use these buttons to set the freezer compartment temperature.

Press button (2) to lower the temperature and button (3) to raise the temperature.

These LEDs show whether the temperature increases or decreases in the freezer compartment.

More LEDs come on and the lights get brighter as the temperature decreases.

The freezer compartment is off when all the LEDs are off. Each LED has two display modes. A dull light means the freezer is set to an intermediate temperature, while a bright light means the freezer is set to a colder temperature.

(Figure 1)

2

-25

-22

-18

SUPER

3

-18

ALARM

1

The red alarm light comes on if the freezer compartment temperature is -7^ . If the temperature goes below -8^ the light will automatically turn off.

NOTE: If the appliance is turned off for a long time or is switched on for the first time, the red light will come on until the freezer temperature decreases.

The orange light comes on when SUPER mode is working. To select this mode keep pressing button (2) so that all LEDs come on with a bright light and press the button again until the orange light comes on.

This mode powers the compressor of the freezer compartment continually for a maximum of 50 hours, for quick freezing. Press button (3) to stop Super mode, before the end of the 50-hour period.

NOTE: If the compressor is not operating when you select SUPER mode, the system will wait for the compressor to work before starling SUPER mode.

FREEZING OF THE DUAL COMPRESSOR FRIDGE

If you want considerably faster freezing times, you can also remove the *box. Set the freezer control panel to SUPER and the orange light will come on (see figure 1). After 24 hours, put foods directly on the metal rack. Freezing takes 24 hours and you can then put the box back and arrange the foods in the freezer. After 50 hours the electronic memory board will automatically reset the temperature to the previous intermediate setting.

The maximum quantities of food that you can freeze are indicated on the rating plate (see figure 2).

Remove all boxes apart from the bottom one for freezing and storage standards' tests.

FREEZING OF THE SINGLE COMPRESSORE FRIDGE

Create the necessary space to contain the load to be frozen which will be evenly distributed on the shelf. After a few hours, introduce the food to be frozen. After 24 hours, freezing is completed. In order to avoid excessive cooling of the food inside the fridge compartment during the freezing phase, if necessary, slightly move back the position of the thermostat when entering the food to be frozen. At the end of the freezing process, turn the thermostat knob back to the usual value.

For testing regulations of freezing and storage, remove all drawers except for the bottom one. The maximum quantity of foodstuffs that can be frozen is specified on the name plate (see figure 2).

SINGLE COMPRESSOR AND DUAL COMPRESSOR FRIDGE COMPARTMENT CONTROL PANEL BOX

Turn the knob on the control panel to set and adjust the temperature of the fridge and freezer.

The thermostat panel is inside the fridge, in the top right-hand corner. The appliance is turned off when the knob is set to „0“. We recommend you set the temperature to 2 or 3.

CAUTION: If the product is equipped with 2 compressors, it will be possible to switch off the freezer by acting directly upon the control panel of the freezer compartment.

Line drawing of a kitchen tool handle with ventilation slots and a circular button (no text or symbols)

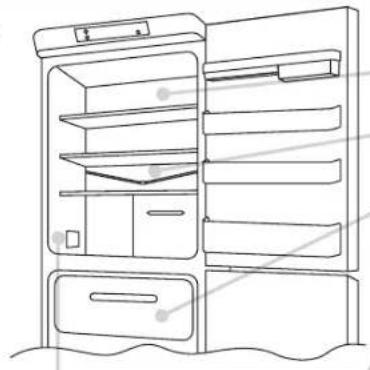

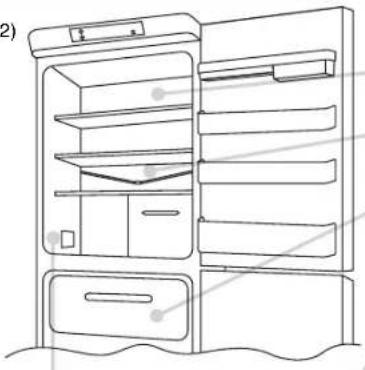

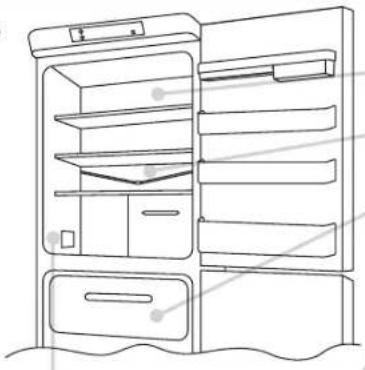

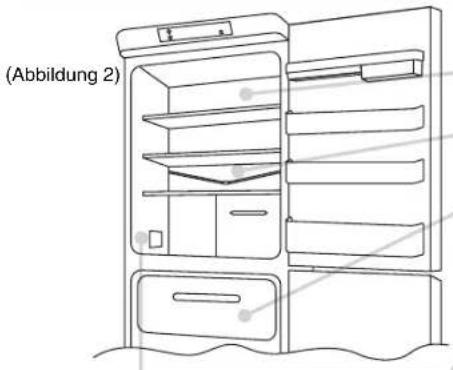

DEFROSTING

(Figure 2)

Line drawing of a refrigerator with shelves and doors (no text or symbols)

The fridge compartment is automatically defrosted when the compressor is not working.

A small amount of frost or drops of water on the back of the fridge compartment when the fridge is working is normal.

Make sure the water outlet is always clean. Make sure foods do not touch the back or sides of the fridge.

We recommend you defrost the freezer compartment when the frost is more than 3 mm thick.

N.B. This is the rating plate. If you need to contact our Service Department in the event of faults, remember to give them the information on the plate.

Note: If the room temperature is very warm, the appliance may work continuously and a layer of frost will deposit on the back of the fridge compartment. In this case, turn the knob to lower settings (1-2).

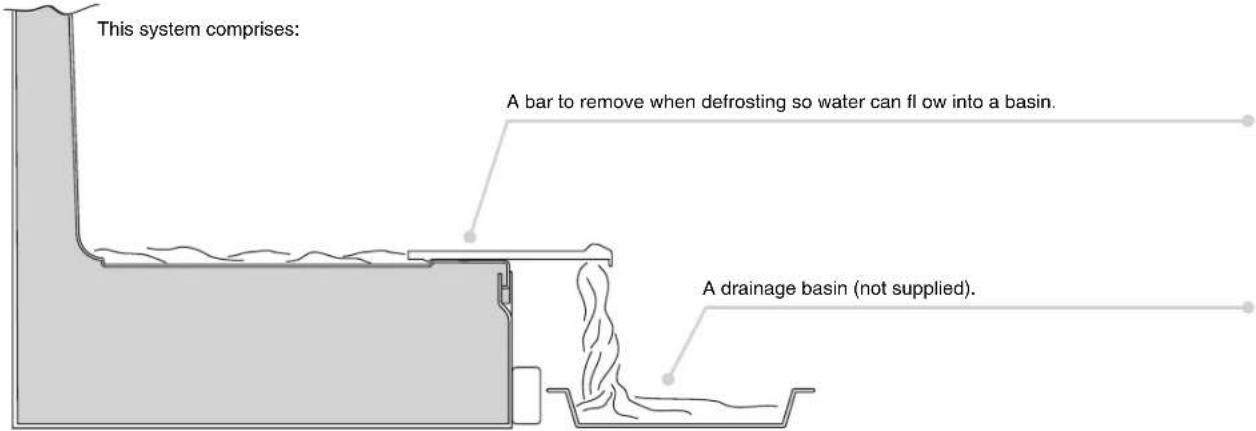

DRAINING WATER

The appliance has a system for draining water from defrosting.

REVERSING THE FRIDGE-FREEZER DOORS

Remove the pin and bushing from the toppanel.

1

Technical line drawing of a mechanical device with no visible text or symbols

Remove the top door.

2

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Remove the middle hinge and washers.

3

Line drawing of a window with a handle and ventilation duct (no text or symbols)

Remove the bottom door.

4

Line drawing of a door with a slanted guard and a handle, no text or symbols present

Remove the pin of the bottom right-hand hinge and refi t it on the bottom left-hand hinge.

5

Technical line drawing of a mechanical component with no visible text or symbols

Reverse the bracket cover snap, which is snap-fi tted on the bracket.

6

Fit the hinge and doors, working from top to bottom 1 → 2 → 3

7

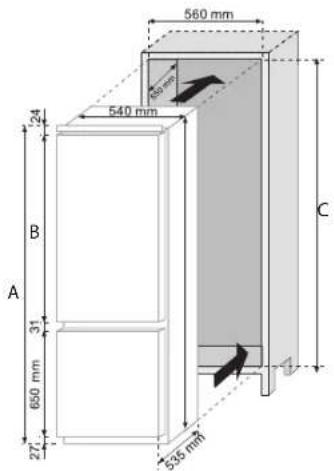

SIZE OF THE APPLIANCE AND UNIT

A
B
C

	1040 mm	7277241776 mm
	1120 mm	185285241856 mm

INSTALLING THE APPLIANCE IN A UNIT

Secure the seal (supplied) to the appliance, on the opposite side from the hinges.

1

Line drawing of a refrigerator with two doors and a side door, showing internal structure and arrows indicating movement (no text or symbols)

Install the appliance in the unit, Aligning it on the opposite side from the hinges.

2

Line drawing of a refrigerator with two doors and an arrow indicating upward motion (no text or symbols)

Make sure the top bracket of the appliance is against the unit.

3

Secure the top of the appliance to the unit with the screws provided.

4

Secure the bottom of the appliance with the screws provided.

5

Fit the ventilation grid. Loosen the screws on the middle right-hand hinge.

6

7

Position the plate close to the column.

8

Fit the bracket to the unit with the screws provided.

9

Tighten the screws in the middle right-hand hinge.

10

Repeat the same steps for the middle left-hand hinge.

11

ALIGNING UNIT DOORS WITH THE FRIDGE-FREEZER DOORS

The appliance is supplied with fi ttings (slides and slide brackets) to align the fridge-freezer doors with the doors of the unit.

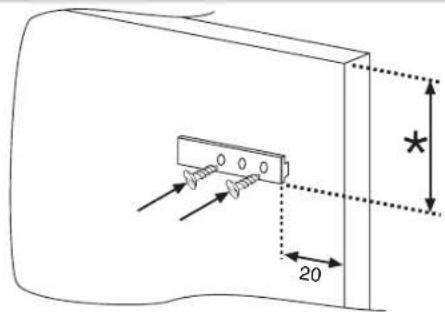

Fix the slide on the inside of the unit door, at the height you want. Make sure it is approximately 20 mm from the outside edge door.

Open the doors of the unit and fridge. Position the slide bracket around the slide and secure to the appliance door.

Technical line drawing of a mechanical component with a fastener inserted (no text or symbols)

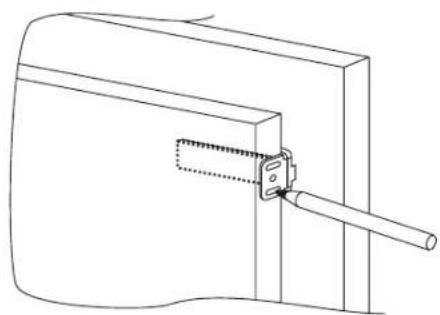

Mark the holes for the screws and drill with a 2.5 mm diameter bit.

Technical line drawing of a mechanical assembly with a rod inserted into a bracket (no text or symbols)

Fit the appliance door to the door of the unit, using the slots on the slide bracket as a guide.

Technical line drawing of a mechanical component with screws and a fastener (no text or symbols)

ENSURING YOUR FRIDGE-FREEZER WORKS PROPERLY

After fi tting the appliance, place the rear of the unit against the wall to prevent access to the compressor unit.

To make sure the fridge-freezer works properly, air must circulate to cool the condenser which is situated at the bottom of the appliance.

The unit must have a rear outlet with top opening that is not obstructed and a front opening which is covered by the ventilation grid.

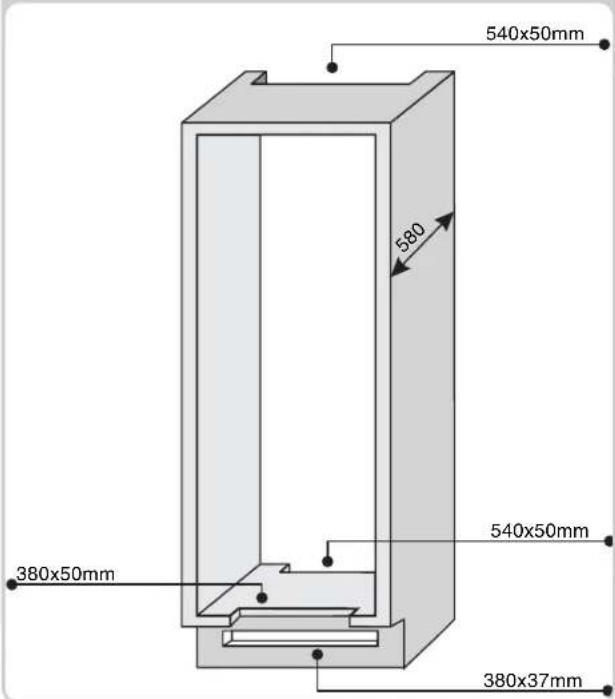

Size of the unit cut outs.

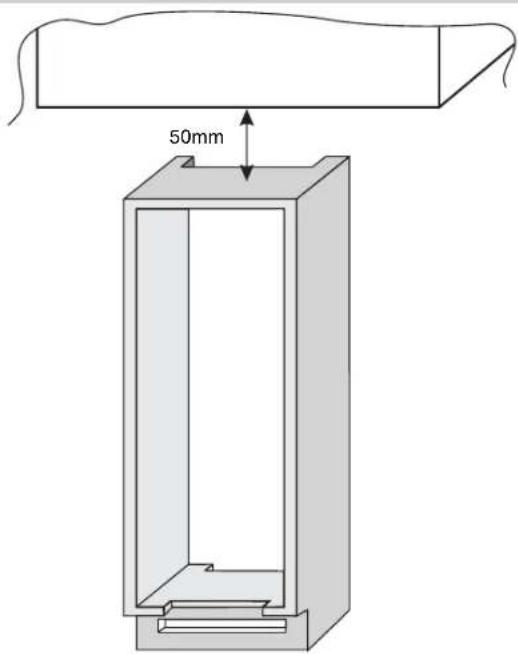

Room to leave between the unit and ceiling.

COMBINÉ ENCASTRABLE

PANNEAU DE COMMANDE DU COMPARTIMENT CONGELATEUR DU REFRIGERATEUR A DOUBLE COMPRESSEUR

Line drawing of a refrigerator with shelves and doors (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Simple line drawing of a door with a handle and lid, no text or symbols present

Technical line drawing of a mechanical component with no visible text or symbols

Diagram of a door handle mechanism with directional arrows indicating movement (no text or symbols)

Line drawing of a refrigerator with two doors and a side door, showing airflow direction (no text or symbols)

Line drawing of a refrigerator with two doors and an arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical component with a fastener inserted (no text or symbols)

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Technical line drawing of a mechanical component with screws inserted (no text or symbols)

PRÉCAUTIONS À PRENDRE POUR ASSURER LE BON FONCTIONNEMENT DE L'APPAREIL

Line drawing of a mechanical component with a handle and circular opening (no text or symbols)

DAS ABTAUEN

Line drawing of an open refrigerator with shelves and doors, labeled (Abbildung 2) (no text or symbols on the diagram itself)

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Line drawing of a water tank with inlet and outlet pipes (no text or symbols)

Diagram of a vehicle showing front and side views of a vehicle (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a refrigerator with door and side panels, showing internal structure and arrows indicating movement (no text or symbols)

Line drawing of a double refrigerator with an arrow indicating upward motion (no text or symbols)

Pure technical line drawing of a mechanical component with no text or symbols

Technical line drawing of a mechanical assembly with a rod inserted into a housing (no text or symbols)

Technical line drawing of a mechanical assembly with screws and a fastener (no text or symbols)

Line drawing of a mechanical component with a handle and side knob (no text or symbols)

DESCONGELACIÓN

(Figura 2)

Line drawing of a refrigerator with shelves and doors (no text or symbols)

Technical line drawing of a mechanical setup with no visible text or symbols

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Line drawing of a water tank with inlet and outlet pipes (no text or symbols)

Diagram of a door frame with an open lid and internal striped pattern (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a refrigerator with two doors and a door, showing internal structure and arrows indicating movement (no text or symbols)

Line drawing of a refrigerator with two doors and an arrow indicating upward motion (no text or symbols)

Technical line drawing of a mechanical component with a fastener inserted (no text or symbols)

Technical line drawing of a mechanical assembly with a rod inserted into a housing (no text or symbols)

Technical line drawing of a mechanical assembly with screws and a fastener (no text or symbols)

Line drawing of a refrigerator with shelves and doors (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Retire a porta superior.

2

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Retire a porta inferior.

4

Simple line drawing of a door with a handle and lid, no text or symbols present

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a refrigerator with door and side panels, showing internal structure and arrows indicating movement (no text or symbols)

Line drawing of a refrigerator with two doors and an arrow indicating upward motion (no text or symbols)

Technical line drawing of a mechanical component with a fastener inserted (no text or symbols)

Technical line drawing of a mechanical assembly with a rod inserted into a housing (no text or symbols)

Technical line drawing of a mechanical assembly with screws and a fastener (no text or symbols)

Line drawing of a kitchen appliance with handle, ventilation slots, and a knob (no text or symbols)

ΑΠΟΨΥΞΗ

(Figura 2)

Line drawing of a refrigerator with shelves and doors (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Line drawing of a window with a handle and ventilation duct (no text or symbols)

Simple line drawing of a door with a handle and lid, no text or symbols present

Technical line drawing of a mechanical component with no visible text or symbols

Diagram of a refrigerator with two doors and a side door, showing airflow direction (no text or labels)

Line drawing of a refrigerator with two doors and an arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical component with a fastener inserted (no text or symbols)

Technical line drawing of a mechanical assembly with a rod inserted into a bracket (no text or symbols)

Technical line drawing of a mechanical component with screws inserted (no text or symbols)

Line drawing of a kitchen handle with ventilation slots and a knob (no text or symbols)

ROZMRAŻANIE

(rysunek 2)

Line drawing of a refrigerator with shelves and doors (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical component or bracket assembly (no text or symbols)

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Line drawing of a door with a slanted panel and a handle, no text or symbols present

Technical line drawing of a mechanical component with no visible text or symbols

Diagram of a mechanical device with a handle and directional arrow, no text or symbols present

Line drawing of a refrigerator with door and side panels, showing internal structure and arrows indicating movement (no text or symbols)

Line drawing of a refrigerator with two doors and an arrow indicating upward motion (no text or symbols)

Technical line drawing of a mechanical component with a fastener inserted into a housing (no text or symbols)

Technical line drawing of a mechanical assembly with a rod inserted into a housing (no text or symbols)

Technical line drawing of a mechanical component with screws inserted (no text or symbols)

JAK ZAPEWNIĆ PRAWIDŁOWĄ PRACĘ URZĄDZENIA

Line drawing of a refrigerator with shelves and doors, labeled (Obrázek. 2) (no text or symbols on the diagram itself)

Technical line drawing of a mechanical setup with no visible text or symbols

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Diagram of a water tank with inlet and outlet, showing internal flow direction (no text or labels)

Diagram of a door mechanism with an arrow indicating direction (no text or symbols present)

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a refrigerator with door and side panels, showing internal structure and directional arrows (no text or symbols)

Line drawing of a refrigerator with two doors and an arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical component with a fastener inserted (no text or symbols)

Technical line drawing of a mechanical assembly with a rod inserted into a bracket (no text or symbols)

Technical line drawing of a mechanical assembly with screws and a fastener (no text or symbols)

UJISTĚTE SE, ŽE VAŠE CHLADNIČKA S MRAZNIČKOU FUNGUJE SPRÁVNĚ

INBOUW KOEL/VRIESCOMBINATIE

BEDIENINGSPANEEEL DIEPVRIESCOMPARTIMENT VAN KOEL/VRIESCOMBINATIE MET TWEE COMPRESSORS

Line drawing of a mechanical component with a handle and ventilation slots (no text or symbols)

ONTDOOIEN

(Figuur 2)

Line drawing of a refrigerator with shelves and doors (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Diagram of a door frame with a handle and panel, showing structural details without any text or symbols.

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a refrigerator with two doors and a side door, showing internal structure and arrows indicating movement (no text or symbols)

Line drawing of a refrigerator with two doors and an arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical component with a fastener inserted (no text or symbols)

Technical line drawing of a mechanical assembly with a rod inserted into a housing (no text or symbols)

Technical line drawing of a mechanical assembly with screws and fasteners (no text or symbols)

ZORG ERVOOR DAT UW KOEL-VRIESCOMBINATIE GOED FUNCTIONEERT

Line drawing of a mechanical component with a handle and circular opening (no text or symbols)

SULATTAMINEN

(Kuva 2)

Line drawing of a refrigerator cabinet with shelves and doors (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Irrota yläovi.

2

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical component or enclosure with no visible text or symbols

Irrota alaovi.

4

Simple line drawing of a door frame with a slanted door and handle (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Diagram of a refrigerator with two doors and a side door, showing airflow direction (no text or labels)

Line drawing of a refrigerator with two doors and an arrow indicating left side (no text or symbols)

Technical line drawing of a mechanical component with a fastener inserted (no text or symbols)

Technical line drawing of a mechanical assembly with a rod inserted into a bracket (no text or symbols)

Technical line drawing of a mechanical assembly with screws and a fastener (no text or symbols)

JÄÄKAAPPI-PAKASTIMESI OIKEAN TOIMINNAN VARMISTAMINEN

FRYSING I KJ∅LESKAPET MED TO KOMPRESSORER

FRYSING I KJÖLESKAP MED ÉN KOMPRESSOR

Line drawing of a mechanical component with a handle and circular opening (no text or symbols)

AVRIMING

(Figur 2)

Line drawing of a refrigerator cabinet with shelves and doors (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Line drawing of a window with a handle and ventilation duct (no text or symbols)

Simple line drawing of a door with a handle and lid, no text or symbols present

Technical line drawing of a mechanical component with no visible text or symbols

ST∅RRELSE PÅ APPARAT OG INNBYGGINGSSKAP

A
B
C

	1040 mm177277211776 mm
	1120 mm185285211856 mm

INNBYGGING AV APPARATET

Line drawing of a refrigerator with door and side panels, showing internal structure and arrows indicating movement (no text or symbols)

Line drawing of a refrigerator with two doors and an arrow indicating upward motion (no text or symbols)

Technical line drawing of a mechanical component with a fastener inserted (no text or symbols)

Marker skruehullene og bor hull med en diameter på 2,5mm.

Technical line drawing of a mechanical assembly with a rod inserted into a housing (no text or symbols)

Technical line drawing of a mechanical assembly with screws and a fastener (no text or symbols)

KONTROLLER AT KJ∅LE-/FRYSESKAPET DITT VIRKER SOM DET SKAL

INBYGGD KYL OCH FRYS

KONTROLLPANEL FÖR FRYSDELEN, KYLSKÅP MED DUBBEL KOMPRESSOR

Line drawing of a mechanical component with a handle and circular knob (no text or symbols)

AVFROSTNING

(Figur 2)

Line drawing of a refrigerator cabinet with shelves and doors (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Line drawing of a window with a handle and ventilation duct (no text or symbols)

Simple line drawing of a door with a handle and lid, no text or symbols present

Technical line drawing of a mechanical component with no visible text or symbols

Diagram of a refrigerator with two doors and a side door, showing airflow direction (no text or labels)

Line drawing of a refrigerator with two doors and an arrow indicating left side (no text or symbols)

Technical line drawing of a mechanical component with a fastener inserted (no text or symbols)

Technical line drawing of a mechanical assembly with a rod inserted into a housing (no text or symbols)

Technical line drawing of a mechanical assembly with screws and a fastener (no text or symbols)

SÄKERSTÄLL ATT DIN KYL OCH FRYS FUNGERAR RIKTIGT

Line drawing of a mechanical component with a handle and circular dial (no text or symbols)

AFRIMNING

(Figur 2)

Line drawing of a refrigerator cabinet with shelves and doors (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Line drawing of a window with a scroll and control panel (no text or symbols)

Simple line drawing of a door with a handle and lid, no text or symbols present

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a refrigerator with two doors and a door, showing internal structure and arrows indicating direction (no text or symbols)

Line drawing of a refrigerator with two doors and an arrow indicating upward motion (no text or symbols)

Technical line drawing of a mechanical component with a fastener inserted (no text or symbols)

Technical line drawing of a mechanical assembly with a rod inserted into a bracket (no text or symbols)

Technical line drawing of a mechanical assembly with screws and a fastener (no text or symbols)

KONTROLLER, AT KÖLESKAB-FRYSER FUNGERER KORREKT
