USER MANUAL Heat Plugin Eurom

This product is only suitable for well insulated spaces or occasional use.

keramische kachel / Keramikheizung / ceramic heater / radiateur ceramique / Keramikugn / Keramický ohřivač / Keramický ohrievač / Sobá ceramicá

Table VI:	Model identifier for electric local space heaters
Model number:	Heat plug-in
Item		Symbol	Value	Unit
Heat output
Nominal heat out-put		Pnom	0,5	kW
Minimum heat output (indicative)		Pmin	0,45	kW
Maximum continuous heat output		Pmax,c	0,525	kW
Auxiliary electricity consumption
At nominal heat output		elmax	N/A	kW
At minimum heat output		elmin	N/A	kW
In standby mode		elsb	0,00038	kW
Type of heat input, for electric storage local space heaters only (single select)
manual heat charge control, with integrated thermostat				☐Yes ☑No
manual heat charge control with room and/or outdoor temperature feedback				☐Yes ☑No
electronic heat charge control with room and/or outdoor temperature feedback				☐Yes ☑No
fan assisted heat output				☐Yes ☑No
Type of heat output/room temperature control (single select)
single stage heat output and no room temperature control				☐Yes ☑No
Two or more manual stages, no room temperature control				☐Yes ☑No
with mechanic thermostat room temperature control				☐Yes ☑No
with electronic room temperature control				☐Yes ☑No
electronic room temperature control plus day timer				☐Yes ☑No
electronic room temperature control plus week timer				☐Yes ☑No
Other control options (multiple selections possible)
room temperature control, with presence detection				☐Yes ☑No
room temperature control, with open window detection				☐Yes ☑No
with distance control option				☐Yes ☑No
with adaptive start control				☐Yes ☑No
with working time limitation				☐Yes ☑No
with black bulb sensor				☐Yes ☑No
Contact details		EUROM-KOKOSSTRAAT 20-8281JC-GENEMUIDEN-NETHERLANDS

Dank

Thank you very much for choosing for a EUROM device. You have made a good choice! We hope you will be satisfied about its functioning. To get maximum profit from your product, it is important to read this manual attentive and totally before use, and to understand what is written. Read especially the safety instructions: they are there to protect you and your environment. Keep the manual in a safe place for future reference. Store also the package: that is the best protection for your product in times of no-use. And if you at any time pass the appliance on, pass on the manual and package too.

We wish you a lot of fun with the Heat Plug-in!

Eurom

Kokosstraat 20

8281 JC Genemuiden (NL)

[e-mail]

www.eurom.nl

This manual has been complied with the utmost care. Nevertheless, we reserve the right to optimize this manual at any time and to adjust it technically. The image used may differ.

Symbol Explanation

Do not cover the device

Technical data

Supply voltage	220-240V~50Hz
Maximum capacity	500 W
Settings	500 watts high ventilation speed, 500 watts low ventilation speed
Thermostat	+
Timer	+
Dimensions	11 x 11 x 18 cm
Weight	0,4 kg

Warning electric heaters

Safety warning - general

1. Read the user instructions carefully and completely before using (and installing) this device. Keep the instruction leaflet somewhere safe so that you can consult it and pass it on in future.
2. Before use, check your new device (including cable and plug) for any visible damage. Never use a damaged device but take it back to the supplier for a replacement.
3. In the event of incorrect usage or installation, there is a risk of electric shocks and/or a fire hazard.

Warnings positon device

1. Only plug the device into a wall socket on a vertical wall.
2. Do not use this device in the immediate vicinity of a bath, shower or swimming pool.
3. This device is not suitable for use in damp spaces such as bathrooms, wash rooms etc. Never locate the device near waterpoints and reservoirs (tap, bath, shower, toilet, sink, swimming pool, etc.). Make sure that the device cannot fall into water and that it cannot be penetrated by water. If the device falls into water make sure you remove the plug from the socket! Do not use a device that is wet inside but take it to be repaired. Never immerse the device, cable or plug in water or any other fluid and never touch device with wet hands.
4. The air around the device must be able to circulate freely. Never install it too close to walls or large objects and never under a shelf, cupboard, curtains or similar. When locating the device, make sure you have the following minimum free space:

Front, minimum free space 50 cm

Back, minimum free space 50 cm

Sides, minimum free space 50 cm

Top, minimum free space 20 cm

1. Do not place the device behind a door or along a walking route to avoid accidental trips.
2. Do not place the device in the vicinity of an open fire or heat source.

3. Do not use the device nearby or facing furniture, curtains, paper, clothing, bedding or other flammable materials. Keep at least 1 metre from device!

4. Do not use the heater outdoors or in areas that are smaller than 5m^3 .

5. The device contains hot and/or glowing and sparking components. Do not, therefore, use where fuels, paint, flammable fluids and/or gases are stored.

Do not use the device in an environment that poses a fire risk, e.g. near gas tanks, gas pipes or aerosols. This is an explosion and fire risk!

Warnings - use

1. Do not use additions/accessories on the device that have not been supplied or approved by the manufacturer.
2. Only use the device for its intended purpose and in the manner set out in this instruction leaflet.
3. Some parts of this device will get very hot and could cause burns. You must pay particular attention to children, vulnerable persons and pets that are present near the device. Never leave them alone with a working device.
4. Never cover or block the device; it will overheat and this could lead to a fire risk. Never hang or place objects such as clothing, blankets, cushions, paper, etc. on the device. The minimum distance of 1 metre between the device and flammable materials must always be applied. Ventilation openings should never be blocked as this may pose a fire risk.
5. The device is exclusively intended for normal, household usage. Only use for providing heat in your home.
6. Connection voltage and frequency, as given on the device, must correspond to that of the socket to be used and the electrical installation must be equipped with an earth leakage circuit breaker of 30mA . The electrical socket that you are using must be to hand at all times in order to be able to remove the plug from the socket in the event of an emergency.
7. Only connect the device to a fixed socket. Do not use multi-plug adapters or similar.
8. During use, the plug may begin to feel warm; this is normal. If it's really warm, there may be something wrong with the socket. Please contact your electrician.

9. Always turn off the device and remove the plug from the power socket: Never turn the device off using the plug!

10. Prevent foreign objects entering the radiation/ventilation or outlet openings on the device. This may cause electric shock, fire or damage.

11. Never leave a working device unattended but switch off and then remove the plug from the socket.
12. Apart from manual use, this device can also be operated via a timer. However you operate it, make sure that the safety guidelines are taken into account at all times! Do not operate the device with an additional time clock, timer, volume control or any other device that automatically turns on the device.
13. Always unplug the device when it is not in use!
14. This device gets hot during use. Never touch the device when it is on or shortly thereafter; it could burn you.
15. Never operate the device with wet hands.

Warnings by whom the device may be used

1. Children younger than 3 must be kept out of the vicinity of the device unless they are continuously supervised.
2. Children between the ages of 3 and 8 may only switch the device on or off if it is set up or installed at its usual location and they are supervised or have received instructions regarding the safe use of the device and understand the corresponding hazards. Children between the ages of 3 and 8 may not insert the plug into the socket, adjust the device settings or clean or maintain it.
3. This device can only be used by children from the age of 8 and elderly persons and persons with diminished physical or mental capacities or a lack of experience and expertise if they are supervised or have received instructions regarding the safe use of the device and understand the corresponding hazards.
4. Children may not clean or maintain the device without supervision.
5. Children may not play with the device.

Warnings for maintenance

1. Keep the device clean. Dust, dirt and/or deposits in the device often lead to overheating. Ensure that this type of build-up is regularly removed.

2. Always switch the device off, remove plug from socket and let the device cool down before you:

3. clean the device

4. users maintain the device.

5. touch or move the device.

6. Never switch the device on if you have noticed damage to the device itself, the cable or plug or if it does not work properly, makes strange noises, smells odd or you can see smoke, or if it has fallen or shows any other signs of damage. Remove the plug from the socket immediately. Take the entire device back to your supplier or a recognised electrician to be checked and/or repaired. Always ask for original parts to be used.

7. The device may only be opened and/or repaired by a competent and qualified person. Do not carry our your own repairs as this could be dangerous! Repairs carried out by unauthorised persons or changes made to the device could damage the dust/waterproof capacity of the device and will nullify the guarantee and the manufacturer's liability.
8. If the electrical cable is damaged, it must be replaced by the manufacturer, their service department or somebody with similar qualifications in order to prevent creating a hazard.

Failing to adhere to points 3, 4, 5, could lead to damage, fire and/or personal injury. They will invalidate the guarantee and the supplier, importer and/or manufacturer shall not be liable for the consequences.

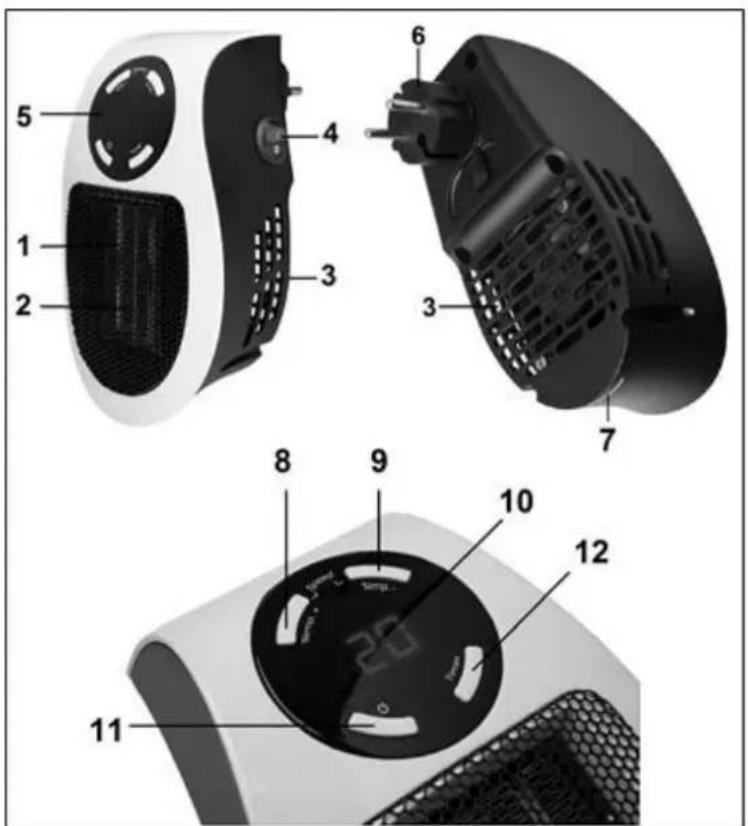

Description

1. Blower grid, front
2. PTC element
3. Extraction grid, side and back
4. Main switch
5. Operating panel
6. Plug
7. Indicator light

Operating panel:

1. Temperature higher button
2. Temperature lower button
   8+9 Together: Fan speed button
3. Display
4. ON/standby button
5. Timer button

Location and connection

• Remove all packaging material and keep out of reach of children. After removing the packaging, check the appliance for damage or other signs of a fault/defect/malfunction. In case of doubt, do not use the appliance and contact your vendor for inspection or replacement.
• Select a suitable location for the device taking into account all the aforementioned warnings in this manual.

Set-up and operation

• Make sure that the heater is switched off (O pushed in) then plug into a correctly functioning 220-240V / 50Hz socket.
• Now set the main switch to I (on); the heater is now on standby and the indicator light (7) lights up.
• Switch on the heater by pressing the ON/standby button.
• After switching in by means of the main switch, the thermostat is on the maximum: 30^ . Press the 'Temperature lower' button to set the desired temperature (minimum 15^ ). With the 'Temperature higher' button you can higher the set temperature afterwards. The display shows the set temperature.
• The thermostat will now regulate the heater to turn on if the temperature is too low and off once the desired temperature is reached.
• Press Temp + and Temp - at the same time to speed up the fan or to slow it down. The display shows for a moment flashing what you have set: LL=low, HH=high.
• Press the timer button to set the timer. The display changes from degrees to hours. Hold in the button to enter more hours, up to a maximum of 12.

Power-off: If you set the timer while the heater is on, you set the number of hours after which the heater turns itself off.

Power on: If you set the timer while the heater is set to standby, you set the number of hours after which the heater turns itself on.

• To switch off the heater you must first set it to standby by pressing the ON/standby button. The heater will stop heating, but the fan cools for another 60 seconds (see display) before switching off. You can then use the main switch to turn off the heater properly (O pressed). Never leave the plug in the socket when the heater is not in use!

Safety features

In case of internal overheating, the overheating safeguard will switch the heater off. This may occur if the heater cannot give off enough heat or if it cannot draw in enough fresh air. As mentioned above, this is generally caused by (partially) covering the heater or obstructing the air intake and/or outlet grills or installing the heater too close to a wall or something similar. When the overheating safeguard switches the heater off, you need to turn the switch to the 'O' position (off) and

remove the heater from the socket. Allow the heater to cool down and make sure that whatever caused the overheating is removed or amended. The heater can then be reused. If the problem persists or if you cannot find an obvious cause for the overheating, turn the heater off immediately and take the plug out of the socket. Contact a service point for repair.

Cleaning and maintenance

Keep the heater clean. Deposits of dust and dirt in the appliance are a common cause of overheating so these should regularly be removed! Switch off the heater, remove the plug from the socket and allow the heater to cool down before cleaning or carrying out maintenance work.

• Wipe the outside of the heater regularly with a dry or slightly damp cloth. Do not use aggressive soaps, sprays, cleaners or abrasives, waxes, polishes or chemical solutions! Make sure that no water gets into the device.
• Use a vacuum cleaner to carefully remove any dust and dirt from the grills and ensure that the air intake and outlet openings are clean. Be careful not to touch or damage any internal parts during cleaning.
• The heater contains no other parts which need maintenance. The appliance may only be opened and/or repaired by properly authorized and qualified persons.
• At the end of the season, store the cleaned heater upright, in the original packaging if possible, in a cool, dry and dust-free place.

Removal

In the EU this symbol indicates that this product may not be disposed of as ordinary household waste. Old equipment contains valuable materials, suitable for recycling. These materials should be made suitable for reuse in order to prevent any adverse effects to health and the environment caused by unregulated waste collection. Therefore, please make sure that you bring old equipment to a designated collection point. Alternatively, contact the original

supplier, who can make sure that as many of the components as possible can be recycled.

CE-statement

Eurom - Genemuiden-NL hereby declares that the EUROM ceramic heater, type Heat Plug-in complies with the LVD guideline 2014/35/EU and the EMC guideline 2014/30/EU and meets the following standards:

EN 60335-1:2012+A11:2014 EN 55014-1:2006+A1:2009+A2:2011

EN 60335-2-30:2009+A11:2012 EN 55014-2:2015

EN 62233:2008 EN 61000-3-2:2014

Rohs 2011/65/EU&(EU)2015/863 EN 61000-3-3:2013

Genemuiden, 22-05-2019

W.J. Bakker, alg. dir.
