USER MANUAL M.Zuiko 17mm f1.2 OLYMPUS

date of issue 2017.9

WD290801

Printed in Vietnam

OLYMPUS

M.ZUKO DIGITAL

ED 17mm f1.2 PRO

Model No.:IM007

MICRO FourTHS

04-取级説明書
07-INSTRUCTIONS
11-INSTRUCCIONES
15-MODEDEMPLOI
19-EHCHCTPYKUM
22.NAVODKPOUZITI
25- WRETJENINGSVEIEDNING
28 - WEDBEDIENUNG SANLITING
31.EOAHJES
34.1JUHISED
37. KAYTTOCH JESF
40.1%UPDATA
40.10
43-HC HASZNALATOTMUTATO
46 - IN ISTRUZIONI
49-INSTRUKCIJA
52 - IV NORADIJUMI
55-ANWIZINGEN
58-UNSTRUKSIONER

61-INSTRUKCAJ
64-INSTRUCOES
67-39INSTRUCTIUNI
70.润NHCTPYKJIM
73.NAVODNAPOUZITIE
76-NAVODULA
79.网UPSTVZAUBOTREBU
82-37 BRIKSANVISNING
85·TALMATLAB
88.1HCTPYKU
23. 国
34.1.1.2
54. 人名合
97-使用說明書
100-
103-7 CAC HUONG DAN

取报说明

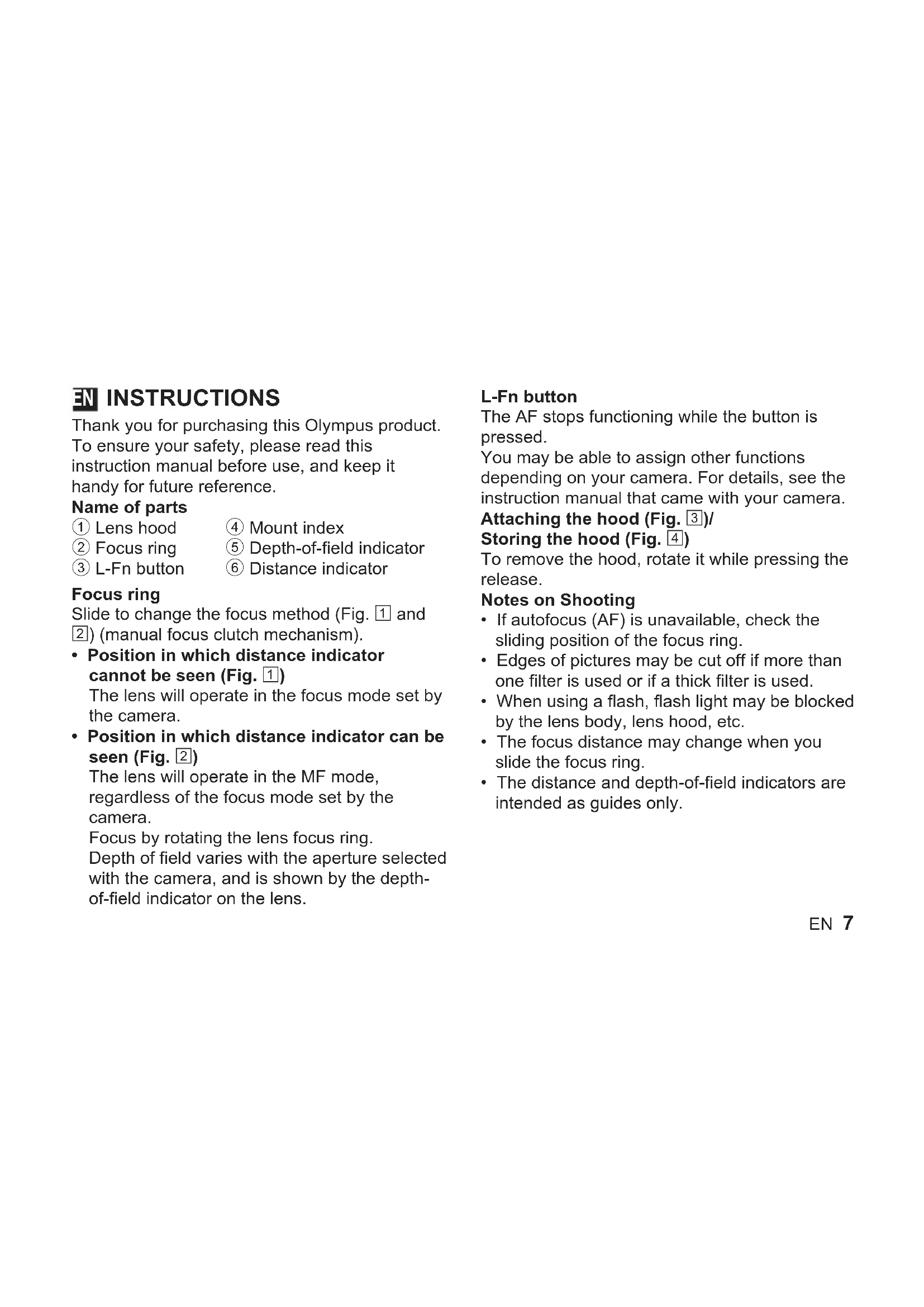

Thank you for purchasing this Olympus product. To ensure your safety, please read this instruction manual before use, and keep it handy for future reference.

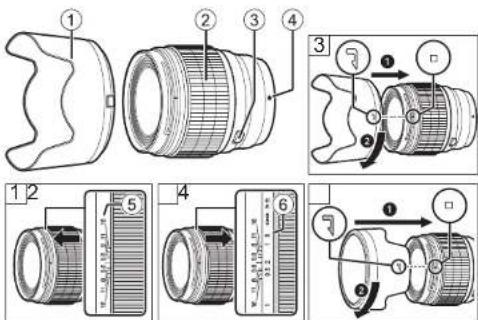

Name of parts

① Lens hood
④ Mount index
② Focus ring
⑤ Depth-of-field indicator
③ L-Fn button
⑥ Distance indicator

Focus ring

Slide to change the focus method (Fig. 1 and 2) (manual focus clutch mechanism).

• Position in which distance indicator cannot be seen (Fig. 1)
  The lens will operate in the focus mode set by the camera.
• Position in which distance indicator can be seen (Fig. 2)

The lens will operate in the MF mode, regardless of the focus mode set by the camera.

Focus by rotating the lens focus ring. Depth of field varies with the aperture selected with the camera, and is shown by the depth-of-field indicator on the lens.

L-Fn button

The AF stops functioning while the button is pressed.

You may be able to assign other functions depending on your camera. For details, see the instruction manual that came with your camera.

Attaching the hood (Fig. 3)/

Storing the hood (Fig. 4)

To remove the hood, rotate it while pressing the release.

Notes on Shooting

• If autofocus (AF) is unavailable, check the sliding position of the focus ring.
• Edges of pictures may be cut off if more than one filter is used or if a thick filter is used.
• When using a flash, flash light may be blocked by the lens body, lens hood, etc.
• The focus distance may change when you slide the focus ring.
• The distance and depth-of-field indicators are intended as guides only.

Main Specifications

Mount : Micro Four Thirds mount

Focal distance : 17 mm

(equivalent to 34mm on a 35 mm camera)

Max.aperture:f1.2

Image angle : 65^

Lens configuration : 11 groups, 15 lenses

Shooting range : 0.2 m (7.9 in.) to (infinite)

Focus adjustment : AF/MF switching

Weight : 390 g (13.8 oz.) (excluding hood and ca

Dimensions : Max. dia. 68.2 length 87 mm (3.4 in.)

Lens hood mount : Bayonet

Filter mount thread

diameter 62 mm

• Specifications are subject to change without any notice or obligation on the part of the manufacturer.

Maintenance

Blow dust off the lens with a commercially available blower. For the lens, wipe gently with a lens cleaning paper.

Precautions: Be Sure to Read the Following

Warnings: Safety Precautions

• Do not view the sun through the lens. It may cause blindness or vision impairment.
• Do not leave the lens without the cap. If solar light is converged through the lens, a fire may result.
• Do not point the camera lens at the sun.

Sunlight will converge in the lens and focus inside the camera, possibly causing a malfunction or fire.

Micro Four Thirds and the Micro Four Thirds logo are trademarks or registered trademarks of OLYMPUS CORPORATION.

For customers in North America, Central America, South America and the Caribbean FCC Notice

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Any unauthorized changes or modifications to this equipment would void the user's authority to operate.

CANICES-3(B)/NMB-3(B)

Technical Support (U.S.A. / Canada)

24/7 online automated help:
http://www.olympusamerica.com/support
Phone customer support:
Tel.[phone] (Toll-free)

Our phone customer support is available from 9 am to 9 pm (Monday to Friday) ET E-Mail: [e-mail]

For customers in Europe

This symbol [crossed-out wheeled bin WEEE Annex IV] indicates separate collection of waste electrical and electronic equipment in the EU countries.

Please do not throw the equipment into the domestic refuse.

Please use the return and collection systems available in your country for the disposal of this product.

European Technical Customer Support

Please visit our homepage
http://www.olympus-europa.com
or call: Tel. 00800 - 67 10 83 00 (Toll-free) +49 40 - 237 73 899 (Charged)

The software in this lens may include third party software. Any third party software is subject to the terms and conditions, imposed by the owners or licensors of that software, under which software is provided to you. Those terms and other third party software notices, if any, may be found in the software notice PDF file stored at http://www.olympus.co.jp/en/support/imgg/digicamera/download/notice/notice.cfm
