USER MANUAL iSENSYS MF633Cdw CANON

Please read "Important Safety Instructions" before operating this product. After you finish reading this guide, store it in a safe place for future reference.

The information in this document is subject to change without notice.

You can access canon.com/oip-manual

to read the User's Guide that describes all functions of this machine.

Quick Setup

Getting Started

Please read "Important Safety Instructions" before operating this product.

P.78

After you finish reading this guide, store it in a safe place for future reference.

The information in this document is subject to change without notice.

Mise en route

canon.com/oip-manual to read the User's Guide that describes all functions of this machine.

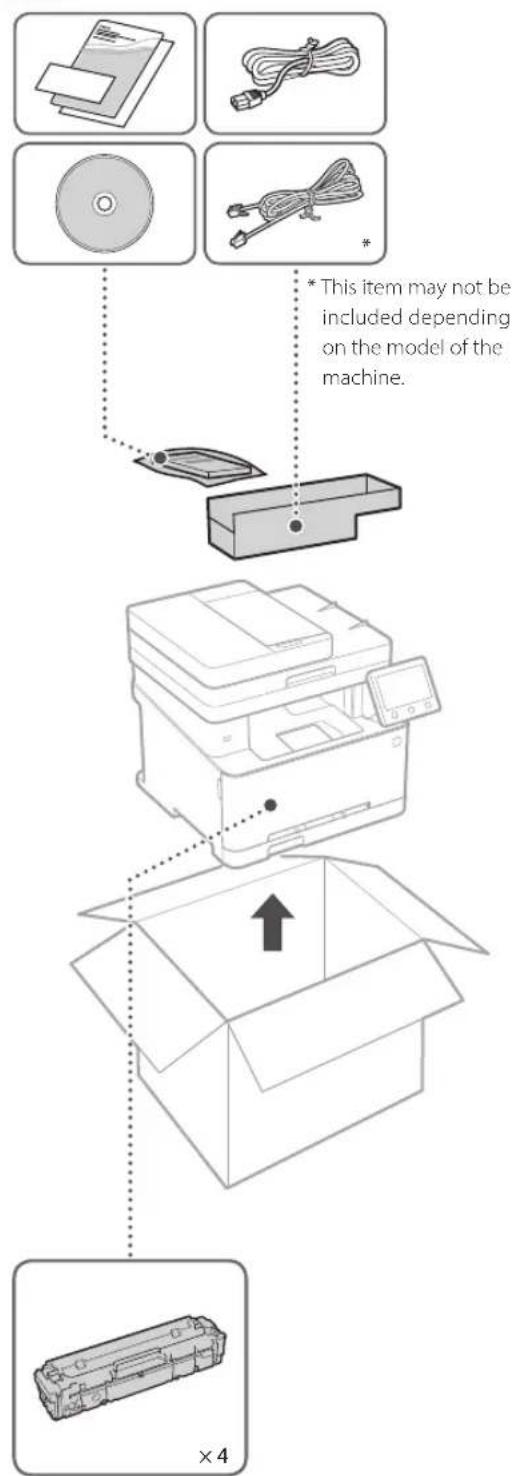

Items Included with the Machine

* This item may not be included depending on the model of the machine.

Starter toner cartridges are included.

Installing the Machine

Before starting the installation

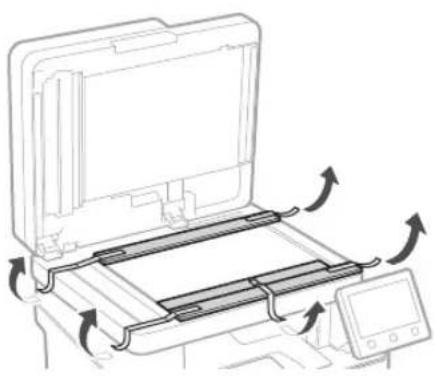

- Remove all of the tape.

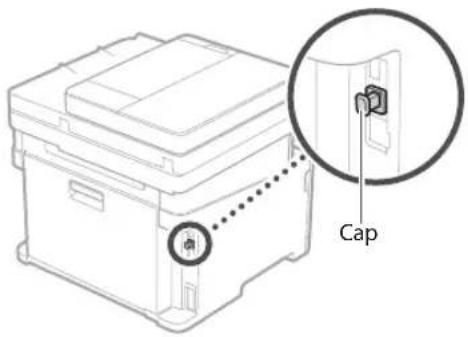

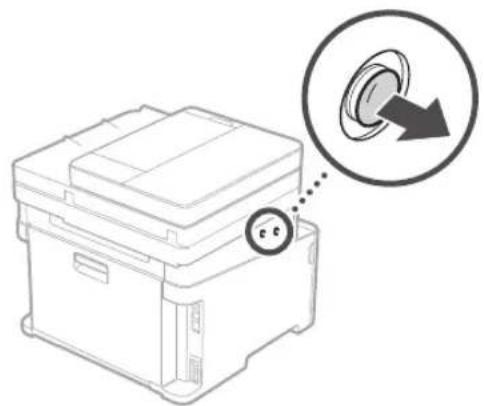

- Do not remove the cap that covers the USB port.

Cap

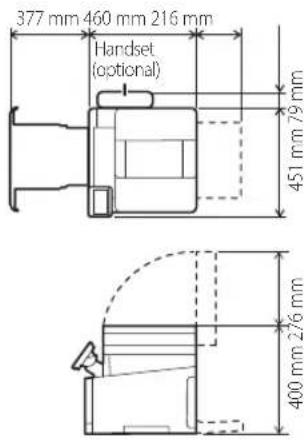

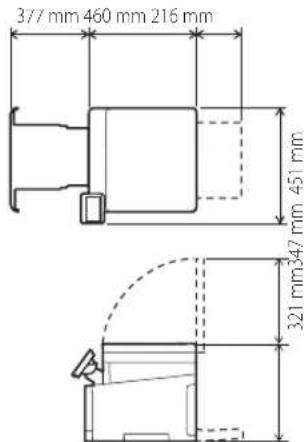

Installation Requirements

Provide a space of 100 mm or more around the machine.

MF635Cx/MF633Cdw

377 mm 460 mm 216 mm Handset (optional) 451 mm 79 mm 400 mm 276 mm

MF631Cn

3/7 mm 460 mm 216 mm 451 mm 321 mm 347 mm

1

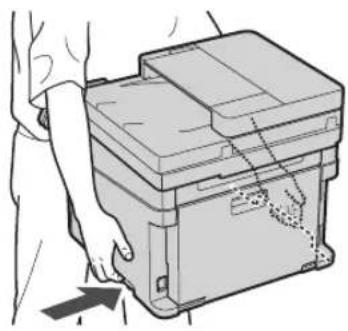

Illustration of a person handling a mechanical device with a hand pointing to the component (no text or symbols present)

4

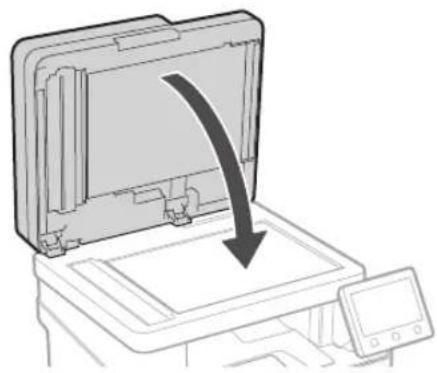

Diagram of a printer's open lid with a curved arrow indicating compression or disassembly (no text or symbols present)

2

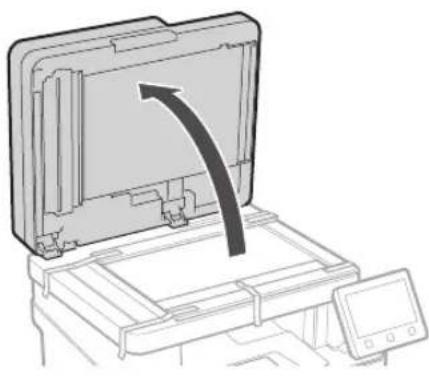

Diagram of a printer with an open lid and arrow indicating rotation or movement (no text or symbols)

5

Illustration of hands inserting a device into a plastic container (no text or symbols visible)

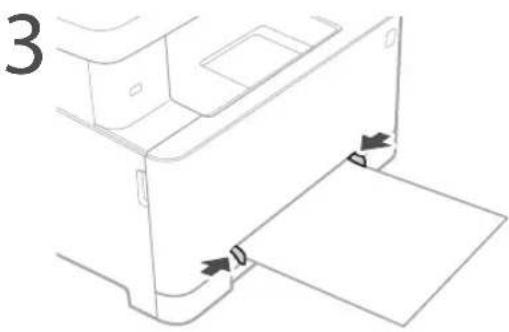

3

Diagram of a printer's internal structure with arrows indicating motion, no text or symbols present

6

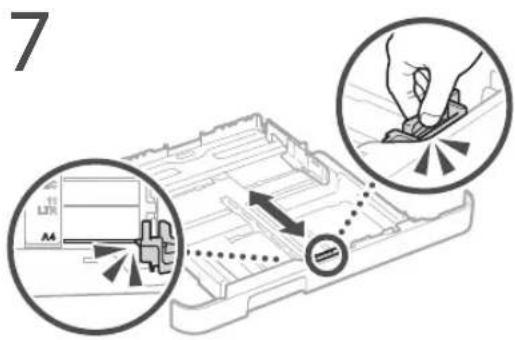

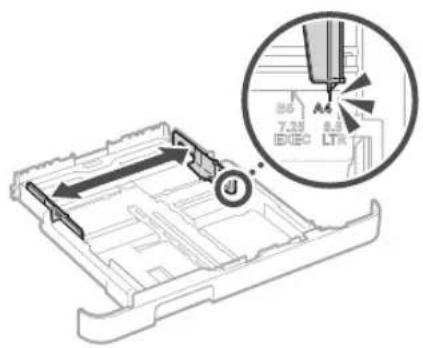

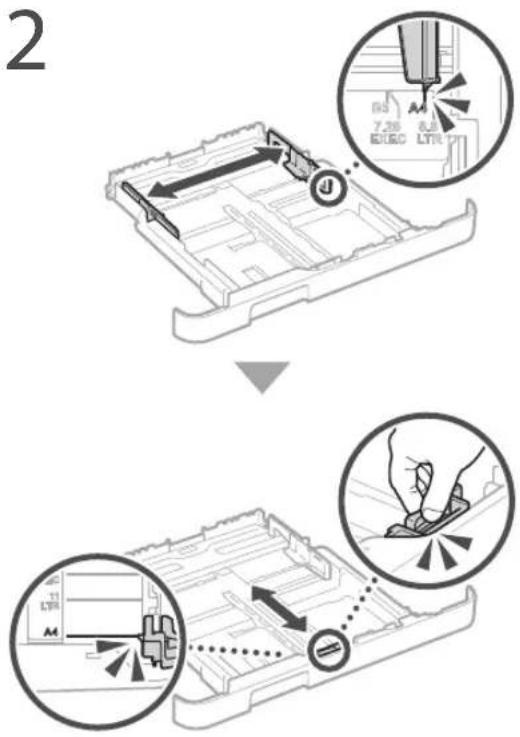

B6 7.25 E1/IEC 8.5 LTR

7 LTR A4

Diagram of a mechanical component with a downward arrow indicating a process or movement (no text or symbols present)

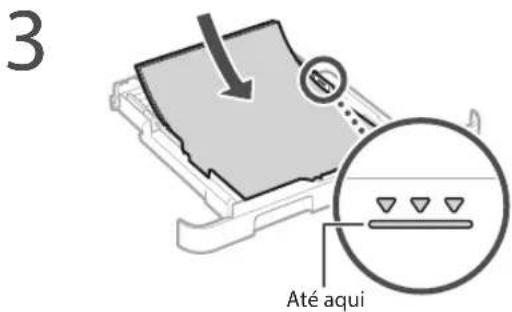

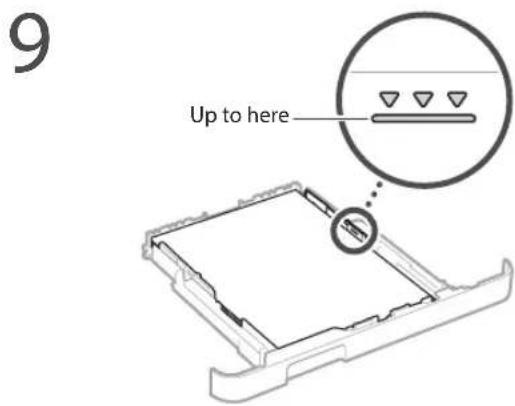

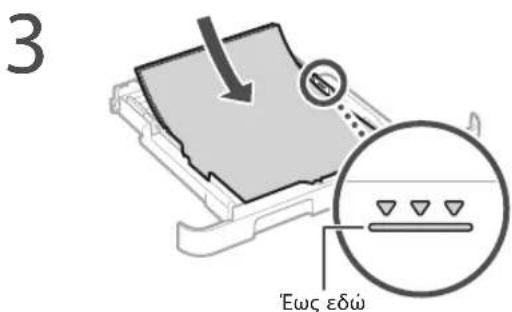

9 Up to here

Illustration of hands inserting a device into a folder, with no visible text or symbols

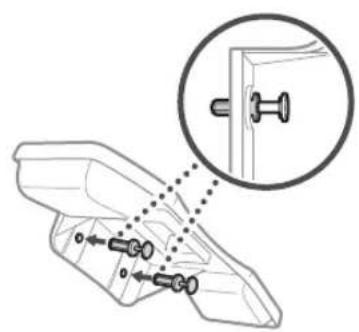

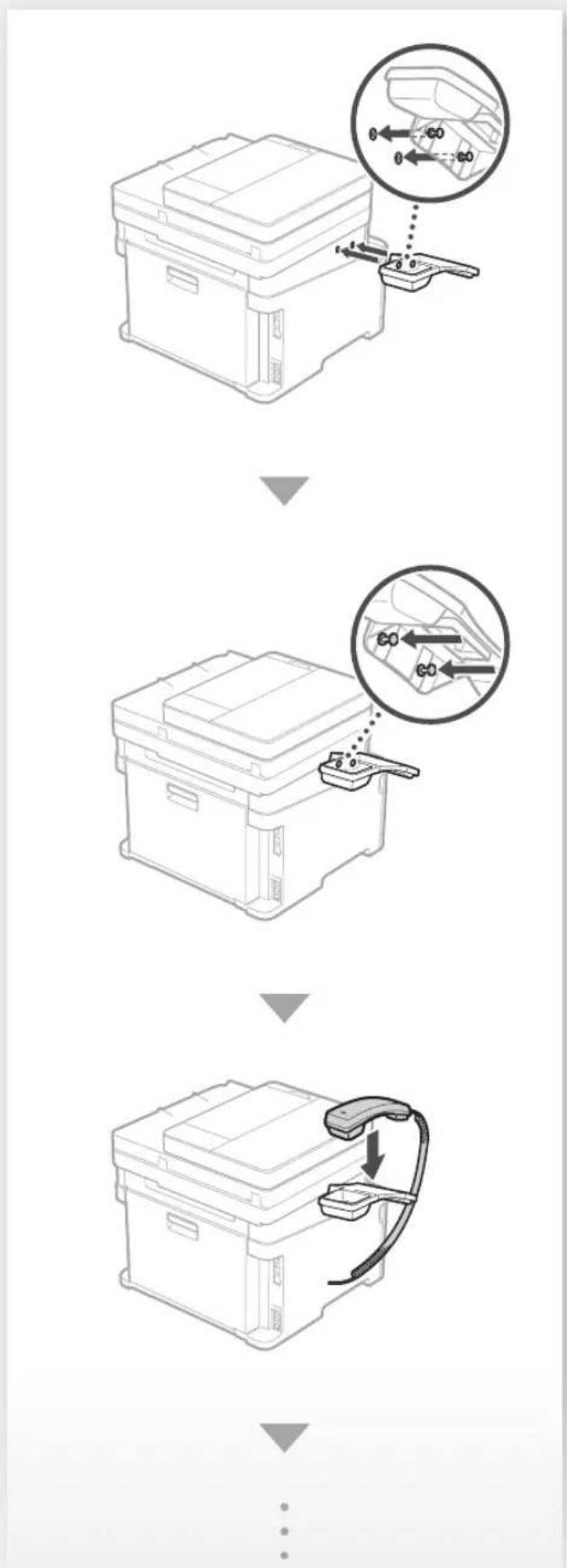

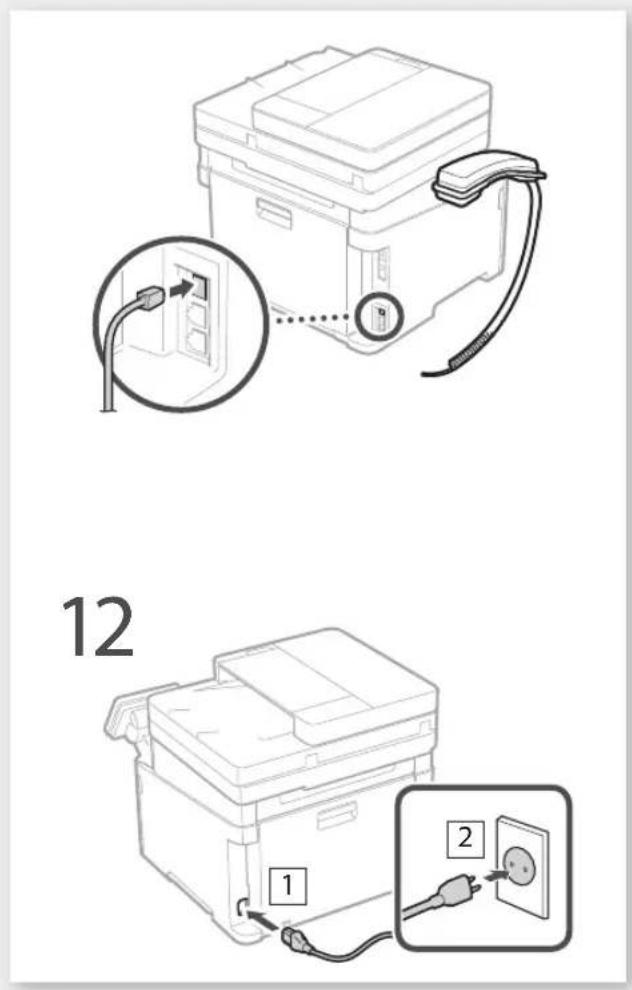

11 Attach the handset (optional).

Line drawing of a mechanical device with a magnified inset showing a circular component (no text or symbols)

Technical line drawing of a mechanical component with a magnified inset showing a detail (no text or symbols)

12 1 2

Next, proceed to configure the machine.

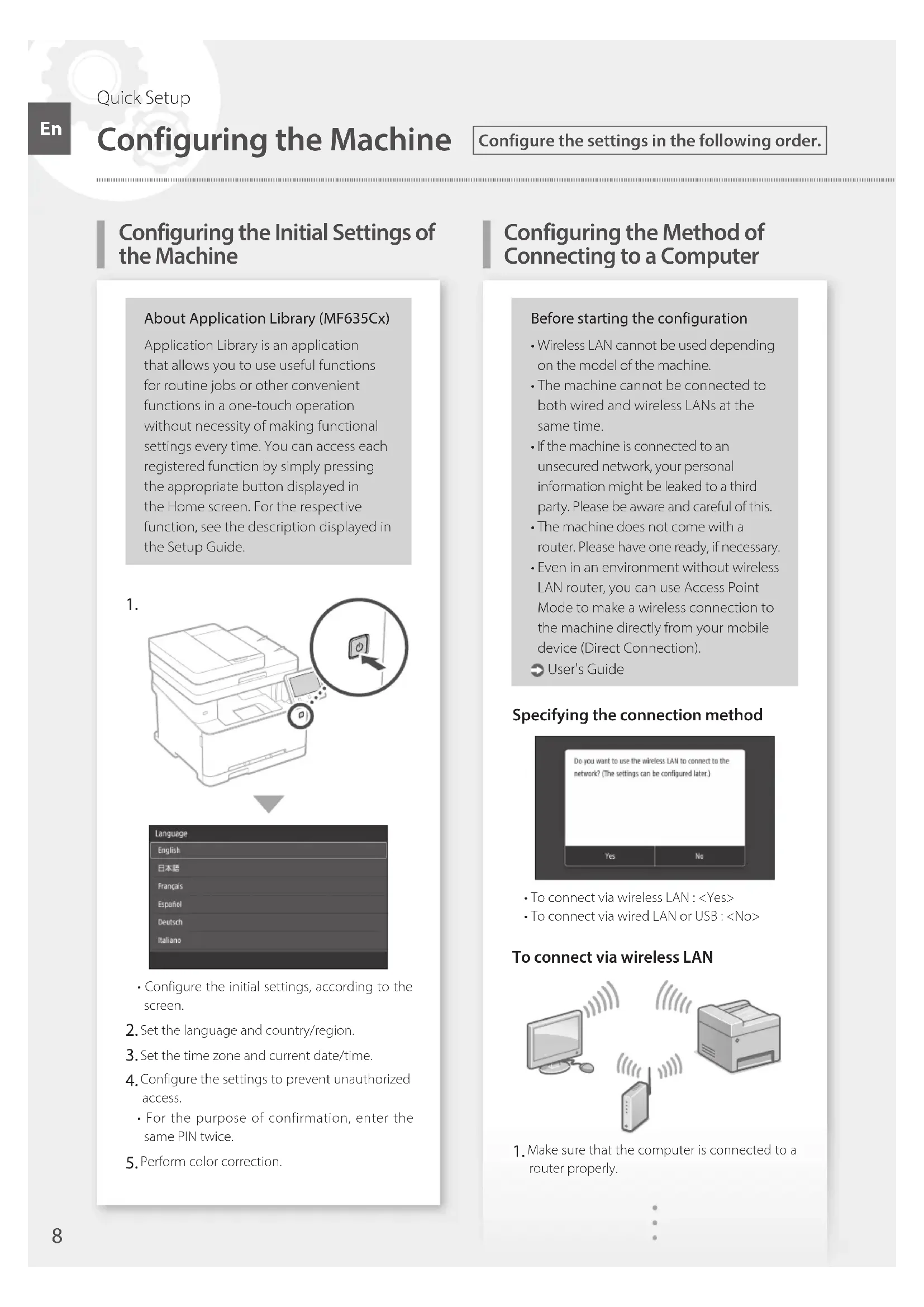

Configuring the Initial Settings of the Machine

About Application Library (MF635Cx)

Application Library is an application that allows you to use useful functions for routine jobs or other convenient functions in a one-touch operation without necessity of making functional settings every time. You can access each registered function by simply pressing the appropriate button displayed in the Home screen. For the respective function, see the description displayed in the Setup Guide.

1.

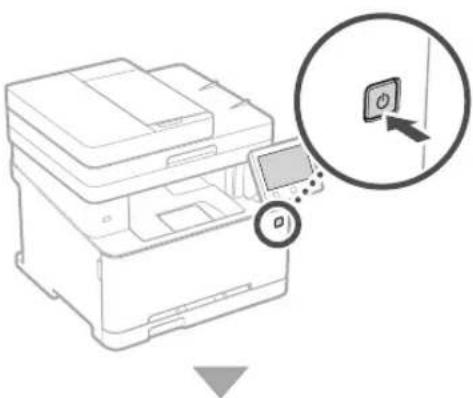

Line drawing of a printer with a magnified inset showing a button labeled 'O' (no text or symbols on the device itself)

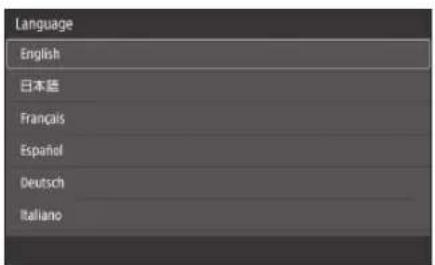

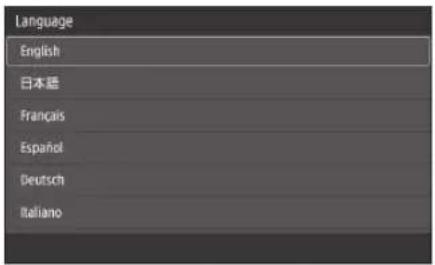

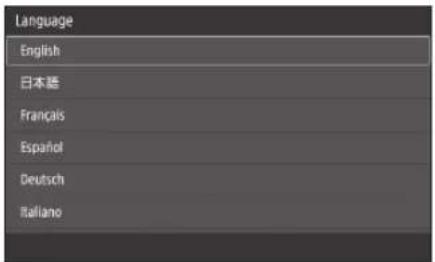

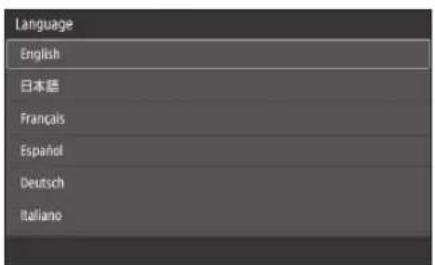

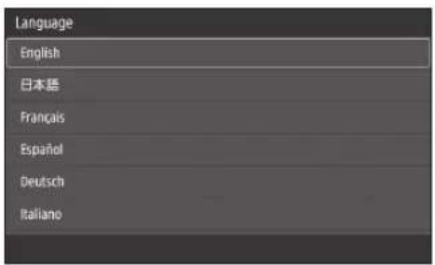

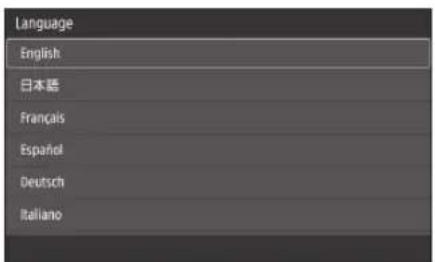

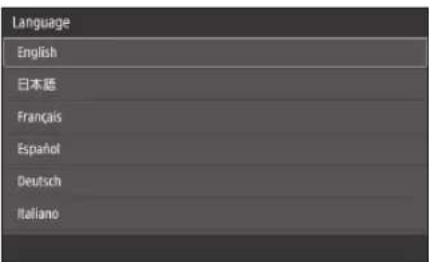

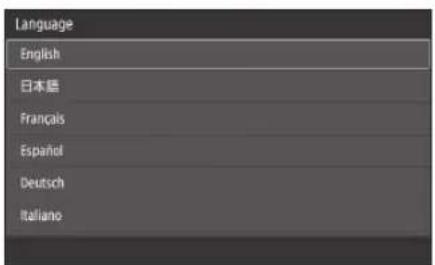

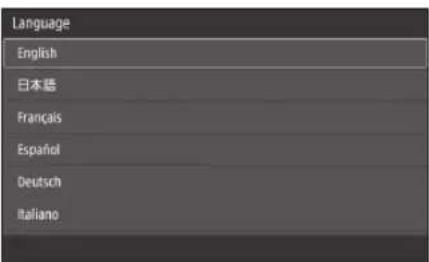

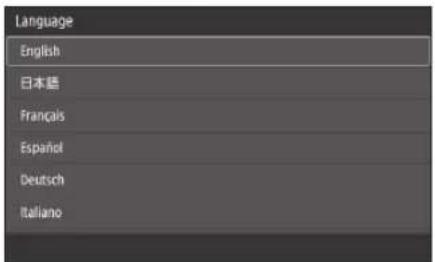

Language English 日本語 Français Español Deutsch Italiano

- Configure the initial settings, according to the screen.

1. Set the language and country/region.
2. Set the time zone and current date/time.
3. Configure the settings to prevent unauthorized access.
4. For the purpose of confirmation, enter the same PIN twice.
5. Perform color correction.

Configuring the Method of Connecting to a Computer

Before starting the configuration

• Wireless LAN cannot be used depending on the model of the machine.
  • The machine cannot be connected to both wired and wireless LANs at the same time.
  • If the machine is connected to an unsecured network, your personal information might be leaked to a third party. Please be aware and careful of this.
  • The machine does not come with a router. Please have one ready, if necessary.
  • Even in an environment without wireless LAN router, you can use Access Point Mode to make a wireless connection to the machine directly from your mobile device (Direct Connection).

→ User's Guide

Specifying the connection method

Do you want to use the wireless LAN to connect to the network? (The settings can be configured later.) Yes No

• To connect via wireless LAN :
• To connect via wired LAN or USB :

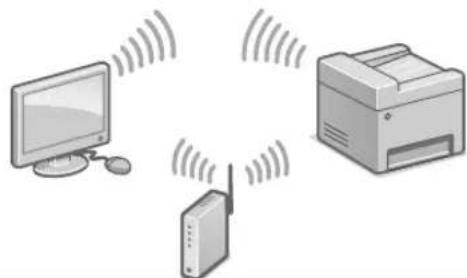

To connect via wireless LAN

Illustration of three devices: a computer, a printer, and a router with wireless signal lines (no text or symbols)

1. Make sure that the computer is connected to a router properly.

1. Check the network settings on the computer.
2. Take note of the SSID and network key.

- Check the label on the router. ➞ User's Guide

- The setting operation is easier if the router is provided with a WPS mark. ➕ User's Guide

1. Set the access point and network key according to the screen below.

For more information, refer to the manual.

1. Press .
2. Press .
3. Press .
4. Select the access point (SSID), and press .
5. Enter a WEP key (network key), and press .
6. Press .

• The IP address will be automatically configured in a few minutes.
- "Connected." is displayed.

1. Install the driver and software.

→ "Installing the software" on P.10

Now you are finished with the configuration of the initial settings.

If your machine is provided with the fax function, proceed to configuring the fax settings. P.11

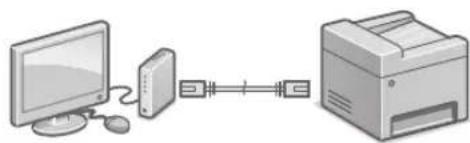

To connect via wired LAN

Illustration of a desktop computer connected to a printer via a serial line (no text or symbols)

The machine does not come with a LAN cable. Please have one ready, if necessary.

1. Make sure that the computer is connected to a router properly.
2. Check the network settings on the computer.

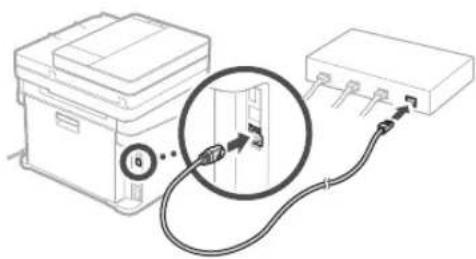

3. Connect the LAN cable.

Diagram showing connection between a device box and a USB cable with a magnified inset (no text or symbols)

• After connecting the cable, wait a few minutes (until the IP address is set automatically).
- If a static IP address has been set on the computer, set the machine's IP address manually.

1. Install the driver and software.

→ "Installing the software" on P.10

Now you are finished with the configuration of the initial settings.

If your machine is provided with the fax function, proceed to configuring the fax settings. P.11

To connect via USB

Illustration of a desktop computer connected to a printer (no text or symbols present)

• The machine does not come with a USB cable. Please have one ready, if necessary.

• Make sure that the USB cable you use has the following mark.

- Do not connect the USB cable before installing the driver. If you did, disconnect the USB cable from the computer, close the dialog box, and then perform the following procedure from step 1.

1. Install the driver and software.

→ "Installing the software" on P.10

- When the screen to connect the USB cable to the machine is displayed, remove the cap that covers the USB port.

Diagram showing a file organizer with a close-up view of the internal object (no text or symbols present)

Now you are finished with the configuration of the initial settings.

If your machine is provided with the fax function, proceed to configuring the fax settings. P.11

Installing the software

• The procedure described here is only applicable when your computer runs on the Windows OS. For more details on the software installation procedure, see the driver's manual.
- For the installation when your computer runs on the Mac OS, see the driver's manual.
- Your machine may not come with the driver for the Mac OS, depending on the time of purchase. New drivers are uploaded to the Canon website, and you can download and use the latest one.

1.

Illustration of a CD or DVD disc being inserted into a computer tower (no text or symbols visible)

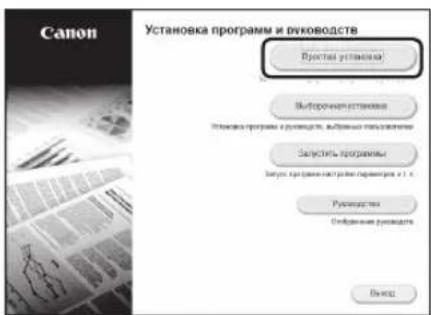

2.

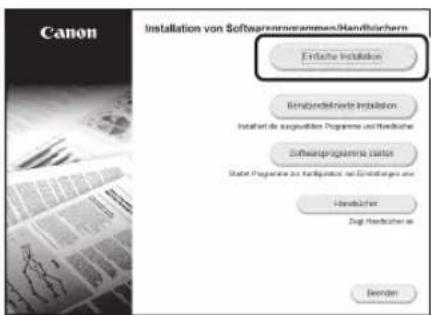

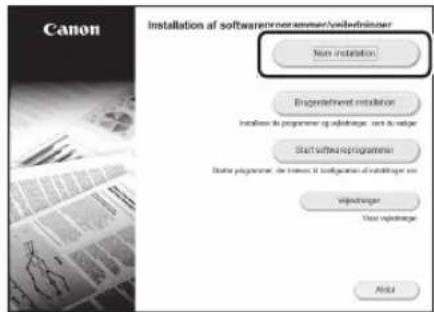

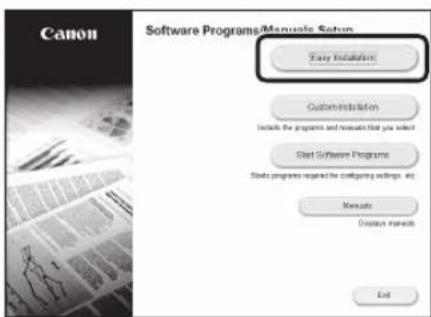

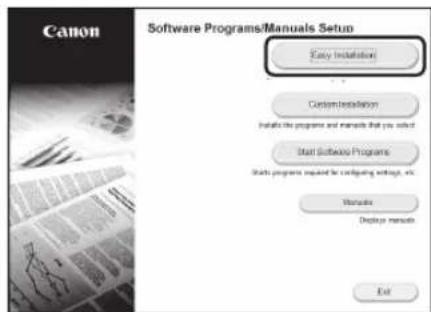

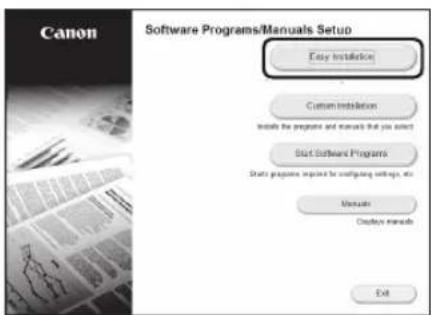

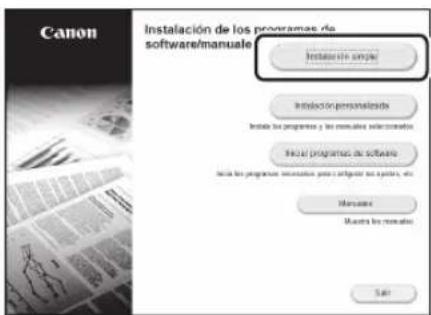

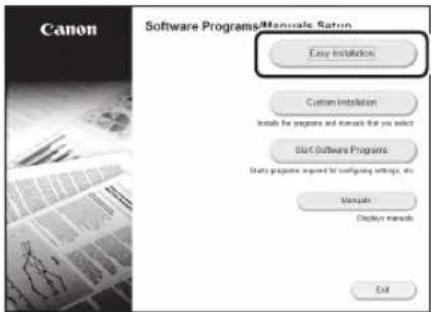

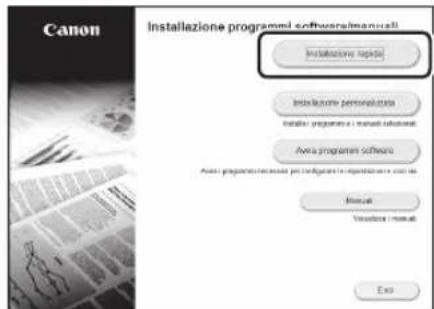

Canon Software Programs/Manuals Setup Easy Installation Custom Installation Inside the programs and manuals that you select Start Software Programs Start programs required for configuring settings, etc. Manuals Display manuals Exit

If the screen is not displayed properly, re-insert the DVD-ROM or search for "D:\MInst.exe" on the Windows platform (This description assumes that "D:" is the DVD-ROM drive name).

Using the scanner conveniently

Configuring the network settings with "Send Function Setting Tool" allows you to directly send scanned originals with e-mail or I-Fax or store them in a shared folder or on the FTP server.

In the screen displayed in step 2, select [Start Software Programs] ▶ [Send Function Setting Tool] to start the Send Function Setting Tool.

Configuring Fax Settings

Before starting the configuration:

If your machine does not come with a telephone cable, have one ready, as necessary.

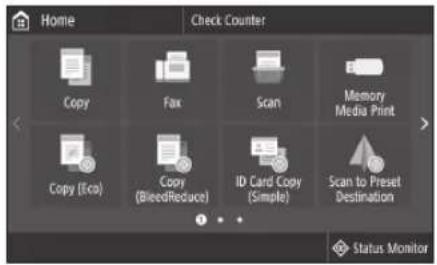

Configure the fax settings, according to the screen below.

Home Check Counter Copy Fax Scan Memory Media Print Copy (Eco) Copy (BleedReduce) ID Card Copy (Simple) Scan to Preset Destination Status Monitor

1. Press .
2. Press .
3. Register the machine's telephone number (fax number) and abbreviated user name.

Fax Setup Guide Register the unit telephone number for this device. (Fax number) Next

• The information below will be printed at the top part of the paper output from the destination machine as sender information.

Fax Number Number's Type Sent Time Unit Name Page Number 02/02 2017 10:00AM CAYCN123XXXXXXX-FX.0001

1. Set the reception mode.
   • Make the setting by answering the questions on your purposes of using the fax function.

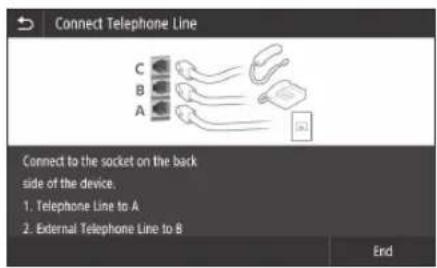

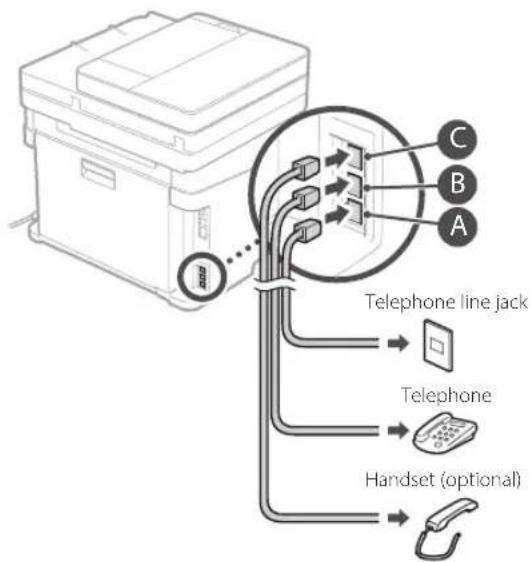

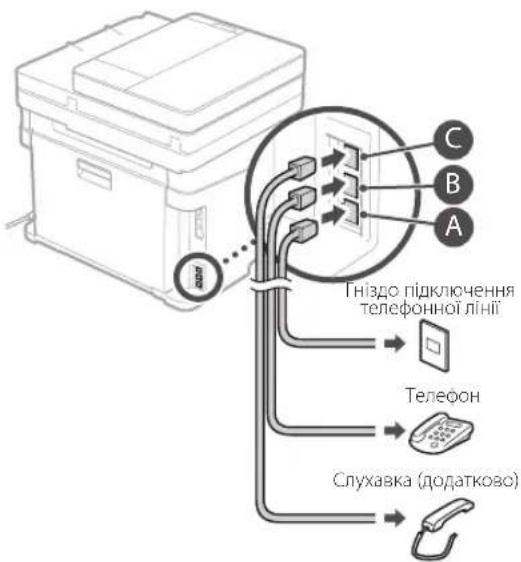

2. Connect to a telephone line.

Connect Telephone Line C B A Connect to the socket on the back side of the device. 1. Telephone Line to A 2. External Telephone Line to B End

C B A Telephone line jack Telephone Handset (optional)

1. Press .
2. Press .

Now you are finished with the configuration.

CAUTION!

When you load paper of a size other than A4, change the paper settings. ➕ Steps 5 and 6 in "Loading in the Paper Drawer" on P.76

Illustration of a printer with a magnified view showing a button labeled 'Power' (no text or symbols on the device itself)

Language English 日本語 Français Español Deutsch Italiano

Illustration of a printer, network device, and computer monitor with signal waves (no text or symbols)

Illustration of a desktop computer connected to a printer via serial communication (no text or symbols)

Diagram showing a device connected to a terminal block via cable, with a magnified inset highlighting a detail (no text or symbols present)

Illustration of a desktop computer connected to a printer (no text or symbols present)

Diagram showing a printer case with a close-up view of the internal component (no text or symbols present)

Illustration of a CD or DVD drive into a computer tower (no text or symbols)

2.

Line drawing of a printer with a magnified inset showing a small screen and pointer (no text or symbols)

Language English 日本語 Français Español Deutsch Italiano

Illustration of a printer, network device, and computer with signal waves (no text or symbols)

Illustration of a desktop computer connected to a printer via serial communication (no text or symbols)

Diagram showing a device connected to an electronic device via cable, with no visible text or symbols.

Illustration of a desktop computer connected to a printer (no text or symbols present)

Diagram of a mechanical device with a magnified inset showing a close-up of a component (no text or symbols present)

Illustration of a CD or DVD disc being inserted into a computer tower (no text or symbols)

2.

Line drawing of a printer with a digital display and a magnified inset showing a switch symbol (no text or labels)

Language English 日本語 Français Español Deutsch Italiano

Illustration of a printer, network device, and computer monitor with signal waves (no text or symbols)

Illustration of a desktop computer connected to a printer via serial communication (no text or symbols)

Diagram showing connection between a device with a magnified inset highlighting a component (no text or symbols present)

Illustration of a desktop computer connected to a printer (no text or symbols present)

Diagram of a mechanical device with a close-up inset showing a close-up of a component (no text or symbols present)

Illustration of a CD or DVD drive into a desktop computer tower (no text or symbols)

2.

Line drawing of a printer with a magnified inset showing a switch symbol (no text or labels present)

Language English 日本語 Français Español Deutsch Italiano

Illustration of a printer, network device, and computer with signal waves (no text or symbols)

Illustration of a desktop computer connected to a printer via serial communication (no text or symbols)

Diagram showing a device connected to an electronic device via cable, with no visible text or symbols.

Illustration of a desktop computer connected to a printer (no text or symbols present)

Diagram of a mechanical device with a close-up inset showing a close-up of a component (no text or symbols present)

Illustration of a CD or DVD drive into a desktop computer tower (no text or symbols)

2.

Line drawing of a printer with a magnified inset showing a button labeled 'O' (no text or symbols on the device itself)

Language English 日本語 Français Español Deutsch Italiano

Illustration of a printer, network device, and computer with signal waves (no text or symbols)

Illustration of a desktop computer connected to a printer via serial communication (no text or symbols)

Diagram showing connection between a device with a magnified inset highlighting a component (no text or symbols present)

Illustration of a computer monitor connected to a printer (no text or symbols)

Diagram of a device with a magnified inset showing a close-up of a component (no text or symbols present)

Illustration of a CD or DVD drive system with an open disk and a server unit (no text or symbols)

2.

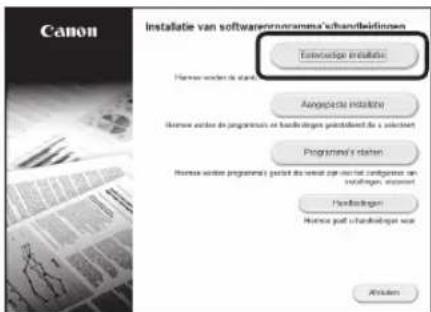

Canon Software Programs/Manuals Setup Easy Installation Custom Installation Installs the program and manual that you select Start Software Programs Start programs required for configuring settings, etc. Manuals Create manuals Exit

Line drawing of a printer with a digital display and a magnified inset showing a switch (no text or symbols)

Language English 日本語 Français Español Deutsch Italiano

Illustration of a printer, network device, and computer with signal waves (no text or symbols)

Illustration of a desktop computer connected to a printer via serial communication (no text or symbols)

Makinak ez dakar LAN kablerik. Izan bat gertu behar izanez gero.

Diagram showing a device connected to a terminal block via cable, with a magnified inset highlighting a detail (no text or symbols present)

Illustration of a desktop computer connected to a printer (no text or symbols present)

Diagram of a mechanical device with a zoomed-in inset showing a close-up of the component (no text or symbols present)

Illustration of a CD or DVD disc being inserted into a computer tower (no text or symbols visible)

2.

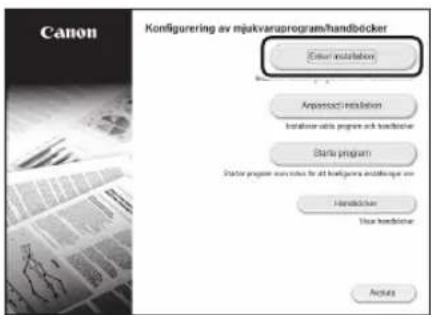

Canon Software Programs/Manuals Solution Easy Installation Custom Installation Inside the programs and manuals that you select Start Software Programs Start programs required for configuring settings, etc. Manuals Display manuals Exit

Pantaila behar bezala erakusten ez bada, instalatu DVD-ROMa edo bilatu "D:\MInst.exe" Windows sisteman (Deskribapen honek DVD-ROM unitateren hizkia "D:" dela suposatzen du).

Eskanerraren erabilera

Line drawing of a printer with a magnified inset showing a button labeled 'O' (no text or symbols on the device itself)

Language English 日本語 Français Español Deutsch Italiano

Illustration of a printer, network device, and computer with signal waves (no text or symbols)

Illustration of a desktop computer connected to a printer via a serial line (no text or symbols)

Diagram showing connection between a device with a magnified inset of a component (no text or symbols present)

Illustration of a desktop computer connected to a printer (no text or symbols present)

Diagram showing a device with a circular button and an arrow pointing to a close-up of the next component (no text or symbols present)

Illustration of a CD or DVD drive system with an open disk and a server unit (no text or symbols)

2.

Line drawing of a printer with a digital display and a magnified inset showing a button (no text or symbols)

Language English 日本語 Français Español Deutsch Italiano

Illustration of a printer, network device, and computer monitor with wireless signal waves (no text or symbols)

Illustration of a desktop computer connected to a printer via serial communication (no text or symbols)

Diagram showing connection between a device with a magnified inset highlighting a component (no text or symbols present)

Illustration of a desktop computer connected to a printer (no text or symbols present)

Diagram of a mechanical device with a magnified inset showing a close-up of a component (no text or symbols present)

Illustration of a CD or DVD drive into a desktop computer tower (no text or symbols visible)

2.

Canon Software Programs/Manuals Setup Easy Installation Custom Installation Installs the programs and manuals that you select Start Software Programs Start programs required to configuring settings, etc. Manuals Displays manuals Exit

Line drawing of a printer with a magnified inset showing a button labeled 'O' (no text or symbols on the device itself)

Language English 日本語 Français Español Deutsch Italiano

Illustration of a printer, network device, and computer with signal waves (no text or symbols)

Illustration of a desktop computer connected to a printer via a serial line (no text or symbols)

Diagram showing a device connected to an electronic device via cable, with no visible text or symbols.

Illustration of a desktop computer connected to a printer (no text or symbols present)

Diagram of a mechanical device with a zoomed-in inset showing a close-up of the component (no text or symbols present)

Diagram showing a CD or DVD disc being inserted into a computer tower (no text or symbols present)

2.

Canon Installation of software/programmer/solidinimer Non installation Engravement installation Installs de programme ou sublograrer, non e-mailer Start software/programmer Data programme, the camera. It configures a configuration or vipidierer Use vipidierer Add

Line drawing of a printer with a magnified inset showing a switch symbol (no text or labels present)

Language English 日本語 Français Español Deutsch Italiano

Illustration of a printer, network device, and computer with signal waves (no text or symbols)

Illustration of a desktop computer connected to a printer via serial communication (no text or symbols)

Diagram showing a device connected to a terminal block via cable, with a magnified inset highlighting a detail (no text or symbols present)

Illustration of a desktop computer connected to a printer (no text or symbols present)

Diagram of a mechanical device with a magnified inset showing a close-up of a component (no text or symbols present)

Illustration of a CD or DVD disc being inserted into a computer tower (no text or symbols visible)

2.

Canon Installatie van softwarenomaromsa@handelsdinnen Entwicklung installatie Harmen worden de stand Ausgestellt installatie Harmen worden de programmes en handelingen geaktiebden de 1 selectant Programme's starten Harmen worden program(s) (parche des vials par les casin) configuera van handelingen, optement Handelingen Harmen part handelingen was Arrangement

Line drawing of a printer with a digital display and a magnified inset showing a switch symbol (no text or labels)

Language English 日本語 Français Español Deutsch Italiano

Illustration of a printer, network device, and computer with signal waves (no text or symbols)

1. Sjekk at datamaskinen er korrekt tilkoblet til en ruter.

Illustration of a desktop computer connected to a printer via serial communication (no text or symbols)

Diagram showing a device connected to a terminal block via cable, with a magnified inset highlighting a detail (no text or symbols present)

• Vent i et par minutter etter at kabelen er koblet til (til IP-adressen er automatisk innstilt).

• Hvis det er angitt en statisk IP-adresse for datamaskinen, må maskinens IP-adresse stilles inn manuelt.

• Installer driver og programvare.

Illustration of a desktop computer connected to a printer (no text or symbols present)

Diagram of a mechanical device with a zoomed-in inset showing a close-up of the component (no text or symbols present)

Illustration of a CD or DVD drive system with an open disk (no text or symbols)

2.

Line drawing of a printer with a digital display and a magnified inset showing a switch symbol (no text or labels present)

Language English 日本語 Français Español Deutsch Italiano

Illustration of three devices: a monitor, a printer with wireless signal lines, and a server with wireless signal line (no text or symbols)

Illustration of a desktop computer connected to a printer via a serial line (no text or symbols)

Diagram showing connection between a device with a magnified inset of a cable and connector (no text or symbols)

Illustration of a desktop computer connected to a printer (no text or symbols present)

Diagram of a printer case with an inset showing a close-up of the internal components (no text or symbols present)

Illustration of a CD or DVD disc being inserted into a computer tower (no text or symbols visible)

2.

Line drawing of a printer with a digital display and a magnified inset showing a small screen icon (no text or symbols)

Language English 日本語 Français Español Deutsch Italiano

Illustration of a printer, network device, and computer with signal waves (no text or symbols)

Illustration of a desktop computer connected to a printer via serial communication (no text or symbols)

Diagram showing a device connected to a terminal block via cable, with a magnified inset highlighting a detail (no text or symbols present)

Illustration of a desktop computer connected to a printer (no text or symbols present)

Diagram of a mechanical device with a magnified inset showing a close-up of a component (no text or symbols present)

Diagram showing a CD or DVD disc being inserted into a computer tower (no text or symbols present)

2.

Line drawing of a printer with a magnified inset showing a screen and pointer (no text or symbols)

Language English 日本語 Français Español Deutsch Italiano

Illustration of three electronic devices: a monitor, a printer with wireless signal lines, and a router (no text or symbols present)

Illustration of a desktop computer connected to a printer via a serial line (no text or symbols)

Diagram showing a device connected to an electronic device via cable, with no visible text or symbols.

Illustration of a desktop computer connected to a printer (no text or symbols present)

Diagram of a mechanical device with a magnified inset showing a close-up of a component (no text or symbols present)

Diagram showing a CD or DVD disc being inserted into a server tower (no text or symbols present)

2.

Illustration of a printer with a close-up view showing a button labeled 'O' (no text or symbols on the device itself)

Language English 日本語 Français Español Deutsch Italiano

Do you want to use the wireless LAN to connect to the network? (The settings can be configured later.) Yes No

Illustration of three electronic devices: a monitor, a printer, and a wireless router with signal waves (no text or symbols)

For more information, refer to the manual. OK

Illustration of a desktop computer connected to a printer via serial communication (no text or symbols)

Diagram showing connection between a device with a magnified inset highlighting a component (no text or symbols present)

Illustration of a desktop computer connected to a printer (no text or symbols present)

Diagram of a mechanical device with a close-up inset showing a close-up of a component (no text or symbols present)

Illustration of a CD or DVD drive system with an open CD and a rectangular unit (no text or symbols)

2.

Canon Software Programs/Manuals Setup Easy Installation Custom Installation Installs the programs and manuals that you select Start Software Programs Start programs required for configuring settings, etc. Manuals Display manuals Exit

Home Check Counter Copy Fax Scan Memory Media Print Copy (Eco) Copy (BleedReduce) ID Card Copy (Simple) Scan to Preset Destination Status Monitor

Fax Setup Guide Register the unit telephone number for this device. (Fax number) Next

Connect Telephone Line C B A End Connect to the socket on the back side of the device. 1. Telephone Line to A 2. External Telephone Line to B

Place the Original Properly

Remember before You Start Operation

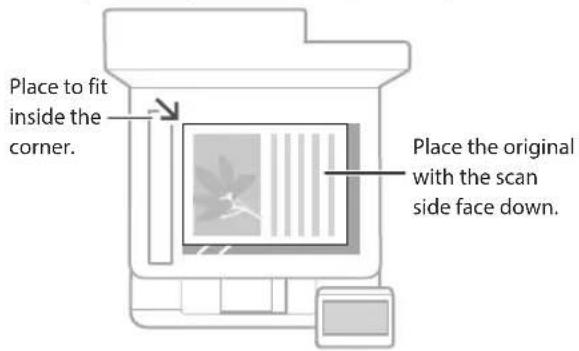

Place your original on the platen glass

Place to fit inside the corner. Place the original with the scan side face down.

Suitable for scanning book pages, magazine pages and newspaper clips.

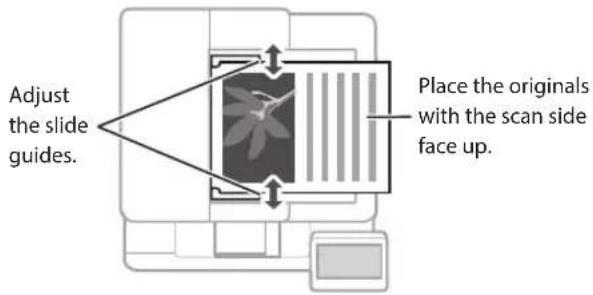

Place your originals into the feeder\*

* This function may not be included depending on the model of the machine.

Adjust the slide guides. Place the originals with the scan side face up.

Suitable for continuously scanning many pages of literature, quotation, etc.

Start the Operation from the Operation Panel

Machine (MF635Cx)

Line drawing of a printer with a digital display showing an icon (no text or symbols present)

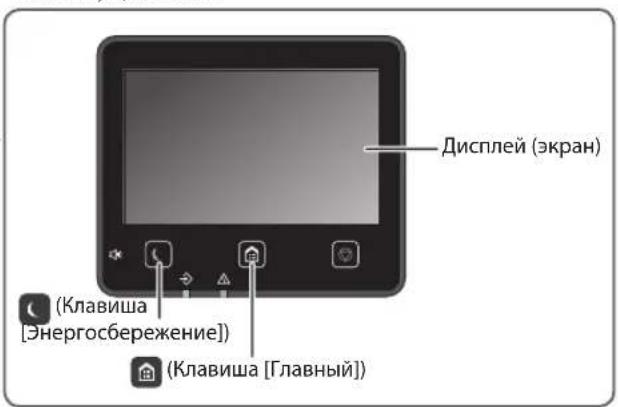

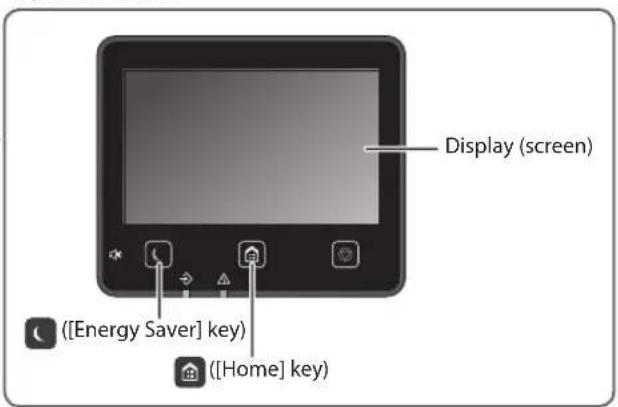

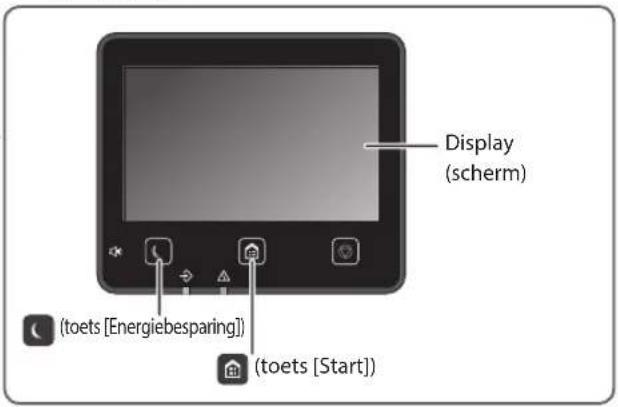

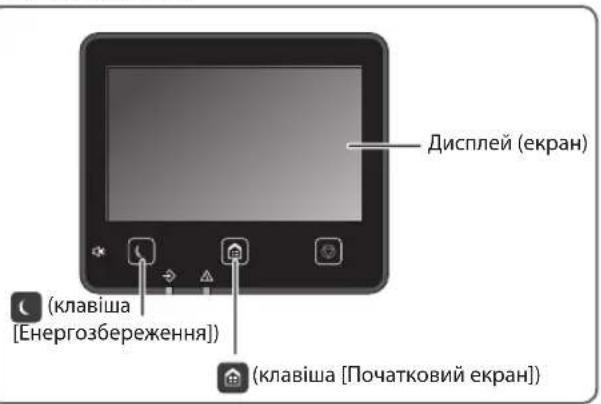

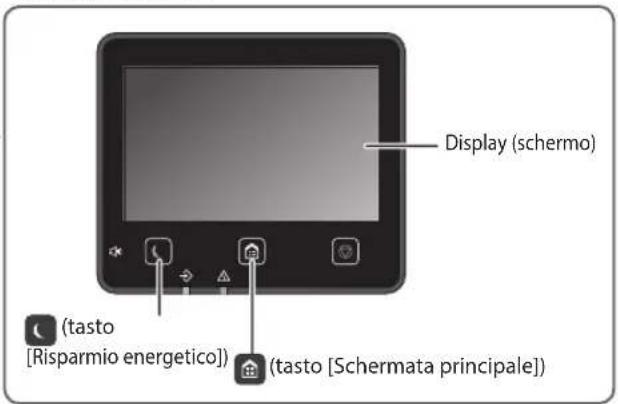

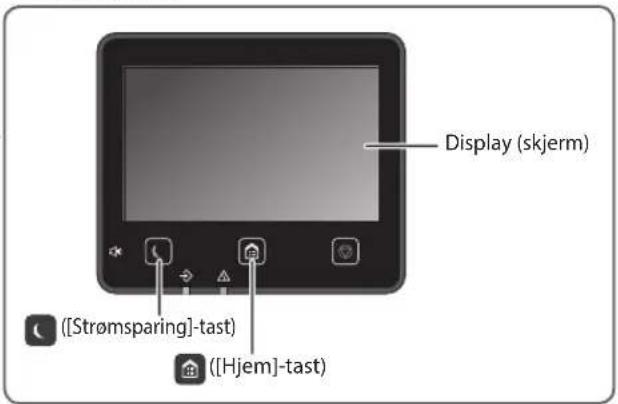

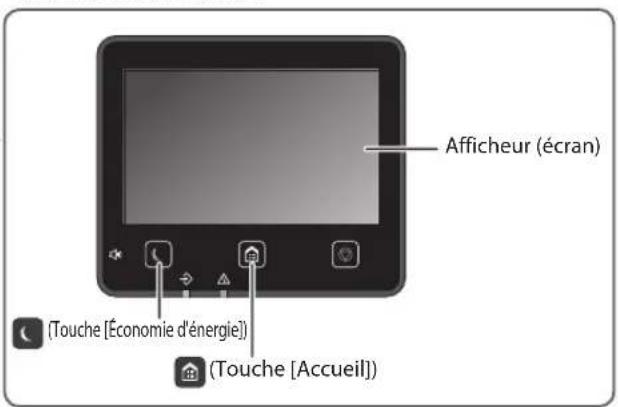

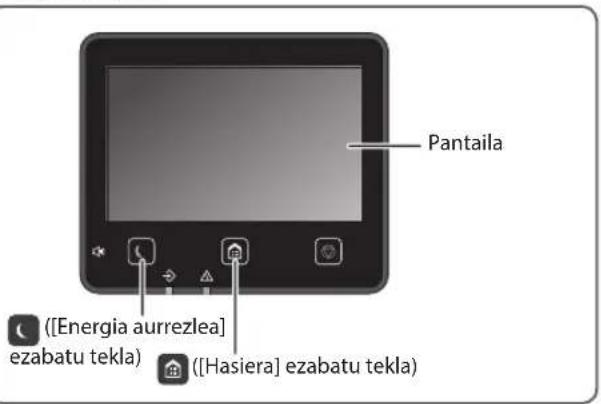

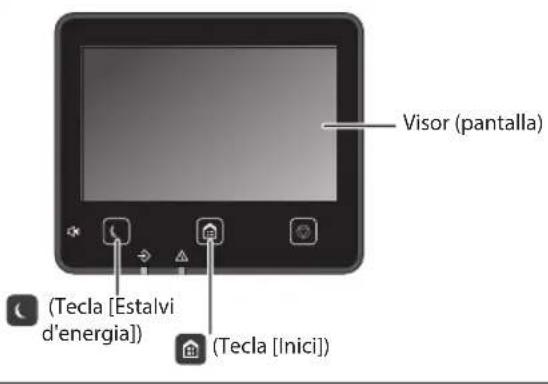

Operation Panel

Display (screen) ([Energy Saver] key) ([Home] key)

Scanning

1. Place the original.
2. Press 📋, and select .
3. Select the type of scan, and enter the necessary information.
4. Select , or .

Types of scan

■ Store in USB memory device
■ Send e-mail
■ Send to file server

To scan from a computer

■ MF Scan Utility

Scan Select a scan type. Computer USB Memory E-MAIL I-Nav File Status Monitor

For details
"Scanning" in the User's Guide

Copying

1. Place the original.
2. Press 🔒, and then select .
3. Specify the copy settings, as necessary.
4. Enter the desired number of copies.
5. Select or .

Useful copy settings

■ Non 1
■ 2-Sided or 1-Sided*
■ Enlarging or reducing
■ Copying ID cards

* This function may not be available, depending on the model of the machine.

Copy Copy Ratio 100% Form Density Number of Colors A4 ±0 1 2 Select Off N = 1 - Off Reset 8x89 Start Color Start Status Monitor Other Settings

For details

"Copying" in the User's Guide

Faxing\*

1. Place the original.
2. Press 📋, and select .
3. Enter the destination information.
4. Specify the fax settings, as necessary.
5. Select .

Useful fax functions

■ Sequential Broadcast
■ Memory Reception
PC Fax

* This function may not be available, depending on the model of the machine.

Far 02/02 2017 10:00AM Specify a destination. Enter Dest: 1 2 ABC 3 DEF Host 4 GIM 5 JUL 6 MNSO Private 7 PQRS 8 TUV 9 WAYZ Next Dest * NEW 0 # Address Book Reset Status Monitor

For details

→ "Faxing" in the User's Guide

Printing

1. Open the document to print, and select the print function of the application.
2. Select the printer driver for the machine, and select [Preferences] or [Properties].
3. Specify the paper size.
4. Specify the paper source and paper type.
5. Specify the print settings, as necessary.
6. Select [OK].
7. Select [Print] or [OK].

Useful print settings

■ 2-sided*
■ Non 1
■ Booklet Printing*

* This function may not be available, depending on the model of the machine.

New Document File Edit View Insert New Document Format Page Format View Page Type Open Page Range Open Page Count Open Page Count Open Page Count Open Page Count Open Page Count Open Page Count Open Page Count Open Page Count Open Page Count Open Page Count Open Page Count Open Page Count Open Page Count Open Page Count Open Page Count Open Page Count Open Page Count Open Page Count Open Page Count Open Page Count Open PageCount

For details

"Printing" in the User's Guide

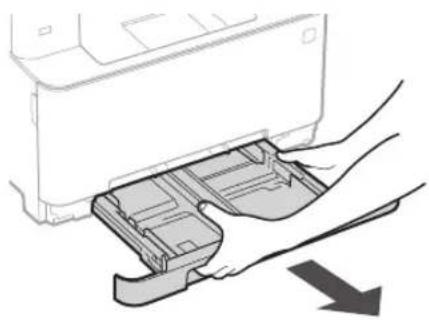

1 Pull out the paper drawer.

2 83 7,26 EUC LTR 11 LTR

3 Up to here

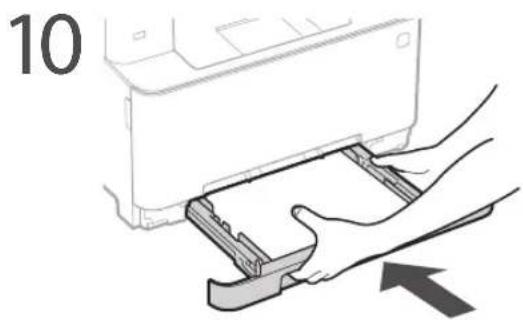

4 Insert the paper drawer into the machine.

If you load a different size or type of paper from the one before, make sure to change the settings.

5 Press and select .

6 Specify the size and type of paper, according to the screen.

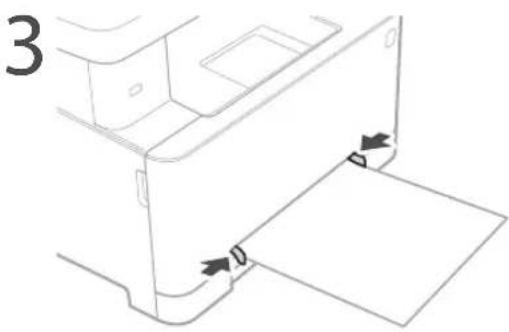

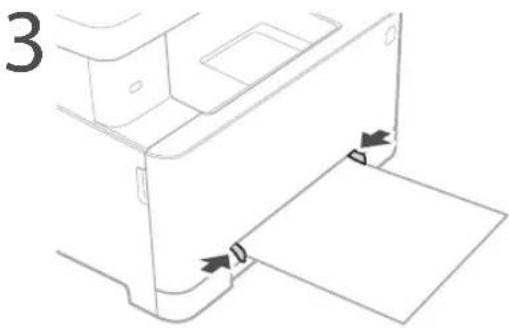

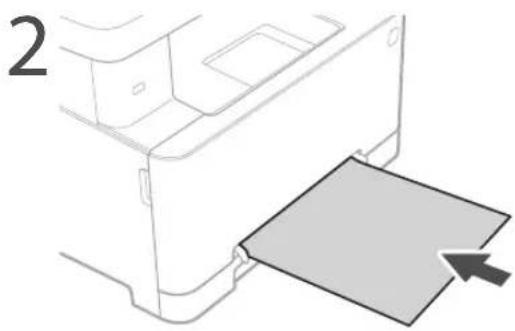

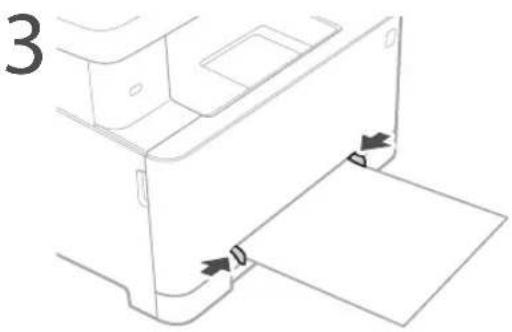

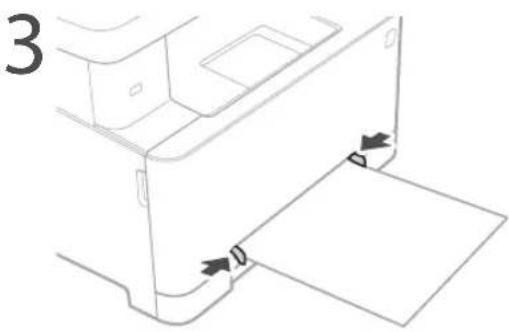

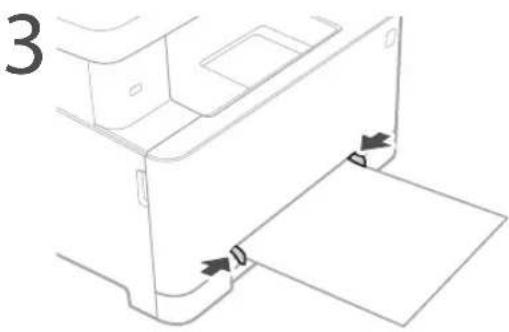

Loading in the Manual Feed SlotLoading

Line drawing of a door handle with arrows indicating movement or force (no text or symbols)

Line drawing of a printer or printer with a paper sheet being inserted, no text or symbols present

Line drawing of a printer or printer casing with paper sheet and paper clip, no text or symbols present

4 Specify the size and type of paper, according to the screen.

The Machine Does Not Seem to Work

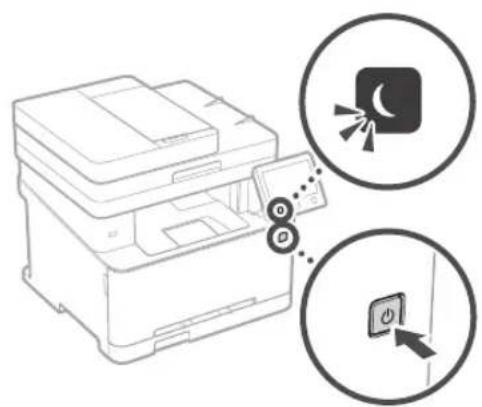

Check the following.

• Is the power turned ON?
• Is the machine out of sleep mode?

If both the display and 📁 are not lit, press the power switch.

Diagram showing printer processing steps with icons and labels, including a close-up of a square icon and a power button.

• Is the power cord connected correctly?

Line drawing of a printer with a magnified inset showing the cable being inserted (no text or symbols present)

If the problem persists, see the User's Guide.

Paper Jams Have Occurred

When paper is jammed, a screen, as shown below appears.

Clear the paper jams, according to the on-screen instructions.

Paper jammed. Open the back cover. Previous 1/3

Replacing the Toner Cartridge

Replace the toner cartridge, according to the on-screen instructions.

End of Cartridge Lifetime Pull the toner cartridge up and out. Previous 3/7 Next

Model number of replacement toner cartridge

• Canon Cartridge 045 Black
• Canon Cartridge 045 Cyan
• Canon Cartridge 045 Magenta
• Canon Cartridge 045 Yellow

• Canon Cartridge 045 H Black
• Canon Cartridge 045 H Cyan
• Canon Cartridge 045 H Magenta
• Canon Cartridge 045 H Yellow

Appendix

Important Safety Instructions

This chapter describes important safety instructions for the prevention of injury to users of this machine and others, and damage to property. Read this chapter before using the machine, and follow the instructions to use the machine properly. Do not perform any operations not described in this manual. Canon will not be responsible for any damages resulting from operations not described in this manual, improper use, or repair or changes not performed by Canon or a third party authorized by Canon. Improper operation or use of this machine could result in personal injury and/or damage requiring extensive repair that may not be covered under your Limited Warranty.

WARNING

Indicates a warning concerning operations that may lead to death or injury to persons if not performed correctly. To use the machine safely, always pay attention to these warnings.

CAUTION

Indicates a caution concerning operations that may lead to injury to persons if not performed correctly. To use the machine safely, always pay attention to these cautions.

IMPORTANT

Indicates operational requirements and restrictions. Be sure to read these items carefully to operate the machine correctly and avoid damage to the machine or property.

Installation

To use this machine safely and in a trouble-free way, carefully read the following precautions and install the machine in an appropriate location.

WARNING

Do not install in a location that may result in a fire or electrical shock

• A location where the ventilation slots are blocked (too close to walls, beds, sofas, rugs, or similar objects)
  • A damp or dusty location
• A location exposed to direct sunlight or outdoors
  • A location subject to high temperatures
  • A location exposed to open flames
• Near alcohol, paint thinners or other flammable substances

Other warnings

• Do not connect unapproved cables to this machine. Doing so may result in a fire or electrical shock.
• Do not place necklaces and other metal objects or containers filled with liquid on the machine. If foreign substances come in contact with electrical parts inside the machine, it may result in a fire or electrical shock.
• When installing and removing the optional accessories, be sure to turn OFF the power, unplug the power plug, and then disconnect all the interface cables and power cord from the machine. Otherwise, the power cord or interface cables may be damaged, resulting in a fire or electrical shock.
• If any foreign substance falls into this machine, unplug the power plug from the AC power outlet and contact your local authorized Canon dealer.

Do not install in the following locations

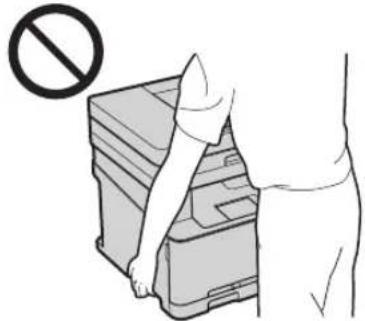

The machine may drop or fall, resulting in injury.

• An unstable location
• A location exposed to vibrations

CAUTION

Do not install in the following locations. Doing so may result in damage to the machine.

• A location subject to temperature and humidity extremes, whether low or high
• A location subject to dramatic changes in temperature or humidity
• A location near equipment that generates magnetic or electromagnetic waves
• A laboratory or location where chemical reactions occur
• A location exposed to corrosive or toxic gases
- A location that may warp from the weight of the machine or where the machine is liable to sink (a carpet, etc.)

Avoid poorly ventilated locations

This machine generates a slight amount of ozone and other emissions during normal use. These emissions are not harmful to health. However, they may be noticeable during extended use or long production runs in poorly ventilated rooms. To maintain a comfortable working environment, it is recommended that the room where the machine operates be appropriately ventilated. Also avoid locations where people would be exposed to emissions from the machine.

Do not install in a location where condensation occurs

Water droplets (condensation) may form inside the machine when the room where the machine is installed is heated rapidly, and when the machine is moved from a cool or dry location to a hot or humid location. Using the machine under these conditions may result in paper jams, poor print quality, or damage to the machine. Let the machine adjust to the ambient temperature and humidity for at least 2 hours before use.

In altitudes of above sea level 3,000 m or higher

Machines with a hard disk may not operate properly when used at high altitudes of about 3,000 meters above sea level, or higher.

Leveling feet (only for products with leveling feet)

Do not remove the machine's leveling feet after the machine has been installed, as this may cause the machine to fall or tip over, resulting in personal injury.

Connecting the Telephone Line (Only for Products with a Fax Function)

This machine conforms to a analog telephone line standard. The machine can be connected to the public switched telephone network (PSTN) only. If you connect the machine to a digital telephone line or a dedicated telephone line, it might impede proper operation of the machine and could be the cause of damage. Make sure to confirm a type of telephone line before connecting the machine. Contact your optical fiber line or IP telephone line service providers if you want to connect the machine to those telephone lines.

When using wireless LAN (only for products with a wireless LAN function)

• Install the machine at a distance of 50 meters or less from the wireless LAN router.
- As far as possible, install in a location where communication is not blocked by intervening objects. The signal may be degraded when passing through walls or floors.

• Keep the machine as far as possible from digital cordless phones, microwave ovens, or other equipment that emits radio waves.
• Do not use near medical equipment. Radio waves emitted from this machine may interfere with medical equipment, which may result in malfunctions and accidents.

Power Supply

WARNING

• Use only a power supply that meets the specified voltage requirements. Failure to do so may result in a fire or electrical shock.
• Do not use power cords other than the one provided, as this may result in a fire or electrical shock.
• The provided power cord is intended for use with this machine. Do not connect the power cord to other devices.
• Do not modify, pull, forcibly bend, or perform any other act that may damage the power cord. Do not place heavy objects on the power cord. Damaging the power cord may result in a fire or electrical shock.
• Do not plug in or unplug the power plug with wet hands, as this may result in an electrical shock.
• Do not use extension cords or multi-plug power strips with the machine. Doing so may result in a fire or electrical shock.
• Do not wrap the power cord or tie it in a knot, as this may result in a fire or electrical shock.
• Insert the power plug completely into the AC power outlet. Failure to do so may result in a fire or electrical shock.
• Remove the power plug completely from the AC power outlet during a thunder storm. Failure to do so may result in a fire, electrical shock, or damage to the machine.
  • Make sure that the power supply for the machine is safe, and has a steady voltage
• Keep the power cord away from a heat source; failure to do this may cause the power cord coating to melt, resulting in a fire or electrical shock.
• If excessive stress is applied to the connection part of the power cord, it may damage the power cord or the wires inside the machine may disconnect. This could result in a fire. Avoid the following situations:

- Connecting and disconnecting the power cord frequently.

- Tripping over the power cord.

- The power cord is bent near the connection part, and continuous stress is being applied to the power outlet or the connection part.

- Applying excessive force on the power plug.

CAUTION

Install this machine near the power outlet and leave sufficient space around the power plug so that it can be unplugged easily in an emergency.

IMPORTANT

When connecting power

• Do not connect the power cord to an uninterruptible power source. Doing so may result in malfunction of or damage to the machine at power failure.
• If you plug this machine into an AC power outlet with multiple sockets, do not use the remaining sockets to connect other devices.
• Do not connect the power cord to the auxiliary AC power outlet on a computer.

Other precautions

Electrical noise may cause this machine to malfunction or lose data.

Handling

WARNING

• Immediately unplug the power plug from the AC power outlet and contact an authorized Canon dealer if the machine makes an unusual noise, emits an unusual smell, or emits smoke or excessive heat. Continued use may result in a fire or electrical shock.
• Do not disassemble or modify this machine. There are high-voltage and high-temperature components inside the machine. Disassembly or modification may result in a fire or electrical shock.
• Place the machine where children will not come in contact with the power cord and other cables or gears and electrical parts inside the machine. Failure to do so may result in unexpected accidents.
• Do not use flammable sprays near this machine. If flammable substances come into contact with electrical parts inside this machine, it may result in a fire or electrical shock.
• When moving this machine, be sure to turn OFF the power of this machine, and then unplug the power plug and interface cables. Failure to do so may damage the power cord or interface cables, resulting in a fire or electrical shock.
• When plugging or unplugging a USB cable when the power plug is plugged into an AC power outlet, do not touch the metal part of the connector, as this may result in an electrical shock.
• Use a modular cable that is shorter than 3 meters.
  • Use a USB cable that is shorter than 3 meters.

If the operating noise concerns you

Depending on the use environment and operating mode, if the operating noise is of concern, it is recommended that the machine be installed in a place other than the office.

If you are using a cardiac pacemaker

This machine generates a low level magnetic flux. If you use a cardiac pacemaker and feel abnormalities, please move away from this machine and consult your physician immediately.

CAUTION

• Do not place heavy objects on this machine as they may fall, resulting in injury.
• For safety, unplug the power plug if the machine will not be used for a long period of time.
• Use caution when opening and closing covers to avoid injury to your hands.
• Keep hands and clothing away from the rollers in the output area. If the rollers catch your hands or clothing, this may result in personal injury.

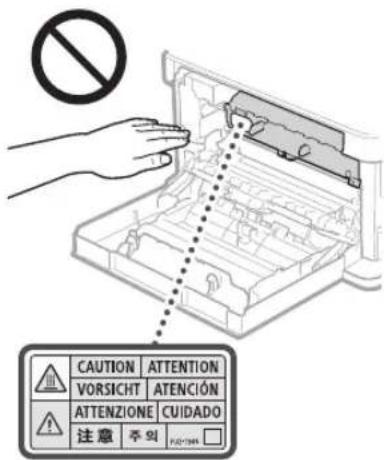

• The inside of the machine and the output slot are very hot during and immediately after use. Avoid contact with these areas to prevent burns. Also, printed paper may be hot immediately after being output, so use caution when handling it. Failure to do so may result in burns.

CAUTION ATTENTION VORSICHT ATENCIÓN ATTENZIONE CUIDADO 注意 주의 PLOTURA

• Be careful not to drop a heavy object, such as a dictionary, on the platen glass. Doing so may damage the platen glass and result in injury.
• Do not carry the machine with the paper drawers installed. Otherwise, the paper drawer may fall and result in injury.

Illustration of a person handling a stack of books with a 'no' symbol above (no text or labels)

Feeder (only for products with a feeder)

• Do not press down hard on the feeder when using the platen glass to make copies of thick books. Doing so may damage the platen glass and result in personal injury.
• Close the feeder gently to avoid catching your hands, as this may result in personal injury.
• Close the feeder gently to avoid catching your hands in the back of the feeder, as this may result in personal injury.

Finisher (only for products with a finisher)

- Do not place your hands in the part of the tray where stapling is performed (near the rollers), especially pay careful attention to the sharp staples, as this may result in personal injury.

Paper drawer (only for products with a paper drawer)

- Do not insert your hand into the machine while the paper drawer is removed, as this may result in personal injury.

Energy Saver key (only for products with an Energy Saver key)

- Press (Energy Saver) for safety when the machine will not be used for a long period of time, such as overnight. Also, turn OFF the main power switch, and disconnect the power cord for safety when the machine will not be used for an extended period of time, such as during consecutive holidays.

Laser Safety

This product is confirmed as a Class 1 laser product in IEC60825-1:2014 and EN60825-1:2014.

CLASS 1 LASER PRODUCT LASER KLASSE 1

APPAREIL À LASER DE CLASSE 1

APPARECCHIO LASER DI CLASSE 1

PRODUCTO LÁSER DE CLASE 1

APARELHO A LASER DE CLASSE 1

LUOKAN 1 LASER-TUOTE

LASERPRODUKT KLASS 1

The laser beam can be harmful to human bodies. Since radiation emitted inside the product is completely confined within protective housings and external covers, the laser beam cannot escape from the machine during any phase of user operation. Read the following remarks and instructions for safety.

• Never open covers other than those instructed in the manuals for this machine.
• If the laser beam should escape and enter your eyes, exposure may cause damage to your eyes.

CAUTION

Use of controls, adjustments, or performance of procedures other than those specified in this manual may result in hazardous radiation exposure.

Other precautions

• Follow the instructions on the caution label attached to this machine.
• Do not subject the machine to strong shocks or vibration.
• Do not forcibly open and close doors, covers, and other parts. Doing so may result in damage to the machine.

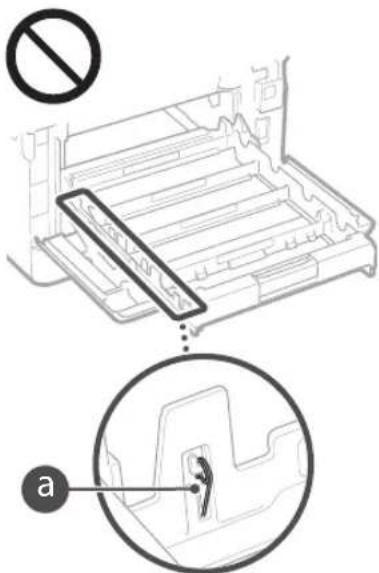

• Do not touch the toner cartridge contacts (a). Doing so may result in damage to the machine.

a

- Do not turn the main power switch OFF or open the covers while the machine is in operation. This may result in paper jams.

When transporting the machine

To prevent damage to the machine during transport, perform the following.

• Remove the toner cartridges.
• Securely pack the machine in the original box with packing materials.

Appendix

Maintenance and Inspections

Clean this machine periodically. If dust accumulates, the machine may not operate properly. When cleaning, be sure to observe the following. If a problem occurs during operation, see Troubleshooting. If the problem cannot be resolved or you feel the machine requires an inspection, see When a Problem Cannot Be Solved.

WARNING

• Before cleaning, turn OFF the power and unplug the power plug from the AC power outlet. Failure to do so may result in a fire or electrical shock.
• Unplug the power plug periodically and clean with a dry cloth to remove dust and grime. Accumulated dust may absorb humidity in the air and may result in a fire if it comes into contact with electricity.
• Use a damp, well wrung-out cloth to clean the machine. Dampen cleaning cloths with water only. Do not use alcohol, benzenes, paint thinners, or other flammable substances. Do not use tissue paper or paper towels. If these substances come into contact with electrical parts inside the machine, they may generate static electricity or result in a fire or electrical shock.
• Check the power cord and plug periodically for rust, bent prongs, fraying, cracks, or excessive heat generation. Use of poorly-maintained power cord or plug may result in a fire or electrical shock.

CAUTION

• The inside of the machine has high-temperature and high-voltage components. Touching these components may result in injury or burns. Do not touch any part of the machine that is not indicated in the manual.
• When loading paper or removing jammed paper, be careful not to cut your hands with the edges of the paper.

Legal Limitations on the Usage of Your Product and the Use of Images

Using your product to scan, print or otherwise reproduce certain documents, and the use of such images as scanned, printed or otherwise reproduced by your product, may be prohibited by law and may result in criminal and/or civil liability. A non-exhaustive list of these documents is set forth below. This list is intended to be a guide only. If you are uncertain about the legality of using your product to scan, print or otherwise reproduce any particular document, and/or of the use of the images scanned, printed or otherwise reproduced, you should consult in advance with your legal advisor for guidance.

• Paper Money
• Travelers Checks
• Money Orders
• Food Stamps
  • Certificates of Deposit
• Passports
  • Postage Stamps (canceled or uncanceled)
  • Immigration Papers
  • Identifying Badges or Insignias
• Internal Revenue Stamps (canceled or uncanceled)
• Selective Service or Draft Papers
  • Bonds or Other Certificates of Indebtedness
• Checks or Drafts Issued by Governmental Agencies
  • Stock Certificates
  • Motor Vehicle Licenses and Certificates of Title
  • Copyrighted Works/Works of Art without Permission of Copyright Owner

Safety-Related Symbols

Power switch: "ON" position

Power switch: "OFF" position

Power switch: "STAND-BY" position

① Push-push switch "N" "OF"

Protective earthing terminal

Dangerous voltage inside. Do not open covers other than instructed.

CAUTION: Hot surface. Do not touch.

Class II equipment

Moving parts: Keep body parts away from moving parts

[NOTE]

Some of symbols shown above may not be affixed depending on the product.

v1602_00_en-GB

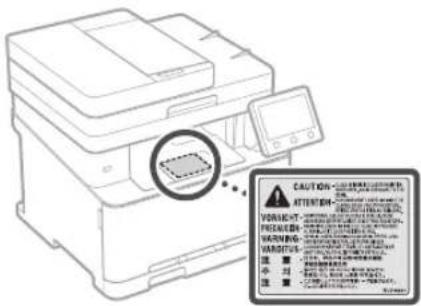

Laser Safety Label

• Do not dispose of used toner cartridges in open flames. This may cause an ignition, and result in burns or fire.
• If you accidentally spill or scatter toner, carefully wipe up the loose toner with a damp, soft cloth and avoid inhaling any toner dust. Never use a vacuum cleaner to clean up loose toner. Doing so may cause a malfunction in the vacuum cleaner or result in a dust explosion due to static discharge.

CAUTION

• Keep the toner cartridges and other consumables out of the reach of small children. If toner is ingested, consult a physician or poison control center immediately.
• Do not attempt to disassemble the toner cartridge. The toner may scatter and get into your eyes or mouth. If toner gets into your eyes or mouth, wash them immediately with cold water and consult a physician.
• If toner spills from the toner cartridge, avoid inhaling it or allowing it to come into contact with your skin. If the toner comes into contact with your skin, wash immediately with soap. If you inhale the toner or your skin becomes irritated due to contact with the toner, consult a physician or poison control center immediately.

IMPORTANT

Handling the toner cartridge

- Be sure to hold the toner cartridge using the handle.

Line drawing of a hand placing a component into a cylindrical device (no text or symbols)

- Do not scratch the drum surface (a) or expose it to light. Do not touch the electrical contacts (b) or the toner cartridge memory (c).

a Bottom View b c

• Do not remove the toner cartridge from this machine or from the protective bag unnecessarily.
• The toner cartridge is a magnetic product. Do not move it close to products susceptible to magnetism including floppy disks and disk drives. Doing so may result in data corruption.

Storing the toner cartridge

• Store in the following environment to ensure safe and satisfactory use. Storage temperature range: 0 to 35°C Storage humidity range: 35 to 85% RH (relative humidity/no condensation)*
• Store without opening until the toner cartridge is to be used.
• When removing the toner cartridge from this machine for storage, attach the protective cover for the drum, and then place the removed toner cartridge into the original protective bag or wrap it with a thick cloth.
• When storing the toner cartridge, do not store it upright or upside down. The toner will solidify and may not return to its original condition even if it is shaken.

* Even within the storable humidity range, water droplets (condensation) may develop inside the toner cartridge if there is a difference of temperature inside and outside the toner cartridge. Condensation will adversely affect the print quality of toner cartridges.

Do not store the toner cartridge in the following locations

• Locations exposed to open flames
- Locations exposed to direct sunlight or bright light for five minutes or more
- Locations exposed to excessive salty air
- Locations where there are corrosive gases (i.e. aerosol sprays and ammonia)
- Locations subject to high temperature and high humidity

• Locations subject to dramatic changes in temperature and humidity where condensation may easily occur
• Locations with a large amount of dust
• Locations within the reach of children

Be careful of counterfeit toner cartridges

• Please be aware that there are counterfeit Canon toner cartridges in the marketplace. Use of counterfeit toner cartridge may result in poor print quality or machine performance. Canon is not responsible for any malfunction, accident or damage caused by the use of counterfeit toner cartridge. For more information, see http://canon.com/counterfeit.

Availability period of repairing parts and toner cartridges

• The repairing parts and toner cartridges for the machine will be available for at least seven (7) years after production of this machine model has been discontinued.

Toner cartridge packing materials

• Save the protective bag for the toner cartridge and protective cover for the drum. They are required when transporting this machine.
• The packing materials may be changed in form or placement, or may be added or removed without notice.
• Dispose of the removed sealing tape according to local regulations.

When disposing of a used toner cartridge

- Attach the protective cover for the drum, place the toner container into its protective bag to prevent the toner from scattering, and then dispose of the toner cartridge according to local regulations.

Notice

Product Name

Safety regulations require the product's name to be registered.

In some regions where this product is sold, the following name(s) in parentheses () may be registered instead.

MF635Cx (F170102)

MF633Cdw / MF631Cn (F170100)

EMC requirements of EC Directive

This equipment conforms with the essential EMC requirements of EC Directive. We declare that this product conforms with the EMC requirements of EC Directive at nominal mains input 230 V, 50 Hz although the rated input of the product is 220 to 240 V, 50/60 Hz. Use of shielded cable is necessary to comply with the technical EMC requirements of EC Directive.

WEEE and Battery Directives

You can see the WEEE and Battery Directives information in the latest User's Guide (HTML manual) from the Canon website (http://canon.com/oip-manual).

Regulatory information for users in Jordan

MF635Cx / MF633Cdw includes approved Wireless LAN Module (Model name: AW-NM383). Contains Wireless LAN Module approved by TRC/SS/2014/38

Regulatory information for users in UAE

MF635Cx / MF633Cdw includes approved Wireless LAN Module (Model name: AW-NM383).

TRA

REGISTERED No: ER0126617/14

DEALER No: DA0060877/11

RE Declaration of Conformity

English (EN) Hereby, Canon Inc. declares that this equipment is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.canon-europe.com/ce-documentation Wireless LAN Specifications Frequency band(s):2412-2472MHz Maximum radio-frequency power:15.98dBm

• The information in this document is subject to change without notice.
  • CANON INC. MAKES NO WARRANTY OF ANY KIND WITH REGARD TO THIS MATERIAL, EITHER EXPRESS OR IMPLIED, EXCEPT AS PROVIDED HEREIN, INCLUDING WITHOUT LIMITATION, THEREOF, WARRANTIES AS TO MARKETABILITY, MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OF USE, OR NON-INFRINGEMENT. CANON INC. SHALL NOT BE LIABLE FOR ANY DIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGES OF ANY NATURE, OR LOSSES OR EXPENSES RESULTING FROM THE USE OF THIS MATERIAL.

About This Manual

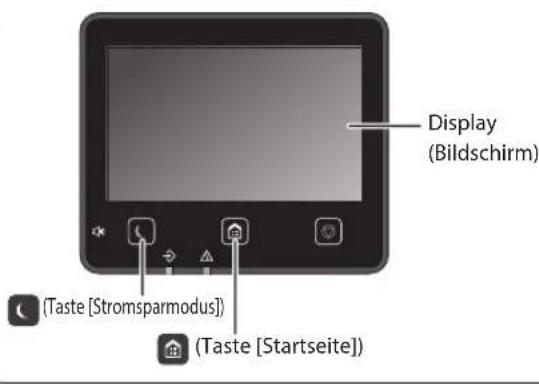

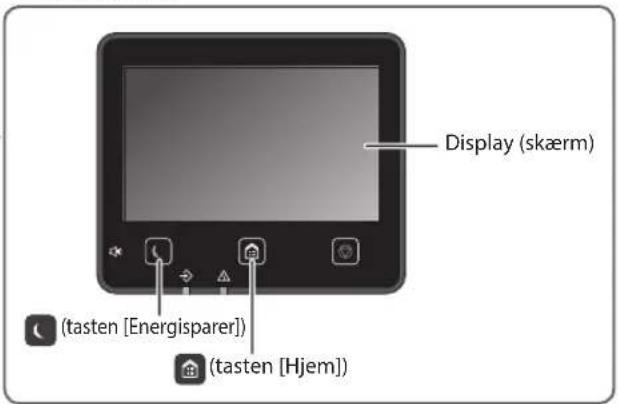

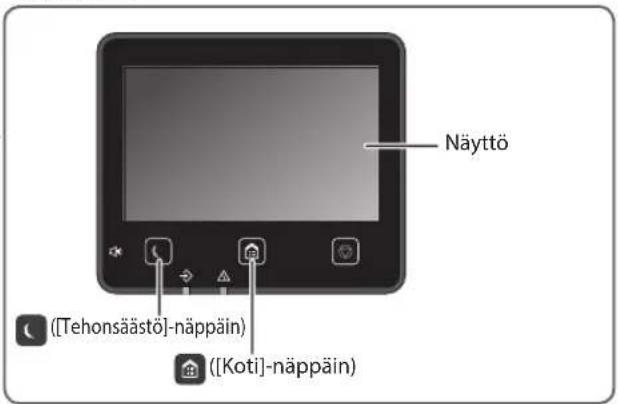

Keys and Buttons Used in This Manual The following symbols and key names are a few examples of how keys to be pressed are expressed in this manual. • Operation panel keys: [Key icon] Example: • Display:

- Buttons and items on the computer display: [Preferences]

Illustrations and Displays Used in This Manual Illustrations and displays used in this manual are which of MF635Cx unless specified.

Trademarks

Mac is a trademark of Apple Inc. Microsoft, Windows, Windows Vista, Windows Server, Internet Explorer, Excel, and PowerPoint are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. Other product and company names herein may be the trademarks of their respective owners.

Third Party Software

This Canon product (the "PRODUCT") includes third-party software modules. Use and distribution of these software modules, including any updates of such software modules (collectively, the "SOFTWARE") are subject to license conditions (1) through (9) below.

(1) You agree that you will comply with any applicable export control laws, restrictions or regulations of the countries involved in the event that this PRODUCT including the SOFTWARE is shipped, transferred or exported into any country.
(2) Rights holders of the SOFTWARE retain in all respects the title, ownership and intellectual property rights in and to the SOFTWARE. Except as expressly provided herein, no license or right, expressed or implied, is hereby conveyed or granted by rights holders of the SOFTWARE to you for any intellectual property of rights holders of the SOFTWARE.
(3) You may use the SOFTWARE solely for use with the PRODUCT.
(4) You may not assign, sublicense, market, distribute, or transfer the SOFTWARE to any third party without prior written consent of rights holders of the SOFTWARE.
(5) Notwithstanding the foregoing, you may transfer the SOFTWARE only when (a) you assign all of your rights to the PRODUCT and all rights and obligations under the license conditions to transferee and (b) such transferee agrees to be bound by all these conditions.
(6) You may not decompile, reverse engineer, disassemble or otherwise reduce the code of the SOFTWARE to human readable form.
(7) You may not modify, adapt, translate, rent, lease or loan the SOFTWARE or create derivative works based on the SOFTWARE.
(8) You are not entitled to remove or make separate copies of the SOFTWARE from the PRODUCT.
(9) The human-readable portion (the source code) of the SOFTWARE is not licensed to you.

Notwithstanding (1) through (9) above, the PRODUCT includes third-party software modules accompanying the other license conditions, and these software modules are subject to the other license conditions. Please refer to the other license conditions of third-party software modules described in Appendix of Manual for the corresponding the PRODUCT. This Manual is available at http://canon.com/oip-manual.

By using the PRODUCT, you shall be deemed to have agreed to all applicable license conditions. If you do not agree to these license conditions, please contact your service representative.

Memo

Line drawing of a printer with a digital display showing an image (no text or symbols present)

Panneau de commande

Line drawing of a device casing with internal components and directional arrows indicating movement (no text or symbols)

Line drawing of a printer or printer casing with an arrow pointing to the cover area (no text or symbols present)

Line drawing of a printer or printer with a paper sheet and two arrows indicating movement or assembly (no text or symbols present)

Diagram showing printer operation with icons for lighting and power switch, including a close-up of the device's screen.

Line drawing of a printer with a magnified inset showing the cable being inserted (no text or symbols present)

Illustration of a person handling a stack of books with a no-smoking symbol above (no text or labels)

CLASS 1 LASER PRODUCT

LASER KLASSE 1

APPAREIL À LASER DE CLASSE 1

APPARECCHIO LASER DI CLASSE 1

PRODUCTO LÁSER DE CLASE

APARELHO A LASER DE CLASSE 1

LUOKAN 1 LASER-TUOTE

LASERPRODUKT KLASS 1

Technical diagram showing a mechanical component with a prohibition symbol and an inset close-up of a door opening detail labeled 'a'.

Line drawing of a hand placing a component into a plastic housing (no text or symbols)

Regulatory information for users in Jordan MF635Cx / MF633Cdw includes approved Wireless LAN Module (Model name: AW-NM383). Contains Wireless LAN Module approved by TRC/SS/2014/38

Regulatory information for users in UAE

MF635Cx / MF633Cdw includes approved Wireless LAN Module (Model name: AW-NM383).

TRA

REGISTERED No: ER0126617/14

DEALER No: DA0060877/11

Regulatory information for users in Russian

RE Declaration of Conformity

English (EN) Hereby, Canon Inc. declares that this equipment is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.canon-europe.com/ce-documentation Wireless LAN Specifications Frequency band(s):2412-2472MHz Maximum radio-frequency power:15.98dBm

Line drawing of a printer with a digital display showing an icon (no text or symbols present)

Bedienfeld

Database Form1 Form2 Form3 Form4 Form5 Form6 Form7 Form8 Form9 Form10 Form11 Form12 Form13 Form14 Form15 Form16 Form17 Form18 Form19 Form20 Form21 Form22 Form23 Form24 Form25 Form26 Form27 Form28 Form29 Form30 Form31 Form32 Form33 Form34 Form35 Form36 Form37 Form38 Form39 Form40 Form41 Form42 Form43 Form44 Form45 Form46 Form47 Form48 Form49 Form50 Form51 Form52 Form53 Form54 Form55 Form56 Form57 Form58 Form59 Form60 Form61 Form62 Form63 Form64 Form65 Form66 Form67 Form68 Form69 Form70 Form71 Form72 Form73 Form74 Form75 Form76 Form77 Form78 Form79 Form80 Form81 Form82 Form83 Form84 Form85 Form86 Form87 Form88 Form89 Form90 Form91 Form92 Form93 Form94 Form95 Form96 Form97 Form98 Form99 Form100

Line drawing of a device casing with internal components and directional arrows indicating movement (no text or symbols)

Line drawing of a printer or printer casing with an arrow pointing to the cover area (no text or symbols present)

Line drawing of a printer or printer with paper sheet and paper holder, no text or symbols present

Diagram showing printer operation with icons for lighting and power switch, including a close-up of the device's screen.

Line drawing of a printer with a magnified inset showing the cable being inserted (no text or symbols present)

Illustration of a person handling a stack of books with a prohibition symbol above (no text or labels)

CLASS 1 LASER PRODUCT

LASER KLASSE 1

APPAREIL À LASER DE CLASSE 1

APPARECCHIO LASER DI CLASSE 1

PRODUCTO LÁSER DE CLASE 1

APARELHO A LASER DE CLASSE 1

LUOKAN 1 LASER-TUOTE

LASERPRODUKT KLASS 1

① Druckschalter "FIN" "AUR"

Line drawing of a hand placing a component into a rectangular housing (no text or symbols)

Regulatory information for users in Jordan

MF635Cx / MF633Cdw includes approved Wireless LAN Module (Model name: AW-NM383). Contains Wireless LAN Module approved by TRC/SS/2014/38

Regulatory information for users in UAE

MF635Cx / MF633Cdw includes approved Wireless LAN Module (Model name: AW-NM383).

TRA

REGISTERED No: ER0126617/14

DEALER No: DA0060877/11

RE Declaration of Conformity

English (EN) Hereby, Canon Inc. declares that this equipment is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.canon-europe.com/ce-documentation Wireless LAN Specifications Frequency band(s):2412-2472MHz Maximum radio-frequency power:15.98dBm

Line drawing of a printer with a digital display showing an image (no text or symbols present)

Pannello operativo

Display (schemo) (tasto [Risparmio energetico]) (tasto [Schermata principale])

Scansione

Line drawing of a device casing with internal components and directional arrows indicating movement (no text or symbols)

Line drawing of a printer or printer casing with an arrow pointing to the cover area (no text or symbols present)

Line drawing of a printer or printer with paper sheet and paper holder, no text or symbols present

Diagram illustrating printer operation with icons for lighting and power switch, showing process steps and control buttons.

Line drawing of a printer with a close-up inset showing the cable being inserted (no text or symbols present)

Illustration of a person handling a stack of books with a no-smoking symbol above (no text or labels)

CLASS 1 LASER PRODUCT

LASER KLASSE 1

APPAREIL À LASER DE CLASSE 1 APPARECCHIO LASER DI CLASSE 1

PRODUCTO LÁSER DE CLASE 1 APARELHO A LASER DE CLASSE 1

LUOKAN 1 LASER-TUOTE LASERPRODUKT KLASS 1

Technical diagram showing a mechanical component with a prohibition symbol and an inset close-up of a door mechanism labeled 'a'.

Appendice

Line drawing of a hand pressing down on a mechanical component (no text or symbols)

Regulatory information for users in Jordan

MF635Cx / MF633Cdw includes approved Wireless LAN Module (Model name: AW-NM383). Contains Wireless LAN Module approved by TRC/SS/2014/38

Regulatory information for users in UAE

MF635Cx / MF633Cdw includes approved Wireless LAN Module (Model name: AW-NM383).

TRA

REGISTERED No: ER0126617/14

DEALER No: DA0060877/11

Regulatory information for users in Russian

RE Declaration of Conformity

English (EN) Hereby, Canon Inc. declares that this equipment is in compliance with Directive 2014/53/EU.
The full text of the EU declaration of conformity is available at the following internet address: http://www.canon-europe.com/ce-documentation/Wireless LAN Specifications
Frequency band(s):2412-2472MHz
Maximum radio-frequency power:15.98dBm

Line drawing of a printer with a digital display showing an icon (no text or symbols present)

Panel de control

Visor (pantalla) (Tecla [Ahorro de energía]) (Tecla [Inicio])

Escaneado

Line drawing of a device casing with internal components and directional arrows indicating movement (no text or symbols)

Line drawing of a printer or printer casing with a paper clip inserted, labeled with number 2 (no text or symbols on the diagram itself)

Line drawing of a printer or printer with a paper sheet and two arrows indicating attachment points (no text or symbols present)

Diagram illustrating printer operation with icons for lighting and power switch, showing process steps and control buttons.

Diagram of a printer with a close-up view showing the cable being inserted into a socket (no text or symbols present)

Illustration of a person handling a stack of books with a prohibition symbol above (no text or labels)

CLASS 1 LASER PRODUCT

LASER KLASSE 1

APPAREIL À LASER DE CLASSE 1

APPARECCHIO LASER DI CLASSE 1

PRODUCTO LÁSER DE CLASE 1

APARELHO A LASER DE CLASSE 1

LUOKAN 1 LASER-TUOTE

LASERPRODUKT KLASS

Technical diagram showing a mechanical component with a prohibition symbol and an inset close-up of a hole detail labeled 'a'

Line drawing of a hand inserting a component into a rectangular housing (no text or symbols)

MF633Cdw / MF631Cn (F170100)

Regulatory information for users in Jordan

MF635Cx / MF633Cdw includes approved Wireless LAN Module (Model name: AW-NM383). Contains Wireless LAN Module approved by TRC/SS/2014/38

Regulatory information for users in UAE

MF635Cx / MF633Cdw includes approved Wireless LAN Module (Model name: AW-NM383).

TRA

REGISTERED No: ER0126617/14

DEALER No: DA0060877/11

RE Declaration of Conformity

English (EN) Hereby, Canon Inc. declares that this equipment is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.canon-europe.com/ce-documentation Wireless LAN Specifications Frequency band(s):2412-2472MHz Maximum radio-frequency power:15.98dBm

Line drawing of a printer with a digital display showing an image (no text or symbols present)

Panell de control

Visor (pantalla) (Tecla [Estalvi d'energia]) (Tecla [Inici])

Lectura

Line drawing of a device rear panel with arrows indicating internal components (no text or symbols)

Line drawing of a printer or printer casing with a paper sheet being inserted, no text or symbols present

Line drawing of a printer or printer with paper sheet and paper holder, no text or symbols present

Diagram showing printer operation with icons for lighting and power switch, including a close-up of the device's screen.

Line drawing of a printer with a magnified inset showing cable attachment (no text or symbols)

Illustration of a person handling a stack of books with a prohibition symbol above (no text or labels)

CLASS 1 LASER PRODUCT

LASER KLASSE 1

APPAREIL À LASER DE CLASSE 1

APPARECCHIO LASER DI CLASSE 1

PRODUCTO LÁSER DE CLASE 1

APARELHO A LASER DE CLASSE 1

LUOKAN 1 LASER-TUOTE

LASERPRODUKT KLASS 1

Technical diagram showing a mechanical component with a prohibition symbol and an inset close-up of a key inserted into a door.

Line drawing of a hand pressing down on a mechanical component (no text or symbols)

Regulatory information for users in Jordan MF635Cx / MF633Cdw includes approved Wireless LAN Module (Model name: AW-NM383). Contains Wireless LAN Module approved by TRC/ SS/2014/38

Regulatory information for users in UAE MF635Cx / MF633Cdw includes approved Wireless LAN Module (Model name: AW-NM383).

TRA

REGISTERED No: ER0126617/14

DEALER No: DA0060877/11

RE Declaration of Conformity

English (EN) Hereby, Canon Inc. declares that this equipment is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.canon-europe.com/ce-documentation Wireless LAN Specifications Frequency band(s):2412-2472MHz Maximum radio-frequency power:15.98dBm

Line drawing of a printer with a digital display showing an icon (no text or symbols present)

Eragiketa panela

Pantaila ([Energia aurrezlea] ezabatu tekla) ([Hasiera] ezabatu tekla)

Eskaneatzen

Line drawing of a door handle with a connector and directional arrows indicating movement (no text or symbols)

Line drawing of a printer or printer casing with a separate cover or panel, showing no text or symbols.

Line drawing of a printer or printer with paper sheet and paper holder, no text or symbols present

Diagram showing printer processing steps with icons for lighting and power switch application

Line drawing of a printer with a close-up inset showing the cable being inserted (no text or symbols present)

Illustration of a person handling a stack of books with a prohibition symbol above (no text or labels)

Elikagailua (elikagailua duten produktuetarako soilik)

CLASS 1 LASER PRODUCT LASER KLASSE 1

APPAREIL À LASER DE CLASSE 1

APPARECCHIO LASER DI CLASSE 1

PRODUCTO LÁSER DE CLASE 1

APARELHO A LASER DE CLASSE 1

LUOKAN 1 LASER-TUOTE

LASERPRODUKT KLASS 1

Line drawing of a hand pressing down on a mechanical component (no text or symbols)

Regulatory information for users in Jordan

MF635Cx / MF633Cdw includes approved Wireless LAN Module (Model name: AW-NM383). Contains Wireless LAN Module approved by TRC/SS/2014/38

Regulatory information for users in UAE MF635Cx / MF633Cdw includes approved Wireless LAN Module (Model name: AW-NM383).

TRA

REGISTERED No: ER0126617/14

DEALER No: DA0060877/11

Regulatory information for users in Russian

RE Declaration of Conformity

English (EN) Hereby, Canon Inc. declares that this equipment is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.canon-europe.com/ce-documentation Wireless LAN Specifications Frequency band(s):2412-2472MHz Maximum radio-frequency power:15.98dBm

Line drawing of a printer with a digital display showing an open lid (no text or symbols)

Painel de operações

Diagram illustrating a mechanical assembly with labeled parts and directional arrows, including magnified views of components.

Line drawing of a device casing with internal components and directional arrows indicating movement (no text or symbols)

Diagram of a printer or printer casing with an arrow pointing to its cover (no text or symbols present)

Line drawing of a printer or printer with paper sheet and paper clip, no text or symbols present

Diagram showing printer operation with icons for lighting and power switch, including a close-up of the device's screen.

Line drawing of a printer with a magnified inset showing cable insertion (no text or symbols)

Illustration of a person handling a device with a no-smoking symbol above (no text or labels)

CLASS 1 LASER PRODUCT

LASER KLASSE 1

APPAREIL À LASER DE CLASSE 1

APPARECCHIO LASER DI CLASSE 1

PRODUCTO LÁSER DE CLASE 1

APARELHO A LASER DE CLASSE 1

LUOKAN 1 LASER-TUOTE

LASERPRODUKT KLASS 1

Diagram of a printer holder with a no-smoking symbol (no text or labels present)

Simple line drawing of a car interior with a circular outline and a labeled point 'a' (no text or symbols beyond label)

Line drawing of a hand pressing down on a mechanical component (no text or symbols)

Regulatory information for users in Jordan

MF635Cx / MF633Cdw includes approved Wireless LAN Module (Model name: AW-NM383). Contains Wireless LAN Module approved by TRC/SS/2014/38

Regulatory information for users in UAE MF635Cx / MF633Cdw includes approved Wireless LAN Module (Model name: AW-NM383).

TRA

REGISTERED No: ER0126617/14 DEALER No: DA0060877/11

Regulatory information for users in Russian

RE Declaration of Conformity

English (EN) Hereby, Canon Inc. declares that this equipment is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address: http://www.canon-europe.com/ce-documentation

Wireless LAN Specifications

Frequency band(s):2412-2472MHz

Maximum radio-frequency power:15.98dBm

Line drawing of a printer with a digital display showing an icon (no text or symbols present)

Πίνακας λειτουργίας

New Document File Edit View Insert New Book (100%) Audio Format View Page Set Add Paste Set New Page Set Page Layout Type 1 Available Text Space History Defaulting Multi-Layout Any Page Shift Outer Length Custom Save As Default Close Show Delete

Για λεπτομέρειες

Diagram illustrating a mechanical assembly with labeled parts and directional arrows, including magnified views of the component.

Line drawing of a door handle with arrows indicating direction (no text or symbols)

Line drawing of a printer or printer casing with a separate cover or panel, showing no text or symbols.

Line drawing of a printer or printer with an open lid and paper sheet, no text or symbols present

Diagram showing printer printing process with icons for flash, power switch, and power button application

Line drawing of a printer with a close-up inset showing the cable being inserted (no text or symbols present)

Illustration of a person handling stacked electronic devices with a prohibition symbol above (no text or labels)

CLASS 1 LASER PRODUCT LASER KLASSE 1

APPAREIL À LASER DE CLASSE 1

APPARECCHIO LASER DI CLASSE 1

PRODUCTO LÁSER DE CLASE

APARELHO A LASER DE CLASSE 1

LUOKAN 1 LASER-TUOTE

LASERPRODUKT KLASS 1

Technical diagram showing a mechanical component with a prohibition symbol and an inset close-up of a key inserted into a housing.

CAUTION WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING Warning

Αναλώσιμα

ΑΠΡΟΕΙΔΟΠΟΙΗΑΣΝ

Hand placing a component into a rectangular electronic device (no text or symbols visible)

Regulatory information for users in Jordan

MF635Cx / MF633Cdw includes approved Wireless LAN Module (Model name: AW-NM383). Contains Wireless LAN Module approved by TRC/SS/2014/38

Παράρτημα

Regulatory information for users in UAE MF635Cx / MF633Cdw includes approved Wireless LAN Module (Model name: AW-NM383).

TRA

REGISTERED No: ER0126617/14 DEALER No: DA0060877/11

RE Declaration of Conformity

English (EN) Hereby, Canon Inc. declares that this equipment is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.canon-europe.com/ce-documentation Wireless LAN Specifications Frequency band(s):2412-2472MHz Maximum radio-frequency power:15.98dBm

Line drawing of a printer with a digital display on the right side (no text or symbols)

Betjeningspanel

Display (skærm) (tasten [Energisparer]) (tasten [Hjem])

Scanning

File Edit/Exporting Sub-Project list: Name: Microsoft Excel Sub-Project: Microsoft Excel Sub-Project: Microsoft Excel Sub-Project: Microsoft Excel Sub-Project: Microsoft Excel Sub-Project: Microsoft Excel Sub-Project: Microsoft Excel Sub-Project: Microsoft Excel Sub-Project: Microsoft Excel Sub-Project: Microsoft Excel Sub-Project: Microsoft Excel Sub-Project: Microsoft Excel Sub-Project: Microsoft Excel Sub-Project: Microsoft Excel Sub-Project: Microsoft Excel Sub-Project:Microsoft Excel Sub-Project: Microsoft Excel Sub-Project: Microsoft Excel Sub-Project: Microsoft Excel Sub-Project: Microsoft Excel Sub-Project: Microsoft Excel Sub-Project: Microsoft Excel Sub-Project: Microsoft Excel Sub-Project: Microsoft Excel Sub-Project: Microsoft Excel Sub-Project: Microsoft Excel Sub-Project: Microsoft Excel Sub-Project: Microsoft Excel Sub-Project: Microsoft Excel Sub-Project: Microsoft Excel

Find oplysninger i

Line drawing of a door handle with arrows indicating movement or force (no text or symbols)

Line drawing of a printer or printer casing with an arrow pointing to the cover area (no text or symbols present)

Line drawing of a printer or printer with paper sheet and paper holder, no text or symbols present

Diagram showing printer operation with icons for lighting and power switch, including a close-up of the device's screen.

Line drawing of a printer with a magnified inset showing cable insertion (no text or symbols)

Illustration of a person handling a stack of books with a prohibition symbol above (no text or labels)

CLASS 1 LASER PRODUCT

LASER KLASSE 1

APPAREIL À LASER DE CLASSE 1

APPARECCHIO LASER DI CLASSE 1

PRODUCTO LÁSER DE CLASE 1

APARELHO A LASER DE CLASSE 1

LUOKAN 1 LASER-TUOTE

LASERPRODUKT KLASS 1

Line drawing of a hand pressing down on a mechanical component (no text or symbols)

MF635Cx (F170102) MF633Cdw / MF631Cn (F170100)

EMC-kravene i EU-direktivet

Regulatory information for users in Jordan

MF635Cx / MF633Cdw includes approved Wireless LAN Module (Model name: AW-NM383). Contains Wireless LAN Module approved by TRC/SS/2014/38

Regulatory information for users in UAE MF635Cx / MF633Cdw includes approved Wireless LAN Module (Model name: AW-NM383).

TRA

REGISTERED No: ER0126617/14 DEALER No: DA0060877/11

Regulatory information for users in Russian

RE Declaration of Conformity

English (EN) Hereby, Canon Inc. declares that this equipment is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.canon-europe.com/ce-documentation Wireless LAN Specifications Frequency band(s):2412-2472MHz Maximum radio-frequency power:15.98dBm

Line drawing of a printer with a digital display showing its screen (no text or symbols present)

Bedieningspaneel

Display (scherm) (toets [Energiebesparing]) (toets [Start])

Scannen

Diagram illustrating a mechanical assembly with labeled components and directional arrows, including a hand pressing a workpiece.

Line drawing of a device casing with internal components and directional arrows indicating movement (no text or symbols)

Line drawing of a printer or printer casing with an arrow pointing to the cover area (no text or symbols present)

Line drawing of a printer or printer with paper sheet and paper clip, no text or symbols present

Diagram showing printer printing process with icons for flash, power switch, and power button application

Diagram of a printer with a magnified inset showing cable connection (no text or symbols)

Illustration of a person handling a printer with a prohibition symbol (no text or labels)

CLASS 1 LASER PRODUCT

LASER KLASSE 1

APPAREIL À LASER DE CLASSE 1 APPARECCHIO LASER DI CLASSE 1

PRODUCTO LÁSER DE CLASE 1 APARELHO A LASER DE CLASSE 1

LUOKAN 1 LASER-TUOTE LASERPRODUKT KLASS 1

Technical diagram showing a mechanical component with a prohibition symbol and an inset close-up of a component detail labeled 'a'.

• Identificatiebadges of -insignes

Line drawing of a hand placing a component into a rectangular housing (no text or symbols)

Regulatory information for users in Jordan

MF635Cx / MF633Cdw includes approved Wireless LAN Module (Model name: AW-NM383). Contains Wireless LAN Module approved by TRC/SS/2014/38

Regulatory information for users in UAE

MF635Cx / MF633Cdw includes approved Wireless LAN Module (Model name: AW-NM383).

TRA

REGISTERED No: ER0126617/14

DEALER No: DA0060877/11

Regulatory information for users in Russian

RE Declaration of Conformity

English (EN) Hereby, Canon Inc. declares that this equipment is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.canon-europe.com/ce-documentation Wireless LAN Specifications Frequency band(s):2412-2472MHz Maximum radio-frequency power:15.98dBm

Line drawing of a printer with a digital display showing an image (no text or symbols present)

Betjeningspanel

Display (skjerm) ([Strømsparing]-tast) ([Hjem]-tast)

Skanning

1. Legg i originaldokumentet.
2. Trykk på og velg .
3. Velg typen skanning og angi nødvendig informasjon.
4. Velg , eller .

Typer skanning

■ Lagre på USB-minneenhet
■ Sende i e-post
■ Sende til filserver

3 Opp hit

4 Skyv papirskuffen inn i maskinen.

Line drawing of a device casing with internal components and directional arrows indicating movement (no text or symbols)

Line drawing of a printer or printer casing with a separate cover or panel, showing no text or symbols.

Line drawing of a printer or printer with an open lid and paper sheet, no text or symbols present

Diagram showing printer operation with icons for lighting and power switch, including a close-up of the device's screen.

Diagram of a printer with a magnified inset showing cable attachment (no text or symbols)

Se bruksanvisningen hvis problemet vedvarer.

Illustration of a person handling a stack of books with a 'no' symbol above (no text or labels)

CLASS 1 LASER PRODUCT

LASER KLASSE 1

APPAREIL À LASER DE CLASSE 1

APPARECCHIO LASER DI CLASSE 1

PRODUCTO LÁSER DE CLASE 1

APARELHO A LASER DE CLASSE 1

LUOKAN 1 LASER-TUOTE

LASERPRODUKT KLASS 1

Technical line drawing of a mechanical component with a no-smoking symbol (no text or labels present)

Simple line drawing of a person inside a vehicle, enclosed in a circle (no text or symbols)

Line drawing of a hand placing a component into a cylindrical device (no text or symbols)

Regulatory information for users in Jordan MF635Cx / MF633Cdw includes approved Wireless LAN Module (Model name: AW-NM383). Contains Wireless LAN Module approved by TRC/SS/2014/38

Regulatory information for users in UAE MF635Cx / MF633Cdw includes approved Wireless LAN Module (Model name: AW-NM383).

TRA

REGISTERED No: ER0126617/14 DEALER No: DA0060877/11

RE Declaration of Conformity

English (EN) Hereby, Canon Inc. declares that this equipment is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.canon-europe.com/ce-documentation Wireless LAN Specifications Frequency band(s):2412-2472MHz Maximum radio-frequency power:15.98dBm

Line drawing of a printer with a digital display showing an icon (no text or symbols present)

Kontrollpanel

Display (skärm) ([Energisparläge]-knapp) ([Hem]-knapp)

Skanna

File Edit View Insertion Format: Edit Export Save As Save As Import As Export As Export As Export As Export As Export As Export As Export As Export As Export As Export As Export As Export As Export As Export As Export As Export As Export As Export As Export As Export As Export As Export As Export As Export As Export As Export As Export As Export As Export As Export As Export As Export As Export As ExportAs ExportAs ExportAs ExportAs ExportAs ExportAs ExportAs ExportAs ExportAs ExportAs ExportAs ExportAs ExportAs ExportAs ExportAs ExportAs ExportAs ExportAs ExportAs ExportAs ExportAs ExportAs ExportAs ExportAs ExportAs ExportAs ExportAs ExportAs ExportAs ExportAs ExportAs ExportAs ExportAs ExportAs

Line drawing of a door handle with arrows indicating movement or force (no text or symbols)

Line drawing of a printer or printer casing with a separate cover or panel, showing no text or symbols.

Line drawing of a printer or printer holder with paper sheet and paper clip, no text or symbols present

Diagram showing printer processing steps with icons and labels, including a close-up of a button and a magnified view of the next step.

Line drawing of a printer with a magnified inset showing cable being inserted (no text or symbols)

Illustration of a person handling a stack of books with a no-smoking symbol above (no text or labels)

CLASS 1 LASER PRODUCT

LASER KLASSE 1

APPAREIL À LASER DE CLASSE 1

APPARECCHIO LASER DI CLASSE 1

PRODUCTO LÁSER DE CLASE 1

APARELHO A LASER DE CLASSE 1

LUOKAN 1 LASER-TUOTE

LASERPRODUKT KLASS 1

Technical line drawing of a mechanical component with a no-smoking symbol (no text or labels present)

Diagram of a mechanical component inside a circular outline, labeled 'a' (no text or symbols on the diagram itself)

Line drawing of a hand inserting a component into a battery pack (no text or symbols)

Regulatory information for users in Jordan

MF635Cx / MF633Cdw includes approved Wireless LAN Module (Model name: AW-NM383). Contains Wireless LAN Module approved by TRC/SS/2014/38

Regulatory information for users in UAE

MF635Cx / MF633Cdw includes approved Wireless LAN Module (Model name: AW-NM383).

TRA

REGISTERED No: ER0126617/14

DEALER No: DA0060877/11

Regulatory information for users in Russian

RE Declaration of Conformity

English (EN) Hereby, Canon Inc. declares that this equipment is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address: http://www.canon-europe.com/ce-documentation Wireless LAN Specifications Frequency band(s):2412-2472MHz Maximum radio-frequency power:15.98dBm

Line drawing of a printer with a digital display unit attached (no text or symbols)

Käyttöpaneeli

Line drawing of a device casing with internal components and directional arrows indicating movement (no text or symbols)

Line drawing of a printer or printer casing with a separate cover panel, no text or symbols present

Line drawing of a printer or printer with a paper sheet and two arrows indicating attachment points (no text or symbols present)

Diagram showing printer printing process with icons for flash, power switch, and power button

Line drawing of a printer with a magnified inset showing the cable being inserted (no text or symbols present)

Illustration of a person handling a stack of books with a no-smoking symbol above (no text or labels)

CLASS 1 LASER PRODUCT

LASER KLASSE 1

APPAREIL À LASER DE CLASSE 1

APPARECCHIO LASER DI CLASSE 1

PRODUCTO LÁSER DE CLASE 1 APARELHO A LASER DE CLASSE 1

LUOKAN 1 LASER-TUOTE

LASERPRODUKT KLASS 1

Diagram of a printer holder with a prohibition symbol (no text or labels present)

Simple line drawing of a person inside a vehicle, enclosed in a circle with label 'a' (no text or symbols on the diagram itself)

CAUTION ATTENTION WARNING: WARNING: WARNING: WARNING: WARNING: WARNING: WARNING: WARNING:

Tarvikkeet

A VAROITUS

Hand placing a component into a rectangular electronic device (no text or symbols visible)

Regulatory information for users in Jordan

MF635Cx / MF633Cdw includes approved Wireless LAN Module (Model name: AW-NM383). Contains Wireless LAN Module approved by TRC/SS/2014/38

Regulatory information for users in UAE

MF635Cx / MF633Cdw includes approved Wireless LAN Module (Model name: AW-NM383).

TRA

REGISTERED No: ER0126617/14

DEALER No: DA0060877/11

Regulatory information for users in Russian

RE Declaration of Conformity

English (EN) Hereby, Canon Inc. declares that this equipment is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.canon-europe.com/ce-documentation Wireless LAN Specifications Frequency band(s):2412-2472MHz Maximum radio-frequency power:15.98dBm

Line drawing of a printer with a digital display showing an image (no text or symbols present)

Панель управления

Line drawing of a device casing with internal components and directional arrows indicating movement (no text or symbols)

Diagram of a printer or printer casing with an arrow pointing to its cover (no text or symbols present)

Line drawing of a printer or printer with a paper sheet and two arrows indicating attachment points (no text or symbols present)

Diagram illustrating printer operation with icons for lighting and power switch, showing process steps and control buttons.

Diagram of a printer with a close-up view showing cable insertion (no text or symbols present)

Illustration of a person handling stacked electronic devices with a no-smoking symbol above (no text or labels)

CLASS 1 LASER PRODUCT

LASER KLASSE 1

APPAREIL À LASER DE CLASSE 1

APPARECCHIO LASER DI CLASSE 1

PRODUCTO LÁSER DE CLASE

APARELHO A LASER DE CLASSE 1

LUOKAN 1 LASER-TUOTE

LASERPRODUKT KLASS 1

Technical diagram showing a mechanical component with a prohibition symbol and an inset close-up of a component detail labeled 'a'.

Line drawing of a hand pressing down on a mechanical component (no text or symbols)

Regulatory information for users in Jordan MF635Cx / MF633Cdw includes approved Wireless LAN Module (Model name: AW-NM383). Contains Wireless LAN Module approved by TRC/ SS/2014/38

Приложение

Regulatory information for users in UAE MF635Cx / MF633Cdw includes approved Wireless LAN Module (Model name: AW-NM383).

TRA

REGISTERED No: ER0126617/14 DEALER No: DA0060877/11

RE Declaration of Conformity

English (EN) Hereby, Canon Inc. declares that this equipment is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.canon-europe.com/ce-documentation Wireless LAN Specifications Frequency band(s):2412-2472MHz Maximum radio-frequency power:15.98dBm

Line drawing of a printer with a digital display on the right side (no text or symbols)

Панель керування

Scan Select a scan type. Computer USB Memory E-MAI F-MAI File Status Monitor

Copy Copy Ratio 100% Form Density Number of Colors A4 ±0 1 2 Select Off N = 1.1 Off Reset B&W Start Color Start Other Settings Status Monitor

File Edit Options File Name: File Type: Export Date: Export Date: Export Date: Export Date: Export Date: Export Date: Export Date: Export Date: Export Date: Export Date: Export Date: Export Date: Export Date: Export Date: Export Date: Export Date: Export Date: Export Date: Export Date: Export Date: Export Date: Export Date: Export Date: Export Date: Export Date: Export Rate Export Rate Export Rate Export Rate Export Rate Export Rate Export Rate Export Rate Export Rate Export Rate Export Rate Export Rate Export Rate Export Rate Export Rate Export Rate Export Rate Export Rate Export Rate Export Rate Export Rate Export Rate Export Rate Export Rate Export Rate Export Rate Export Rate Export Rate Export Rate Export Rate Export Rate Export Rate Export Rate Export Rate export export export export export export export export export export export export export export export export export export export export export export export export export export export export export export export export export export export export export export export export export export export export export export export export export export exports export export export export export export export export export export export export export export export export export export export export export export export export export export export export export export export export export export export export export export export export export export export export export export export export export export export export export export export export export export export export export export export export export export export export export export export export export export export export export export export export export export export export export export export export export export export export export export export export export export export Export: Export: Export: Export: Export: Export: Export: Export: Export: Export: Export: Export: Export: Export: Export: Export: Export: Export: Export: Export: Export: Export: Export: Export: Export: Export: Export: Export: Export: Export: Export: Export: Export: Export: Export: Export: Export: Export: Export: Export: Export: Export: Export: Export: Export: Export: Export: Export: Export: Export: Export:

Line drawing of a device casing with internal components and directional arrows indicating movement (no text or symbols)

Line drawing of a printer or printer casing with an arrow pointing to the cover area (no text or symbols present)

Line drawing of a printer or printer with paper sheet and paper holder, no text or symbols present

Diagram showing printer operation with icons for lighting and power switch, including a close-up of the device's screen.

Line drawing of a printer with a magnified inset showing the cable being inserted (no text or symbols present)

Paper jammed. Open the back cover. Previous 1/3

End of Cartridge Lifetime Pull the toner cartridge up and out. Previous 3/7 Next

Illustration of a hand inserting a device into an open storage case with a prohibition symbol (no text or labels)

Illustration of a person handling stacked electronic devices with a prohibition symbol above (no text or labels)

CLASS 1 LASER PRODUCT LASER KLASSE 1

APPAREIL À LASER DE CLASSE 1 APPARECCHIO LASER DI CLASSE 1

PRODUCTO LÁSER DE CLASE 1

APARELHO A LASER DE CLASSE 1

LUOKAN 1 LASER-TUOTE

LASERPRODUKT KLASS 1

CAUTION WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING Warning: Warning: Warning: Warning: Warning: Warning: Warning: Warning: Warning: Warning: Warning: Warning: Warning: Warning: Warning: Warning: Warning: Warning: Warning: Warning: Warning: Warning: Warning: Warning: Warning: Warning: Warning: Warning: Warning: Warning: Warning: Warning: Warning: Warning: Warning: Warning: Warning: Warning: Warning: Warning: Warning: Warning: Warning: Warning: Warning: Warning: Warning: Warning: Warning: Warning: Warning:

Витратні матеріали

А ПОПЕРЕДЖЕННЯ

Line drawing of a hand pressing down on a mechanical component (no text or symbols)

MF633Cdw / MF631Cn (F170100)

Regulatory information for users in Jordan

MF635Cx / MF633Cdw includes approved Wireless LAN Module (Model name: AW-NM383). Contains Wireless LAN Module approved by TRC/SS/2014/38

Regulatory information for users in UAE

MF635Cx / MF633Cdw includes approved Wireless LAN Module (Model name: AW-NM383).

TRA

REGISTERED No: ER0126617/14

DEALER No: DA0060877/11

Regulatory information for users in Russian

RE Declaration of Conformity

English (EN) Hereby, Canon Inc. declares that this equipment is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address: http://www.canon-europe.com/ce-documentation Wireless LAN Specifications

Frequency band(s):2412-2472MHz

Maximum radio-frequency power:15.98dBm

30-2, Shimomaruko 3-chome, Ohta-ku, Tokyo 146-8501, Japan

One Canon Park, Melville, NY 11747, U.S.A.

CANON EUROPA N.V.

Bovenkerkerweg 59, 1185 XB Amstelveen, The Netherlands

2F Jinbao Building No.89, Jinbao Street,

Dongcheng District, Beijing 100005, PRC

CANON SINGAPORE PTE LTD

1 Fusionopolis Place, #15-10, Galaxis, Singapore

138522

CANON AUSTRALIA PTY LTD

Building A, The Park Estate, 5 Talavera Road,

Macquarie Park, NSW 2113, Australia

CANON GLOBAL WORLDWIDE SITES

http://www.canon.com/

Printed on non-chlorine bleached paper.
