Product type	Food processor
Brand	CASO
Model	B350 SingleServe (B 350 Single-Serve)
Item number	3609
Dimensions	11 x 37 x 12 cm
Net weight	1141 g
Supply voltage	220-240 V
Frequency	50-60 Hz
Power consumption	350 W
Container capacity	300 ml and 600 ml
Number of containers included	2
Main function	Blend smoothies, drinks, etc.
Intended use	For indoor household use only
Safety – safety switch	The appliance only operates if the container and blade base are correctly assembled
Maximum operating time	60 seconds, then a 60-second cooling
Maximum liquid temperature	50°C
Cleaning – containers, lid, blade base	Hand wash or dishwasher safe (except removed gaskets)
Cleaning – motor base	Wipe with a damp cloth, do not immerse
Warranty	24 months from date of purchase
Included accessories	2 lids, 2 lid gaskets, 2 containers, 1 blade base gasket, 1 blade base, 1 neoprene sleeve, 1 manual

Frequently Asked Questions - B350 SingleServe CASO

How to assemble the appliance before first use?

Wash the removable parts (containers, lids, blade base) in soapy water. Dry them. To assemble, place ingredients in the container, screw the blade base clockwise, then place the container on the motor base and turn until it locks (arrows aligned). Plug in and press the on/off button.

Can you blend hot ingredients?

No, the temperature of liquids must not exceed 50°C to avoid burns and damage to the appliance.

What to do if the appliance does not start?

Check that the plug is properly inserted and that the appliance is correctly assembled. The safety switch prevents operation if the container is not properly engaged. Make sure the arrows are aligned and the container is locked.

What is the maximum continuous operating time?

Do not operate the appliance for more than 60 seconds continuously. Let it cool down for at least 60 seconds before using it again.

How to clean the very sharp blade base?

Handle the blade base with care. Wash it under running water or in the dishwasher. You can also blend water with a little dish soap for 15 seconds for a quick clean.

Can I use the appliance to blend frozen fruits or ice?

Frozen fruits and ice should not be blended with a large amount of liquid, as this could damage the appliance. It is better to let them thaw slightly or cut them into small pieces.

What to do if a sealing gasket is missing or damaged?

Sealing gaskets are essential to prevent leaks. Replace them with original parts. You can remove them for cleaning and reinsert them correctly: the thick gasket is for the lid, the thin gasket is for the blade base.

How long is the warranty and what does it cover?

The warranty is 24 months from the date of purchase and covers manufacturing defects or material defects. It does not cover normal wear and tear, damage due to improper use, or unauthorized repairs.

Can I use accessories from other brands?

Only accessories recommended by the manufacturer should be used to avoid risk of injury or malfunction. The use of unauthorized accessories voids the warranty.

How to dispose of the appliance at the end of its life?

Do not dispose of the appliance with household waste. Take it to a collection point for electrical and electronic appliances. Ask your local authority or recycling center.

USER MANUAL B350 SingleServe CASO

10 Technische Daten 20
11 Operating Manual. 22
11.1 General 22
11.2 Information on this manual 22
11.3 Warning notices 22
11.4 Limitation of liability 23
11.5 Copyright protection 23
12 Safety 23
12.1 Intended use 23
12.2 General Safety information 24
12.3 Dangers due to electrical power 25
12.4 Commissioning 25
12.5 Safety information 25
12.6 Delivery scope and transport inspection 25
12.7 Unpacking 26
12.8 Disposal of the packaging 26
12.9 Setup location requirements: 26
12.10 Electrical connection 26
13 Design and Function 27
13.1 Overview 27
13.2 Rating plate 27
14 Operation and Handing 28
14.1 Before initial use 28
14.2 Use 28
14.3 Recipes 29
15 Cleaning and Maintenance 29
15.1 Safety information 30
15.2 Cleaning 30
16 Troubleshooting 30
16.1 Security advices 30
16.2 Troubleshooting 30
17 Disposal of the Old Device. 31
18 Guarantee 31
19 Technical Data. 31

Please read the information contained herein so that you can become familiar with your device quickly and take advantage of the full scope of its functions.

Your B 350 Single-Serve will serve you for many years if you handle it and care for it properly. We wish you a lot of pleasure in using it!

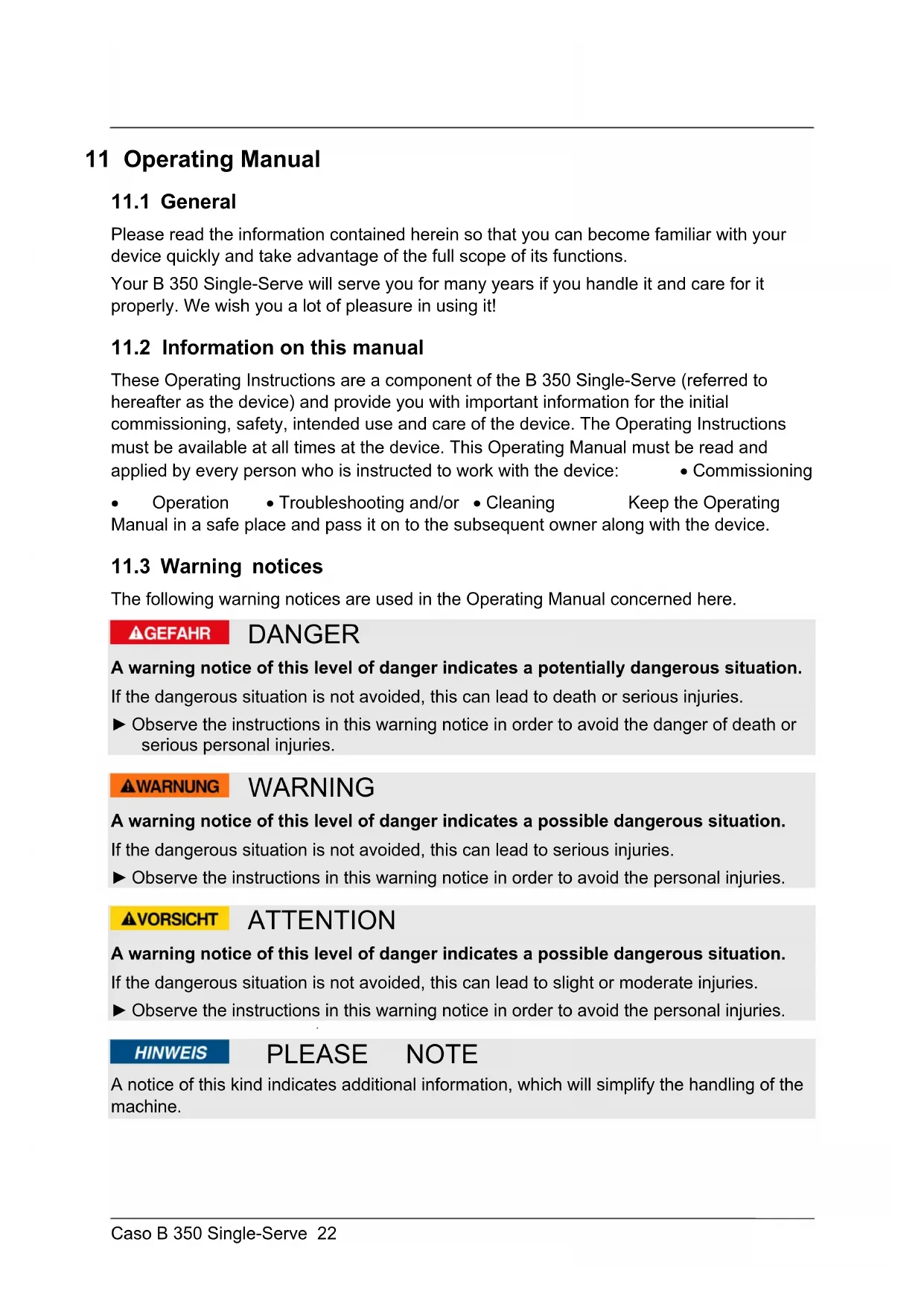

11.2 Information on this manual

These Operating Instructions are a component of the B 350 Single-Serve (referred to hereafter as the device) and provide you with important information for the initial commissioning, safety, intended use and care of the device. The Operating Instructions must be available at all times at the device. This Operating Manual must be read and applied by every person who is instructed to work with the device: Commissioning

Operation

• Troubleshooting and/or - Cleaning

Keep the Operating

Manual in a safe place and pass it on to the subsequent owner along with the device.

11.3 Warning notices

The following warning notices are used in the Operating Manual concerned here.

AGEFAHR

DANGER

A warning notice of this level of danger indicates a potentially dangerous situation. If the dangerous situation is not avoided, this can lead to death or serious injuries.

Observe the instructions in this warning notice in order to avoid the danger of death or serious personal injuries.

WARNING

WARNING

A warning notice of this level of danger indicates a possible dangerous situation.

If the dangerous situation is not avoided, this can lead to serious injuries.

Observe the instructions in this warning notice in order to avoid the personal injuries.

AVORSICHT

ATTENTION

A warning notice of this level of danger indicates a possible dangerous situation.

If the dangerous situation is not avoided, this can lead to slight or moderate injuries.

Observe the instructions in this warning notice in order to avoid the personal injuries.

HINWEIS

PLEASE

NOTE

A notice of this kind indicates additional information, which will simplify the handling of the machine.

11.4 Limitation of liability

All the technical information, data and notices with regard to the installation, operation and care are completely up-to-date at the time of printing and are compiled to the best of our knowledge and belief, taking our past experience and findings into consideration.

No claims can be derived from the information provided, the illustrations or descriptions in this manual. The manufacturer does not assume any liability for damages arising as a result of the following:

Non-observance of the manual
Uses for non-intended purposes
- Improper repairs
- Technical alterations, modifications of the device
- Use of unauthorized spare parts

Modifications of the device are not recommended and are not covered by the guarantee.

All translations are carried out to the best of our knowledge. We do not assume any liability for translation errors, not even if the translation was carried out by us or on our instructions. The original German text remains solely binding.

11.5 Copyright protection

This document is copyright protected. Braukmann GmbH reserves all the rights, including those for photomechanical reproduction, duplication and distribution using special processes (e.g. data processing, data carriers, data networks), even partially.

Subject to content and technical changes.

12 Safety

This chapter provides you with important safety notices when handling the device.

The device corresponds with the required safety regulations. Improper use can result in personal or property damages.

12.1 Intended use

This device is only intended for use in households in enclosed spaces for

• Mixing of smoothies, drinks, etc.

Uses for a different purpose or for a purpose which exceeds this description are considered incompatible with the intended or designated use.

▲WARNUNG

Warning

Danger due to unintended use! Dangers can emanate from the device if it is used for an unintended use and/or a different kind of use.

• Use the device exclusively for its intended use.
  Observe the procedural methods described in this Operating Manual.

Claims of all kinds due to damages resulting from unintended uses are excluded. The User bears the sole risk.

12.2 General Safety information

HINWEIS

Please note

Please observe the following general safety notices with regard to the safe handling of the device.

Examine the device for any visible external damages prior to using it. Never put a damaged device into operation.
If the connection lead is damaged, you will need to have a new connection lead installed by an authorized electrician.
Children are not allowed to use this device. Keep the device and its cord out of reach of children. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children.
This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved.
Do not leave the device unsupervised when it is in operation.
Only qualified electricians, who have been trained by the manufacturer, may carry out any repairs that may be needed. Improperly performed repairs can cause considerable dangers for the user.
Only customer service departments authorized by the manufacturer may carry out repairs on the device during the guarantee period, as otherwise the guarantee entitlements will be null and void in the event of any subsequent damages.
Defective components must always be replaced with original replacement parts. Only such parts will guarantee that the safety requirements are fulfilled.
- Never immerse the device, cord or plug in water or other liquids and do not place in the dishwasher.
Do not touch the device with wet hands. Pull the plug immediately when the device has become wet.
- Unplug from the outlet when not in use and before cleaning and before putting on or taking of parts. Allow to cool before putting on or taking off parts and before cleaning or storing the appliance.

WARNING

Warning

Avoid contacting moving parts (blades).
The use of attachments not recommended or sold by the manufacturer may cause fire, electric shock or injury.
- Keep hands and utensils out of container while blending to reduce the risk of severe injury to persons or damage to the blender.
Blades are sharp. Handle carefully.
The use of attachments not recommended by the manufacturer may cause a risk of injury to persons.
If the blades get stuck, unplug the appliance before you remove the ingredients that block the blades.
Do not use the device when the bottle is empty.
Do not use the devicer longer as 60 seconds. Let it cool down after this for ca. 60 seconds before using it again.
Do not manipulate the safety switch.

WARNING

Warning

Do not remove the bottle during operation.
Do not fill with liquids above 50^ . Risk of burns!
Do not fill the bottle above the 300ml/600ml mark.
If the ingredients produce a lot of froth then reduce the quantity.

12.3 Dangers due to electrical power

▲GEFAHR

Danger. Mortal danger due to electrical power!

Mortal danger exists when coming into contact with live wires or subassemblies!

Observe the following safety notices to avoid dangers due to electrical power:

If the connection lead is damaged, you will need to have a special connection lead installed by an authorized electrician.
Do not operate this device if its power cable or plug is damaged, if it does not work properly or if it is damaged or has been dropped. If the power cable is damaged, it will need to be replaced by the manufacturer or his service agency or a similar qualified person, to avoid any dangers.
Do not open the housing on the device under any circumstances. There is a danger of an electrical shock if live connections are touched and the electrical or mechanical structure is altered. In addition, functional faults on the device can also occur.

12.4 Commissioning

This chapter provides you with important safety notices during the initial commissioning of the device. Observe the following notices to avoid dangers and damages:

12.5 Safety information

WARNING

Warning

Personal and property damages can occur during commissioning of the device!

Observe the following safety notices to avoid such dangers:

Packaging materials may not be used for playing. There is a danger of suffocation.

12.6 Delivery scope and transport inspection

As a rule, the B 350 Single-Serve is delivered with the following components:

2 lids

• 2 sealing rings for the lid

• 2 bottles (300 ml / 600 ml)

1 sealing ring for the blade base

• blade base

neoprene sleeve for 600 ml bottle

• base unit with motor and cable storage

• operating instructions

HINWEIS

Please note

Examine the shipment for its completeness and for any visible damages.
- Immediately notify the carrier, the insurance and the supplier about any incomplete shipment or damages as a result of inadequate packaging or due to transportation.

12.7 Unpacking

To unpack the device, proceed as follows:

• Remove the device out of the carton and remove the packaging material.

12.8 Disposal of the packaging

The packaging protects the device against damages during transit. The packaging materials are selected in accordance with environmentally compatible and recycling-related points of view and can therefore be recycled. Returning the packaging back to the material loop saves raw materials and reduces the quantities of accumulated waste.

Take any packaging materials that are no longer required to "Green Dot" recycling collection points for disposal.

HINWEIS Please note

If possible, keep the original packaging for the device for the duration of the guarantee period of the device, in order that the device can be re-packaged properly in the event of a guarantee claim.

12.9 Setup location requirements:

In order to ensure the safe and trouble-free operation of the device, the setup location must fulfil the following prerequisites:

• Place the device on a firm and even work surface.
• Do not use the device outdoors.
• Keep the device away from heat, moisture and direct sunlight.
• Choose the setup location in such a way that children cannot reach the device.
• The device is not intended to be installed in a wall or a built-in cupboard.
• Do not set up the device in a hot, wet or extremely damp environment or near flammable material.
• The installation and assembly of this device in non-stationary setup locations must be carried out by specialist companies / electricians, provided they guarantee the prerequisites for the safe use of this device.

12.10 Electrical connection

In order to ensure the safe and trouble-free operation of the device, the following instructions must be observed for the electrical connection:

• Before connecting the device, compare the connection data (voltage and frequency) on the rating plate with those of your electrical network. This data must agree in order that no damages occur in the device If in doubt, ask your qualified electrician.
  The electrical outlet must be protected by a 16A safety cut-out switch.

• The connection between the device and the electrical network may employ a 3 meter long (max.) extension cable with a cross-section of 1.5mm^2 . The use of multiple plugs or gangs is prohibited because of the danger of fire that is involved with this.
• Make sure that the power cable is undamaged and has not been installed under the ice maker or over hot or sharp surfaces.
• The electrical safety of the device is only guaranteed if the device is connected to a properly installed protective conductor system. Operations using an electrical outlet without a protective conductor are prohibited. If in doubt, have the house installation checked over by a qualified electrician.

The manufacturer cannot be made responsible for damages that are caused by a missing or damaged protective conductor.

13 Design and Function

In this chapter, you'll find important information on the design and function of the device.

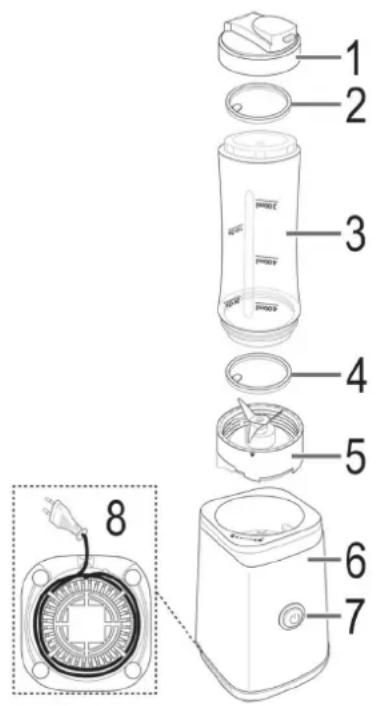

13.1 Overview

1. lid
2. sealing ring for the lid
3. bottle
4. sealing ring for the blade base
5. blade base
6. main unit with motor
7. start/stop switch
8. cable storage
9. neoprene sleeve for 600ml bottle

Please check that the sealing rings in lid and blade base are placed well.

HINWEIS

Please note

Unwind the power cord completely from the bottom of the device and guide it through the opening.

13.2 Rating plate

The rating plate with the connection and performance data can be found beneath the device.

14 Operation and Handing

This chapter provides you with important notices with regard to operating the device. Observe the following notices to avoid dangers and damages:

WARNING

Warning

Do not leave the device unsupervised when it is in operation, so that you can intervene quickly in the event of dangers.

14.1 Before initial use

Clean the device as shown in cleaning and maintenance.

14.2 Use

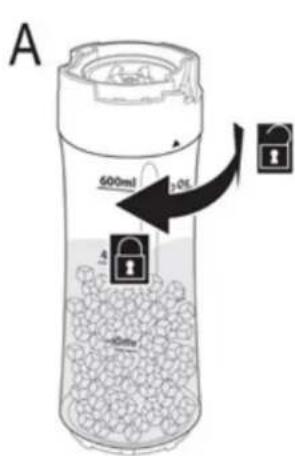

1. Fill the ingredients into the bottle and tighten the blade base clockwise, as seen under A.
2. Turn the bottle round and place it together with the blade base on the main unit. Press down the bottle and turn it in direction of the locked lock symbol as seen under

B, so that the arrows are placed above each other.
3. Insert the plug into the socket.
4. Press the start/stop button intermittently or keep it pressed until your smoothie has the desired consistency.
5. Unplug the device from the socket.
6. Remove the blade base with bottle from the main unit by turning it in direction of the open lock symbol.
7. Turn the bottle round and replace the blade base with the lid as seen under C.

HINWEIS

Please note

Do not let the device run idle and do not over fill it. The motor could be damaged.
Do not operate the device longer than 60 seconds and then pause for 60 seconds.
Safety switch: The device will operate only with correct placed bottle and blade base.
- Frozen fruits and ice should be processed only with a lot of liquid or the device could be damaged.

14.3 Recipes

Cut larger fruits into pieces. Add water or tea as desired to support the mixing process.

Do not use hard fruits or ice.

green smoothies

spinach banana mango smoothie

1 handful of spinach
1/2 ripe mango, 1 bananas

parsley power

1 handful of parsley.
1 apple, 1/2 banana
1/2 cucumber

classic green smoothie

1 handful of spinach
1/2 banana, 1/2 sweet apple
1 / 2 soft avocado

banana spinach smoothie

1 banana, 50g cucumber
50 g spinach
if desired, cress or sprouts

start in to the day

1 handful of radish leaves
1/2 ripe banana or 1 large peeled kiwi
1/2 apple
a little lemon juice and oil
50 ml mineral water or cold green tea

vitamin power

1/4 sweet pineapple, 1/2 ripe banana
1/2 peeled orange, 1/2 peeled kiwi
1 handful endive or other seasonal salad
1 tsp wheatgrass powder
1/2 glass of mineral water or green tea

fruit smoothies

berry salad smoothie

1 handful field salad or iceberg salad
1 handful of spinach
1 handful of berries (raspberries, strawberries, blackberries, currants)
1/2 banana

wildbeeries

1 handful of berries (raspberries, strawberries, blackberries, currants)
1 / 2 peeled orange

some pulp of vanilla bean, alternatively you can use vanilla sugar

peach berry smoothie

120 g erdbeer yogurt
40 g peaches, 40 g strawbeeriese

blueberry smoothie

50g frozen blueberry,
40 ml fat-free milk
40g vanilla yogurt, a little honey if desired

orange red smoothie

1/2 peeled orange
50 g strawberries or mixed red berries

apple kiwi smoothie

1/2 little apple, 1/2 peeled kiwi
2 strawbeeries
50 g fett free strawberry yogurt
40 ml apple juice

15 Cleaning and Maintenance

This chapter provides you with important notices with regard to cleaning and maintaining the device. Please observe the notices to prevent damages due to cleaning the device incorrectly and to ensure trouble-free operation.

15.1 Safety information

▲VORSICHT Attention

Please observe the safety instructions, before cleaning your device

Unplug the can opener when not in use and before any cleaning.
Do not use any aggressive or abrasive cleaning agents or solvents.
- Never immerse the device, cord or plug in water or other liquids and do not place in the dishwasher.
The blades are really sharp. Handle them with care.

15.2 Cleaning

Lid, bottle, blade base: Clean the bottles with water and a little detergent. You can also mix water with a little detergent for 15 seconds. Then rinse the bottle and let it dry before storing the device.

Alternatively you can clean the bottles in the dishwasher.

The sealing rings from the lid and blade base can be removed for cleaning them with running water. Dry them thoroughly after this and place them correctly again. The thicker ring is for the lid and the thinner ring is for the blade base.

Main unit: Wipe the main unit with a damp cloth.

16 Troubleshooting

This chapter provides you with important notices with regard to operating the device.

Observe the following notices to avoid dangers and damages:

16.1 Security advices

▲VORSICHT Attention

Repairs of electrical appliances must be carried out by qualified personnel who are trained by the manufacturer.
Repairs performed by untrained persons may result in considerable hazards for the user and damage the machine.

16.2 Troubleshooting

Problem	Solution
The device does not start.	Please check whether the power plug is properly plugged. Please check whether the assembly is done according to assembly methods.

A VORSICHT Attention

If above mentioned steps don't solve the problem, please contact your customer service.

17 Disposal of the Old Device

Old electric and electronic devices frequently still contain valuable materials. However, they also contain damaging substances, which were necessary for their functionality and safety. If these were put in the non-recyclable waste or were handled incorrectly, they could be detrimental to human health and the environment. Therefore, do not put your old device into the non-recyclable waste under any circumstances.

HINWEIS Please note

• Utilise the collection point, established in your town, to return and recycle old electric and electronic devices. If necessary, contact your town hall, local refuse collection service or your dealer for information.
  Ensure that your old device is stored safely away from children until it is taken away.

18 Guarantee

We provide a 24 month guarantee for this product, commencing from the date of sale, for faults which are attributable to production or material faults. Your legal guarantee entitlements in accordance with § 439 ff. BGB-E remain unaffected by this. The guarantee does not include damages, which were incurred as a result of improper handling or use, as well as malfunctions which only have a minor effect on the function or the value of the device. Consumables, transit damages, inasmuch as we are not responsible for these, as well as damages, which were incurred as a result of any repairs that were not performed by us, are also excluded from the guarantee entitlements. This device is designed for use in domestic situations and has the appropriate performance levels. Any use in commercial situations is only covered under the guarantee to the extent that it would be comparable with the stresses of being used in a domestic situation. It is not intended for any additional, commercial use. In the event of justified complaints, we will repair the faulty device at our discretion or replace it with a trouble-free device. Any pending faults must be reported within 14 days of delivery. All further claims are excluded. To enforce a guarantee claim, please contact us prior to returning the device (always provide us with proof of purchase).

19 Technical Data

Device B 350 Single-Serve
Model ABC-015-1
Item No.: 3609
Mains data 220 -240 V, 50-60 Hz
Power consumption 350 W
External measurements (W x H x D): 11 x 37 x 12 cm
Net weight 1141 g

Mode d'emploi

B 350 Single-Serve

N^ d'article 3609

20 Mode d'emploi

20.1 Généralités

Smoothies aux fruits

Smoothie salute de baies
