USER MANUAL Sous-Vide SV 400 CASO

Exterior view of a modern stainless steel water heater with digital display and mechanical handle (no text or symbols visible)

CE ← ←

17.2 Control Panel....36

17.3 Rating plate 37

18 Operation....37

18.1 SousVide cooking....37

18.2 Disassembly / assembly of the stainless steel skirt 37

19 Storage of the device....38

20 Cleaning and Maintenance....38

20.1 Safety information....38

20.2 Maintenance and cleaning: 38

20.3 Descaling....39

21 Troubleshooting....39

21.1 Safety notices....39

21.2 Troubleshooting....39

21.3 Troubleshooting table 39

22 Disposal of the Old Device....40

23 Guarantee....40

24 Technical Data....41

70.1 Ontkalken....104

Close-up of a laboratory apparatus with a warning symbol and a warning label (no readable text or symbols)

1 2 MAX MIN 3

COSO® DESIGN 63.2c 08:00

6.2 Bedienelemente

Exterior view of a modern stainless steel water heater with black and metallic casing (no text or symbols visible)

CE

14 Instruction Manual

14.1 General

Please read the information contained herein so that you can become familiar with your device quickly and take advantage of the full scope of its functions.

Your SV 400 will serve you for many years if you handle it and care for it properly. We wish you a lot of pleasure in using it!

14.2 Information on this manual

These Operating Instructions are a component of the SV 400 (referred to hereafter as the device) and provide you with important information for the initial commissioning, safety, intended use and care of the device.

The Operating Instructions must be available at all times at the device. This Operating Manual must be read and applied by every person who is instructed to work with the device: • Commissioning • Operation • Troubleshooting and/or • Cleaning Keep the Operating Manual in a safe place and pass it on to the subsequent owner along with the device.

14.3 Warning notices

The following warning notices are used in the Operating Manual concerned here.

⚠GEFAHR

DANGER

A warning notice of this level of danger indicates a potentially dangerous situation.

If the dangerous situation is not avoided, this can lead to death or serious injuries.

▶ Observe the instructions in this warning notice in order to avoid the danger of death or serious personal injuries.

⚠️WARNUNG

WARNING

A warning notice of this level of danger indicates a possible dangerous situation. If the dangerous situation is not avoided, this can lead to serious injuries.

▶ Observe the instructions in this warning notice in order to avoid the personal injuries.

▲VORSICHT

ATTENTION

A warning notice of this level of danger indicates a possible dangerous situation. If the dangerous situation is not avoided, this can lead to slight or moderate injuries.

▶ Observe the instructions in this warning notice in order to avoid the personal injuries.

HINWEIS

PLEASE NOTE

A notice of this kind indicates additional information, which will simplify the handling of the machine.

14.4 Limitation of liability

All the technical information, data and notices with regard to the installation, operation and care are completely up-to-date at the time of printing and are compiled to the best of our knowledge and belief, taking our past experience and findings into consideration. No claims can be derived from the information provided, the illustrations or descriptions in this manual. The manufacturer does not assume any liability for damages arising as a result of the following:

• Non-observance of the manual
- Uses for non-intended purposes - Improper repairs
- Technical alterations, modifications of the device - Use of unauthorized spare parts
Modifications of the device are not recommended and are not covered by the guarantee. All translations are carried out to the best of our knowledge. We do not assume any liability for translation errors, not even if the translation was carried out by us or on our instructions. The original German text remains solely binding.

14.5 Copyright protection

This document is copyright protected. Braukmann GmbH reserves all the rights, including those for photomechanical reproduction, duplication and distribution using special processes (e.g. data processing, data carriers, data networks), even partially.

Subject to content and technical changes.

14.6 Safety

This chapter provides you with important safety notices when handling the device. The device corresponds with the required safety regulations. Improper use can result in personal or property damages.

14.7 Intended use

This device is intended solely for indoor domestic use for sous vide cooking.

This device is intended for use in the household and for similar applications such as:

• in kitchens for employees in shops, offices, and other commercial areas; • in B&Bs,
  • in agricultural estates;
• by customers in hotels, motels and other residential establishments.

Uses for a different purpose or for a purpose which exceeds this description are considered incompatible with the intended or designated use.

⚠️WARNUNG Warning

Danger due to unintended use! Dangers can emanate from the device if it is used for an unintended use and/or a different kind of use.

▶ Use the device exclusively for its intended use.
▶ Observe the procedural methods described in this Operating Manual.

Claims of all kinds due to damages resulting from unintended uses are excluded.

The User bears the sole risk.

14.8 General Safety information

HINWEIS Please note

Please observe the following general safety notices with regard to the safe handling of the device.

▶ Examine the device for any visible external damages prior to using it. Never put a damaged device into operation.
▶ If the power cord is damaged, the device must be disposed of. The power cord cannot be replaced.
This device may be used by children aged 8 and above, if they are supervised or have been instructed at to the safe use of the device and have understood the resulting hazards.
▶ Cleaning and maintenance by the user must not be performed by children unless they are at least 8 years old and are supervised.
▶ Children are not allowed to play with the device.
▶ The device and its connecting cable must be kept away from children who are less than 8 years old.
The device may be used by individuals with reduced physical, sensory or mental capabilities or a lack of experience and / or knowledge of their use if they are supervised or have been instructed at to the safe use of the device and have understood the resulting hazards.
▶ Defective components must always be replaced with original replacement parts. Only such parts will guarantee that the safety requirements are fulfilled.
▶ Only customer service departments authorized by the manufacturer may carry out repairs on the device, as otherwise the guarantee entitlements will be null and void in the event of any subsequent damages. Improperly performed repairs can cause considerable dangers for the user.

HINWEIS

Please note

▶ Do not leave the device unsupervised when it is in operation.
▶ When disconnect, please unplug by grasp the plug and not the cord, to avoid any injury.
▶ Unwind the cord completely during operation.
▶ Device should not be cleaned in dishwasher.
▶ The device may only be set vertically in a heat-resistant cooking vessel.
▶ The device is only suitable for heating up of drinking water. Otherwise the device could be damaged.
▶ Observe the markings for minimum and maximum of water level. Otherwise the device could be damaged.
▶ Do not remove the device from cooking vessel during operation.
▶ Do not move the cooking vessel during operation.
▶ The device needs a distance of a least 1 cm to the bottom of cooking vessel so that the water circulation is not blocked.
▶ Pull the mains plug before removing the device from the cooking vessel with water.
▶ Even after removal of the mains plug the device is still hot and should only be touchend at the control element and should not be placed on heat sensitive surfaces.
▶ Device is not intended to be operated by means of an external timer or separate remote-control system.
▶ Do not use distilled water.

14.9 Sources of danger

14.9.1 Danger of burns

⚠️WARNUNG Warning

Warning: Do not touch hot surfaces.

The device is very hot during and after operation! The heated water is also very hot. Risk of burn.

▶ Touch the heated device exclusively at the control element.
▶ The device is hot during operation. Let the device cool down before cleaning or touching it. Do not touch the heated metal.
The heated device, the heated cooking vessel, the heated water and the steam can cause burns. Be careful with them. Use pot holders or oven gloves when you want to move the cooking vessel.
▶ Touch and remove the heated (vacuumed) food exclusively with a heat-resistant serving tong or something like that.
▶ The heating element remains hot even after the mains plug has been disconnected and should therefore neither be touched nor placed on flammable surfaces.

14.9.2 Danger of fire

⚠️WARNUNG Warning

There is a danger of fire due to the event the device is not used properly.

Observe the following safety notices to avoid dangers of fire:

▶ Do not set up the device near flammable material.
▶ Keep this device away from sources of heat (gas, electric, burner, heated oven).
▶ Observe that the cord does not touch the hot device.
▶ Do not cover the device with foil or towels.

14.9.3 Dangers due to electrical power

▲GEFAHR Mortal danger due to electrical power!

Mortal danger exists when coming into contact with live wires or subassemblies! Observe the following safety notices to avoid dangers due to electrical power:

▶ If the power cord is damaged, the device must be disposed of. The power cord cannot be replaced.
▶ Do not operate this device if its power cable or plug is damaged, if it does not work properly or if it is damaged or has been dropped.
▶ Do not open the housing on the device under any circumstances. Do not insert any objects into the openings of the device. There is a danger of an electrical shock if live connections are touched and the electrical or mechanical structure is altered. In addition, functional faults on the device can also occur.
▶ Before plugging the device in or when you operate it, make sure your hands are dry.
▶ Remove the plug from the wall socket when the unit is not in use, and also before cleaning.
▶ Observe the min- and max-marking of the device when you fill the cooking vessel.
▶ When immersing the control element in water for a short time, allow the device to dry thoroughly (24 hours).
▶ Keep the cord of device away from water. Dive only the heating element of the device into water.

15 Getting Started

This chapter will guide you through safely unpacking and setting up your new unit.

15.1 Packaging safety information

▲WARNUNG Warning

▶ Do not allow children to play with packaging materials due to risk of suffocation.

15.2 What's included

The SV 400 includes the following components:

- SV 400

- Instruction manual

HINWEIS PLEASE NOTE

▶ Examine the shipment to ensure the unit and manual are included and inspect the unit for any visible damage.
▶ Immediately notify the carrier and/or the supplier about an incomplete shipment or any damage as a result of inadequate packaging or mishandling.

15.3 Unpacking

Carefully remove the packaging material and unit from the carton.

15.4 Disposal of the packaging

Caso believes in the importance of recycling and has selected packaging materials that not only protect your unit from damage during transit, but can be recycled to minimize any ecological impact. Recycling the packaging materials preserves raw materials and reduces waste. Take any packaging materials that are no longer required to a recycling collection point for proper disposal.

HINWEIS PLEASE NOTE

▶ If possible, keep the original packaging for the duration of the guarantee period in the event a return is necessary.

16 Setup

16.1 Setup location requirements:

In order to ensure the safe and trouble-free operation of the device, the setup location must fulfill the following prerequisites:

• Attach the device only in the provided bracket at a heat resistant cooking vessel.
• The heat-resistant cooking vessel must be set up on a firm, flat, level and heat-resistant surface. The carrying capacity of the support must be appropriate to withstand the weight of the cooking vessel, including device, water filling and the heaviest expected food loading.
• The device is not intended to be installed in a wall or a built-in cupboard.
• Do not set up the unit in a hot or damp environment or near flammable material.
• Do not move the cooking vessel with device when it is in operation.
• The device should not touch hot surfaces.
• The electrical outlet must be easily accessible so that the plug can be quickly disconnected in the case of an emergency.

- The setup of this unit in non-stationary locations (e.g., boats, airplanes, motor homes) must be carried out by a qualified electrician, provided they guarantee the prerequisites for the safe use of the unit.

16.2 Electrical connection

In order to ensure the safe and trouble-free operation of the device, the following instructions must be observed for the electrical connection:

• Before plugging in the unit, compare the voltage and frequency data on the device's rating plate (found on the bottom of the unit) with that of your electrical network. This data must be compatible. If in doubt consult a qualified electrician.
• The use of a multi-plug outlet adapter is not recommended due to fire danger.
• Inspect the power cord for damage and ensure it doesn't run under the unit or over hot or sharp surfaces.
• The electrical outlet must be protected by a 16A safety cut-out switch.
• The electrical safety of the unit is only guaranteed if it is connected to a properly installed protective conductor system. in doubt, consult a qualified electrician. The manufacturer cannot be made responsible for damages due to a missing or damaged protective conductor.

17 Complete Overview

This chapter provides you with an overview of your device and explains some of its key features.

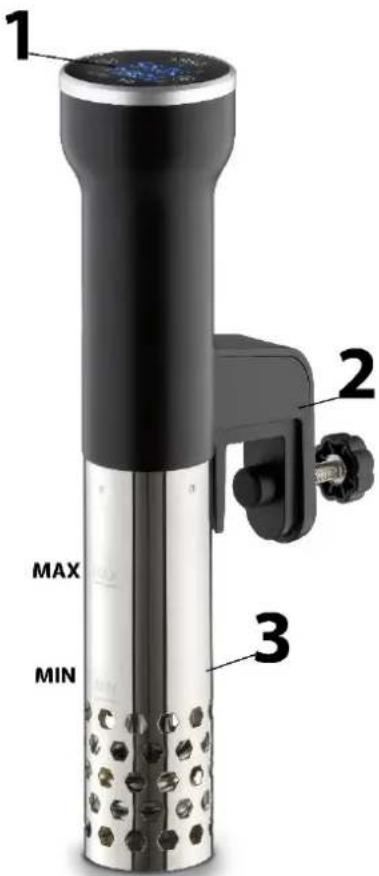

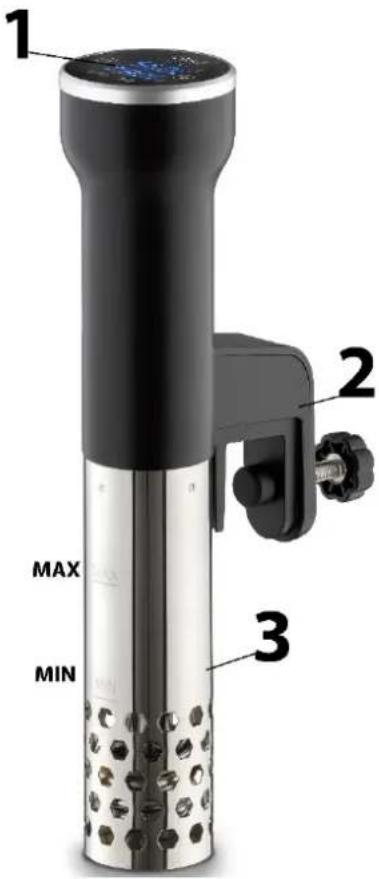

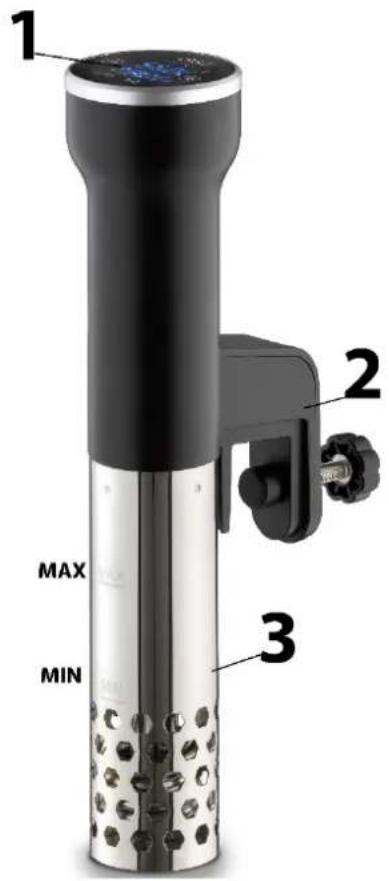

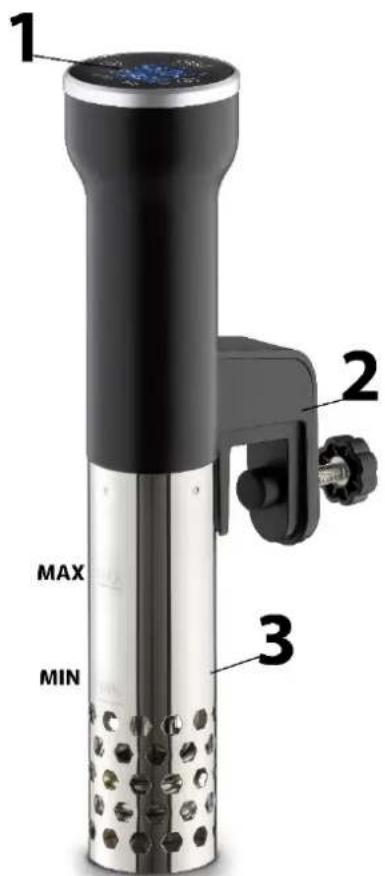

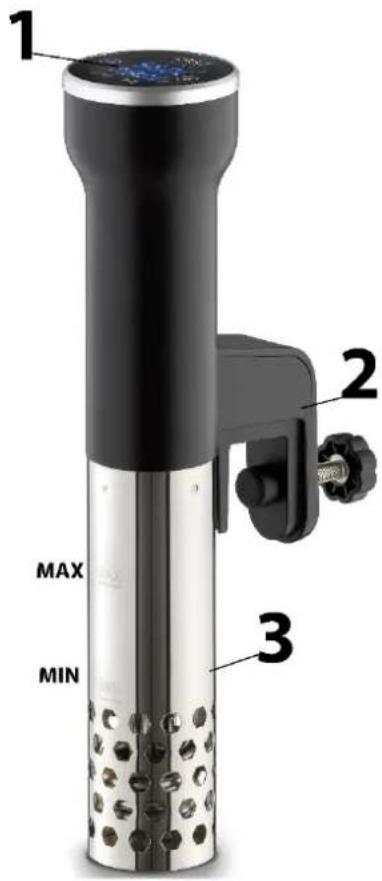

17.1 Appliance diagram

1 Panel
2 Screw
3 Stainless steel skirt

1 2 MAX MIN 3

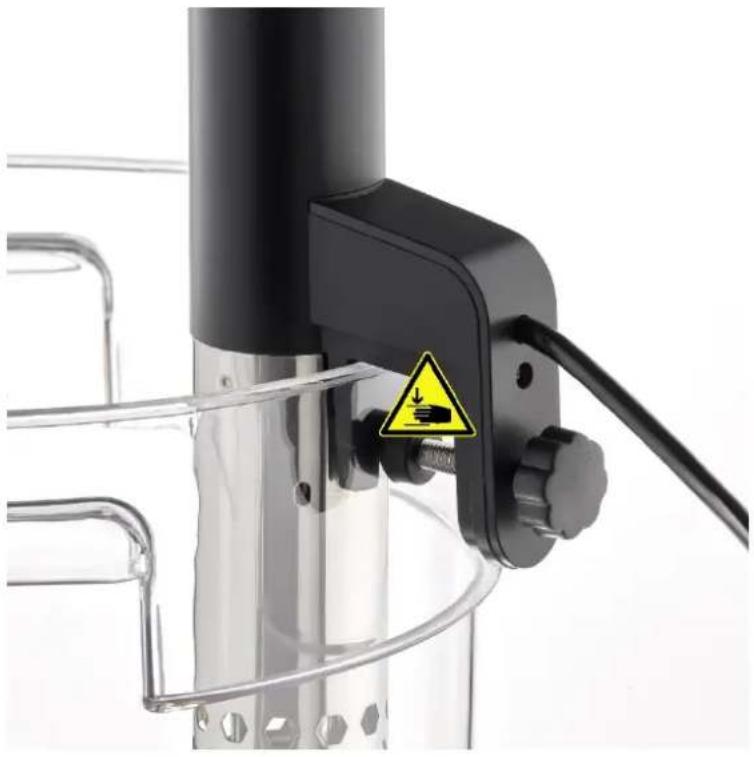

Attach the device by screwing it at the cooking vessel.

Fill water into the cooking vessel and observe min-/max-marking at device.

Close-up of a laboratory apparatus with a warning sign and cable, no readable text or symbols present.

Plug in the power plug into outlet after this.

⚠️WARNUNG

Warning

▶ Refill probable evaporated water during use, so that always water is filled into cooking vessel up to min-marking. Otherwise the device could be damaged.
▶ Use a cooking vessel with capacity 6 – 20 L and

RECOMMENDED minimum

height of 16 cm.

▶ Please ensure that the cooking vessel can bear temperatures up to 90°C.

▲WARNUNG

Warning

Risk of crushing!

When screwing the device to the cooking vessel, make sure that your hands are out of the way of the screw to prevent crushing.

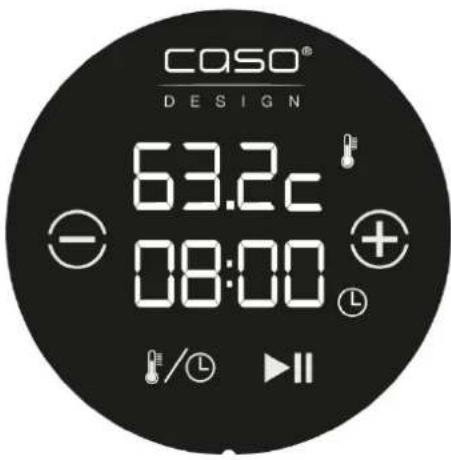

17.2 Control Panel

Display: Current temperature and remaining cooking time are displayed.

COSO® DESIGN 63.2c 08:00

temperature in 0,5 °C steps

(25 - 90°C) 1^ steps (77 - 194 °F)

00:01 - 2:00 setting of time in 1 minute steps

2:00 – 99:00 setting of time in 5 minute steps

/time

activation/deactivation of device and starting of g process. Press and hold for 3 seconds to switch ndby mode, the display will switch off.

For activation of device and switching between

temperature and time. If the heating process has not yet started, you can switch between °C and °F by pressing the button for 3 seconds.

17.3 Rating plate

The rating plate with the connection and performance data can be founded on the back side.

18 Operation

This chapter provides instructions on the proper operation of your device:

18.1 SousVide cooking

1. Plug in the power plug. The device is in standby mode.
2. Press any button to end standby mode and turn on the display, the device beeps.
3. Press 📋 and default setting of 60°C and 04:00 hours is displayed. Set desired

temperature with

1. Press again and set desired time with

1. Confirm with land the device starts the heating process

2. The device will beep and time is flashing once temperature of the water is reached. Place the vacuumed food into the cooking vessel. If needed weight the vacuumed bags.

3. Start the timer with 8. The device counts down the time and will beep again, once time is over.

4. When you want to change the settings please press and change settings as described above.

5. You can deactivate the device by pressing 📄 for 3 seconds. The device will switch to standby mode.

⚠️WARNUNG

Warning

▶ Risk of scalding! Carefully remove the food.

HINWEIS

Note: E1

▶ If the device should indicate "E1" in the LED display after switching on even though the water filled in is above the minimum level, please add some salt to the water and stir well.

18.2 Disassembly / assembly of the stainless steel skirt

You can remove the stainless steel skirt for easier cleaning of the device by turning it slightly counterclockwise and then pulling it down.

To assemble, put the stainless steel skirt back on and turn it clockwise.

19 Storage of the device

Store the device in its upright position, out of the reach of children.

HINWEIS PLEASE NOTE

▶ Turn off the device after use. So you can avoid unnecessary energy consumption and ensure your safety.
▶ Always unplug the device from its outlet immediately after using and before cleaning.

20 Cleaning and Maintenance

This chapter provides important information on properly cleaning and maintaining your SV 400.

20.1 Safety information

▲VORSICHT ATTENTION

Please observe the following safety notices, before cleaning the unit to avoid damage to the unit or personal injury:

▶ To ensure optimum performance, the unit must be cleaned regularly. Failure to clean the unit regularly can lead to potential malfunctions, as well as safety and health risks.
▶ Turn off and unplug the unit prior to cleaning.
▶ Clean the device after every use as soon as it has cooled. Leaving the unit uncleaned for long periods can make it very difficult to remove leftover food and grime and may even damage the device.
If moisture penetrates the unit's housing, it can damage the electronic components. Please ensure that no moisture enters the device (control element).
▶ Do not use any harsh or abrasive cleaning agents.
▶ Do not attempt to scrape off stubborn grime with hard or abrasive tools.
▶ Dry all parts thoroughly before using after cleaning.
▶ Do not clean the device in the dishwasher. Never immerse the control element of the device into liquid.

20.2 Maintenance and cleaning:

Let the device cool down before cleaning.

Take the device out of the cooking vessel and dry it thoroughly with a damn cloth. Place it on a damp cloth after this, so that the heating element can dry inside.

Remove stainless steel skirt as described at disassembly.

Clean both unter running water with a mild detergent and dry thoroughly after this.

Heating element (rods) and propeller can be cleaned carefully with a soft brush and mild detergent under running water.

Be careful that the propeller will not be deformed when you assemble device again.

20.3 Descaling

Descale the device at least once a month, with frequent use and depending on the water hardness, descale it more often. Attach the device by screwing it at the cooking vessel.

For descaling, use vinegar essence in a ratio of 1:10, i.e. 0.1 L vinegar essence to 1 L water or use citric acid in a ratio of 50 g citric acid per 1 L water. The device should be covered to just below the max mark. Set 25 °C for 40 minutes.

Confirm with ▶ and the device starts the heating process

The device will beep once temperature of the water is reached. Start the timer with

In the meantime refill water. After this thoroughly clean all parts under running water that were in contact with the water and dry them.

21 Troubleshooting

The following table may help you narrow down and address minor malfunctions:

21.1 Safety notices

▲VORSICHT ATTENTION

▶ Only qualified electricians, who have been trained by the manufacturer may carry out any repairs on electrical equipment.
▶ Improperly performed repairs may result in personal injury or damage to the device.

21.2 Troubleshooting

The device does not work:

1. Check that the cable is properly plugged into the wall socket
2. Check cable for damage.
3. Verify that the wall socket works with another device.

21.3 Troubleshooting table

The digital display is lit, but the device does not start the cooking program and displays an error code instead:

Error Code	Possible Causes Solution
E1 1. Cooking vessel is empty		Fill clean water up to above the “MIN” level. Press to start the device again. If the device should indicate “E1” in the LED display after switching on even though the water filled in is above the minimum level, please add some salt to the water and stir well.
		2. Water too low Fill clean water up to above the “MIN” level.
	3. Device is not positioned correctly on the table	Place the device on a flat surface
	4. Error in electronics Please contact customer service
E2, E3	Error in electronics Please contact the Customer Service.
E4 Overheating protection		Refill water. Press art the device again.

HINWEIS PLEASE NOTE

▶ In the event of technical troubles, faulty devices or missing parts, please contact the Customer Service.

22 Disposal of the Old Device

To protect the environment, it's important to dispose of old electronic devices properly. Do not place your old unit in the non-recyclable waste under any circumstances.

HINWEIS PLEASE NOTE

▶ Please take your old unit to the nearest recycling center for safe disposal.
▶ Until it can be disposed of properly, store your old unit away from children.

23 Guarantee

We provide a 24 month guarantee for this product, commencing from the date of sale, for faults which are attributable to production or material faults.

Your legal guarantee entitlements in accordance with § 439 ff. BGB-E remain unaffected by this. The guarantee does not include damages, which were incurred as a result of improper handling or use, as well as malfunctions which only have a minor effect on the function or the value of the device. Consumables, transit damages, inasmuch as we are not responsible for these, as well as damages, which were incurred as a result of any repairs that were not performed by us, are also excluded from the guarantee entitlements. This device is designed for use in domestic situations and has the appropriate performance levels.

Any use in commercial situations is only covered under the guarantee to the extent that it would be comparable with the stresses of being used in a domestic situation. It is not intended for any additional, commercial use.

In the event of justified complaints, we will repair the faulty device at our discretion or replace it with a trouble-free device. Any pending faults must be reported within 14 days of delivery. All further claims are excluded. To enforce a guarantee claim, please contact us prior to returning the device (always provide us with proof of purchase).

24 Technical Data

Device Sous-Vide Cooker
Name SV 400
Item No.: 1310
Mains data 220-240V~, 50/60 Hz
Power consumption 1000W
Capacity 6-20 L
External measurements (W x H x D): 130 x 70 x 310 mm
Net weight 899 g

Exterior view of a modern stainless steel water heater with black and white casing (no text or symbols visible)

CE ← ←

Close-up of a laboratory setup with a black stand, glass apparatus, and warning symbol (no readable text or labels)

1 2 MAX MIN 3

COSO® DESIGN 63.2c 08:00

Exterior view of a modern stainless steel water heater with black handle and digital display (no text or symbols visible)

CE

Close-up of a laboratory apparatus with a warning sign and warning symbol (no readable text or labels)

1 2 MAX MIN 3

COSO® DESIGN 63.2c 08:00

Exterior view of a stainless steel water heater with black and silver casing (no text or symbols visible)

CE ← ←

48 Mode d'emploi

48.1 Généralités

Close-up of a laboratory setup with a test tube, glass container, and warning symbol (no readable text or labels)

1 2 MAX MIN 3

Exterior view of a stainless steel water heater with digital display and mechanical handle (no text or symbols visible)

CE ← ←

▲WARNUNG WAARSCHUWING

▲WARNUNG WAARSCHUWING

⚠️WARNUNG WAARSCHUWING

Close-up of a laboratory apparatus with a warning symbol and cable, no readable text or labels present.

1 2 MAX MIN 3

COSO® DESIGN 63.2c 08:00

▲WARNUNG WAARSCHUWING

Exterior view of a modern stainless steel water heater with black handle and digital display (no text or symbols visible)

CE ← ←

Close-up of a laboratory apparatus with a warning symbol (yellow triangle) and a warning label, no readable text or symbols present.

1 2 MAX MIN 3
