Reference R41SA - Speaker KLIPSCH - Free user manual and instructions

Feature	Details
Speaker Type	Upward-firing speaker (Atmos)
Rated Power	50 W
Impedance	8 Ohms
Frequency Response	70 Hz - 20 kHz
Dimensions	15.2 x 20.3 x 15.2 cm
Weight	1.8 kg
Connectivity Type	Wired
Recommended Use	Home theater audio system, surround sound
Installation	Can be placed on furniture or ceiling mounted
Maintenance	Clean with a soft cloth, avoid moisture
Safety	Do not expose to extreme temperatures or moisture
Warranty	2 years

Frequently Asked Questions - Reference R41SA KLIPSCH

How do I connect the KLIPSCH Reference R41SA speakers to my audio system?

To connect the KLIPSCH Reference R41SA speakers, use quality speaker cables and make sure to observe the polarity (+ and -) when connecting to your amplifier or receiver.

What are the recommended settings for speaker placement?

For best sound, place the KLIPSCH Reference R41SA speakers in corners or near walls, angling them slightly toward the listening area. Avoid placing them in completely enclosed spaces.

Are the R41SA speakers compatible with wireless systems?

The KLIPSCH Reference R41SA speakers are not wireless. They require a cable to connect to a receiver or amplifier.

At what power level can the R41SA speakers operate efficiently?

The KLIPSCH Reference R41SA speakers operate efficiently with amplifiers having a power of 50 to 75 watts per channel.

How do I troubleshoot low or distorted sound issues?

First, check the cable connections to ensure they are secure. Then check your amplifier settings to make sure they are correct and adjust volume and equalizers if necessary.

What types of music or audio content are best suited for the KLIPSCH R41SA speakers?

The KLIPSCH Reference R41SA speakers are versatile and suit various music genres but excel particularly in vocal performances and movie soundtracks due to their clear audio.

How do I clean my KLIPSCH R41SA speakers?

To clean the speakers, use a soft, dry cloth. Avoid harsh chemicals that could damage the finish.

Do the R41SA speakers come with a warranty?

Yes, the KLIPSCH Reference R41SA speakers are generally covered by a limited warranty, but it is advisable to check specific details with the manufacturer or retailer.

USER MANUAL Reference R41SA KLIPSCH

P EST. 1946 HOPE, AR

OWNERS MANUAL

Klipsch®

REFERENCE

REFERENCE (n):

1) the standard, the benchmark, the point used for comparison
2) the embodiment of the legendary Klipsch sound

LOUD AND PROUD SINCE 1946

In 1946, Paul W. Klipsch revolutionized the audio industry by creating our proprietary horn technology and the acoustic principles that are the driving force behind our highly acclaimed signature sound.

Today, we remain true to PWK's vision and pack the better part of a century's worth of sweat and genius into every product we make. These speakers are the result of our obsession with that aural perfection.

Experience the power, detail and emotion of Klipsch Reference. We are the Keepers of the Sound®.

ENGLISH

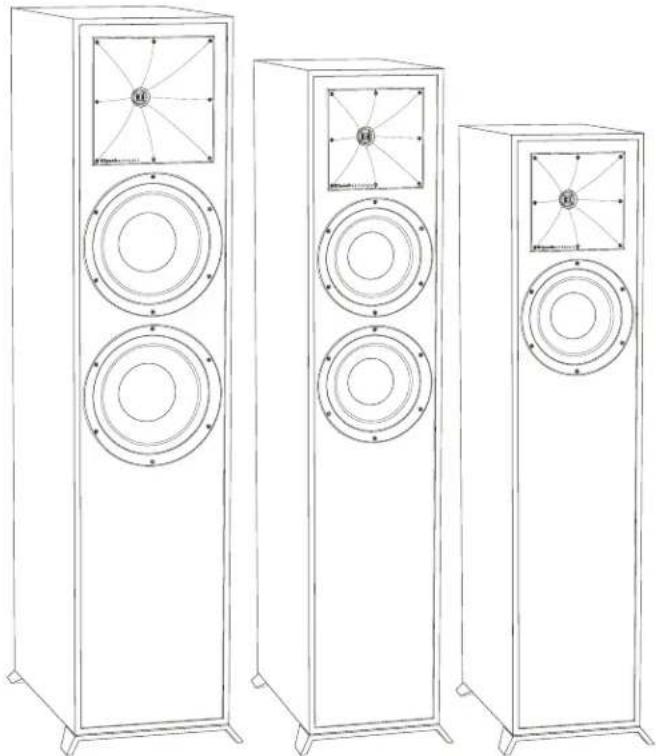

Line drawing of three identical multi-tiered speakers with circular speaker holes and grid-patterned front panels (no text or symbols)

REFERENCE SPEAKERS

Diagram of a two-tiered speaker tower with circular components and a central grid element (no text or symbols)

Diagram of a tall speaker tower with two circular speakers and a central square component (no text or symbols)

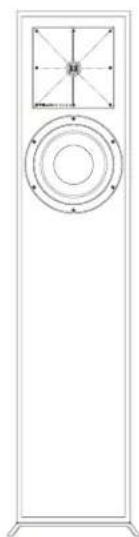

R-620F

Line drawing of a vertical speaker with circular components and a square top (no text or symbols)

R-610FR-820F

R-51M

R-41M

R-52C

Pure diagram of eight circular mechanical components with mounting holes and a central square, no text or symbols present.

R-34C

DOLBY ATMOS®

R-41SA

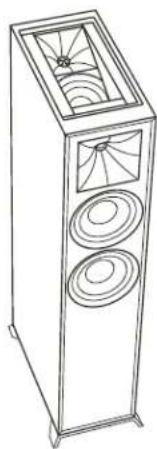

Line drawing of a multi-tiered speaker tower with visible sound waves and ventilation grilles (no text or symbols)

R-625FA

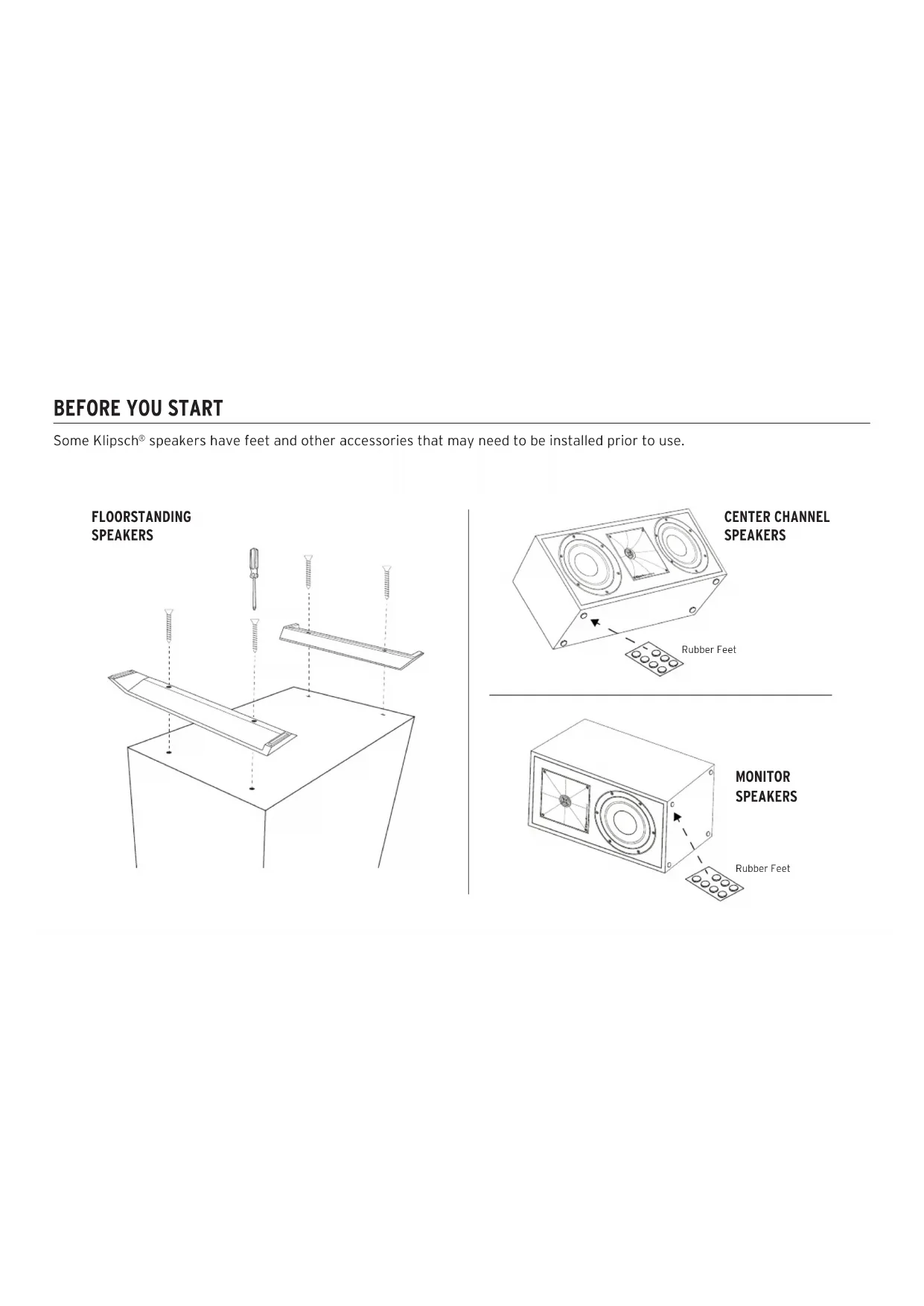

BEFORE YOU START

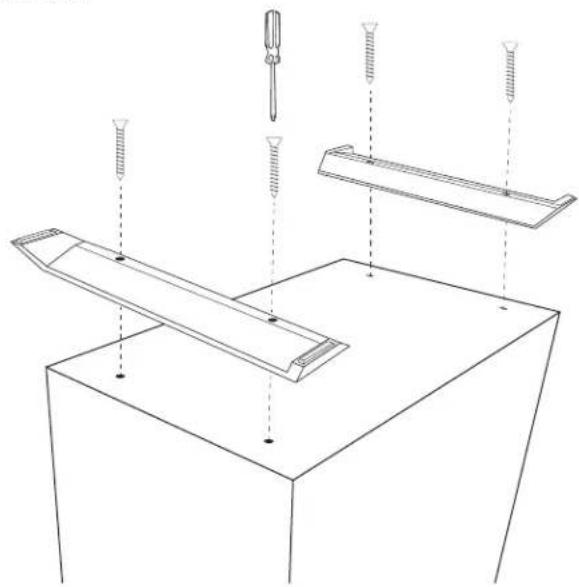

Some Klipsch ^® speakers have feet and other accessories that may need to be installed prior to use.

FLOORSTANDING SPEAKERS

Technical line drawing of a mechanical assembly with screws and a bracket (no text or symbols)

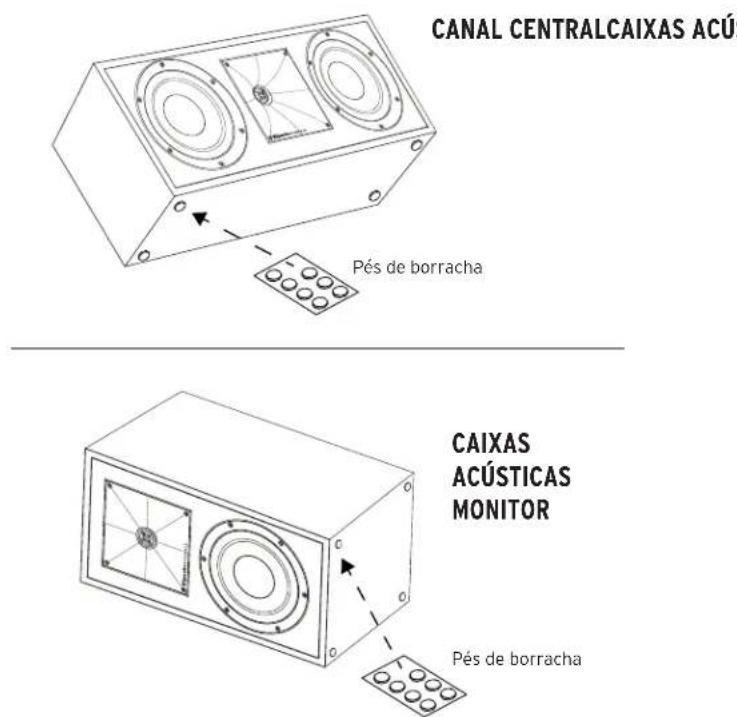

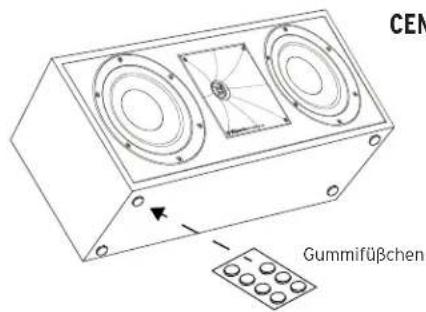

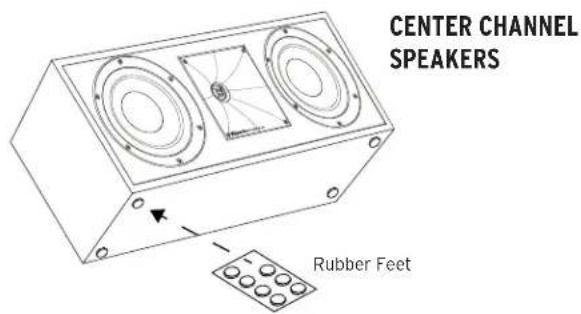

CENTER CHANNEL SPEAKERS Rubber Feet

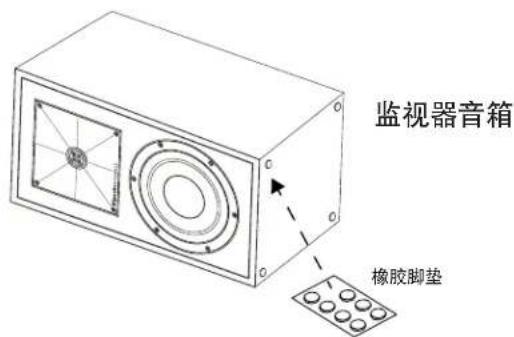

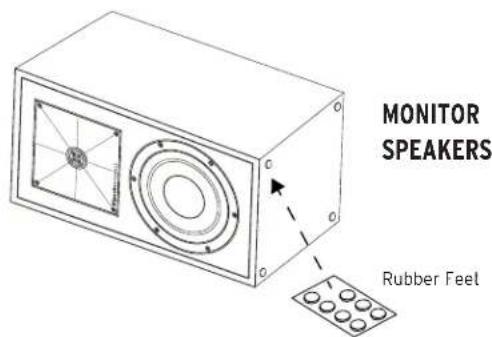

MONITOR SPEAKERS Rubber Feet

ROOM PLACEMENT CONNECTION

Left and Right Main Channel Speakers – For optimum performance, Klipsch Group, Inc. (KGI) suggests placing your speakers 6 to 15 feet (1.8 to 4.6m) apart. They may also be toed-in slightly for better stereo imaging. The listening position should be about 1 to 1.5 times the distance separating the speakers. Refer to Figures 1 and 3 for connection and placement.

Center Channel Speakers – Center channel speakers are designed to place dialogue and primary sounds so that they appear to come from the video screen. The speakers should therefore be placed as close to the screen as possible, preferably directly on top of or below the screen. Refer to Figures 1, 2 and 3 for connection and placement.

Rear Surround Channel Speakers – Klipsch surround speakers should be placed approximately 2 feet above the listening position. Typically this will be about 5-7 feet above the floor. The surrounds should be placed on the walls directly adjacent to the listening position. Another option would be on the wall behind the listening position. The final surround speaker placement depends on your room's characteristics. They are designed to recreate the sense of space and ambience that many of today's surround sound technologies provide. Refer to Figures 1, 3 and 4 for connection and placement.

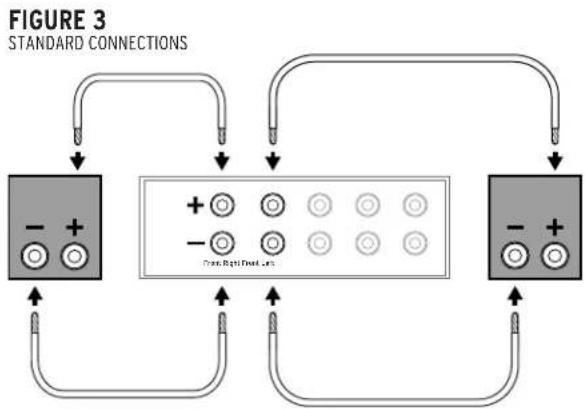

Conventional Connection – Using 16-12 gauge speaker wire, connect the RED "positive" (+) terminal of the LEFT speaker to the RED "positive" (+) terminal of your amplifier's LEFT channel. Connect the BLACK "negative" (-) terminal of the LEFT speaker to the BLACK "negative" (-) terminal of your amplifier's LEFT channel.

Repeat the above procedure for connecting all remaining speakers to the appropriate amplifier channels. Refer to Figure 3. Make sure that no bare wires from any of the connections touch any other terminals as this could cause a short and damage your equipment.

Some Klipsch Reference speakers come with dual binding posts that are connected by a metal strip. Do not remove this strip or your speakers will not function correctly. Keep this strip in place and connect your speaker wire to the top set of the binding posts. It is possible to "Bi-wire" a speaker that has two sets of binding posts. Please see your receiver's manual for further instructions.

Amplifier Requirements – Klipsch speakers are highly efficient and will operate easily on a wide variety of amplifiers. All Klipsch speakers are 8-ohm compatible and can be driven to very high levels with low distortion. Due to the high output levels Klipsch speakers are capable of reproducing, exercise caution with the volume control. Excessive volume over long periods can permanently damage your hearing. Overdriving your amplifier could also damage your speakers. Check with your dealer or amplifier manual to make sure your particular amplifier is best suited to your application. We want you listening for a lifetime.

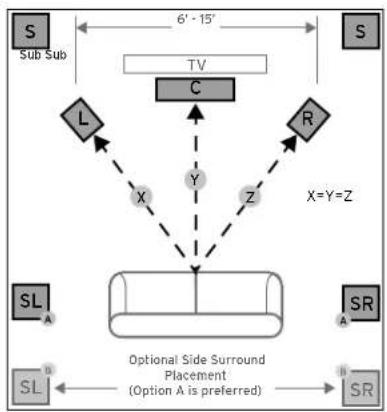

FIGURE 1 SPEAKER PLACEMENT IN LISTENING AREA


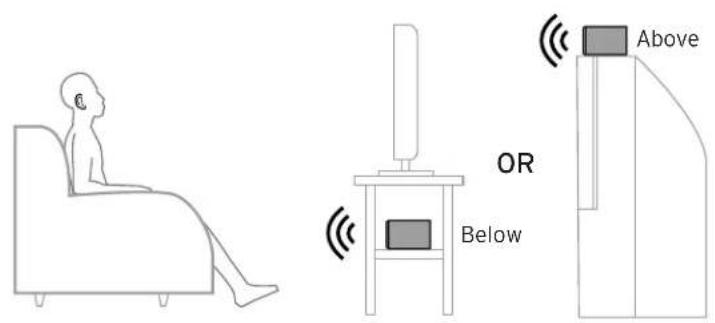

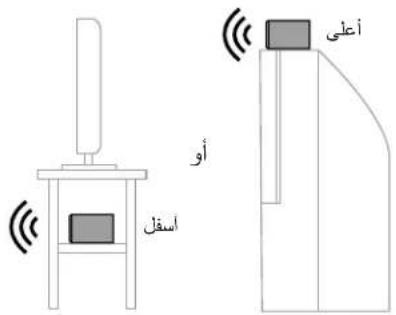

FIGURE 2 CENTER CHANNEL

Above OR Below

CAUTION! Do not use keyhole for ceiling mounting!

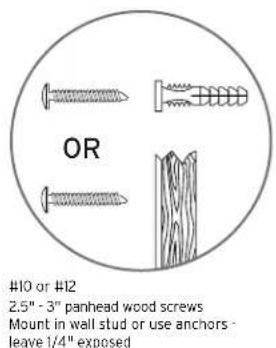

OR #10 or #12 2.5" - 3" panhead wood screws Mount in wall stud or use anchors - leave 1/4" exposed

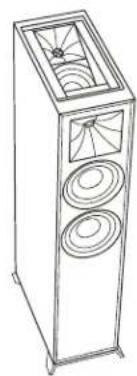

REFERENCE WITH DOLBY ATMOS® TECHNOLOGY

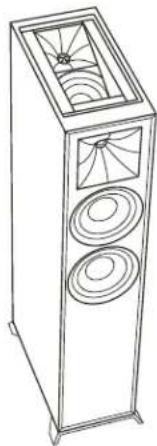

Line drawing of a multi-tiered speaker tower with two circular speakers and a top panel (no text or symbols)

Line drawing of a box with a speaker grille and fan blade (no text or symbols)

R-41SAR-625FA

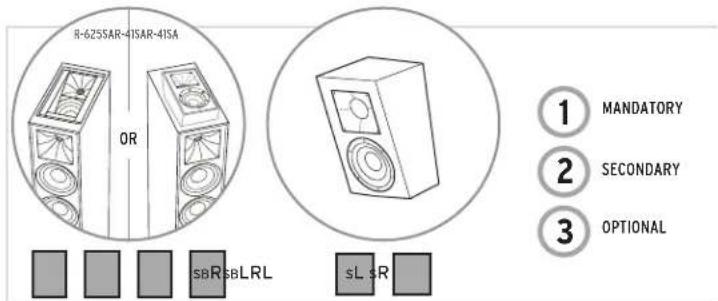

R-625SAR-41SAR-41SA OR sBRsBLRL sL $R ① MANDATORY ② SECONDARY ③ OPTIONAL


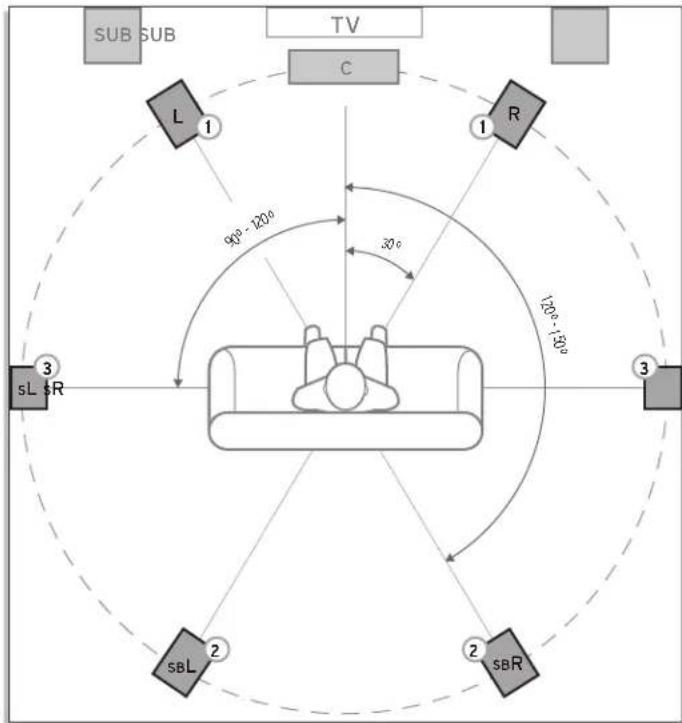

SPEAKER PLACEMENT IN LISTENING AREA

CARE AND CLEANING

The only thing you should ever need to do to your speakers is dust them occasionally. Never apply any abrasive or solvent-based cleaner or any harsh detergent. You can clean the grilles with the brush attachment of a vacuum cleaner.

PRODUCT REGISTRATION

Register your product online at www.klipsch.com/register

• Keep up-to-date on new products and promotions.
• Your personal information will never be resold.
• This registration information is not used for warranty purposes.

Please retain your receipt for warranty claims.

REFERENCE

Line drawing of three identical multi-tiered speakers with circular speaker holes and grid-patterned front panels (no text or symbols)

FRENCH

ENCEINTES REFERENCE

Diagram of a two-tiered speaker tower with circular components and a central grid element (no text or symbols)

Diagram of a vertical speaker tower with two circular speakers and a central square component (no text or symbols)

R-620F

Line drawing of a vertical speaker with circular components and a square top (no text or symbols)

R-610FR-820F

R-51M

R-41M

R-52C

Pure diagram of eight circular mechanical components with mounting holes and a central square, no text or symbols present.

R-34C

DOLBY ATMOS®

R-41SA

Line drawing of a multi-tiered speaker tower with visible sound waves and ventilation grilles (no text or symbols)

R-625FA

AVANT DE COMMENCER

Line drawing of three identical multi-tiered speakers with circular speaker holes and a grid-patterned front panel (no text or symbols)

REFERENCE-LAUTSPRECHER

Diagram of a two-tiered speaker tower with circular components and a central grid element (no text or symbols)

Diagram of a tall speaker tower with two circular speakers and a central square component (no text or symbols)

R-620F

Line drawing of a vertical speaker with circular components and a square top (no text or symbols)

R-610FR-820F

R-51M

R-41M

R-52C

Pure diagram of eight circular mechanical components with mounting holes and a central square, no text or symbols present.

R-34C

DOLBY ATMOS®

R-41SA

Line drawing of a multi-tiered speaker tower with visible sound waves and ventilation grilles (no text or symbols)

R-625FA

ERSTE SCHRITTE

Technical line drawing of a mechanical assembly with screws and a bracket (no text or symbols)

CENTER-KANAL

CEN Gummifüßchen

MONITORLAUTSPRECHER

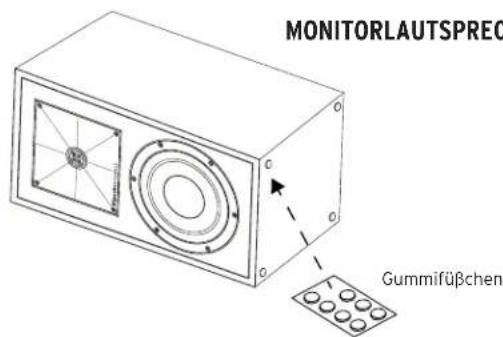

MONITORLAUTSPREC Gummifüßchen

Line drawing of a multi-tiered speaker tower with two circular speakers and a top-mounted fan (no text or symbols)

Line drawing of a box with a speaker grille and antenna (no text or symbols)

R-14SAR-26FA

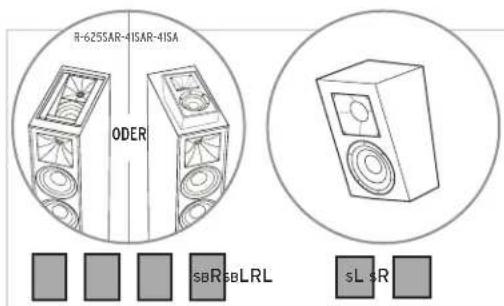

R-625SAR-41SAR-41SA ODER sBRsBLRL sL sR

1 NOTWENDIG
2 SEKUNDÄR
3 OPTIONAL

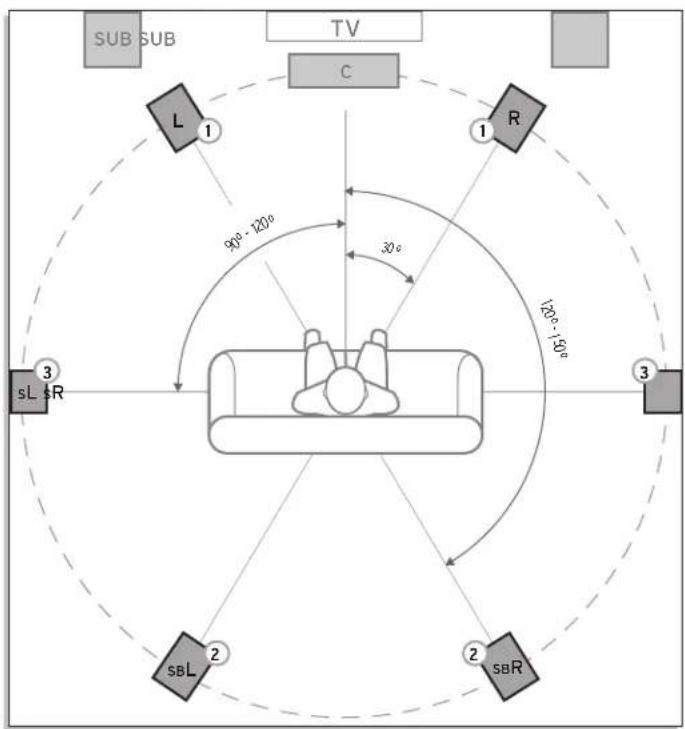

SUB SUB TV C L 1 1 R 3 sL +R 3 90° - 120° 30° 120° - 150° sBL 2 2 sBR

Line drawing of three identical outdoor speakers with circular speaker holes and front-mounted screens (no text or symbols)

ALTAVOCES REFERENCE

Diagram of a two-tiered speaker tower with circular components and a central grid element (no text or symbols)

Diagram of a tall speaker tower with two circular speakers and a central square component (no text or symbols)

R-620F

Line drawing of a vertical speaker with circular components and a square top (no text or symbols)

R-610FR-820F

R-51M

R-41M

R-52C

Pure diagram of eight circular mechanical components with mounting holes and a central square, no text or symbols present.

R-34C

DOLBY ATMOS®

R-41SA

Line drawing of a multi-tiered speaker tower with visible sound waves and ventilation grilles (no text or symbols)

R-625FA

ANTES DE EMPEZAR

Technical line drawing of a mechanical assembly with screws and a base plate (no text or symbols)

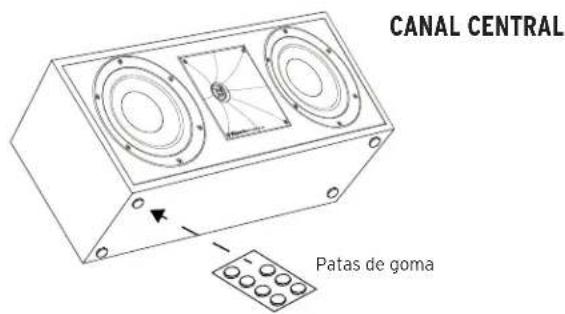

CANAL CENTRAL Patas de goma

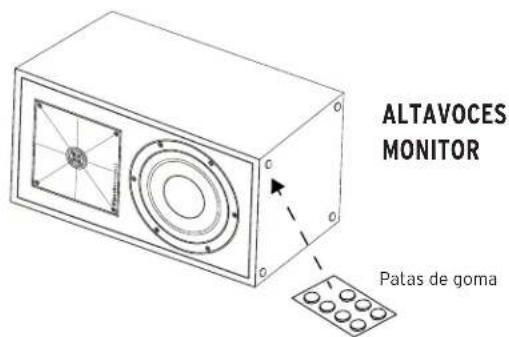

ALTAVOCES MONITOR Patas de goma

FIGURA 2 CANAL CENTRAL

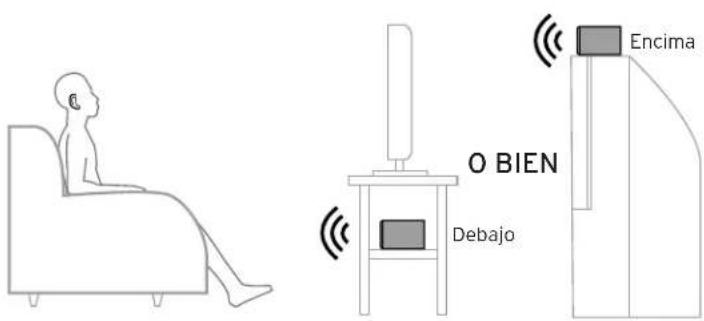

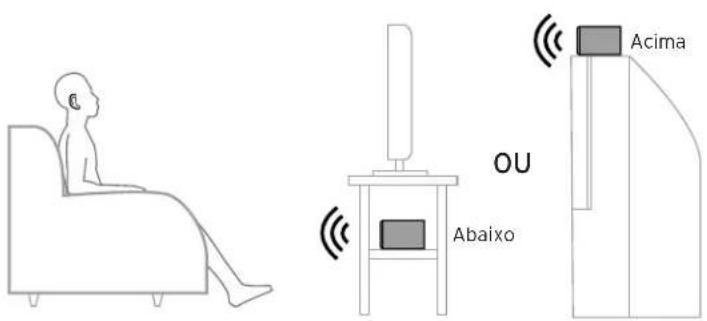

Encima O BIEN Debajo

FIGURA 4 MONTAJE DE LOS ALTAVOCES SURROUND EN LA PARED

Line drawing of three identical multi-tiered speakers with circular speaker holes and a grid-patterned top panel (no text or symbols)

CAIXAS ACÚSTICAS REFERENCE

Diagram of a two-tiered speaker tower with circular components and a central grid element (no text or symbols)

Diagram of a vertical speaker tower with two circular speakers and a central square component (no text or symbols)

R-620F

Line drawing of a vertical speaker with circular components and a square top (no text or symbols)

R-610FR-820F

R-51M

R-41M

R-52C

Pure diagram of eight circular mechanical components with mounting holes and a central square, no text or symbols present.

R-34C

DOLBY ATMOS®

R-41SA

Line drawing of a multi-tiered speaker tower with three speakers and a front panel (no text or symbols)

R-625FA

ANTES DE COMEÇAR

Technical line drawing of a mechanical assembly with screws and a bracket (no text or symbols)

CANAL CENTRALCAIXAS ACÚ Pés de borracha CAIXAS ACÚSTICAS MONITOR Pés de borracha

CANAL CENTRALCAIXAS ACÚ

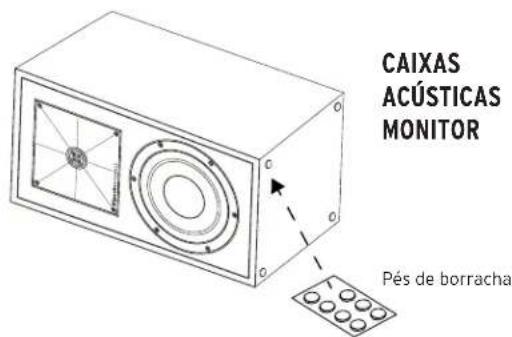

CAIXAS ACÚSTICAS MONITOR Pés de borracha

FIGURA 2
CANAL CENTRAL

Diagram showing four types of screws and a wooden block, enclosed in a circle (no text or symbols)

Parafusos de cabeça chata para madeira no 10 ou 12 de 63 a 76 mm de comprimento Montar na viga de parede ou usar buchas - deixar 64 mm expostos

REFERENCE COM TECNOLOGIA DOLBY ATMOS®

Line drawing of a multi-tiered speaker tower with two speakers and a front panel (no text or symbols)

Line drawing of a box with a circular component and a small inset showing a fan or pointer (no text or symbols)

R-14SAR-26FA

R-625SAR-4ISAR-4ISA OU

Line drawing of a speaker with two speakers, enclosed in a circle (no text or symbols)

1

OBRIGATÓRIO

2

SECUNDÁRIO

3

OPCIONAL

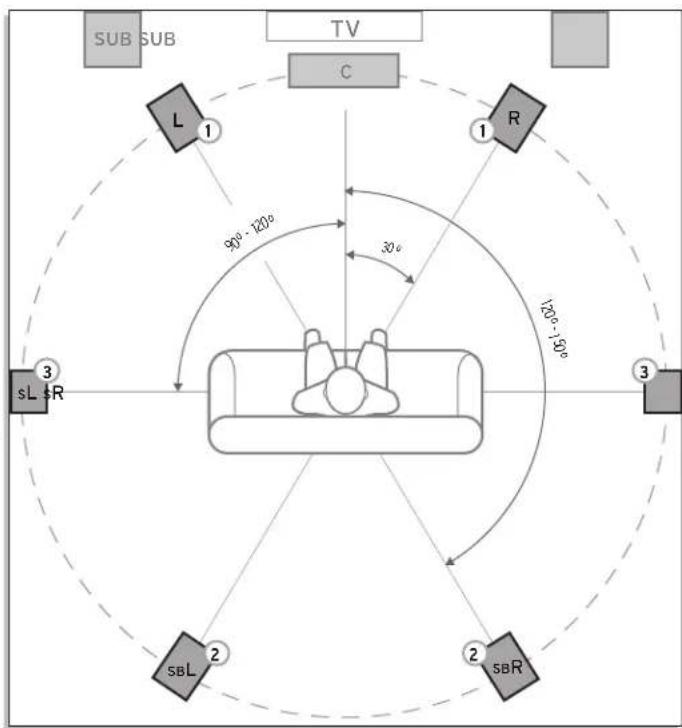


Line drawing of three identical outdoor speakers with circular speaker holes and grid-patterned front panels (no text or symbols)

ALTOPARLANTI REFERENCE

Diagram of a two-tiered speaker tower with circular components and a central grid element (no text or symbols)

Diagram of a tall speaker tower with two circular speakers and a central square component (no text or symbols)

R-620F

Line drawing of a vertical speaker with circular components and a square top (no text or symbols)

R-610FR-820F

R-51M

R-41M

R-52C

Pure diagram of eight circular mechanical components with mounting holes and a central square, no text or symbols present.

R-34C

DOLBY ATMOS®

R-41SA

Line drawing of a multi-tiered speaker tower with visible sound waves and ventilation grilles (no text or symbols)

R-625FA

OPERAZIONI PRELIMINARI

Line drawing of three identical multi-tiered speakers with circular speaker holes and a grid-patterned front panel (no text or symbols)

参考系列扬声器

Diagram of a two-tiered speaker tower with circular components and a central grid element (no text or symbols)

Diagram of a tall speaker tower with two circular speakers and a central square component (no text or symbols)

R-620F

Line drawing of a vertical speaker with circular components and a square top (no text or symbols)

R-610FR-820F

R-51M

R-41M

R-52C

Pure diagram of eight circular mechanical components with mounting holes and a central square, no text or symbols present.

R-34C

DOLBY ATMOS®

R-41SA

Line drawing of a multi-tiered speaker tower with three speakers and a front panel (no text or symbols)

R-625FA

开始使用之前

Technical line drawing of a mechanical assembly with screws and a bracket (no text or symbols)

橡胶脚垫

中间声道

监视器音箱 橡胶脚垫

室内音箱的布放 电气连接

Line drawing of a human figure seated in a chair, viewed from the side (no text or symbols)

或 下面

上面

图4
墙面安装环绕音箱

Line drawing of three identical multi-tiered speakers with circular speaker holes and grid-patterned front panels (no text or symbols)

Diagram of a two-tiered speaker tower with circular components and a central square grid (no text or symbols)

Diagram of a tall speaker tower with two circular speakers and a central square component (no text or symbols)

R-620F

Line drawing of a vertical speaker with circular components and a square top (no text or symbols)

R-610FR-820F

R-51M

R-41M

R-52C

Pure diagram of eight circular mechanical components with mounting holes and a central square, no text or symbols present.

R-34C

DOLBY ATMOS®

R-41SA

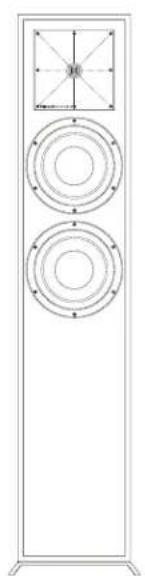

Line drawing of a multi-tiered speaker tower with three speakers and a front panel (no text or symbols)

R-625FA

أدېت نأ لېق

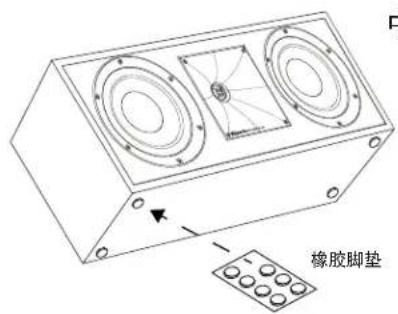

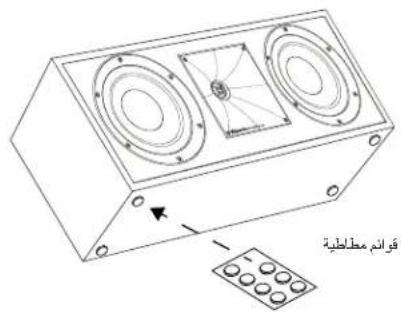

Technical line drawing of a mechanical assembly with screws and a base plate (no text or symbols)

الFranة碾زية

Line drawing of a seated human figure in profile view, no text or symbols present

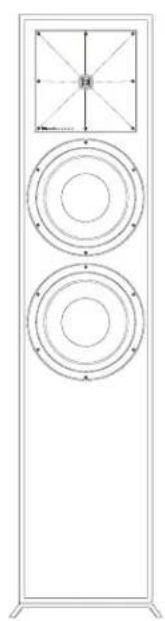

Line drawing of a multi-tiered speaker tower with two speakers and a front panel (no text or symbols)

Line drawing of a rectangular box with a speaker grille and antenna (no text or symbols)

R-14SAR-26FA

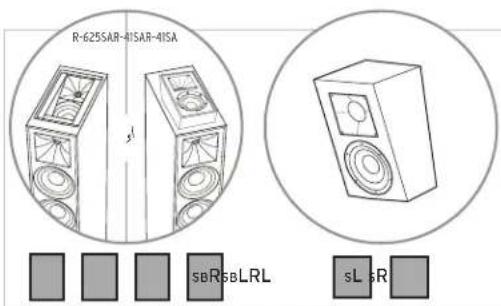

R-625SAR-41SAR-41SA s1 sbRsbLRL sL sR

KEEPERS OF THE SOUND

3502 WOODVIEW TRACE, INDIANAPOLIS, IN, USA

KLIPSCH.COM

DOLBY ATMOS

Manufactured under license from Dolby Laboratories, Dolby, Dolby Atmos and the double-0 symbol are registered trademarks of Dolby Laboratories.

©2018, Klipsch Group, Inc. Klipsch Group, Inc. is a wholly-owned subsidiary of Vox International Corporation.

Klipsch and Keepers of the Sound are trademarks of Klipsch Group, Inc., registered in the United States and other countries.
