Reference Premiere RP404C - Speaker KLIPSCH - Free user manual and instructions

Technical Specifications	4-way center speaker, 2 4-inch woofers, 1 4-inch midrange driver, 1 1-inch titanium tweeter
Impedance	8 Ohms
Maximum Power	400 Watts
Frequency Response	80 Hz - 25 kHz
Dimensions	25.4 cm x 61 cm x 20.3 cm
Weight	9.07 kg
Recommended Use	Ideal for home theater systems and high-end audio setups
Maintenance	Clean regularly with a soft cloth, avoid excessive moisture
Safety	Do not expose to extreme temperatures or moisture, use with compatible amplifiers
General Information	Compatible with Dolby Atmos systems, high-quality wood finish

Frequently Asked Questions - Reference Premiere RP404C KLIPSCH

How do I connect the KLIPSCH Reference Premiere RP404C to my audio system?

To connect the KLIPSCH Reference Premiere RP404C, use quality speaker cables and connect them to the speaker terminals and your amplifier or audio receiver. Make sure to respect the polarity (+ and -) when connecting.

What are the dimensions of the KLIPSCH Reference Premiere RP404C?

The KLIPSCH Reference Premiere RP404C measures approximately 61.6 cm wide, 20.3 cm high, and 25.4 cm deep.

What is the recommended power for the KLIPSCH Reference Premiere RP404C?

The recommended power for the KLIPSCH Reference Premiere RP404C is 100 to 400 watts per channel, with a nominal impedance of 8 ohms.

How should I position the KLIPSCH Reference Premiere RP404C for the best sound?

For optimal sound, place the KLIPSCH Reference Premiere RP404C in the center of your audio setup, ideally at ear level when seated, and away from walls to avoid unwanted reflections.

Is the KLIPSCH Reference Premiere RP404C compatible with Dolby Atmos?

Yes, the KLIPSCH Reference Premiere RP404C can be used in a Dolby Atmos configuration as a center speaker to complement a surround system.

How do I clean my KLIPSCH Reference Premiere RP404C?

To clean the KLIPSCH Reference Premiere RP404C, use a soft, dry cloth to remove dust. Avoid abrasive chemicals that could damage the finish.

What should I do if I don\'t hear sound from the KLIPSCH Reference Premiere RP404C?

First, check the speaker cable connections to ensure they are properly plugged in. Then check your audio receiver settings to make sure the speaker is enabled and correctly configured.

Is the KLIPSCH Reference Premiere RP404C covered by a warranty?

Yes, the KLIPSCH Reference Premiere RP404C is generally covered by a limited warranty, but the duration and conditions may vary. See the user manual for details.

USER MANUAL Reference Premiere RP404C KLIPSCH

P K EST. 1946 HOPE, AR

USER MANUAL

Klipsch®

REFERENCE

PREMIERE

|

一

1

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

|

一

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

—

|

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

REFERENCE (n):

1) the standard, the benchmark, the point used for comparison
2) the embodiment of the legendary Klipsch sound

LOUD AND PROUD SINCE 1946

In 1946, Paul W. Klipsch revolutionized the audio industry by creating our proprietary horn technology and the acoustic principles that are the driving force behind our highly acclaimed signature sound. Today, we remain true to PWK's vision and pack the better part of a century's worth of sweat and genius into every product we make. These speakers are the result of our obsession with that aural perfection. Experience the power, detail and emotion of Klipsch Reference Series.

We are the Keepers of the Sound ^® .

ENGLISH

Line drawing of five different speaker units in a row, each with two circular speakers and a central screen (no text or symbols present)

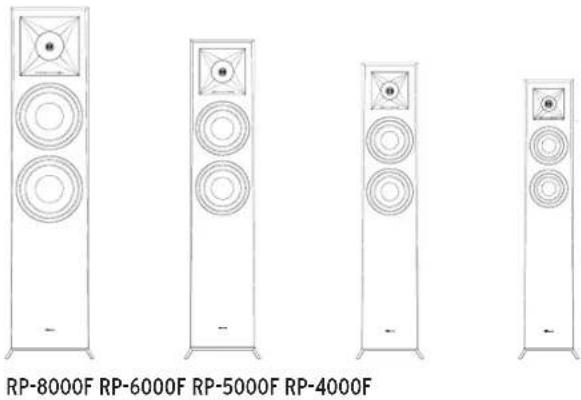

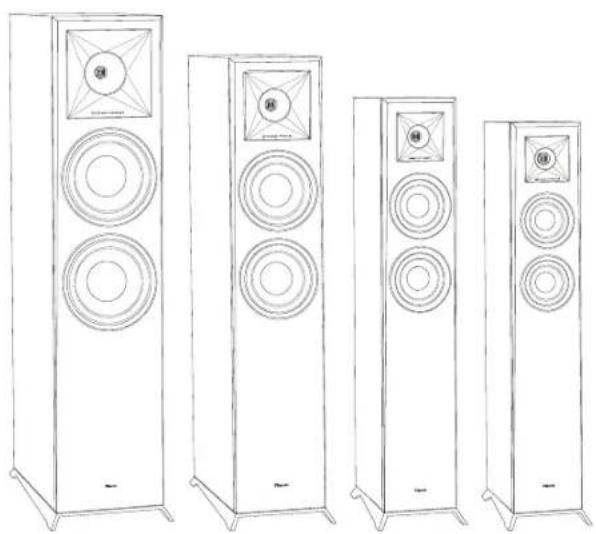

REFERENCE PREMIERE SPEAKERS

RP-600M

RP-500M RP-400M RP-502S RP-402S RP-500SA

RP-504C RP-404C RP-600C RP-500C RP-400C

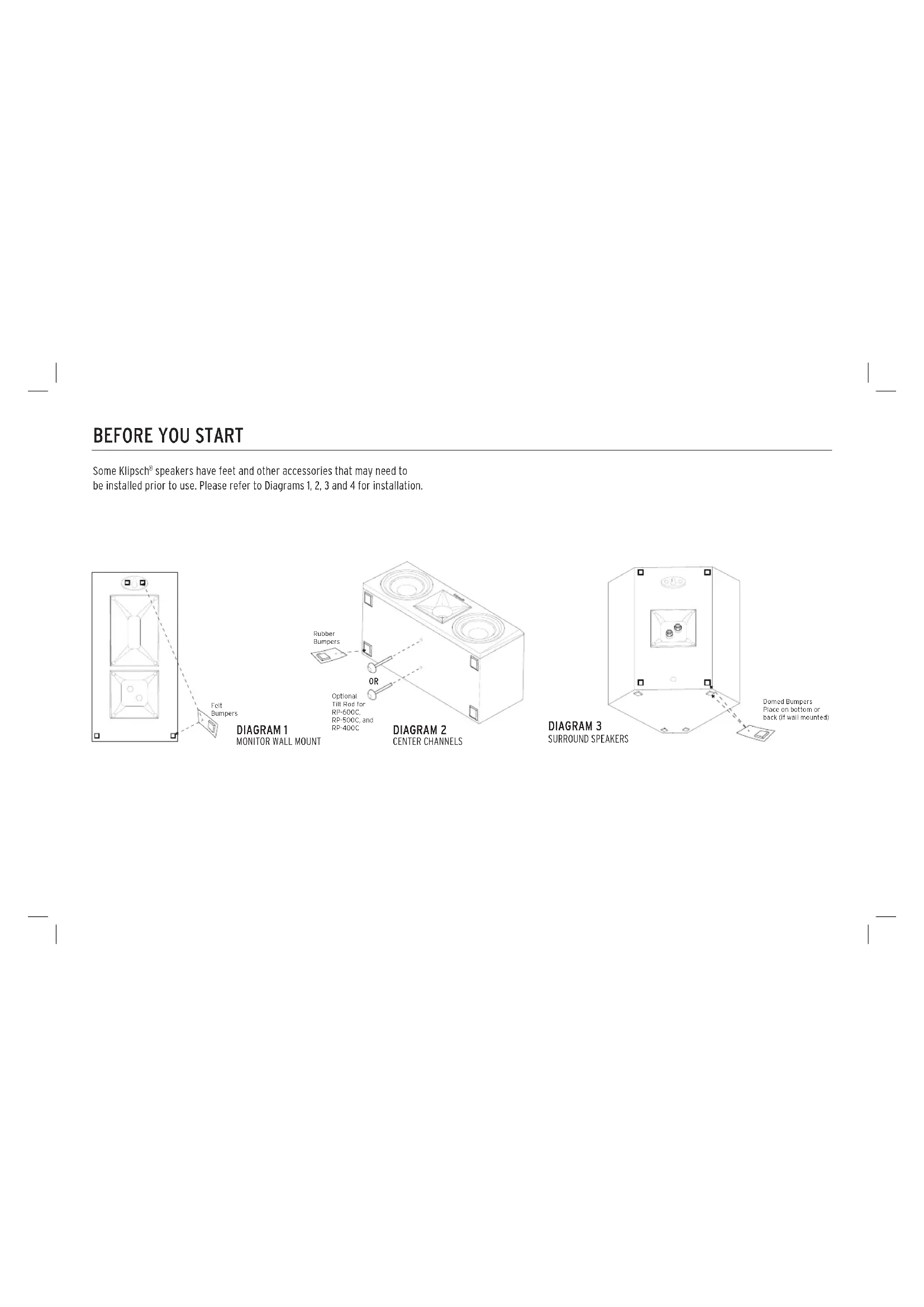

BEFORE YOU START

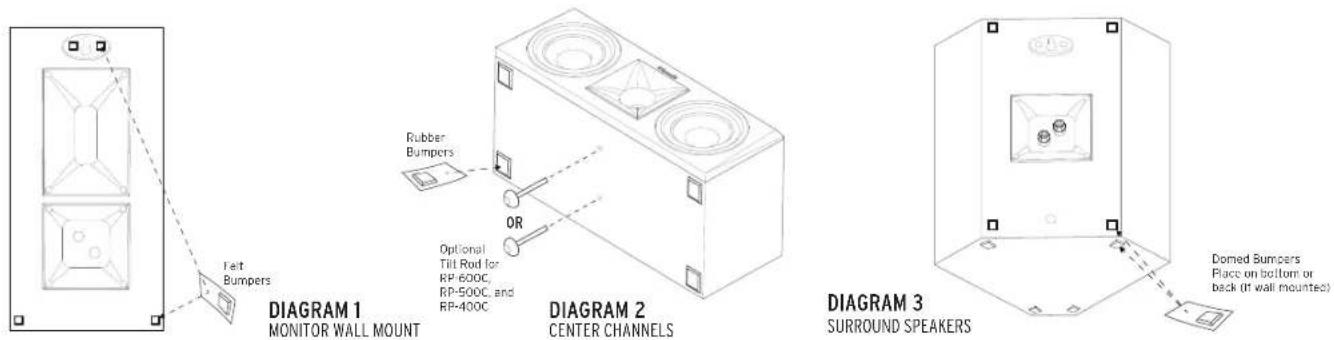

Some Klipsch ^® speakers have feet and other accessories that may need to be installed prior to use. Please refer to Diagrams 1, 2, 3 and 4 for installation.

ROOM PLACEMENT

Left and Right Main Channel Speakers – For optimum performance, Klipsch Group, Inc. (KGI) suggests placing your speakers 6 to 15 feet (1.8 to 4.6m) apart. They may also be toed-in slightly for better stereo imaging. The listening position should be about 1 to 1.5 times the distance separating the speakers. Refer to Figures 1 and 3 for connection and placement.

Center Channel Speakers – Center channel speakers are designed to place dialogue and primary sounds so that they appear to come from the video screen. The speakers should therefore be placed as close to the screen as possible, preferably directly on top of or below the screen. Refer to Figures 1, 2 and 3 for connection and placement.

Rear Surround Channel Speakers – Klipsch WDST surround speakers should be placed approximately 2 feet above the listening position. Typically this will be about 5-7 feet above the floor. The surrounds should be placed on the walls directly adjacent to the listening position. Another option would be on the wall behind the listening position. The final surround speaker placement depends on your room's characteristics. They are designed to recreate the sense of space and ambience that many of today's surround sound technologies provide. Refer to Figures 1, 3 and 4 for connection and placement.

CONNECTION

Conventional Connection – Using 16-12 gauge speaker wire, connect the RED "positive" (+) terminal of the LEFT speaker to the RED "positive" (+) terminal of your amplifier's LEFT channel. Connect the BLACK "negative" (-) terminal of the LEFT speaker to the BLACK "negative" (-) terminal of your amplifier's LEFT channel. Repeat this procedure for connecting all remaining speakers to the appropriate amplifier channels. Refer to Figure 3. Make sure that no bare wires from any of the connections touch any other terminals as this could cause a short and damage your equipment.

Reference Premiere models RP-8060FA, RP-8000F, RP-6000F, RP-5000F, RP-4000F and RP-160M are equipped with dual binding posts. If single wire connection is used, the terminal connecting bar should remain in place. If Bi-wire or Bi-amp connection is used, the terminal connecting bar must be removed. Please see your receiver's manual for further instructions.

Amplifier Requirements – Klipsch speakers are highly efficient and will operate easily on a wide variety of amplifiers. All Klipsch speakers are 8-ohm compatible and can be driven to very high levels with low distortion. Due to the high output levels, Klipsch speakers are capable of reproducing, exercise caution with the volume control. Excessive volume over long periods can permanently damage your hearing. Overdriving your amplifier could also damage your speakers. Check with your dealer or amplifier manual to make sure your particular amplifier is best suited to your application. We want you listening for a lifetime.

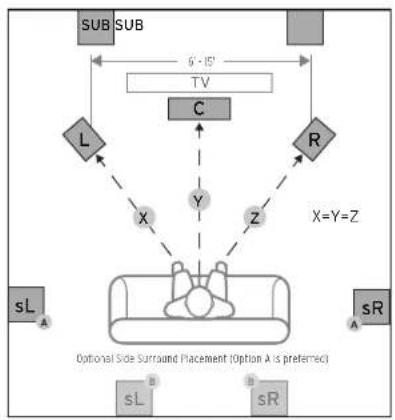

FIGURE 1 SPEAKER PLACEMENT IN LISTENING AREA
    style_M["sL"] fill:#fcc,stroke:#333
    style_N["sR"] fill:#cfc,stroke:#333

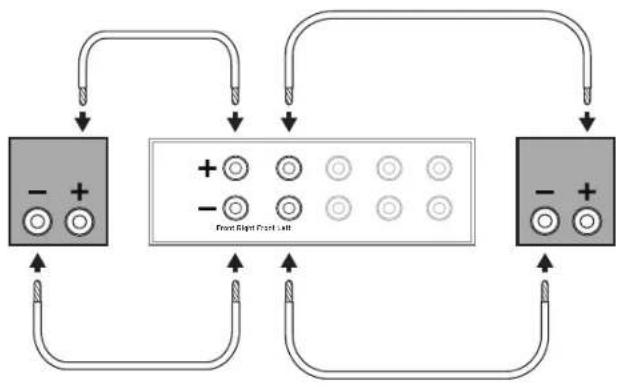

FIGURE 3 STANDARD CONNECTIONS


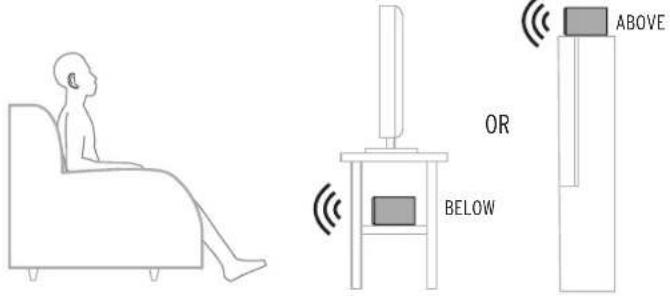

FIGURE 2 CENTER CHANNEL

ABOVE OR BELOW

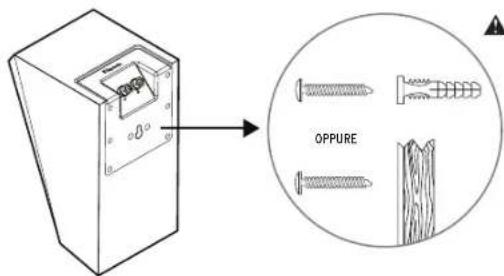

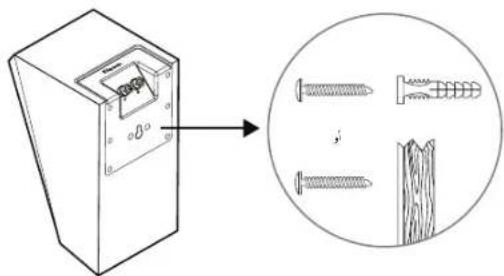

FIGURE 4 WALL MOUNTING

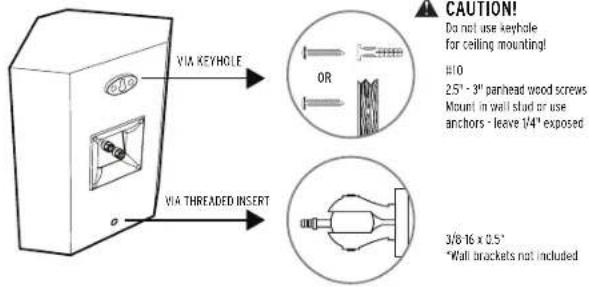

VIA KEYHOLE VIA THREADED INSERT CAUTION! Do not use keyhole for ceiling mounting! H10 2.5" - 3" parhead wood screws Mount in wall stud or use anchors - leave 1/4" exposed 3/8 16 x 0.5" "Wall brackets not included

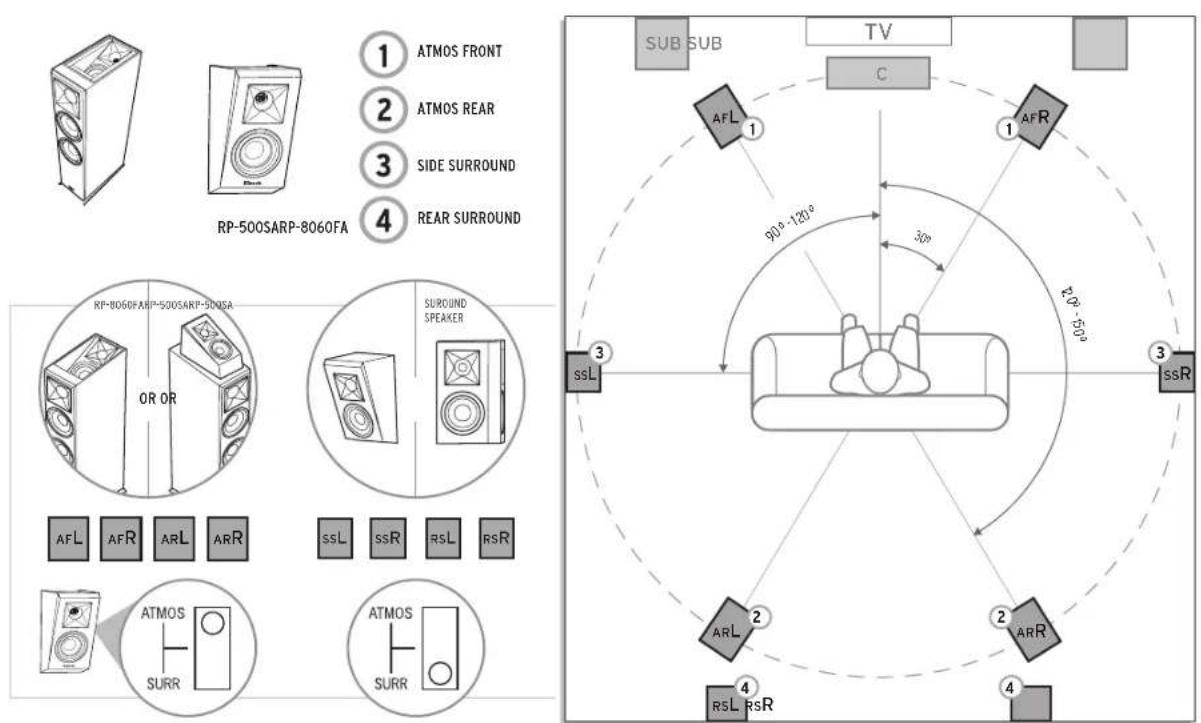

REFERENCE PREMIERE WITH DOLBY ATMOS® TECHNOLOGY

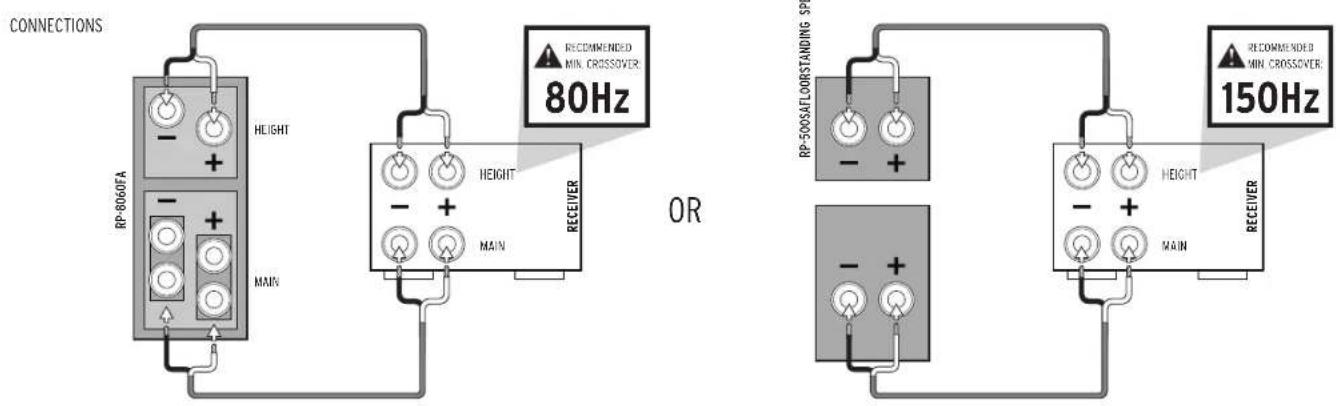

1 ATMOS FRONT 2 ATMOS REAR 3 SIDE SURROUND 4 REAR SURROUND RP-500SARP-8060FA 1 2 3 4 RF-8060FARP-500SARP-500SA OR OR SUROUND SPEAKER AFL AFR ARL ARR ssL ssR RsL RsR 3 ssL Sub SUB TV C 1 AFR 90°-120° 30° 20°-50° 3 ssR 2 ARL 2 ARR 4 RSL RsR ATMOS SURR ATMOS SURR

SPEAKER PLACEMENT IN LISTENING AREA

REFERENCE PREMIERE WITH DOLBY ATMOS® TECHNOLOGY

RP-500SAFLOORSTANDING SPEAKER

The RP-500SA can be added to any passive loudspeaker setup.

Line drawing of a speaker with two circular components on top (no text or symbols)

Technical diagram showing a component with screw holes and its corresponding wire drawing, including a magnified view of the wire.

CAUTION!

Do not use keyhole for ceiling mounting

10

2.5" - 3" panhead wood screws Mount in wall stud or use anchors - leave 1/4" exposed

CARE AND CLEANING

The only thing you should ever need to do to your speakers is dust them occasionally. Never apply any abrasive or solvent-based cleaner or any harsh detergent. You can clean the grilles with the brush attachment of a vacuum cleaner.

PRODUCT REGISTRATION

Register your product online at www.klipsch.com/register

- Keep up-to-date on new products and promotions.

- Your personal information will never be resold.

• This registration information is not used for warranty purposes.

Please retain your receipt for warranty claims.

REFERENCE

Line drawing of five identical outdoor speakers with circular speaker holes, arranged in a row (no text or symbols)

ENCEINTES REFERENCE PREMIERE

RP-600M

RP-500M RP-400M RP-502S RP-402S RP-500SA

RP-504C RP-404C RP-600C RP-500C RP-400C

AVANT DE COMMENCER

Line drawing of a speaker with two circular components and a star-shaped top panel (no text or symbols)

MONTAGE MURAL DES ENCEINTES SURROUNDECIENTE D'ÉLÉVATION

Technical diagram showing a component with a screw and a magnified view of two screws (labeled 'OU') on a wooden surface.

ATTENTION!

We are the Keepers of the Sound ^® .

DEUTSCH

Line drawing of five different speaker units in a row, each with two circular speakers and a central screen (no text or symbols present)

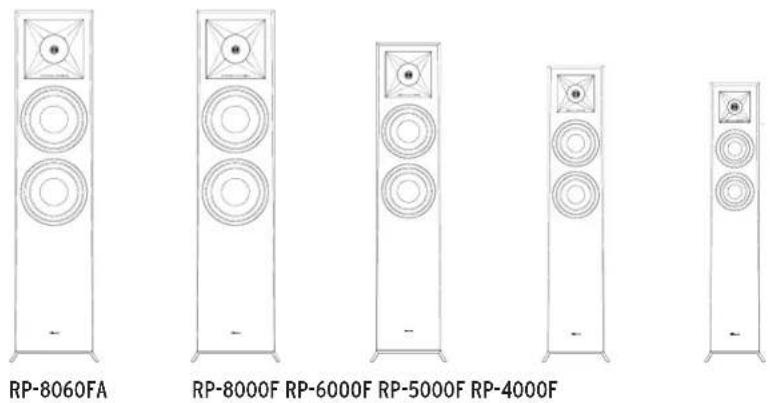

REFERENCE PREMIERE-LAUTSPRECHER

RP-600M

RP-500M RP-400M RP-502S RP-402S RP-500SA

RP-504C RP-404C RP-600C RP-500C RP-400C

ERSTE SCHRITTE

Line drawing of a speaker with two circular components and a square aperture (no text or symbols)

Diagram showing a device with screw and a circular inset showing two screws labeled ODER, illustrating electrical or mechanical assembly.

VORSICHT!

Line drawing of five different speaker units in a row, each with two circular speakers and a central screen (no text or symbols present)

ALTAVOCES REFERENCE PREMIERE

RP-600M

RP-500M RP-400M RP-502S RP-402S RP-500SA

RP-504C RP-404C RP-600C RP-500C RP-400C

ANTES DE EMPEZAR

Line drawing of a speaker with two circular components and a star-shaped top (no text or symbols)

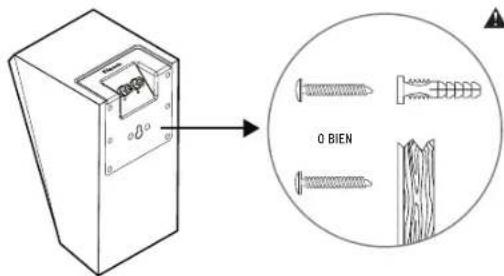

MONTAJE DE LOS ALTAVOCES SURROUND EN LA PAREDALTAVOZ DE ALTURA

O BIEN

PRECAUCIÓN

Somos os Keepers of the Sound ^8 .

PORTUGUÊS

Line drawing of five different speaker units in a row, each with two circular speakers and a central screen (no text or symbols present)

CAIXAS ACÚSTICAS REFERENCE PREMIERE

RP-600M

RP-500M RP-400M RP-502S RP-402S RP-500SA

RP-504C RP-404C RP-600C RP-500C RP-400C

ANTES DE COMEÇAR

DIAGRAMA 2 CANAL CENTRAL

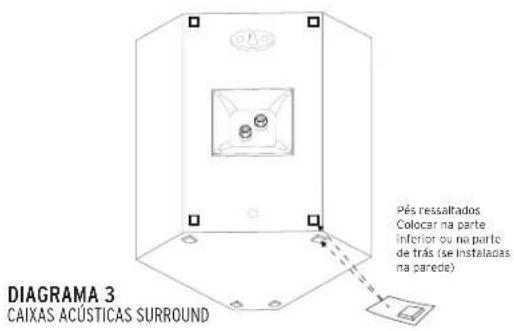

Pés ressaltados Colocar na parte inferior ou na parte de trás (se instaladas, na parede) DIAGRAMA 3 CAIXAS ACÚSTICAS SURROUND

FIGURA 2 CANAL CENTRAL OU ABAIXO ACIMA

FIGURA 4 INSTALAÇÃO DAS CAIXAS ACÚSTICAS SURROUND EM PAREDE

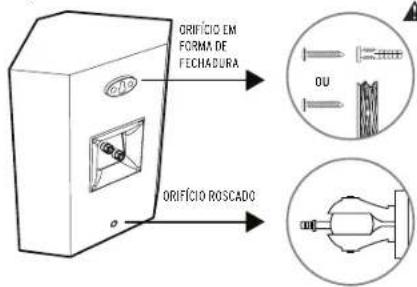

ORIFÍCIO EM FORMA DE FECHADURA ORIFÍCIO ROSCADO

Line drawing of a speaker with two circular components and a star-shaped top (no text or symbols)

Diagram showing a component with screw holes and a magnified view of two screws (0u) on a surface.

CUIDADO!

Line drawing of five different speaker units in a row, each with two circular speakers and a central screen (no text or symbols present)

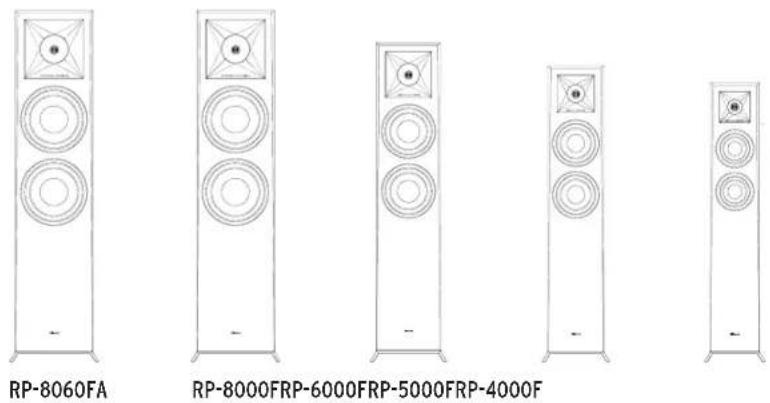

ALTOPARLANTI REFERENCE PREMIERE

RP-600M

RP-500M RP-400M RP-502S RP-402S RP-500SA

RP-504C RP-404C RP-600C RP-500C RP-400C

OPERAZIONI PRELIMINARI

Line drawing of a speaker with two circular components and a star symbol on top (no text or labels)

FISSAGGIO A PARETE DEGLI ALTOPARLANTI SURROUNDALTOPARLANTI ELEVATO

OPPURE

ATTENZIONE

Line drawing of five identical outdoor speakers with circular speaker holes, arranged in a row (no text or symbols)

参考系列扬声器

RP-600M

RP-500MRP-400MRP-502SRP-402SRP-500SA

RP-504CRP-404CRP-600CRP-500CRP-400C

开始使用之前

Pure technical line drawing of a 3D mechanical part with no text, numbers, or symbols

Line drawing of five different speaker units in a row, each with two circular speakers and a central screen (no text or symbols present)

Line drawing of a speaker with two circular speakers and a triangular top panel (no text or symbols)

التركيب بالحانط

Diagram showing a small electrical switch connected to a circular inset of three types of screws (wood, metal, and screw), no text or symbols present.

العناية والتنظيف
