USER MANUAL POWX1725 PowerPlus

5.1 Safety instructions for working with copressed air and blasting guns ............... 5

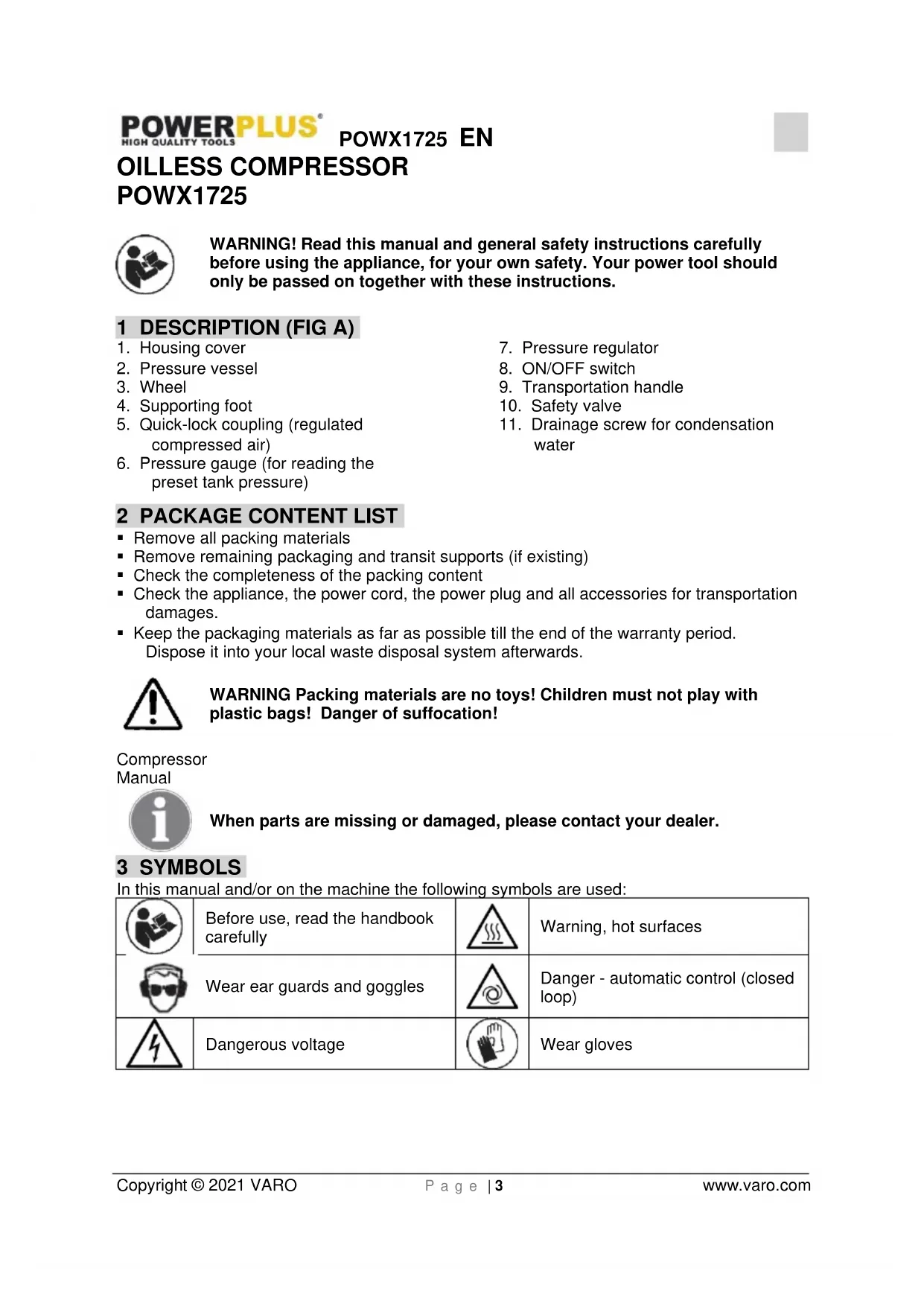

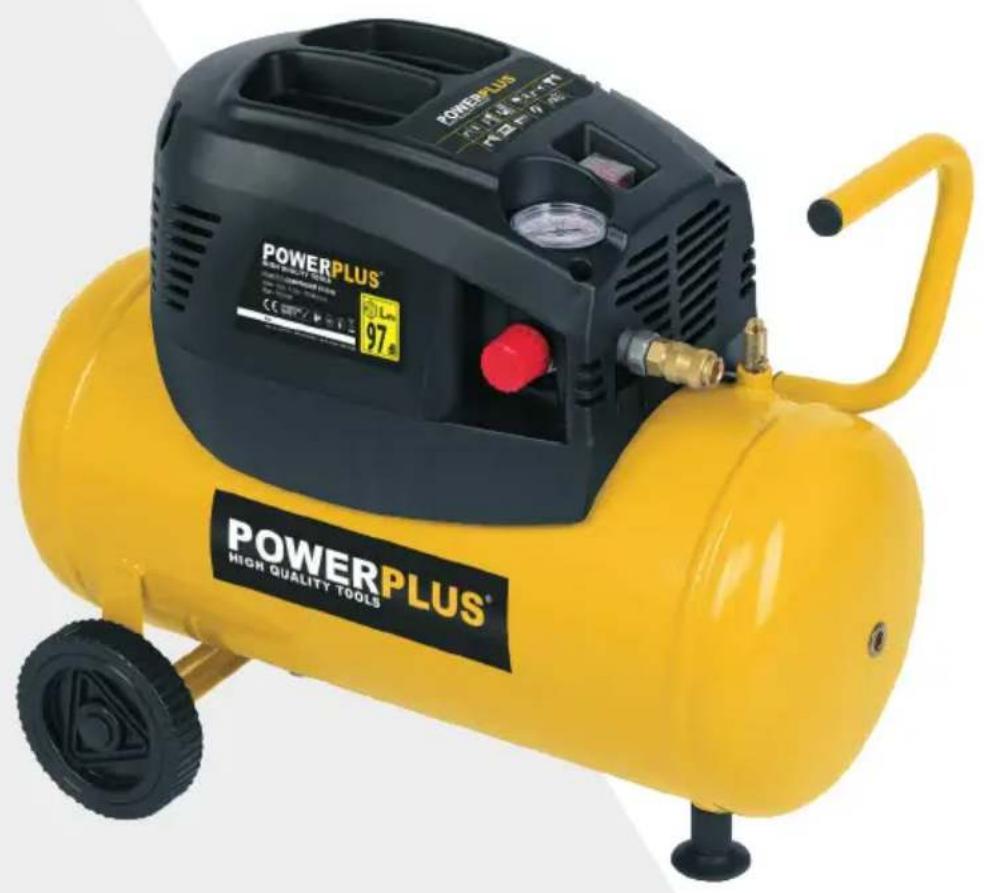

Copyright © 2021 VARO P a g e | 3 www.varo.com OILLESS COMPRESSOR POWX1725 WARNING! Read this manual and general safety instructions carefully before using the appliance, for your own safety. Your power tool should only be passed on together with these instructions. 1 DESCRIPTION (FIG A)

5. Quick-lock coupling (regulated

6. Pressure gauge (for reading the

9. Transportation handle

11. Drainage screw for condensation

Remove all packing materials Remove remaining packaging and transit supports (if existing) Check the completeness of the packing content Check the appliance, the power cord, the power plug and all accessories for transportation damages. Keep the packaging materials as far as possible till the end of the warranty period. Dispose it into your local waste disposal system afterwards. WARNING Packing materials are no toys! Children must not play with plastic bags! Danger of suffocation! Compressor Manual When parts are missing or damaged, please contact your dealer. 3 SYMBOLS In this manual and/or on the machine the following symbols are used:

Before use, read the handbook carefully

Wear ear guards and goggles

Danger - automatic control (closed loop)

Read all safety warnings and all instructions. Failure to follow all warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mains operated (corded) power tool or battery operated (cordless) power tool.

Keep work area clean and well lit. Cluttered and dark areas invite accidents. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

4.2 Electrical safety

Always check that the power supply corresponds to the voltage on the rating plate. Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock. When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury. Use safety equipment. Always wear eye protection. Safety equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used whenever conditions require will reduce personal injuries. Avoid accidental starting. Ensure the switch is in the off position before plugging in. Carrying power tools with your finger on the switch or plugging in power tools that have the switch on invites accidents. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.POWX1725 EN Copyright © 2021 VARO P a g e | 5 www.varo.com If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of these devices can reduce dust related hazards.

4.4 Power tool use and care

Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired. Disconnect the plug from the power source before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. Maintain power tools. Check for misalignment or sticking of moving parts, breakage of parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to stick and are easier to control. Use the power tool, accessories and tool bits etc., in accordance with these instructions and in the manner intended for the particular type of power tool, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from intended could lead to a hazardous situation.

Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. 5 PRECAUTIONS

5.1 Safety instructions for working with copressed air and blasting guns

Compressors and lines reach high temperatures during operation. Avoid contact! Risk of burns! Gases or vapours drawn in by the compressor have to be kept free of constituents that may cause fire or explosions inside the compressor. When you disconnect the hose coupling, hold the coupling element in your hand to prevent injury from the whiplashing hose. Wear goggles when working with the blow-out gun. Injuries may easily result from foreign bodies and blasted parts. Never point the blow-out gun at other persons and never use it to clean clothes that are still being worn.

5.2 Safety information for paint spraying

Never process paints or solvents with a flash point below 55°C. Never heat paints or solvents. It is imperative to use filtering equipment (face masks) when processing harmful liquids. Note also the information concerning safety precautions published by the manufacturers of these liquids. Smoking is prohibited during the spraying operation and in the work room. Paint vapours are highly flammable. Make sure there are no open fires or open lights in the work room. Sparking machines are not to be used. Do not keep or consume food and drink in the work room. Paint vapours are harmful.POWX1725 EN Copyright © 2021 VARO P a g e | 6 www.varo.com The details and designations of the Ordinance on Hazardous Substances, which are displayed on the outer packaging of the processed material, must be observed. Additional protective measures are to be undertaken if necessary, particularly the wearing of suitable clothing and masks. The work room has to be bigger than 30 m3 and have sufficient ventilation for spraying and drying. Never spray into the wind. It is always imperative to observe the regulations of your local police authorities when spraying combustible or hazardous substances. Never process media such as white petroleum spirit, butyl alcohol and methylene chloride with the PVC pressure hose (reduced life span).

5.3 Operating pressure vessels

An operator of a pressure vessel is required to keep the pressure vessel in good working order, to operate it properly, to supervise its use, to carry out essential maintenance and repair work immediately, and to introduce essential safety measures according to requirements. The supervisory authorities may order essential safeguards from case to case. A pressure vessel may not be operated if it has any defects which constitute a danger to employees or third parties. The pressure vessel must be regularly inspected for damage, e.g. rust. If you discover any damage, then please contact the customer service workshop. 6 POINTS TO NOTE WHEN SETTING UP THE COMPRESSOR Examine the machine for signs of transit damage. Report any damage immediately to the company which delivered the compressor. The compressor should be set up near the working consumer. Avoid long air lines and long supply lines (extensions). Make sure the intake air is dry and dust-free. Do not set up the compressor in damp or wet rooms. The compressor may only be used in suitable rooms (with good ventilation and an ambient temperature from +5°C to +40°C). There must be no dust, acids, vapors, explosive gases or inflammable gases in the room. The compressor is designed to be used in dry rooms. It is prohibited to use the compressor in areas where work is conducted with sprayed water.

7 ASSEMBLY AND STARTING

Important! You must fully assemble the appliance before using it for the first time.

7.1 Fitting the wheels (3)

Fit the supplied wheels as shown in Fig. 3.

7.2 Fitting the supporting foot (4)

Fit the supplied rubber stopper as shown in Fig. 4.

The compressor is equipped with a mains cable with shock-proof plug. This can be connected to any 230V ~ 50Hz shock-proof socket which is protected by a 16 A fuse. Before you use the machine, make sure that the mains voltage complies with the specifications on the rating plate. Long supply cables, extensions, cable reels etc. cause a drop in voltage and can impede motor start-up. In the case of low temperatures below +5°C, motor start-up is jeopardized as a result of stiffness.POWX1725 EN Copyright © 2021 VARO P a g e | 7 www.varo.com

7.4 On/Off switch (8)

To switch on the equipment set the On/Off switch (8) to position 1. Move the On/Off switch (8) to position 0 to switch off the equipment.

7.5 Adjusting the pressure: (Fig. 1)

You can adjust the pressure on the pressure gauge (6) using the pressure regulator (7). The set pressure can be taken from the quicklock coupling (5).

7.6 Setting the pressure switch

The pressure switch is set at the factory. Switch-on pressure 6 bar Switch-off pressure 8 bar

8 CLEANING AND MAINTENANCE

Important! Pull the power plug before doing any cleaning and maintenance work on the appliance. Important! Wait until the compressor has completely cooled down. Risk of burns! Important! Always depressurize the tank before carrying out any cleaning and maintenance work.

Keep the safety devices free of dirt and dust as far as possible. Wipe the equipment with a clean cloth or blow it with compressed air at low pressure. We recommend that you clean the appliance immediately after you use it. Clean the appliance regularly with a damp cloth and some soft soap. Do not use cleaning agents or solvents; these may be aggressive to the plastic parts in the appliance. Ensure that no water can get into the interior of the appliance. You must disconnect the hose and any spraying tools from the compressor before cleaning. Do not clean the compressor with water, solvents or the like.

8.2 Condensation water

The condensation water must be drained off each day by opening the drain valve (11) (on the floor of the pressure vessel). Important! The condensation water from the pressure vessel will contain residual oil. Dispose of the condensation water in an environmentally compatible manner at the appropriate collection point.

8.3 Safety valve (10)

The safety valve has been set for the highest permitted pressure of the pressure vessel. It is prohibited to adjust the safety valve or remove its seal. Actuate the safety valve from time to time to ensure that it works when required. Pull the ring with sufficient force until you can hear the compressed air being released. Then release the ring again.POWX1725 EN Copyright © 2021 VARO P a g e | 8 www.varo.com

I mportant! Pull the mains plug out of the socket and ventilate the appliance and all connected pneumatic tools. Switch off the compressor and make sure that it is secured in such a way that it cannot be started up again by any unauthorized person. Important! Store the compressor only in a dry location which is not accessible to unauthorized persons. Always store upright, never tilted! 9 TECHNICAL DATA Type POWX1725 Rated voltage 230 V Rated frequency 50 Hz Rated Power 1100 W / 1,5 pk Rotation speed 3400 min

Rated Pressure 8 bar / 116PSI Tank capacity 24 l Air debit (capacity) 180 l/min Weight 20 kg 10 NOISE Noise emission values measured according to relevant standard. (K=3) Acoustic pressure level LpA 77 dB(A) Acoustic power level LwA 97 dB(A) ATTENTION! Wear hearing protection when sound pressure is over 85 dB(A).

11 POSSIBLE FAULTS AND RELATED PERMITTED REMEDIES

FAULT CAUSE REMEDY The compressor does not start

1. No supply voltage

1. Check the supply voltage, the

power plug and the socket-outlet.

2. Insufficient supply voltage

2. Make sure that the extension

cable is not too long. Use an extension cable with large enough wires.

3. Outside temperature is too

3. Never operate with an outside

temperature of below +5°C.

4. Motor is overheated

4. Allow the motor to cool down. If

necessary, remedy the cause of the overheating. The compressor starts but there is no pressure

1. Leak in the non-return

2. The seals are damaged.

2. Check the seals and have any

damaged seals replaced by a service centerPOWX1725 EN Copyright © 2021 VARO P a g e | 9 www.varo.com

3. The drainage screw for

condensation water (11) leaks.

3. Tighten the screw by hand. Check

the seal on the screw and replace if necessary. The compressor starts, pressure is shown on the pressure gauge, but the tools do not start.

1. Loose hose connections

1. Check the compressed air hose

and tools and replace if necessary.

2. Leak in a quick-lock

2. Check the quick-lock coupling and

replace if necessary.

3. Insufficient pressure set on

the pressure regulator.

3. Open the pressure regulator

further. 12 WARRANTY This product is warranted for a 36-month period effective from the date of purchase by the first user. This warranty covers all material or production flaws excluding : batteries, chargers, defective parts subject to normal wear & tear such as bearings, brushes, cables, and plugs, or accessories such as drills, drill bits, saw blades, etc. ; damage or defects resulting from maltreatment, accidents or alterations; nor the cost of transportation.. Damage and/or defects resulting from inappropriate use also do not fall under the warranty provisions. We also disclaim all liability for any bodily injury resulting from inappropriate use of the tool. Repairs may only be carried out by an authorised customer service centre for Powerplus tools. You can always obtain more information at the number 00 32 3 292 92 90. Any transportation costs shall always be borne by the customer, unless agreed otherwise in writing. At the same time, no claim can be made on the warranty if the damage of the device is the result of negligent maintenance or overload. Definitely excluded from the warranty is damage resulting from fluid permeation, excessive dust penetration, intentional damage (on purpose or by gross carelessness), inappropriate usage (use for purposes for which the device is not suitable), incompetent usage (e.g. not following the instructions given in the manual), inexpert assembly, lightning strike, erroneus net voltage. This list is not exhaustive. Acceptance of claims under warranty can never lead to the prolongation of the warranty period nor commencement of a new warranty period in case of a device replacement. Devices or parts which are replaced under the warranty therefore remain the property of Varo NV. We reserve the right to reject a claim whenever the purchase cannot be verified or when it is clear that the product has not been properly maintained. (Clean ventilation slots, carbon brushes serviced regularly, etc.). Your purchase receipt must be kept as proof of date of purchase. Your appliance must be returned undismantled to your dealer in an acceptably clean state, (in its original blow-moulded case if applicable to the unit), accompanied by proof of purchase. 13 ENVIRONMENT Should your appliance need replacement after extended use, do not discard it with the household rubbish but dispose of it in an environmentally safe way. Waste produced by electrical machine items should not be handled like normal household rubbish. Please recycle where recycle facilities exist. Check with your Local Authority or retailer for recycling advice.POWX1725 DE Copyright © 2021 VARO P a g e | 1 www.varo.com
