USER MANUAL 32PF5320 PHILIPS

Technical diagram showing three-step installation of a computer monitor with labeled components and tool path

3

Information for users in the UK

(Not applicable outside the UK)

Positioning the TV

For the best results, choose a position where light does not fall directly on the screen, and at some distance away from radiators or other sources of heat. Leave a space of at least 5 cm all around the TV for ventilation, making sure that curtains, cupboards etc. cannot obstruct the air flow through the ventilation apertures.

The TV is intended for use in a domestic environment only and should never be operated or stored in excessively hot or humid atmospheres.

General Points

Please take note of the section 'Tips' at the end of this booklet.

Interference

The Department of Trade and Industry operates a Radio Interference Investigation Service to help TV license holders improve reception of BBC and IBA programmes where they are being spoilt by interference.

If your dealer cannot help, ask at a main Post Office for the booklet "How to improve Television and Radio Reception".

Mains connection

Before connecting the TV to the mains, check that the mains supply voltage corresponds to the voltage printed on the type plate on the rear panel of the TV. If the mains voltage is different, consult your dealer.

Important

Should it become necessary to replace the mains fuse, this must be replaced with a fuse of the same value as indicated on the plug.

1. Remove fuse cover and fuse.
2. The replacement fuse must comply with BS 1362 and have the ASTA approval mark. If the fuse is lost, make contact with your retailer in order to verify the correct type
3. Refit the fuse cover.

In order to maintain conformity to the EMC directive, the mains plug on this product must not be removed.

Connecting the aerial

The aerial should be connected to the socket marked x at the back of the set. An inferior aerial is likely to result in a poor, perhaps unstable picture with ghost images and lack of contrast. Make-shift or set-top aerials are unlikely to give adequate results.

Your dealer will know from experience the most suitable type for your locality.

Should you wish to use the set in conjunction with other equipment, which connects to the aerial socket such as TV games, or a video camera, it is recommended that you consult your dealer on the best method of connection.

Stand (if provided)

Use only the stand provided with the set, making sure that the fixings are properly tightened. A diagram showing how to assemble the stand is packed with the stand. Never use a make-shift stand, or legs fixed with woodscrews.

Introduction

Thank you for purchasing this television set.

This handbook has been designed to help you install and operate your TV set.

We would strongly recommend that you read it thoroughly.

We hope our technology meets entirely with your satisfaction.

Table of Contents

Installation

Presentation of the LCD Television 2

The keys on the TV set ....2

Remote control keys ....3

Video recorder or DVD keys 4

Installing your television set ....5

Quick installation ....5

Program sort ....6

Manual store 6

Other settings in the Install menu 6

Operation

Picture settings 7

Sound adjustments 7

Feature settings 7

Screen Formats 8

Teletext 9

Using in PC monitor mode .....10

Using in HD (High Definition) Mode .....11

Peripherals

Video recorder 12

Other equipment 13

Side connections 13

Computer 13

Practical information

Tips 14

Glossary 14

Recycling

The materials used in your set are either reusable or can be recycled.

To minimise environmental waste, specialist companies collect used appliances and dismantle them after retrieving any materials that can be used again (ask your dealer for further details).

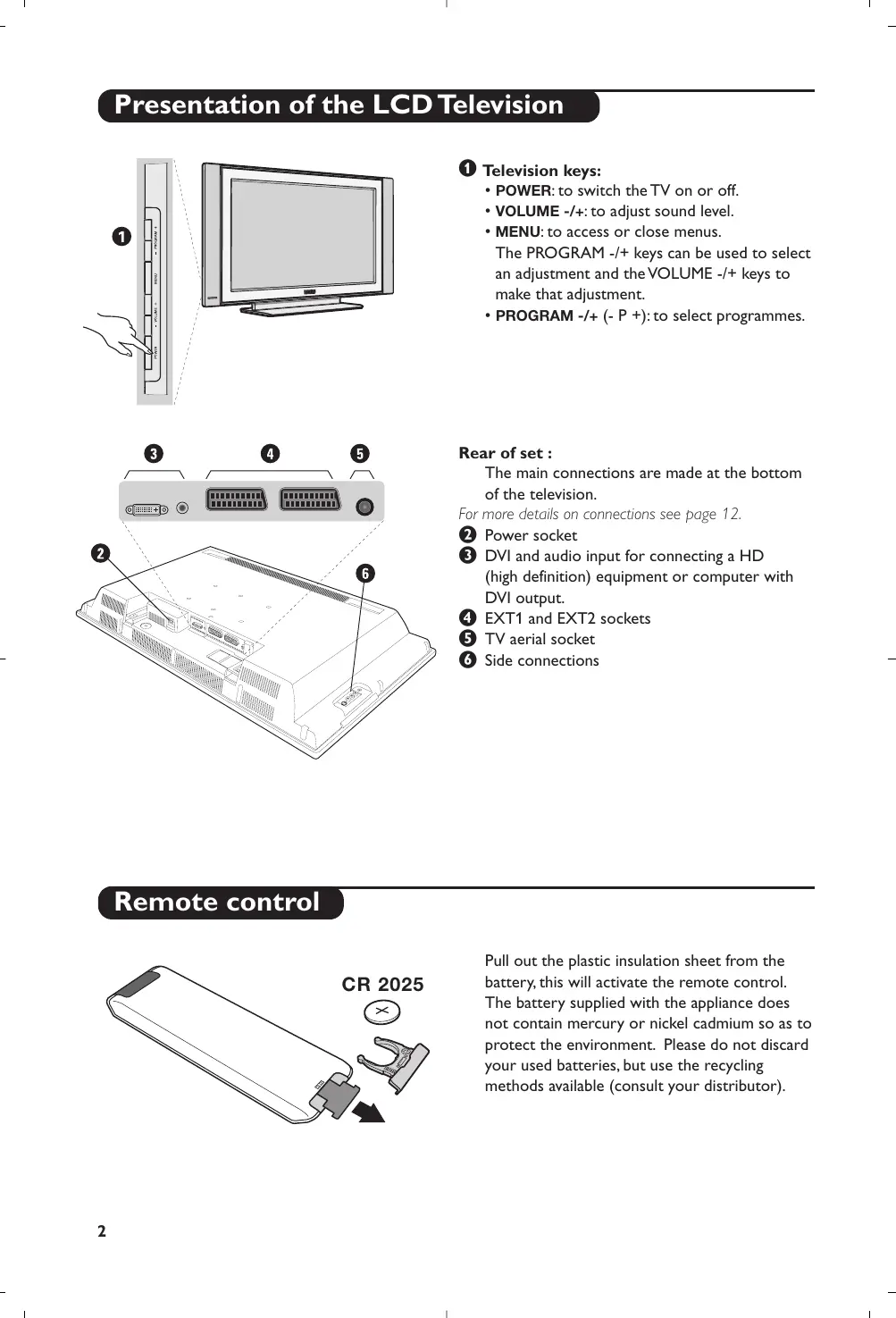

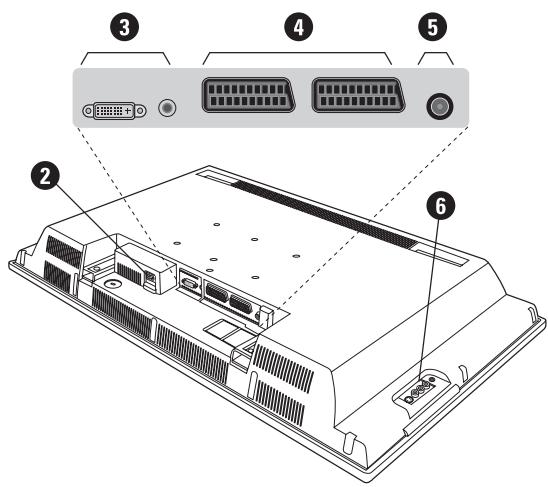

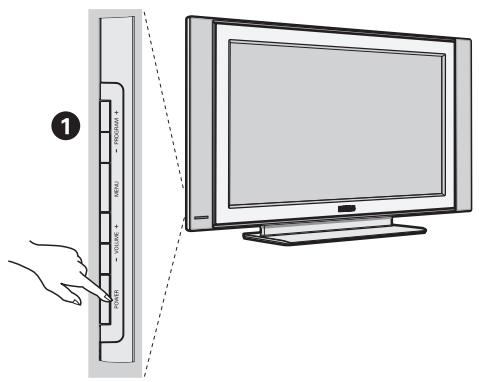

Presentation of the LCD Television

PRESS PROGRAM PRESS PRESS

Diagram of an electronic device rear panel with labeled ports and connectors, showing internal structure and connector details.

① Television keys:

• POWER: to switch the TV on or off.
  • VOLUME -/+: to adjust sound level.
• MENU: to access or close menus.

The PROGRAM -/+ keys can be used to select an adjustment and the VOLUME -/+ keys to make that adjustment.

- PROGRAM -/+ (- P +): to select programmes.

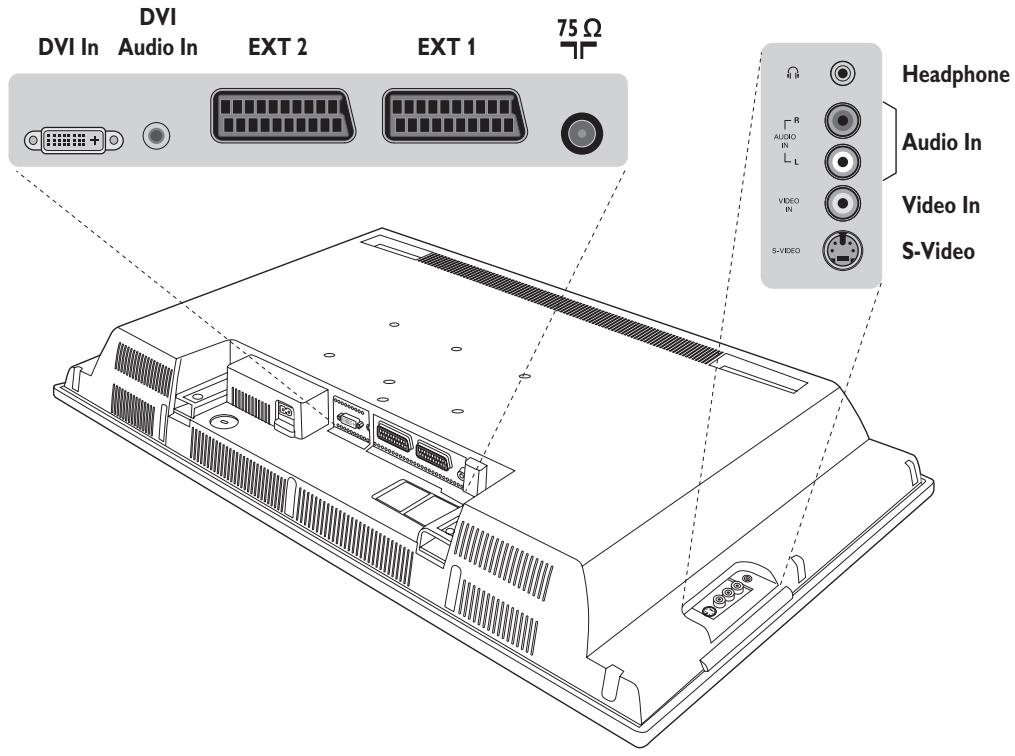

Rear of set :

The main connections are made at the bottom of the television.

For more details on connections see page 12.

② Power socket

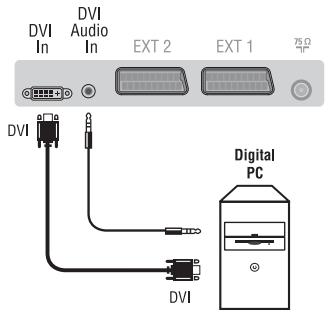

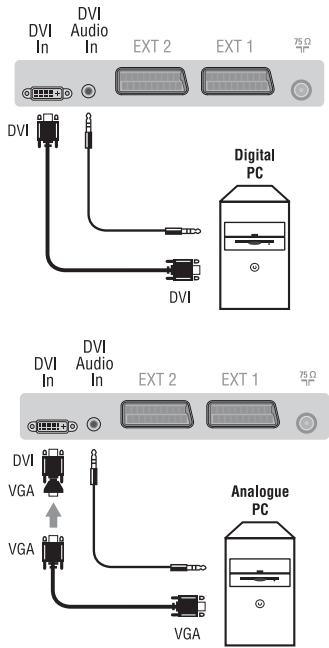

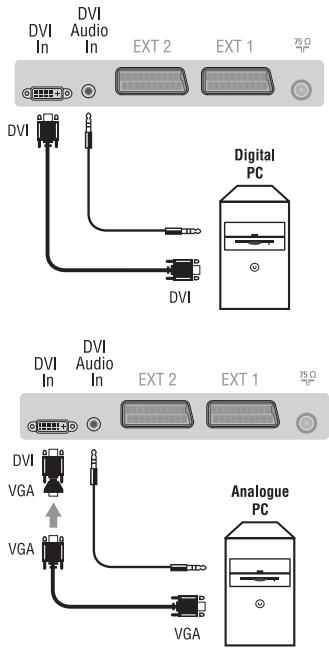

3 DVI and audio input for connecting a HD (high definition) equipment or computer with DVI output.
4 EXT1 and EXT2 sockets
⑤ TV aerial socket
6 Side connections

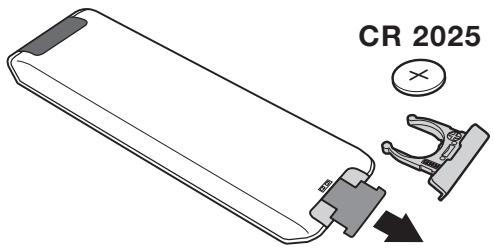

Remote control

CR 2025

Pull out the plastic insulation sheet from the battery, this will activate the remote control.

The battery supplied with the appliance does not contain mercury or nickel cadmium so as to protect the environment. Please do not discard your used batteries, but use the recycling methods available (consult your distributor).

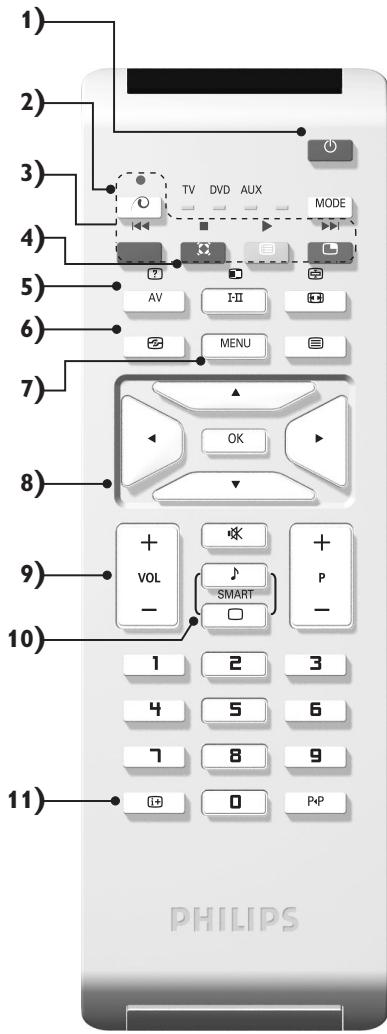

Remote Control Keys for LCD TV Functions

1) ⏻ (STANDBY)

To set the TV to standby mode. To switch the TV set on again, press P -/+, 0 to 9 or AV keys.

2) 📄 Pixel + (depending on version)

Switches the Pixel + demonstration mode on or off.

3) ● ◀◀ □ ▶ ▶▶

Video recorder (page 14)

4) Surround Sound

To activate / deactivate the surround sound effect. In stereo, this gives the impression that the speakers are further apart. For models equipped with Virtual Dolby Surround*, you can experience Dolby Surround Pro Logic sound effects.

5) AV

To display Source List to select TV or peripheral equipment connected to EXT1, EXT2/S-VHS2, AV/S-VHS3, PC or HD (p. 12).

6) Active control

Optimizes the picture quality depending on the quality of the incoming signal and the ambient light conditions.

7) MENU

To call up or exit the TV menus.

8) Cursor (∧∨<> )

These 4 keys are used to move around the menus.

9) Volume

To adjust the sound level.

10) □♪ Smart picture and sound

Used to access a series of predefined picture and sound settings.

The personal position relates to settings selected from the menus.

11) i+ Screen information

To display / remove the programme number, the time, the sound mode and the time remaining on the timer. Hold down for 5 seconds to permanently display the programme number on the screen.

* Manufactured under license from Dolby Laboratories. "Dolby" and the double-D symbols are trademarks of Dolby Laboratories.

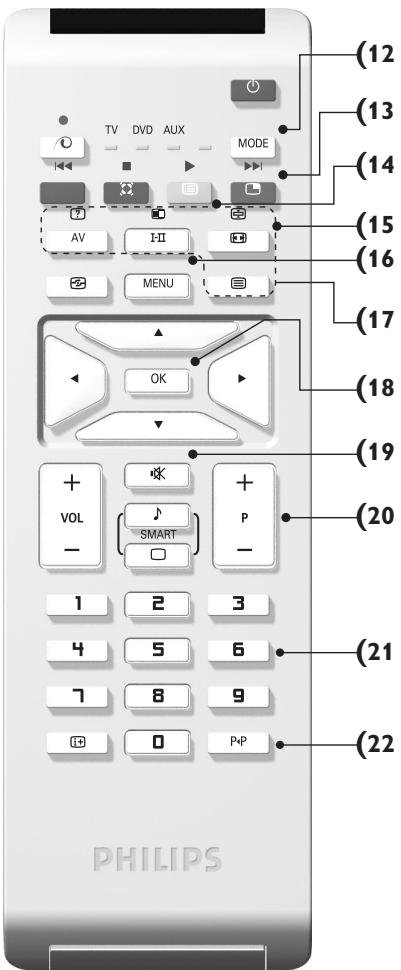

Remote Control Keys for LCD TV Functions

12) Mode

Press this key to switch between TV, DVD or AUX.

13) PIP on/off (p. 10)

14) List of programmes

To display / clear the list of programmes. Use the keys ∧ ∨ to select a programme and the key > to display it.

15) Screen Format (p. 8)

16) I-II Sound mode

Used to force programmes in Stereo and Nicam Stereo to Mono or, for bilingual programmes, to choose between Dual I or Dual II. The Mono indication is red when in forced position.

17) ? 📋 📊 📞 Teletext (p. 9)

18) Not applicable for TV mode.

19) Mute

To mute or restore the sound.

20) P -/+ Selecting TV programmes

To move up or down a programme. The number and the sound mode are displayed for a few seconds. For some TV programmes the title of the programme appears at the bottom of the screen.

21) 0/9 Numerical keys

For direct access to programmes. For a 2 digit programme number, the 2^nd digit must be entered before the dash disappears.

22) P◀P Previous programme

To access the previously viewed programme.

TV DVD AUX MODE AV I-II MENU OK VOL SMART 1 2 3 4 5 6 7 8 9 0 P+P (12) (13) (14) (15) (16) (17) (18) (19) (20) (21) (22) PHILIPS

Video recorder or DVD keys (mode selector)

The remote control lets you control the main functions of the VCR or DVD.

Press the MODE key to select the required mode : DVD or AUX (video recorder). The remote control indicator lights up to display the selected mode. It switches off automatically after 20 seconds if left idle. The remote control automatically returns to TV mode.

The following keys are operational, depending on the equipment :

standby,

fast rewind,

▶▶| fast forward,

recording,

II pause,

stop,

play,

MENU menu,

∧∨<> navigation and adjustments,

OK validation,

0/9 digit keys,

P -/+ programme selection,

I-II audio selection,

i+ OSD menu,

P◀P DVD :T-C function /VCR : index function.

The remote control is compatible with all video recorders using the RC5 standard and all DVDs using the RC6 standard.

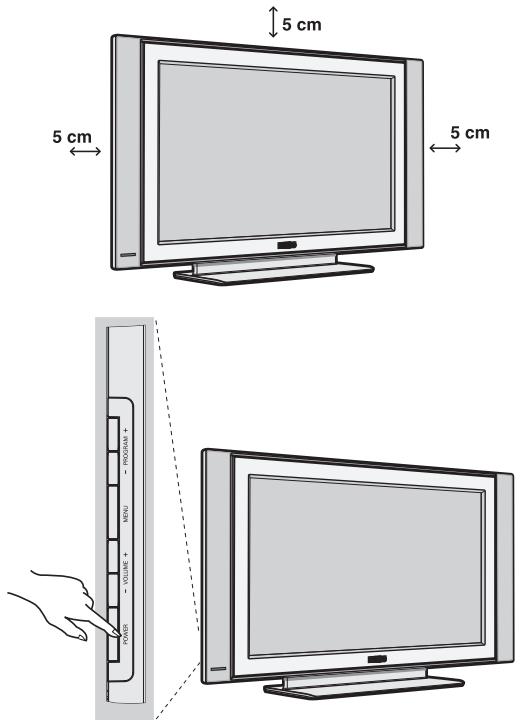

Installing your television set

5 cm 5 cm CLOSE PULLION CLOSE PULLION

① Positioning the television set

Place your TV on a solid stable surface. To avoid danger do not expose the TV to water, or a heat source (e.g. lamp, candle, radiator). Do not obstruct the ventilation grid at the rear.

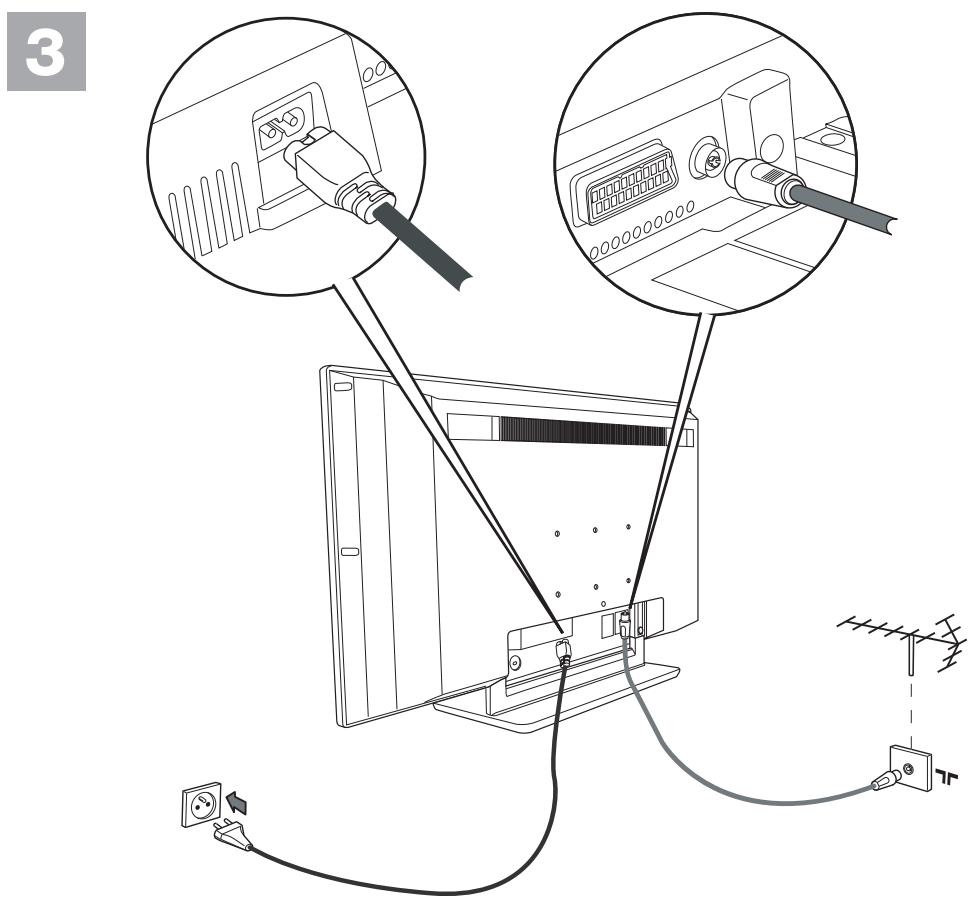

② Connecting the aerials

• Use the aerial connection lead supplied and connect the socket situated at the bottom of the TV to your aerial socket.
• Connect the power lead to the television and the mains plug into the wall socket (220-240 V/50 Hz). For connecting other appliances see page p.12.

③ Switching on

To switch on the set, press the POWER key. A green indicator comes on and the screen lights up. Go straight to the Quick Installation chapter. If the TV remains in standby mode(red indicator), press the P -/+ key on the remote control.

The indicator will flash when you use the remote control.

Quick installation

When you turn on the TV set for the first time, a menu is displayed on screen. This menu prompts you to select the country and language for the menus:

If the menu is not displayed, press the MENU key to display the menu.

① Use the ∧ ∨ keys on the remote control to select your country and validate with >.
If your country does not appear in the list, select choice “...”

② Next select your language using the ∧ ∨ keys and validate with >.

Plug & Play

③ The search starts automatically. All the available TV programmes and radio stations will be stored. This operation takes a few minutes. The display shows the progress of the search and the number of programs found. At the end of the search, the menu disappears.
To exit or interrupt the search, press MENU. If no programme is found, consult the possible solutions p. 14.

4 If the transmitter or cable network sends the automatic sort signal, the programs will be numbered correctly. In this case, the installation is complete.

⑤ If this is not the case, you need to use the Sort menu to number the programs correctly.

Some transmitters or cable networks broadcast their own sort parameters (region, language, etc.). In this case, indicate your choice using the keys and validate with > .

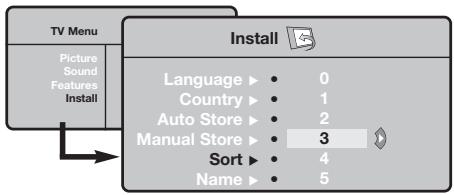

Program sort

① Press the MENU key. The TV Menu is displayed on the screen.

② With the cursor, select the Install menu followed by the Sort menu.
3 Select the programme you want to move using the ∧∨ keys and press >.
4 Then use the keys to select the new number and validate with <.
⑤ Repeat steps ③ and ④ for each program you wish to renumber.
⑥ To quit the menus, press i+.

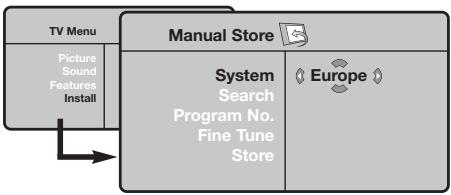

Manual store

This menu is used to store the programmes one at a time.

① Press the MENU key.
② With the cursor, select the Install menu then Manual store:

③ System: select Europe (automatic detection*) or Western Europe (BG standard), Eastern Europe (DK standard), United Kingdom (I standard) or France (LL' standard).

* Except for France (LL' standard), you must select choice France.

4 Search: press >. The search starts. Once a programme is found, the scanning stops and its name is displayed (when available). Go to the next step. If you know the frequency of the required programme, this can be entered directly using the 0 to 9 keys. If no picture is found, consult the possible solutions (p. 14).
⑤ Program No.: enter the required number with the <> or 0 to 9 keys.
⑥ Fine Tune: if the reception is not satisfactory, adjust using the <> keys.
⑦ Store: press >.The program is stored.
⑧ Repeat steps ④ to ⑦ for each programme to store.
⑨ To quit the menus, press i+.

Other settings in the Install menu

① Press the MENU key and select the Install menu:
② Language: to change the display language for the menus.
③ Country: to select your country (GB for Great Britain).

This setting is used for the search, automatic programme sort and teletext display. If your country does not appear in the list, select “...”

4 Auto Store: to start automatic search for all programmes available in your region. If the transmitter or cable network sends the automatic sort signal, the programmes will be numbered correctly. If this is not the case, you need to use the Sort menu to renumber the programmes.

Some transmitters or cable networks broadcast their own sort parameters (region, language, etc.). In this case, indicate your choice using the keys and validate with >. To quit or interrupt the search, press MENU. If no picture is found, consult the possible solutions (p. 14).

⑤ Name: If required, you can give a name to the programmes and external connectors. Use the <> keys to move around the name display area (5 characters) and the ∧ ∨ keys to select the characters. When the name has been entered, use the < key to exit. The name is stored. Note: on installation, the programs are named automatically when an identification signal is sent.
6 To quit the menus, press i+.

Picture settings

① Press MENU then >.The Picture menu is displayed:

② Use the ∧∨ keys to select a setting and the <> keys to adjust.
③ Once the adjustments have been made, select

Store and press > to store them. Press i+ to exit.

Description of the adjustments:

• Brightness: this changes picture brilliance.
  • Colour: this changes the intensity of the colour.
• Contrast: this changes the difference between the light and dark tones.

- Sharpness: this changes the picture definition.

- Colour Temp.: this changes the colour rendering: Cold (bluer), Normal (balanced) or Warm (redder).

- Store: to store the picture adjustments and settings.

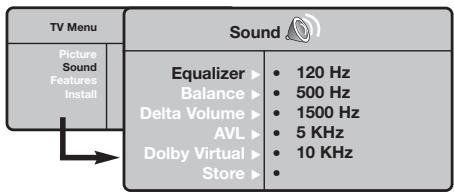

Sound adjustments

① Press MENU, select Sound (V) and press >. The Sound menu is displayed:

TV Menu Picture Sound Features Install Sound Equalizer ▶ 120 Hz Balance ▶ 500 Hz Delta Volume ▶ 1500 Hz AVL ▶ 5 KHz Dolby Virtual ▶ 10 KHz Store ▶

② Use the ∧∨ keys to select a setting and the <> keys to adjust.
③ Once the adjustments have been made, select Store and press > to store these changes.
4 To quit the menus, press i+.

Description of the settings:

• Equalizer: to adjust the sound tone (from bass: 120 Hz to treble: 10 kHz).
  • Balance: this balances the sound on the left and right speakers.
• Delta Volume: this is used to compensate any volume discrepancies between the different programs or EXT sockets. This setting is available for programs 0 to 40 and the EXT sockets.

- AVL (Automatic Volume Leveller): this is used to limit increases in sound, especially on program change or advertising slots.

- Dolby Virtual: To activate / deactivate the surround sound effect. You can also access these settings with key 📄.

- Store: this is used to store the sound settings.

Feature settings

① Press MENU, select Features (V) and press >.You can adjust:
2 Contrast +: automatic adjustment of the picture contrast which permanently sets the darkest part of the picture to black.
③ NR: attenuates picture noise (snow) in difficult reception conditions.

4 Sleep (Only available on certain versions): to select an automatic standby period.
⑤ PIP: to adjust the size and position of the PIP screen.
6 To quit the menus, press i+.

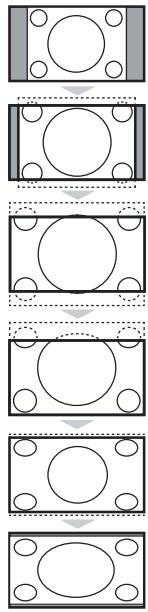

Screen Formats

The pictures you receive may be transmitted in 16:9 format (wide screen) or 4:3 format (conventional screen). 4:3 pictures sometimes have a black band at the top and bottom of the screen (letterbox format). This function allows you to optimise the picture display on screen.

Press the 🔊 key (or <> ) to select the different modes:

This TV set is also equipped with automatic switching which will select the correct-screen format, provided the specific signals are transmitted with the programmes.

4:3

The picture is reproduced in 4:3 format and a black band is displayed on either side of the picture.

Movie Expand 14:9

The picture is enlarged to 14:9 format, a thin black band remains on both sides of the picture.

Movie Expand 16:9

The picture is enlarged to 16:9 format. This mode is recommended when displaying pictures which have black bands at the top and bottom (letterbox format).

Subtitle Zoom

This mode is used to display 4:3 pictures using the full surface of the screen leaving the sub-titles visible.

Superzoom

This mode is used to display 4:3 pictures using the full surface of the screen by enlarging the sides of the picture.

Widescreen

This mode restores the correct proportions of images transmitted in 16:9. Note: If you display a 4:3 picture in this mode, it will be enlarged horizontally.

Teletext

Teletext is an information system broadcast by certain channels which can be consulted like a newspaper. It also offers access to subtitles for viewers with hearing problems or who are not familiar with the transmission language (cable networks, satellite channels, etc.).

	Press :		You will obtain :
		Teletext call	This is used to call or exit teletext mode. The summary appears with a list of items that can be accessed. Each item has a corresponding 3 digit page number.If the channel selected does not broadcast teletext, the indication 100 will be displayed and the screen will remain blank (in this case, exit teletext and select another channel).
		Selecting a page	Enter the number of the page required using the 0 to 9 or P -/+ keys. Example: page 120, enter 120.The number is displayed top left, the counter turns and then the page is displayed. Repeat this operation to view another page.If the counter continues to search, this means that the page is not transmitted. Select another number.
	[DSYW]	Direct access to the items	Coloured areas are displayed at the bottom of the screen. The 4 coloured keys are used to access the items or corresponding pages.The coloured areas flash when the item or the page is not yet available.
		Contents	This returns you to the contents page (usually page 100).
		Stop sub-page acquisition	Certain pages contain sub-pages which are automatically displayed successively. This key is used to stop or resume sub-page acquisition. The indication appears top left.
		Double page teletext	To activate or deactivate the double page teletext display mode. The active page is displayed on the left and the following page is displayed on the right. Press if you want to hold a page (i.e. the contents page). The active page is then displayed on the right. To return to normal mode, press .
		Hidden information	To display or hide the concealed information (games solutions).
		Enlarge a page	This allows you to display the top or bottom part of the page and then return to normal size.
		Favourite pages	Instead of the standard coloured areas displayed at the bottom of the screen, you can store 4 favourite pages on the first 40 channels which can then be accessed using the coloured keys (red, green, yellow, blue). Once set, these favourite pages will become the default every time teletext is selected.
			1 Press the MENU key to change to favourite pages mode2 Display the teletext page that you want to store.3 Press the coloured key of your choice for 3 seconds. The page is now stored.4 Repeat the operation with the other coloured keys.5 Now when you consult teletext, your favourite pages will appear in colour at the bottom of the screen. To temporarily retrieve the standard items, press MENU.To clear everything, and return the standard items as the default, press for 5 seconds.

Using in PC monitor mode

NOTE

• When using the LCD TV as a PC monitor, slight diagonal interference lines may be observed when it is operated under electromagnetic interference environment but will not affect the performance of this product.
• For better performance, good quality VGA cable with good noise isolation filter is recommended.

PC Mode

Your TV can be used as a computer monitor. The PIP function lets you display a superimposed image to watch the TV channels at the same time.

The PIP function only works if your PC has a digital output.

You must first of all connect the computer and adjust the resolution (see p.13).

Choosing PC mode

① Press the AV key on the remote control to display the Source List.
② Use the cursor ∧/∨ key to select PC and then press the cursor > key to switch the TV to PC mode (DVI In).
To return to TV mode, press the AV key, select TV and validate with > key.

Using PIP

While in PC mode you can call up a window for TV channels.

Attention: the PIP feature is only available if a computer is connected to the DVI In (see p. 13).

1 Press the ☐ key to display the PIP screen. The television image is reproduced in a small superimposed window.

② Subsequent presses of the ☐ key changes the size of the window, switches to dual screen and turns PIP off.

③ Use the P -/+ keys to change the programmes of the PIP screen.

Using the PC menus

Press the MENU key to access the specific settings of the PC monitor mode. Use the cursor to adjust them (the settings are automatically saved):

- Picture:

• Brightness / Contrast : to adjust the brightness and contrast.
• Horizontal / Vertical*: to adjust the horizontal and vertical placing of the image.
• Adjust Colour: to adjust the colours (cold, normal or warm).

• Audio Selection: to choose the sound reproduced on the TV (PC or TV).

- Features:

• Phase/Clock*: eliminates the horizontal (Phase) and vertical (Clock) interfering lines.
• Format : to choose between full screen or native format of the PC screens.
• PIP: to adjust the size and position of the PIP screen.
• Auto Adjust*: position is set automatically.

- Reset To Factory Setting: to return to the factory settings (default settings).

*These adjustments are not available when a computer is connected to the DVI In.

Using in HD (High Definition) Mode

HD Mode

The HD (High Definition) mode allows you to enjoy clearer and sharper pictures through the DVI inputs if you are using a HD receiver/ equipment that can transmit high definition programming.

You must first of all connect the HD equipment (see p.13).

Choosing HD mode

① Press the AV key on the remote control to display the Source List.
② Use the cursor ∧/∨ key to select HD and then press the cursor key to switch the TV to HD mode.

To return to TV mode, press the AV key, select TV and validate with > key.

Using the HD menus

Press the MENU key to access the specific settings of the HD mode. Use the cursor to adjust them (the settings are automatically saved):

Picture:

• Brightness: this changes picture brilliance.
• Colour: this changes the intensity of the colour.
• Contrast: this changes the difference between the light and dark tones.
• Sharpness: this changes the picture definition.
• Colour Temp.: this changes the colour rendering: Cold (bluer), Normal (balanced) or Warm (redder).
• Store: to store the picture adjustments and settings.

Sound:

• Equalizer: to adjust the sound tone (from bass: 120 Hz to treble: 10 kHz).
  • Balance: this balances the sound on the left and right speakers.
• Delta Volume: this is used to compensate any volume discrepancies between the different programs or EXT sockets. This setting is available for programs 0 to 40 and the EXT sockets.
• AVL (Automatic Volume Leveller): this is used to limit increases in sound, especially on program change or advertising slots.
• Dolby Virtual: To activate / deactivate the surround sound effect. You can also access these settings with key 📄.
• Store: this is used to store the sound settings.

Features:

• Sleep (Only available on certain versions): to select an automatic standby period.
• PIP: to adjust the size and position of the PIP screen.
• Horizontal Shift: to adjust the horizontal placing of the image.

Connecting peripheral equipment

The television has 2 external sockets situated at the back of the set (EXT1 and EXT2) and sockets on the side. Press the AV key on the remote control to display Source List and select TV or peripheral equipment connected to EXT1, EXT2/SVHS2, AV/SVHS3, PC or HD.

The EXT1 socket has audio, CVBS/RGB inputs and audio, CVBS outputs.

The EXT2 socket has audio, CVBS/S-VHS inputs and audio, CVBS outputs.

The side connections has audio inputs, CVBS/S-VHS inputs, headphone out.

DVI DVI In Audio In EXT 2 EXT 1 75 Ω Headphone Audio In Video In S-Video

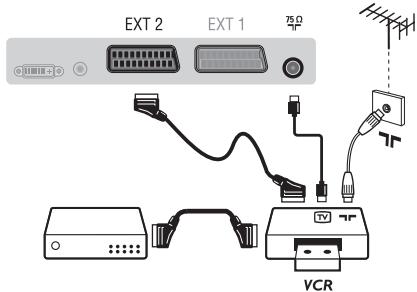

Video recorder

EXT 2 EXT 1 VCR

Carry out the connections shown opposite, using a good quality euroconnector cable.

If your video recorder does not have a euroconnector socket, the only connection possible is via the aerial cable. You will therefore need to tune in your video recorder's test signal and assign it programme number 0 (refer to manual store, p. 6).

To reproduce the video recorder picture, press 0 key.

Video recorder with decoder

Connect the decoder to the second euroconnector socket of the video recorder. You will then be able to record scrambled transmissions.

Other equipment

EXT 2 EXT 1 75.0

Side connections

Diagram showing audio equipment connections including headphones, audio modems, and a video camera with labeled ports.

HD equipment

EXT 2 EXT 1 75.0 DVI VGA VGA HD

Computer

DVI In DVI Audio In EXT 2 EXT 1 75.0 DVI Digital PC DVI

DVI In DVI Audio In EXT 2 EXT 1 VGA VGA Analogue PC

Satellite receiver, decoder, CDV, games, etc.

Carry out the connections shown opposite.

To optimise picture quality, connect the equipment which produces the RGB signals (digital decoder, games, etc.) to EXT1, and the equipment which produces the S-VHS signals (S-VHS and Hi-8 video recorders, certain DVD drives) to EXT2 and all other equipment to either EXT1 or EXT2.

To select connected equipment

Press the AV key to select EXT1, EXT2/S-VHS2 (S-VHS signals from the EXT2 socket).

Make the connections as shown opposite.

With the AV key, select AV/S-VHS3.

For a mono set, connect the sound signal to the AUDIO L (or AUDIO R) input. The sound automatically comes out of the left and right speakers of the set.

Headphones

When headphones are connected, the sound on the TV set will be cut. The VOLUME -/+ keys are used to adjust the volume level.

The headphone impedance must be between 32 and 600 Ohms.

Make the connections as shown opposite.

With the AV key, select HD.

For more information on using HD mode see page 11.

PC with DVI

Connect the monitor output (DVI) of your computer to the DVI-I In of the LCD TV. Connect the sound output Audio out of the computer to the input DVI Audio in of the LCD TV.

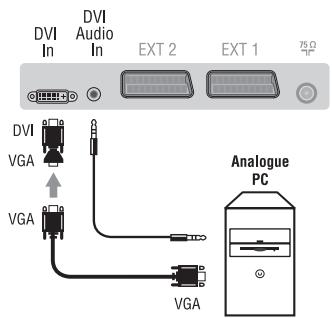

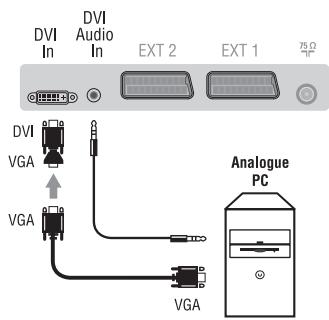

PC with VGA

Connect the monitor output (VGA) of your computer via a VGA/DVI adaptor to the DVI In of the TV. Connect the sound output Audio out of the computer to the input DVI Audio in of the LCD TV.

For more information on using PC mode see page 10.

Configure the computer on 1024 x 768, 60 Hz for optimum resolution.

Here is the list of the different display resolutions available on your TV:

640 × 480, 60 Hz	800 × 600, 56 Hz	1024 × 768, 60 Hz
640 × 480, 67 Hz	800 × 600, 60 Hz	1024 × 768, 70 Hz
640 × 480, 72 Hz	800 × 600, 72 Hz	1024 × 768, 75 Hz
640 × 480, 75 Hz	800 × 600, 75 Hz
720 × 400, 70 Hz	832 × 624, 75 Hz

Tips

Poor reception	The proximity of mountains or high buildings may be responsible for ghost pictures, echoing or shadows. In this case, try manually adjusting your picture: see Fine Tune (p. 6) or modify the orientation of the outside aerial. If you are using an indoor aerial, reception may be difficult in certain conditions. You can improve reception by rotating the aerial. If the reception remains poor, you will need to use an external aerial
No picture	Have you connected the aerial socket properly? Have you chosen the right system? (p. 6). Poorly connected euroconnector cables or aerial sockets are often the cause of picture or sound problems (sometimes the connectors can become half disconnected if the TV set is moved or turned). Check all connections.
No sound	If on certain channels you receive a picture but no sound, this means that you do not have the correct TV system. Modify the System setting (p. 6). The amplifier connected to the TV does not deliver any sound? Check that you have not confused the audio output with the audio input.
PC and PIP modes don’t work ?	Check that you have configured the computer on a compatible display resolution (see p. 10).
Remote control	The TV set does not react to the remote control; the indicator on the set no longer flashes when you use the remote control? Replace the battery.
Standby	If the set receives no signal for 15 mins, it automatically goes into standby mode. To save power, your set is fitted with components that give it a very low power consumption when in standby mode (less than 1 W).
Cleaning the set	Only use a clean, soft and lint-free cloth to clean the screen and the casing of your set. Do not use alcohol-based or solvent-based products.
Still no results?	Disconnect the mains plug of the TV for 30 seconds then reconnect it. If your TV set breaks down, never attempt to repair it yourself: contact your dealer's after-sales service.

Glossary

DVI (Digital Visual Interface): A digital interface standard created by the Digital Display Working Group (DDWG) to convert analog signals into digital signals to accommodate both analog and digital monitors.

VGA (Video Graphics Array): a common standard graphics display system for PCs.

RGB signals : These are the three video signals, Red Green Blue, which make up the picture. Using these signals improves picture quality.

S-VHS Signals: These are 2 separate Y/C video signals from the S-VHS and Hi-8 recording standards. The luminance signals Y (black and white) and chrominance signals C (colour) are recorded separately on the tape. This provides better picture quality than with standard video (VHS and 8 mm) where the Y/C signals are combined to provide only one video signal.

NICAM sound: Process by which digital sound can be transmitted.

System: Television pictures are not broadcast in the same way in all countries. There are different standards: BG, DK, I, and L L'. The System setting (p. 6) is used to select these different standards. This is not to be confused with PAL or SECAM colour coding. Pal is used in most countries in Europe, Secam in France, Russia and most African countries. The United States and Japan use a different system called NTSC. The inputs EXT1 and EXT2 are used to read NTSC coded recordings.

16:9: Refers to the ration between the length and height of the screen. Wide screen televisions have a ration of 16/9, conventional screen TV sets have a ration of 4/3.

Introduction

Diagram of an electronic device rear panel with labeled ports and connectors, showing internal structure and connector details.

DVI DVI In Audio In EXT 2 EXT 1 75 Ω Headphone Audio In Video In S-Video

Magnétoscope

EXT 2 EXT 1 VCR

EXT 2 EXT 1 75.0

Diagram showing audio equipment connections with speaker, headphones, and audio jack labels

Récepteur HD

EXT 2 EXT 1 75Ω DVI VGA VGA HD

Ordinateur

DVI In DVI Audio In EXT 2 EXT 1 75Ω DVI Digital PC DVI DVI Audio In EXT 2 EXT 1 75Ω DVI VGA Analogue PC VGA

Diagram of an electronic device rear panel with labeled ports and connectors, showing internal structure and mounting points.

Videorecorder (p. 14)

4) Surround

5 cm 5 cm 5 cm POKCH POTCH POTCH POTCH POTCH POTCH POTCH

③ Systeem: selecteer Europe (automatisch zoeken*) of West Eur (BG-norm), East Eur (DK-nrom), UK (I-norm) of France (LL-norm).

DVI DVI In Audio In EXT 2 EXT 1 75 Ω Headphone Audio In Video In S-Video

Videorecorder

EXT 2 EXT 1 VCR

EXT 2 EXT 1 75.0

Diagram showing audio equipment connections with speaker, headphones, and audio jack labels

HD ontvanger

EXT 2 EXT 1 75Ω DVI VGA VGA HD

Computer

DVI In DVI Audio In EXT 2 EXT 1 75Ω DVI Digital PC DVI DVI Audio In EXT 2 EXT 1 75Ω DVI VGA Analogue PC VGA

Satellietontvanger, decoder, CDV, etc.

Diagram of an electronic device rear panel with labeled ports and connectors, showing internal structure and connector details.

Videorecorder (S. 14)

4) Surround-Ton

5 cm 5 cm 5 cm POKCH POTCH POTCH POTCH POTCH POTCH POTCH

DVI DVI In Audio In EXT 2 EXT 1 75 Ω Headphone Audio In Video In S-Video

Videorecorder

EXT 2 EXT 1 VCR

EXT 2 EXT 1 75.0

Ω F^R R_020 L_L M_020 R_020 R_020

Diagram of an electronic device rear panel with labeled ports and connectors, showing internal structure and connector details.

Videoregistratore (p. 14)

4) Suono surround

DVI DVI In Audio In EXT 2 EXT 1 75 Ω Headphone Audio In Video In S-Video

Videoregistratore

EXT 2 EXT 1 VCR

EXT 2 EXT 1 75.0

Diagram showing audio equipment connections with speaker, headphones, and audio jack labels

Dispositivo HD

EXT 2 EXT 1 DVI VGA VGA HD

Computer

DVI In DVI Audio In EXT 2 EXT 1 75Ω DVI Digital PC DVI

DVI In DVI Audio In EXT 2 EXT 1 76Ω DVI VGA VGA Analogue PC VGA

Hurtig installation ....5

Diagram of an electronic device rear panel with labeled ports and connectors, showing internal structure and connector details.

5 cm 5 cm 5 cm POKCH POTCH POTCH POTCH POTCH POTCH POTCH

DVI DVI In Audio In EXT 2 EXT 1 75 Ω Headphone Audio In Video In S-Video

Videooptager

EXT 2 EXT 1 VCR

EXT 2 EXT 1 75.0

Diagram showing audio equipment connections with speaker, headphones, and audio jack labels

HD-modtager

EXT 2 EXT 1 75Ω DVI VGA VGA HD

Computer

DVI In DVI Audio In EXT 2 EXT 1 75Ω DVI Digital PC DVI

DVI In DVI Audio In EXT 2 EXT 1 75Ω DVI VGA VGA Analogue PC VGA

Brukes i HD (High Definition) stilling .....11

Andre apparater

Videospiller 12

Andre apparater 13

Sidetilkobling 13

Ordliste 13

Diagram of an electronic device rear panel with labeled ports and connectors, showing internal structure and connector details.

① Tastene på TV-apparatet:

rask tilbakespoling,

▶▶l rask fremspoling,

innspilling,

II pause,

■ stopp,

avspilling,

MENU hente frem meny,

Brukes i HD (High Definition) stilling

HD stilling

DVI DVI In Audio In EXT 2 EXT 1 75 Ω Headphone Audio In Video In S-Video

Videospiller

EXT 2 EXT 1 VCR

EXT 2 EXT 1 75.0

Sidetilkobling

Diagram of an electronic device rear panel with labeled ports and connectors, showing internal structure and connector details.

① TV-apparatens knappar:

5 cm 5 cm 5 cm POKCH POTCH POTCH POTCH POTCH POTCH POTCH

① TV:ns placering

DVI DVI In Audio In EXT 2 EXT 1 75 Ω Headphone Audio In Video In S-Video

Videobandspelare

EXT 2 EXT 1 VCR

EXT 2 EXT 1 75.0

Dubbel text-TV-sida

Diagram showing audio equipment connections with headphones, audio input/output ports, and a video camera module

HD-mottagaren

EXT 2 EXT 1 75Ω DVI VGA VGA HD

Computer

DVI In DVI Audio In EXT 2 EXT 1 Digital PC DVI DVI

DVI In DVI Audio In EXT 2 EXT 1 DVI VGA VGA Analog PC

Satellitmottagare, dekoder, CDV, spel, o.s.v.

Diagram of an electronic device rear panel with labeled ports and connectors, showing internal structure and connector details.

5 cm 5 cm 5 cm POKCH POTCH POTCH POTCH POTCH POTCH POTCH

DVI DVI In Audio In EXT 2 EXT 1 75 Ω Headphone Audio In Video In S-Video

Kuvanauhuri

EXT 2 EXT 1 VCR

EXT 2 EXT 1 75.0

Diagram showing audio equipment connections with speaker, headphones, and audio jack labels

HD-vastaanotin

EXT 2 EXT 1 75Ω DVI VGA VGA HD

Tietokone

DVI In DVI Audio In EXT 2 EXT 1 75Ω DVI Digital PC DVI

DVI In DVI Audio In EXT 2 EXT 1 75Ω DVI VGA VGA Analogue PC VGA

Diagram of an electronic device rear panel with labeled ports and connectors, showing internal structure and connector details.

5 cm 5 cm 5 cm POKCH POTCH POTCH POTCH POTCH POTCH POTCH

[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]

DVI DVI In Audio In EXT 2 EXT 1 75 Ω Headphone Audio In Video In S-Video

Видеомагнитофон

EXT 2 EXT 1 VCR

EXT 2 EXT 1 75.0

Подключения сбоку

Diagram showing audio equipment connections with headphones, audio input/output ports, and a video camera module

HD-ресивера

EXT 2 EXT 1 75Ω DVI VGA VGA HD

Компьютер

DVI In DVI Audio In EXT 2 EXT 1 DVI Digital PC DVI DVI Audio In EXT 2 EXT 1 DVI VGA Analogue PC VGA

Diagram of an electronic device rear panel with labeled ports and connectors, showing internal structure and connector details.
