Yo & Yummy - Ice machine Klarstein - Free user manual and instructions

Product type	Ice cream maker
Brand	Klarstein
Model	Yo & Yummy
Article number	10031849
Capacity	1.5 L
Power	150 W
Power supply	220-240 V ~ 50-60 Hz
Refrigerant	Isobutane (R600a)
Dimensions (approx.)	25 x 25 x 30 cm
Weight (approx.)	5.5 kg
Main functions	Ice cream, yogurt, mix only, refrigeration only
Programs	Ice, yogurt, keep cool (COOL), standby
Control panel	LCD screen, Power, Menu, Start/Pause, +/- adjustment buttons
Removable bowl	Yes, maximum capacity 60% for ice cream
Mixer	Removable, used for ice cream (removed for yogurt)
Lid	Transparent with fill opening
Motor protection	Automatic shut-off in case of blockage
Safety	Do not tilt more than 45°, avoid water on electrical parts, 8 cm clearance around
Cleaning	Unplug, wipe parts with a damp cloth, do not immerse
Maintenance	Regularly clean surfaces in contact with food
Use	Household use only
Color	White / Silver (not specified, common guess)
Spare parts	Bowl, mixer, lid available from the manufacturer

Frequently Asked Questions - Yo & Yummy Klarstein

What is the capacity of the Klarstein Yo & Yummy ice cream maker?

The machine has a capacity of 1.5 liters. Note: For ice cream, fill the bowl to a maximum of 60% as the volume increases during preparation.

How to prepare ice cream with this appliance?

Place the ingredients at 25 °C in the bowl, attach the mixer and lid. Turn on the appliance, select the Ice Cream mode, set the duration (default 60 min) and press Start/Pause. You can add ingredients through the fill opening.

Can I make yogurt with this machine?

Yes. Remove the mixer, pour 1 L of milk and 1 tablespoon of plain yogurt or cultures. Select the Yogurt mode and set the timer to 12 hours. The appliance heats to 42 °C then cools automatically.

What to do if the ice cream does not harden?

Check that the ambient temperature does not exceed 25 °C and that the ingredients are not too warm. Make sure the bowl is properly attached and the appliance is not tilted. The preparation time can be extended using the +/- buttons.

How to clean the appliance?

Always unplug the plug. Remove the mixer, bowl and lid. Clean each part with a damp cloth. Never immerse the base in water and avoid water entering the ventilation slots. Dry everything before reassembling.

What is the motor protection function?

If the ice cream becomes too hard and blocks the mixer, the motor stops automatically to avoid overheating. This prolongs the life of the appliance.

Can I use frozen ingredients?

No, the ingredients should be at about 25 °C. Do not put them in the freezer beforehand, as hard pieces could block the mixer.

How long does it take to make ice cream?

The default time is 60 minutes, but you can adjust it from 1 to 99 minutes depending on the desired consistency. The machine then goes into keep-cool mode for 10 minutes.

What does the 'COOL' display mean?

The COOL mode corresponds to keep cool. For ice cream, it lasts 10 minutes then the appliance turns off. For yogurt, cooling continues until you stop it manually.

Where can I find spare parts?

The removable bowl, mixer and lid are available from the manufacturer Klarstein. Contact customer service via the website www.klarstein.com.

USER MANUAL Yo & Yummy Klarstein

INHALTSVERZEICHNIS

Item number 10031849
Power supply 220-240 V ~ 50-60 Hz
Capacity 1.5 L
Power consumption 150 W

SICHERHEITSHINWEISE

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Berlin Brands Group UK Ltd

PO Box 1145

Oxford, OX1 9UW

United Kingdom

Member of Berlin Brands Group

Handwerkerstr. 11

15366 Dahlwitz-Hoppegarten

Deutschland

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

CONTENT

Safety Instructions 14

Product Description 16

Control Panel and Buttons 16

Producing Ice Cream and Yoghourt 17

How to prepare yoghurt 19

Care and Cleaning 20

Disposal Considerations 20

Manufacturer & Importer (UK) 20

TECHNICAL DATA

Item number 10031849
Power supply 220-240 V ~ 50-60 Hz
Capacity 1.5 L
Power consumption 150 W

SAFETY INSTRUCTIONS

• Read all the safety and operating instructions carefully and retain them for future reference.
• Ensure the voltage is compliant with the voltage range stated on the rating label, and ensure the earthing of the socket is in good condition.
• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
• Do not upend this product or incline it over a 45^ angle.
• To protect against risk of electric shock, do not pour water on cord, plug and ventilation, immerse the appliance in water or any other liquid.
• Unplug the appliance after using or before cleaning.
• Keep the appliance 8cm from other objects to ensure the good heat releasing.
• Do not use the accessories which are not recommended by Manufacturer.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Children should be supervised to ensure that they do not play with the appliance.
• Do not use the appliance close by flames, hot plates or stoves.
• Do not switch on the power button frequently (ensure 5 min. interval at least) to avoid the damage of compressor.
• Metal sheet or other electric objects are not allowed to be inserted into the appliance to avoid fire and short circuit.
• When take out the ice cream, do not knock the barrel or edge of barrel to protect the barrel from damage.
• Do not switch on the power before install well the barrel or blender blade.
• The initial temperature of the ingredients is 25 ± 5 . Do not put the ingredients into freezer for pre-freeze, as it will easily make the blender blade blocked before the ice cream is in good condition.
• Do not remove the blender blade when the appliance is on working.
• Do not use outdoors. Never clean with scouring powders or hard implements.
• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
  • This appliance is intended to be used in household and similar applications.

This appliance contains the coolant isobutane (R600a), a natural gas which is environmentally friendly. Although it is flammable, it does not damage the ozone layer and does not increase the greenhouse effect. The use of this coolant has, however, led to a slight increase in the noise level of the appliance. In addition to the noise of the compressor, you might be able to hear the coolant flowing around the system. This is unavoidable, and does not have any adverse effect on the performance of the appliance. Care must be taken during the transportation and setting up of the appliance that no parts of the cooling system are damaged. Leaking coolant can damage the eyes.

Special Notes

• When positioning the unit, make sure that the power cord is not pinched or damaged.
• Make sure that there are no multiple sockets or power supplies on the back of the unit.

To avoid contamination of food, please follow the instructions below:

• Regularly clean surfaces that may come into contact with food.

WARNING

When using, servicing and disposing of the unit, pay attention to the left symbol on the rear of the unit or on the compressor. This symbol warns of possible fires. There are flammable substances in the refrigerant lines and in the compressor. Keep the appliance away from sources of fire during use, maintenance and disposal.

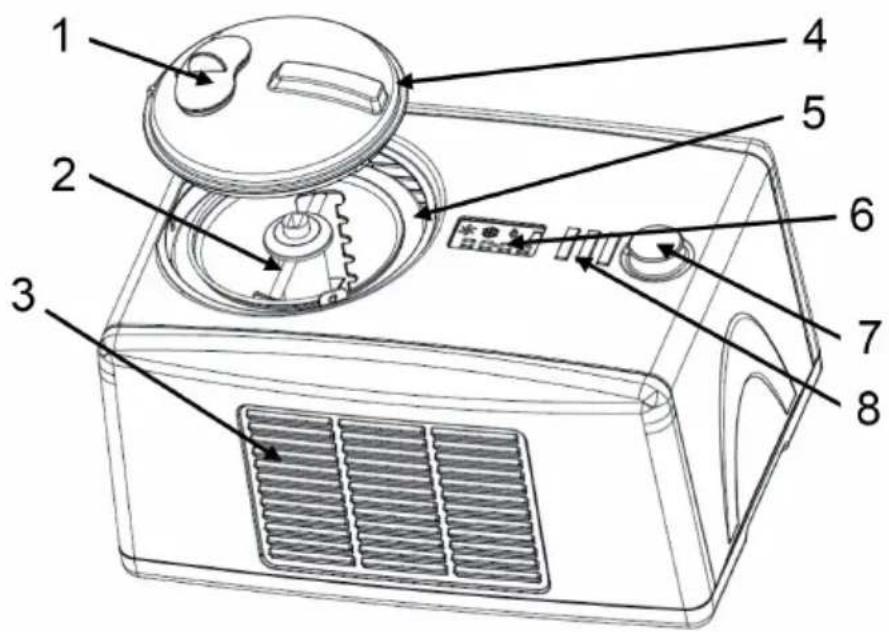

PRODUCT DESCRIPTION

1 Refill lid 5 Removable bowl
2 Mixing blade 6 Display
3 Ventilation 7 Knob
4 Transparent Lid 8 Buttons

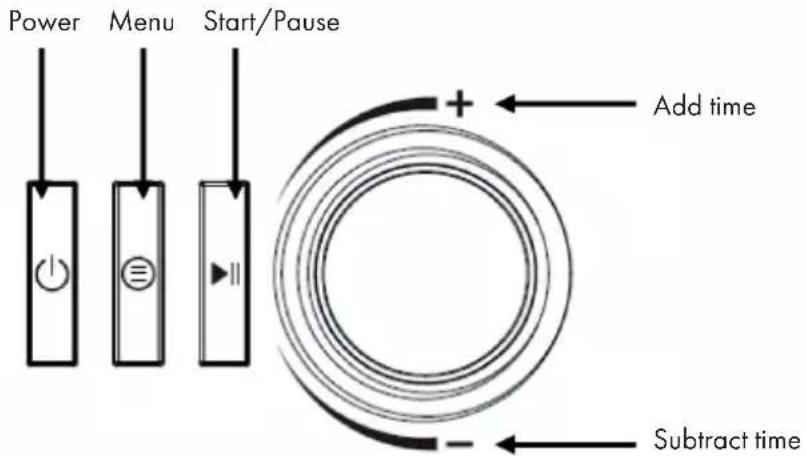

CONTROL PANEL AND BUTTONS

Buttons

Power After connecting with the electricity, pressing [POWER] button,the default selection is ICE CREAM, and LCD will light and show“60:00”. If no other operation, LCD will go off and hold showing“60:00” fifteen seconds later. If pressing [POWER] button again, the machine will return to stand by mode.

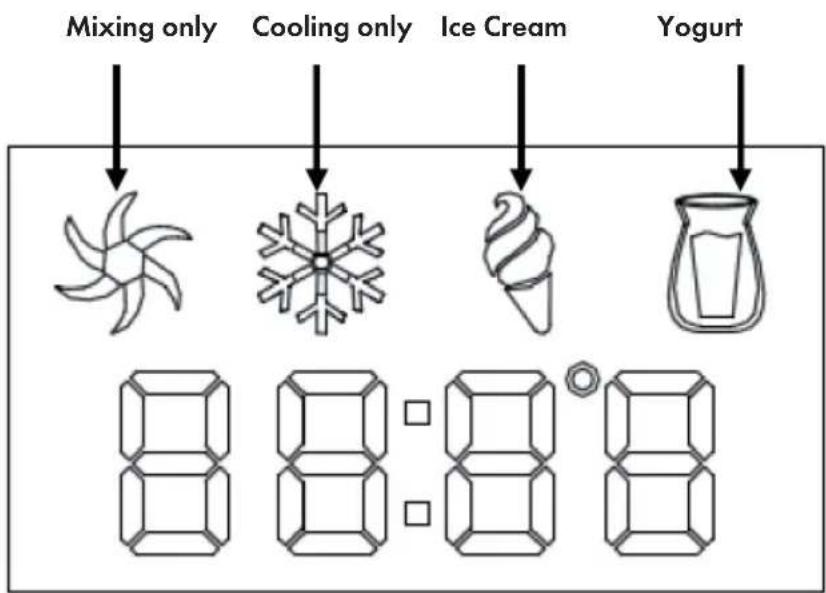

Menü By pressing this button, there are 4 working modes for option,including: MIXING ONLY, COOLING ONLY ,ICE CREAM,YOGHOURT.

+/- Knob To adjust time.

Start/Pause After setting the menu and time, press this button to start the working mode. During operation, by pressing this button, the working mode and time countdown will be paused. If press this button again, the machine will go on the working mode and the time countdown.

PRODUCING ICE CREAM AND YOGHOURT

Before first Use

Cleanness: Before use, thoroughly wash all parts that will come into contact with the ice cream. Warning: Please be sure the power cord is unplugged. Important: Always place the Ice Cream Maker upright on a flat surface in order that the build-in COMPRESSOR can provide best performance.

1		Prepare recipe ingredients from your own recipe or from the recipe booklet here, and pour the well prepared recipe ingredients into the removable bowl (See below picture).
2		Put the removable bowl into the machine and slightly turn around the bowl to make it fitted well with the fixed bowl.

3

Line drawing of a portable air conditioner unit with control panel and ventilation grille (no text or symbols)

In ICE CREAM mode, place the mixing blade into the removable bowl and keep the mixing blade bottom hole fitted well; in YOGHOURT mode, please remove the mixing blade. Then put the transparent lid onto the machine and lock it anticlockwise.

Line drawing of a portable air conditioner with control panel and ventilation grille (no text or symbols)

Fasten the transparent lid. Press the [POWER] button to make the machine electrified. Press the [MENU] button to choose the working mode:

4

5	Turn the [TIME+] or [TIME-] knob to choose the working time.
6	Press the [START/PAUSE] button to start working.
7	You can add the favorite ingredients by opening the refill cover.
8	After the operation is over, turn off the machine first, and then pull the removable bowl out.

Note: If you select yogurt, the bowl will heat to 42^ C.

Motor self-protection function

When the ice cream becomes harder, the mixing motor might be blocked. Then the motor protection device makes the mixing motor stop working by detecting its temperature to ensure the life of the motor.

Extended Cooling Function:

ICE CREAM

To avoid melting when the ice cream is not placed well in time, the following design is supported: When the ice cream is completed, LCD will show "00:00", the machine will start up the keep cool function; ten minutes later, LCD shows "COOL", the fan motor and compressor start to work for ten minutes. Then the motor and compressor stop working, 3 beeps will be heard to enter standby state.

YOGHOURT

When the yoghourt is completed, the machine enters refrigeration mode automatically, and LCD shows "COOL". The machine will be in the status of "COOL" other than turn off by hand. We suggest you share it within 24 hours for healthy and fresh.

Important Hint on the Volume of the Ingredients:

To avoid overflow and waste, please make sure that the ingredients do not exceed 60% of capacity of the removable bowl (Ice cream expands when being formed).

HOW TO PREPARE YOGHURT

Ingredients: 1 litre milk, 1 tablespoon of natural yoghurt or corresponding yoghurt cultures (note quantity per culture, e.g. Amazon)

• Fill the milk into the yoghurt maker zbd add a tablespoon of natural yoghurt.
• Select the yoghurt program and set the timer to 12 hours.
• Start the device.
• Refine the finished yoghurt as you like with fruits, chocolate chips or similar.

Note: 12 hours is an average value after which usually 1 litre milk is fermented to 1 litre yoghurt. Check the yoghurt several times and take it out when you like the creaminess best. This may require shorter or longer preparation times.

CARE AND CLEANING

CAUTION: The plug must be removed before cleaning to avoid electric shock.

1 Take out the mixing blade, wipe it with a dampened cloth.
2 Take out the removable bowl, clean it with a dampened soft cloth.
3 Wipe the transparent lid and refill lid with a dampened cloth.
4 Remove the dirty on the body or other places with a dampened cloth, and do not pour water on cord, plug and ventilation, immerse the appliance in water or any other liquid.
5 Allow drying thoroughly with a dry cloth, then return the component to the home position.

DISPOSAL CONSIDERATIONS

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Ltd

PO Box 1145

Oxford, OX1 9UW

United Kingdom
