BTCAG001 - Grinder Batavia - Free user manual and instructions

Product type	Battery and charger for cordless tool (grinder)
Brand	Batavia
Model	BTCAG001
Battery type	Lithium-ion (Li-Ion)
Nominal voltage	18 V
Capacity (ref. 7063905)	2.0 Ah
Capacity (ref. 7063915)	4.0 Ah
Battery weight 2.0 Ah	0.41 kg
Battery weight 4.0 Ah	0.67 kg
Charger included	Suitable for Li-Ion battery, with green and red LED indicators
Recommended charging temperature	10 °C to 40 °C (ideal 20 °C)
Battery life	Approximately 500 charge cycles until minimum capacity
Charge level display	Indicator button on battery (high/low LED)
Safety	Protection against short circuits, overheating; do not open
Charger usage	Indoor use only
Maintenance and cleaning	Disconnect charger before cleaning; wipe with a dry cloth
Recycling instructions	Batteries and chargers are not household waste; dispose at a collection point
Compliance	CE; standards EN 62841-1:2015, EN 62133-2:2017
Article references	7063905 (2.0 Ah) and 7063915 (4.0 Ah)
Manufacturer	Batavia B.V., Staphorst, Netherlands
Declaration date	01 April 2021

Frequently Asked Questions - BTCAG001 Batavia

How to charge the battery correctly?

Plug the charger into a mains socket, then insert the battery. The green LED lights up and the red LED flashes during charging. When charging is complete, only the green LED stays on. Unplug the charger after use. Charge at an ambient temperature between 10 °C and 40 °C.

What to do if the battery does not charge?

Check that the charger is plugged in and the contacts are clean. If the battery is hot, let it cool down. Test with another compatible battery. If the problem persists, the battery may be defective: replace it.

How to check the battery charge level?

Press the indicator button on the side of the battery. The right LED indicates a high level, the left LED indicates recharging soon. If the low LED lights up, the tool may stop abruptly.

What is the ideal charging temperature?

The ideal charging temperature is between 10 °C and 40 °C, ideally around 20 °C. Avoid charging in very hot or very cold weather.

How to store the battery when not in use?

Store the battery fully charged if not used for a long time. Do not store it discharged to avoid damaging the cells. Keep it in a dry place, away from heat (max 40 °C) and out of reach of children.

What to do in case of battery leakage?

Wipe the liquid carefully with a cloth. Avoid contact with skin or eyes. In case of contact, rinse thoroughly with water and consult a doctor if irritation occurs.

Can I use another charger?

No, use only the charger provided with the tool or a charger of the same type and model. Using another charger may cause fire or explosion risks.

How to clean the charger?

Always unplug the charger before cleaning. Use a dry cloth to remove dust. Do not immerse it in water or bring it into contact with liquids.

What is the maximum number of charge cycles?

The battery can withstand about 500 charge cycles before reaching its minimum capacity. After 100 cycles, a slight decrease in battery life is normal.

How to dispose of the battery at end of life?

Do not throw the battery in household waste. Dispose of it at a collection point for batteries and accumulators, in accordance with local regulations. Batteries are marked with symbols (Cd, Hg, Pb, Li) indicating substances.

USER MANUAL BTCAG001 Batavia

Operating instructions

1. Battery
2. Battery release button
3. Charge indicator button
4. Charger
5. Green LED
6. Red LED

ÜBERSICHT

Instruction manuals provide valuable hints for using your new device. They enable you to use all functions, and they help you avoid misunderstandings and prevent damage. Please take the time to read this manual carefully and keep it for future reference.

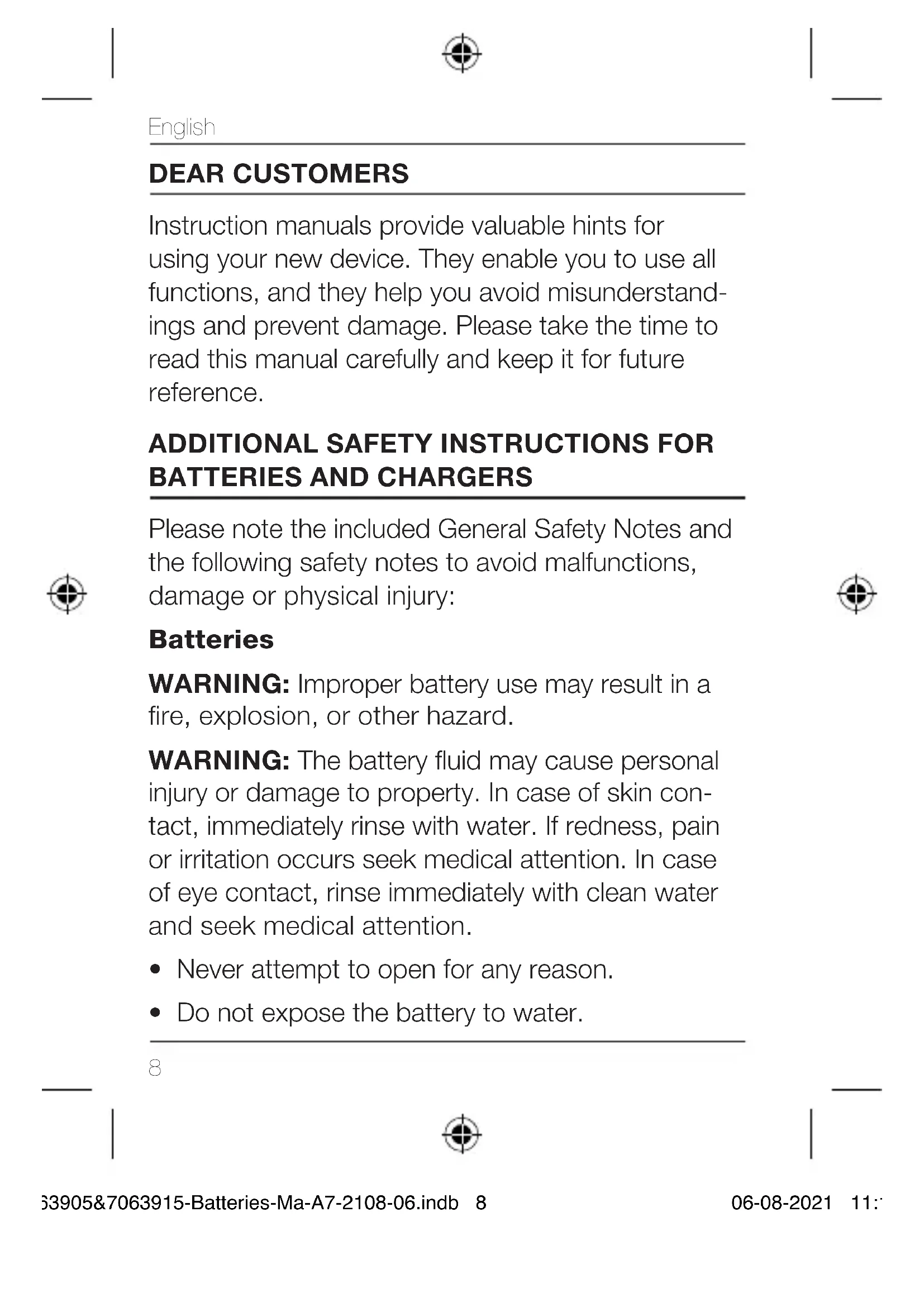

ADDITIONAL SAFETY INSTRUCTIONS FOR BATTERIES AND CHARGERS

Please note the included General Safety Notes and the following safety notes to avoid malfunctions, damage or physical injury:

Batteries

WARNING: Improper battery use may result in a fire, explosion, or other hazard.

WARNING: The battery fluid may cause personal injury or damage to property. In case of skin contact, immediately rinse with water. If redness, pain or irritation occurs seek medical attention. In case of eye contact, rinse immediately with clean water and seek medical attention.

• Never attempt to open for any reason.
• Do not expose the battery to water.

8

• Do not expose the battery to heat.
• Do not store in locations where the temperature may exceed 40 °C.
• Keep batteries away from children.
• Charge only at ambient temperatures between 10 °C and 40 °C.
• Charge only using the charger provided with the appliance/tool.
• Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
• When disposing of batteries, follow the instructions given in the section "Disposal".
• Do not damage/deform the battery pack either by puncture or impact, as this may create a risk of injury and fire.
• Do not charge damaged batteries.
• Take special care of the battery. Avoid dropping it onto any hard surface and do not subject it to pressure or any other form of mechanical stress. Keep the battery away from extreme heat and cold.

9

English

- Important Danger! Never short-circuit the battery or expose it to moisture. Do not store it together with any metal parts which could short-circuit the contacts. The battery could overheat, start burning or explode.

Under extreme conditions, battery leakage may occur. When you notice liquid on the batteries, proceed as follows: Carefully wipe the liquid off using a cloth. Avoid skin contact. In case of skin or eye contact, follow the instructions below.

Chargers

Your charger has been designed for a specific voltage. Always check that the mains voltage corresponds to the voltage on the rating plate.

WARNING:

• When not in use and before cleaning and servicing, disconnect the battery charger from the power supply.
• Never attempt to replace the charger unit with a regular mains plug.
• Use your charger only to charge the battery in the appliance/tool with which it was supplied. Other batteries could burst, causing personal injury and damage.

10

• Never attempt to charge non-rechargeable batteries.
• If the supply cord is damaged, it must be replaced by the manufacturer or an authorized Service Centre in order to avoid a hazard.
• Do not expose the charger to water.
• Do not open the charger.
• Do not probe the charger.
• The appliance/tool/battery must be placed in a well ventilated area when charging.
• The charger is intended for indoor use only.

OPERATION

Operation of Lithium-Ion Batteries

Lithium-ion batteries share many characteristics with conventional batteries. The major difference is that Lithium-ion batteries do not have a “memory” and do not require to be completely discharged periodically. It is recommended to charge Lithium-ion batteries after each use so they will be fully charged when needed.

Lithium-ion batteries perform best and deliver peak output power at room temperature. When

English

operated in lower temperatures, the battery output will be reduced.

Note: A fully charged battery will lose about 2% of its charge per month during storage.

Before use

The battery must be charged before using it for the first time.

Removing the battery from the machine

- Push the battery release button (2) and pull the battery (1) out of the machine.

WARNING: Do not try to remove the battery without pressing the battery release button. The drill or battery could be damaged.

Inserting the battery into the machine

Ensure that the exterior of the battery is clean and dry before connecting to the charger or machine.

- Insert the battery (1) into the machine, push the battery further forward until it clicks into place.

Note: Make sure the battery and machine are lined up correctly. If the battery does not slide onto the machine easily, don't force it. Instead, remove the battery; check the top of battery and the

machine slot are clean and undamaged and that the contacts are not bent.

Charging the Battery

WARNING: Failure to follow the correct procedure when charging batteries will result in permanent damage.

1. Plug the charger plug into an electrical outlet.
   The green LED indicator (5) on the charger (4) will lighten up.
2. Slide a battery (1) onto the battery charger (4).
3. Once charging commences, the green LED
   (5) will illuminate and the red LED (6) will flash.
4. When the battery is fully charged, the green
   LED (5) will illuminate.

Note: Make sure the battery and battery charger are lined up correctly. If the Battery does not slide onto the battery charger easily, don't force it. Instead, remove the battery; check the top of battery and the battery charger slot are clean and undamaged and that the contacts are not bent.

Battery Charge Level

The battery has a built-in charge indicator. Pressing on the button (3) to the left will indicate the

English

charge level. The right LED indicates a high charge level and the left a low charge level that will mean the battery pack will require charging soon.

IMPORTANT: When a low charge level is indicated be aware the tool may stop operating while using the tool. In some instances this may be dangerous. It is recommended to always ensure the battery pack has a good charge level.

Notes about Battery Charging

• Let a hot battery cool down before charging it.
• The battery should be charged at ambient temperatures between 10 °C and 40 °C (ideally around 20 °C).
• After charging, allow 15 minutes for the battery to cool before use.
• Ensure that the charger is disconnected from the mains supply after use, and is stored correctly.
• Do not leave batteries on charge for extended periods and never store batteries on charge.
• The battery charger monitors battery temperature and voltage while charging. Remove the battery once charging has been completed to

maximise charge cycles of the battery and not waste power.

• Do not store Lithium-Ion battery packs in a discharged state long term. This can damage the Lithium-Ion cells. For long-term storage, store batteries in a high charge state disconnected from the power tool.
• The capacity of batteries will reduce over time. After 100 charge cycles, the battery's operation time and the maximum torque performance of the tool will slightly reduce. This decline will continue until the battery has minimal capacity after 500 charge cycles. This is normal and not a fault with the battery pack.

TECHNICAL DATA

7063905 Li-Ion 2.0 Ah

Rated voltage. 18 V==

Weight 0.41 kg

7063915 Li-Ion 4.0 Ah

Rated voltage. 18 V==

Weight 0.67 kg

DISPOSAL

Disposing of packaging

Dispose of packaging according to type. Sort the paperboard and cardboard as waste paper and the film as recyclable material.

Disposing of batteries

Batteries and rechargeable batteries must not go in domestic waste!

As a consumer you are legally obliged to dispose of all batteries, irrespective of whether they contain harmful substances* or not, at a collection point in your community/district or at a retail outlet, so that they can be disposed of in an environmentally friendly manner.

* Marked with: Cd = Cadmium, Hg = Mercury, Pb = Lead, Li = Lithium.

EC-DECLARATION OF CONFORMITY

We, the Batavia B.V., Weth. Wassebaliestraat 6d, NL-7951 SN Staphorst, declare by our own responsibility that the Item-No 7063905 and 7063915 is according to the basic requirements. For the evaluation of conformity, the following harmonized standards were consulted:

EN 62841-1:2015

EN 62133-2:2017

Staphorst, 01 April 2021
