Splash KW60 - Kitchen scales WILFA - Free user manual and instructions

USER MANUAL Splash KW60 WILFA

• Always place the object to be weight at the center of the kitchen scale.

• Do not place any object on top of the scale before switching the appliance on.

• Remove the batteries if the scale is not being used for a long period.

• Rinse the scale under water and clean the scale with a slightly damp cloth. Do not use chemical/ abrasive cleaning agents.

• Never immerse the appliance into water or any other liquid.

• Keep the scale in a cool dry area. GENERAL INSTRUCTIONS Wilfa KW-60 is a kitchen scale designed for measuring the weight of different objects and is extra suitable for weighing various types of food and ingredients due to its easy to clean rubberlike coating. The design allows the appliance to easily be cleaned under a water faucet. The grade of waterproof is IPX7.5

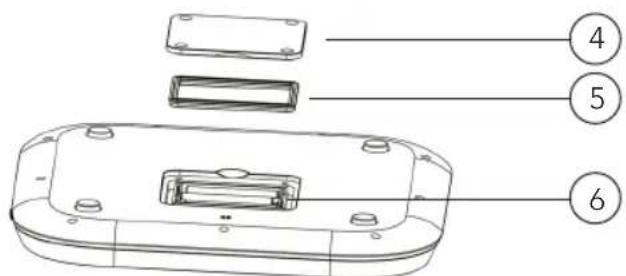

4. Battery Compartment Cover

5. Waterproof silicon

6. Battery Compartment

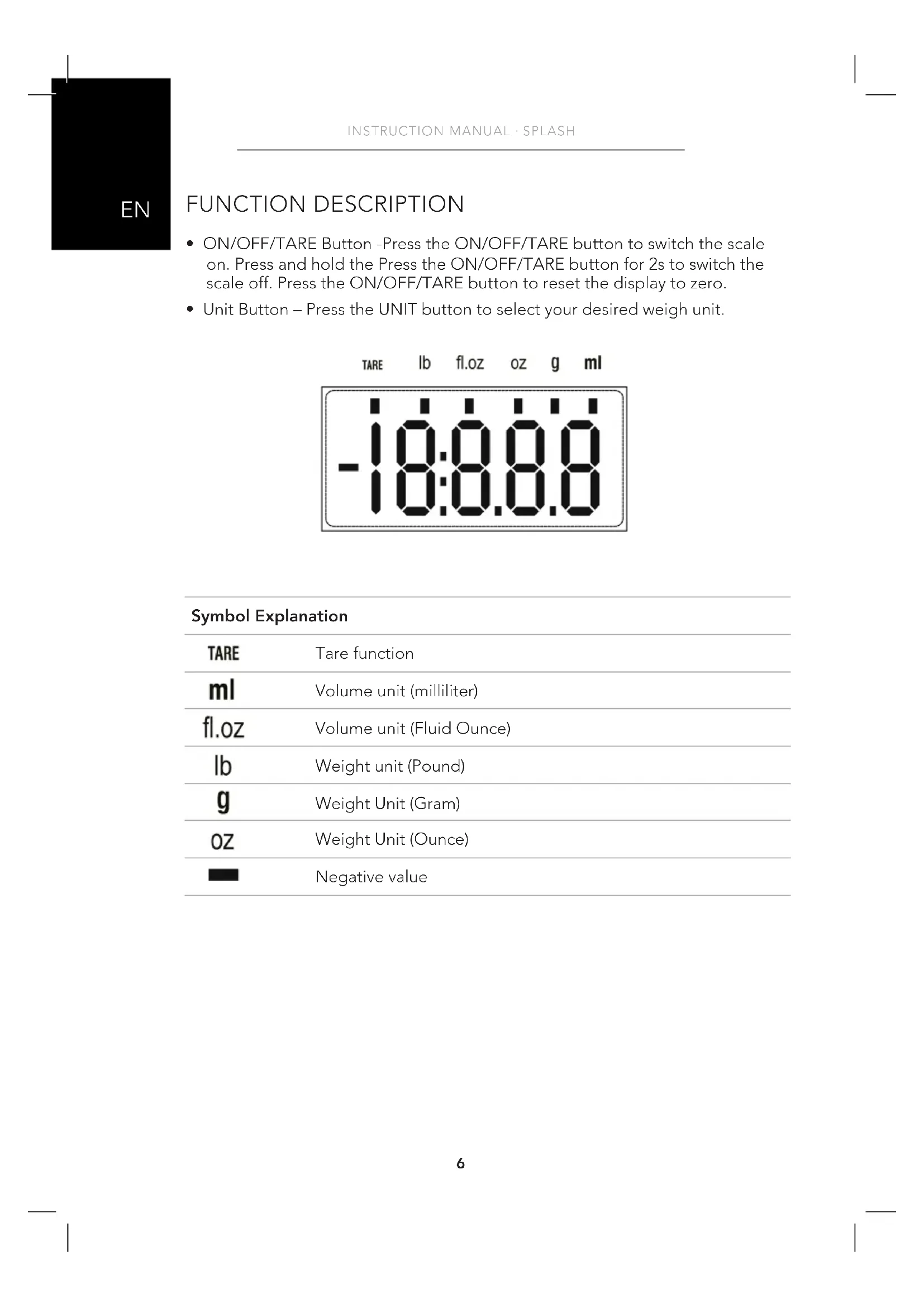

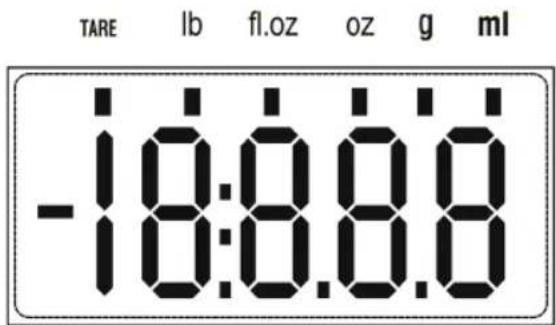

• Unit Button – Press the UNIT button to select your desired weigh unit. Symbol Explanation Tare function Volume unit (milliliter) Volume unit (Fluid Ounce) Weight unit (Pound) Weight Unit (Gram) Weight Unit (Ounce) Negative value7

1. Use the screwdriver to unscrew the

battery compartment cover.

2. Insert the batteries (3X 1,5V AAA)

into the battery compartment according to the indications for polarity (+-) located on the inside of the compartment.

3. Close the battery compartment

cover with firm pressure, and use screwdriver again to tighten the screws.

• The LED display will light up if batteries has been places correctly.

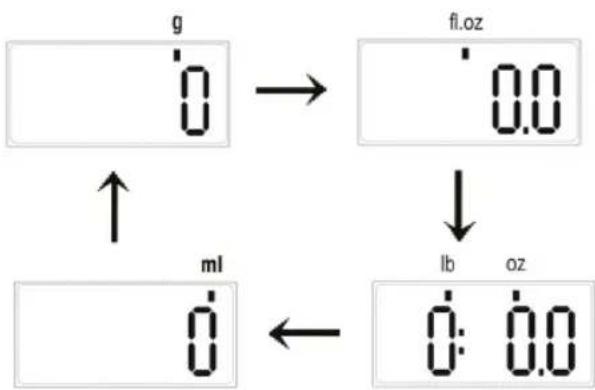

In weighing mode, press the UNIT button to select your desired unit (g, .oz, lb, oz, ml). The units will be displayed in the LED display. (The default unit is g). NOTE: After you have selected your desired weight unit, you may start the weighing. If there is no operation, the scale will switch off automatically in about 2 minutes. Or you can press and hold the ON/OFF/TARE button for about 2s to switch the scale off.8

1. Place the scale on a solid level and

at surface to weigh.

2. Do not place any objects on the

lightly to go to weight mode.

4. Start weight objects when the LED

5. Place the item you wish to weigh

onto the scale, the display will show the weight.

MEASURING WITH TARE FUNCTION

TARE function allows you to weigh different items consecutively without removing the items from the scale.

1. When the scale is off, press the

ON/OFF/TARE button to enter the weighing mode. Start to weigh when “0” is shown on the LED.

2. Place the rst item you wish to

weight onto the scale, the LED will show the weight of the rst item.

3. Press the ON/OFF/TARE button to

reset the display to zero. NOTE: If the weight is less than 600g, the “TARE” icon will not appear on the display by pressing the ON/OFF/ TARE button.

4. Now add another item to weigh

onto the scale. The LED will show the weight of the newly added item.

5. If you remove the item added to

7. If there is no operation, the scale

will switch off automatically in about 1 minute. Or you can press and hold the ON/OFF/TARE button for about 2s to switch the scale off. ON/OFF/TARE Button UNIT Button LED Display Problem Possible reasons Solutions The LED display is dim or displays Lo The power is not enough Please replace with 3xAAA new batteries The device is not starting when the TARE button is pressed The battery level is too low. Please replace with 3xAAA new batteries The batteries are not inserted correctly Please insert the batteries according to the instructions. The LED display shows “ ” Overload Please remove the weight on the scale to protect the weight cells. Buy a new scale with higher weight range. The LED displays

The objects, which weigh over 1000g, are placed on the scale before it is switched on. Remove the objects from the scale, wait until it displays zero, then you can start weighing. The measurement is not accurate/ LED displays “ “ The weight is unstable when you turn on the scale. Keep the weight stable when you turn on the scale. CLEANING

1. Rinse the scale under water and clean the scale with a slightly damp cloth and

2. Do not use chemical/abrasive cleaning agents.

GUARANTEE Wilfa issues a 5 year guarantee on this product from the day of purchase is done. The guarantee covers production failure or defects that arise during the guarantee period. Your purchase receipt works as proof towards retailer if claiming your guarantee. The guarantee is valid only for products that are bought and used in private households. The guarantee is not valid if the product is used commercially. The guarantee is not valid if the product is misused, used by negligence, if not following instructions given by Wilfa, if modied or if unauthorized reparation is done. The guarantee is also not valid for normal wear of the product, misuse, lack of maintenance, use of wrong electrical voltage or:

• Overloading of product

• Parts you can expect being replaced regularly (e.g. lter, battery etc.)11 AS Wilfa Nydalsveien 24, 0484 Oslo, Norway

For support please visit us at wilfa.com, and see our customer service/support page. Here you will nd frequently asked questions, spare parts, tips and tricks and all our contact information. RECYCLABILITY This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmentally safe recycling free of charge.12
