USER MANUAL HS 5523 GRUNDIG

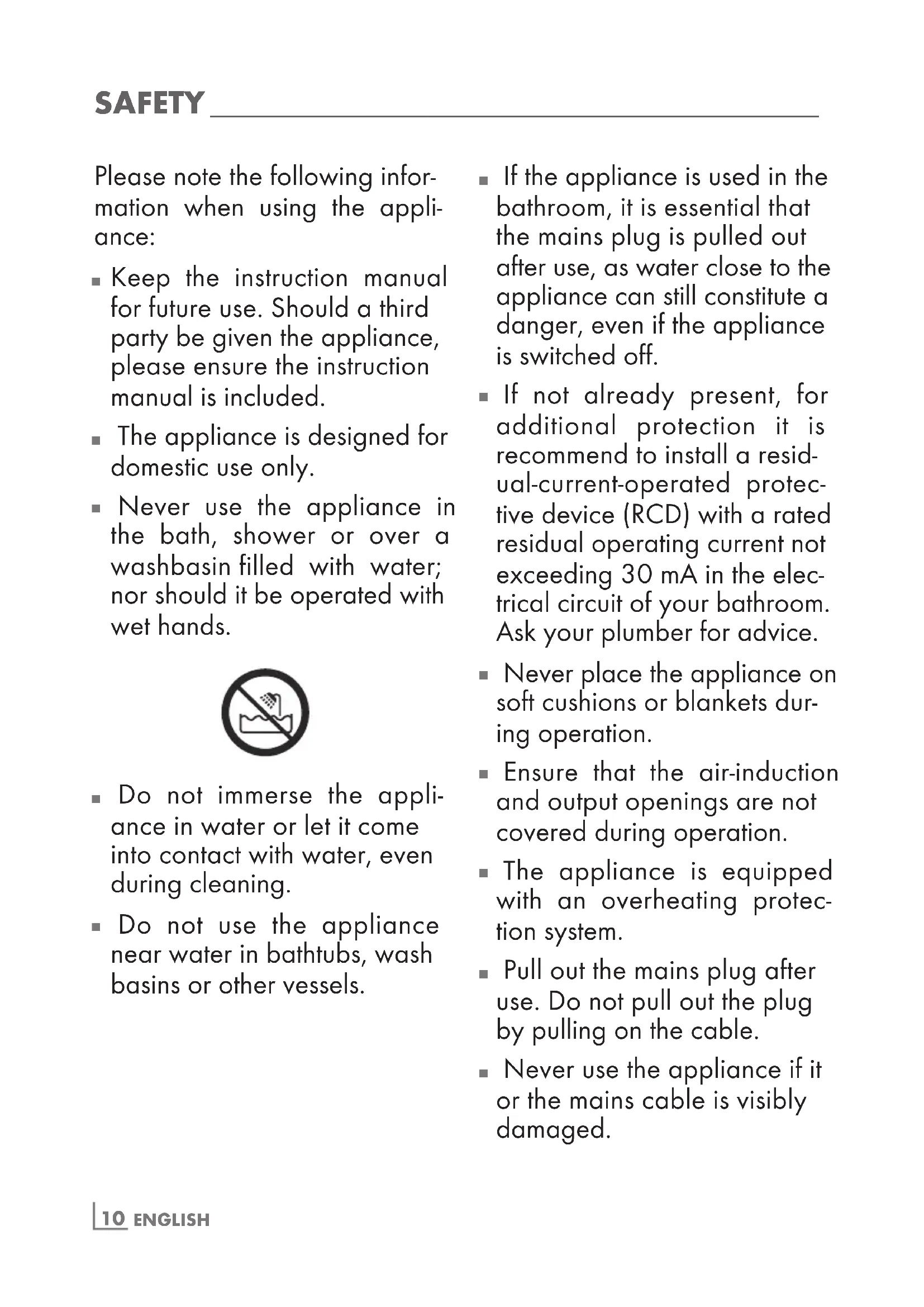

Please note the following infor- mation when using the appli- ance:

Keep the instruction manual for future use. Should a third party be given the appliance, please ensure the instruction manual is included.

The appliance is designed for domestic use only.

Never use the appliance in the bath, shower or over a washbasin filled with water; nor should it be operated with wet hands.

Do not immerse the appli- ance in water or let it come into contact with water, even during cleaning.

Do not use the appliance near water in bathtubs, wash basins or other vessels.

If the appliance is used in the bathroom, it is essential that the mains plug is pulled out after use, as water close to the appliance can still constitute a danger, even if the appliance is switched off.

If not already present, for additional protection it is recommend to install a resid- ual-current-operated protec- tive device (RCD) with a rated residual operating current not exceeding 30 mA in the elec- trical circuit of your bathroom. Ask your plumber for advice.

Never place the appliance on soft cushions or blankets dur- ing operation.

Ensure that the air-induction and output openings are not covered during operation.

The appliance is equipped with an overheating protec- tion system.

Pull out the mains plug after use. Do not pull out the plug by pulling on the cable.

Never use the appliance if it or the mains cable is visibly damaged.ENGLISH

If the power cord is damaged, it must be replaced by the manufacturer, its service cen- tre or a similarly qualified per- son to prevent danger arising.

Keep the appliance away from children.

This appliance can be used by children aged from 8 years and above and persons with re duced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervi- sion or instruction concerning use of the appliance in a safe way and understand the haz- ards involved. Chil dren shall not play with the appliance. Clean ing and user mainte- nance shall not be made by children without supervision.

Do not open the appliance under any circumstances. No warranty claims are accepted for damage caused by incor- rect handling.

A warm flow of air is required to achieve a perfect result. Please note that a metallised brush can become extremely hot during prolonged or in- tensive use.To avoid injury, please adjust the usage time of the device to the accessory being used.12 ENGLISH Dear customer, Congratulations on the purchase of your HS 5523 hair styler. Please, read the following user notes carefully to ensure that you are able to enjoy your quality product from Grundig for many years to come. A responsible approach! GRUNDIG focuses on contractually agreed social working conditions with fair wages for both internal employees and suppliers, as well as on the efficient use of raw materials with continual waste reduction of several tonnes of plastic each year – and availability of at least 5 years for all accessories. For a future worth living. For a good reason. Grundig. Controls

Detachable heated brushes with ceramic-tourma- line coating (styling attachment)

Catch for detaching the styling attachment (on back of device)

Switches the device on and off. Controller for two temperature and blower settings

Mains cable with eyelet for hanging up the appli- ance

Button for cold setting (Cool Shot) Accessories

Hot air brush large ø 38 mm

Hot air brush extra large ø 50 mm

Settings Your appliance has the following settings: Temperature level/blower level

– 0: Off – 1: Gentle air flow and moderate temperature for gently drying and styling – 2: Strong air current, high temperature for quick dry- ing Cool shot

– d: Interrupts heating and provides a cool air flow Changing the styling attachments 1 Detach the attached styling attachment

pressing on the catch (on the back of the appliance)

and turning the hot air brush slightly to the right. 2 Place another styling attachment on so that the recess and the catch

(on the back of the appliance) are in line and turn slightly to the left until it clicks. Operation Check if the mains voltage on the type plate (on the handle of the device) corresponds to your local mains supply. 1 Thoroughly towel dry your hair after washing. 2 Plug the

power cord into the wall socket. 3 Turn on the appliance with the switch

and set the required temperature level/blower level. 4 If necessary, interrupt heating by pressing and hold- ing down the

Cool Shot interrupts heating and provides a cool air flow. This allows you to fix your hairstyle better and more lastingly. 5 After use, switch off the appliance with the

switch and pull the plug of the mains cable

out of the socket. Note

Never wind the mains cable around the appli- ance, because this can cause damage. Please check the appliance and the cable regularly for visible damage. Cleaning and care Pull the plug out before cleaning. Never submerge the appliance in water. Use a soft, dry cloth to clean the housing. Clean the air inlet grille

occasionally with a soft brush to remove hairs and dust. OPERATION

ENGLISH Compliance with the WEEE Directive and Disposing of the Waste Product: This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE). This symbol indicates that this product shall not be disposed with other house- hold wastes at the end of its service life. Used device must be returned to offical collection point for recycling of electrical and electronic devices. To find these collection systems please contact to your local authorities or retailer where the product was puchased. Each household performs important role in recovering and recycling of old appliance. Appropriate disposal of used appli- ance helps prevent potential negative consequences for the environment and human health. Compliance with RoHS Directive The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive. Package information Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packag- ing materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities. Technical data Power supply: 230 - 240 V

, 50 Hz Power: 1000 - 1100 W Technical and design modifications reserved. INFORMATION
