USER MANUAL MWS 900 C Meister Craft

Exterior view of a MWS 900 C power tool with dual-axis blade and handle (no text or symbols on the tool itself)

Intertek

Nr. 5455170

Service

Close-up of a mechanical component with textured surfaces and a circular hole (no visible text or symbols)

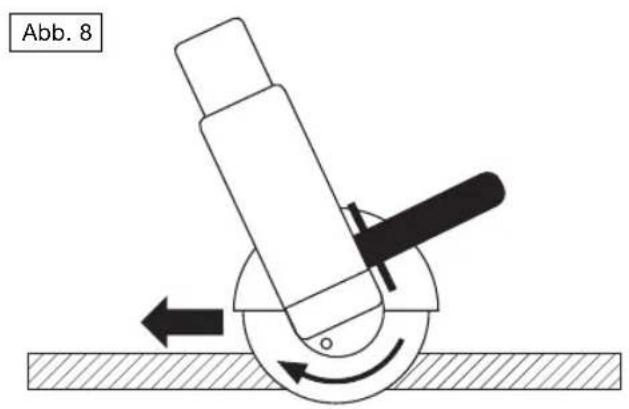

Abb. 8

Symbol of a trash bin crossed with no visible text or labels

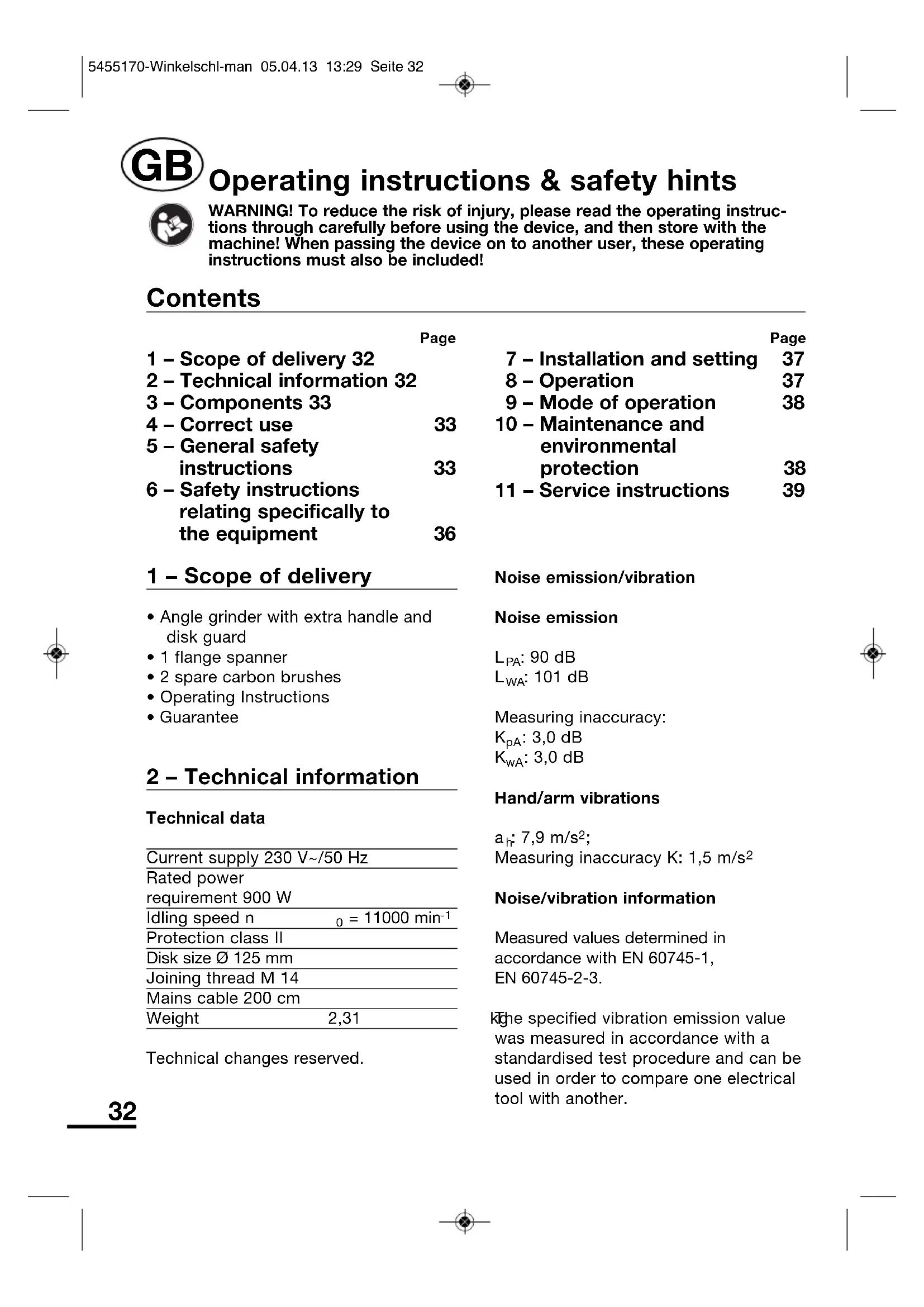

Operating instructions & safety hints

WARNING! To reduce the risk of injury, please read the operating instructions through carefully before using the device, and then store with the machine! When passing the device on to another user, these operating instructions must also be included!

Contents

	Page		Page
1 – Scope of delivery 32		7 – Installation and setting	37
2 – Technical information 32		8 – Operation	37
3 – Components 33		9 – Mode of operation	38
4 – Correct use	33	10 – Maintenance and environmental protection	38
5 – General safety instructions	33
6 – Safety instructions relating specifically to the equipment	36	11 – Service instructions	39

1 - Scope of delivery

• Angle grinder with extra handle and disk guard
• 1 flange spanner
  • 2 spare carbon brushes
• Operating Instructions
• Guarantee

2 - Technical information

Technical data

Current supply 230 V~/50 Hz
Rated power requirement 900 W
Idling speed n	_0 = 11000 min^-1
Protection class II
Disk size ∅ 125 mm
Joining thread M 14
Mains cable 200 cm
Weight	2,31

Technical changes reserved.

Noise emission/vibration

Noise emission

L_PA : 90 dB

L_WA : 101 dB

Measuring inaccuracy:

K_pA : 3,0 dB

K_wA : 3,0 dB

Hand/arm vibrations

Measured values determined in accordance with EN 60745-1, EN 60745-2-3.

The specified vibration emission value was measured in accordance with a standardised test procedure and can be used in order to compare one electrical tool with another.

The specified vibration emission value can also be used for preliminary evaluation of the disturbance.

CAUTION! The vibration emission value may fluctuate from the specified value during use of the electrical tool. These fluctuations will depend on the way in which the tool is used.

Safety measures must be taken in order to protect the operator. As a result, the evaluation of the disturbance must be made whilst taking account of the actual conditions of use. (All parts of the operating cycle must be taken into account for this purpose. This also includes times in which the tool is switched off and times in which it is switched on, but is running without load.)

3 - Components

1 Starting and stopping device
2 Additional grip
3 Disc cover for cutting discs
4 Spindle-lock button
5 Flange spanner
6 Spindle with joining thread
7 Clamping disk
8 Clamping nut
9 H a n d l e

10 Guard

11 Ring bead (fig. 2)

12 Screw

13 Spare carbon brushes

14 Disc cover for roughing discs

4 - Correct use

For cutting, grinding, rough grinding and cleaning metals, stone and ceramic materials with suitable accessories. Use the machine and accessories (observe manufacturer's instructions) only for their intended applications. All other applications are expressly excluded.

The machine is intended for rough-grinding, cleaning and cutting stone and metal in lengthwise or crosswise directions. Light objects should only be cut or ground when they are correctly secured to prevent them from slipping or flying away. The machine must not be used for any other purpose.

The machine is intended only for hand-held (not fixed) use in the household. The machine is not suitable for cutting wet materials.

CAUTION! Incorrect use of, or alterations to the drill, as well as the use of parts not tested and approved by the manufacturer, may cause unforeseen damage.

5 – General safety instructions for handling power tools

WARNING! Read all safety warnings and all instructions.

Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term “power tool” in the warnings refers to your mains operated (corded) power tool or battery-operated (cordless) power tool.

This unit may not be used by people (including children) with reduced physical, sensory or mental capacities, with a lack of experience and without

the appropriate knowledge, unless they are supervised by someone who is responsible for their safety or have been instructed by such a person with regard to how the unit is to be operated. Children should be supervised to ensure that they do not play with the device.

1 Work area

a Keep work area clean and well lit. Cluttered and dark areas invite accidents.
b Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2 Electrical Safety

a Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

d Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
If it is not possible to avoid using the electrical tool in a damp environment, use a residual current circuit-breaker. The use of a residual current circuit-breaker reduces the risk of an electrical shock.

3 Personal safety

a Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b Use personal protective equipment. Always wear eye protection. Protective equipment such as dust masks, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.

d Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

e Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

f Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

g Keep handles dry, clean and free from oil and grease. Slippery handles do not allow for safe handling and control of the tool in unexpected situations.

h If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of these devices can reduce dust related hazards.

4 Power tool use and care

a Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.

b Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

c Disconnect the plug from the power source before making any adjustments, changing accessories,

or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

d Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

e Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

f Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

g Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

5 Service

a Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

b To avoid hazards, damaged power leads must be replaced by the manufacturer or his customer service representative.

6 – Safety instructions relating specifically to the equipment

• Before changing the tool or carrying out maintenance work, pull out the power plug and wait until motor and spindle have come to rest.
• Do not press the spindle lock until motor and spindle have come to rest.
• Do not use cutting disks which exceed the maximum diameter stated.
• When fixing accessory tools to the machine, note the correct direction of rotation of machine and accessory.
• The permitted rotation speed of the accessory tool must not be less than the idling speed of the machine.
• If necessary, wear hand, eye and ear protection.
• Switch the machine on immediately before contact with workpiece.
• Never lay the machine aside when it is still running.
• Secure workpiece with clamps etc.
• Never use cutting disks for rough grinding.
• Always store and handle grinding disks carefully in accordance with the manufacturer's directions.
• Check disks before using them. Never use chipped, cracked or otherwise damaged products.
• Ensure that grinding tools are mounted according to the manufacturer's directions.

• Always use spacers or shims if these are supplied with the grinding tool or if they are specified.

- Ensure that the grinding tool is correctly mounted and secured before starting work. Allow the machine to run for 30 sec. in a safe position beforehand. Stop work immediately if unusual vibrations occur or other deficiencies are noticed. In such a case, check the machine carefully to determine the cause.

- Never use separate reducing sleeves or adapters to fit grinding disks with large holes.

- With grinding tools with thread insert, ensure that the thread is long enough to take the full length of the spindle.

- Ensure that flying sparks do not cause danger, e.g. to other persons or by igniting inflammable substances.

- During dusty work, ensure that the ventilation slits are kept free. If dust has to be removed, first disconnect the power tool from the power supply. Use non-metallic objects and avoid damaging interior parts of the machine.

- The disk continues to run after the machine is switched off. Do not lay the machine aside until the disk has come to rest.

• Always protect eyes and ears.

- Other personal safety equipment, e.g. dust mask, gloves, helmet and clothing (e.g. apron) should also be worn.

7 – Installation and setting

Disk guard

The scope of the delivery for this power tool contains a protective hood for cutting discs (3) and one for roughing discs (14).

The position of the disc covers (3/14) can be adapted to suit the relevant working conditions. To do this, loosen the screw (12) with a screwdriver and turn the cover to the new position. Tighten the screw back up again (fig. 3).

CAUTION! The closed part of the disk guard should always point towards the user to protect him from sparks and chippings.

Mounting and removing the disc cover

If necessary, and if the situation requires it, the disc cover can be exchanged. To do this, loosen the screw (12) in such a way that the cover can be removed by turning it out of the guide groove of the sanding head.

Mount in reverse order.

Additional grip

Depending on the working method, the additional handle (2) can be mounted in three different positions on the grinding head (fig. 4).

Mounting tools

CAUTION! Before working on the machine, always pull out the power plug!

Cutting and roughing disks

All types of grinding and cutting disks (elbowed A/B, flat, and 'diamond' C) can be mounted on the spindle (6) (fig. 2). Depending on type and thickness of the disk, always select a suitable arrangement of clamping disk (7) and nut (8).

Press the spindle-locking button (4) in deep and hold it in this position. If necessary, turn the spindle slightly with the free hand until it locks into position. Tighten the clamping nut with the flange key provided (fig. 5). Do not work with disks thicker than 6 mm.

CAUTION! Allow disks to cool down before changing them.

HOT! Always work with the disk guard in position!

CAUTION! With accessories, always comply with the manufacturer's directions. The maximum rotation speed must be greater than the idling speed of the machine.

8 - Operation

Switching on and off (fig. 7)

The machine has a two button security switch mechanism (1): The machine can only be put into operation if the handle is held firmly and both buttons are pressed. When the handle is released, the machine switches off automatically to ensure that accidental operation is not possible.

Test run

CAUTION! Always carry out a test run before starting work and after every tool change!

Always ensure that the tools are in good condition, correctly mounted and able to turn freely. The trial run should last approx. 30 sec.

9 - Mode of operation

• Always place the workpiece on a firm surface before starting.
- Observe rotation direction and function
- The distance between the user and the machine should be as great as possible.
- Avoid jolting the workpiece.

CAUTION! Never machine material containing asbestos.

Cutting

Apply slight pressure to the cutting disk from above, but NOT from the side. Adjust forward pressure to material and rotation speed. The machine must work in reverse rotation (fig. 8).

CAUTION! Do not cut wet material.

Roughing

Mount the protective hood for roughing discs (14) in accordance with Chapter 7, and set as required.

Hold the machine at an angle of 30^ to 40^ to the workpiece. Move the machine back and forward with moderate pressure.

10 – Maintenance and environmental protection

CAUTION! Before any maintenance working on the appliance, unplug it from the mains.

Remove dust regularly from machine and ventilation slits. Clean the case only with a damp cloth – Do not use solvents. Then dry well.

CAUTION! Conductive metallic dust may impair the function of the machine.

When working frequently with metals, blow the ventilation slots out regularly with compressed air and if necessary install a safety cut-out switch (FI).

Replacing the carbon brushes

Carbon brushes (13) under the guard (10) must be replaced in pairs by a specialist. Remove dust on the contacts with a brush or compressed air.

CAUTION! Electrical and battery operated units that no longer work should not be disposed of in the household waste! They are to be collected separately, in accordance with

the 2002/96 EC directive for the disposal of electrical and electronic waste, and sent for proper and environ - mentally-friendly recycling.

Please discard power tools no longer usable at a local collection point. Collection and disposal of packaging materials separately by types complying with local rules and regulations. For

details, please contact your municipal authority concerned.

11 - Service instructions

• Store the machine, operating instructions and where necessary the accessories in the original packaging. In this way you will always have all the information and parts ready to hand.
• MeisterCRAFT devices are to a large extent maintenancefree, a damp cloth being sufficient to clean the casing. Do not drop electrical machines in water. Please note additional hints given in the operating instructions.
• MeisterCRAFT devices are subject to stringent quality control. If however a functional fault should occur, send the device to our servicing address. The repairs will be carried out in a short time.
• A brief description of the defect speeds up the faulttracing and repair time. If within the guarantee period, please enclose the guarantee document and the proof of purchase.

- In so far as a repair under guarantee is not concerned, we will charge the repair costs to your account.

PLEASE NOTE! Opening of the device invalidates the guarantee claim.

IMPORTANT! We point out expressly that in accordance with the Product Liability Act we do not take responsibility for any damage caused by our appliances, in so much that said damage is caused by improper repair, or original parts or parts released by us not being used when parts are changed, or repairs not being conducted by Meister Werkzeuge GmbH, Customer Service or an authorised specialist! The same applies analogously to the accessories used.

- Pack the device well or use the original packaging in order to avoid transit damage.

- Even after the expiry of the guarantee period, we would like to help you and carry out any repairs at a favourable price.

GB - The object of the declaration described above is in conformity with Directive 2011/65/EU of the European Parliament and of the Council of 8 June 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment.
