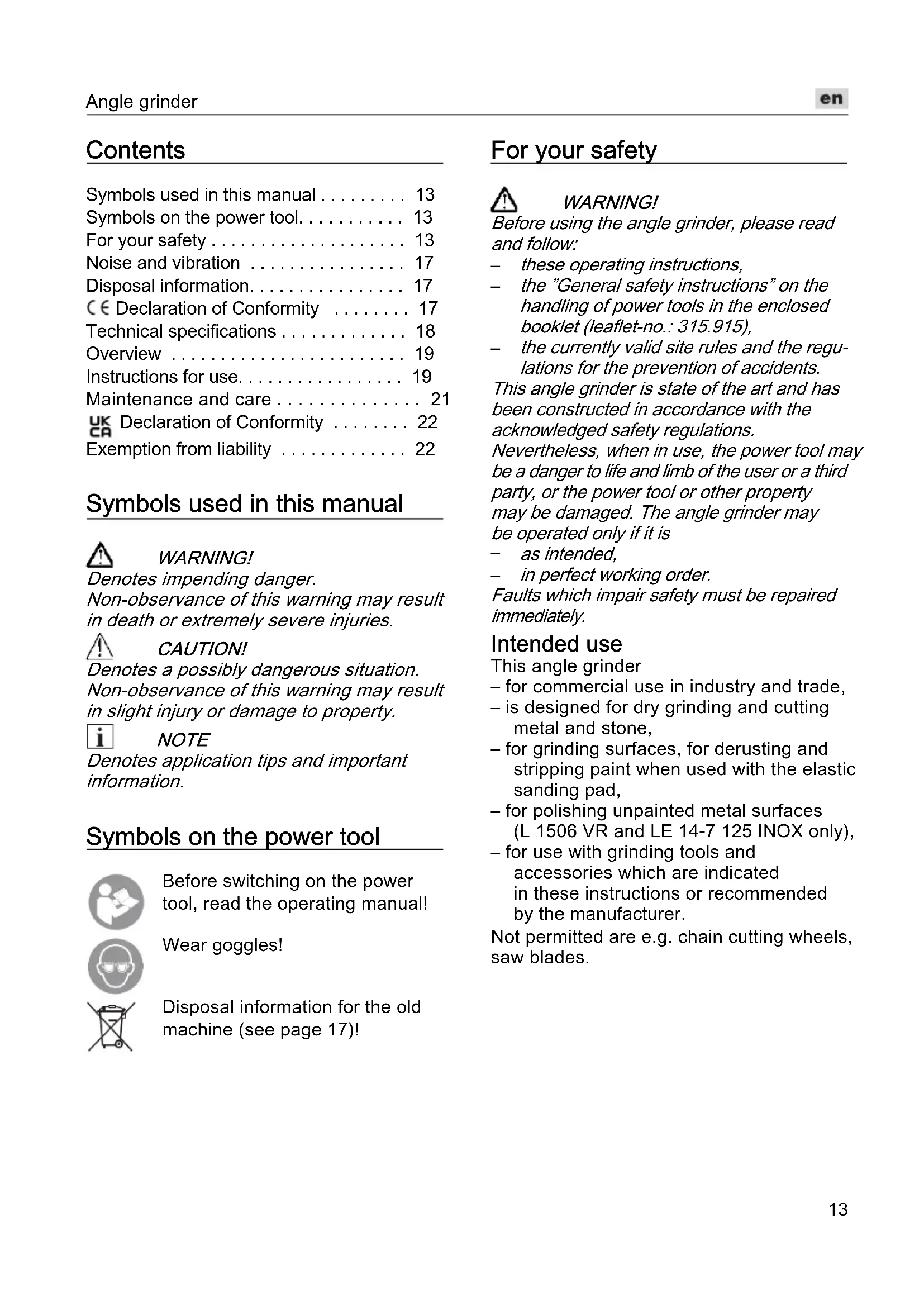

USER MANUAL L 1506 VR Flex

these operating instructions,

the ”General safety instructions” on the handling of power tools in the enclosed booklet (leaflet-no.: 315.915),

the currently valid site rules and the regu- lations for the prevention of accidents. This angle grinder is state of the art and has been constructed in accordance with the acknowledged safety regulations. Nevertheless, when in use, the power tool may be a danger to life and limb of the user or a third party, or the power tool or other property may be damaged. The angle grinder may be operated only if it is

in perfect working order. Faults which impair safety must be repaired immediately. Intended use This angle grinder – for commercial use in industry and trade, – is designed for dry grinding and cutting metal and stone, – for grinding surfaces, for derusting and stripping paint when used with the elastic sanding pad, – for polishing unpainted metal surfaces (L 1506 VR and LE 14-7 125 INOX only), – for use with grinding tools and accessories which are indicated in these instructions or recommended by the manufacturer. Not permitted are e.g. chain cutting wheels, saw blades.Angle grinder

Safety instructions WARNING! Read all safety warnings and all instruc- tions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. Safety Warnings Common for Grinding, Sanding, Wire Brushing, Polishing or Abrasive Cutting-Off Operations (L 1506 VR/LE 14–7 125 INOX only):

This power tool is intended to function as a grinder, sander, wire brush, polisher or cut-off tool. Read all safety warnings, in- structions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

This power tool is intended to function as a grinder, sander, wire brush or cut-off tool. Read all safety warnings, instruc- tions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

Operation such as polishing is not recommended to be performed with this power tool. Operations for which the power tool was not designed may create a hazard and cause personal injury.

Do not use accessories which are not specifically designed and recommended by the tool manufacturer. J ust because the accessory can be attached to your power tool, it does not assure safe operation.

The rated speed of the accessory must be at least equal to the maximum speed marked on the power tool. Accessories running faster than their rated speed can break and fly apart.

The outside diameter and the thickness of your accessory must be within the capacity rating of your power tool. Incorrectly sized accessories cannot be adequately guarded or controlled.

Threaded mounting of accessories must match the grinder spindle thread. For accessories mounted by flanges, the arbour hole of the accessory must fit the locating diameter of the flange. Accessories that do not match the mounting hardware of the power tool will run out of balance, vibrate excessively and may cause loss of control.

Do not use a damaged accessory. Before each use inspect the accessory such as abrasive wheels for chips and cracks, backing pad for cracks, tear or excess wear, wire brush for loose or cracked wires. If power tool or accessory is dropped, inspect for damage or install an undamaged accessory. After inspecting and installing an accessory, position yourself and bystanders away from the plane of the rotating accessory and run the power tool at maximum no-load speed for one minute. Damaged accessories will normally break apart during this test time.

Wear personal protective equipment. Depending on application, use face shield, safety goggles or safety glasses. As appropriate, wear dust mask, hearing protectors, gloves and workshop apron capable of stopping small abrasive or workpiece fragments. The eye protection must be capable of stopping flying debris generated by various operations. The dust mask or respirator must be capable of filtrating particles generated by your operation. Prolonged exposure to high intensity noise may cause hearing loss.

Keep bystanders a safe distance away from work area. Anyone entering the work area must wear personal protective equipment. Fragments of workpiece or of a broken accessory may fly away and cause injury beyond immediate area of operation.Angle grinder

Hold the power tool by insulated gripping surfaces only, when performing an operation where the cutting accessory may contact hidden wiring or its own cord. Cutting accessory contacting a “live” wire may make exposed metal parts of the power tool “live” and could give the operator an electric shock.

Position the cord clear of the spinning accessory. If you lose control, the cord may be cut or snagged and your hand or arm may be pulled into the spinning accessory.

Never lay the power tool down until the accessory has come to a complete stop. The spinning accessory may grab the surface and pull the power tool out of your control.

Do not run the power tool while carrying it at your side. Accidental contact with the spinning accessory could snag your clothing, pulling the accessory into your body.

Regularly clean the power tool’s air vents. The motor’s fan will draw the dust inside the housing and excessive accumulation of powdered metal may cause electrical hazards.

Do not operate the power tool near flammable materials. Sparks could ignite these materials.

Do not use accessories that require liquid coolants. Using water or other liquid coolants may result in electrocution or shock. Kickback and Related Warnings Kickback is a sudden reaction to a pinched or snagged rotating wheel, backing pad, brush or any other accessory. Pinching or snagging causes rapid stalling of the rotating accessory which in turn causes the uncontrolled power tool to be forced in the direction opposite of the accessory’s rotation at the point of the binding.For example, if an abrasive wheel is snagged or pinched by the workpiece, the edge of the wheel that is entering into the pinch point can dig into the surface of the material causing the wheel to climb out or kick out. The wheel may either jump toward or away from the operator, depending on direction of the wheel’s movement at the point of pinching. Abrasive wheels may also break under these conditions. Kickback is the result of power tool misuse and/or incorrect operating procedures or conditions and can be avoided by taking proper precautions as given below.

Maintain a firm grip on the power tool and position your body and arm to allow you to resist kickback forces. Always use auxiliary handle, if provided, for maximum control over kickback or torque reaction during start-up. The operator can control torque reactions or kickback forces, if proper precautions are taken.

Never place your hand near the rotating accessory. Accessory may kickback over your hand.

Do not position your body in the area where power tool will move if kickback occurs. Kickback will propel the tool in direction opposite to the wheel’s movement at the point of snagging.

Use special care when working corners, sharp edges etc. Avoid bouncing and snagging the accessory. Corners, sharp edges or bouncing have a tendency to snag the rotating accessory and cause loss of control or kickback.

Do not attach a saw chain woodcarving blade or toothed saw blade. Such blades create frequent kickback and loss of control. Safety Warnings Specific for Grinding and Abrasive Cutting-Off Operations:

Use only wheel types that are recommen- ded for your power tool and the specific guard designed for the selected wheel. Wheels for which the power tool was not designed cannot be adequately guarded and are unsafe.

The grinding surface of centre depressed wheels must be mounted below the plane of the guard lip. An improperly mounted wheel that projects through the plane of the guard lip cannot be adequately protected.

The guard must be securely attached to the power tool and positioned for maximum safety, so the least amount of wheel is exposed towards the operator. The guard helps to protect the operator from broken wheel fragments, accidental contact with wheel and sparks that could ignite clothing.Angle grinder

Wheels must be used only for recommen- ded applications. For example: do not grind with the side of cut-off wheel. Abrasive cut-off wheels are intended for peripheral grinding; side forces applied to these wheels may cause them to shatter.

Always use undamaged wheel flanges that are of correct size and shape for your selected wheel. Proper wheel flanges support the wheel thus reducing the possibility of wheel breakage. Flanges for cut-off wheels may be different from grinding wheel flanges.

Do not use worn down wheels from larger power tools. Wheel intended for larger power tool is not suitable for the higher speed of a smaller tool and may burst. Additional Safety Warnings specific for Abrasive Cutting-Off Operations:

Do not “jam” the cut-off wheel or apply excessive pressure. Do not attempt to make an excessive depth of cut. Overstressing the wheel increases the loading and susceptibility to twisting or binding of the wheel in the cut and the possibility of kickback or wheel breakage.

Do not position your body in line with and behind the rotating wheel. When the wheel, at the point of operation, is moving away from your body, the possible kickback may propel the spinning wheel and the power tool directly at you.

When wheel is binding or when interrupting a cut for any reason, switch off the power tool and hold the power tool motionless until the wheel comes to a complete stop. Never attempt to remove the cut-off wheel from the cut while the wheel is in motion otherwise kickback may occur. Investigate and take corrective action to eliminate the cause of wheel binding.

Do not restart the cutting operation in the workpiece. Let the wheel reach full speed and carefully re-enter the cut. The wheel may bind, walk up or kickback if the power tool is restarted in the workpiece.

Support panels or any oversized workpiece to minimize the risk of wheel pinching and kickback. Large workpieces tend to sag under their own weight. Supports must be placed under the workpiece near the line of cut and near the edge of the workpiece on both sides of the wheel.

Use extra caution when making a “pocket cut” into existing walls or other blind areas. The protruding wheel may cut gas or water pipes, electrical wiring or objects that can cause kickback. Safety Warnings Specific for Sanding Operations:

Do not use excessively oversized sanding disc paper. Follow manufacturers recommendations, when selecting sanding paper. Larger sanding paper extending beyond the sanding pad presents a laceration hazard and may cause snagging, tearing of the disc, or kickback. Safety Warnings Specific for Polishing Operations (L 1506 VR/LE 14–7 125 INOX only): Do not allow any loose portion of the polishing bonnet or its attachment strings to spin freely. Tuck away or trim any loose attachment strings. Loose and spinning attachment strings can entangle your fingers or snag on the workpiece. Safety Warnings Specific for Wire Brushing Operations:

Be aware that wire bristles are thrown by the brush even during ordinary operation. Do not overstress the wires by applying excessive load to the brush. The wire bristles can easily penetrate light clothing and/or skin.

If the use of a guard is recommended for wire brushing, do not allow any interference of the wire wheel or brush with the guard. Wire wheel or brush may expand in diameter due to work load and centrifugal forces. Additional safety instructions The mains voltage and the voltage specifications on the rating plate must correspond. Do not press the spindle lock until the grinding tool stops.Angle grinder

Noise and vibration NOTE Values for the A-weighted sound pressure level and for the total vibration values can be found in the “Technical specifications” table. The noise and vibration values have been determined in accordance with EN 60745. CAUTION! The indicated measurements refer to new power tools. Daily use causes the noise and vibration values to change. NOTE The vibration emission level given in this infor- mation sheet has been measured in accor- dance with a standardised test given in EN 60745 and may be used to compare one tool with another. It may be used for a preliminary assessment of exposure. The declared vibration emission level represents the main applications of the tool. However if the tool is used for different applications, with different accessories or poorly maintained, the vibration emission may differ. This may significantly increase the exposure level over the total working period. However if the tool is used for different applications, with different accessories or poorly maintained, the vibration emission may differ. This may significantly decrease the exposure level over the total working period. Identify additional safety measures to protect the operator from the effects of vibration such as: maintain the tool and the accessories, keep the hands warm, organisation of work patterns. CAUTION! Wear ear protection at a sound pressure above 85 dB(A). Disposal information WARNING! Render redundant power tools unusable by removing the power cord. EU countries only Do not throw electric power tools into the household waste! In accordance with the European Directive 2012/19/EU on Waste Electrical and Electronic Equipment and transposition into national law used electric power tools must be collected separately and recycled in an environmentally friendly manner. NOTE Please ask your dealer about disposal options! Declaration of Conformity We declare under our sole responsibility that the product described under “Technical Data” conforms to the following standards or normative documents: EN 60745 in accordance with the regulations of the directives 2014/30/EU, 2006/42/EC, 2011/65/EU. Responsible for technical documents: FLEX-Elektrowerkzeuge GmbH, R & D Bahnhofstrasse 15, D-71711 Steinheim/Murr

(1300) Weight (without power cord) kg 1.9 2.4 1.9 2.2 2.2 2.4 Protection class II/ A-weighted sound pressure level according to EN 60745 (see “Noise and vibration”): Sound pressure level dB(A)

Total vibration value according to EN 60745 (see “Noise and vibration”): Emission value a

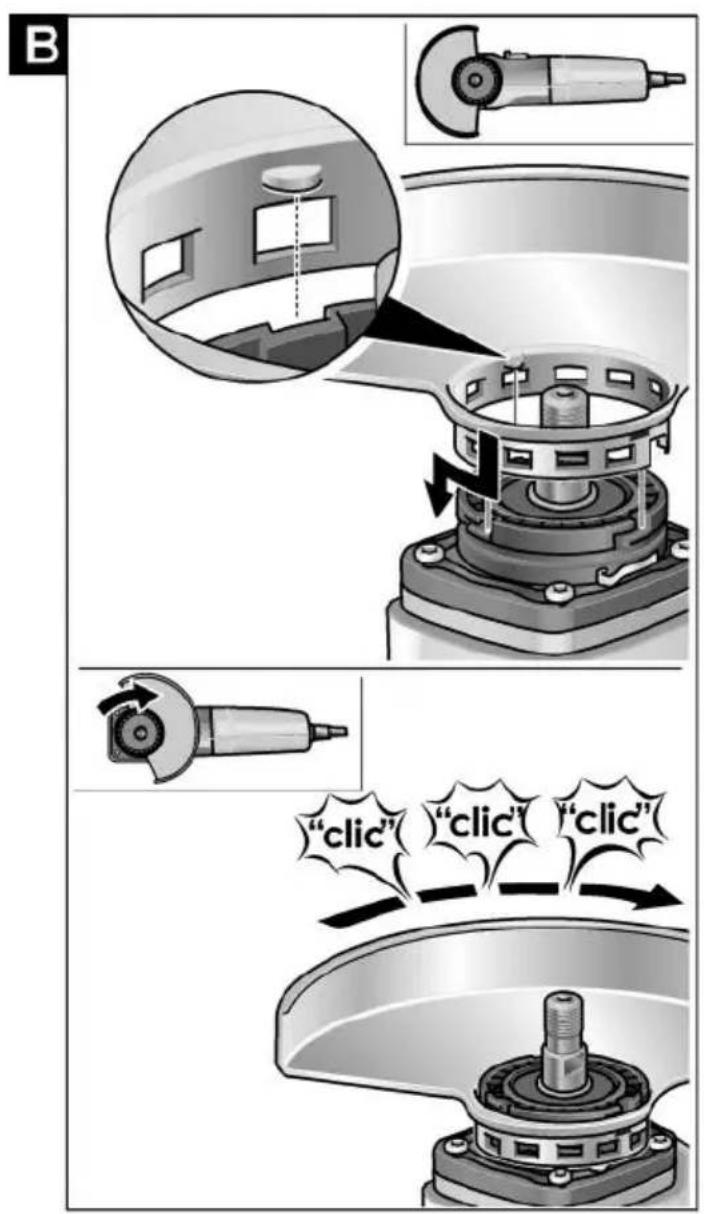

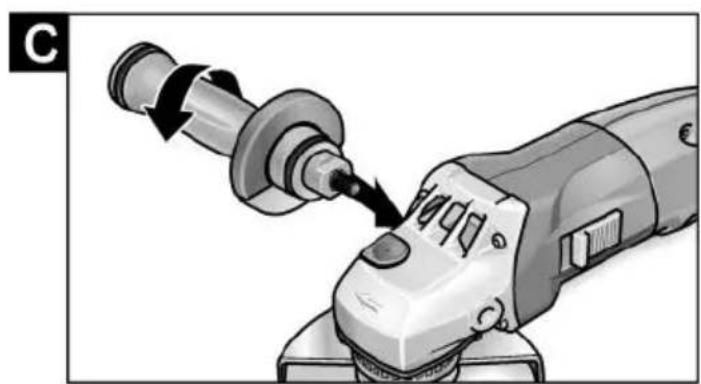

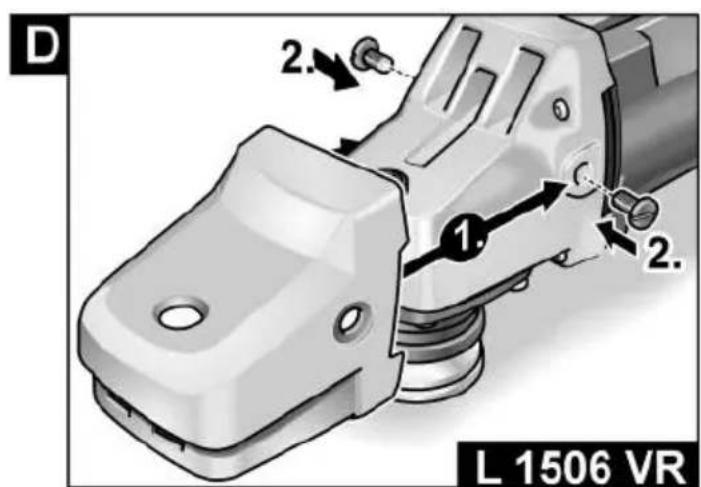

Overview Different electric power tools are described in these instructions. The illustrated electric power tool may differ in detail from the one which you purchased. Please fold out the pages at the end of these instruc- tions. Fig. A 1 Spindle 2 Threaded flange a Clamping nut a Clamping flange 3 Guard hood Can be adjusted without a tool through 360° by means of 12 notches. 4 SoftVib handle with holding wrench Handle can be fitted to the left or right. To change the grinding tool, unscrew the cover. 5 Spindle lock Secures the spindle when the tool is changed. 6 Gear head With air outlet and direction-of-rotation arrow. 7 Switch rocker Switches the power tool on and off. With notched position for continuous operation. 8 Rear handle 9 Dial for preselecting the speed (L 3410 VR, LE 14–7 125, L 1506 VR only) 10 4,0 m power cord with plug 11 Rating plate (not illustrated) L 1506 VR only: 12 Grip hood with fastening screws 13 Handle 14 Face spanner Instructions for use WARNING! Before carrying out any work on the angle grinder, always pull out the mains plug. Before switching on the power tool Unpack the angle grinder and check that there are no missing or damaged parts. Attach the guard WARNING! When using the angle grinder for roughing or cutting, never work without the guard. Fig. B Pull out the mains plug. Attach the guard. Lugs on the guard hood must be located in the flange recesses. Turn guard hood clockwise. Rotation is possible in one direction only! Remove in reverse order. Attach the handle Fig. C NOTE It is not permitted to operate the electric power tool without the handle. Attach handle cover (L 1506 VR) NOTE It is not permitted to operate the electric power tool without the handle/handle cover. Remove the guard. Loosen screws or handle. Fig. D Push on handle cover (1.). Tighten screws (2.).Angle grinder

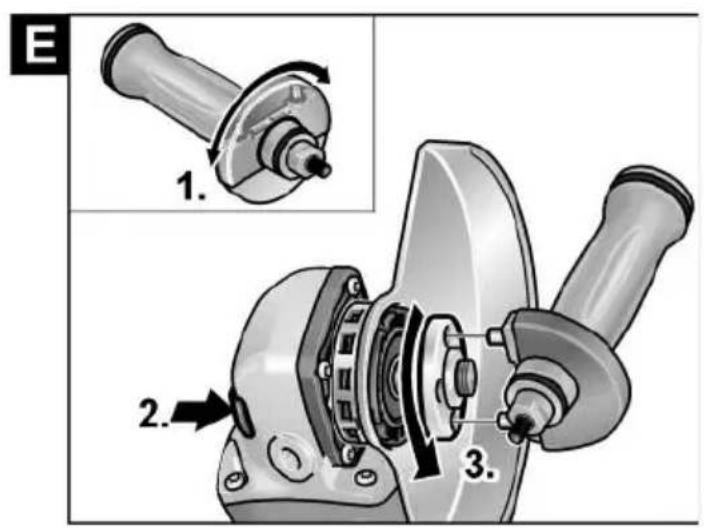

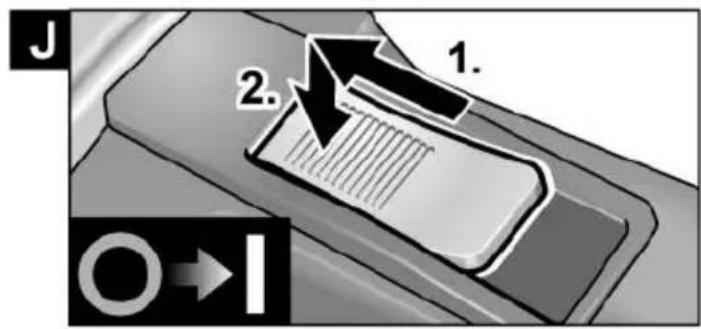

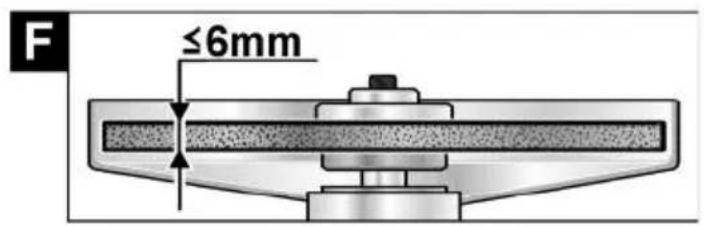

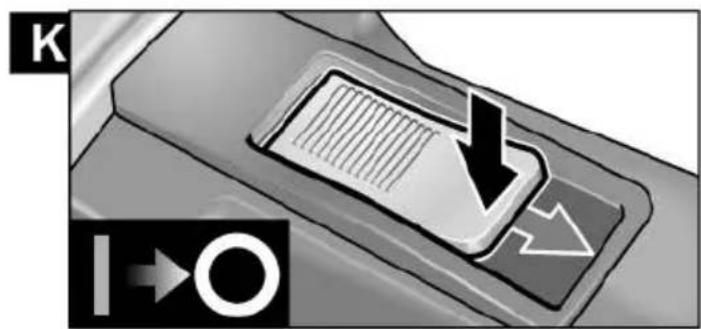

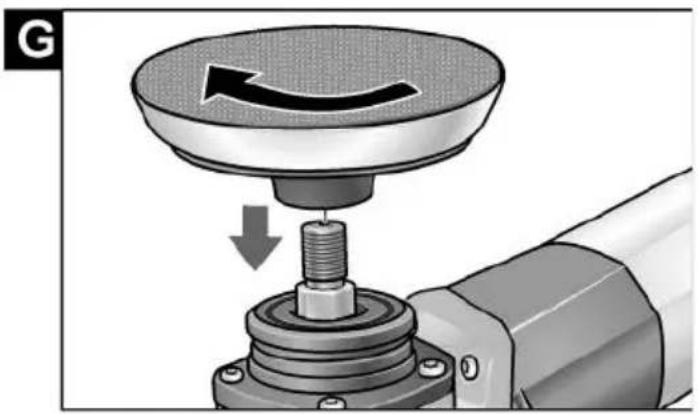

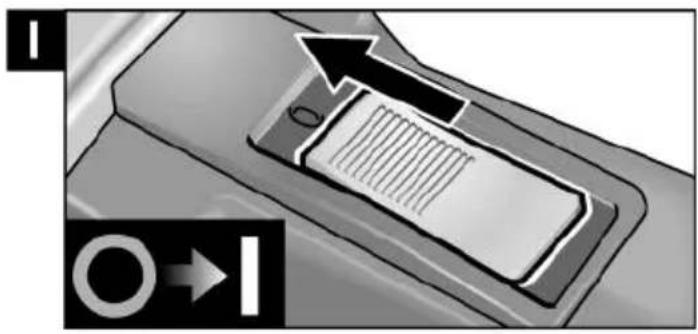

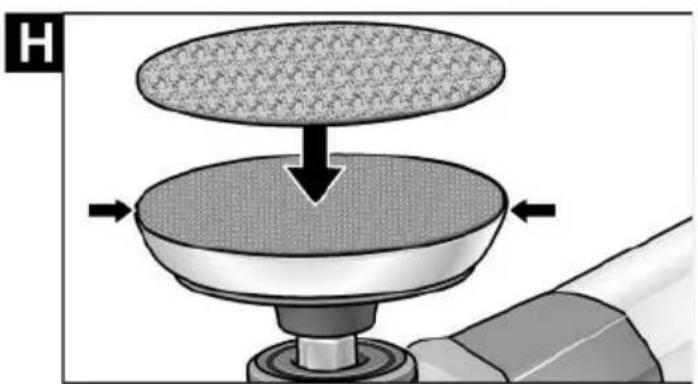

Attaching/changing the tool Pull out the mains plug. Attach the sanding disc Remove the handle from the power tool by rotating it in an anti-clockwise direction. Rotate the cover on the handle by 180° until it engages (1.). The stop key is released. Fig. E Press and hold down the spindle lock (2.). Using the stop key, loosen the clamping nut on the spindle in an anti-clockwise direction and remove (3.). Insert the grinding wheel in the correct position. Screw the clamping nut with flange face up, onto the spindle. Fig. F Press and hold down the spindle lock. Tighten the clamping nut with the stop key. Carry out a test run to check that the tool is clamped in the centre. NOTE In the case of L 1506 VR, loosen/tighten the clamping nut with the enclosed face spanner. Attaching the Velcro pad Remove the guard. Press and hold down the spindle lock. Using the stop key, loosen the clamping nut on the spindle in an anti-clockwise direction and remove. Remove clamping flange. Fig. G Screw Velcro pad clockwise onto the spindle and tighten hand-tight. Attaching or changing sandpaper Fig. H Place the sandpaper in the centre of the Velcro pad and press on. Carry out a test run to check that the tool is clamped in the centre. Test run Insert the mains plug into the socket. Switch on the angle grinder with the switch rocker (without engaging it) and run the angle grinder for approx. 30 seconds. Check for imbalances and vibrations. Switch off the angle grinder. Switching on and off Brief operation without engaged switch rocker Fig. I Push the switch rocker forwards and hold in position. To switch off the power tool, release the switch rocker. Continuous operation with engaged switch rocker Fig. J Push the switch rocker forwards and engage by pressing the front end. Fig. K To switch off the power tool, release the switch rocker by pressing the rear end. NOTE Following a power failure, the switched on power tool does not restart. Preselecting the speed (L 3410 VR, LE 14–7 125 and L 1506 VR only) Fig. L To set the operating speed, move the dial to the required value. NOTE If an overload or overheating occurs during continues operation, the power tool auto- matically reduces the speed until the power tool has cooled down adequately.Angle grinder

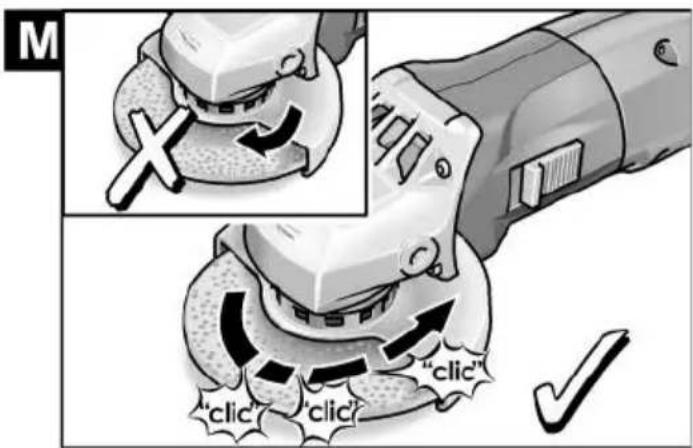

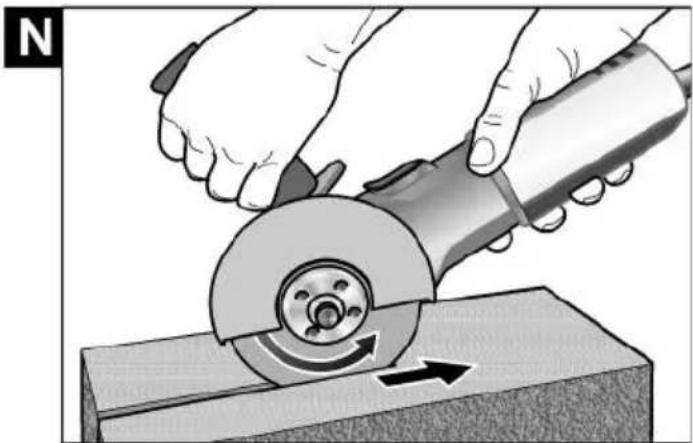

Adjusting the guard To adjust the tool to the task at hand, the guard hood can be adjusted by 12 notches on 360° without a tool. CAUTION! Risk of injury! Wear protective gloves. Pull out the mains plug. Fig. M Turn guard hood opposite to the di- rection-of-rotation arrow on the gear head to the required position. Operating instructions NOTE When the power tool is switched off, the grinding tool continues running briefly. Rough-grinding WARNING! Never use cutting-off wheels for rough- grinding. – Angle of wheel 20–40° for best cutting performance. – Applying moderate pressure, move the angle grinder backwards and forwards. As a result, the workpiece will not become too hot and there will be no dis- coloration; nor will there be any grooves. Cut-off grinding WARNING! A special cutting guard must be used for cutting. See manufacturer’s accessories catalogue. – The angle grinder must always be opera- ted backwards, see fig. N . Otherwise, there is a risk of the angle grinder jumping uncontrollably out of the groove. – Do not press, tilt or oscillate the power tool. – Adjust the feed to the material which is to be cut: – the harder the material, the slower the feed. For further information on the manufactu- rer’s products go to www.flex-tools.com

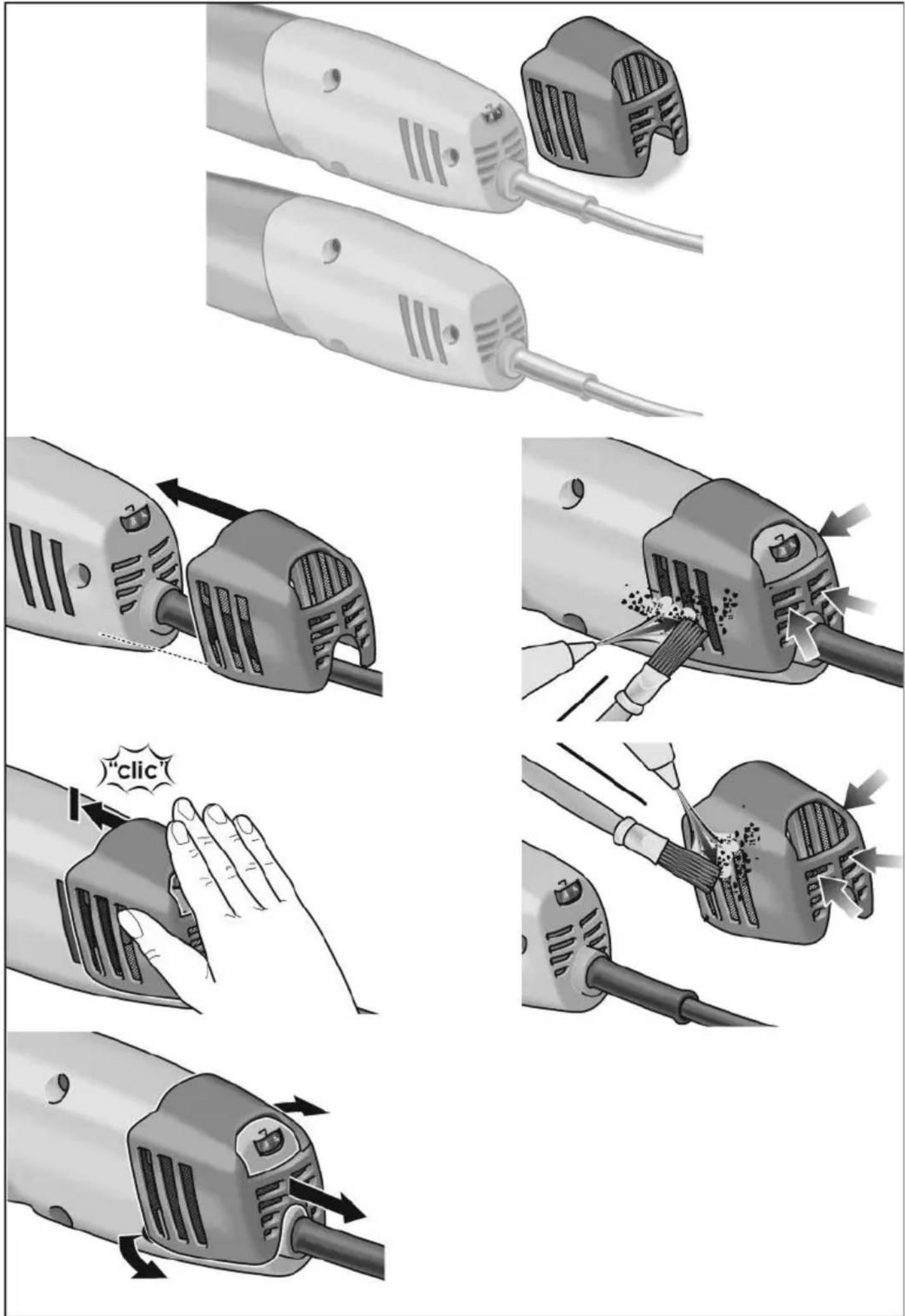

Maintenance and care WARNING! Before carrying out any work on the angle grinder, always pull out the mains plug. Cleaning WARNING! If metals are ground or cut over a prolonged period, conductive dust may become deposited inside the housing. Impairment of the protective insulation! Operate the power tool via a residual-current-operated circuit- breaker (tripping current 30 mA). Regularly clean the power tool and ventilation slots. Frequency of cleaning is dependent on the material and duration of use. Regularly blow out the housing interior and motor with dry compressed air. Carbon brushes The angle grinder features cut-off carbon brushes. When the wear limit of the cut-off carbon brushes is reached, the angle grinder switches off automatically. NOTE Use only original parts supplied by the manufacturer for replacement purposes. If non-original parts are used, the guarantee obligations of the manufacturer will be deemed null and void. When the power tool is being used, the carbon brushes can be seen sparking through the rear air inlet apertures. If the carbon brushes spark excessively, switch off the angle grinder immediately. Take the angle grinder to a customer service workshop authorised by the manu- facturer.Angle grinder

Gears NOTE Do not loosen the screws on the gear head during the warranty period. Non-compliance will deem the guarantee obligations of the manufacturer null and void. Repairs Repairs may be carried out by an authorised customer service centre only. Spare parts and accessories For other accessories, in particular grinding tools, see the manufacturer’s catalogues. Exploded drawings and spare-part lists can be found on our homepage: www.flex-tools.com Declaration of Conformity We as the manufacturer: FLEX Elektrowerkzeuge GmbH, Business address: Bahnhofstr. 15, 71711 Steinheim, Germany declare under our sole responsibility, that the product(s) described under „Technical specifications“ fulfills all the relevant provi- sions of The Supply of Machinery (Safety) Regulations S.I. 2008/1597 and also fulfills all the relevant provisions of the following UK Regulations: Electromagnetic Compatibility Regulations S.I. 2016/1091, The Restriction of the Use of Certain Hazardous Substances in Electri- cal and Electronic Equipment Regulations S.I. 2012/3032 and are manufactured in accordance with the following designated Standards: BS EN 60745-1:2010, BS EN 60745-2-3:2011, BS EN 55014-1:2017, BS EN 55014-2:2015, BS EN 61000-3- 2:2014

BS EN 61000-3-3:2013 Place of declaration: Steinheim, Germany. Responsible person: Peter Lameli, Technical Director – FLEX-Elektrowerk- zeuge GmbH Contact details for Great Britain: FLEX Power Tools Limited, Unit 8 Anglo Office Park, Lincoln Road, HP 12, 3RH Buckinghamshire, United Kingdom.

Exemption from liability The manufacturer and his representative are not liable for any damage and lost profit due to interruption in business caused by the product or by an unusable product. The manufacturer and his representative are not liable for any damage which was caused by improper use of the product or by use of the product with products from other manufacturers.Meuleuse d’angle
