USER MANUAL SLTG 1100 A1 SILVERCREST

Operating instructions

NL BE

TOASTER MET LANGE SLEUF

Gebruksaanwijzing

ES

TOSTADOR DE RANURA EXTRALARGA

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

FR BE

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Contents

Introduction 18

Copyright 18

Limitation of Liability 18

Intended use 18

Package contents 19

Disposal of the packaging 19

Appliance description 19

Technical data 20

Safety information 20

Tips for use 22

Setting up 23

Before first use 23

Operation 23

Adjusting the browning level 23

Toasting 24

Stopping the toasting process 24

Heating function 24

Defrost function 25

Bagel function 25

Crisping bread rolls 26

Crumb tray 26

Cleaning 26

Storage 28

Troubleshooting 29

Disposal 29

Kompernass Handels GmbH warranty 30

Service 31

Importer 31

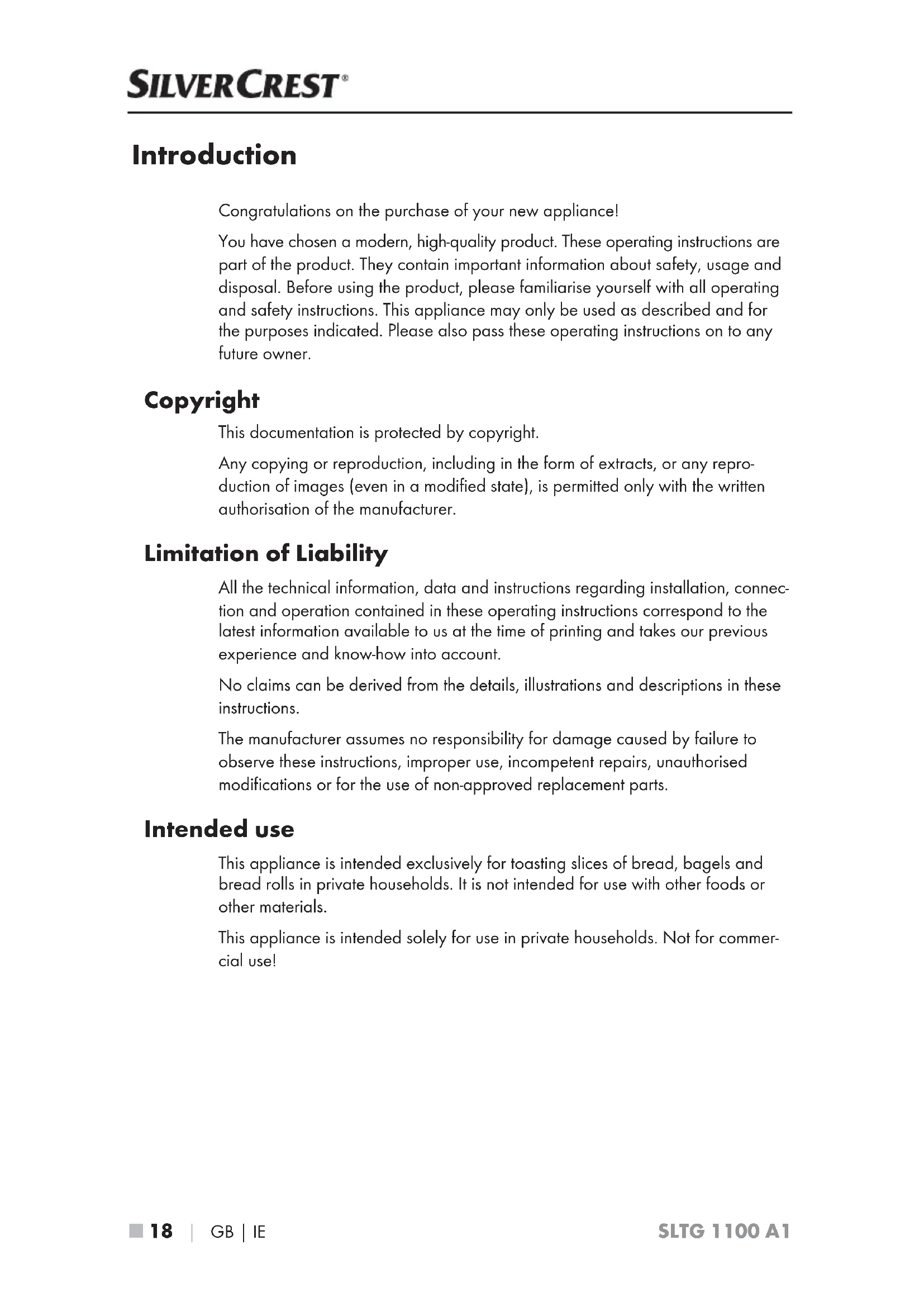

Introduction

Congratulations on the purchase of your new appliance!

You have chosen a modern, high-quality product. These operating instructions are part of the product. They contain important information about safety, usage and disposal. Before using the product, please familiarise yourself with all operating and safety instructions. This appliance may only be used as described and for the purposes indicated. Please also pass these operating instructions on to any future owner.

Copyright

This documentation is protected by copyright.

Any copying or reproduction, including in the form of extracts, or any reproduction of images (even in a modified state), is permitted only with the written authorisation of the manufacturer.

Limitation of Liability

All the technical information, data and instructions regarding installation, connection and operation contained in these operating instructions correspond to the latest information available to us at the time of printing and takes our previous experience and know-how into account.

No claims can be derived from the details, illustrations and descriptions in these instructions.

The manufacturer assumes no responsibility for damage caused by failure to observe these instructions, improper use, incompetent repairs, unauthorised modifications or for the use of non-approved replacement parts.

Intended use

This appliance is intended exclusively for toasting slices of bread, bagels and bread rolls in private households. It is not intended for use with other foods or other materials.

This appliance is intended solely for use in private households. Not for commercial use!

Package contents

The appliance is supplied with the following components as standard:

Glass Toaster
- Bread roll rack
- Operating instructions

1) Remove the appliance and the operating instructions from the carton.
2) Remove all packaging material.

NOTE

Check the package for completeness and signs of visible damage.
If the delivery is incomplete or damage has occurred as a result of defective packaging or during transport, contact the Service hotline (see section Service).

Disposal of the packaging

The packaging protects the appliance from damage during transport. The packaging materials have been selected for their environmental friendliness and ease of disposal, and are therefore recyclable.

Returning the packaging to the material cycle conserves raw materials and reduces the amount of waste that is generated. Dispos of packaging materials that are no longer needed in accordance with applicable local regulations.

NOTE

If possible, keep the original device packaging for the entire duration of the warranty period so that the device can be packed properly for return shipment in the event of a warranty claim.

Appliance description

Bread roll rack
Toasting lever
"Defrost" button
"Heat-up" button
"Bagel" butt
"Stop" button
Browning control
Viewing window
Viewing window release
10 Cable retainer
1 Crumb tray

Technical data

Voltage 220-240 V ~, 50/60 Hz
Power consumption 1100 W
	All parts of this appliance which come into contact with food are food-safe.

Safety information

RISK OF ELECTRIC SHOCK

• Arrange for damaged power cables and/or plugs to be replaced as soon as possible by a qualified specialist or by Customer Services.
• Use the appliance only in dry indoor areas, not outdoors.

Never immerse the appliance in water or other liquids! Otherwise there is a risk of an electric shock.

• Never insert cutlery or other metallic objects into the toaster slots.
• Ensure that the appliance can never come into contact with water. Never use the appliance adjacent to water or close to vessels containing liquids.
• Ensure that the power cable never becomes wet or damp when the appliance is in use. Route the cable so that it cannot be trapped or damaged in any way.
  After use, always remove the plug from the mains power socket, this prevents the unintentional switching on of the appliance.

WARNING! RISK OF INJURY!

• This appliance may be used by children of the age of 8 years or more and by persons with reduced physical, sensory or mental capabilities or lack of experience and/or knowledge if they are being supervised or have been instructed with regard to the safe use of the appliance and have understood the potential risks.

Children must not play with the appliance.
- Cleaning and user maintenance must not be performed by children unless they are older than 8 years of age and are supervised.

Children younger than 8 years must be kept away from the appliance and the power cable.

The appliance can become hot when it is in use. Therefore, only touch the operating elements.
- Use the appliance only on a stable, non-slippery and level surface.
- Do not use an external timer switch or a separate remote control system to operate the appliance.
- Unwind the power cable completely from the cable retainer before using the appliance.

WARNING!

• Warning - risk of fire if bread other than standard toasting bread is used.

Because of the smaller size or shape, there is a risk of touching hot parts when removing the toasted bread.

CAUTION - RISK OF FIRE!

• Bakery products can burn! You should therefore never locate the appliance close to or underneath inflammable objects, especially not under curtains or suspended cupboards.
• This appliance may not be used in close vicinity to flammable material.
  Never cover the toaster when it is in use.

Tips for use

Avoid using slices that are too big or too thick as these can easily become jammed in the appliance. If slices of bread become jammed, first disconnect the plug from the mains power socket. Free jammed slices of bread with a blunt wooden object (e.g. a wooden spatula or spoon). Do not touch the heating elements.
Differences in bread types, moisture content and the thickness of individual slices have an effect on the browning of the toast. Therefore the bread for toasting should be kept in sealed packaging until required. Always start by trying out a lower browning level.
Use a lower browning level if you are toasting dry bread since dry bread browns faster than fresh bread.
Select a higher level of browning for dark bread than for light bread, for example, wheat bread.
The numbers on the browning control 7 are not time indications. They serve only as a guide for browning.
To prevent the toaster from overheating and to obtain an even browning of bread, wait for about 15 seconds between two toasting processes.
You should only use the highest level on the browning control 7 for large slices of dark bread. At this browning level light bread will scorch and become inedible. In addition, it may cause the generation of smoke. If this occurs, press the "Stop" button immediately and disconnect the power cable from the mains power socket.

Setting up

CAUTION - RISK OF FIRE!

• You should therefore never locate the appliance close to or underneath in-flammable objects, especially not under curtains or suspended cupboards.
  Unwind the cable completely from around the cable retainer 10.
  Place the appliance on a level and heat-resistant surface.
  Insert the plug into a mains socket.

NOTE

• When the toaster is not in use, always remove the plug from the mains power socket. This is the only way to ensure that the appliance is current-free.

Before first use

Operate the toaster without bread 3 times at the maximum browning level "7".
■ Afterwards, clean the toaster as described in the chapter "Cleaning".

NOTE

The toasting lever 2 only engages when the cable is connected to a mains power socket.
The toasting lever 2 only engages when the viewing window 8 is fitted.
During first use, you may notice a slight smell (there may also be minimal smoke). This is normal and dissipates after a short time. Provide for sufficient ventilation. For example, open a window.

Operation

Adjusting the browning level

The desired browning level can be adjusted infinitely from "light" (1) to "dark" (7) using the browning control ⑦.

Toasting

CAUTION - RISK OF FIRE!

• Do not cover the toasting slots while operating the toaster. There will be a risk of fire! The appliance could be irreparably damaged!

NOTE

If you only want to put one piece of bread into the toaster, turn the browning control ⑦ down by approx. 1/2 level to achieve the same level of browning as with 2 pieces of bread.

1) After setting the desired browning level, insert the bread into the toaster slot.
2) Press the toasting lever ② downwards. The automatic bread centring device centres the inserted bread in the toasting slot.
3) When the desired level of browning has been reached, the toaster automatically switches itself off and the slices are ejected upwards.

Stopping the toasting process

If you wish to stop toasting, press the "Stop" button 3 . The toaster switches itself off and the bread slices are ejected upwards.

Heating function

The heating function enables you to warm bread up without browning it. For example, for toast that has gone cold. The bread is heated only briefly.

1) Insert the bread and press the toasting lever ② downwards.
2) Press the "Heat-up" button. The integrated control lamp lights up.
3) When the bread has been reheated, the appliance switches itself off automatically and the slices are ejected upwards.

NOTE

Press the button "Heat-up" button again to switch off the heat-up function. The integrated control lamp goes out and the heat-up process switches to a normalasting process.
Before you can activate any other function, you must first deactivate the activated function.

Defrost function

By pressing the "Defrost" button ③ frozen bread can also be thawed and toasted. In this mode, the toaster slowly warms the bread. Activating the defrost function will allow frozen bread to achieve the same browning level as when you toast fresh bread.

1) After setting the desired browning level, insert the bread into the toaster slot.
2) Press the toasting lever ② downwards.
3) Press the "Defrost" button. The integrated control lamp lights up.
4) When the defrosting and toasting process is finished, the toaster switches itself off automatically, the control lamp integrated in the "Defrost" button goes out and the bread slices are ejected upwards.

NOTE

Press the button "Defrost" button again to switch off the defrost function. The integrated control lamp goes out and the defrost process switches to a normalasting process.
Before you can activate any other function, you must first deactivate the activated function.

Bagel function

By pressing the "Bagel" button 5 you can toast a sliced bagel on one side only. You can decide for yourself whether you want to toast the outside or the inside of the bagel.

1) After setting the desired browning level, insert the half bagel into the toaster slot. The side where the viewing window 8 is built in will be toasted.
2) Press the toasting lever ② downwards.
3) Press the "Bagel" button ⑤. The integrated control lamp lights up.
4) When the defrosting and toasting process is finished, the toaster switches itself off automatically, the control lamp integrated in the "Bagel" button ⑤ goes out and the bagel halves are ejected upwards.

NOTE

In addition to the bagel function, you can also activate the heat-up or defrost functions. To do this, press the "Bagel" button together with the "Defrost" button or the "Heat-up" button (see section "Heat-up function" or "Defrost function").

Crisping bread rolls

Never place bread rolls directly on the toaster, always use the bread roll rack 1.

1) Flip out the two feet of the bread roll rack ① so that they click into place (if you have not already done so).
2) Place the bread roll rack ① onto the toasting slot so that the feet project into the toasting slot.
3) Place the bread rolls onto the rack and start the toasting procedure. Turn the browning control up to a maximum of level 5. The browning can, however, vary, depending on the composition and type of bread roll.

NOTE

After toasting, the rolls will be very hot.

4) As soon as the toaster switches itself off, turn the rolls over to crisp the other side and then switch the toaster back on.
5) When you are finished with the bread roll rack ①, you can fold it for space-saving storage.

• Wait until the bread roll rack ① has cooled down.
• Remove it from the appliance and fold in the feet by pushing them together a little and folding them in at the same time.

Crumb tray

Crumbs that fall from the bread during toasting are collected in the crumb tray 11.

1) To empty crumbs from the crumb tray ①, simply pull it out.
2) Tip out the crumbs.
3) Push the crumb tray back into the toaster so that it clicks back into place.

Cleaning

RISK OF ELECTRIC SHOCK

• Disconnect the plug from the mains power socket before cleaning the appliance.

Never immerse the appliance in water or other liquids! Otherwise there is a risk of an electric shock.

WARNING! RISK OF INJURY!

• Allow the toaster to cool before cleaning it. Risk of burns!

CAUTION - PROPERTY DAMAGE!

• Do not use aggressive or abrasive cleaning agents. These can damage the surfaces of the appliance.

Clean the appliance housing using only a dry or lightly moistened cloth.

To avoid the risk of fire, empty the crumb tray 1 at regular intervals.
Proceed as follows to clean the viewing window 8.

• Ensure that the appliance is unplugged, the appliance has cooled down and the crumb tray ① is empty before doing this!
• Lay the toaster on its side so that the viewing window 8 is facing upwards.
• Reach into the viewing window release 9 and press it together a little. At the same time, pull out the viewing window 8.

• Clean the viewing window 8 in warm water with a little washing-up liquid. Rinse it afterwards in clear water.
• Dry it well with a dry cloth. The viewing window ⑧ must be completely dry before it is replaced in the appliance.
• Push the viewing window ⑧ back into the appliance so that the viewing window release ⑨ clicks into place.

NOTE

Make sure you push the viewing window 8 all the way back into the appliance. If the viewing window 3 is not correctly or completely pushed in, the appliance will not work!

Storage

Clean the toaster as described in the chapter "Cleaning".

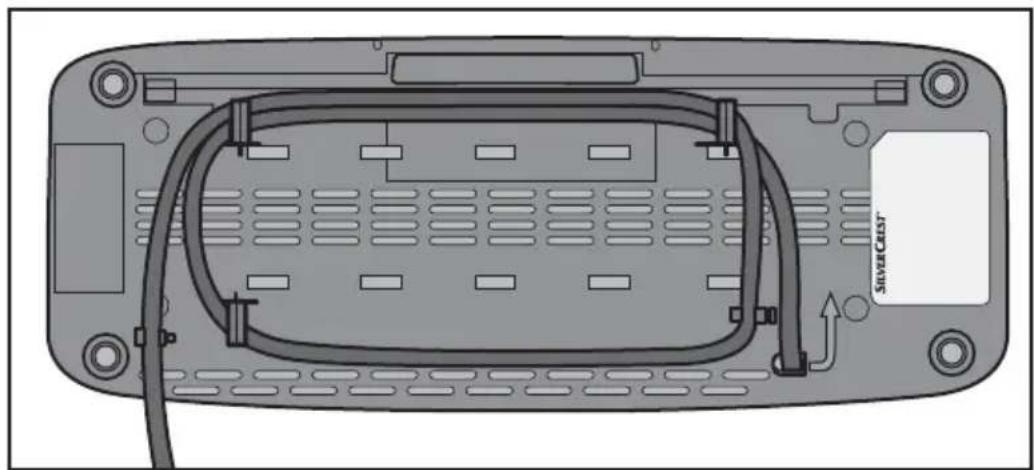

Wrap the power cable around the cable retainer 10 on the underside of the toaster:

Fold in the two feet of the bread roll rack 1.

Store the toaster in a dry location.

Troubleshooting

Fault Cause Remedy
The appliance is not working.	The plug is not inserted into a mains power socket. Connect the plug to the power supply.
	The appliance is defective. Contact the Customer Service department.
	The viewing window 8 is not correctly inserted or has not been clicked into place. Insert the viewing window 8 correctly and ensure that it clicks into place.
The slices of toast are too dark.	The browning level is set too high. Turn the browning control 7 down a little.
The slices of bread are not toasted.	The browning level is set too low. Turn the browning control 7 up a little.
The toasting lever 2 does not engage when it is pressed down.	The plug is not inserted into a mains power socket. Insert the plug into a mains socket.
	The appliance is defective. Contact the Customer Service department.
	The viewing window 8 is not correctly inserted or has not been clicked into place. Insert the viewing window 8 correctly and ensure that it clicks into place.

Disposal

Never dispose of the appliance in your normal domestic waste. This product is subject to the provisions of the European Directive 2012/19/EU (Waste Electrical and Electronic Equipment).

Dispos of the appliance through an approved disposal facility or your municipal waste facility. Please comply with all applicable regulations. Please contact your waste disposal centre if you are in any doubt.

This appliance has a 3-year warranty valid from the date of purchase. If this product has any faults, you, the buyer, have certain statutory rights. Your statutory rights are not restricted in any way by the warranty described below.

Warranty conditions

The validity period of the warranty starts from the date of purchase. Please keep your original receipt in a safe place. This document will be required as proof of purchase.

If any material or production fault occurs within three years of the date of purchase of the product, we will either repair or replace the product for you at our discretion. This warranty service is dependent on you presenting the defective appliance and the proof of purchase (receipt) and a short written description of the fault and its time of occurrence.

If the defect is covered by the warranty, your product will either be repaired or replaced by us. The repair or replacement of a product does not signify the beginning of a new warranty period.

Warranty period and statutory claims for defects

The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking. Repairs carried out after expiry of the warranty period shall be subject to a fee.

Scope of the warranty

This appliance has been manufactured in accordance with strict quality guidelines and inspected meticulously prior to delivery.

The warranty covers material faults or production faults. The warranty does not extend to product parts subject to normal wear and tear or fragile parts such as switches, batteries, baking moulds or parts made of glass.

The warranty does not apply if the product has been damaged, improperly used or improperly maintained. The directions in the operating instructions for the product regarding proper use of the product are to be strictly followed. Uses and actions that are discouraged in the operating instructions or which are warned against must be avoided.

This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifications / repairs which have not been carried out by one of our authorised Service centres.

Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

Please have the till receipt and the item number (e.g. IAN 12345) available as proof of purchase.

You will find the item number on the type plate, an engraving on the front page of the instructions (bottom left), or as a sticker on the rear or bottom of the appliance.

If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.

You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

You can download these instructions along with many other manuals, product videos and software on www.lidl-service.com.

Service

GB Service Great Britain

Tel.: [phone] (£ 0.10/Min.)

E-Mail: [e-mail]

IE Service Ireland

Tel.: [phone]

(0,08 EUR/Min., (peak))

(0,06 EUR/Min., (off peak))

E-Mail: [e-mail]

IAN 282593

Importer

Please note that the following address is not the service address. Please use the service address provided in the operating instructions.

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Table des matieres

Introduction 34

Droits d'auteur 34

Chere cliente, cher client,

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Inhoud

Inleiding 50

Auteursrecht 50

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Obsah

Uvod. 66

Autorske pravo 66

POZOR - HMOTNÉ SKODY!

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Indice

Introduccion 82

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Indice

Introducao 98

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

DEUTSCHLAND / GERMANY

www.kompernass.com
