PDV9060B - Basket PROGRESS - Free user manual and instructions

Product Type	Range Hood
Brand	Progress
Model	PDV9060B
Power Supply	220-240 V / 50 Hz (check rating label)
Electrical Class	Class I (grounding required)
Minimum Safety Distance (cooking surface)	650 mm
Exhaust Duct Diameter	120 mm minimum
Number of Speeds	3 speeds + timed intensive mode
Control Type	Touch
Lighting	Integrated lighting system (bulb replaceable by after-sales service)
Grease Filter	Dishwasher safe, replace every 2 months
Charcoal Filter	Not washable, replace every 4 months
Delay Function (delayed shut-off)	Yes, 5 minutes
Intensive Mode	Timed 6 minutes, automatic shut-off
Use	Domestic only
Maintenance	Clean with a damp cloth and neutral detergent
Installation Standards	Follow local air exhaust regulations
Maximum Negative Pressure (when combined with non-electric appliances)	0.04 mbar

Frequently Asked Questions - PDV9060B PROGRESS

How to install the PDV9060B hood correctly?

The minimum distance between the cooking surface and the hood must be 650 mm. The exhaust duct must have a diameter of at least 120 mm and be as short as possible. Do not connect the hood to a chimney flue used for combustion fumes (boiler, fireplace).

What is the required power supply voltage?

The hood must be plugged into a mains socket corresponding to the voltage indicated on the rating label inside the appliance. Usually it is 220-240 V. The electrical installation must include grounding.

How to use the touch controls?

The A button turns the light on/off. The Delay button activates a delayed shut-off of 5 minutes (long press). The B, C, D buttons correspond to speeds 1, 2 and 3. A second press on D activates the timed intensive mode for 6 minutes.

How often should filters be cleaned or replaced?

The grease filters must be cleaned every 2 months (or more often with heavy use); they are dishwasher safe. The charcoal filter is not washable and must be replaced every 4 months.

What to do in case of persistent odors?

Check the condition of the grease filters and charcoal filter. Clean or replace them if necessary. Ensure the exhaust duct is not blocked and the hood is used at the appropriate speed. Activate the Delay function to eliminate residual odors.

How to replace the light bulb?

Replacement of the lighting must be carried out by the after-sales service. Contact the manufacturer or an authorized technician to obtain a replacement bulb and install it.

Can I use the hood with a gas cooktop?

Yes, but respect a minimum distance between the cooktop and the hood. If the cooktop instructions specify a distance greater than 650 mm, follow that indication. Also ensure sufficient ventilation of the room.

What does the Delay function mean?

The Delay function allows the hood to continue operating for 5 minutes after the motor stops. Activate it by pressing and holding the Delay button. The speed icon blinks to indicate it is active.

How to clean the hood?

Before cleaning, turn off and unplug the appliance. Use a damp cloth and a neutral liquid detergent. Do not use abrasive products. Grease filters can be washed in the dishwasher.

What to do if the power cord is damaged?

Do not use the appliance. Have the cord replaced by the manufacturer or an authorized after-sales service to avoid any risk of electric shock.

USER MANUAL PDV9060B PROGRESS

SR KOPINCHINKO YIYTCTBO 95

AR 98

Cooker Hood

Dunstabzugshaube

Hotte De Cuisine

Afzuigkap

Campana

Exaustor

Cappa

Spisflakt

Kjokkenvifte

Liesituuletin

Emhætte

BbITaKka

Pliidikumm

Tvaiku Nosuccejs

Dangtis

BntaXka

Motorháztetō

Odsavač Par

Kapucna

Cartier

Okay Kuchenny

Napa

Napa

AToppoqntnpac

Ocak Davlumbaz

AcnupaTopa

Copbin

AcnpaTopoT

Kapak Tenxhere

KyuHbckor AcnnpaTopa

= ( x1,y1) = ( x2,y2)

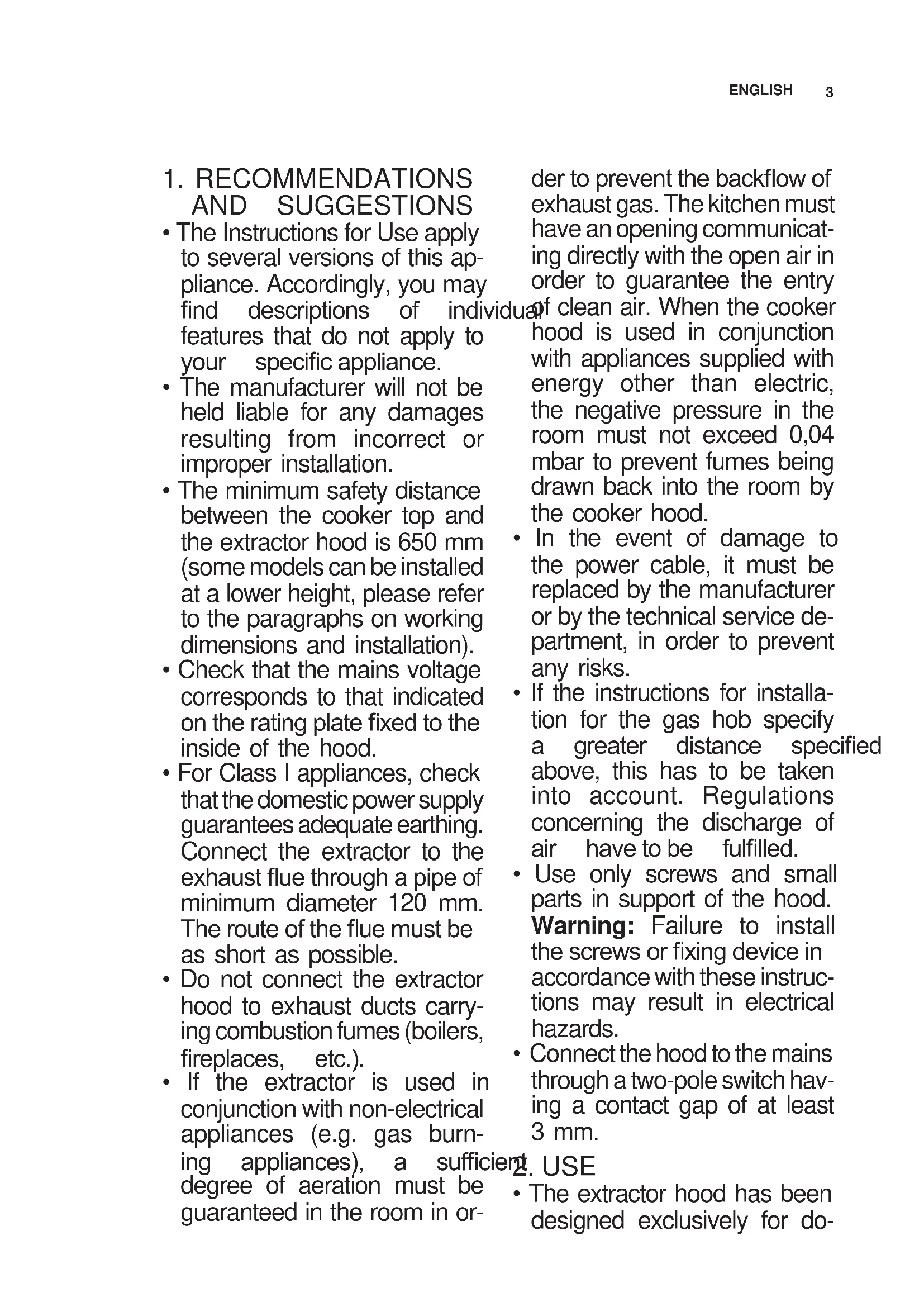

1. RECOMMENDATIONS AND SUGGESTIONS

• The Instructions for Use apply to several versions of this appliance. Accordingly, you may find descriptions of indiv features that do not apply to your specific appliance.
• The manufacturer will not be held liable for any damages resulting from incorrect or improper installation.
• The minimum safety distance between the cooker top and the extractor hood is 650~mm (some models can be installed at a lower height, please refer to the paragraphs on working dimensions and installation).
• Check that the mains voltage corresponds to that indicated on the rating plate fixed to the inside of the hood.
• For Class I appliances, check that the domestic power supply guarantees adequate earthing. Connect the extractor to the exhaust flue through a pipe of minimum diameter 120~mm . The route of the flue must be as short as possible.
• Do not connect the extractor hood to exhaust ducts carrying combustion fumes (boilers, fireplaces, etc.).
• If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning appliances), a suffic degree of aeration must be guaranteed in the room in or

der to prevent the backflow of exhaust gas. The kitchen must have an opening communicating directly with the open air in order to guarantee the entry of clean air. When the cooker hood is used in conjunction with appliances supplied with energy other than electric, the negative pressure in the room must not exceed 0,04 mbar to prevent fumes being drawn back into the room by the cooker hood.

• In the event of damage to the power cable, it must be replaced by the manufacturer or by the technical service department, in order to prevent any risks.
• If the instructions for installation for the gas hob specify a greater distance specified above, this has to be taken into account. Regulations concerning the discharge of air have to be fulfilled.
• Use only screws and small parts in support of the hood. Warning: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.
• Connect the hood to the mains through a two-pole switch having a contact gap of at least 3mm .

USE

The extractor hood has been designed exclusively for do

mestic use to eliminate kitchen smells.

• Never use the hood for purposes other than for which it has been designed.
• Never leave high naked flames under the hood when it is in operation.
• Adjust the flame intensity direct it onto the bottom of the pan only, making sure that it does not engulf the sides.
• Deep fat fryers must be continuously monitored during use: overheated oil can burst into flames.
• Do not flambé under the range hood; risk of fire.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• "CAUTION: Accessible parts may become hot when used with cooking appliances."

3. MAINTENANCE

• The symbol on the product or on its packaging indicates that this product may not be

treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

• Switch off or unplug the appliance from the mains supply before carrying out any maintenance work.

• Clean and/or replace the Filters after the specified time period (Fire hazard).

• The Activated charcoal filter is not washable and cannot be regenerated, and must be replaced approximately every 4 months of operation, or more frequently for particularly heavy usage (W).

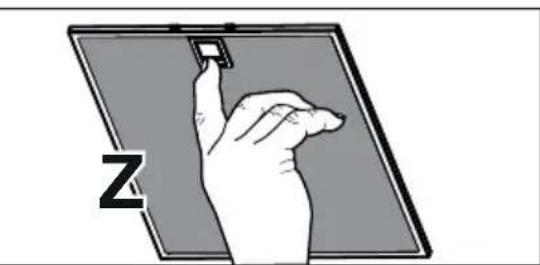

• The Grease filters must be cleaned every 2 months of operation, or more frequently for particularly heavy usage, and can be washed in a dishwasher (Z).

• Clean the hood using a damp cloth and a neutral liquid detergent.

4. CONTROLS

Button	Function
A	Turns the lighting system on and off at maximum intensity, by a brief pressure. Lights can be switch on and off at every speed.
	DelaySuitable to complete elimination of residual odours. Long pressure: activates the automatic switch - off with a 5 minutes delay. It can be activated at every speed. When active, the icon of the speed is blinking. It can be desabled pressing the speed button, turning the motor off.
B	Brief pressure. Turns the suction motor on and off at speed one.
C	Brief pressure. Turns the suction motor on and off at speed two.
D	Brief pressure. Turns the suction motor on at speed three. Press a second time to activate INTENSIVE speed, which is timed to run for 6 minutes, after which the hood will turn off automatically. This function is suitable to deal with maximum levels of cooking fumes. Press button D again to deactivate INTENSIVE mode and turn the motor off.

5. LIGHTING

• For replacement contact technical support ("To purchase contact technical support").

Attention: toute installation

Hikoln He BIKOPNCOTByTeBNTJkky B zIjx, DJIyBOHa He npn3NaueHa.

Hikon He 3aIiwaTe BncoKe BiKpTe NOyM'PiD BN- TAKKOIO, KOJI N BOHa npaioe.

• PerynioTe iHTeHcNBHicTb BOrHIO, 06 BiH 6yB Ha npabIeHn TiIbKn Ha dHO kactpyi, He DOnyCKaIOUH, 06 BOrOHb OXONJIIOBaB II CTOpOH.

TOIOHeRaTINBHM HacnIiDkam DnA O HaBKOIIHbOro cepeIOBnYdi)Ua Ta IIOcBkoRo 3OpOB'y, M3NAKI MOKytb 6yTN BNIKAH He npabInbHOo yTnIizaeio

UbOTo Bnpo6y. IJRA OTpIMaH Hn DOKnAaHiIooi iHOpMauii 0oDo yTnI3auiI UbOTo Bnpo- 6y 3BepTaIeCra Do MicuEbx OprAHIB BnaI, B CnyK6y yTnI3auii NobyTOBnx BiXoDIB a6o B MaRa3HH, De 6yNo PnpIbSAHO Bnpi6.

• YnctiB BNTJkKy 3a DOnOMOHO 3BOJIOXeHOI TkaHINHa6o HeITpaJIbHOrO pIDKOROMNHOrO 3ac06y.

BIMnKaITe npncTpi a6o BiD'EDHyIe Ioro BiD eIek TpOmepeKi, nepu HIX BUNHOyBaTN 6yDb-RAKi p06OTn 3 O6cIpyROByBaHHra.
- YnctbTe Ta/a6o 3amHouTe
fIbTpnu Chepe3 3a3HaueHn
nepioD (He6e3neKa BnHK-
HeHHn PoxKxj).
- FJIbTpnu 3 AKTINBOBAHm
ByrillnM He MOXHa MNTu
a6o BiHOBNIOBaTu. Ix nO-
Tpi6Ho 3amHOBaTu npi-
6n3Ho Chepe3 KoxHi4 MicaCi
po6OTn a6o YactiWe B pa3i
OCo6nBO iHTehCnBHO
KOpNCTyBaHHa W).

-ФiNbTpN，UO yIIOBJIIOHTb KInpN，Heo6xIDHO YnCTNTu Chepe3KoxH2MICApo6OTn a6o Yactiwe y pa3i Oco6nBO iHTeHCNBHO KOpNC-TyBaHH.IXMOXHaMTN B IocydomnHiMaunHi(Z).

4. EJIEMEHTN KEPYBAHHY
