USER MANUAL AHX10CR SHARP

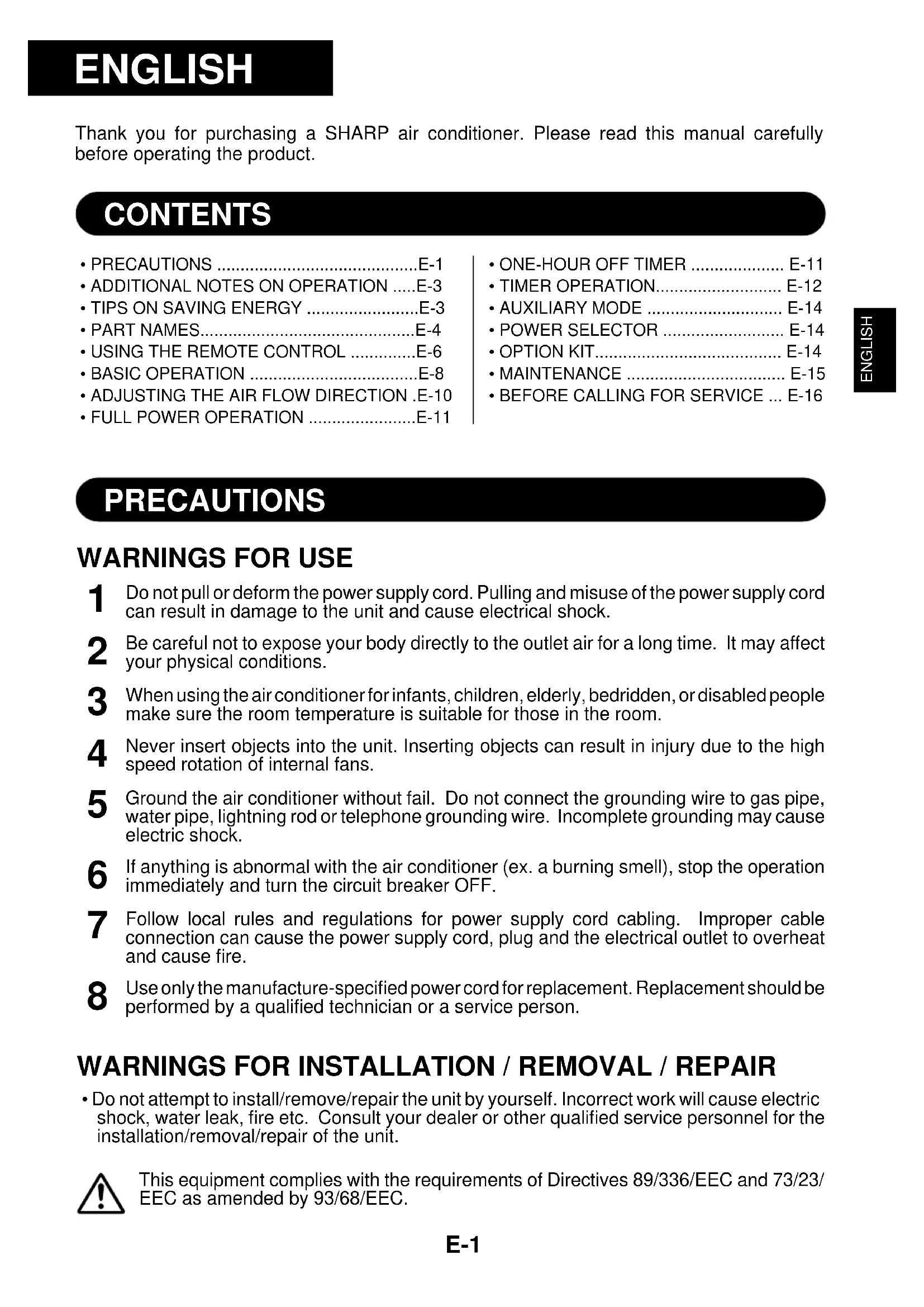

Do not pull or deform the power supply cord. Pulling and misuse of the power supply cordcan result in damage to the unit and cause electrical shock. Be careful not to expose your body directly to the outlet air for a long time. It may affectyour physical conditions. When using the air conditioner for infants, children, elderly, bedridden, or disabled peoplemake sure the room temperature is suitable for those in the room. Never insert objects into the unit. Inserting objects can result in injury due to the highspeed rotation of internal fans. Ground the air conditioner without fail. Do not connect the grounding wire to gas pipe,water pipe, lightning rod or telephone grounding wire. Incomplete grounding may causeelectric shock. If anything is abnormal with the air conditioner (ex. a burning smell), stop the operationimmediately and turn the circuit breaker OFF. Follow local rules and regulations for power supply cord cabling. Improper cableconnection can cause the power supply cord, plug and the electrical outlet to overheatand cause fire. Use only the manufacture-specified power cord for replacement. Replacement should beperformed by a qualified technician or a service person.

WARNINGS FOR INSTALLATION / REMOVAL / REPAIR

• Do not attempt to install/remove/repair the unit by yourself. Incorrect work will cause electricshock, water leak, fire etc. Consult your dealer or other qualified service personnel for theinstallation/removal/repair of the unit.This equipment complies with the requirements of Directives 89/336/EEC and 73/23/EEC as amended by 93/68/EEC.PRECAUTIONS

Open a window or door periodically to ventilate the room, especially when using gas appliances. Insufficient ventilation may cause oxygen shortage.

Do not operate the buttons with wet hand. It may cause electric shock.

For safety, turn the circuit breaker off when not using the unit for an extended period of time.

Check the outdoor unit mounting rack periodically for wear and to make sure it is firmly in place.

Do not put anything on the outdoor unit nor step on it. The object or the person may fall down or drop, causing injury.

This unit is designed for residential use. Do not use for other applications such as in a kennel or greenhouse to raise animals or grow plants.

Do not place a vessel with water on the unit. If water penetrates into the unit, electrical insulations may deteriorate and cause electric shock.

Do not block the air inlets nor outlets of the unit. It may cause insufficient performance or troubles.

Be sure to stop the operation and turn the circuit breaker off before performing any maintenance or cleaning. A fan is rotating inside the unit and you may get injured.

This appliance is not intended for use by young children or infirm persons without supervision. Young children should be supervised to ensure that they do not play with the appliance.

CAUTIONS FOR LOCATION / INSTALLATION

• Make sure to connect the air conditioner to power supply of the rated voltage and frequency. Use of a power supply with improper voltage and frequency can result in equipment damage and possible fire.

• Do not install the unit in a place where inflammable gas may leak. It may cause fire. Install the unit in a place with minimal dust, fumes and moisture in the air.

• Arrange the drain hose to ensure smooth drainage. Insufficient drainage may cause wetting of the room, furniture etc.

OPERATING TEMPERATURE RANGE

• The built-in protective de-vice may prevent the unitfrom operating when usedout of this range.• Condensation may form onthe air outlet if the unit op-erates continuously in theCOOL or DRY mode whenhumidity is over 80 percent. D.B. = Dry-bulb W.B. = Wet-bulb NOTES FOR MODELS AY-X08CR/AY-X10CR/AY-X13CR PREHEATING FUNCTION In the HEAT operation, the indoor fan may not start for two to five minutes after the unit is turned on to preventcold air from blowing out of the unit. DE-ICING FUNCTION
• When ice forms on the heat exchanger in the outdoor unit during the HEAT operation, an automatic de-icerprovides heat for about 5 to 10 minutes to remove the ice. During de-icing, the inside and outside fans stopoperating.• After de-icing is completed, the unit automatically resumes operation in the HEAT mode. HEATING EFFICIENCY
• The unit employs a heat pump that draws heat from the outside air and releases it into the room. The outsideair temperature therefore greatly affects the heating efficiency.• If the heating efficiency is reduced due to low outside temperatures, use an additional heater.• It takes time to warm up and heat the entire room because of the forced air circulation system.

TIPS ON SAVING ENERGY

Below are some simple ways to save energy when you use your air conditioner.

SET THE CORRECT TEMPERATURE

• Setting the thermostat 1°C higher than the desired temperature in the COOL mode (and 2°C lower in theHEAT mode with models AY-X08CR/AY-X10CR/AY-X13CR) will save approximately 10 percent in powerconsumption.• Setting the temperature lower than necessary during cooling operation will result in increased powerconsumption.

BLOCK DIRECT SUNLIGHT AND PREVENT DRAFTS

• Blocking direct sunlight during cooling operation will reduce power consumption.• Close the windows and doors during cooling opeation (and heating operation with models AY-X08CR/AY-X10CR/AY-X13CR). SET PROPER AIR FLOW DIRECTION TO OBTAIN THE BEST AIR CIRCULATION KEEP FILTER CLEAN TO ENSURE THE MOST EFFICIENT OPERATION MAKE MOST OF THE TIMER OFF FUNCTION DISCONNECT THE POWER CORD WHEN THE UNIT IS NOT USED FOR AN

EXTENDED PERIOD OF TIME

• The indoor unit still consumes a small amount of power when it is not operating.

WHEN POWER FAILURE OCCURS

This air conditioner has a memory function to store settings when a power failure occurs.After power recovery, the unit will automatically re-start in the same settings which were active before the powerfailure, except for timer settings.If the timers were set before a power failure, they will need to be re-set after power recovery.(AY-X08CR/AY-X10CR/AY-X13CR only)

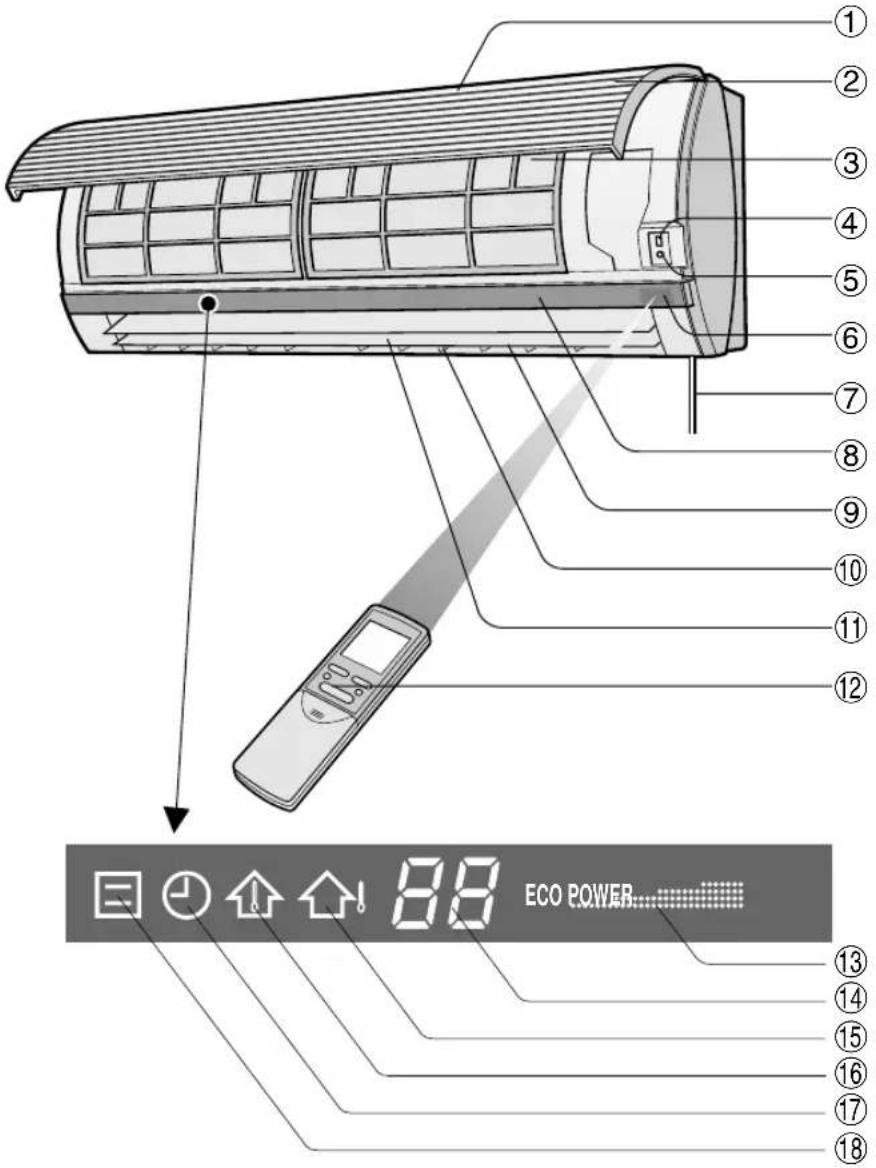

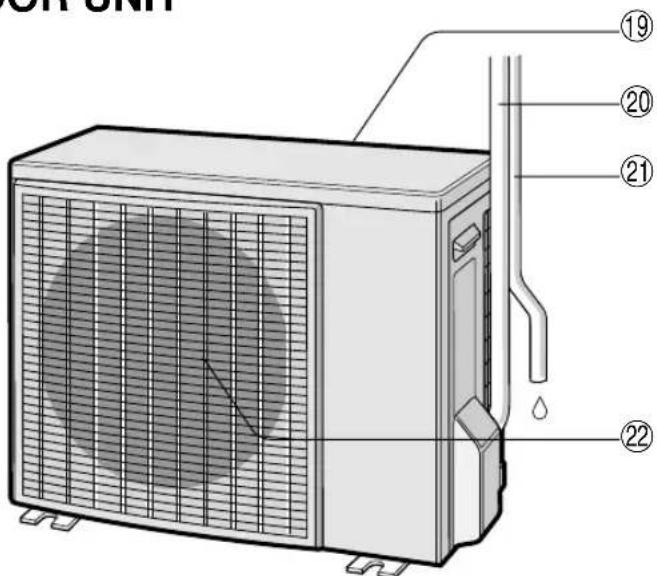

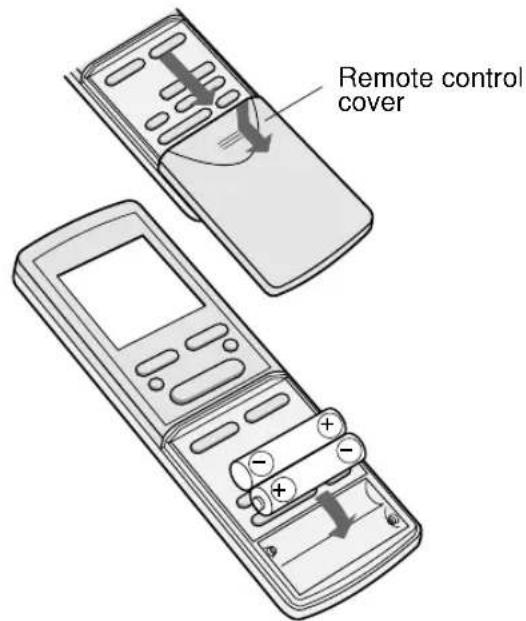

FULL POWER SET/C1 Remove the remote controlcover. Insert batteries in the compart-ment, making sure the ± and— polarities are correctlyaligned.• The display indicates "AM6:00" when batteries are prop-erly installed. Reinstall the cover.

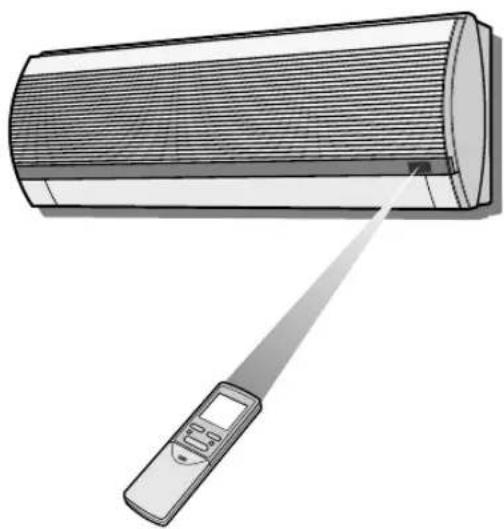

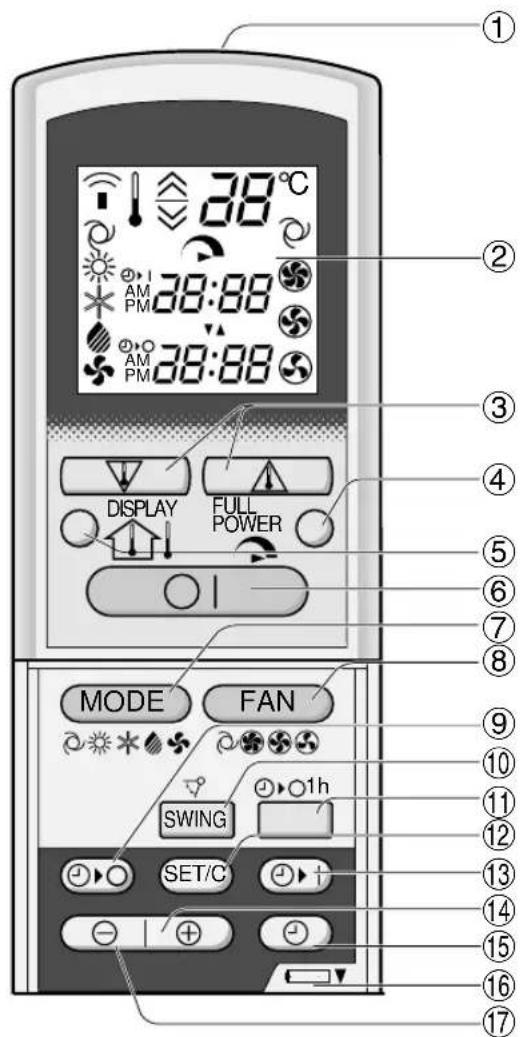

USING THE REMOTE CONTROL

• The battery life is approximately one year in normal use.• When you replace the batteries, always change both batteries, and make surethey are the same type.• If the remote control does not operate properly after replacing the batteries, takeout the batteries and reinstall them again after 30 seconds.• If you will not be using the unit for a long time, remove the batteries from theremote control. Point the remote control towards the unit’s signal receiver window and press the desired button. The unit generates a beep when it re- ceives the signal.
• Make sure there is no curtain or otherobject between the remote control andthe unit.• The remote control can send signalsfrom up to 7 metres away. LOADING BATTERIES Use two size-AAA (R03) batteries.

• Do not allow the signal receiver window to receive strong direct sunlight, since it can adversely affect its operation. If the signal receiver window is exposed to direct sunlight, close a curtain to block the light.

• Using a fluorescent lamp with a quick starter in the same room may interfere with transmission of the signal.

• The unit can be affected by signals transmitted from the remote control of a television, VCR or other equipment used in the same room.

• Do not leave the remote control in direct sunlight or near a heater. Also, protect the unit and remote control from moisture and shock which can discolour or damage them.

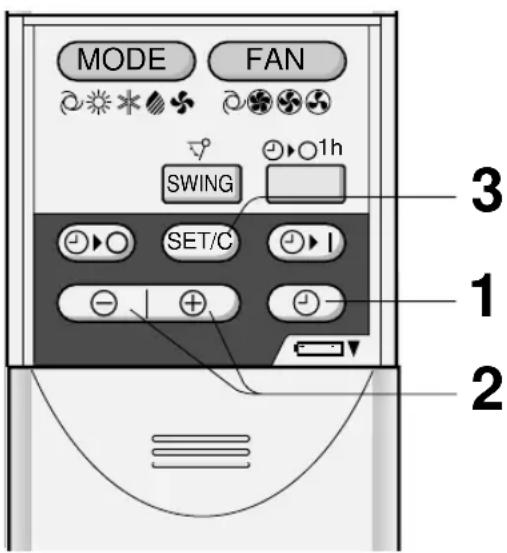

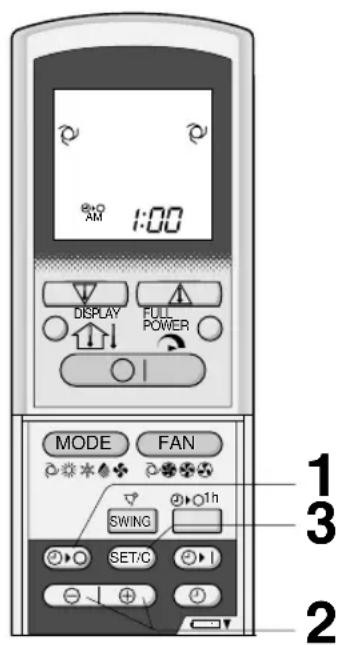

SET CURRENT CLOCK TIME

There are two clock modes: 12-hour mode and 24-hour mode.

To set to the 12-hour mode, press the CLOCK button once in the first step. To set to the 24-hour mode, press the CLOCK button twice in the first step.

Press the TIME ADVANCE or REVERSE button to set the current time.

• Keep the button pressed to advance or reverse the time display quickly.

Press the SET/C button.

• The colon (:) blinks to indicate that the clock is functioning. NOTE:

• The current time cannot be set when the timer is operating.

SET/C Example: 5 o'clock in the afternoon Clock Display 12-hour mode PM 5:00 24-hour mode 17:00Press the THERMO. button to set the de- sired temperature.

• In the AUTO and DRY mode, the indicator bars represent changes in tempera- ture.

• In the COOL (and HEAT for AY-X08CR/AY- X10CR/AY-X13CR) mode, the temperature can be set within the range of 18 to 32 °C

• In the FAN ONLY mode, the temperature setting cannot be made.

• The red OPERATION lamp ( ) on the unit will light.

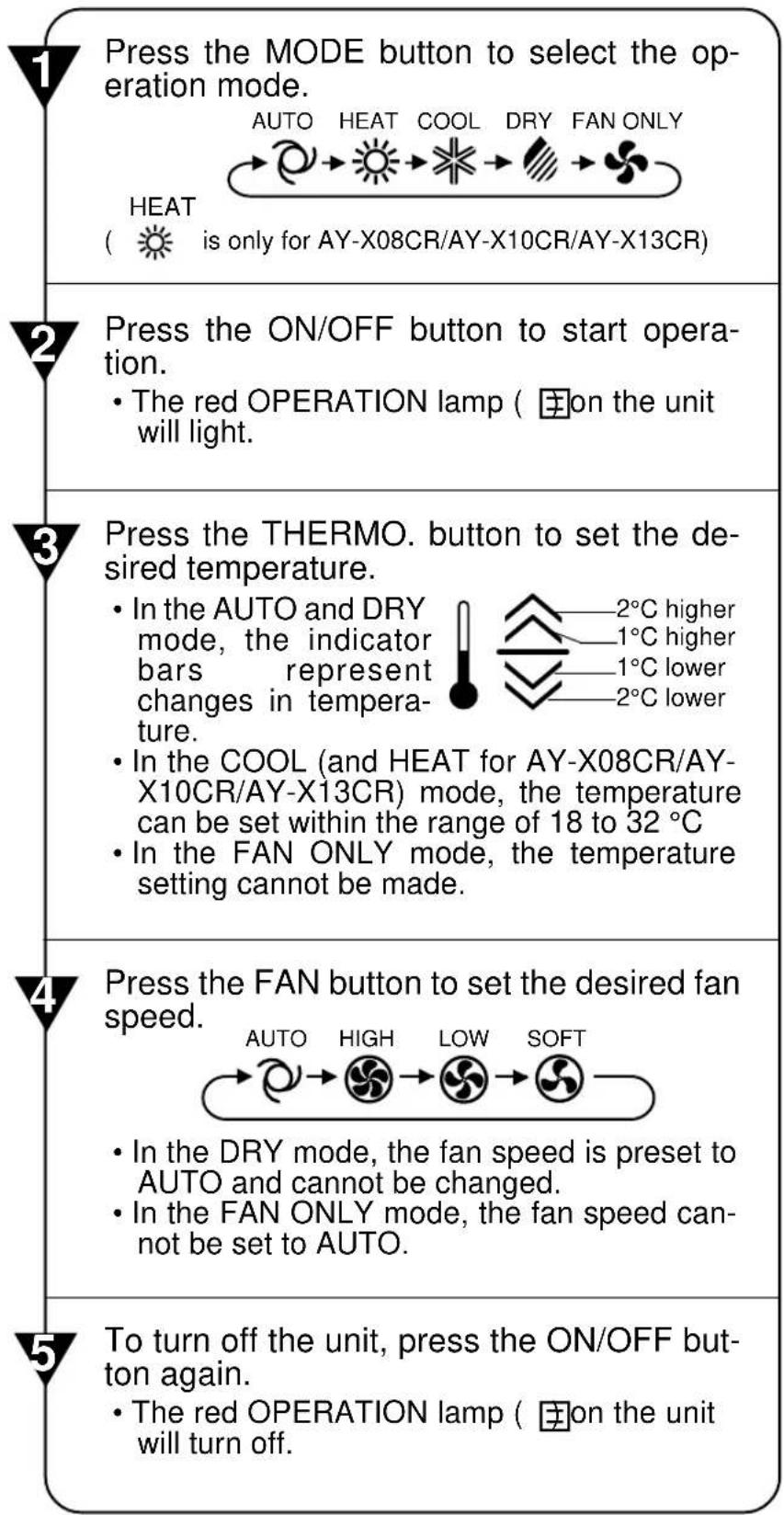

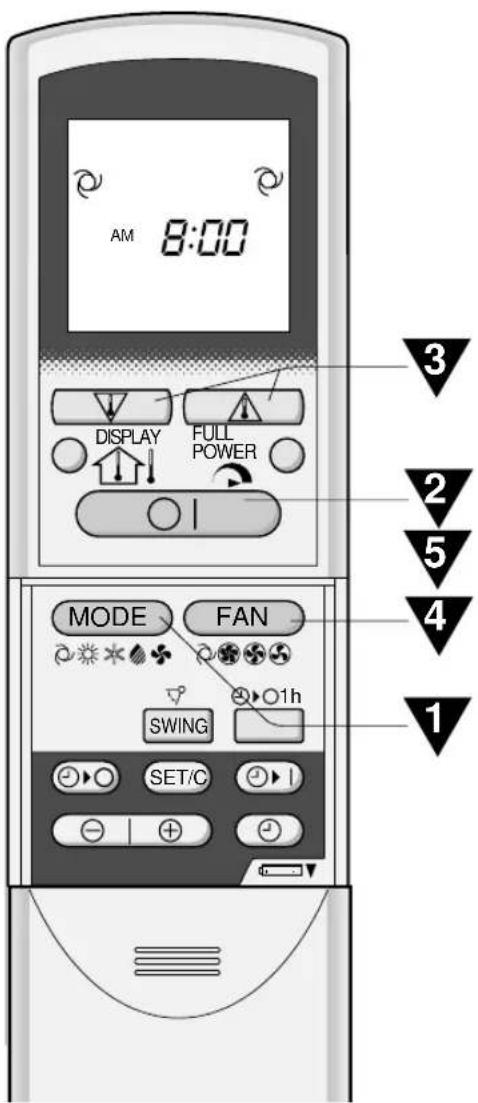

HEAT is only for AY-X08CR/AY-X10CR/AY-X13CR) Press the MODE button to select the op- eration mode.

• In the DRY mode, the fan speed is preset to AUTO and cannot be changed.

• In the FAN ONLY mode, the fan speed can- not be set to AUTO. To turn off the unit, press the ON/OFF but- ton again.

• The red OPERATION lamp ( ) on the unit will turn off. (The heat mode symbol is provided only on models AY- X08CR/AY-X10CR/AY-X13CR) Press the FAN button to set the desired fan speed.

FULL POWERSET/CENGLISH E-9 During operation, if the outdoor temperature changes, the temperature settings will automati- cally slide as shown in the chart. MODE CHANGEOVER (only for models AY-X08CR/AY-X10CR/AY-X13CR) During seasons when you need COOLING at daytime and HEATING at night, or if the room temperature should become extremely higher than the temperature setting, due to supplemen- tary heating equipment, the mode will automatically switch between HEAT and COOL mode to keep the comfortable room temperature.

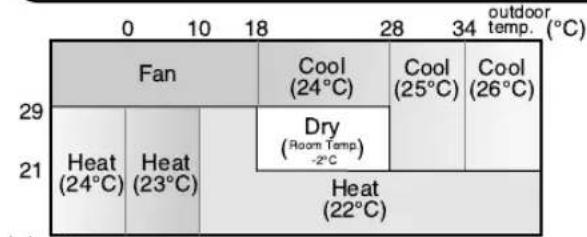

TIPS ABOUT AUTO MODE

In the AUTO mode, the temperature setting and mode are automatically selected according to the room temperature and outdoor temperature when the unit is turned on. Modes and Temperature Settings for Models AH-X08CR/AH-X10CR/AH-X13CR Modes and Temperature Settings for Models AY-X08CR/AY-X10CR/AY-X13CR the figures in ( ) are temperature settingsthe figures in ( ) are temperaturesettings

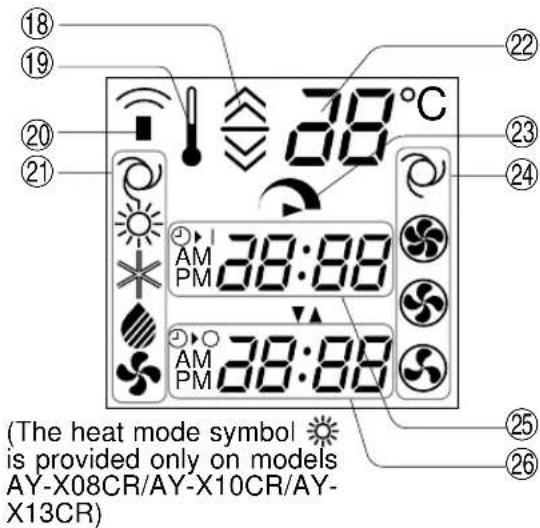

TIPS ABOUT INDICATOR PANEL

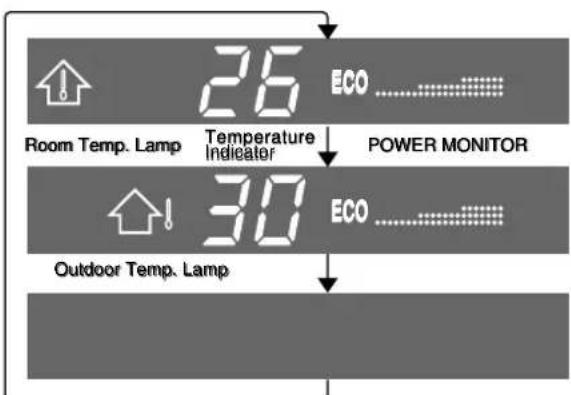

The indicator panel will change each time you press the DISPLAY button in the following manner. The room temperature and POWER MONITOR are displayed. The outdoor temperature and POWER MONITOR are displayed. No display. POWER MONITOR When the room temperature or the outdoor temperature is displayed, the POWER MONITOR will light up in 4 levels (3 levels for DRY mode), to indicate the operation power. When the air conditioner is operating at maximum power in the COOL (and HEAT for AY- X08CR/AY-X10CR/AY-X13CR)mode,"Power" will light and "Eco" will turn off on the indicator panel. NOTES:

• The displayed temperatures are rough estimates and may vary from the actual temperatures.

• Temperature display ranges Room temperature: 0°C ~ 40°C ( is displayed when less than 0°C and when higher than 40°C) Outdoor temperature: -9°C ~ 45°C ( is displayed when less than -9°C and when higher than 45°C)

is displayed during the first minute of operation while the temperatures are being detected.

• Only the room temperature can be displayed when the unit is not in operation.

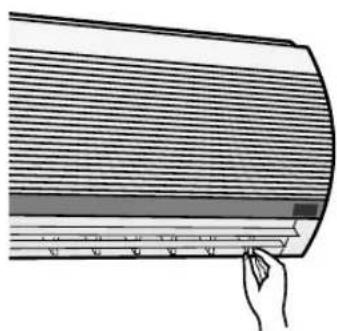

ADJUSTING THE AIR FLOW DIRECTION

VERTICAL AIR FLOW DIRECTION

The air flow direction is automatically preset in each mode as follows for optimum comfort: HOW TO ADJUST THE AIR FLOW DIRECTION COOL and DRY modeFAN ONLY (and HEAT forAY-X08CR/AY-X10CR/AY-X13CR) modeThe adjustment rangeis narrower the SWINGrange in order to pre-vent condensation fromdripping.The range is wide so theair flow can be directedtoward the floor. Hold the horizontal adjustment louvre as shown in the diagram and adjust the air flow direction. Press the SWING button on the remote control once.

• The vertical adjustment louvre will change its angle continu- ously. Press the SWING button again when the vertical adjustment louvre is at the desired position.

• The louvre will stop moving within the range shown in the diagram.

• The adjusted position will be memorized and will be automati- cally set to the same position when operated the next time. Adjustment range CAUTION Never attempt to adjust the vertical adjustment louvres manually.

• Manual adjustment of the vertical adjustment louvre can cause the unit to malfunction when the remote control is used for the adjustment.

• When the vertical adjustment louvre is positioned at the lowest position in the COOL or DRY mode for an extended period of time, condensation may result.

In this operation, the air conditioner works at maximum power to makes the room cool (or warm with models AY-X08CR/AY-X10CR/AY-X13CR) so rapidly that you can use it just after you come home.

• The remote control displays “1 h”.
• The orange TIMER lamp ( ) on the unit will light up.• The unit will stop operating after one hour. TO CANCEL Press the TIMER CANCEL (SET/C) button.
• The orange TIMER lamp ( ) on the unit will turn off. Or, turn the unit off by pressing the ON/OFF button.
• The red OPERATION lamp ( ) and the orange TIMERlamp ( ) on the unit will turn off.

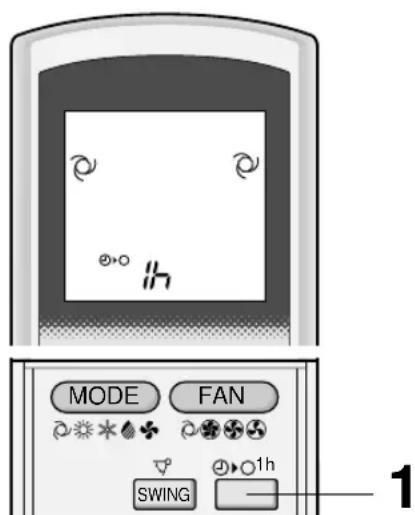

When the ONE-HOUR OFF TIMER is set, the unit will stop operating after one hour.

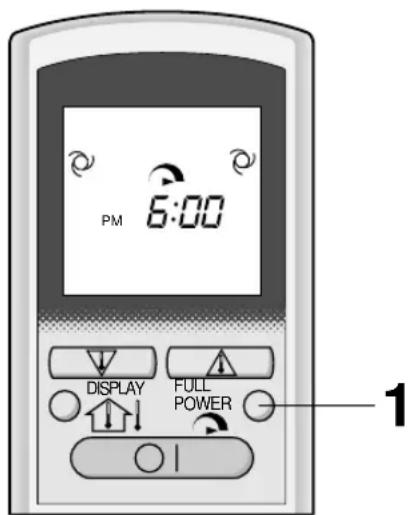

To activate the FULL POWER operation, press the FULL POWER button during operation.

• The remote control will display .• the temperature display will go off. TO CANCEL Press the FULL POWER button again.
• FULL POWER operation will also be cancelled whenthe operation mode is changed, or when the unit isturned off. NOTES:
• You cannot use the FULL POWER operation during theFAN ONLY mode.• You cannot set the temperature during the FULL POWERoperation.

• The ONE-HOUR OFF TIMER operation has priority over TIMER ON and TIMER OFFoperations.• When the ONE-HOUR OFF TIMER is set while the unit is not operating, the unit willoperate for an hour with the formerly set condition.• If you wish to operate the unit for another hour before the ONE-HOUR OFF TIMERactiviates, press the ONE-HOUR OFF TIMER button again during operation.• If TIMER ON and/or TIMER OFF are set, TIMER CANCEL button cancels every setting.

DISPLAY FULL POWER (The heat mode symbol is provided only on models AY-X08CR/AY-X10CR/AY-X13CR)1 Press the TIMER OFF ( ) button. The TIMER OFF indicator will blink; press theTIME ADVANCE or REVERSE buttons to setthe desired time. (The time can be set in 10-minute increments.) Point the remote control at the signal receiverwindow on the unit and press the TIMER SET(SET/C) button.• The orange TIMER lamp ( ) on the unit willlight.• The unit will generate a beep when it re-ceives the signal. NOTE: Before setting the timer, make sure the clock is properly set with the current time. TIMER OPERATION TIMER OFF Cancel the TIMER seting first, then set itagain.TO CHANGE TIME SETTING(The heat mode symbol is provided only on modelsAY-X08CR/AY-X10CR/AY-X13CR)TO CANCEL TIMER MODEPress the TIMER CANCEL (SET/C) button.• The orange TIMER lamp ( ) on the unitwill turn off.• The current clock time will be displayed onthe remote control.TIPS ABOUT TIMER OFF OPERATIONWhen the TIMER OFF mode is set, thetemperature setting is automaticallyadjusted to prevent the room frombecoming excessively hot or too coldwhile you sleep. (Auto Sleep function) COOL/DRY MODE:

• One hour after the time operation begins,the temperature setting rises 1°C higherthan the original thermostat setting. HEAT MODE: (only for models AY-X08CR/ AY-X10CR/AY-X13CR)• One hour after the timer operationbegins, the temperature setting drops3°C lower than the original thermostatsetting. NOTE:
• The Auto Sleep function will not acti-vate during the FAN ONLY mode.

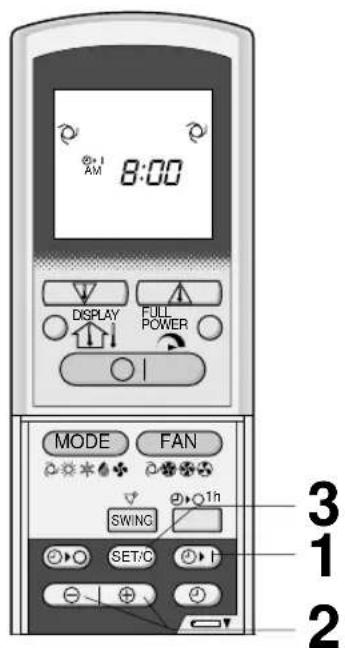

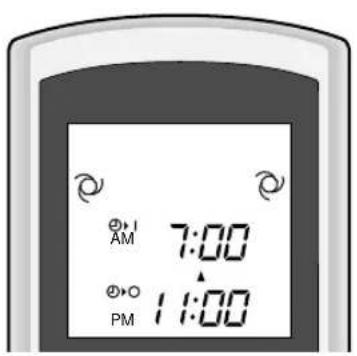

SET/CENGLISH Press the TIMER ON ( ) button. The TIMER ON indicator will blink; press the TIMEADVANCE or REVERSE buttons to set the de-sired time. (The time can be set in 10-minuteincrements.) Point the remote control at the signal receiverwindow on the unit and press the TIMER SET(SET/C) button.• The orange TIMER lamp ( ) on the unit willlight.• The unit will generate a beep when it receivesthe signal.

Select the operation condition.

• The unit will turn on prior to the set time to allowthe room to reach the desired temperature bythe programmed time. (Awaking function) Example: To stop operation at 11:00 p.m. and resume operation(With the same mode and temperature settings) tobring the room temperature to the desired level by7:00 a.m. Set the TIMER OFF to 11:00 p.m. during opera-tion. Set the TIMER ON to 7:00 a.m.The arrow ( or ) between the TIMER ONindicator and the TIMER OFF indicator shows whichtimer will activate first. E-13 NOTES:
• You cannot programme the ON-TIMER and OFF-TIMER to operate the unit atdifferent temperatures or other settings.• Either timer can be programmed to activate prior the other.You can use the ON and OFF timers in combination.COMBINED USE OF ON AND OFF TIMERS

Lift the front panel of the indoor unit and press the AUX. button on the operation panel.

• The red OPERATION lamp ( ) on the unit will light and the unit will start operating in the AUTO mode.

• The fan speed and temperature setting are set to AUTO.

Press the AUX. button on the operation panel again.

• The red OPERATION lamp ( ) on the unit will turn off. NOTE: If the AUX. button is pressed during normal operation, the unit will turn off. POWER SELECTOR (only for models AY-X13CR/AH-X13CR) When installing the air-conditioner to a residence with small electrical current capacity, switch the POWER SELECTOR to "L". The air conditioner will operate with reduced power, and the circuit breaker tripping or fuse blowing caused by excess power consumption can be avoided.

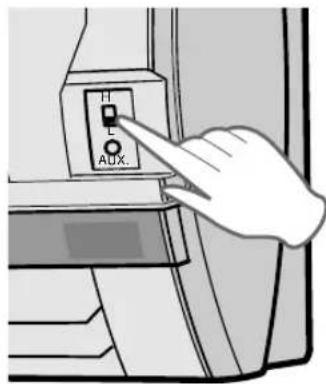

• COOLING or HEATING (for model AY-X13CR) capacity will be reduced when operating at "L" setting.

• Consult your dealer or qualified technician if continuous breaker tripping or fuse blowing is experienced even by switching to "L" setting. AH-X13CR AY-X13CR Maximum ampere 9A 12A at "H" setting Maximum ampere 7A 8A at "L" setting OPTION KIT Air Purifying Filter During operation of the air conditioner, the air purifying filter removes dust and tobacco smoke from the air and discharges clean air. The apatite antibacterial material used in the air purifying filter suppresses activities of adsorbed viruses and other germs. The replacement period for the disposable type is approximately 3~6 months. Contact your dealer for the purchase of this option. Type AZ-F900B AUX. AUX.

• Wipe them with a soft cloth.

• Do not directly splash or pour water on them. We can cause electrical shock or equipment damage.

• Do not use hot water, thinner, abrasive powders or strong solvents. CAUTION Be sure to disconnect the power cord from the wall outlet or turn off the circuit breaker before performing any maintenance.

CLEANING THE FILTERS

The air filters should be cleaned every two weeks.

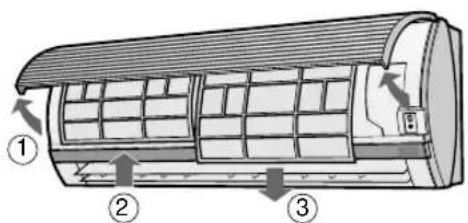

1 Lift the open panel. 2 Push the air filters up slightly to unlock them. 3 Pull the air filters down to remove them.

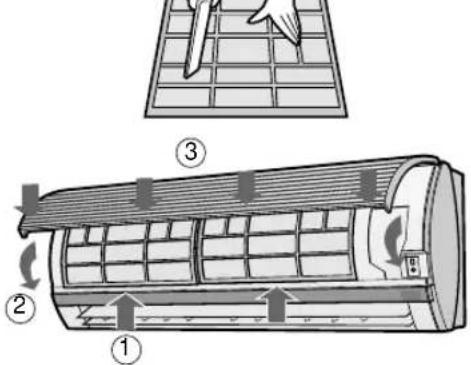

Use a vacuum cleaner to remove dust. If the filters are dirty, wash them with warm water and a mild detergent. Dry filters in the shade before reinstalling.

1 Reinstall the filters in the original positions. 2 Close the front panel. 3 Push the center part of the panel firmly to lock it in place.

Operate the unit in the FAN ONLY mode for about half a day to allow the mechanism to thoroughly dry.

Stop the operation and unplug the unit. Turn off the circuit breaker, if you have one exclusively for the air conditioner.

Clean the filters, then reinstall them. MAINTENANCE BEFORE

Make sure that the air filters are not dirty.

Make sure that nothing obstructs the air inlet or outlet. CAUTION

Check the outdoor mounting rack periodically for wear and to make sure it is firmly in place.

2IF THE UNIT FAILS TO RECEIVE THE REMOTE CONTROL SIGNAL Check whether the remote control batteries have be- come old and weak. Try to send the signal again with the remote control pointed properly towards the unit’s signal receiver window. Check whether the remote control batteries are in- stalled with the polarities properly aligned. E-16

BEFORE CALLING FOR SERVICE

The following conditions do not denote equipment malfunctions

UNIT DOES NOT OPERATE

The unit will not operate if it is turned on immediately after it is turned off. The unit will not operate immediately after the mode is changed. This is to protect the internal mechanisms. Wait 3 minutes before operating the unit. UNIT DOES NOT SEND OUT WARM AIR (Models AY-X08CR/AY-X10CR/AY-X13CR) The unit is preheating or de-icing. CRACKING NOISE The unit may produce a cracking noise. This sound is generated by the friction of the front panel and other components expanding or connecting due to a temperature change. If the unit appears to be malfunctioning, check the following points before calling for service.

IF THE UNIT FAILS TO OPERATE

Check to see if the circuit breaker has tripped or the fuse has blown. IF THE UNIT FAILS TO COOL (OR HEAT) THE ROOM EFFECTIVELY Check the filters. If dirty, clean them. Check the outdoor unit to make sure nothing is blocking the air inlet or outlet. Check the thermostat is proper setting. Make sure windows and doors are closed tightly. A large number of people in the room can prevent the unit from achieving the desired temperature. Check whether any heat- generating appliances are operating in the room. ODORS Carpet and furniture odors that entered into the unit and the air conditioner's inner component odors at the early stage of installation may be sent out from the unit. SWISHING NOISE The soft, swishing noise is the sound of the refrigerant flowing inside the unit. WATER VAPOUR

• In the COOL and DRY operation, wa- ter vapour can sometimes be seen at the air outlet due to the difference between the room air temperature and the air discharged by the unit.

• In the HEAT operation, water vapour may flow out of the outdoor unit dur- ing de-icing. (Only in models AY- X08CR/AY-X10CR/AY-X13CR)
