Product type	Double air bed
Brand	Meradiso
Model	Z31955A
Mattress dimensions	Approx. 195 × 81 × 25 cm (L x W x H)
Pillow dimensions	Approx. 62 × 34 × 12 cm (L x W x H)
Maximum load per mattress	140 kg
Assigned air pressure	0.38 PSI (0.026 bar)
Intended use	Private use, leisure, camping
Delivery contents	2 inflatable mattresses, 2 pillows, 2 screw valves, 1 calibration ruler, 2 purge tubes, 2 patches, 1 carrying bag
Main material	PVC (estimated)
Power supply	Manual pump (not included)
Valve type	Screw valve
Main functions	Inflation via screw valve, side-by-side or stacked fastening, integrated pillows
Care	Clean with clear water or soapy water, do not machine wash
Operating temperature	15 °C to 40 °C
Safety	Do not use in water, avoid sharp objects and heat sources
Warranty	3 years
Spare parts	Available at www.delta-sport.com
Repairability	Patches provided for small leaks

Frequently Asked Questions - Z31955A Meradiso

How to inflate the Meradiso Z31955A air bed?

Use a foot pump or a double-action pump with a suitable conical nozzle (Ø 17.5 mm for the mattress, Ø 8.5 mm for the pillow). Do not use a compressor. Stop inflating when the seams tighten and the calibration ruler matches the notch.

What air pressure is needed for the bed?

The assigned air pressure is 0.38 PSI (0.026 bar). Use the included calibration ruler to check that the notch length matches the nominal value.

How to repair a leak on the bed?

Peel off the patch provided after cleaning and drying the area around the leak. Cut a piece large enough (overlapping by about 1.3 cm). Apply by pressing firmly. Do not inflate for 24 hours. Do not use on a seam.

How to deflate the bed?

For the pillow, open the valve cap and compress the stem, or insert the purge tube for quick deflation. For the mattress, unscrew the screw valve completely.

Can I use the bed in water or for swimming?

No, this item is not a flotation aid or a water toy. It should not be used in water. Salt or chlorinated water can damage the surface.

How to fasten the two mattresses together?

You can fasten them side-by-side or stacked using the loops on the sides. For stacked fastening, remove the pillow from one mattress.

How to maintain the air bed?

Clean it with clear water or soapy water. Do not use harsh cleaners. Store it clean and dry, valve closed. Do not expose it to extreme temperatures.

What is the maximum load supported?

The maximum load is 140 kg per mattress. Do not exceed to avoid damage.

What to do if the valve is damaged?

Screw valves are provided. If they are damaged, you can order spare parts at www.delta-sport.com (Service section - Lidl spare parts service).

What is the warranty period?

The warranty is 3 years from the date of purchase, covering defects in materials and workmanship. Keep the receipt. For any claims, contact customer service (0800 919270 in France).

USER MANUAL Z31955A Meradiso

KOMFORT-DOPPEL-LUFTBETT COMFORT DOUBLE AIR BED LIT DOUBLE GONFLABLE

DE AT CH

KOMFORT-DOPPEL-LUFTBETT

Gebrauchsanleitung

FR BE

LIT DOUBLE GONFLABLE

Instructions for use

NL BE

COMFORT DUBBEL LUCHTED

Gebruiksaanwijzing

ES

COLCHON DOBLE INFLABLE

Included in delivery / Parts description 10

Technical data 10

Intended use 10

Safety information 10-11

Assembling the screw-on valves 11

Inflating the item 11

Attaching the air beds 11

Deflating 11

Repair 12

Maintenance and storage 12

Disposal information 12

3-year warranty 12

NL BE

Fixar as canasinsuflaveis 27

Esvaziar 27-28

Reparacao 28

Conservacao e limpeza 28

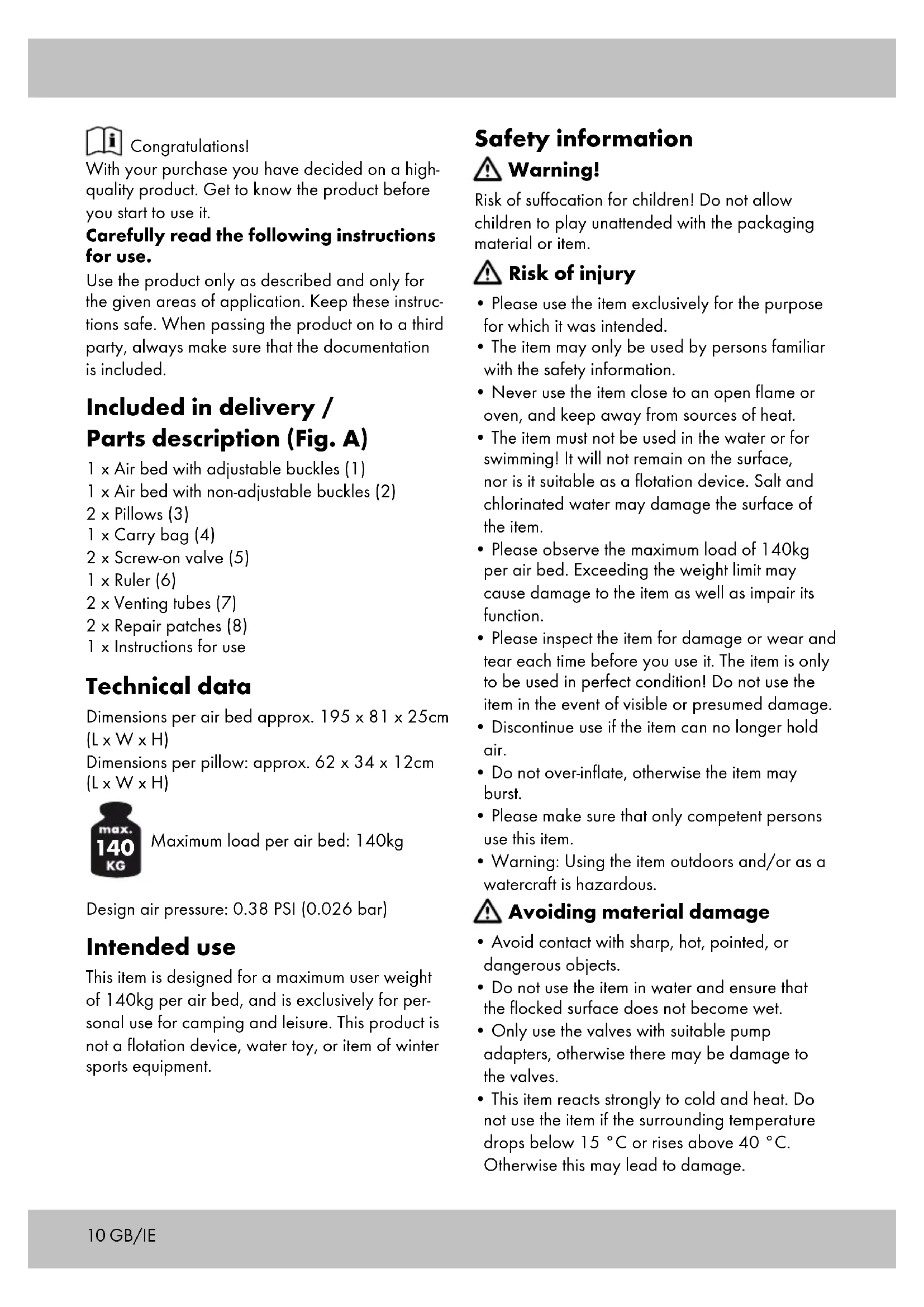

With your purchase you have decided on a high-quality product. Get to know the product before you start to use it.

Carefully read the following instructions for use.

Use the product only as described and only for the given areas of application. Keep these instructions safe. When passing the product on to a third party, always make sure that the documentation is included.

Included in delivery / Parts description (Fig. A)

1 x Air bed with adjustable buckles (1)
1 x Air bed with non-adjustable buckles (2)
2 x Pillows (3)
1 x Carry bag (4)
2 × Screw-on valve (5)
1 x Ruler (6)
2× Venting tubes (7)
2 × Repair patches (8)
1 x Instructions for use

Technical data

Dimensions per air bed approx. 195 × 81 × 25cm (L x W x H)

Dimensions per pillow: approx. 62 × 34 × 12cm (L x W x H)

Maximum load per air bed: 140kg

Design air pressure: 0.38 PSI (0.026 bar)

Intended use

This item is designed for a maximum user weight of 140kg per air bed, and is exclusively for personal use for camping and leisure. This product is not a flotation device, water toy, or item of winter sports equipment.

Safety information

Warning!

Risk of suffocation for children! Do not allow children to play unattended with the packaging material or item.

Risk of injury

• Please use the item exclusively for the purpose for which it was intended.
  The item may only be used by persons familiar with the safety information.
• Never use the item close to an open flame or oven, and keep away from sources of heat.
• The item must not be used in the water or for swimming! It will not remain on the surface, nor is it suitable as a flotation device. Salt and chlorinated water may damage the surface of the item.
• Please observe the maximum load of 140kg per air bed. Exceeding the weight limit may cause damage to the item as well as impair its function.
• Please inspect the item for damage or wear and tear each time before you use it. The item is only to be used in perfect condition! Do not use the item in the event of visible or presumed damage.
• Discontinue use if the item can no longer hold air.
• Do not over-inflate, otherwise the item may burst.
• Please make sure that only competent persons use this item.
• Warning: Using the item outdoors and/or as a watercraft is hazardous.

Avoiding material damage

• Avoid contact with sharp, hot, pointed, or dangerous objects.
• Do not use the item in water and ensure that the flocked surface does not become wet.
• Only use the valves with suitable pump adapters, otherwise there may be damage to the valves.

• This item reacts strongly to cold and heat. Do not use the item if the surrounding temperature drops below 15^ C or rises above 40^ C . Otherwise this may lead to damage.

• Make sure the valves are closed tightly after inflating.

Assembling the screw-on valves (Fig. B)

Each air bed (1) (2) is equipped with a threaded hole for the valves (5).

1. Pull the ring of the valve over the threaded hole so that it fits firmly in the groove.
2. Turn the valve firmly into the threaded hole in a clockwise direction.

Inflating the item

The item should be inflated by an adult.

CAUTION!

• To inflate the item, please use a commercially available foot pump or double stroke piston pump with corresponding pump adapter.
• Do not use compressors or compressed air bottles to inflate the item. Doing so may lead to damage.
• Stop pumping when resistance increases and the seams become stretched. Otherwise the material may rip.

Note: We recommend leaving the inflated item to air for a few days before using for the first time. Remove the item from its carry bag (4) and unfold.

Note: For the valve on the pillow, you will need a pump with a nozzle adapter (Ø approx. 8.5mm) (Fig. F).

For the air bed valve (1) (2), you will need a pump with a nozzle adapter, with a radius of approx. 17.5mm (Fig. C).

Inflating the air bed

1. Turn the screw cap of the valve (5a) in an anticlockwise direction (Fig. C).
2. Inflate the air bed with the appropriate pump (Fig. C).
3. Hold the ruler (6) next to the measuring mark. You will have reached nominal pressure when the length of the ruler matches the length of the measuring mark (Fig. D).
4. After reaching the nominal pressure, screw the valve (5) in a clockwise direction (Fig. E).

Inflating the pillow and attaching it to the air bed

1. Open the valve (3b) (Fig. G).
2. Inflate the pillow (3) (Fig. F).
3. Close the valve (Fig. G) and sink the valve, applying light pressure (Fig. H).
4. To attach the pillow to the air bed, pull the fastening holes (3a) of the pillow over the fastening straps (1b) of the air bed (Fig. K).

Note: Only attach the pillow to an inflated air bed.

Attaching the air beds

The two air beds can be fastened together either next to one another or on top of one another (Fig. K) (Fig. L). There are buckles on each side of the air bed (1a), which are then attached to the buckles (2a) of the other air bed.

Attaching side by side (Fig. K)

1. Place the air beds next to one another so that the pillows are placed beside one another and facing the same direction.
2. Fasten the buckles, as shown in the diagram.

Attaching one on top of the other (Fig. L)

1. Remove the pillow from one of the air beds.
2. Place the air bed with the pillow onto the air bed without a pillow, and buckle the two air beds together as shown in the diagram.

Deflating

Pillow

1. Pull out the valve (Fig. H).
2. Open the valve (3b) and gently press the valve stem (3c) together so that the air can escape (Fig. G). Alternatively, push the venting tube (7) into the valve stem (3c) in order to let the air escape quickly (Fig. J).

Air bed

Turn the valve (5) out of the threaded hole of the air bed (1) (2) in an anti-clockwise direction (Fig. 1).

Repair

Small leaks or holes can be repaired with the repair patches supplied.

Important! After repairing the item, do not inflate for approximately 24 hours! Do not use the patches on the seams.

• Deflate the item fully.
• Clean the area around the leak thoroughly. The area must be dry and free of grease.
• Cut out a piece of the repair material large enough that its edges extend approximately 1.3cm over the damaged area.
• Round off the corners of the patch.
• Remove the patch from its paper, place it on the damaged area, and press down firmly.

Maintenance and storage

Always store the item clean and dry.
- The item should only be rolled up in dry condition, and the valve should remain closed during storage.
- Do not expose the item to extreme weather conditions such as extreme temperatures, wind, and rain.
- Clean only using water or soapy water; never with harsh detergents.
- The item is not suitable for cleaning in the washing machine.

Disposal information

Please dispose of the packaging and the item itself in an environmentally-friendly manner and correctly sorted. Dispos of the item via a registered waste disposal firm or via your local authority. Please read the current regulations.

3-year warranty

The product was produced with great care and under constant supervision. You receive a three-year warranty for this product from the date of purchase. Please retain your receipt.

The warranty applies only to material and workmanship and does not apply to misuse or improper handling. Your statutory rights, especially the warranty rights, are not affected by this warranty.

With regard to complaints, please contact the following service hotline or contact us by e-mail.

Our service employees will advise as to the subsequent procedure as quickly as possible.

We will be personally available to discuss the situation with you.

Any repairs under the warranty, statutory guarantees or through goodwill do not extend the warranty period. This also applies to replaced and repaired parts.

Repairs after the warranty are subject to a charge.

IAN:275725

GB Service Great Britain

Tel.: [phone]

(£ 0.10/Min.)

E-Mail: [e-mail]

IE Service Ireland

Tel.: [phone]

{0,08 EUR/Min., (peak)}

(0,06 EUR/Min., (off peak))

E-Mail: [e-mail]

You can also find spare parts for your product at:

www.delta-sport.com, category Service - Lidl Spare Parts Service
