USER MANUAL SHTR 2200 B1 SILVERCREST

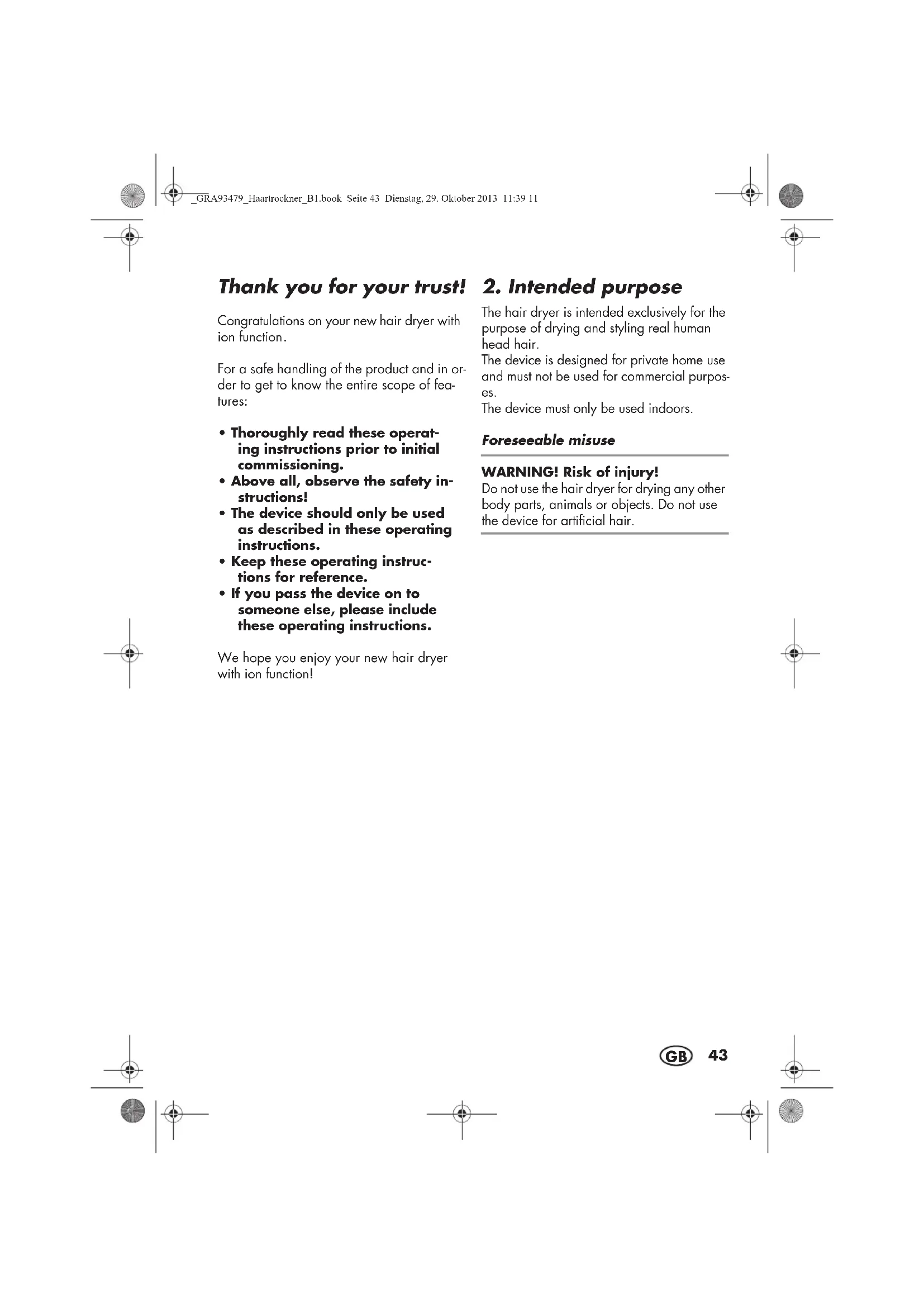

Thank you for your trust! Congratulations on your new hair dryer with ion function

For a safe handling of the product and in or- der to get to know the entire scope of fea- tures:

• Thoroughly read these operat- ing instructions prior to initial commissioning.

• Above all, observe the safety in- structions!

• The device should only be used as described in these operating instructions.

• Keep these operating instruc- tions for reference.

• If you pass the device on to someone else, please include these operating instructions. We hope you enjoy your new hair dryer with ion function!

The hair dryer is intended exclusively for the purpose of drying and styling real human head hair. The device is designed for private home use and must not be used for commercial purpos- es. The device must only be used indoors. Foreseeable misuse WARNING! Risk of injury! Do not use the hair dryer for drying any other body parts, animals or objects. Do not use the device for artificial hair. _GRA93479_Haartrockner_B1.book Seite 43 Dienstag, 29. Oktober 2013 11:39 1144

Warnings If necessary, the following warnings will be used in these operating instructions: DANGER! High risk: failure to observe this warning may result in injury to life and limb. WARNING! Moderate risk: failure to observe this warning may result in injury or serious material damage. CAUTION: low risk: failure to observe this warning may result in minor injury or material damage. NOTE: circumstances and specifics that must be observed when handling the device. Instructions for safe operation

• This device can be used by children from the age of 8 and people with restricted physical, sensory or intellectual abilities or people without adequate experience and/or understanding, if they are su- pervised or instructed on how to use this device safely and if they are aware of the resulting risks. Children must not play with the de- vice. Cleaning and user maintenance must not be performed by children unless they are older than 8 years and supervised.

• Children under the age of 8 must be kept away from the device and the power cable.

• If you use the hair dryer in a bathroom, always pull out the mains plug afterwards because of the safety risks when it is close to wa- ter. The proximity of water represents a hazard even when the de- vice is switched off.

• If the mains cord is damaged it must be replaced by the manufac- turer or its service agent or a similarly qualified person, to avoid danger.

• Installation of a residual current device (FI/RCD) with a rated resid- ual operating current of no more than 30 mA is recommended to provide additional protection. Ask your electrician for advice. The installation should only be carried out by a qualified electrician. DANGER for children

• Packing materials are not children's toys. Children should not be allowed to play with the plastic bags: there is a risk of suffocation. DANGER! Risk of electric shock due to moisture

• Never place the device anywhere that it could fall into water while plugged in.

• Protect the device from moisture, water drops and water spray.

• The device, the cable and the mains plug must not be immersed in water or any other liquids.

• If liquid gets into the device, remove the mains plug immediately. Have the de- vice checked before reusing.

• If the device has fallen into water, pull out the mains plug immediately, and only then remove the device from the water. Do not use the device again, and have it checked by a specialist.

• Never touch the device with wet hands. DANGER! Risk of electric shock

• Do not use the device if the device or the power cable has any visible dam- age, or if the device has previously been dropped.

• Lay the power cable such that no one can step on it, get caught on it, or trip over it.

• Only connect the mains plug to a prop- erly installed and easily accessible wall socket whose voltage corresponds to the specifications on the rating plate. The wall socket must continue to be eas- ily accessible after the device is plugged in.

• Ensure that the power cable cannot be damaged by sharp edges or hot points. Do not wrap the power cable around the device (risk of cable damage!).

• Ensure that the power cable cannot be trapped or crushed.

• To pull the mains plug out of the wall socket, always pull on the mains plug, and never on the power cable.

• Disconnect the mains plug from the wall socket… … after every use, … if there is a fault, … when you are not using the device, … before you clean the device, and … during thunderstorms.

• To avoid any risk, do not make modifi- cations to the product. You also must not replace the power cable yourself. Repairs must be carried out by a spe- cialist workshop or the Service Centre.

• Never attempt to remove dust or foreign bodies from inside the device using a pointed object (e.g. with a tail comb). DANGER! Fire hazard!

• Never leave the device unattended while it is plugged in.

• Never cover the device or place it on soft objects (e.g. towels).

• Ensure that the air inlet and outlet are al- ways kept free. Keep the air inlet away from long hair or objects that could get sucked in.

• This appliance is protected against overheating. In the event of overheat- ing, e.g. because the air inlet or outlet is covered, the device switches off auto- matically. In this case, set the on/off switch to 0 (off), pull the mains plug out of the wall socket and allow the device to cool down adequately. Ensure that no hair or foreign bodies are blocking the air inlet before switching the device back on.

• Never switch on the device at the same time as there is another device with a high power consumption attached to the same multi-socket power strip.

• Do not use an extension cable. DANGER! Risk of injury through burning!

• Do not direct the flow of hot air into eyes, onto hands, or onto any other heat-sensitive body parts.

• Do not touch the hot surfaces of the de- vice.

• Allow the styling attachment/diffuser to cool down before removing it from the device. WARNING! Risk of material damage

• Only use the original accessories.

• Never place the device on hot surfaces (e.g. hob plates) or near heat sources or open fire.

• Do not use any astringent or abrasive cleaning agents.

• Do not expose the device to tempera- tures below -10° C or above +40° C.

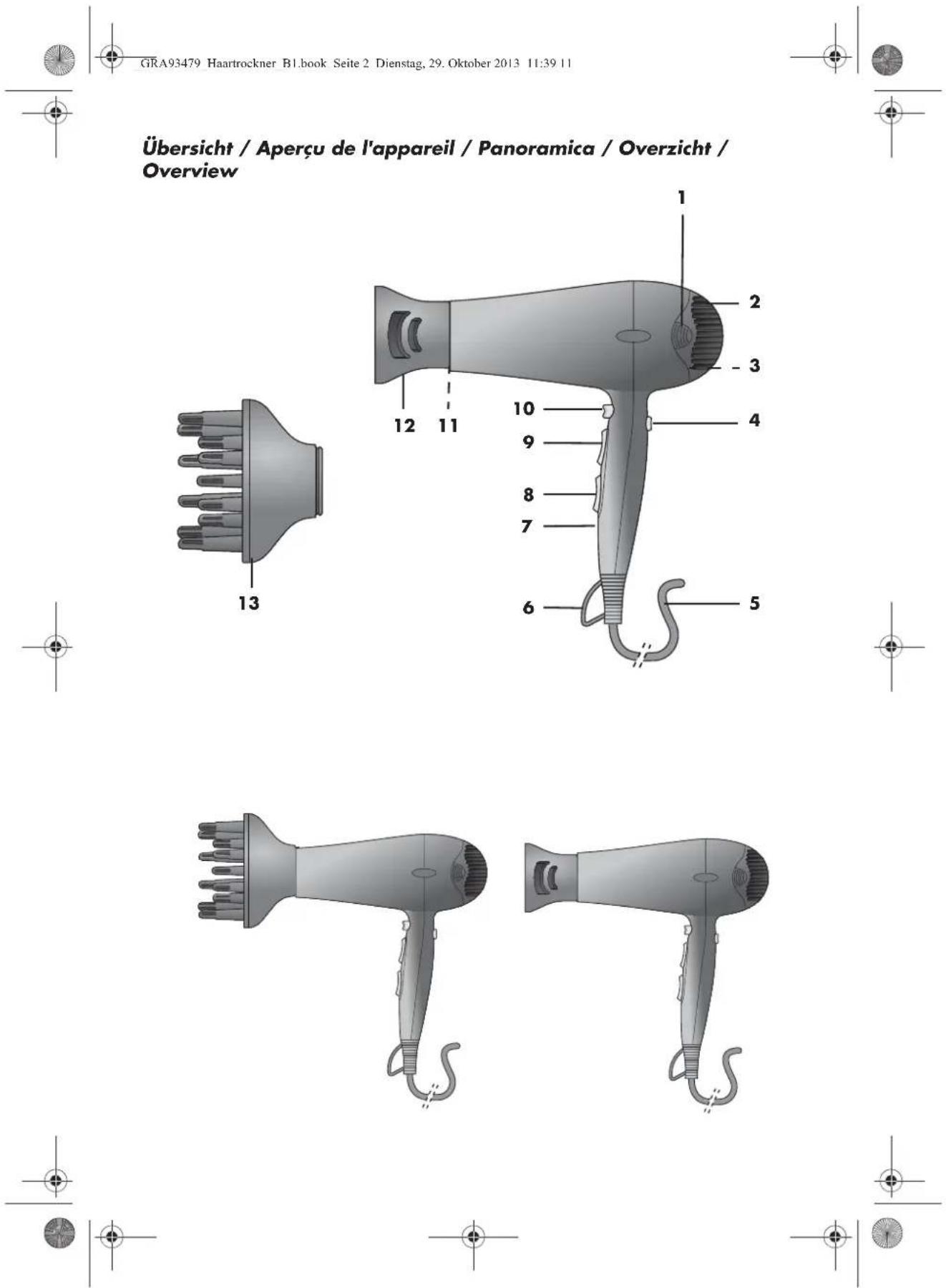

1 hair dryer 1 styling attachment 12 1 diffuser 13 1 set of operating instructions

NOTE: before using for the first time, switch the device on for a few minutes and allow it to run at the highest speed and temperature settings. As a result of the manufacturing process, you may notice a slight odour. This is normal and only occurs during first use. Ensure that the room is well ventilated. Switching on/off and adjusting speed

1. Connect the mains plug 5 with an easily

accessible wall socket.

2. Using the on/off switch 8 and the

switch for the speed settings, you can switch the device on and select the de- sired speed for the air flow: 0 =off = slow; gentle air flow = fast; strong air flow

3. After drying, switch the on/off switch 8

to 0 (off) and pull out the mains plug. Selecting the temperature Use the switch for the hot air settings 9 to se- lect the desired temperature for the air flow: = low temperature = medium temperature = high temperature Cooling function In order to improve the durability of your hair style, you can cool the hair after it has been styled with hot air using the button

Keep the button 10 held down during drying in order to get a cool air flow, irre- spective of the starting temperature. When you no longer require the cool air flow, release the button 10 . Ionisation function You can use the ion switch 4 to additionally activate the ionisation function, whatever setting you are using. This then continuously applies ions to the hair. This reduces the static loading of the hair and improves its stylability. The hair becomes soft, smooth, glossy, and easier to style.

• Ion function on, LED 7 lights up

• Ion function off, LED 7 off Styling attachment The styling attachment 12 makes it possible to direct the air flow onto specific sections of hair.

1. Place the styling attachment 12 onto the

front of the hair dryer, so that it locks into position.

2. The styling attachment 12 can be rotat-

ed into any position desired.

Diffuser Use the diffuser attachment 13 to create curls and gentle waves in the lengths and tips, as well as for body and volume at the roots of the hair.

1. Place the diffuser 13 onto the hair dry-

2. Switch on the hair dryer.

- For long hair: draw diffuser 13 through to the tips, and style the hair into gentle waves in the direction of the roots. - For short hair: use the diffuser 13 to work on the hair around the roots, generating body and volume.

4. Do not remove the diffuser 13 from the

hair dryer until it has cooled down.

• Pull the mains plug 5 out of the wall socket before you clean the hair dryer. WARNING! Risk of material dam- age!

• Do not use any astringent or abrasive cleaning agents. Clean the device regularly. Particularly en- sure that the air inlet and outlet are free of dust, hair and fluff.

• Wipe down the casing, the protective grid 1 over the air inlet, and the styling attachment 12 using a damp cloth.

• Remove the styling attachment 12 or the diffuser 13 from the hair dryer. Hold the hair dryer with the air outlet 11 pointing downwards. Clean the protec- tive discs using a brush. Cleaning the protective grid

1. Squeeze the protective grid 1 slightly at

the sides and then remove it.

2. Hold the hair dryer with the air inlet

pointing downwards. Clean the inside and the outside of the protective grid and the filter 3 using a brush.

3. Replace the filter 3 and the protective

WARNING! Risk of material dam- age! Do not wrap the cable around the device (risk of cable damage!).

• You can use the hook loop 6 to safely and practically hang up the device for storage purposes.

The symbol showing a wheelie bin crossed through indicates that the product re- quires separate refuse collec- tion in the European Union. This applies to the product and all accessories marked with this symbol. Products identified with this symbol may not be discarded with normal household waste, but must be taken to a col- lection point for recycling electric and elec- tronic appliances. Recycling helps to reduce the consumption of raw materials and pro- tect the environment. Packaging When disposing of the packaging, make sure you comply with the environmental reg- ulations applicable in your country. _GRA93479_Haartrockner_B1.book Seite 47 Dienstag, 29. Oktober 2013 11:39 1148

If your device fails to function as required, please try this checklist first. Perhaps there is only a minor problem, and you can solve it yourself. DANGER! Risk of electric shock! Do not attempt to repair the device yourself under any circumstances.

specifications Subject to technical modification.

HOYER Handel GmbH Dear Customer, your device is provided with a 3 year war- ranty starting with the purchase date. In the event of product defects, you are entitled to statutory rights against the vendor. These statutory rights are not restricted by our war- ranty presented in the following. Warranty conditions The warranty period starts with the purchase date. Please keep the original purchase re- ceipt in a safe place. This document is re- quired to verify the purchase. If within three years from the purchase date of this product a material or factory defect occurs, the product will be repaired or re- placed by us – at our discretion – free of charge to you. This warranty implies that within the period of three years the defective device and the purchase receipt are present- ed, including a brief written description of the defect and the time it occurred. If the defect is covered by our warranty, the repaired or a new product will be returned to you. No new warranty period starts with a repair or replacement of the product. Warranty period and statutory claims for defects The warranty period is not extended when the warranty has been claimed. This also ap- plies to replaced and repaired parts. Any damages and defects already existing at the time of purchase must be reported immedi- ately upon unpacking. Repairs arising after the expiration of the warranty period are subject to a charge. Warranty coverage The device was produced carefully according to strict quality guidelines and tested diligent- ly prior to delivery. The warranty applies to material or factory defects. This warranty does not include prod- Fault Possible causes/Action

• Has the device been con- nected to the power supply?

• Has the overheating protec- tion switched off the device? Set the on/off switch to 0 (off), pull the mains plug out of the wall socket and allow the device to cool down ad- equately. Ensure that no hair or foreign bodies are blocking the air inlet before switching the device back on. Model: SHTR 2200 B1 Mains voltage: 230-240 V ~ 50 Hz Protection class: II Power rating: 2000 - 2200 W _GRA93479_Haartrockner_B1.book Seite 48 Dienstag, 29. Oktober 2013 11:39 1149

uct parts that are subject to standard wear and therefore can be considered wear parts; the same applies to damages at fragile parts, e.g. switches, rechargeable batteries or parts made of glass. This warranty expires if the product is dam- aged, not used as intended or not serviced. For the proper operation of the product, all in- structions listed in the operating instructions must be observed carefully. Any form of use and handling that is advised against in the operating instructions or warned against must always be avoided. The product is only intended for private and not for commercial use. In the case of incor- rect and improper treatment, use of force and interventions not performed by our author- ised Service Centre, the warranty shall cease. Handling in case of a warranty claim In order to ensure prompt processing of your matter, please observe the following notes:

• Please keep the article number IAN: 93479 and the purchase receipt as a purchase verification for all inquiries.

• If faulty operation or other defects occur, first contact the Service Centre listed in the following by telephone or email.

• Then, you are able to send a product re- ported as defective free of charge to the service address specified to you, includ- ing the purchase receipt and the infor- mation on the defect and when it occurred. Please visit www.lidl-service.com to download this and many other manuals, product videos and soft- ware. Service Centre Service Great Britain Tel.: 0871 5000 720 (£ 0.10/Min.) E-Mail: hoyer@lidl.co.uk Service Ireland Tel.: 1890 930 034 (0,08 EUR/Min., (peak)) (0,06 EUR/Min., (off peak)) E-Mail: hoyer@lidl.ie IAN: 93479 Supplier Please note that the following address is no service address. First contact the afore- mentioned Service Centre. HOYER Handel GmbH Kühnehöfe 5 22761 Hamburg Germany
