USER MANUAL UOP 12 A1 ULTIMATE SPEED

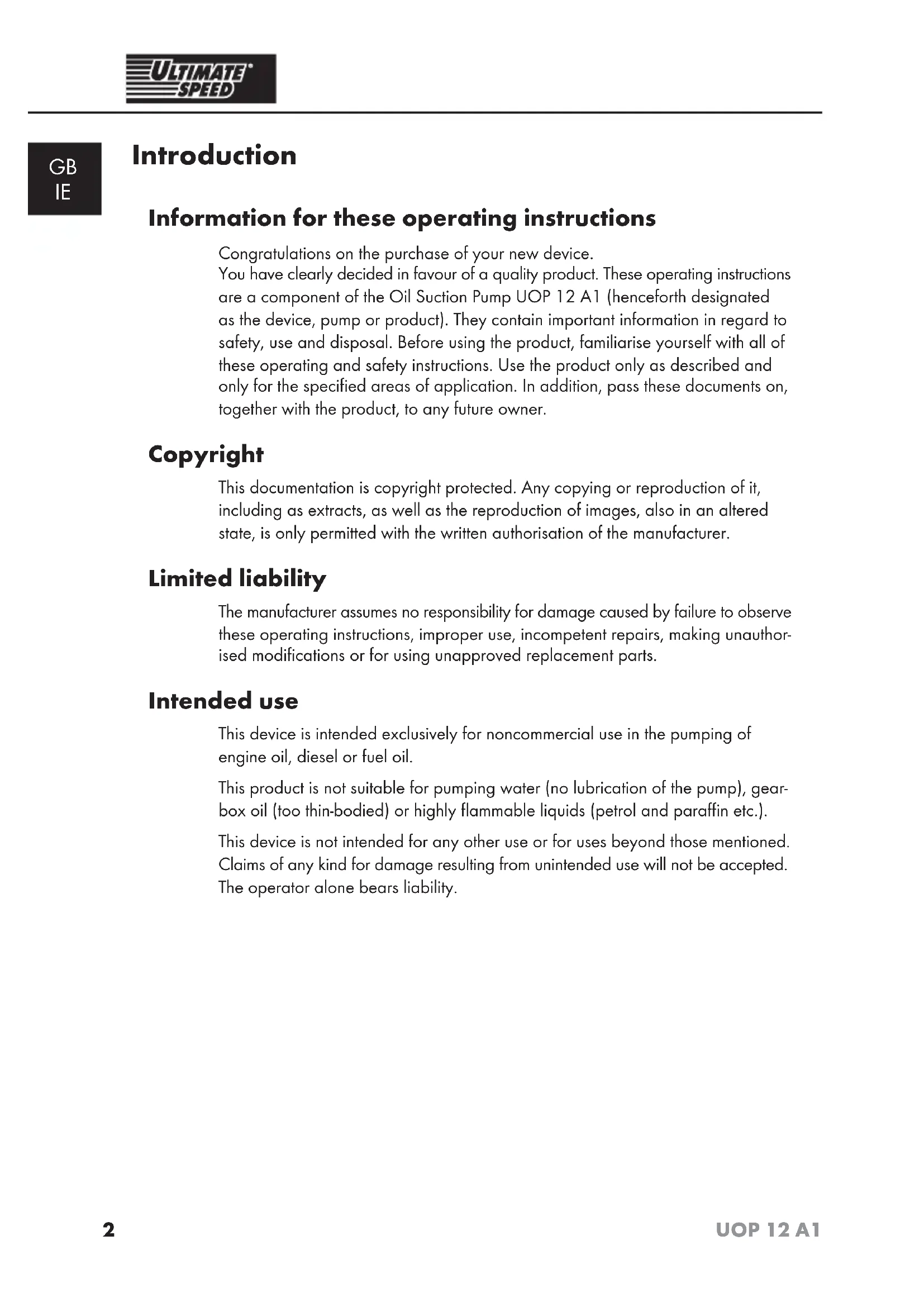

Introduction Information for these operating instructions Congratulations on the purchase of your new device. You have clearly decided in favour of a quality product. These operating instructions are a component of the Oil Suction Pump UOP 12 A1 (henceforth designated as the device, pump or product). They contain important information in regard to safety, use and disposal. Before using the product, familiarise yourself with all of these operating and safety instructions. Use the product only as described and only for the specified areas of application. In addition, pass these documents on, together with the product, to any future owner. Copyright This documentation is copyright protected. Any copying or reproduction of it, including as extracts, as well as the reproduction of images, also in an altered state, is only permitted with the written authorisation of the manufacturer. Limited liability The manufacturer assumes no responsibility for damage caused by failure to observe these operating instructions, improper use, incompetent repairs, making unauthor- ised modifications or for using unapproved replacement parts. Intended use This device is intended exclusively for noncommercial use in the pumping of engine oil, diesel or fuel oil. This product is not suitable for pumping water (no lubrication of the pump), gear- box oil (too thin-bodied) or highly flammable liquids (petrol and paraffin etc.). This device is not intended for any other use or for uses beyond those mentioned. Claims of any kind for damage resulting from unintended use will not be accepted. The operator alone bears liability.3 UOP 12 A1

Warning symbols used In these extant operation instructions the following warnings are used: DANGER A warning at this risk level indicates a threateningly dangerous situation If the risk situation is not avoided, it could lead to death or serious physical injury. ► Pay heed to the instructions in this warning to avoid the death of or serious physical injury to people. TAKE NOTE A warning at this risk level indicates possible property damage. If the situation is not avoided it could lead to property damage. ► Pay heed to the instructions in this warning to avoid property damage. NOTICE ► A notice indicates additional information that may assist you in the han- dling of the device. Safety In this chapter you will receive important safety information regarding the handling of the device. This device complies with the statutory safety regulations. Incorrect usage can lead to personal injury and property damage. Basic Safety Instructions For safe handling of the device observe the following safety information: ■ Before use check the device for visible external damage. Do not put into operation a device that is damaged or has been dropped. ■ The connecting cable on this appliance cannot be replaced. If the cable is damaged, the whole appliance must be scrapped. ■ This appliance may be used by children aged 8 over and by persons with reduced physical, sensory or mental capabili- ties or lack of experience and knowledge, provided that they are under supervision or have been told how to use of the appliance safely and are aware of the potential risks. Chil- dren must not play with the appliance. Cleaning and user maintenance tasks must not be carried out by children unless they are supervised.4 UOP 12 A1

■ A repair to the device during the warranty period may only be carried out by a customer service department authorised by the manufacturer otherwise no additional warranty claims can be considered for subsequent damages. ■ Do not perform any modifications or changes to the appli- ance yourself. ■ Protect the device against moisture and the penetration of liquids. ■ Pay heed to the instructions of the vehicle manufacturer regarding the pumping of oil. Some vehicle manufacturers forbid pumping the oil out because the sludging, such as from abrasion, would remain behind. ■ Be particularly careful when you are handling oil. Should oil come into contact with the skin or eyes, rinse it off with water and seek medical attention. ■ Be particularly careful if you are working on a car battery. Battery acid could leak out and cause serious injury. Should battery acid come into contact with the skin or eyes, rinse the affected part off with water and seek medical attention. ■ Wear personal protective equipment. The wearing of personal protection equipment (work clothing, respirators, gloves and goggles) reduces the risk of personal injury. ■ Ensure that your vehicle is not parked on a sloped surface, as it may not be possible to effect a complete oil extraction. Ensure that the hand brake is engaged. ■ Do not start the engine during the operation of the oil suction pump. ■ Do not pump oil at a temperature above 60°C and do not pump it when the engine is running. The vehicle engine must be cool. ■ Always use the supplied hose clamps, otherwise the tube may fall off and cause a spillage of the oil. ■ Do not use the device to pump petrol, paraffin or other inflammable liquids. ■ Be especially careful when dealing with inflammable materi- als or fuels. There is the risk of an explosion!5 UOP 12 A1

■ Ensure that the work area is well ventilated and that there are no open flames or other ignition sources in the vicinity. Other- wise, there is risk of explosion! ■ Do not pump water, the oil suction pump will not be suffi- ciently lubricated and could overheat. ■ The device is not suitable for the storage and/or transport of fuels or other liquids. ■ Do not pump different oils into the same tank. ■ Be extra careful when operating the oil suction pump and do not leave it unattended when it is in operation. ■ Use the oil suction pump only when the engine oil is warm. Hot oil can melt the hose. ■ The oil suction pump must NEVER be operated without the suction hose, otherwise the pump motor could be overloaded. ■ To avoid overheating or malfunctions, the oil suction pump should never be operated continuously for longer than 30 minutes. Allow the oil suction pump to cool down for ap- prox. 10 minutes. ■ Use only the supplied connection terminals to connect the device to a car battery. ■ Keep the connection cable away from hot parts of the en- gine and do not let it hang over sharp edges. ■ Route the connection cable so that it cannot be caught up in moving parts of the engine. ■ Disconnect the connection cable from the car battery when the device will not be in use for longer periods of time. ■ Keep sources of ignition (e.g. naked flames, lighted cigars, cigarettes or electrical sparks) away from the car battery. There is the risk of an explosion! ■ Avoid causing an electrical short-circuit when connecting the device to the battery. Connect the positive pole terminal clamp only to the positive pole of the battery. Connect the negative pole terminal clamp only to the negative pole of the battery. ■ Connect the terminal clamps ("–" and "+") only to the insu- lated area!6 UOP 12 A1

Packaging material should not be used as a play thing. There is a risk of suffocation! Items supplied and transport inspection ▯ Oil suction pump with connecting cable and quick contact connection terminals ▯ Suction hose Ø 6 mm ▯ Discharge hose Ø 12 mm ▯ 2 x Hose clamps ▯ This operating manual NOTICE ► Check the contents to ensure everything is available and for signs of visible damage. ► If the delivery is not complete or is damaged, due to defective packaging or through transportation, contact the Service Hotline (see chapter Service). Disposal of the packaging The packaging protects the device from transport damage. The packaging materials are selected from the point of view of their environmental friendliness and disposal technology and are therefore recyclable. The recirculation of packaging into the material circuit saves on raw material and reduces the amount of waste generated. Dispose of packaging material that is no longer needed as per the regionally established regulations. Operating components Oil suction pump

Positive connection terminal (red)

Minus connection terminal (black)

Connection for discharge hose

Connection for suction hose

Suction hose (Ø 6 mm)

Handling and operation In this chapter you receive important information for the handling and operation of the device. Preparing the oil suction pump ♦ Remove the protective caps from the hose connections

♦ Roll out the suction hose (Ø 6 mm)

and the discharge hose (Ø 12 mm)

and bend them straight. ♦ Press the suction hose (Ø 6 mm)

onto the connection for the suction hose

onto the connection for the discharge hose

♦ Thereby, bear in mind the direction of flow ( Pump direction ) given on the type plate of the oil suction pump . ♦ Secure both hoses with the supplied hose clamps

TAKE NOTE ► Ensure that the hoses are not kinked or bent, otherwise the hoses and the pump could be damaged. Pumping oil out ♦ Before starting to pump oil out, let your vehicle engine warm-up for 5 - 10 minutes (oil temperature 40°C - 60°C). This reduces the viscosity of the oil and it can then be pumped out more efficiently. ♦ Switch the vehicle motor off. ♦ Roll out the suction hose (Ø 6 mm)

and the discharge hose (Ø 12 mm)

into the dipstick opening of your vehicle. Insert it carefully down to the lowest point of the oil sump. ♦ Use a suitable container to collect the old oil and insert the discharge hose (Ø 12 mm)

into the container. ♦ Ensure that the on/off switch

is in the position 0 (off). ♦ First, connect the red positive-pole connection terminal (red)

to the positive-pole (+) of the car battery. ♦ Then connect the black negative-pole connection terminal (black)

to the negative-pole (-) of the car battery. ♦ Place the on/off switch

at position I (On) to switch the oil suction pump on. ♦ Pump the oil out of the engine/the oil sump.8 UOP 12 A1

♦ Place the on/off switch

at the position 0 (Off) when no more oil flows from the engine/the oil sump. Do not leave the oil suction pump running if it is not pumping oil. ♦ Do not let the oil suction pump run for longer than 30 minutes at a time. ♦ Refill the engine with fresh oil as directed in your vehicle manufacturer's instructions. Check the oil level with the dipstick. ♦ Clean the oil suction pump after the job is done by pumping a little fresh oil through it. ♦ Dispose of the used oil as per the statutory regulations in your country (see also the chapter Disposal). ♦ Loosen the hose clamps

and remove the suction hose (Ø 6 mm)

and the discharge hose (Ø 12 mm)

from the oil suction pump. Store all parts at a dry, clean and dust-free location. Cleaning TAKE NOTE Damage to the device! ► In order to avoid irreparable damage to it, ensure that no moisture gets inside when you are cleaning the device. Cleaning the housing ♦ Clean the oil suction pump after every job is done by pumping a little fresh oil through it. ♦ Clean the connection terminals after each pumping. Wipe off any possibly present battery fluid on the connection terminals with a dry cloth so as to protect them from corrosion. ♦ Clean the surfaces of the device and the hoses with a soft, dry cloth. Maintenance ♦ Before every use, check the device for visible external damage. ♦ Check the cable before each use for damage. ♦ Check the hose clamps

for firm seating. ♦ Before every use, check the insulation of the connection terminals

Disposal Disposal of the device Do not dispose of this device in your normal domestic waste. This product is subject to the provisions of European Directive 2012/19/EU WEEE (Waste Electrical and Electronic Equipment). Dispose of the device through an approved disposal centre or at your community waste facility. Pay heed to the currently applicable regulations. In case of doubt, please contact your waste disposal centre. Disposing of used oil NEVER allow fresh or old oil to flow into the ground or the drainage system. This is illegal! To protect the environment, collect used oil in a suitable container. Dispose of it at your local collection centre, petrol station or oil dealer. Appendix Translation of the original declaration of conformity We, Kompernaß Handelsgesellschaft mbH, Burgstraße 21, 44867 Bochum, Germany, state at our own responsibility that the product complies with the fundamental requirements and the other relevant requirements of Directive 2006/42/EC on Machinery, the EMC Directive 2004/104/EC and the RoHS Directive 2011/65/EU. The object of the declaration described above complies with the requirements of the Directive 2011/65/EU of the European Parliament and Council of 8 June 2011 on the limitations of use of certain dangerous sub- stances in electrical and electronic appliances. The manufacturer bears the full responsibility for compliance with this conformity declaration. Type / Device Designation: Ultimate Speed Oil Suction Pump UOP 12 A1 Serial Number: IAN 270663 Year of Manufacture: 10/2015 Applied harmonised standards: EN 60335-1: 2012 EN 60335-2-41 / A2: 2010 EN 62233: 2008 EN 50498: 2010 EN 50581: 2012 Bochum, dated 18.09.2015 Semi Uguzlu, Quality Manager10 UOP 12 A1

Technical data Input voltage 12 V Input current approx. 5 A Safety class III/ Operating period (maximum) 30 minutes Minimum cool-down time 10 minutes Sound pressure level approx. 70 dB(A) Environmental temperature -10°C - +40°C Max. Oil Temperature 60°C Max. Diesel Temperature 45°C Pumping rate: Diesel or Heating Oil Motor oil approx. 1,5 l/min.* approx. 0,2 l/min.* Maximum lifting height 0.7 m Maximum permissible pressure 3 bar Measurements (W x H x D) approx. 13 x 9 x 14 cm Weight (with accessories) approx. 950 g *Depending on the type of oil and its temperature, variations to these details are possible. Warranty The warranty for this appliance is for 3 years from the date of purchase. The appliance has been manufactured with care and meticulously examined before delivery. Please retain your receipt as proof of purchase. In the case of a warranty claim, please make contact by telephone with our Customer Service Department. Only in this way can a post-free despatch for your goods be assured. NOTICE ► The warranty covers only claims for material and manufacturing defects, but not for transport damage, wearing parts or for damage to fragile components, e.g. buttons or batteries. This product is for domestic use only and is not intended for commercial use. The warranty is void in the case of abusive and improper handling, use of force and internal tampering not carried out by our authorised service branch. Your statutory rights are not restricted in any way by this warranty. The warranty period is not extended by repairs made under the warranty. This applies also to replaced and repaired parts. Damages and defects extant at the time of purchase must be reported immedi- ately after unpacking, resp. no later than two days after the date of purchase. Repairs made after the lapse of the warranty period are subject to charge.11 UOP 12 A1
