USER MANUAL FFS003X FOODSAVER

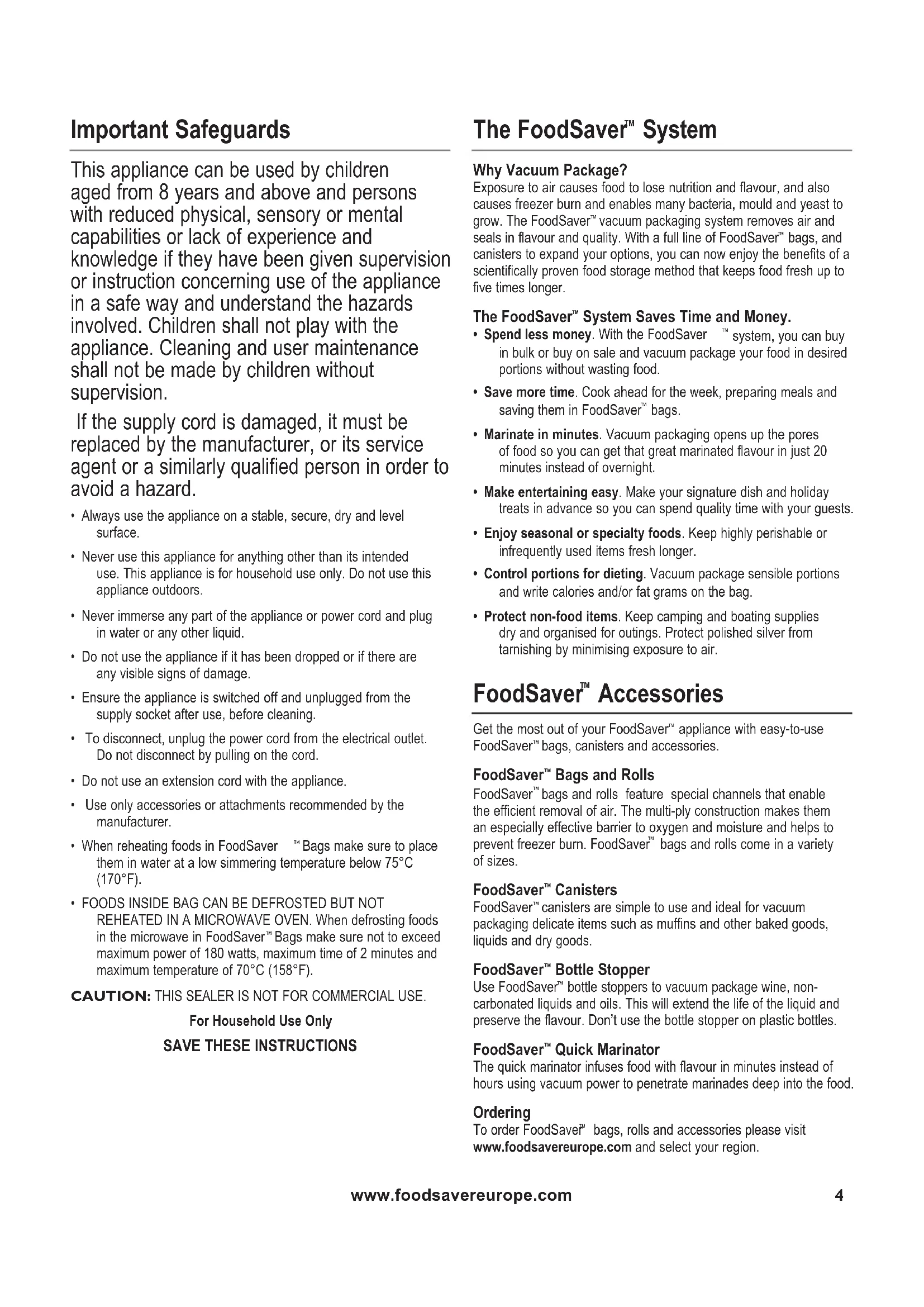

Important Safeguards This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. If the supply cord is damaged, it must be replaced by the manufacturer, or its service agent or a similarly qualified person in order to avoid a hazard.

• Always use the appliance on a stable, secure, dry and level surface.

• Never use this appliance for anything other than its intended use. This appliance is for household use only. Do not use this appliance outdoors.

• Never immerse any part of the appliance or power cord and plug in water or any other liquid.

• Do not use the appliance if it has been dropped or if there are any visible signs of damage.

• Ensure the appliance is switched off and unplugged from the supply socket after use, before cleaning.

• To disconnect, unplug the power cord from the electrical outlet. Do not disconnect by pulling on the cord.

• Do not use an extension cord with the appliance.

• Use only accessories or attachments recommended by the manufacturer.

• When reheating foods in FoodSaver

Bags make sure to place them in water at a low simmering temperature below 75°C (170°F).

Bags make sure not to exceed maximum power of 180 watts, maximum time of 2 minutes and maximum temperature of 70°C (158°F). CAUTION: THIS SEALER IS NOT FOR COMMERCIAL USE. For Household Use Only

SAVE THESE INSTRUCTIONS

System Why Vacuum Package? Exposure to air causes food to lose nutrition and flavour, and also causes freezer burn and enables many bacteria, mould and yeast to grow. The FoodSaver

vacuum packaging system removes air and seals in flavour and quality. With a full line of FoodSaver

bags, and canisters to expand your options, you can now enjoy the benefits of a scientifically proven food storage method that keeps food fresh up to five times longer. The FoodSaver

System Saves Time and Money.

• Spend less money. With the FoodSaver

system, you can buy in bulk or buy on sale and vacuum package your food in desired portions without wasting food.

• Save more time. Cook ahead for the week, preparing meals and saving them in FoodSaver

• Marinate in minutes. Vacuum packaging opens up the pores of food so you can get that great marinated flavour in just 20 minutes instead of overnight.

• Make entertaining easy. Make your signature dish and holiday treats in advance so you can spend quality time with your guests.

• Enjoy seasonal or specialty foods. Keep highly perishable or infrequently used items fresh longer.

• Control portions for dieting. Vacuum package sensible portions and write calories and/or fat grams on the bag.

• Protect non-food items. Keep camping and boating supplies dry and organised for outings. Protect polished silver from tarnishing by minimising exposure to air. FoodSaver

Accessories Get the most out of your FoodSaver

appliance with easy-to-use FoodSaver

bags, canisters and accessories. FoodSaver

Bags and Rolls FoodSaver

bags and rolls feature special channels that enable the efficient removal of air. The multi-ply construction makes them an especially effective barrier to oxygen and moisture and helps to prevent freezer burn. FoodSaver

bags and rolls come in a variety of sizes. FoodSaver

canisters are simple to use and ideal for vacuum packaging delicate items such as muffins and other baked goods, liquids and dry goods. FoodSaver

bottle stoppers to vacuum package wine, non- carbonated liquids and oils. This will extend the life of the liquid and preserve the flavour. Don’t use the bottle stopper on plastic bottles. FoodSaver

Quick Marinator The quick marinator infuses food with flavour in minutes instead of hours using vacuum power to penetrate marinades deep into the food. Ordering To order FoodSaver

bags, rolls and accessories please visit www.foodsavereurope.com and select your region.www.foodsavereurope.com

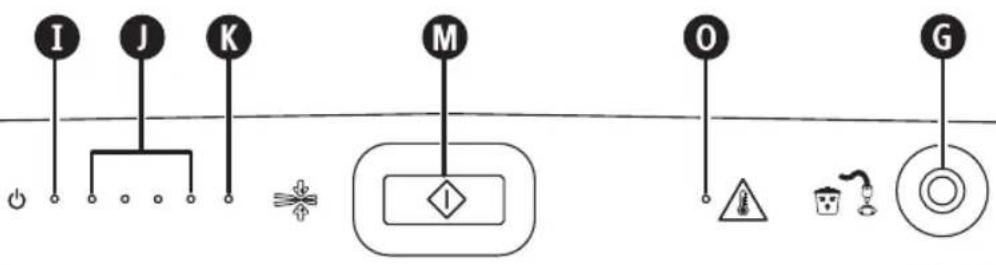

Seal Only button (...003X only)

Vacuum and Seal button

Moist Food button (...003X only)

Overheat warning light Making a bag from a FoodSaver

roll You can make your own custom sized bags from a FoodSaver

roll. Referring to Fig. 2:

1. Plug your vacuum sealer in to a mains supply socket. Press both

and open the lid. Place the open end of the roll over the sealing strip

so that the end of the roll butts up to the front edge of the lower gasket. Don’t let the end of the bag enter the drip tray.

2. Close the lid all the way until the latches

pop out. When correctly closed, a green band will appear around the latch and the green power light

will come on. Press the Seal Only button

(...003X only) or the Vacuum and Seal button

goes out, press both latches and remove the roll. The end of the roll will now have been sealed.

3. Measure the required length for the item being packaged. Add

an extra 75mm to allow the bag to be sealed then cut the roll straight across. Using Your Vacuum Sealer Referring to Fig. 3:

1. Place the item to be packaged into the bag. You can use a ready

bag or make your own from a FoodSaver

2. Place the open end of the bag into the slot of the drip tray

3. Close and latch the lid.

When correctly closed, a green band will appear around the latch and the green power light

4. Press the Vacuum and Seal button

5. Your vacuum packager will start to remove the air from the bag

and then seal it. When the progress lights

have stopped and the red sealing progress light

has gone out, the process is complete. Packaging moist foods (...003X only)

1. If you are packaging foods that are moist or are very juicy, press

the Moist Food button

BEFORE pressing the Vacuum and Seal button. Sealing a bag without removing any air (...003X only) To seal a bag without extracting the air from it press the Seal Only button

. You can seal the types of bag that are used to package snacks such as potato crisps, tortilla chips, etc. Sealing delicate items (...003X only) Some items such as pastries, bread, biscuits, etc. can be crushed when sealing. To prevent this, use the Seal Only button

1. Follow steps 1, 2, 3 and 4 of Using Your Vacuum Sealer

before crushing occurs. This will immediately stop more air from being extracted and then seal the bag. Using FoodSaver

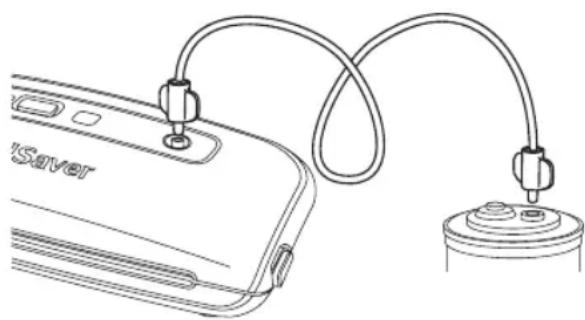

1. Insert one end of the accessory hose

to the accessory port

. Insert the other end of the hose into the port on the accessory. Follow any specific instructions that come with the FoodSaver accessory.

2. Follow steps 3 and 4 of Using Your Vacuum Sealer

Foods Storage Life Where to Store Remarks Beef, Pork, Lamb, Poultry 2-3 years Freezer Pre-freeze moist foods before vacuum packaging. Alternatively, place a folded paper towel between the food and the end of the bag to absorb excess liquid. Remember to leave 75mm of space after the towel to allow room for the seal to be created. Note: Beef may appear darker after vacuum packaging due to the removal of oxygen. This is not an indication of spoilage. Minced Meat 1 year Freezer Fish 2 years Freezer Hard Cheeses (Cheddar, Parmesan, Edam, Gouda, etc.) 4-8 months Refrigerator To keep cheese fresh vacuum package it after each use. Make the bags extra long to allow 25mm for each new seal required. NEVER vacuum package soft cheeses. Asparagus, Broccoli, Carrot, Cauliflower, Cabbage, Brussels Sprouts, Green Beans, Peas, Corn, etc. 2-3 years Always store in the freezer Blanch vegetables until they are cooked but still crisp before packaging. Freeze before packaging. Separate during freezing to avoid vegetables sticking together when they are packaged. NEVER vacuum package fresh mushrooms. Lettuce, Spinach, etc. 2 weeks Refrigerator Wash then dry. For best results, package using a FoodSaver

canister. Apricots, Plums, Peaches, Nectarines, etc 1-3 years Freezer Pre-freeze soft fruits and berries before packaging. Separate during freezing to avoid fruits sticking together when they are packaged. Soft Berries (Raspberries, Blackberries, Strawberries, etc) 1 week Refrigerator Hard Berries (Blueberries, Cranberries, etc.) 2 weeks Refrigerator Bread, Bagels, Pastries 1-3 years Freezer We recommend using a FoodSaver

canister to avoid crushing. Alternatively, pre-freeze until solid. Nuts and Seeds 2 years Pantry Coffee Beans 1 year Pantry To prevent food particles from being drawn into the vacuum pump, place a coffee filter or paper towel at top of the bag or canister before vacuum packaging. You can also place the food in its original bag inside a FoodSaver

bag. Ground Coffee 5-6 months Pantry Powdered Goods (Sugar, Flour, etc.) 1-2 years Pantry Sauces, Soups, Stews, etc. 1-2 years Freezer Pre-freeze in a suitable container until solid. Remove frozen liquid and vacuum package in a FoodSaver

Bag. Dried Goods (Beans, Pasta, Rice, Grains, etc.) 1-2 years Pantry Potato Crisps, Biscuits, Crackers, etc. 3-6 weeks Pantry For best results, use a FoodSaver

canister for crushable items like crackers. Storage Guide, Hints and Tips Vacuum Packaging and Food Safety The vacuum packaging process extends the life of foods by removing most of the air from the sealed container, thereby reducing oxidation, which affects nutritional value, flavour and overall quality. Removing air can also inhibit growth of microorganisms, which can cause problems under certain conditions: To preserve foods safely, it is critical that you maintain low temperatures. You can significantly reduce the growth of microorganisms at temperatures of 4°C or below. Freezing at -17°C does not kill microorganisms, but stops them from growing. For long- term storage, always freeze perishable foods that have been vacuum packaged, and keep refrigerated after thawing. It is important to note that vacuum packaging is NOT a substitute for canning and it cannot reverse the deterioration of foods. It can only slow down the changes in quality. It is difficult to predict how long foods will retain their top-quality flavour, appearance or texture because it depends on age and condition of the food on the day it was vacuum packaged.www.foodsavereurope.com

Foods Storage Life Where to Store Remarks Beef, Pork, Lamb, Poultry 2-3 years Freezer Pre-freeze moist foods before vacuum packaging. Alternatively, place a folded paper towel between the food and the end of the bag to absorb excess liquid. Remember to leave 75mm of space after the towel to allow room for the seal to be created. Note: Beef may appear darker after vacuum packaging due to the removal of oxygen. This is not an indication of spoilage. Minced Meat 1 year Freezer Fish 2 years Freezer Hard Cheeses (Cheddar, Parmesan, Edam, Gouda, etc.) 4-8 months Refrigerator To keep cheese fresh vacuum package it after each use. Make the bags extra long to allow 25mm for each new seal required. NEVER vacuum package soft cheeses. Asparagus, Broccoli, Carrot, Cauliflower, Cabbage, Brussels Sprouts, Green Beans, Peas, Corn, etc. 2-3 years Always store in the freezer Blanch vegetables until they are cooked but still crisp before packaging. Freeze before packaging. Separate during freezing to avoid vegetables sticking together when they are packaged. NEVER vacuum package fresh mushrooms. Lettuce, Spinach, etc. 2 weeks Refrigerator Wash then dry. For best results, package using a FoodSaver

canister. Apricots, Plums, Peaches, Nectarines, etc 1-3 years Freezer Pre-freeze soft fruits and berries before packaging. Separate during freezing to avoid fruits sticking together when they are packaged. Soft Berries (Raspberries, Blackberries, Strawberries, etc) 1 week Refrigerator Hard Berries (Blueberries, Cranberries, etc.) 2 weeks Refrigerator Bread, Bagels, Pastries 1-3 years Freezer We recommend using a FoodSaver

canister to avoid crushing. Alternatively, pre-freeze until solid. Nuts and Seeds 2 years Pantry Coffee Beans 1 year Pantry To prevent food particles from being drawn into the vacuum pump, place a coffee filter or paper towel at top of the bag or canister before vacuum packaging. You can also place the food in its original bag inside a FoodSaver

bag. Ground Coffee 5-6 months Pantry Powdered Goods (Sugar, Flour, etc.) 1-2 years Pantry Sauces, Soups, Stews, etc. 1-2 years Freezer Pre-freeze in a suitable container until solid. Remove frozen liquid and vacuum package in a FoodSaver

Bag. Dried Goods (Beans, Pasta, Rice, Grains, etc.) 1-2 years Pantry Potato Crisps, Biscuits, Crackers, etc. 3-6 weeks Pantry For best results, use a FoodSaver

canister for crushable items like crackers. IMPORTANT: Vacuum packaging is NOT a substitute for refrigeration or freezing. Any perishable foods that require refrigeration must still be refrigerated or frozen after vacuum packaging. To avoid possible illness, do not reuse bags after storing raw meats, raw fish or greasy foods. Do not reuse bags that have been microwaved or simmered. Thawing and Reheating Vacuum Packaged Foods FOODS INSIDE BAG CAN BE DEFROSTED BUT NOT REHEATED IN A MICROWAVE OVEN. Defrosting - Always thaw foods in a refrigerator or a microwave oven — do not thaw perishable foods at room temperature. Make sure to cut off the corner of the bag before placing it in the microwave. We recommend that you place the bag on a microwave-safe dish to avoid liquids from spilling out. Reheating - To reheat foods in a microwave oven, remove it from bag and place it on a microwave-safe dish. You can also reheat foods in FoodSaver

bags by placing them in water at a low simmering temperature below 75°C (170°F). Make sure the food is fully heated throughout.www.foodsavereurope.com

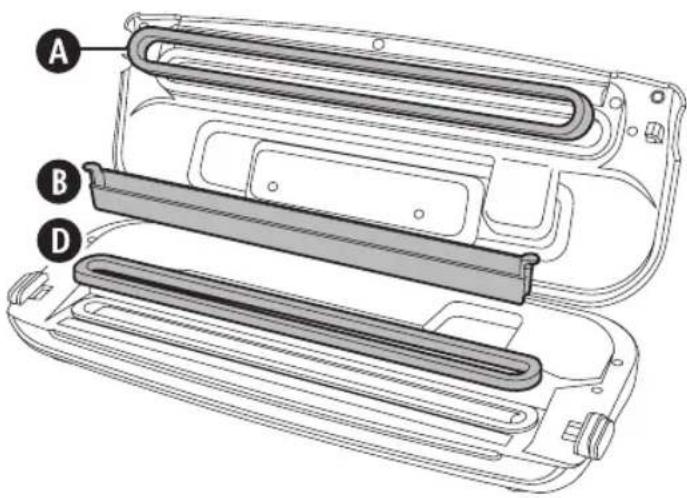

Care and Cleaning Never immerse the unit or power cord and plug in water or any other liquid. Always unplug the unit before cleaning. Wipe over the body of the appliance with a soft, dry cloth. Remove and empty the drip tray

after each use. Wash it in warm soapy water or place it in the top rack of a dishwasher. Dry thoroughly before refitting. Check the upper gasket

and around the drip tray to make sure they are free from food debris. Wipe the gaskets with a warm soapy cloth if needed. The gaskets may be removed for cleaning. Clean them with warm, soapy water. Dry thoroughly then carefully refit. Storage Close the lid to the first ‘click’ until the latches catch but don’t pop out and reveal the green band. This is enough to secure the lid but avoids compressing the gaskets (which may cause incorrect functioning of the unit). Wrap the cable around the cleats underneath the unit. The unit can be stored stood upright as shown. Guarantee Please keep your receipt as this will be required for any claims under this guarantee. This appliance is guaranteed for 2 years after your purchase as described in this document. During this guaranteed period, if in the unlikely event the appliance no longer functions due to a design or manufacturing fault, please take it back to the place of purchase, with your till receipt and a copy of this guarantee. The rights and benefits under this guarantee are additional to your statutory rights, which are not affected by this guarantee. Only Jarden Consumer Solutions (Europe) Limited (“JCS (Europe)”) has the right to change these terms. JCS (Europe) undertakes within the guarantee period to repair or replace the appliance, or any part of appliance found to be not working properly free of charge provided that:

• you promptly notify the place of purchase or JCS (Europe) of the problem; and

• the appliance has not been altered in any way or subjected to damage, misuse, abuse, repair or alteration by a person other than a person authorised by JCS (Europe). Faults that occur through, improper use, damage, abuse, use with incorrect voltage, acts of nature, events beyond the control of JCS (Europe), repair or alteration by a person other than a person authorised by JCS (Europe) or failure to follow instructions for use are not covered by this guarantee. Additionally, normal wear and tear, including, but not limited to, minor discoloration and scratches are not covered by this guarantee. The rights under this guarantee shall only apply to the original purchaser and shall not extend to commercial or communal use. If your appliance includes a country-specific guarantee or warranty insert please refer to the terms and conditions of such guarantee or warranty in place of this guarantee or contact your local authorized dealer for more information. Waste electrical products should not be disposed of with Household waste. Please recycle where facilities exist. E-mail us at enquiriesEurope@jardencs.com for further recycling and WEEE information. Jarden Consumer Solutions (Europe) Limited 5400 Lakeside Cheadle Royal Business Park Cheadle SK8 3GQ UKwww.foodsavereurope.com

comes on The unit has overheated. Wait until the overheat warning light goes out before using. Pump operates for more than 2 minutes without air being removed. Make sure the open end of the bag is inserted into the drip tray. Check to make sure both gaskets are fitted properly. Check to make sure that at least one end of the bag is sealed. Open the unit and check to make sure that there are no foreign objects, dirt or debris on the upper or lower gaskets. Make sure there is enough room at the top of the bag (75 mm) so it will fit into the drip tray with lid closed and latched. Make sure the accessory hose is not attached. Make sure the lid is fully closed ( the green band is showing around the latch and the green power light is on). Bag is not sealing properly. There is too much liquid in the bag. Freeze the bag contents before vacuuming. To prevent wrinkles in the seal, gently stretch the bag flat while inserting the bag into the drip tray and continue to hold bag until vacuum pump starts. Create a second seal above the first seal on the bag to ensure a proper seal when sealing moist foods. Nothing happens when latch is closed and Vacuum and Seal button or Seal Only button is pressed. Make sure the lid is fully closed ( the green band is showing around the latch and the green power light is on). Installation of a plug If the plug is not suitable for the socket outlets in your home, it can be removed and replaced by a plug of the correct type. If you remove the plug it must not be connected to a 13 amp socket and the plug must be disposed of immediately. NOTE: If the terminals in the plug are not marked or if you are unsure or in doubt about the installation of the plug please contact a qualified electrician. If a 13A 3-pin plug is fitted, it must be an ASTA approved plug, conforming to BS1363 standard. Replacement fuses must be BSI or ASTA BS1362 approved. The wires in the mains lead are coloured as such:

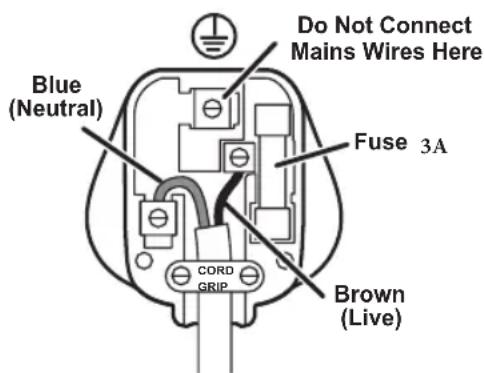

Please note that the colour of these mains wires may not correspond with the colour markings that identify the terminals in your plug. The BROWN coloured wire must be connected to the terminal, which is marked with the letter “L” or is coloured RED. The BLUE coloured wire must be connected to the terminal, which is marked with the letter “N” or is coloured BLACK. Fuse CORD GRIP Blue (Neutral)Brown(Live)Do Not ConnectMains Wires Her

DO NOT CONNECT either of these wires to the earth terminal in the plug. The earth terminal plug is marked with the letter “E”, or with the earth symbol , or coloured GREEN, or GREEN and YELLOW.www.foodsavereurope.com

vFor Customer Service details, please see the website. Pour le service consommateurs, veuillez consultez le site web. Para más información de servicio, por favor visite nuestra página web. www.foodsavereurope.com © 2014 Jarden Consumer Solutions (Europe) Limited. All rights reserved. Imported and distributed by Jarden Consumer Solutions (Europe) Limited, Cheadle Royal Business Park, Cheadle, SK8 3GQ, United Kingdom. Jarden Consumer Solutions (Europe) Limited is a subsidiary of Jarden Corporation (NYSE: JAH). The product supplied may differ slightly from the one illustrated due to continuing product development
