USER MANUAL FM2437 FOODSAVER

Exterior view of a food microwave oven (no signage or text visible on body)

Scan for Quick Start Guide

FM2400 Series/Séries

Contents

Important Safety Instructions....2

Product Features 5

"How To" 7

Make a FoodSaver® Bag

Vacuum Seal a FoodSaver® Bag

Vacuum Seal with FoodSaver® Accessories

Use FoodSave® Preserve & Marinate Containers

Care & Cleaning 11

Storage Guide 12

Guidelines 13

Vacuum Sealing and Food Safety

Food Preparation and Reheating Tips

Sealing Non-Food Items

Troubleshooting 19

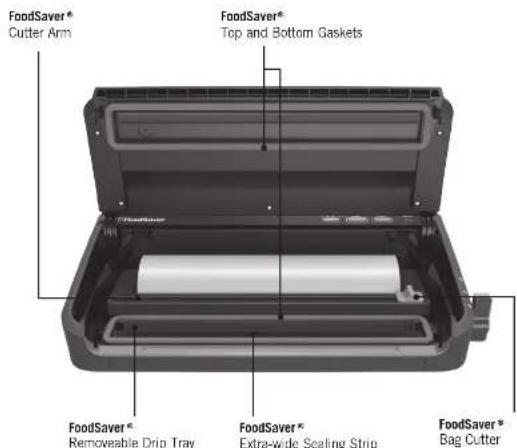

Replacement Parts....21

Warranty 22

Register today at www.foodsaver.com/register to receive exclusive access to FoodSaver deals and discounts!* *Applicable to US residents only

IMPORTANT SAFETY INSTRUCTIONS

For your own safety, always follow these basic precautions when using a FoodSaver® appliance:

1. Read the Owner's Manual carefully for operating instructions. Read all instructions in this manual before use.

2. When using an electrical appliance, basic precautions are required to always be followed, including the following:

Read all instructions before using this appliance.

DANGER - To reduce the risk of electric shock:

1. Do not reach for an appliance that has fallen into water. Unplug immediately from receptacle.

2. Do not use while bathing or in a shower.

3. Do not place or store appliance where it is able to fall or be pulled into a tub or sink. Do not place in or drop into water or other liquid.

4. Always unplug this appliance from the electrical outlet immediately after using.

5. Unplug this appliance before cleaning.

WARNING - To reduce the risk of burns, fire, electric shock:

1. Do not use appliance on wet surfaces or outdoors.

2. To protect against electric shock, do not immerse any part of appliance, power cord or plug in water or other liquid. Unplug from outlet when not in use and before cleaning.

3. To disconnect, unplug power cord from electrical outlet. Do not disconnect by pulling on cord.

4. Do not operate appliance with a damaged power cord or plug. Do not operate appliance if it malfunctions or is in any way, damaged.

For details, contact Consumer Services at number listed below.

1. Use appliance only for its intended use.

2. Closely supervise children when using any electrical appliance. Do not allow appliance to be used as a toy.

3. Caution: A short power cord is provided to reduce risks from entanglement or tripping over a longer cord. An extension cord may be used when marked electrical rating is no less than electrical rating of this appliance.

4. No cords should drape over counter or tabletop, where cords can be tripped over or pulled on unintentionally, especially by children.

Consumer Service: US: 1-877-777-8042 CA: 1-877-804-5383 MX: [phone]

1. Do not place on or near a hot gas or electric burner, or heated oven. Extreme caution must be used when moving products containing hot liquids.

Important Tips

1. Vacuum sealing is NOT a substitute for the heat process of canning. Perishables still need to be refrigerated or frozen.
2. For best results, use only with FoodSaver® Bags, Rolls, Containers and Accessories.
3. During the vacuum sealing process, small amounts of liquids, crumbs or food particles can be inadvertently pulled into the Vacuum Channel. Empty the Drip Tray after each use.
4. Avoid overfilling; always leave at least 3 inches (7.62 cm) of bag material between bag contents and top of bag. This allows room for the bag material to cinch tightly against the food and prevents the bag from pulling out of the Vacuum Channel during the sealing process. Then leave at least one additional inch (2.54 cm) of bag material for each time you plan to reuse bag.
5. Do not create your own side seams for a FoodSave® Bag. These bags are manufactured with a special side seam, which is sealed all the way to the outer edge.
6. To prevent wrinkles in the seal when vacuum sealing bulky items, gently stretch bag flat while inserting bag into Vacuum Channel and continue to hold bag until Vacuum Pump starts.
7. When you are vacuum sealing items with sharp edges (dry spaghetti, silverware, etc.), protect bag from punctures by wrapping item in soft cushioning material, such as a paper towel. You may want to use a FoodSaver® Container or Mason jar instead of a FoodSave® Bag.
8. When using accessories, remember to leave one inch (2.54 cm) of space at top.
9. Pre-freeze fruits and blanch vegetables before vacuum sealing for best results. (See "Guidelines" for food storage safety, pages 13 - 18.)
10. Wait 20 seconds between seals to allow appliance to cool.
11. Never store lid in Operate position as gaskets may become compressed.

SAVE THESE INSTRUCTIONS

HOUSEHOLD USE ONLY

This appliance has a polarized plug (one blade is wider than the other). As a safety feature to reduce the risk of electrical shock, this plug is intended to fit in a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not

fit, contact a qualified electrician. Do not attempt to modify the plug in any way. If the plug fits loosely into the AC outlet or if the AC outlet feels warm do not use that outlet.

POWER CORD INSTRUCTIONS:

A short power-supply cord (or detachable power-supply cord) is provided to reduce risks resulting from becoming entangled in or tripping over a longer cord. Longer detachable power-supply cords or extension cords are available and may be used if care is exercised in their use. If a long detachable power-supply cord or extension cord is used:

a. The marked electrical rating of the detachable power-supply cord or extension cord should be at least as great as the electrical rating of the appliance;
b. If the appliance is of the grounded type, the extension cord should be a grounding type 3-wire cord; and
c. The longer cord should be arranged so that it will not drape over the counter top or table top where it can be pulled on by children or tripped over unintentionally.

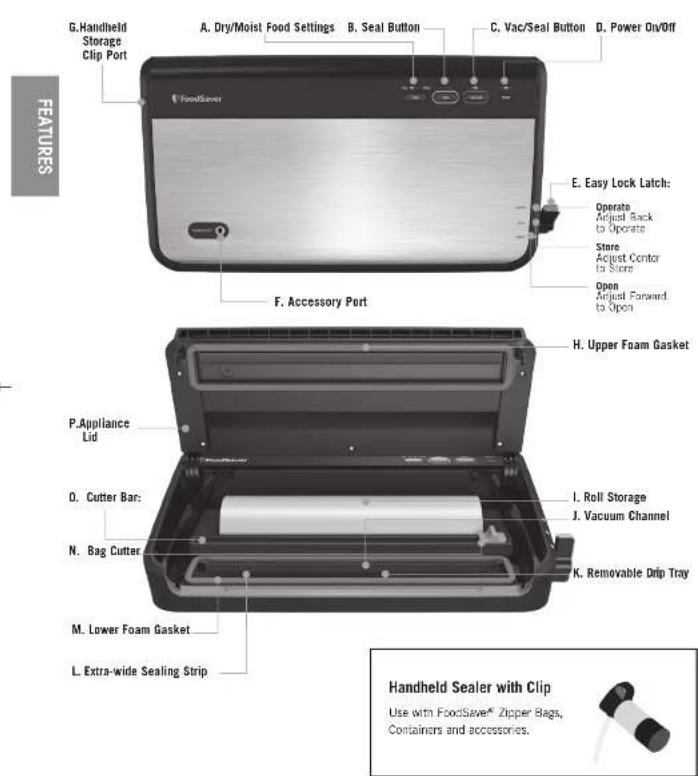

Product Features

G.Handheld Storage Clip Port A. Dry/Moist Food Settings B. Seal Button C. Vac/Seal Button D. Power On/Off E. Easy Lock Latch: Operate Adjust Back to Operate Store Adjust Center to Store Open Adjust Forward to Open F. Accessory Port H. Upper Foam Gasket P. Appliance Lid O. Cutter Bar: J. Roll Storage J. Vacuum Channel N. Bag Cutter K. Removable Drip Tray M. Lower Foam Gasket L. Extra-wide Sealing Strip Handheld Sealer with Clip Use with FoodSave® Zipper Bags, Containers and accessories.

5 US: www.FoodSaver.com | CA: www.FoodSaver.ca | MX: www.oster.com.mx/foodsaver

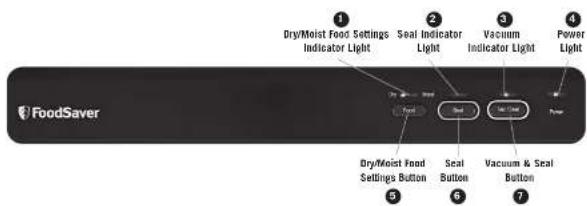

The user-friendly, intuitive control panel makes it easy for you to get the most out of your FoodSaver® System:

1 Dry/Moist Food Settings Indicator Light 2 Seal Indicator Light 3 Vacuum Indicator Light 4 Power Light 5 Dry/Moist Food Settings Button 6 Seal Button 7 Vacuum & Seal Button

① Dry/Moist Food Settings Indicator Light

Shows whether Dry or Moist Food Setting is selected.

② Seal Indicator Light

This light has two uses:

1. Constant light indicates Sealing process is engaged.

2. Flashes to indicate error.

③ Vacuum Indicator Light

Shows Vacuum and Seal process is engaged. Shuts off when the full process is finished.

4 Power Light

Illuminates when the unit is in the Operate position. Shuts off automatically when latch is not

in Operate posit

5 Dry/Moist Food Settings Button

or optimal vacuuming and sealing of moist or juicy foods, press the Dry/Moist Food Settings Button

until the Moist Indicator Light is illuminated. Choose the Dry Food Setting for foods without liquid

Seal Button

This button has three uses:

1. Press to create a seal when making bags from a FoodSaver ^5 Roll.

2. Press to immediately stop the vacuum process and begin sealing the bag.

This prevents crushing delicate items such as bread, cookies and pastries.

Press to create a seal on multilayer film bags (such as a potato chip bag)

o keep food sealed airtight.

7 Vacuum & Seal Button

This button has two uses:
1. Press to vacuum seal and seal food airtight. Appliance shuts off automatically.
2. Press to pause vacuum process at any point.

Consumer Service: US: 1-877-777-8042 CA: 1-877-804-5383 MX: [phone]

How to...

1. Make a FoodSaver® Bag

1. Open Appliance Lid (P) and place roll into Roll Storage.
2. Lift up Roll Cutter Bar (0) and place bag material beneath the Cutter Bar. Pull out enough bag material to hold item being vacuumed sealed, plus 3 inches (7.62 centimeters). Lower the Roll Cutter Bar and slide Bag Cutter (N) across Cutter Bar.
3. Move Easy Lock Latch (E) to the Open position. Open Appliance Lid (P). Insert one end of bag material across Sealing Strip (L).
4. Close lid (P) and turn Easy Lock Latch (E) to Operate position.
5. Press Seal button (B).
6. When Seal Indicator Light turns off, sealing is complete. Turn latch (E) to Open position, lift lid and remove bag.
   Now you are ready to vacuum seal with your new bag (see next page).

Place Roll into Roll Holder

Place Bag on Sealing Strip

Close and turn Easy Lock Latch to Operate position

Press Seal Button

2. Vacuum Seal a FoodSaver® Bag

1. Place item(s) in bag, allowing at least 3 inches (7.62 cm) of space between bag contents and top of bag.
2. Open Appliance Lid (P) and place open end of bag into Vacuum Channel (Drip Tray).
3. Close lid (P) and turn Easy Lock Latch (E) to Operate position.
4. Press Vacuum & Seal Button (C) to begin vacuum and sealing process. Motor will continue to run until bag is fully vacuumed, then will automatically seal.
5. When Seal Indicator Light turns off, turn Latch (E) to Open position, lift lid and remove bag, Refrigerate, freeze or store as needed. (See "Guidelines" for food storage safety tips on pg 13.)

NOTE: Let appliance cool down for 20 seconds after each use. Always store appliance with the Easy Lock Latch (E) in the center Store position.

Important Tips:

To minimize waste do not insert too much. Only insert bag over the edge of the removable drip tray.

Place Bag in Vacuum Channel

Dose and Latch Ltd

Press Vacuum & Seal Button

7 US: www.FoodSaver.com | CA: www.FoodSaver.ca | MX: www.oster.com.mx/foodsaver

Consumer Service: US: 1-877-777-8042 CA: 1-877-804-5383 MX: [phone]

3. Vacuum Seal with FoodSaver® Accessories

Installing Handheld Sealer:

1. Remove the plastic plug on the left side of the appliance by lifting it up from the side with hand. If necessary, use a small dull object to pop it up by pressing down and up on side. Save plug only if you do not want to clip the handheld into the side of appliance.

2. Insert Chamber Clip into the hole until it clicks into place.

For Zipper Bags:

1. Prepare zipper bags according to FoodSave® Accessory Guidelines, which are included with accessory purchases. For zipper bags, make sure not to put any food under the valve and press zipper closed with finger while bag is lying down on a flat surface.
2. Turn Latch to Operate position.
3. Insert one end of Accessory Hose into Accessory Port on Appliance. Place Handheld Sealer on zipper bag valve.
4. Press Vacuum & Seal Button.

Zipper Bags are safe for pantry and fridge use only.

For Jar Sealers & Bottle Stoppers:

1. Prepare accessory according to FoodSave® Accessory Guidelines, which are included with accessory purchases.
2. Turn Latch to Operate position.
3. Insert one end of Accessory Hose Into Accessory Port on Appliance. Disassemble Handheld Sealer to remove clear bottom portion from top handle. Insert tip into port on accessory.
4. Press Vacuum & Seal Button.

NOTE: FoodSaver ^® Jar Sealers are for use with Ball ^® and Kerr ^® brand Mason jars only.

Important: Do NOT use screw bands when vacuum sealing jars. To open, wedge spoon between Mason jar lid and highest part of threaded rim. Twist spoon gently to release vacuum.

FoodSaver® Bottle Stoppers: To release vacuum and open, twist and pull up on Bottle Stopper.

US: www.FoodSaver.com | CA: www.FoodSaver.ca | MX: www.oster.com.mx/foodsaver

4. Use FoodSaver® Preserve & Marinate Containers

To Vacuum Seal:

1. Prepare FoodSave ^® Preserve & Marinate Container according to Guidelines, which are included with container purchase.
2. Turn Latch to Operate position.
3. Insert one end of Accessory Hose into Accessory Port on Appliance. Place Handheld Sealer on container valve.
4. Press Vacuum & Seal Button.

To release vacuum and open, turn knob on lid to Open.

Consumer Service: US: 1-877-777-8042 CA: 1-877-804-5383 MX: [phone]

Care & Cleaning

of your Vacuum Sealer

To Clean Appliance:

Remove Power Cord from electrical outlet. Do not immerse in liquid. Check Gaskets and around Drip Tray to make sure they are free from food materials. Wipe off Gasket with warm soapy cloth if needed. Upper and Lower Gaskets may be removed for cleaning. Clean with warm, soapy water and allow gaskets to dry before reinserting in machine.

The Removable Drip Tray makes cleanup easy when small amounts of liquids are pulled into the Vacuum Channel during vacuum process. Empty Drip Tray after each use. Wash in warm soapy water or place on top rack of dishwasher. Check for food residues in Drip Tray slot. Clean if needed. Dry thoroughly before re-inserting into the appliance.

Handheld Sealer Reservoir:

Empty Reservoir after each use. Wash in warm soapy water. Air dry before replacing.

To remove Reservoir from Handheld Sealer, holding top portion (black upper piece) firmly, pull lower reservoir down and off.

Remove all food around gaskets

Lift Drip Tray out

Storage Guide

of your Vacuum Sealer

To Store Appliance:

Clean unit thoroughly as detailed in 'Care & Cleaning' section.

After the unit has been cleaned and allowed to fully dry, close lid and push Latch into Store (middle) position. This setting will keep the lid closed but prevents any undue pressure from being applied to the internal sealing gaskets of the unit.

Always leave lid latch in Store position when not in use. Never store lid in Operate position as gaskets may become compressed and unit will not vacuum bag.

Push the Latch into the center position to store.

US: www.FoodSaver.com | CA: www.FoodSaver.ca | MX: www.oster.com.mx/foodsaver

Consumer Service: US: 1-877-777-8042 CA: 1-877-804-5383 MX: [phone] 1211

Guidelines

Vacuum Sealing and Food Safety

The vacuum sealing process extends the life of foods by removing most of the air from the sealed container, thereby reducing oxidation, which affects nutritional value, flavor and overall quality. Removing air can also inhibit growth of microorganisms, which can cause problems under certain conditions:

Mold - Easily identified by its fuzzy characteristic. Mold cannot grow in a low oxygen environment; therefore vacuum sealing can slow the growth of mold.

Yeast – Results in fermentation, which can be identified by smell and taste. Yeast needs water, sugar and a moderate temperature to grow. It can also survive with or without air. Slowing the growth of yeast requires refrigeration, while freezing stops it completely.

Bacteria – Results in an unpleasant odor, discoloration and/or soft or slimy texture. Under the right conditions, anaerobic bacteria such as Clostridium Botulinum (the organism that causes Botulism) can grow without air and sometimes cannot be detected by smell or taste. Although it is extremely rare, it can be very dangerous.

To preserve foods safely, it is critical that you maintain low temperatures. You can significantly reduce the growth of microorganisms at temperatures of 40°F (4°C) or below. Freezing at 0°F (-17°C) does not kill microorganisms, but stops them from growing. For long-term storage, always freeze perishable foods that have been vacuum sealed, and keep refrigerated after thawing.

It is important to note that vacuum sealing is NOT a substitute for canning and it cannot reverse the deterioration of foods. It can only slow down the changes in quality. It is difficult to predict how long foods will retain their top-quality flavor, appearance or texture because it depends on age and condition of the food on the day it was vacuum sealed.

IMPORTANT:

Vacuum sealing is NOT a substitute for refrigeration or freezing.

Any perishable foods that require refrigeration must still be refrigerated or frozen after vacuum sealing.

Food Preparation & Reheating Tips

Thawing and Reheating Vacuum-Sealed Foods

Always thaw foods in either refrigerator or microwave — do not thaw perishable foods at room temperature.

To reheat foods in a microwave in a FoodSaver® Bag, always cut corner of the bag before placing it on a microwave-safe dish. However, to avoid hot spots, do not reheat bone-in meat or greasy foods in microwave within a FoodSaver® Bag. You can also reheat foods in FoodSaver® Bags by placing them in water at a low simmer below 170°F (75°C).

Preparation Guidelines for Meat and Fish:

For best results, pre-freeze meat and fish for 1-2 hours before vacuum sealing in a FoodSaver® Bag. This helps retain the juice and shape, and guarantees a better seal.

If it's not possible to pre-freeze, place a folded paper towel between meat or fish and top of bag, but below seal area. Leave paper towel in bag to absorb excess moisture and juices during vacuum sealing process.

NOTE: Beef may appear darker after vacuum sealing due to the removal of oxygen. This is not an indication of spoilage.

Preparation Guidelines for Hard Cheeses:

To keep cheese fresh, vacuum seal it after each use. Make your FoodSaver® Bag extra long, allowing one inch (2.54 cm) of bag material for each time you plan to open and reseal in addition to the three inches (7.62 cm) of extra space you normally leave between contents and seal edge. Simply cut sealed edge and remove cheese. When you're ready to reseal the cheese, just drop it in bag and reseal.

IMPORTANT:

Due to the risk of anaerobic bacteria, soft cheeses should never be vacuum sealed.

US: www.FoodSaver.com | CA: www.FoodSaver.ca | MX: www.oster.com.mx/foodsaver

Consumer Service: US: 1-877-777-8042 CA: 1-877-804-5383 MX: [phone] 1413

Food Preparation & Reheating Tips

Preparation Guidelines for Vegetables:

Vegetables need to be blanched before vacuum sealing. This process stops the enzyme action that could lead to loss of flavor, color and texture.

To blanch vegetables, place them in boiling water or in the microwave until they are cooked, but still crisp. Blanching times range from 1 to 2 minutes for leafy greens and peas; 3 to 4 minutes for snap peas, sliced zucchini or broccoli; 5 minutes for carrots; and 7 to 11 minutes for corn on the cob. After blanching, immerse vegetables in cold water to stop the cooking process. Finally, dry vegetables on a towel before vacuum sealing.

NOTE: All vegetables (including broccoli, brussels sprouts, cabbage, cauliflower, kale, turnips) naturally emit gases during storage. Therefore, after blanching, they must be stored in freezer only.

When freezing vegetables, it is best to pre-freeze them for 1-2 hours or until solidly frozen. To freeze vegetables in individual servings, first place on a baking sheet and spread them out so they are not touching. This prevents them from freezing together in a block. Once they are frozen, remove from baking sheet and vacuum seal vegetables in a FoodSaver® Bag. After they have been vacuum sealed, return them to the freezer.

IMPORTANT:

Due to the risk of anaerobic bacteria, fresh mushrooms, onions and garlic should never be vacuum sealed.

Preparation Guidelines for Leafy Vegetables:

For best results, use a FoodSaver® Container to store leafy vegetables. First wash the vegetables, and then dry with a towel or salad spinner. After they are dried, put them in a container and vacuum seal as normal. Store in refrigerator.

Food Preparation & Reheating Tips

Preparation Guidelines for Fruits:

When freezing soft fruits or berries, it is best to pre-freeze them for 1-2 hours or until solidly frozen. To freeze fruit in individual servings, first place on a baking sheet and spread them out so they are not touching. This prevents them from freezing together in a block. Once they are frozen, remove from baking sheet and vacuum seal fruit in a FoodSaver® Bag. After they have been vacuum scaled, return them to the freezer.

You can vacuum seal portions for baking or in your favorite combinations for easy fruit salad all year round. If storing in the refrigerator, we recommend using a FoodSaver® Container.

IMPORTANT:

When vacuum sealing Apples, they must be sliced, and put a small bit of lemon juice on the slices to prevent them from browning.

Because of their natural ripening. Bananas may actually decay faster under a vacuum seal.

Preparation Guidelines for Baked Goods:

To vacuum seal soft or airy baked goods, we recommend using a FoodSaver® Container so they will hold their shape. If using a bag, pre-freeze for 1-2 hours or until solidly frozen. To save time, make cookie dough, pie shells, whole pies, or mix dry ingredients in advance and vacuum seal for later use.

Preparation Guidelines for Coffee and Powdery Foods:

To prevent food particles from being drawn into vacuum pump, place a coffee filter or paper towel at top of bag or container before vacuum sealing. You can also place the food in its original bag inside a FoodSaver® Bag to vacuum seal.

US: www.FoodSaver.com | CA: www.FoodSaver.ca | MX: www.oster.com.mx/foodsaver

Consumer Service: US: 1-877-777-8042 CA: 1-877-804-5383 MX: [phone] 1615

Food Preparation & Reheating Tips

Preparation Guidelines for Liquids:

Before you vacuum seal liquids such as soup stock, pre-freeze in a casserole dish, loaf pan or ice cube tray until solid. Remove frozen liquid from pan and vacuum seal in a FoodSaver® Bag. You can stack these "frozen bricks" in your freezer. When you're ready to use, just cut corner of bag and place in a dish in microwave or drop into water at a low simmer, below 170°F (75°C). To vacuum seal non-carbonated bottled liquids, you can use a FoodSaver® Bottle Stopper with the original container. Remember to leave at least one inch (2.54 cm) of room between contents and bottom of Bottle Stopper. You can reseal bottles after each use.

Preparation Guidelines for Make-ahead Meals and Leftovers:

Efficiently store your make-ahead meals and leftovers in the stackable, lightweight FoodSaver® Containers. These convenient FoodSaver® Containers are nestable, crack and shatter resistant, dishwasher safe, and bases are microwave safe for reheating only.

Preparation Guidelines for Snack Foods:

Your snack foods will maintain their freshness longer when you vacuum seal them. For best results, use a FoodSaver® Container for crushable items like crackers.

Vacuum Sealing Non-Food Items

The FoodSaver® Vacuum Sealing System also protects non-food items from oxidation, corrosion and moisture. Simply follow directions to vacuum seal items using FoodSaver® Bags, Containers and Accessories.

Silverware

To vacuum seal silver, wrap fork tines in soft cushioning material, such as a paper towel, to avoid puncturing bag, and seal as normal. Your silver will be clean, fresh and untarnished right when you need it for your next dinner gathering.

Camping

Your FoodSaver* Bags are ideal for outdoor excursions. For camping and hiking, keep your matches, maps and food dry and compact.

Water

To have fresh water for drinking, simply fill a FoodSaver® Bag with ice, seal it, and when needed, let the ice pack melt. You can trim the corner off the bag to make a spout for drinking or pouring.

Boating

If you're going sailing or boating, you can vacuum seal your food, extra batteries, memory cards, cash, identification cards, boating license and a dry change of clothes. Just remember to bring scissors or a knife to open the bags when you need them!

Emergency

To keep emergency kits safe and dry, vacuum seal flares, batteries, flashlights, matches, candles, first aid kits, extra food and other necessities. Your emergency items will stay dry and organized in your home, car, boat or RV.

US: www.FoodSaver.com | CA: www.FoodSaver.ca | MX: www.oster.com.mx/foodsaver

Consumer Service: US: 1-877-777-8042 CA: 1-877-804-5383 MX: [phone] 1817

Troubleshooting

Problem Solution

Red Seal LED flashing	Unit is overheated. Always allow 20 seconds between seals. Under heavy usage, appliance will shut off automatically and Red Light will flash. Wait for 20 minutes for unit to cool off.Always wait 20 seconds between seals.Latch has been left in Operate position: Gaskets may be compressed.Turn Latch to Open or Store position and allow 10-20 minutes for Gaskets to expand.Vacuum pump running more than 120 seconds. Under heavy usage, appliance will shut off automatically and Red Light will flash. See next section 'Vacuum Pump is running, but bag is not evacuating air'.
Vacuum Pump is running, but bag is not evacuating air	If making a bag from a Roll, make sure one end of bag is sealed.(See "How to Make a FoodSaver® Bag" on pg 7.)Adjust the bag and try again. Make sure the open end of the bag is down inside the Drip Tray.Check for wrinkles in bag along Sealing Strip. To prevent wrinkles in the seal, gently stretch bag flat while inserting bag into Drip Tray.Open unit and make sure Gaskets are inserted properly and there are no foreign objects, dirt or debris on the Upper or Lower Gaskets. (See "Care & Cleaning" on pg 11.)If Latch has been left in Operate position during storage: Gaskets may be compressed. Turn Latch to Open or Store position and allow 10 to 20 minutes for Gaskets to expand.Make sure the accessory hose is not attached to accessory port.Make sure the lid is latched down all the way. If the Latch does not catch the lid and bring it down, there will be a leak between the Gaskets.
Gasket is loose or has a tear	Take out the Gasket, clean it and re-insert the Gasket into the Gasket Channel. (See "Care & Cleaning" on pg 11.)Contact consumer services at the number or website listed below.
Bag is not sealing properly	Too much liquid in bag, freeze before vacuuming.Check for food debris around seal area. If present, take out the Gasket, clean it and re-insert the Gasket into the Vacuum Channel. (See "Care & Cleaning" on pg 11.)Bag has wrinkles: To prevent wrinkles in the seal, gently stretch bag flat while inserting bag into Vacuum Channel.
No lights on the control panel	Make sure unit is plugged in.Make sure wall outlet is functional.Make sure lid is all the way down, and the Latch is in the Operate position.

Troubleshooting

Problem Solution

Nothing happens when Latch is closed and Button is pressed	Make sure unit is plugged in.Make sure wall outlet is functional.Open Latch, make sure lid is all the way down, re-latch lid.
Cannot insert bag into machine	Make sure there is enough bag material to reach center of Drip Tray. Always allow three inches (7.62 mm) of extra space to allow the bag to seal tightly around food contents.Gently stretch bag flat while inserting. Insert bag curled down into Drip Tray.
Air was removed from the bag, but now air has re-entered	Examine the seal. A wrinkle along the seal may cause air to re-enter the bag. To prevent wrinkles in the seal, gently stretch bag flat while inserting bag into Drip Tray.Sometimes moisture or food material (such as juices, grease, crumbs, powders, etc.) along seal prevents bag from sealing properly. Cut bag open, wipe top inside of bag and re-scal.Sharp food items may have punctured bag. Use a new bag if there is a hole. Cover sharp food items with a soft cushioning material, such as a paper towel, and re-seal.Fermentation or the release of natural gases from inside the foods may have occurred. When this happens, food may have begun to spoil and should be discarded.Faulty bag. Bag could be punctured. Try another bag.
Bag melts	Sealing Strip may have become too hot. Always wait at least 20 seconds for appliance to cool down before you vacuum seal another item.Use FoodSave® brand bags. Our FoodSaver® Bags and Rolls are specially designed for FoodSaver® units.
Container does not vacuum	The FoodSave® Container Lid must be correctly aligned with the Container opening. (See "Owner's Manual" provided with accessory.)Assure the green end of the accessory cable marked 'To Sealer' is pushed into the unit until you hear it "click".Make sure Container Lid is closed securely on all 4 sides of the Container.Make sure rubber Gasket on inside of Lid is free from food residues.Examine Container rim for cracks or scratches and make sure Container valve is clean.
If you need further assistance:	Contact consumer services at the number below or visit the website and click the 'Support' tab.

US: www.FoodSaver.com | CA: www.FoodSaver.ca | MX: www.oster.com.mx/foodsaver

Consumer Service: US: 1-877-777-8042 CA: 1-877-804-5383 MX: [phone] 2019

Replacement Parts

FoodSaver* Cutter Arm FoodSaver* Top and Bottom Gaskets FoodSaver* Removable Drip Tray FoodSaver* Extra-wide Sealing Strip FoodSaver* Bag Cutter

For replacement parts, please visit the website or call consumer services.
US: www.FoodSaver.com | CA: www.FoodSaver.ca | MX: www.oster.com.mx/foodsaver

5-Year Limited Warranty

Sunbeam Products, Inc. or if in Canada, Newell Brands Canada ULC (collectively "Sunbeam") warrants that for a period of five (5) years from the date of initial retail purchase, this product will be free from defects in material and workmanship, when used in accordance with the instructions provided.

Sunbeam, at its option, will repair or replace this product or any component of the product found to be defective during the warranty period.

Replacement will be made with a new or remanufactured product or component. If the product is no longer available, replacement may be made with a similar product of equal or greater value. This is your exclusive warranty. Do NOT attempt to repair or adjust any electrical or mechanical functions on this product. Doing so will void this warranty.

This warranty is valid for the original retail purchaser from the date of initial retail purchase and is not transferable. Keep the original sales receipt. Proof of purchase is required to obtain warranty performance. Sunbeam dealers, service centers, or retail stores selling Sunbeam products do not have the right to alter, modify or any way change the terms and conditions of this warranty.

This warranty does not cover normal wear of parts or damage resulting from any of the following: negligent use or misuse of the product, use on improper voltage or current, use contrary to the operating instructions, disassembly, repair or alteration by anyone other than Sunbeam or an authorized Sunbeam service center. Further, the warranty does not cover: Acts of God, such as fire, flood, hurricanes and tornadoes.

What are the limits on Sunbeam's Liability?

Sunbeam shall not be liable for any incidental or consequential damages caused by the breach of any express, implied or statutory warranty or condition. Except to the extent prohibited by applicable law, any implied warranty or condition of merchantability or fitness for a particular purpose is limited in duration to the duration of the above warranty. Sunbeam disclaims all other warranties, conditions or representations, express, implied, statutory or otherwise. Sunbeam shall not be liable for any damages of any kind resulting from the purchase, use or misuse of, or inability to use the product including incidental, special, consequential or similar damages or loss of profits, or for any breach of contract, fundamental or otherwise, or for any claim brought against purchaser by any other party. Some provinces, states or jurisdictions do not allow the exclusion or limitation of incidental or consequential damages or limitations on how long an implied warranty lasts, so the above limitations or exclusion may not apply to you. This warranty gives you specific legal rights, and you may also have other rights that vary from province to province, state to state or jurisdiction to jurisdiction.

How to Obtain Warranty Service

In the U.S.A.

If you have any question regarding this warranty or would like to obtain warranty service, please call 1,877,777.8042 and a convenient service center address will be provided to you,

In Canada

If you have any question regarding this warranty or would like to obtain warranty service, please call 1.877.804.5383 and a convenient service center address will be provided to you.

In the U.S.A., this warranty is offered by Sunbeam Products, Inc. located in Boca Raton, Florida 33431. In Canada, this warranty is offered by Newell Brands Canada ULC, located at 20 B Hereford Street, Brampton, Ontario L6Y OM1. If you have any other problem or claim in connection with this product, please write our Consumer Service Department.

PLEASE DO NOT RETURN THIS PRODUCT TO ANY OF THESE ADDRESSES OR TO THE PLACE OF PURCHASE.

For inquiries regarding recycling and proper disposal of this product, please contact your local waste management facility.

Consumer Service: US: 1-877-777-8042 CA: 1-877-804-5383 MX: [phone] 2221

Table des matières

Mesures de protection importantes .... 24

US: www.FoodSaver.com | CA: www.FoodSaver.ca | MX: www.oster.com.mx/foodsaver

CONSIGNES RELATIVES AU CÂBLE D'ALIMENTATION :

US: www.FoodSaver.com | CA: www.FoodSaver.ca | MX: www.oster.com.mx/foodsaver

US: www.FoodSaver.com | CA: www.FoodSaver.ca | MX: www.oster.com.mx/foodsaver

Comment :

1. Faire un sac FoodSaver ^MD

US: www.FoodSaver.com | CA: www.FoodSaver.ca | MX: www.oster.com.mx/foodsaver

US: www.FoodSaver.com | CA: www.FoodSaver.ca | MX: www.oster.com.mx/foodsaver

US: www.FoodSaver.com | CA: www.FoodSaver.ca | MX: www.oster.com.mx/foodsaver

US: www.FoodSaver.com | CA: www.FoodSaver.ca | MX: www.oster.com.mx/foodsaver

US: www.FoodSaver.com | CA: www.FoodSaver.ca | MX: www.oster.com.mx/foodsaver

US: www.FoodSaver.com | CA: www.FoodSaver.ca | MX: www.oster.com.mx/foodsaver

US: www.FoodSaver.com | CA: www.FoodSaver.ca | MX: www.oster.com.mx/foodsaver

US: www.FoodSaver.com | CA: www.FoodSaver.ca | MX: www.oster.com.mx/foodsaver

US: www.FoodSaver.com | CA: www.FoodSaver.ca | MX: www.oster.com.mx/foodsaver

US: www.FoodSaver.com | CA: www.FoodSaver.ca | MX: www.oster.com.mx/foodsaver

US: www.FoodSaver.com | CA: www.FoodSaver.ca | MX: www.oster.com.mx/foodsaver

Servicio al Cliente: US: 1-877-777-8042 CA: 1-877-804-5383 MX: [phone]

US: www.FoodSaver.com | CA: www.FoodSaver.ca | MX: www.oster.com.mx/foodsaver

Servicio al Cliente: US: 1-877-777-8042 CA: 1-877-804-5383 MX: [phone]

Cuidado

US: www.FoodSaver.com | CA: www.FoodSaver.ca | MX: www.oster.com.mx/foodsaver

Servicio al Cliente: US: 1-877-777-8042 CA: 1-877-804-5383 MX: [phone]

5857

Indicaciones

US: www.FoodSaver.com | CA: www.FoodSaver.ca | MX: www.oster.com.mx/foodsaver

Servicio al Cliente: US: 1-877-777-8042 CA: 1-877-804-5383 MX: [phone]

6059

US: www.FoodSaver.com | CA: www.FoodSaver.ca | MX: www.oster.com.mx/foodsaver

Servicio al Cliente: US: 1-877-777-8042 CA: 1-877-804-5383 MX: [phone]

6261

US: www.FoodSaver.com | CA: www.FoodSaver.ca | MX: www.oster.com.mx/foodsaver

Servicio al Cliente: US: 1-877-777-8042 CA: 1-877-804-5383 MX: [phone]

6463

US: www.FoodSaver.com | CA: www.FoodSaver.ca | MX: www.oster.com.mx/foodsaver

US: www.FoodSaver.com | CA: www.FoodSaver.ca | MX: www.oster.com.mx/foodsaver

Servicio al Cliente: US: 1-877-777-8042 CA: 1-877-804-5383 MX: [phone]

7069

FoodSaver®

THE #1 VACUUM SEALING SYSTEM

Registering your appliance is quick and easy at foodsaver.com/register. Applicable to US residents only.

For important safety information, helpful tips on vacuum sealing, and to order FoodSaver® bags, rolls, and accessories, call consumer services or visit the website below.

US: www.FoodSaver.com CA: www.FoodSaver.ca MX: www.oster.com.mx/foodsaver

©2022 Sunbeam Products, Inc. Distributed by Sunbeam Products, Inc. 2381 NW Executive Center Dr. Boca Raton, FL 33431, U.S.A. Imported into Canada by: Newell Brands, Canada ULC., 20-B Hereford Street, Brampton, Ontario L6Y OM1. Printed in China.

©2022 Sunbeam Products, Inc. Distribué par Sunbeam Products, Ings. 2381 NW Executive Cender Dr. Boca Raton, FL 33431, U.S.A Importé au Canada par : Newell Brands, Canada ULC. 20-B Hereford Street, Brampton (Ontario) L6Y OM1. Imprimé en Chine

©2022 Sunbeam Products, Inc. Distribuido por Sunbeam Products, Inc. 2381 NW Executive Center Dr. Boca Raton, FL 33431, EE. UU. Importado en Canadá por: Newell Brands, Canada ULC., 20-B Hereford Street, Brampton, Ontario L6Y OM1. Impreso en China.

FM2400_22EFSM1_GCDS-LD

PKG0001396646
