USER MANUAL FunRacer MULTIPLEX

Assembly instructions 9

Illustrations

14-15

Replacement parts 16-17

Safety information for MULTIPLEX airplane models

When operating the model, all warning and safety information in the operating instructions must be observed.

The model is NOT A TOY in the conventional sense. If you use your model carefully, it will provide you and your spectators with lots of fun without posing any danger. If you do not operate your model responsibly, this may lead to significant property damage and severe injury. You and you alone are responsible for following the operating instructions and for ensuring the safety guidelines are adhered to.

When setting up the model, operators declare they are familiar with and understand the contents of the operating instructions, particularly regarding safety information, maintenance work, operating restrictions, and deficiencies.

This model may not be operated by children under the age of 14. If minors operate the model under the supervision of a responsible and competent adult pursuant to the law, this person is responsible for adhering to the information in the operating instructions.

THE MODEL AND THE ASSOCIATED ACCESSORIES MUST BE KEPT OUT OF REACH OF CHILDREN UNDER 3 YEARS OF AGE! CHILDREN UNDER 3 COULD SWALLOW REMOVABLE SMALL PARTS OF THE MODEL. RISK OF SUFFOCATION!

Multiplex Modellsport GmbH & Co. KG is not liable for loss, damage and consequential damage of any kind caused by incorrect operation, improper use or misuse of this product, including the accessories used along with it.

Proper use

The model may only be used in the hobby sector. No other type of use is permitted. To operate the model, only the accessories recommended by Multiplex may be used. The recommended components have been tested and adjusted for safe functioning together with the model. If other components are used or the model is modified, all claims against the manufacturer or retailer are void.

In order to minimize the risk when operating the model, observe the following points in particular:

• The model is controlled via a remote control. No remote control is safe from radio interference. Interference may lead to a loss of control of the model. Therefore, always ensure large safety distances in all directions when operating the model. As soon as even the smallest indication of radio interference presents itself, operation of the model must be halted immediately!

• The model may only be put into operation after a complete function and range test has been successfully carried out as per the instructions for the remote control.

• The model may only be flown in good visibility. Do not fly in poor light or in the direction of the sun in order to avoid glare.

• The model may not be operated under the influence of alcohol or other intoxicants. The same applies for medicines that impair perception and responsiveness.

• Only fly the model in wind and weather conditions in which you can safely control it. Even with light wind, take into account that turbulence may build up on objects and have an effect on the model.

• Never fly in places where this would pose a danger to others, i.e. in residential areas, near power lines, roads, and railroad tracks.
• Never direct the model at people or animals! Avoid unnecessary risks and alert other pilots to potential hazards. Always fly in a manner that ensures neither you nor others are exposed to danger - even many years of accident-free flying experience are no guarantee for the next minute of flying time.

Residual risks

Even if the model is operated in accordance with the regulations and observing all safety aspects, there is always a residual risk.

Third-party liability insurance (powered model airplane) is therefore mandatory. If you are a member of a group or association, you might be able to take out the appropriate insurance there.

Ensure models and the remote control are properly maintained and are in good condition at all times.

Due to the construction and design of the model, the following dangers may arise in particular:

Injuries caused by the propeller: As soon as the battery is connected, the area around the propeller must be kept clear. Be aware that objects in front of the propeller may be sucked in and objects behind the propeller may be blown away. Always align the model ensuring it cannot move in the direction of other people if the motor starts up unintentionally. When performing adjustments for which the motor is running or may start up, the model must always be securely held in place by a helper.

• Crashes caused by control errors: Even the most experienced pilots can make mistakes. For this reason, only fly in a safe environment and at authorized model airplane flying fields.
• Crashes caused by technical failures, undetected damage from transportation or pre-existing damage: The model must be carefully inspected before each flight. Bear in mind that technical or material failures may occur at any time. Therefore, only operate the model in a safe environment.
• Adhere to operating limits: Excessively harsh flying weakens the structure of the model and may lead to technical and material failures as well as crashes immediately or, due to 'insidious' consequential damage, in later flights.
• Risk of fire due to malfunction of the electronics: Batteries must be stored safely. The safety information of the electronic components in the model, the battery, and the charging device must be observed.

Safety information for MULTIPLEX airplane models

The electronics must be protected from water. The controller and the batteries must be sufficiently cooled.

The instructions of our products may not be reproduced and/or published - not even in part - in print or electronic media without the express (written) permission of Multiplex Modellsport GmbH & Co. KG.

Safety information for MULTIPLEX construction kits

Familiarize yourself with the construction kit!

MULTIPLEX model kits are subjected to constant material inspection during production. We hope that you are satisfied with the contents of the kit. We nevertheless ask that you check all parts (according to the parts list) before use, as used parts cannot be exchanged. If a part is not OK, we will be happy to fix or replace it after verifying this. Please send the part with sufficient postage to our Service department. Be sure to include a short description of the fault along with the purchase receipt. We are continuously working on further developing the technology of our models. We reserve the right to make changes to the contents of the kit in terms of shape, dimension, technology, material, and equipment at any time and without warning. Please understand that no claims can be derived from specifications and illustrations in these instructions.

Caution!

Remote-controlled models, particularly airplane models, are not toys in the conventional sense. Their construction and operation requires technical understanding, a minimum level of artisan skills, discipline, and safety-awareness. Errors and negligences during building and operation may result in personal injury or property damage. As the manufacturer has no influence on proper assembly, maintenance, and operation, we explicitly refer to these dangers.

Warning:

Like any airplane, the model has static limitations! Nosedives and reckless maneuvers may result in damage to the model. Please note: In such cases, there is no replacement. Approach the limitations with caution. The model is fitted with the propeller recommended by us but can only withstand the loads if it is built flawlessly and is undamaged.

Crooked - does not really exist. If individual parts are bent during transit, they can be straightened again. Here, ELAPOR® behaves like metal. If you overbend the material slightly, it springs back minimally and retains its shape. The material of course has its limits - so don't overdo it!

Crooked - does indeed exist! If you want to paint your model, you do not need any primer for pretreatment when using the EC colors. Matt paints result in the best look. Under no circumstances may the paint coats be too thick or applied unevenly, otherwise the model will go out of shape and will be crooked, heavy or even unusable!

This model is not made of Styrofoam™! Therefore, adhesions using white glue, polyurethane or epoxy are not possible. These glues only stick superficially and may peel off in severe cases. Only use cyanoacrylate/ superglue of medium viscosity, preferably Zacki-ELAPOR® # 85 2727, the superglue optimized and adapted for ELAPOR® particle foam. When using Zacki-ELAPOR®, you can largely do without kickers or activators. If, however, you use other adhesives, and are unable to do without kickers/ activators, only spray outdoors for health reasons. Take care when working with all cyanoacrylate adhesives. These adhesives sometimes harden in seconds, so do not bring your fingers or other body parts into contact with them. To protect your eyes, be sure to wear protective goggles! Keep away from children! In some places, hot glue may also be used. If applicable, this is indicated in the instructions!

Working with Zacki ELAPOR

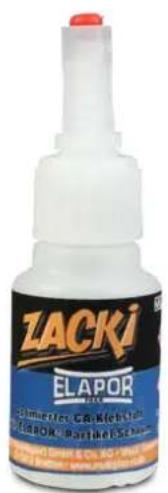

Zacki ELAPOR® was developed specially for adhesion on our foam models made of ELAPOR®. In order to design the adhesion as optimally as possible, the following points should be taken into consideration:

• Avoid the use of activators. This causes the bonding to be significantly weakened. Especially for large-scale adhesion, we recommend allowing 24 hours for the parts to dry.
• Activators must only be used for point fixing. Only spray a little activator on one side. Allow the activator to flash off for approx. 30 seconds.
• For optimal bonding, sand down the surface using sandpaper (grain size 320).

852727

Accessories and tools

Required accessories

• 1x Zacki Elapor® 20g # 85 2727 or
• 1x Zacki Elapor® super liquid 10g # 85 2728
• 1x ROXXY EVO Lipo 3-2600M 40C # 316656
• 1x receiver RX-6-DR light M-LINK 2.4 GHz #55809

The following tools are required to assemble the model:

• Activator spray for CA adhesive
• Small cross-tip screwdriver
• Hex wrench 1.5
  10mm open-ended wrench

Optional accessories

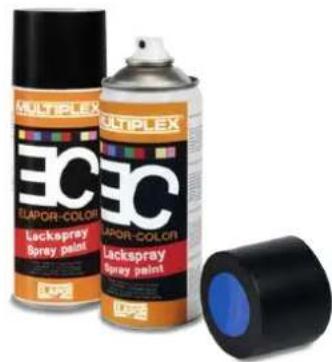

EC-ELAPOR-COLOR

Red #602800

Blue #602801

Yellow #602802

Orange #602803

Green #602804

Black #602805

Gray #602806

Luminous red # 60 2807

Blue metallic #602808

Silver #602809

Set contents

RR FunRacer

ELAPOR® model, almost completely factory-built
including ROXXY BL C35-42-1160kV outrunner
Multiplex ROXXY BL-Control 755 S-BEC speed controller
10× 7^ propeller
- 4 x MS-12016 MG Digi servos
decals applied

RR FunRacer White Edition

ELAPOR model, 98% factory-built
- including ROXXY BL C35-42-1160kV outrunner
Multiplex ROXXY BL-Control 755 S-BEC speed controller
- 10 × 7'' propeller
4 x MS-12016 MG Digi servos
- decal sheet

List of components FunRacer

Serial no.	Qty. Name Material Dimensions
1 1 Assembly instructions Paper DIN A4
2 1 Complaints form for models	Paper DIN A4
3 1 ROXXY BL-Control 755 S-BEC instructions	Paper DIN A4
4	4	Decal sheet "84"	Printed adhesive film	Finished components
5 1 Fuselage fully assembled	Elapor	Finished component
6 1 Wing fully assembled	Elapor	Finished component
7 1 Elevator fully assembled	Elapor	Finished component
8 1 Canopy fully assembled	Elapor	Finished component
9 1 Rudder filling piece	Elapor	Finished component
10	1	Elevator linkage rod	Metal	1.5x75mm
11	2 Wing screws	Plastic	M5x45
12	3	Mushroom head hook and loop tape	Plastic	25x60mm
13	3	Velour hook and loop tape	Plastic	25x60mm

Assembly instructions

Before assembly

Use the list of components on page 4 and Fig.01 to check the completeness of the components supplied.

We recommend using a soft, clean and flat surface to ensure the model is not damaged during assembly. Always use, unless otherwise specifically stated, Zacki Elapor CA instant adhesive to glue the model.

1. Assembling the wings

Feed the servo cable of the wing 6 through the bottom opening of the fuselage 5 and use the plastic screws 11 to screw the wing to the fuselage. Tighten the screws, ensuring the wing is fixed tightly and does not wobble. The wing must be at a right angle to the fuselage Fig.02+03

2. Assembling the elevator

Push the elevator through the fuselage and align it at a right angle to the fuselage Fig.04+05. Additionally make sure the lengths and are identical Fig.06. On one side, apply a small amount of fluid Zacki adhesive in the gap between the elevator and the fuselage. Let the adhesive dry slightly before gluing the other side; adhesive might otherwise be pressed out of the gap. A little activator spray speeds up the process. If necessary, use a paper towel to remove any excess adhesive Fig.07-08.

Use the remote control to set the elevator servo to the neutral position. Hook the elevator linkage rod into the second hole from the inside in the rudder horn of the elevator servo. Make sure the elevator flap is also in the neutral position and screw the rod to the elevator horn Fig.09

Now use a small amount of Zacki adhesive to glue the rudder filling piece into the rudder Fig.10

3. Assembling the receiver

Insert the servo plugs into the receiver and use the adhesive tape 12 and 13 to secure it in the fuselage Fig.11. The servo plugs are labeled as follows:

1 LH aileron, 2 Elevator, 3 Rudder, 4 Motor, 5 RH aileron

Specification

Wingspan: 920 mm
Overall length: 885 mm
All-up weight: approx. 980 g
Wing area: 19 dm2
Wing loading: 51.5 g/dm2
RC functions: Aileron, elevator, throttle, rudder

4. Preflight check and center of gravity

Caution:

Do not connect the drive battery connector plug / controller until your transmitter is switched on and you are sure the operating element for the motor control is set to 'OFF'.

Always check the model before flying it for the first time. Check the following screw connections before the initial flight:

Rudder horns tight (cross-head screws)

Servo screws tight (cross-head screws)

Linkage rod tight (hex grub screws)

Unscrew the spinner and make sure the driver is fastened properly. Make sure the spinner is running true by rotating the propeller by hand.

Position and secure the battery (3S 2600 mAh 40C) in the model using the hook and loop tape so that the center of gravity is 18mm behind the front CFK strut Fig.12+13

5. Settings

Rudder deflections:

Elevator + / - 7mm50% EXPO

Rudder +/-30mm 50% EXPO

Aileron +/- 15mm 50% EXPO

Mixing:

• Elevator to rudder, with rudder +/-30mm → use 3mm elevator upward mixing (linear)
• Ailerons opposite to the rudder (i.e. with rudder on the right the ailerons move to the left and with rudder on the left the ailerons move to the right)

with rudder + / - 30mm use 3mm aileron mixing (linear)

6. Initial flight

Carry out a range test and make sure all the rudders are running in the correct direction and are in the neutral position.

The model is started at 'half speed' from your hand - always against the wind. If necessary, have an experienced launcher start the model. In this case, there are two options.

Hold the model from the bottom behind the wing. Release the model at a minimum 30^ upward angle. Alternatively, the following method has proved successful during our tests:

Hold the model in the inverted flight attitude and run up to half speed. Release the model in the inverted flight attitude at a 30^ upward angle. When using this start method, do not press the elevator down. Use the aileron slightly and turn the model to the normal flight attitude.

You can watch a demonstration of this method in our FunRacer video.

Derive +/-30mm 50% EXPO

Aileron +15mm 50% EXPO

Mixage :

Article No. Description

1-00619 FunRacer fuselage, orange, excl. servos / motor / speed controller
1-00620 FunRacer wings, orange, excl. servos
1-00621 FunRacer elevator, orange
1-00622 FunRacer canopy, orange
1-00623 FunRacer fuselage, white, excl. servos / motor / speed controller 5
1-00624 FunRacer wings, white, excl. servos
1-00625 FunRacer elevator, white
1-00626 FunRacer canopy, white 8
1-00627 FunRacer decal sheet

Article No.	Description
1-00628	FunRacer small parts set incl. motor mount 10
1-00631	Aluminum motormount FunRacer 11
1-00629	FunRacer spinner, chrome, 67 mm Ø 12
73 3115	10 x 7" propeller, Thin Electric 13
1-00605	MS 12016 MG Digi servo 14
1-00616	ROXXY BL C35-42-1160KV outrunner motor 15
31 3542	ROXXY BL Outrunner 3542 replacement shaft 16
31 8975	ROXXY BL-Control 755 S-BEC speed controller 17
33 2330	Elapor propeller driver 5/6 with M6 hex. Nut 18

Pièces de rechange

Réf. Désignation

Alerón +/15mm 50% EXPO
