USER MANUAL DHBE 27 SLi electronic STIEBEL ELTRON

1.1 Safety instructions 22

1.2 Other symbols in this documentation 22

1.3 Units of measurement 22

2.2 General safety instructions 22

5. Cleaning, care and maintenance 24

7.1 General safety instructions 25

7.2 Instructions, standards and regulations 25

9.2 Water installation 26

9.3 Appliance with adjustable connected load 27

10.2 Completing the installation 29

11. Commissioning 29

11.1 Initial start-up 29

11.2 Recommissioning 30

13.1 Electrical connection from above on unfinished walls 30

13.2 Electrical connection on finished walls 30

13.3 Large conductor cross-section for electrical

connection from below 30

13.4 Connecting a load shedding relay 31

13.5 Water installation on finished walls 31

13.6 Water installation on finished walls with solder/

compression fitting 31

13.7 Water installation on finished walls; fitting the

13.8 Fitting the base part of the back panel with threaded

fittings on finished walls 32

13.9 Wall mounting bracket when replacing an appliance 32

13.10 Installation with offset tiles 32

13.11 Pivoting appliance cover 32

13.12 Temperature limit / Anti-scalding protection 33

SPECIAL INFORMATION - The appliance may be used by children aged 8 and older and persons with reduced physical, sensory or mental capabilities or a lack of ex- perience and know-how, provided that they are supervised or they have been instructed on how to use the appliance safely and have understood the resulting risks. Children must never play with the appliance. Children must never clean the ap- pliance or perform user maintenance unless they are supervised. - Risk of burns: The tap can reach temperatures in excess of 60°C. - Ensure the appliance can be separated from the power supply by an isolator that disconnects all poles with at least 3mm contact separation. - Secure the appliance as described in chapter "In- stallation/ Installation". - Observe the maximum permissible pressure (see chapter "Installation/ Specification/ Data table"). - Drain the appliance as described in chapter "In- stallation/ Maintenance/ Draining the appliance".

16.1 Dimensions and connections 35

16.6 Fault conditions 36

16.7 Country-specific approvals and certifications: Germany 37

16.8 Details on energy consumption 37

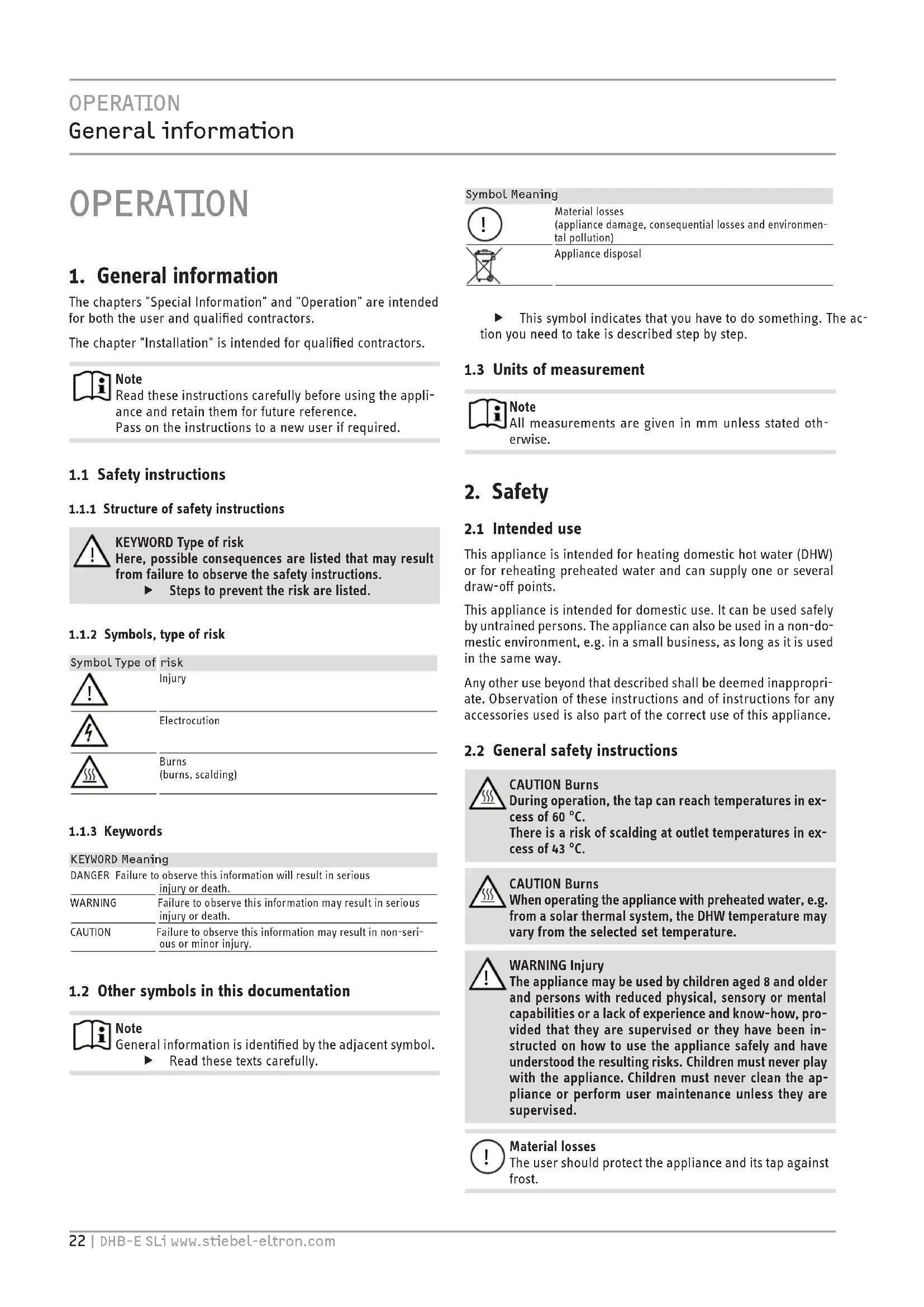

The chapters "Special Information" and "Operation" are intended for both the user and qualified contractors.The chapter "Installation" is intended for qualified contractors. Note Read these instructions carefully before using the appli-ance and retain them for future reference.Pass on the instructions to a new user if required.1.1 Safety instructions1.1.1 Structure of safety instructions

KEYWORD Type of riskHere, possible consequences are listed that may result from failure to observe the safety instructions. Steps to prevent the risk are listed.1.1.2 Symbols, type of riskSymbol Type of risk

Burns (burns, scalding) 1.1.3 KeywordsKEYWORD MeaningDANGER Failure to observe this information will result in serious injury or death. WARNING Failure to observe this information may result in serious injury or death.CAUTION Failure to observe this information may result in non-seri-ous or minor injury.1.2 Other symbols in this documentation Note General information is identified by the adjacent symbol. Read these texts carefully.Symbol Meaning

Material losses (appliance damage, consequential losses and environmen-tal pollution)

Appliance disposal This symbol indicates that you have to do something. The ac-tion you need to take is described step by step.1.3 Units of measurement Note All measurements are given in mm unless stated oth-erwise.

2.1 Intended useThis appliance is intended for heating domestic hot water (DHW) or for reheating preheated water and can supply one or several draw-off points.This appliance is intended for domestic use. It can be used safely by untrained persons. The appliance can also be used in a non-do- mestic environment, e.g. in a small business, as long as it is used in the same way.Any other use beyond that described shall be deemed inappropri- ate. Observation of these instructions and of instructions for any accessories used is also part of the correct use of this appliance.2.2 General safety instructions CAUTION BurnsDuring operation, the tap can reach temperatures in ex-cess of 60 °C.There is a risk of scalding at outlet temperatures in ex-cess of 43°C. CAUTION BurnsWhen operating the appliance with preheated water, e.g. from a solar thermal system, the DHW temperature may vary from the selected set temperature.

WARNING InjuryThe appliance may be used by children aged 8 and older and persons with reduced physical, sensory or mental capabilities or a lack of experience and know-how, pro-vided that they are supervised or they have been in-structed on how to use the appliance safely and have understood the resulting risks. Children must never play with the appliance. Children must never clean the ap-pliance or perform user maintenance unless they are supervised.

Material lossesThe user should protect the appliance and its tap against frost.

See type plate on the appliance.

3. Appliance description

The electronically controlled instantaneous water heater main- tains a constant outlet temperature up to its output limit, irre- spective of the inlet temperature. The appliance heats the water directly at the draw-off point, as soon as you turn on the hot water tap. The short pipe runs ensure that energy and water losses are minimal. For the start flow rate, see chapter "Installation/ Specification/ Data table, On". The DHW output depends on the cold water temperature, the heating output, the flow rate and the selected set temperature. Water will not be reheated if the maximum inlet temperature for reheating is exceeded. DHW temperature The DHW outlet temperature can be variably adjusted. Temperature limit / Anti-scalding protection The maximum outlet temperature for the appliance can be limited to 43°C. For this, contact your local heating contractor. Heating system The bare wire heating system has a pressure-tested plastic casing. The heating system is suitable for (both) soft and hard water and is largely resistant to scale build-up. This heating system ensures rapid and efficient DHW availability. Note The appliance is equipped with an air detector that large- ly prevents damage to the heating system. If, during op- eration, air is drawn into the appliance, the appliance shuts down for one minute, thereby protecting the heat- ing system.

Turn the temperature selector to the required position. If the outlet temperature fails to reach the required level with the tap fully open and the temperature selector set to maximum, then more water is flowing through the appliance than can be heated by the heating element. Reduce the flow rate at the tap.

4.1 Recommended settings

Thermostatic valve If the appliance is being operated with a thermostatic valve, we recommend setting the temperature on the appliance to maxi- mum. The required temperature can then be set at the thermo- static valve. Following an interruption to the water supply

Material losses To ensure that the bare wire heating system is not dam- aged following an interruption to the water supply, the appliance must be restarted taking the following steps. Disconnect the appliance from the power supply by removing the fuses/tripping the MCBs. Open the tap for one minute until the appliance and its upstream cold water inlet line are free of air. Switch the mains power back ON again.

4.2 Temperature limit / Anti-scalding protection

The maximum outlet temperature for the appliance can be limited to 43°C. For this, contact your local heating contractor.OPERATION Cleaning, care and maintenance 24 | DHB-E SLi www.stiebel-eltron.com

5. Cleaning, care and maintenance

Never use abrasive or corrosive cleaning agents. A damp cloth is sufficient for cleaning the appliance. Check the taps regularly. Limescale deposits at the tap out- lets can be removed using commercially available descaling agents.

Problem Cause Remedy The appliance will not start despite the DHW valve being fully open. There is no power. Check the fuses/MCBs in your fuse box/distribu- tion panel.

The aerator in the tap or the shower head is scaled up or contami- nated. Clean and/or descale the aerator or shower head. When hot water is being drawn off, cold water flows for a short period. The air sensor detects air in the water and briefly switches the heater off. The appliance restarts automatically after 1minute. Required temperature >45°C is not achieved.

The water supply has been interrupted.

Vent the appliance and the cold water supply line (see chapter "Operation/ Recommended settings/ Following an interruption to the water supply"). Cold water inlet tempera- ture is >45°C. Reduce the cold water inlet temperature. If you cannot remedy the fault, notify your qualified contractor. To facilitate and speed up your request, provide the number from the type plate (000000-0000-000000).

Only a qualified contractor should carry out installation, commis-sioning, maintenance and repair of the appliance.

7.1 General safety instructions

We guarantee trouble-free function and operational reliability only if original accessories and spare parts intended for the appliance are used.

Material lossesObserve the maximum permissible inlet temperature (see chapter "Installation/ Specification/ Data table"). Higher temperatures may damage the appliance. The inlet temperature can be limited by means of a central thermostatic valve (see chapter "Installation/ Appliance description/ Accessories").

7.2 Instructions, standards and regulations

Note Observe all applicable national and regional regulations and instructions. - The IP 25 (hoseproof) rating can only be ensured with a cor-rectly fitted cable grommet. - The specific electrical resistance of the water must not fall below that stated on the type plate. In a linked water net-work, factor in the lowest electrical resistance of the water (see chapter "Installation/ Specification/ Data table"). Your water supply utility will advise you of the specific electrical resistance or conductivity of the water.

8. Appliance description

The following are delivered with the appliance: - Wall mounting bracket - Installation template - 2 twin connectors - Cold water 3-way ball shut-off valve - DHW tee - Flat gaskets - Strainer - Flow limiter - Plastic profile washer - Plastic connection pieces/ installation aid - Cap and back panel guides

Taps/valves - MEKD mono lever kitchen pressure tap - MEBD mono lever bath pressure tapPlug G½AIf you use pressure taps for finished walls other than those rec-ommended in the accessories, please use the plugs.Installation set for finished walls - Solder fitting - copper pipe for soldered connection Ø12mm - Compression fitting - copper pipe - Compression fitting - plastic pipe (suitable for Viega: San-fix-Plus or Sanfix-Fosta)Universal mounting frame - Mounting frame with electrical connectionsPipe assembly for undersink appliancesYou will need the undersink installation set if you make the water connections (G⅜A) at the top of the appliance.Pipe assembly for offset installationUse this pipe assembly set if you intend to offset the appliance by 90mm downwards from the water connection.Pipe assembly for replacing a gas water heaterYou will need this pipe assembly set if the existing installation has gas water heater connections (cold water connection on the left-hand side, DHW connection on the right-hand side).Pipe assembly DHB water plug-in couplingsUse the water plug-in couplings if the existing installation contains water plug-in connections from a DHB water heater.Load shedding relay (LR 1-A)The load shedding relay for installation in the distribution board provides priority control for the instantaneous water heater when other appliances, such as electric storage heaters, are being op-erated simultaneously.ZTA 3/4 – Central thermostatic valveThermostatic valve for central premixing, for example when oper-ating an instantaneous water heater with a solar thermal system.26 | DHB-E SLi www.stiebel-eltron.com INSTALLATION Preparations

Material losses Install the appliance in a room free from the risk of frost. Always install the appliance vertically and near the draw-off point. The appliance is suitable for undersink and oversink installation. Undersink installation

1 Cold water inlet 2 DHW outlet Note Mount the appliance on the wall. The wall must have a sufficient load-bearing capacity.

9.2 Water installation

- No safety valve is required. Flush the water line thoroughly. Taps/valves Use suitable pressure taps/valves (see chapter "Installation/ Appliance description/ Accessories"). Open vented taps are not permitted. Note Never use the 3-way ball shut-off valve in the cold water inlet to reduce the flow rate. The 3-way ball shut-off valve is intended to shut off the appliance. Permissible water line materials - Cold water inlet line: Pipes made from galvanised steel, stainless steel, copper or plastic - DHW outlet line: Pipes made from stainless steel, copper or plastic

Material losses If plastic pipework is used, take into account the max- imum inlet temperature and the maximum permissible pressure (see chapter "Installation/ Specification/ Data table"). Flow rate Ensure that the flow rate for switching on the appliance is achieved (see chapter "Installation/ Specification/ Data table", On). Increase the water line pressure if the required flow rate is not achieved when the draw-off valve is fully open. If the flow rate is not reached despite increasing the pressure, re- move the flow limiter and install the plastic profile washer.

9.3 Appliance with adjustable connected load

The appliance DHB-E 18/21/24 SL is set to 21kW when delivered. If the appliance is to be installed with a different output, take the following steps: Plug in the coding card according to the selected output; for selectable output and fuse protection of the appliance, see chapter "Installation/ Specification/ Data table". Tick the selected output on the type plate. Use a permanent marker for this. Install the flow limiter with an output corresponding to that of the appliance (see chapter "Installation/ Specification/ Data table"). D0000047341

Standard installation - Electrical connection from below on unfinished walls - Water connection on unfinished walls For further installation options, see chapter "Installation/ Installation options": - Electrical connection from above on unfinished walls - Electrical connection on finished walls - Large conductor cross-section for electrical connection from below - Connecting a load shedding relay - Water installation on finished walls - Water installation on finished walls with solder/ compres- sion fitting - Water installation on finished walls; fitting the appliance cover - Fitting the base part of the back panel with threaded fittings on finished walls - Wall mounting bracket when replacing an appliance - Installation with offset tiles - Pivoting appliance cover - Temperature limit / Anti-scalding protection

10.1 Standard installation

Opening the appliance

Open the appliance by pulling the flap forwards and down- wards, undo the screw and lift up the appliance cover.

Remove the back panel by pressing the two locking hooks and pulling the base part of the back panel forwards. Preparing the power cable

1 Installation aid Prepare the power cable. Fitting the wall mounting bracket

Mark out the holes for drilling using the installation template. If the appliance is to be installed with water connections on finished walls, also mark out a fixing hole in the lower part of the template.28 | DHB-E SLi www.stiebel-eltron.com INSTALLATION Installation Drill the holes and secure the wall mounting bracket at 2 points using suitable fixing materials (screws and rawl plugs are not part of the standard delivery). Fit the wall mounting bracket. Making the water connection

Material losses Carry out all water connection and installation work in accordance with regulations.

1 DHW with tee 2 Gasket 3 Cold water with 3-way ball shut-off valve 4 Strainer 5 Flow limiter or plastic profile washer (see chapter "Installa- tion/ Water installation/ Flow rate") Note A second flow limiter is provided with the DHB-E 18/21/24 SL. Install the appropriate flow limiter for output of the appliance (see "Flow rate regulator" in chapter "Installa- tion/ Specification/ Data table"): 4.0l/min = pink

Secure the tee and and 3-way ball shut-off valve, each with a flat gasket, to the twin connector.

Material losses Never use the 3-way ball shut-off valve in the cold water inlet to reduce the flow rate. Installing the appliance For easier installation, push the cable grommet of the upper electrical connection into the back panel from behind. Remove the transport plugs from the water connections. Remove the fixing toggle from the upper part of the back panel. Route the power cable through the cable grommet from behind until the power cable rests against the cable sheath. Align the power cable. Enlarge the hole in the cable grommet if the cross-section of the power cable is >6mm². Push the appliance over the threaded stud of the wall mount- ing bracket, so that it breaks through the soft seal. If neces- sary, use a screwdriver. Push the fixing toggle on to the threaded stud of the wall mounting bracket. Push the back panel firmly against the wall. Lock the fixing toggle by turning it 90° clockwise. Fit the pipes with flat gaskets onto the twin connectors.

Material losses The strainer must be fitted for the appliance to function. When replacing an appliance, check whether the strainer is installed.ENGLISH www.stiebel-eltron.com DHB-E SLi | 29 INSTALLATION Commissioning Making the electrical connection WARNING Electrocution Carry out all electrical connection and installation work in accordance with relevant regulations. WARNING Electrocution The connection to the power supply must be in the form of a permanent connection in conjunction with the re- movable cable grommet. Ensure the appliance can be separated from the power supply by an isolator that dis- connects all poles with at least 3 mm contact separation. WARNING Electrocution Ensure that the appliance is earthed.

Material losses Observe the type plate. The specified voltage must match the mains voltage. Connect the power cable to the mains terminal (see chapter "Installation/ Specification/ Wiring diagrams"). Fitting the base part of the back panel Fit the base part into the back panel. Click the base part into place. Align the mounted appliance by loosening the fixing toggle, aligning the power supply and back panel, and then re-tight- ening the fixing toggle. If the back panel does not sit flush against the wall, you can secure the appliance at the bottom with an additional screw.

10.2 Completing the installation

Open the 3-way ball shut-off valve or the shut-off valve in the cold water supply line.

WARNING Electrocution Commissioning may only be carried out by a qualified contractor in accordance with safety regulations.

11.1 Initial start-up

≥ 60 s D0000051946 Open and close all connected draw-off valves several times, until all air has been purged from the pipework and the appliance. Carry out a tightness check. Activate the safety pressure limiter at flow pressure by firmly pressing in the reset button (the appliance is delivered with the safety pressure limiter deactivated). Plug the set value transducer cable plug into the PCB. Fit the appliance cover. Check that the appliance cover is seated correctly. Secure the appliance cover with the screw. Switch the mains power ON. Calibrate the temperature. Turn the temperature selector fully clockwise then fully anti-clockwise. Remove the protective foil from the control fascia. Check the function of the appliance. Appliance handover Explain the appliance function to users and familiarise them with its operation. Make the user aware of potential dangers, especially the risk of scalding. Hand over these instructions.30 | DHB-E SLi www.stiebel-eltron.com INSTALLATION Shutdown

11.2 Recommissioning

Material lossesTo ensure that the bare wire heating system is not dam-aged following an interruption to the water supply, the appliance must be restarted taking the following steps. Disconnect the appliance from the power supply by removing the fuses/tripping the MCBs. Open the tap for one minute until the appliance and its upstream cold water inlet line are free of air. Switch the mains power back ON again.

Isolate all poles of the appliance from the power supply. Drain the appliance (see chapter "Installation/ Maintenance/ Draining the appliance").

13. Installation options

13.1 Electrical connection from above on unfinished

walls 2602021123 Cut open the cable grommet for the power cable. Push down the locking hook for securing the mains terminal. Pull out the mains terminal. Reposition the mains terminal in the appliance from the bot-tom to the top. Secure the mains terminal by sliding it under the locking hook. Route the control wires under the wire guide.

13.2 Electrical connection on finished walls

Note This type of connection changes the protection rating of the appliance. Change the type plate. Cross out "IP 25" and mark the box "IP 24". Please use a ballpoint pen to do this.

Material lossesIf you break open the wrong knock-out in the back panel by mistake, you must use a new back panel. Cleanly cut or break out the required cable entry in the back panel (for positions, see chapter "Installation/ Specification/ Dimensions and connections"). Deburr sharp edges with a file if necessary. Route the power cable through the cable grommet. Connect the power cable to the mains terminal.

13.3 Large conductor cross-section for electrical

connection from below If you use cables with a large cross-section, you can fit the cable grommet after the appliance has been installed.

13.4 Connecting a load shedding relay

When operating additional electric appliances, such as electric storage heaters, install a load shedding relay in the distribution board. The relay responds when the instantaneous water heater starts.

Material losses Connect the phase that switches the load shedding relay to the indicated terminal of the mains terminal in the ap- pliance (see chapter "Installation/ Specification/ Wiring diagrams").

13.5 Water installation on finished walls

Note This type of connection changes the protection rating of the appliance. Change the type plate. Cross out "IP 25" and mark the box "IP 24". Please use a ballpoint pen to do this. D0000033104 Fit water plugs with gaskets to seal the in-wall connection. All taps listed under "Accessories" are supplied with plugs and gaskets as part of their standard delivery. For pressure taps other than those we recommend, plugs and gaskets can be ordered as "Accessories". Fit a suitable pressure tap. Push the base part of the back panel under the connecting pipes of the tap and push it into the back panel. Secure the connection pipes to the tee and the 3-way ball shut-off valve.

13.6 Water installation on finished walls with

solder/ compression fitting You can connect copper or plastic pipes using the accessories "solder fitting" or "compression fitting". With "solder fitting" with threaded connection for 12 mm copper pipes, proceed as follows: Push the union nuts over the connection pipes. Solder the inserts to the copper pipes. Push the base part of the back panel under the connecting pipes of the tap and push it into the back panel. Secure the connection pipes to the tee and the 3-way ball shut-off valve. Note Observe the tap manufacturer's instructions.

13.7 Water installation on finished walls; fitting the

1 Back panel guide pieces 2 Screw 3 Cover guide pieces 4 Pipe aperture Cleanly break out the knock-out apertures in the appliance cover. If necessary, use a file. Note Use the cap guide pieces if the connection pipes are slightly offset. If the connection pipes are substantially offset, do not fit the back panel guide pieces. When installing connection pipes without offset, break off the tabs on the cover guide pieces. Click the cover guides into place in the knock-out apertures. Position the back panel guide pieces on the pipes. Push them together. Then push the guide pieces against the back panel as far possible. Secure the back panel at the bottom with a screw. If you use flexible water connection pipes, prevent pipe bends from twisting (bayonet connections in the appliance).32 | DHB-E SLi www.stiebel-eltron.com INSTALLATION Installation options

13.8 Fitting the base part of the back panel with

threaded fittings on finished walls If using threaded connections for finished walls, the base part of the back panel can also be installed after fitting the taps. To do this, carry out the following steps: Saw open the base part of the back panel. Fit the base part of the back panel by bending it out at the sides and guiding it over the pipes. Insert the connection pieces into the base part of the back panel from behind. Click the base part into place in the back panel. Secure the base part of the back panel with a screw.

1 Base part of the back panel2 Connection pieces delivered in the pack3 Screw

13.9 Wall mounting bracket when replacing an

appliance An existing STIEBELELTRON wall mounting bracket may be used when replacing appliances (except for DHF instantaneous water heater). Break through the back panel of the appliance for the thread-ed stud on the installed wall mounting bracket.Replacing a DHF instantaneous water heater2602020815 Reposition the threaded stud on the wall mounting bracket (the stud has a self-tapping thread). Rotate the wall mounting bracket 180° and mount it on the wall (the DHF logo is then turned towards the reader).

13.10 Installation with offset tiles

2602021066211 Minimum contact area of the appliance2 Maximum tile offset Adjust the wall clearance. Lock the back panel in place using the fixing toggle (turn 90° clockwise).

13.11 Pivoting appliance cover

The appliance cover can be turned round for undersink instal-lation.2602020817 Remove the programming unit from the appliance cover by pressing the locking hooks. Turn the appliance cover and click the programming unit back into place, ensuring that all locking hooks are engaged. For easier installation of the programming unit, press against the inner side of the appliance cover in the shaded area.

Material lossesDo not install a programming unit with faulty locking hooks. Otherwise the safety of the appliance cannot be guaranteed. Plug the set value transducer cable into the PCB (see chapter "Installation/ Commissioning/ Initial start-up"). Hook the appliance cover in at the top. Pivot the appliance cover down onto the back panel and press down until it en-gages audibly. Secure the appliance cover.ENGLISH www.stiebel-eltron.com DHB-E SLi | 33 INSTALLATION Installation options

13.12 Temperature limit / Anti-scalding protection

The maximum temperature can be limited to 43°C on the pro- gramming unit of the appliance cover. For this, the following steps are necessary: Remove the appliance cover. Remove the electronic PCB from the programming unit of the appliance cover. Be careful with the snap-on hooks. Move the plug from left to right (position "43°C"). Refit the programming unit, ensuring the snap-on hooks click into place. Observe the positions of the push-button and shaft. CAUTION Burns If operating the appliance with preheated water, the set temperature limit and anti-scalding protection may be ineffective. In this case, restrict the temperature at the upstream central thermostatic valve (see chapter "Installation/ Appliance description/ Accessories"). 260202083334 | DHB-E SLi www.stiebel-eltron.com INSTALLATION Troubleshooting

WARNING Electrocution To test the appliance, it must be supplied with power. Indication variants for diagnostic traffic light (LED) Red Illuminates in the event of a fault Yellow Illuminates during heating operation Green Flashing: Appliance is supplied with mains power Fault / LED diagnostic traffic light signal Cause Remedy The appliance does not start. The shower head / aerators are scaled up. Descale or if necessary replace the shower head/ aerators. The flow rate is too low. The strainer in the appliance is dirty. Clean the strainer. The set temperature is not achieved. One phase down. Check the fuse/MCB in your fuse box/distribution panel. The heater switches off. The air detector senses air in the water. Heating output cuts out temporarily. The appliance restarts after one minute. No hot water and no traffic light display. The MCB/fuse has responded/blown. Check the fuse/MCB in your fuse box/distribution panel. The safety pressure limiter has tripped. Remove the cause of the fault (e.g. faulty pressure flush).

Protect the heating system against overheating by opening a draw-off valve downstream from the ap- pliance for one minute. This depressurises and cools down the heating system.

Activate the safety pressure limiter at flow pressure by pressing the reset button, also see chapter "In- stallation/ Commissioning/ Initial start-up". The PCB is faulty. Check the PCB and replace if necessary. Traffic light display: Green flashing No hot water at flow rate >3l/min. Flow sensor DFE is not plugged in. Re-insert the flow sensor plug. Flow sensor DFE is faulty. Check the flow sensor and replace if necessary. The set temperature is not achieved. The set value transducer or connecting cable is faulty, or the connecting cable is not attached. Attach the connecting cable; replace the set value transducer if required. Temperature limiting is enabled. Disable temperature limiting. Traffic light display: Yellow constantly on; green flashing No hot water at flow rate >3l/min. The high limit safety cut-out has responded or suffered a lead break. Check the high limit safety cut-out and replace if necessary. The heating system is faulty. Check the resistance of the heater and replace if necessary. The PCB is faulty. Check the PCB and replace if necessary. Traffic light display: Yellow constantly on; green flashing The outlet sensor is faulty. Check the connection and replace the outlet sensor if necessary. Set temperature is not achieved. Appliance is operating at its output limit. Reduce the flow rate. Install the flow limiter. Traffic light display: Red constantly on; green flashing The outlet sensor is faulty. Check the connection and replace the outlet sensor if necessary. No hot water The cold water sensor is faulty. Check the PCB and replace if necessary. Required temperature >45°C not reached. The cold water inlet temperature exceeds 45°C. Reduce the cold water inlet temperature to the ap- pliance.ENGLISH www.stiebel-eltron.com DHB-E SLi | 35 INSTALLATION Maintenance

WARNING Electrocution Before any work on the appliance, ensure omnipolar disconnection from the power supply. Draining the appliance The appliance can be drained for maintenance work. WARNING Burns Hot water may escape when you drain the appliance. Close the 3-way shut-off valve or the shut-off valve in the cold water supply line. Open all draw-off valves. Undo the water connections on the appliance. If dismantled, store the appliance in a room free from the risk of frost, as water residues remaining inside the appli- ance can freeze and cause damage. Cleaning the strainer If contaminated, clean the strainer in the threaded cold water fitting. Close the 3-way shut-off valve or the shut-off valve in the cold water supply line before removing, cleaning and refitting the strainer.

16.1 Dimensions and connections

1 Control cable to the contactor of the second appliance (e.g. electric storage heater). 2 Control contact opens when switching the instantaneous water heater on.

The DHW output is subject to the mains voltage, the appliance's connected load and the cold water inlet temperature. The rated voltage and rated output can be found on the type plate (see chapter "Operation/ Troubleshooting"). Connected load in kW 38 °C DHW output in l/min. Rated voltage Cold water inlet temperature 380 V 400 V 415 V 5°C 10°C 15°C 20°C

Conductivity σ ≤ Resist- ance

Conductivity σ ≤ Resist- ance

Taps/valves Tap pressure drop at a flow rate of 10 l/min Mono lever mixer tap, approx. MPa 0.04 - 0.08 Thermostatic valve, approx. MPa 0.03 - 0.05 Shower head, approx. MPa 0.03 - 0.15 Sizing the pipework When calculating the size of the pipework, an appliance pressure drop of 0.1MPa is recommended.

16.6 Fault conditions

In the event of a fault, loads up to a maximum of 95 °C at a pres- sure of 1.2MPa can occur temporarily in the installation.ENGLISH www.stiebel-eltron.com DHB-E SLi | 37 INSTALLATION Specication

16.7 Country-specific approvals and certifications:

Germany In line with [German] State Building Regulations, a general test certificate has been issued for the appliance, as verification of its suitability regarding noise emissions. DIN 4109 PA-IX 6816/I

16.8 Details on energy consumption

Guarantee The guarantee conditions of our German companies do not apply to appliances acquired outside of Germany. In countries where our subsidiaries sell our products a guarantee can only be issued by those subsidiaries. Such guarantee is only grant

ed if the subsidiary has issued its own terms of guarantee. No other guarantee will be granted. We shall not provide any guarantee for appliances acquired in countries where we have no subsidiary to sell our products. This will not aect warranties issued by any importers. Environment and recycling We would ask you to help protect the environment. After use, dispose of the various materials in accordance with national regulations.40 | DHB-E SLi www.stiebel-eltron.com TABLE DES MATIÈRES | REMARQUES PARTICULIÈRES
