USER MANUAL MD04TV Billow

Abstract geometric logo design with stylized letters and lines (no readable text or symbols)

TV

android

smart box

tv

moostv.moo4tv|user guide vi.o billow g

Introduction and Product Description

Thank you for choosing the SMART BOX TV MD04TV / MD05TV.

The MD04TV / MD05TV is a Smart Android TV Box, designed to turn your TV into an ultima generation Smart TV. With its Quad Core 2Ghz processor, graphics card of 8 cores, its 1Gb DDR3 / 2GB of RAM, its 8GB of storage memory, WiFi b / g / n and Bluetooth 4.0 will equip your TV with all of the potential to play or do anything. Its operating system is Android 4.4 Kit Kat, which offers unmatched stability.

It supports 4K resolution, and includes a powerful remote control technology Air Mouse. The application package is the most complete of the market, XBMC will have endless possibilities and TV on demand.

Discover the new way to enjoy your TV !!

Package Contents

• MD04TV or MD05TV
• Quick installation guide
• Remote Control and nano receiver
• Power adapter
• HDMI cable

Make sure your package contains the elements described above. If you find something is missing or damaged, please contact your dealer.

System Requirements

• TV with free HDMI Port
- Wifi home connexion

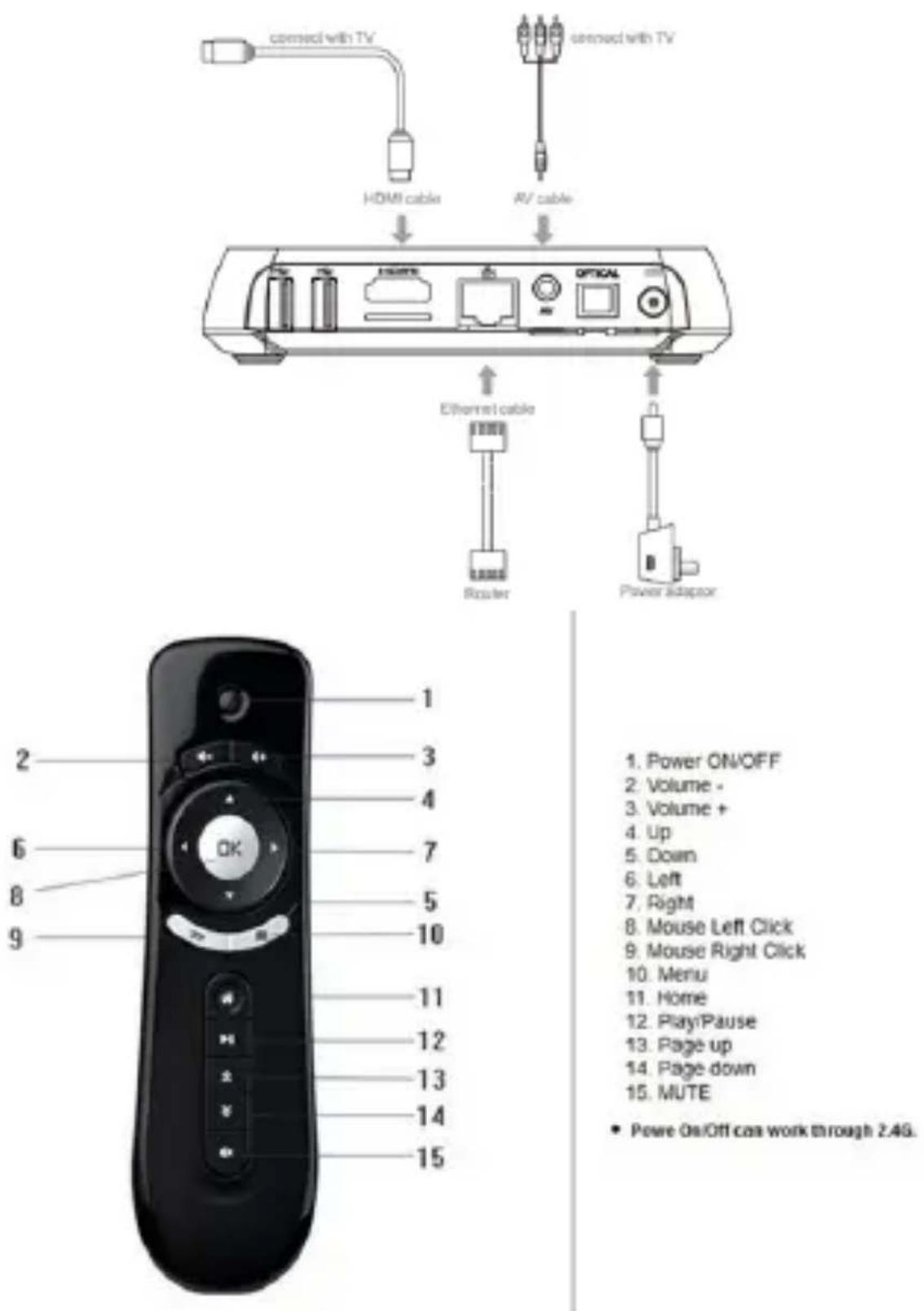

Part Descriptions

connect with TV HDMI cable AV cable connect with TV Ethernet cable Router Power adaptor 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 1. Power ON/OFF 2. Volume - 3. Volume + 4. Up 5. Down 6. Left 7. Right 8. Mouse Left Click 9. Mouse Right Click 10. Menu 11. Home 12. Play/Pause 13. Page up 14. Page down 15. MUTE • Powe On/Off can work through 2.4G.

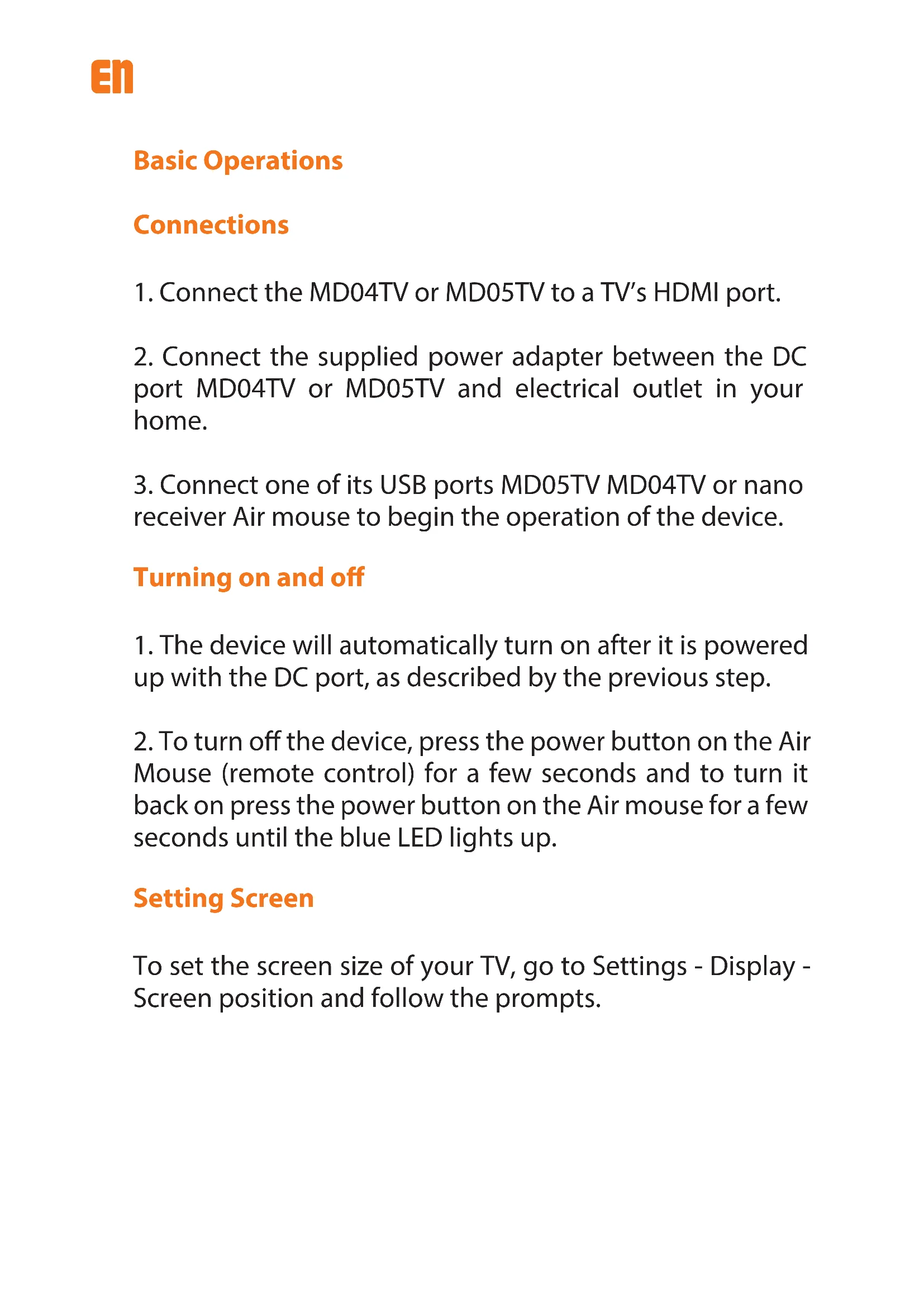

Basic Operations

Connections

1. Connect the MD04TV or MD05TV to a TV's HDMI port.
2. Connect the supplied power adapter between the DC port MD04TV or MD05TV and electrical outlet in your home.
3. Connect one of its USB ports MD05TV MD04TV or nano receiver Air mouse to begin the operation of the device.

Turning on and off

1. The device will automatically turn on after it is powered up with the DC port, as described by the previous step.
2. To turn off the device, press the power button on the Air Mouse (remote control) for a few seconds and to turn it back on press the power button on the Air mouse for a few seconds until the blue LED lights up.

Setting Screen

To set the screen size of your TV, go to Settings - Display - Screen position and follow the prompts.

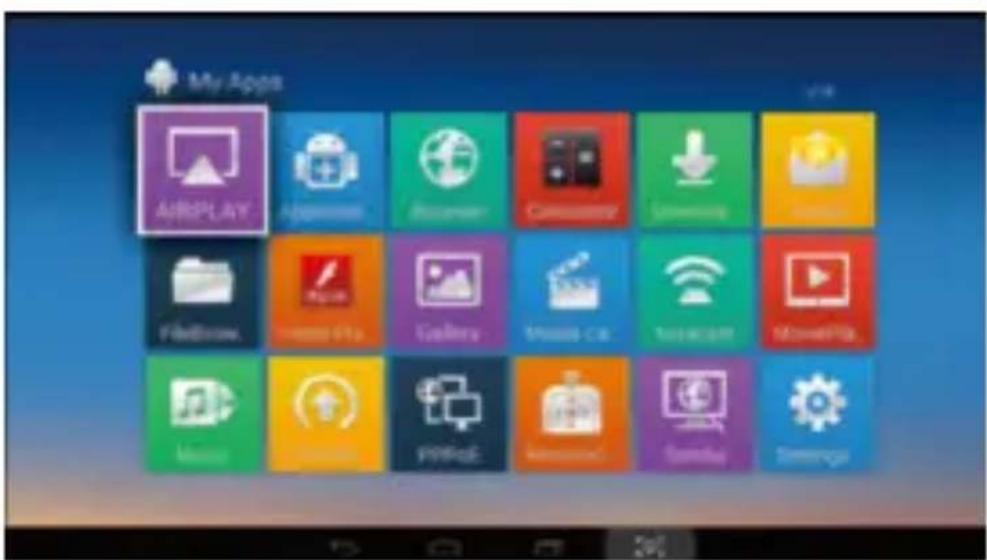

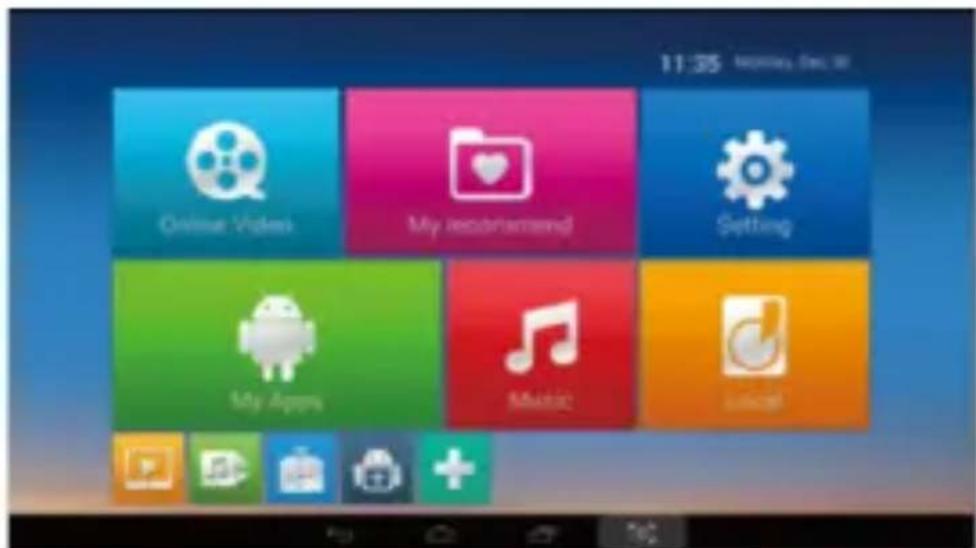

How to open applications

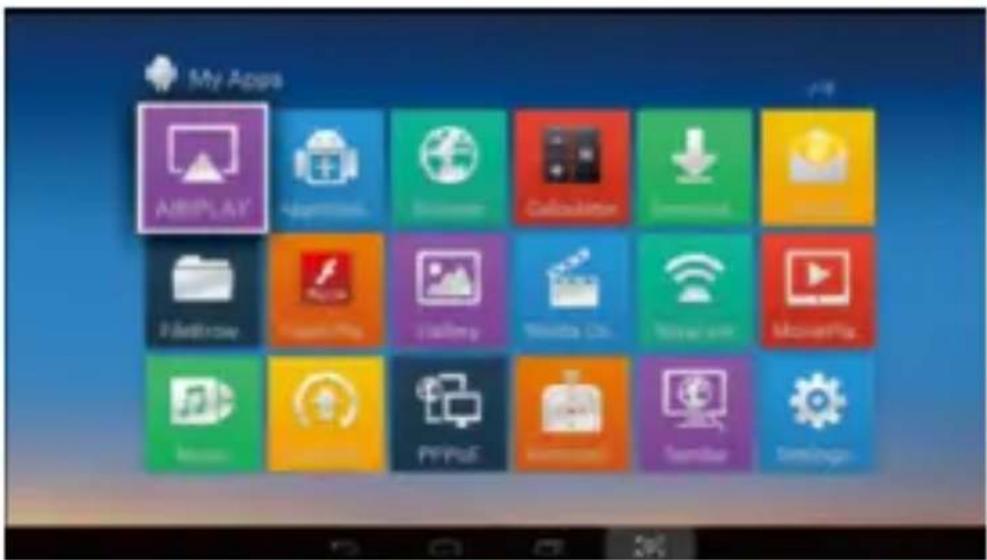

Move the cursor over the My Apps icon (My Apps) and click on the icon.

11:35 QoS My Recommendations Setting My Apps Music Local

My Apps AIDSPLAY Agilent Browser Cableclicker Internet iPod iWebBrow iDreamFun iG Delivery Media Co. Video arm iMoverFun Music... PlayUp PlayUp PlayUp PlayUp PlayUp PlayUp

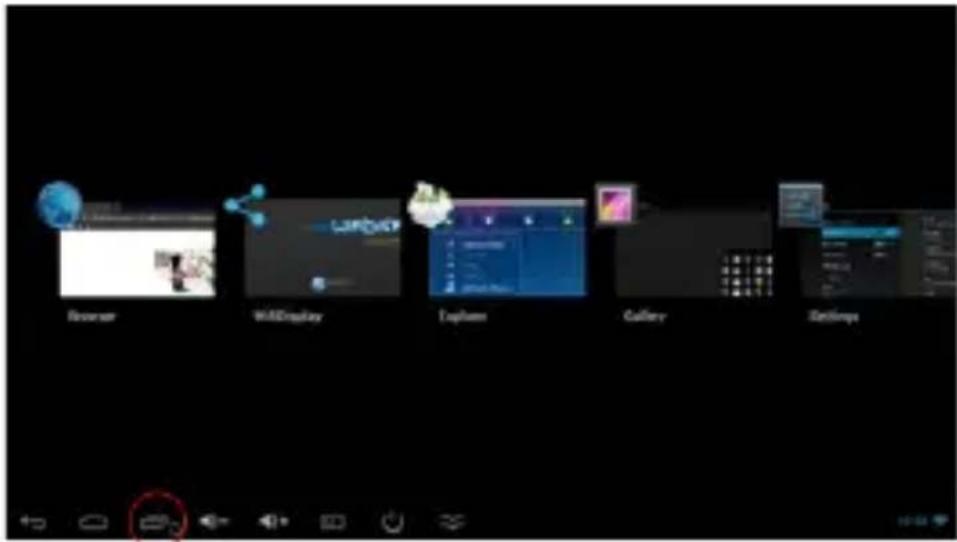

Recently used applications

Click on the icon → to view all applications that are running.

Browser Wi-FiDisplay Eptom Gallery Settings

You can select the desired to bring it forward.

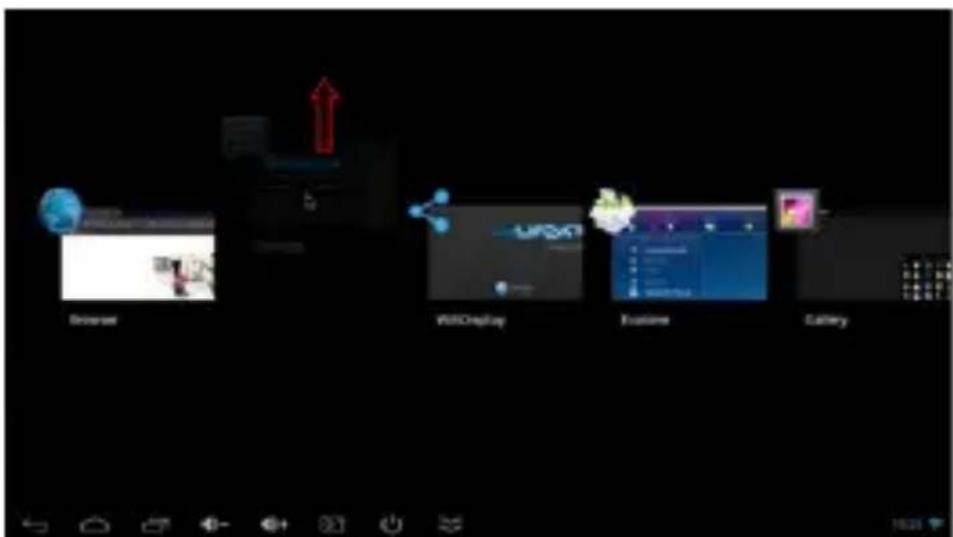

How to close applications

Click on the icon 📄 to see all running applications, choose one of them by clicking and holding, drag it to the upper area until you close the application.

Internet WebDisplay Options Calendar

Move between screens on the desktop

Click and hold on the desktop, move left or right to view other screens.

Back to the main screen or desktop

Click the icon to return to the main screen.

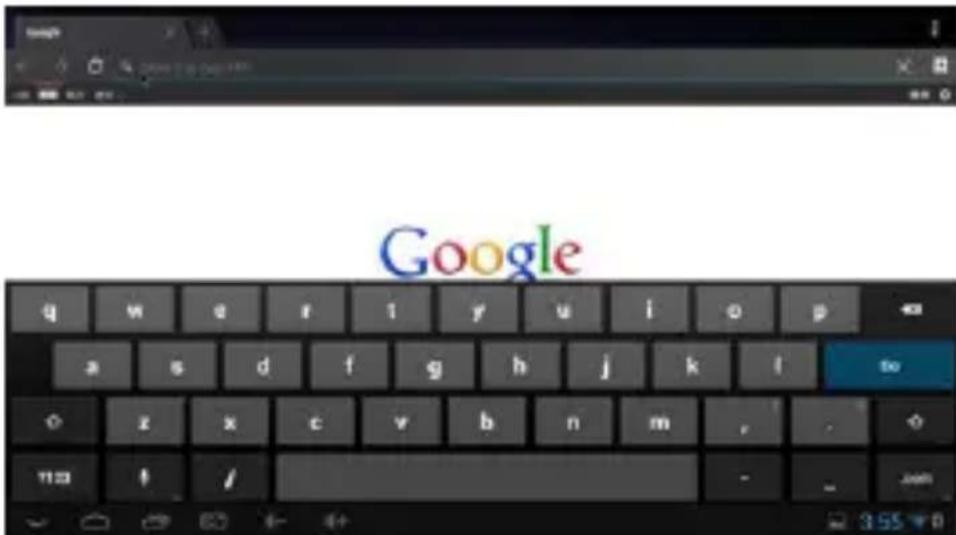

Write

Click the box where you want to write something and the virtual keyboard will open to enter any text.

Google q w e r t y u i o p a s d f g h j k l to o z x c v b n m , - o 113 f / - . 200

Connect and read data from external devices

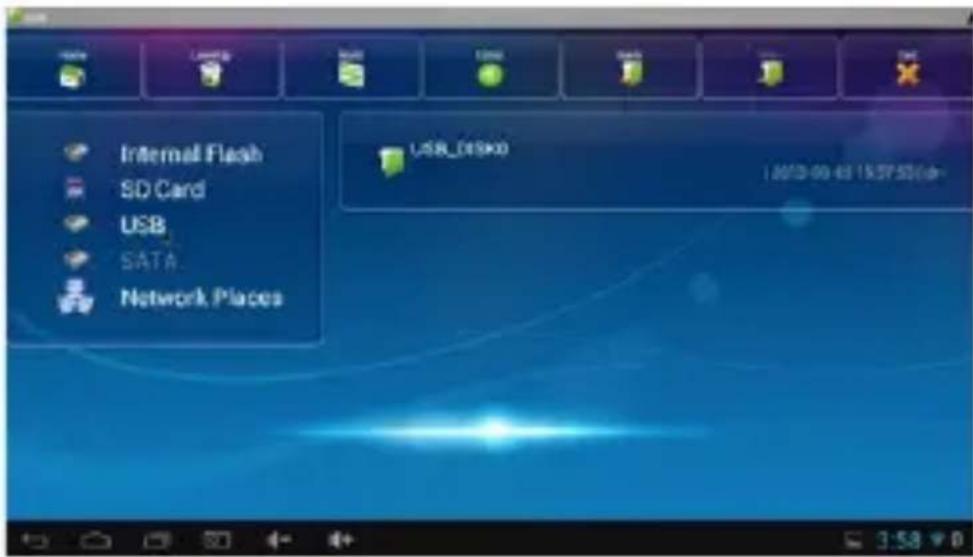

1. Connect external hard drive:

Connect the external hard drive to a USB port on MD04TV / MD05TV click the application FileBrowser.

The "USB" storage will be enabled.

Internal Flash SD Card USB SATA Network Places USB_015900 12/12/09 43 15:37:50 (c)

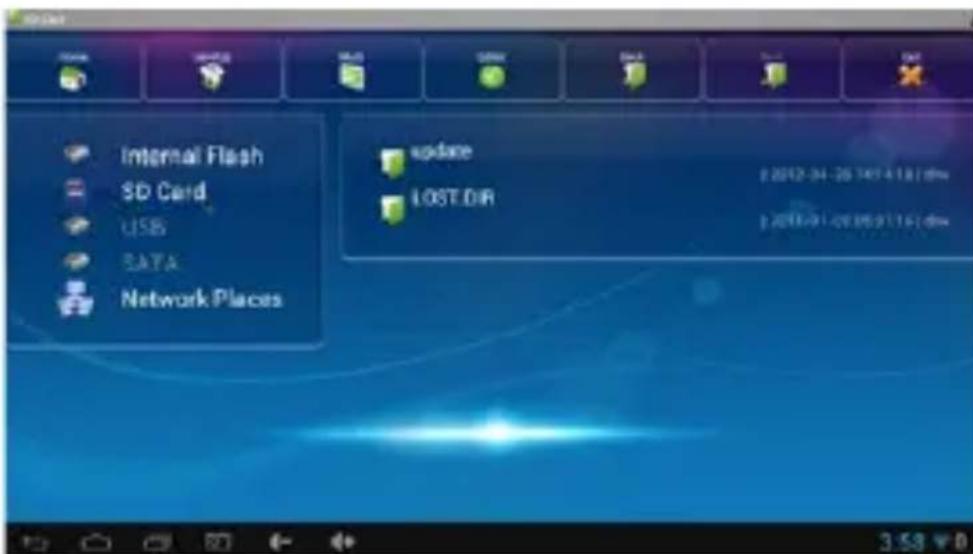

2. Connect the Micro SD Card:

Connect an SD card to the SD port of the MD04TV or MD05TV or click the browser application.

Storage "SD Card" will be enabled.

Internal Flash SD Card USB DATA Network Places update LOST.DIR $ 2012-04-26 1474137.dwg $ 2013-01-09 0521161.dwg 3:58 ¥0

WIFI Connection

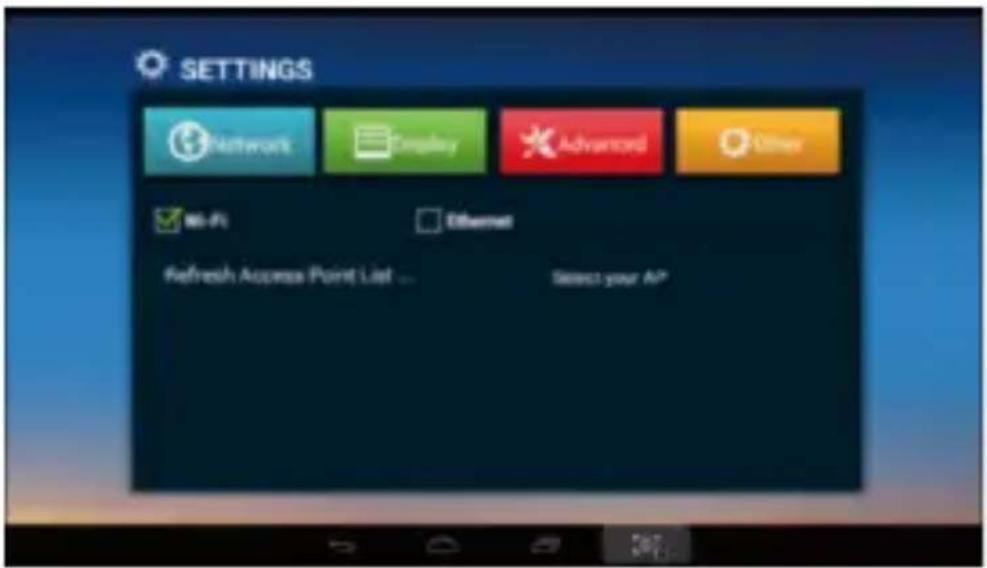

Click on the Settings icon and the available Wi-Fi access points will appear in the coverage range.

SETTINGS Network Display Advanced Other Wi-Fi Ethernet Refresh Access Point List Select your AP

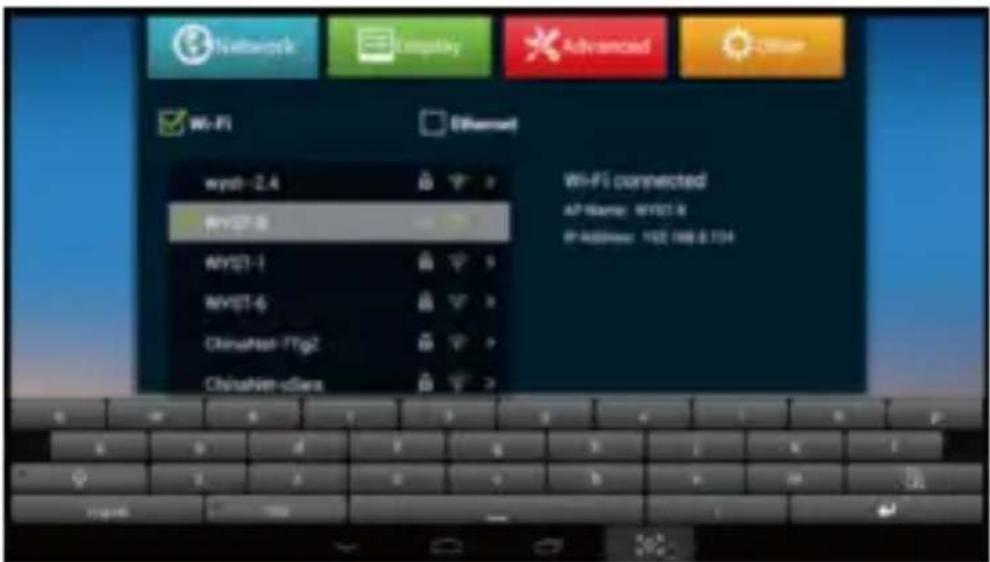

Select the desired wireless network and enter the access key to connect.

Netsway Complify Advanced Other Wi-Fi Ethernet wysh -2.4 WYST-8 WYST-1 WYST-6 ChinaNet-FTg2 ChinaNet offers Wi-Fi connected AT Name: WYST-8 IP ADDRESS: 102, 198 & 734

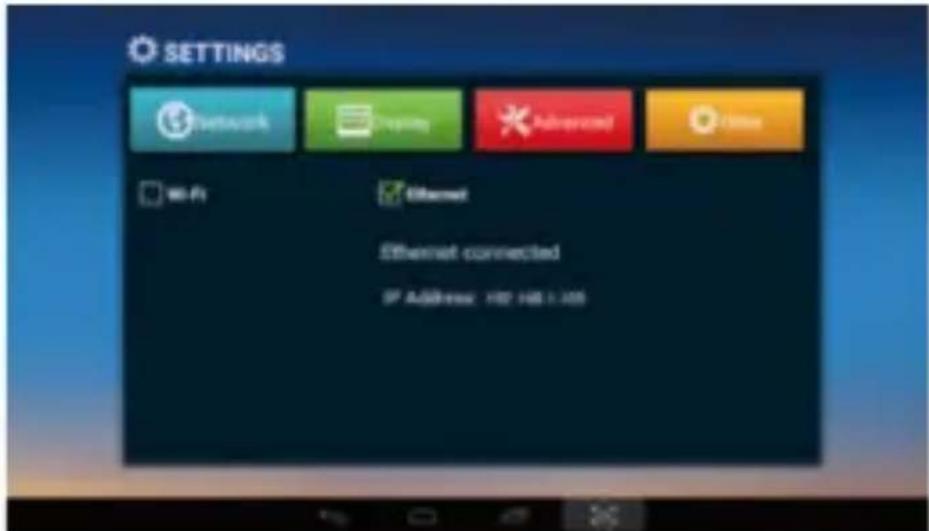

Connection by RJ-45 cable

Connect the RJ-45 cable to the port on the MD04TV or MD05TV.

Tap the Settings icon and select Ethernet, you automatically if you connect your router if the DHCP is enabled.

SETTINGS Network Gateway Advanced Home Wi-Fi Ethernet Ethernet connected OF Address: 192 168 1.105

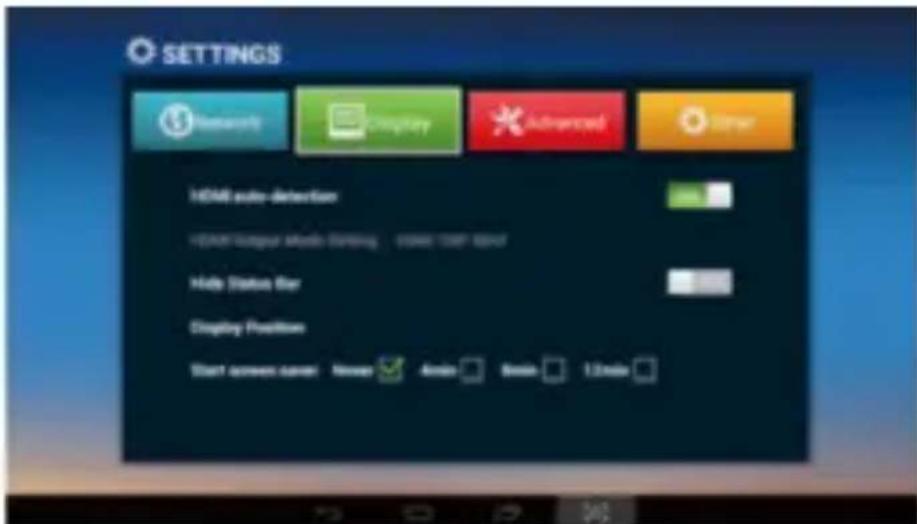

Display settings (Display)

In this screen you can adjust the display settings.

SETTINGS Research Display Advanced Other HOME auto detection HOME auto detection HOME auto detection Hole Status Bar Display Position Start screen scan: Newer Audio Shin: 12nd

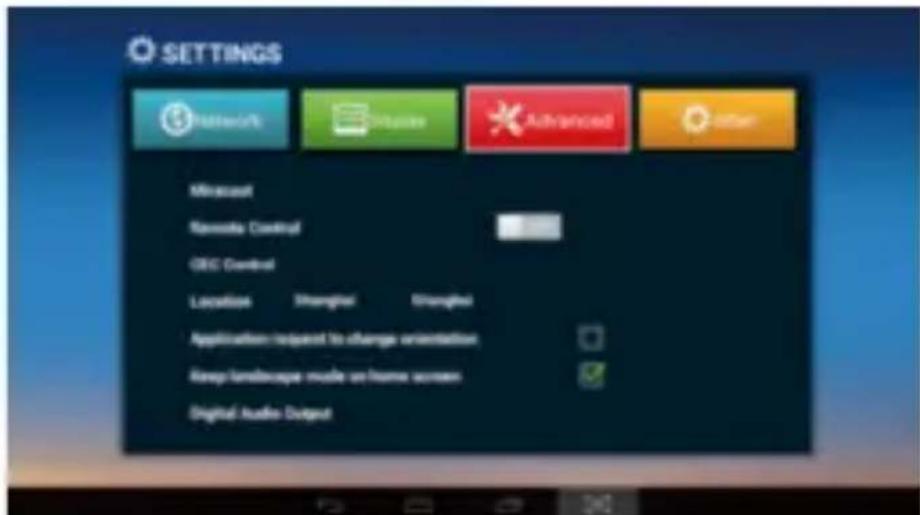

Advanced settings (Advanced)

In this screen you can set options such as miracast, digital audio output, etc.

SETTINGS Open/Outperform Advanced Open Microsoft Remote Control GEC Control Location Shanghai Shanghai Application request to change orientation Always landscape music on home screen Digital Audio Output

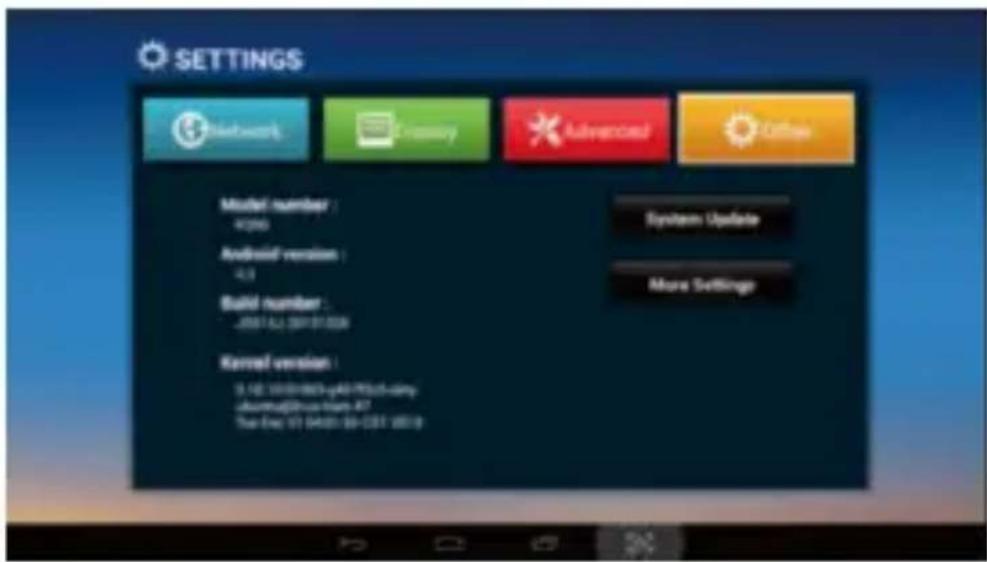

Other Settings (Other)

In this screen you can set system options by pressing the More Settings button.

SETTINGS Model number : 4290 Android version : 4.3 Build number : J85142 06191008 Kernel version : 3.12 10000003-q40-F533-any abchina@hua-rom A7 The Evg V1 0420 06-031 2019 System Update More Settings

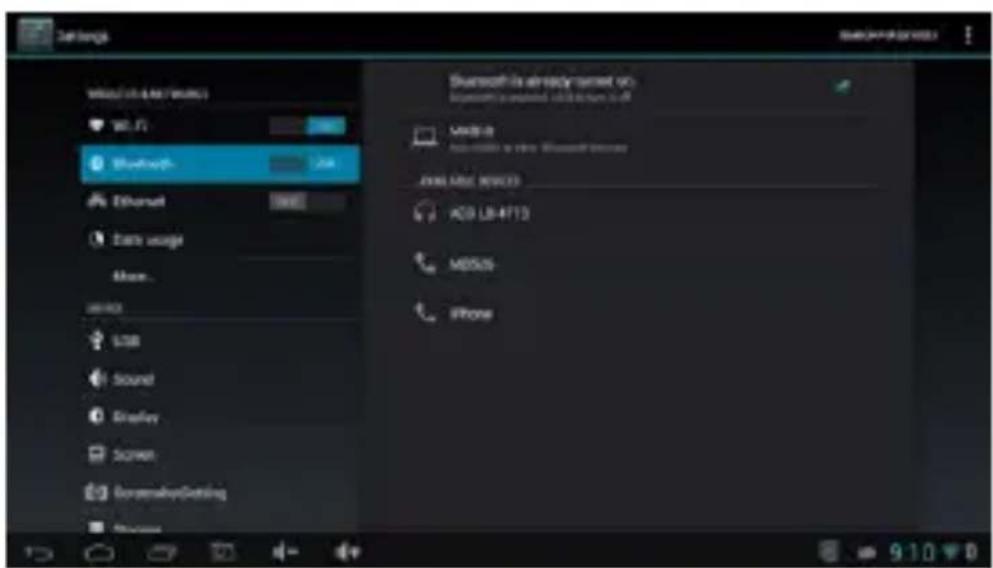

Bluetooth Connection

Go to Settings - Other - More Bluetooth Settings- and change the switch to ON.

Bluetooth is already turned on: Bluetooth is returned to the next session.

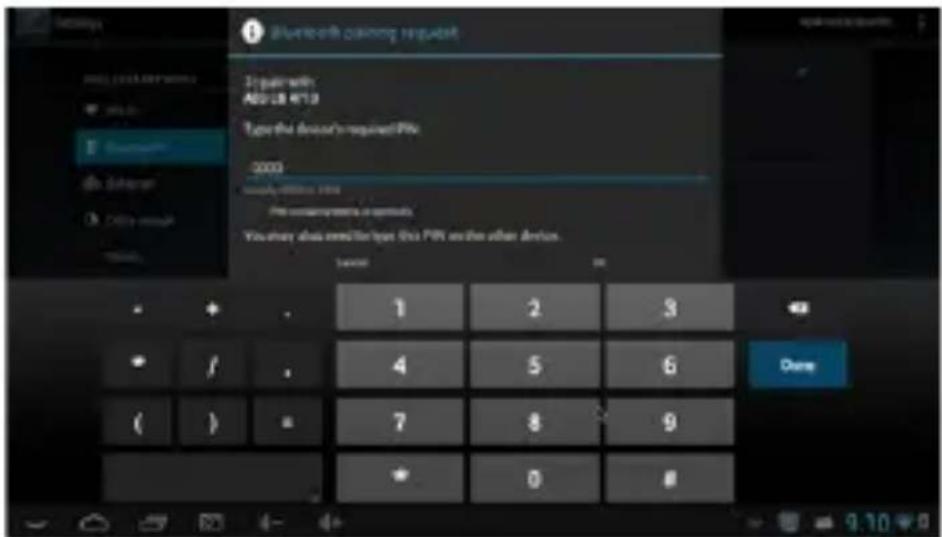

Click on the desired product to the right and enter the required PIN (generally “0000” or “1234”) to connect Bluetooth device to device.

Bluetooth calling request Input parameters: ABS/EB 87.0 Typical device required PIN 2000 supply-0000x 100 Pre installation requirements You may also send to text this PIN on the other device. 1 2 3 4 5 6 ( ) * 7 8 9 * 0 8 Cherry

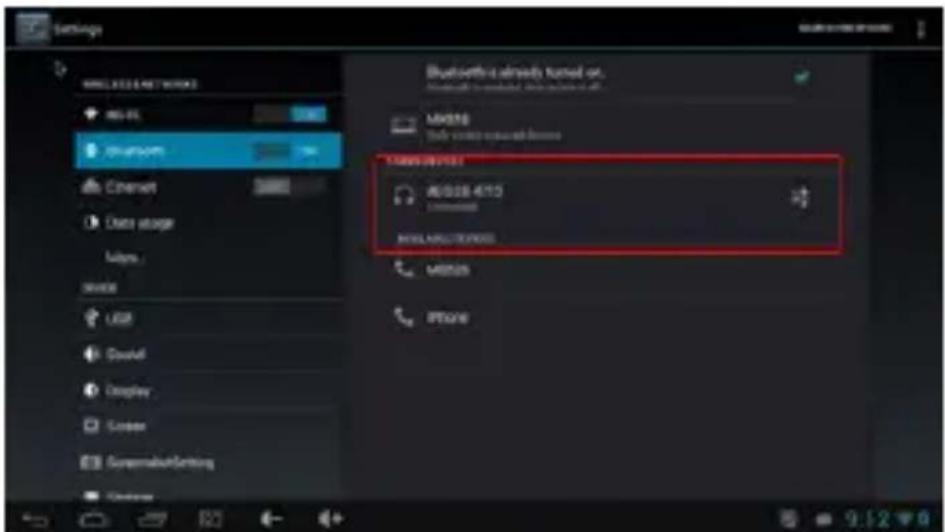

This image shows the connected Bluetooth device.

Bluetooth is already turned on. MHz: 410 MHz: 410 MHz: 410 MHz: 410 MHz: 410 MHz: 410 MHz: 410 MHz: 410 MHz: 410 MHz: 410 MHz: 410 MHz: 410 MHz: 410 MHz: 410 MHz: 410 MHz: MHz: MHz:

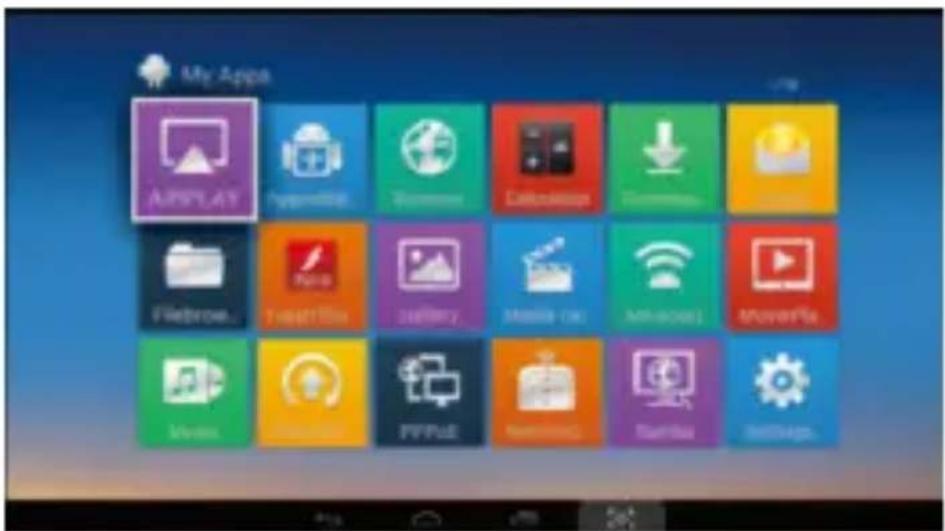

Wireless DisplayMiracast connection

Click the "miracast" application, select the desired device and press connect.

My Apps APPLEPLAY iTunes Catechiosys Playbox Filebros TasteBios Gallery Mobile OK MySQL MoviePlay Wnta iTunes PPPUp Reemsing SunRis ThillBigs.

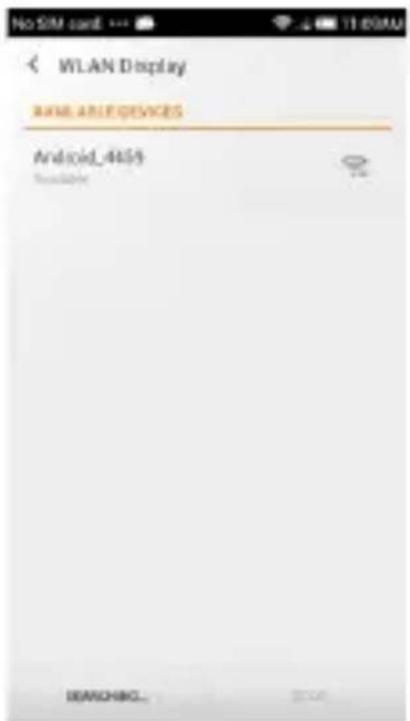

In the smartphone

Go to the configuration interface wireless display on your smartphone, enable wireless display function and click the name of MD04TV / MD05TV device to connect.

NO SIM CARD WLAN Display AVAILABLE DEVICES Android_4459 SearchBar SEARCHING...

Once connected, you can enjoy movies, games on TV.

Screenshot of a mobile app interface displaying app icons with mountain scenery and Chinese text labels

* Please ensure that both the MD04TV / MD05TV, as well as the smartphone are running on the same wireless network.

Note: Billow Technology IS NOT RESPONBILE or owner of the installed applications, or their content. Therefore the maintenance of these is not associated with the brand. The content is public on the Internet.

Recycled

AEE REI-RAEE 5548 In this manual, the container (bin) symbol indicates that the product is subject to the European directive 2002/96 / EC, electrical and electronic products, batteries, and batteries and other accessories must necessarily be subject to a selective collection.

At the end of the life of the device, make use of the recycling bins. This gesture will help reduce the health risks and preserve the environment.

Municipalities and distributors, will provide essential details on recycling your old device. This device carries an internal battery must be removed and deposited separately for proper management.

Technical Support

For more information on installing and configuring this product go to our website www.billowtechnology.com or write an email to [e-mail]

connect with TV HDMI cable AV cable connect with TV HDMI Etnewire cable Router Power adapter

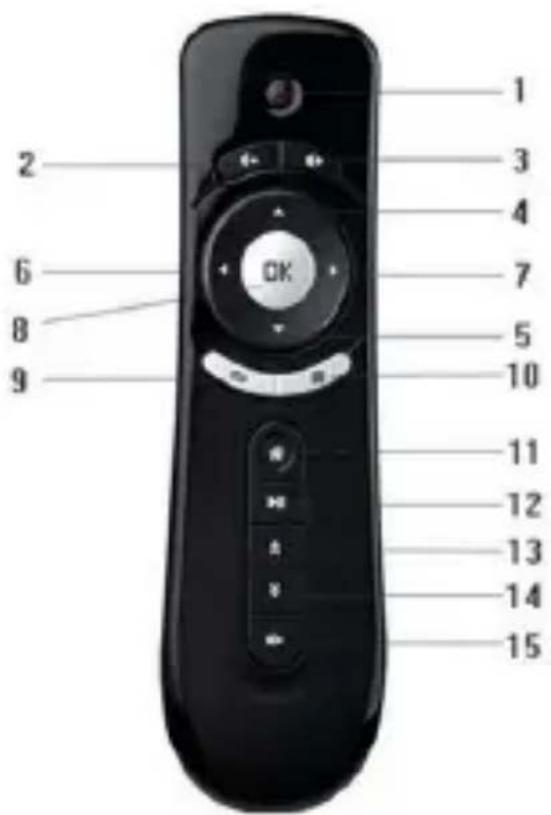

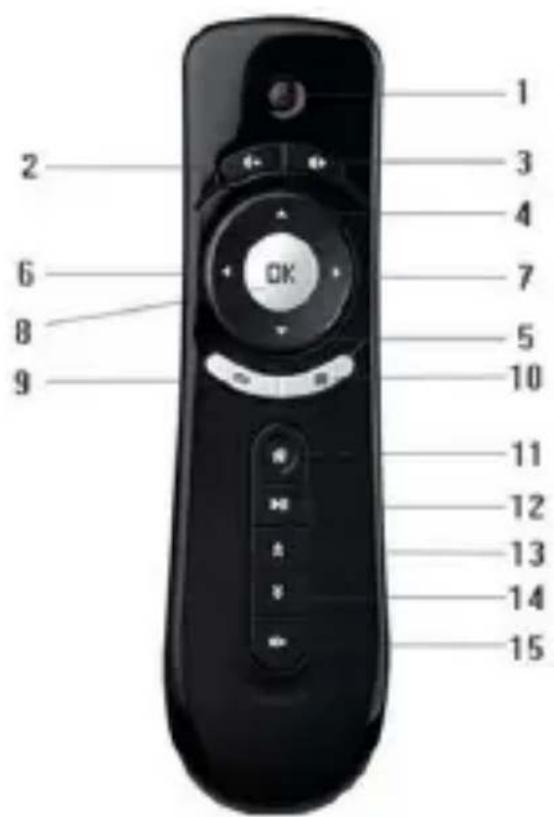

1 2 3 4 6 7 8 OK 5 9 10 11 12 13 14 15

1. Power ON/OFF
2. Volume -
3. Volume +
4. Up
5. Down
6. Left
7. Right
8. Mouse Left Click
9. Mouse Right Click
10. Menu
11. Home
12. PlayPause
13. Page up
14. Page down
15. MUTE

- Power On/Off can work through 2.4G.

Operaciones Básicas

Conexiones

Internal Flash SD Card USB SATA Network Places USB_015K0 12/12-09 43 15:37:50 (a)

2. Conectar Tarjeta Micro SD:

Internal Flash SD Card USB DATA Network Places update LOST.DIR [2012-04-26 7:31:4:13]div [2012-01-05 9:11:16]div 3:58 ¥ 0

Conexión WIFI

SETTINGS Network Display Advanced Other Wi-Fi Ethernet Refresh Access Point List Select your AP

Netsway Complify Advanced Other Wi-Fi Ethernet wysh -2.4 WYST-8 WYST-1 WYST-6 ChinaNet-FTg2 ChinaNet offers Wi-Fi connected AT Name: WYST-8 IP ADDRESS: 102, 198 & 734

SETTINGS Network Pricing Advanced Email Wi-Fi Ethernet Ethernet connected IP Address: 192.168.1.08

Ajustes de Pantalla (Display)

SETTINGS Advanced Adaptive Other HDMI auto detection HDMI Consular Effects (HDMI) - screen user-finds Hide Status Bar Display Position Start current server: Never Altman Smart 12min

SETTINGS Microsoft Remote Control OEC Control Location Shanghai Shanghai Application request to change orientation Keep landscape mode on home access Digital Audio Output

Otros Ajustes (Other)

Bluetooth is already turned on Bluetooth is returned to the next session.

Bluetooth calling request Input parameters: ABS/EB 87.0 Typical device required PIN 2000 supply-0000x 100 Pre installation requirements You may also send to text this PIN on the other device. 1 2 3 4 5 6 ( ) * 7 8 9 * 0 8 Cherry

My Apps APPLEPLAY iTunes Catechiosys Playbox Filebros TasteBios Gallery Mobile OK MySQL MoviePlay Wnta iTunes PPPUp Reemsing SunRis ThillBigs.

En el smartphone

Smartphone home screen displaying app icons with mountain scenery and Chinese text labels

connect with TV HDMI cable AV cable connect with TV HDMI Etnewire cable Router Power adapter

1 2 3 4 6 7 8 9 OK 5 10 11 12 13 14 15

1. Power ON/OFF

2. Volume -

3. Volume +

4. Up

5. Down

6. Left

7. Right

8. Mouse Left Click

9. Mouse Right Click

10. Menu

11. Home

12. PlayPause

13. Page up

14. Page down

15. MUTE

- Powe On/Off can work through 2.4G.

Opérations de base

Connexions

11:20 Online Video My recommendation Setting My Apps Music Social

My Apps AirPLAY iTunes iTunes Catestomer Samsung FidBrow iTunes-Fla Gallers Music-Cat Telecom MobileFigs Music iTunes PDFsE International GameUp SmartApp

How to close applications

Internal Flash SD Card USB SATA Network Places USB_015900 2012-09-03 15:57:52 (ar)

2. Connectez Carte Micro SD:

Internal Flash SD Card USB DATA Network Places splice LOST.DIR $2012-04-26 187.4.151.dsn $2013-01-29 09:31:151.dsn 3.58 ¥ 0

Connexion WIFI

SETTINGS Network Couples Advanced Other WiFi Ethernet Refresh Access Point List ... Select your AP

Networks Display Advanced Cyber Wi-Fi Ethernet wyab -2.4 NYST-8 NYST-1 NYST-6 ChinaNet /Tgt/ ChinaNet UOne Wi-Fi connected AT Name: NYST-8 IP Address: 0351988.8.104

SETTINGS Network Playway Adaptomed Other Wi-Fi Ethernet Ethernet connected IF Address: 192 168 1 155

SETTINGS Networks Company Advanced Other Minicast Remote Control DEC Control Location Shanghai Shanghai Application request to change orientation Keep landscape mode or frame domain Digital Audio Output

Bluetooth is already turned on Bluetooth is returned to the next session.

Bluetooth calling request Input parameters: ABS/EB 87.0 Typical device required PIN 2000 supply-0000x 100 Pre installation requirements You may also send to text this PIN on the other device. 1 2 3 4 5 6 ( ) * 7 8 9 * 0 8 Cherry

My Apps APPLEPLAY iTunes Catechiosys Playbox Filebros TasteBios Gallery Mobile OK MySQL MoviePlay Wnta iTunes PPPUp Reemsing SunRis ThillBigs.

Sur le smartphone

Smartphone home screen displaying app icons with Chinese labels, set against a mountain and lake background.

SAFETY, MAINTENANCE AND RECYCLING INSTRUCTIONS

1. Caution: Never open the device, the internal parts are danger, electrical shock.
2. Do not install this unit near water, for example, in a wet basement, in an unprotected outdoor installation or in any area classified as a wet.
3. Make sure to connect the power supply to the TV USB port or power adapter 5VDC / 2A.
4. Connect the HDMI connector correctly, otherwise the HDMI connector of your device or TV could be damaged.
5. Clean the product with a soft and dry cloth.
6. Follow local regulations for disposing of the product.

EC DECLARATION OF CONFORMITY

We declare under our sole responsibility that the product:

Brand name: BILLOW TECHNOLOGY

Model no: MD04TV / MD05TV

Product description: Smart Android TV Box

The measurements shown in this test report were made in accordance with the procedures given in the:

• EMC DIRECTIVE: 2004/108/EC
• ROHS DIRECTIVE: 2011/65/EU
• RTTE DIRECTIVE: 1999/5/EC

To which this declaration is based on with full conformance to the following European norms and standards:

• EPA3050B:1996, EN1122B:2001
• EPA3052:1996, EPA3060A:1996
• EPA7196A:1992, EPA3540C:1996
• EPA8270D:2007, IEC62321:2008
• EN 55022 : 2010
• EN 61000-3-2 :2006+A1:2009+A2:2009, EN 61000-3-3 :2008
• EN 55024 : 2010
• EN 61000-4-2 :2009, EN 61000-4-3 :2006+A1:2008+A2:2010,
• EN 61000-4-4 :2012, EN 61000-4-5 :2006,
• EN 61000-4-6 :2009, EN 61000-4-8 :2010, EN 61000-4-11 :2004

Signed July 9th, 2015

Simple line drawing of a curved line intersecting a horizontal line (no text or symbols)

Jose Luis Ruiz Gómez

Managing Director

BILLOW TECHNOLOGY

ADD: Polígono Industrial Guadalquivir

C/ Tecnología, 5 Postcode: 41120Gelves (Sevilla), Spain.

Website: www.approx.es

C€

Importado por / Imported by:

APPROX IBERIA S. L.

CIF: B-91202499

Soporte técnico / Technical support:

[e-mail]

MADE IN PRC

The content of this guide is subject to typographical errors
