60257 - Heated blanket/cushion MEDISANA - Free user manual and instructions

Brand	Medisana
Model	60257
Product type	Foot warmer / Heating cushion
Category	Heating blanket/cushion
Power supply	220-240 V ~ 50Hz
Heat output	max. 100 W
Heat levels	0 – 1 – 2 – 3 (sliding switch)
Auto shut-off	After approx. 90 minutes
Dimensions (L x W x H)	Approx. 30 x 30 x 23 cm
Weight	Approx. 580 g
Cord length	Approx. 2 m
Cover	Removable, machine washable at 30 °C
Cover care	Wash at 30 °C, no bleach, no tumble drying, iron on low heat, no dry cleaning
Appliance care	Dry clean with soft brush, slightly damp cloth
Safety	Do not use folded or creased, do not pin, do not use with a timer, do not leave unattended, do not use in bed
Indicator light	Yes, for each heat level
Safety auto shut-off	Yes, in case of malfunction
Warranty	3 years
EAN code	40 15588 60257 3
Use	Private, for feet
Recommended age	From 8 years (under supervision), not suitable for under 3 years

Frequently Asked Questions - 60257 MEDISANA

How to turn on and adjust the temperature of the Medisana 60257 foot warmer?

Use the sliding switch on the control box. Position 0 = off, 1 = low, 2 = medium, 3 = high. The indicator light turns on to confirm the setting.

How long does the foot warmer stay on before automatically shutting off?

The automatic shut-off occurs after approximately 90 minutes. To turn it back on, set the switch to 0, wait 5 seconds, then select a heat level again.

Can I wash the Medisana 60257 foot warmer?

No, the appliance itself must not be washed. Only the removable cover can be machine washed at 30 °C, without bleach, without tumble drying, and ironed on low heat.

Is it safe to use this foot warmer in bed?

No, it is not recommended to use it in bed as you may fall asleep and cause overheating or burns. Use only in a closed room, while awake and under supervision.

What should I do if the indicator light does not turn on or the appliance no longer heats up?

Check that the switch is in a position other than 0 and that the socket works. If the indicator remains off, this may indicate a malfunction of the safety system. Do not use the appliance anymore and contact customer service.

Can I use a power strip or timer with this foot warmer?

No, the use of an external timer is prohibited. Plug it directly into a wall socket. Do not cover the control box.

Is the foot warmer suitable for people with diabetes or reduced mobility?

It is not recommended for people insensitive to heat (diabetics, paralyzed persons, etc.) as they may not react to overheating. Consult a doctor if in doubt.

How to clean the inner cover?

Remove the cover from the foot warmer. Wash it at 30 °C with a mild detergent (no solvents). Do not tumble dry, let it air dry. Iron on low heat if necessary.

What are the dimensions and weight of the Medisana 60257?

Dimensions: approx. 30 x 30 x 23 cm. Weight: approx. 580 g.

How to properly store the foot warmer after use?

Let it cool down completely, then fold it without creasing. Do not place any heavy objects on it to avoid damage. Store in a dry place.

USER MANUAL 60257 MEDISANA

Please read carefully!

A litre attentivement s.v.p.!

Please fold out this page and leave it folded out for quick reference.

Control unit with sliding switch

Cable de raccordement

Read the instruction manual carefully before using this device, especially the safety instructions, and keep the instruction manual for future use.

Should you give this device to another person, it is vital that you also pass on these instructions for use.

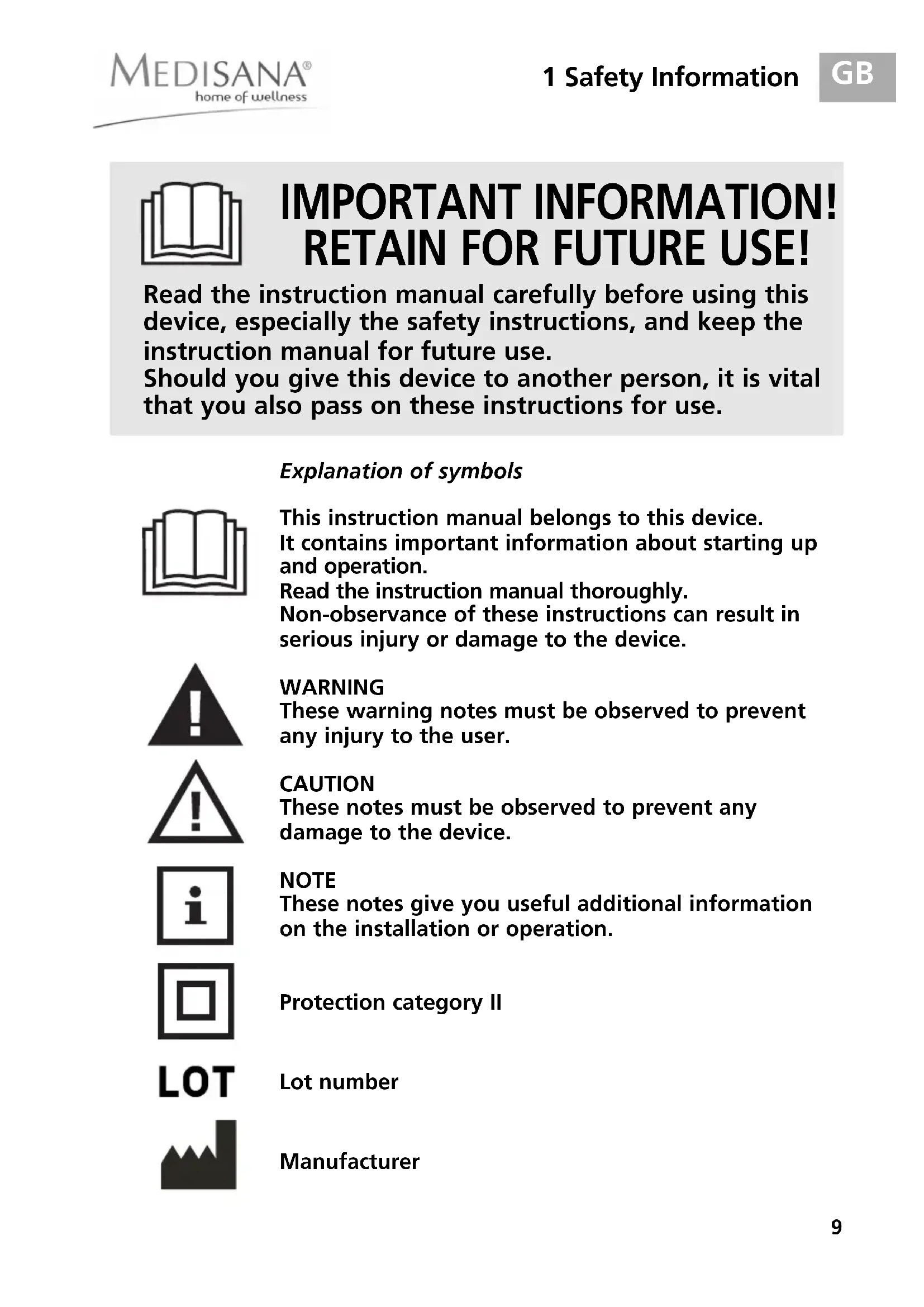

Explanation of symbols

This instruction manual belongs to this device. It contains important information about starting up and operation.

Read the instruction manual thoroughly.

Non-observation of these instructions can result in serious injury or damage to the device.

WARNING

These warning notes must be observed to prevent any injury to the user.

CAUTION

These notes must be observed to prevent any damage to the device.

NOTE

These notes give you useful additional information on the installation or operation.

Protection category II

Lot number

Manufacturer

Do not puncture the foot warmer!

Do not use the foot warmer when it is folded!

Not to be used by very young children (0-3 years)!

IPX1

Drip-proof!

Only use the foot warmer indoors!

Do not wash the foot warmer! The cover can be washed in a normal wash at max. 30^ C !

Do not dry the foot warmer in a tumble drier! The cover can be dried in a drier!

Do not iron the foot warmer! The cover can be ironed at a low temperature!

Do not dry clean!

• Carefully check the foot warmer before each use for signs of wear and/or damage.

• Do not use if you notice wear, damage or signs of improper use on the foot warmer, the switch or the cables. Return it to the supplier.

• Before connecting the device to your power supply, please ensure that the supply voltage stated on the rating plate is compatible with your mains supply.

• The appliance may not be switched on using a clock timer.

• The foot warmer may not be operated while folded or creased.

• No safety pins or other pointed or sharp objects may be attached to the foot warmer or stuck into it.

• The unit is designed for private home use only.

• This foot warmer is not intended for clinical or commercial use.

• Only use the foot warmer for the purpose described in this instruction manual.

• Do not use the device on children or persons who are disabled, asleep or insensitive to heat (persons who cannot react on overheating).

• Children below the age of 3 years are not allowed to use this device, because they are not able to react on overheating.

• The device must not be used by young children over the age of 3 years, unless the control unit has been adjusted accordingly by its parents or legal guardians or unless the child has been well instructed how to use the control unit properly.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance.

• Cleaning and user maintenance shall not be made by children without supervision.

• The appliance is not to be used for warming animals.

• Never leave the foot warmer unattended during operation.
• Do not fall asleep while the foot warmer is switched on.
• Do not wear shoes when using the foot warmer because this will lower your heat-sensitivity and will cause the foot warmer to become dirty.
• Prolonged use of the foot warmer at a high setting could lead to skin burns.
• Do not use the foot warmer in bed.
• Do not use the foot warmer when it is damp or in moist environments. The foot warmer may only be used again once it is completely dry.
• The controls and leads must not be exposed to any kind of moisture.
• Do not reach to retrieve a foot warmer that has fallen into water. Unplug the appliance immediately.
• During operation, the switch and lead may not be placed on or under the foot warmer or covered in any other way whatsoever.
• Do not place any heat sources (e.g. hot-water bottles or heating pads) on the foot warmer.
• Keep the mains lead away from hot surfaces.
• Do not place any large or heavy objects (e.g. cases, etc.) on the foot warmer regardless of whether the appliance is switched on or off.
• Never carry, pull or turn the foot warmer using the power cable and do not clamp the cable.
• When the appliance is not in use, disconnect the plug from the mains.
• In the event of a defect, do not repair the foot warmer yourself. Repairs must only be carried out by an authorized specialist dealer or other suitably qualified personnel.
• A damaged power supply cable cannot be replaced. If the power

supply cable is damaged, the whole foot warmer must be disposed of.

• When storing the foot warmer, leave it to cool down first before folding. To prevent creases, do not place any objects on the foot warmer when storing.
• If you have any health concerns, consult your doctor before using the foot warmer.
• Do not use the foot warmer if your feet are swollen, inflamed or injured.
• If you experience any pain or discomfort while using the unit, stop using it immediately.

2 Operating

Thank you very much

Thank you for your confidence in us and congratulations!

You have purchased the Foot Warmer FWS, a quality product by MEDISANA. To ensure the best results and long-term satisfaction with your MEDISANA Foot Warmer FWS, we recommend that you read the following operating and maintenance instructions carefully.

2.1 Items supplied and packaging

Please check first of all that the device is complete and is not damaged in any way. In case of doubt, do not use it and contact your dealer or your service centre.

The following parts are included:

1 MEDISANA foot warmer FWS with insert cover
1 Instruction manual

The packaging can be reused or recycled. Please dispose properly of any packaging material no longer required.

If you notice any transport damage during unpacking, please contact your dealer without delay.

WARNING

Please ensure that the polythene packing is kept away from the reach of children! Risk of suffocation!

2.2 Operation

Always make sure that the foot warmer is not creased or folded while it is in use. You must always use the foot warmer with the cover.

Switch the appliance on with the sliding switch on the control unit. Never use a clock timer!

Switch level 0 = Appliance switched off
Switch level 1 = Heat low
Switch level 2 = Heat medium
Switch level 3 = Heat high

During switch level 1, 2 and 3 the indicator light is illuminated, showing the adjusted level number contemporaneously. You can now enjoy the pleasant warmth at your feet.

After approx. 90 minutes the foot warmer automatically switches off. To switch the foot warmer on again, you must first move the sliding switch to position 0. After approx. 5 seconds you can switch the foot warmer back on by sliding the switch to level 1, 2 or 3. You can stop using the appliance at any time by moving the sliding switch to position 0. Disconnect the plug from the mains socket when you are not using the foot warmer.

WARNING

When the foot warmer is in operation, the control unit may warm up slightly. For this reason, the control unit must not be covered or placed on the foot warmer while the appliance is switched on.

Do not rely on your hands to test the heat of the foot warmer. Hands are considerably less sensitive towards heat than the rest of the body's surface. A temperature which is judged by the hand to be slightly warm can be felt by the feet to be unpleasantly hot.

The indicator light goes out if the safety system switches off the foot warmer due to a fault, even if the foot warmer is still switched on. The foot warmer must no longer be used after a fault has occurred. This is because safe operation of the appliance can no longer be guaranteed.

3.1

Cleaning and maintenance

Foot warmer

The electric foot warmer should be kept clean because it may not be washed or dry-cleaned. Before cleaning the foot warmer, always disconnect the plug from the mains and allow it to cool down. The foot warmer can be cleaned dry with a soft brush. Small marks can be removed with a cloth or a slightly damp sponge, using a mild liquid cleaner. The foot warmer may not become wet. If it becomes damp it must be air-dried. Store the foot warmer in a dry place and do not place any objects on top of it.

Insert cover (interior)

Before cleaning the foot warmer, the insert cover must be taken out. The cover can be cleaned with a damp cloth or according to the care instructions on the labels. Use solvent-free cleaners only. Only use the foot warmer again once it and the cover are completely dry.

3.2

This product must not be disposed of together with domestic waste.

All users are obliged to hand in all electrical or electronic devices, regardless of whether or not they contain toxic substances, at a municipal or commercial collection point so that they can be disposed of in an environmentally acceptable manner.

Consult your municipal authority or your dealer for information about disposal.

3.3

Specifications

Name and model :

MEDISANA foot warmer FWS

Power supply: 220-240 V AC 50 Hz

Heat output :max.100W

Automatic switch off : after approx. 90 min

Switching levels : 0 - 1 - 2 - 3

Dimensions : approx. 30 (l) x 30 (w) x 23 (h) cm

Weight : approx. 580 g

Mains lead length : approx. 2 m

Article No.: 60257

In accordance with our policy of continual product improvement, we reserve the right to make technical and optical changes without notice.

The current version of this instruction manual can be found under www.medisana.com

Warranty and repair terms

Please contact your dealer or the service centre in case of a claim under the warranty. If you have to return the unit, please enclose a copy of your receipt and state what the defect is.

The following warranty terms apply:

1. The warranty period for MEDISANA products is three years from date of purchase. In case of a warranty claim, the date of purchase has to be proven by means of the sales receipt or invoice.

2. Defects in material or workmanship will be removed free of charge within the warranty period.

3. Repairs under warranty do not extend the warranty period either for the unit or for the replacement parts.

4. The following is excluded under the warranty:

a. All damage which has arisen due to improper treatment, e.g. non-observation of the user instructions.
b. All damage which is due to repairs or tampering by the customer or unauthorised third parties.
c. Damage which has arisen during transport from the manufacturer to the consumer or during transport to the service centre.
d. Accessories which are subject to normal wear and tear.

1. Liability for direct or indirect consequential losses caused by the unit are excluded even if the damage to the unit is accepted as a warranty claim.

MEDISANA AG

Jagenbergstraße 19

41468 NEUSS

GERMANY

The service centre address is shown on the attached leaflet.
