USER MANUAL HB 675 MEDISANA

DE Kuschel-Heizdecke HB 675
GB Cosy heating blanket HB 675
FR Couverture chauffante douillette HB 675
IT Mobida termocoperta HB 675
ES Manta elctrica de tacto suave HB 675
PT Cobertor electrico aconchegante HB 675
NL Knuffelverwarmingsdeken HB 675
FI Pehmeä lampöpeitto HB 675
SE Mjuk varmefilt HB 675
GR Θερμαινόμενη κουβερτa HB 675

OEkO-TEX

CONFIDENCE IN TEXTILES

STANDARD100

BEHO 98144 TESTEX

Please read carefully!

A line attentivement s.v.p.!.

Please fold out this page and leave it folded out for quick reference.

Read the instruction manual carefully before using this device, especially the safety instructions, and keep the instruction manual for future use.

Should you give this device to another person, it is vital that you also pass on these instructions for use.

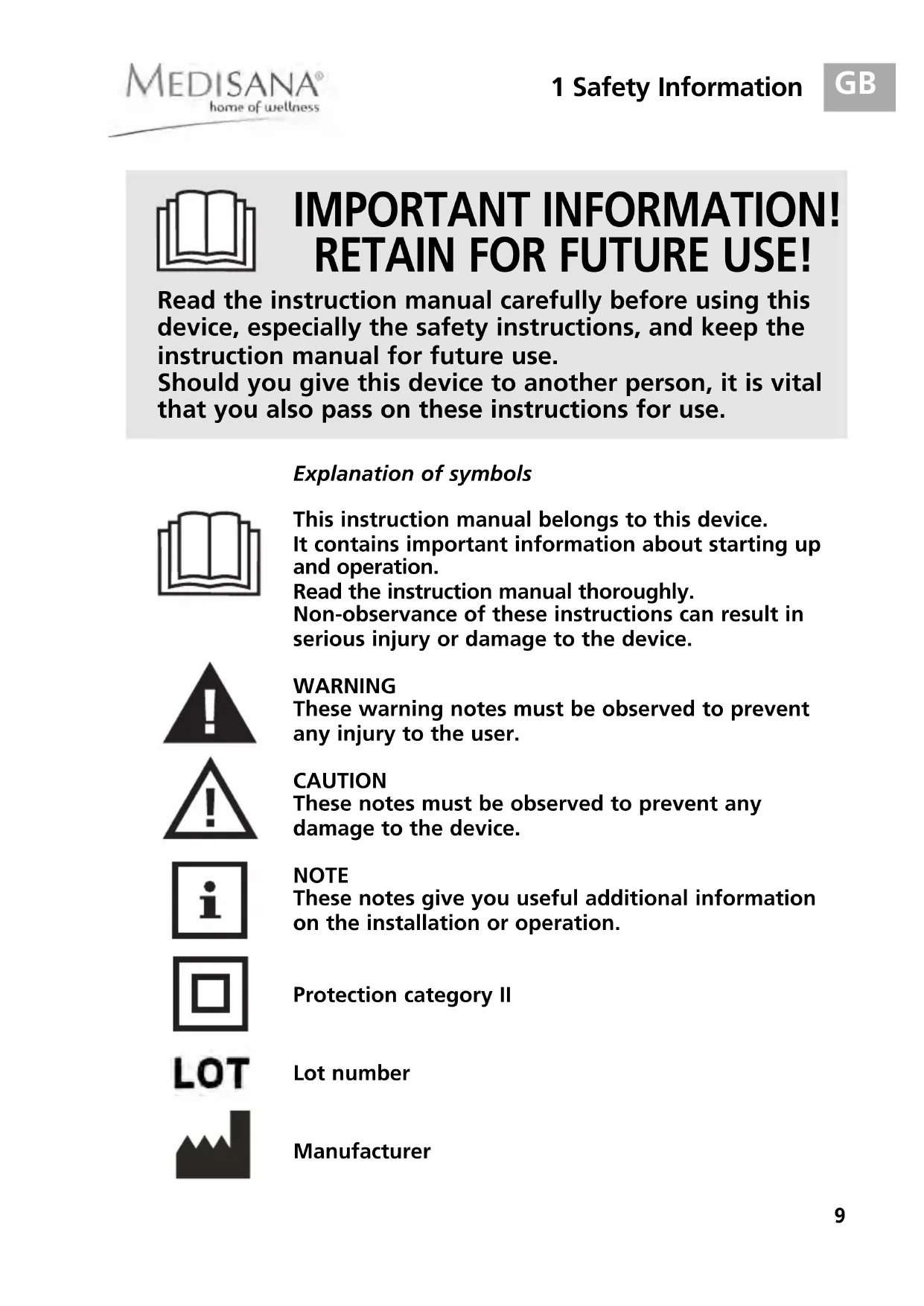

Explanation of symbols

This instruction manual belongs to this device.

It contains important information about starting up and operation.

Read the instruction manual thoroughly.

Non-observance of these instructions can result in serious injury or damage to the device.

WARNING

These warning notes must be observed to prevent any injury to the user.

CAUTION

These notes must be observed to prevent any damage to the device.

NOTE

These notes give you useful additional information on the installation or operation.

Protection category II

Lot number

Manufacturer

Do not puncture the heating blanket!

Do not use the heating blanket when it is folded!

Not to be used by very young children (0-3 years)!

Only use the heating blanket indoors!

The electric blanket may be washed by hand according to the instructions on the label! Unplug the control switch unit from the heating blanket!

Do not bleach!

Do not dry the heating blanket in a tumble drier!

Do not iron the heating blanket!

Do not dry clean!

• Before connecting the appliance to your power supply, please ensure that the supply voltage stated on the rating plate is compatible with your mains supply.
• Check the heating blanket carefully before each use, if you notice wear or damage
• Do not use if you notice wear, damage or signs of improper use on the electric blanket, the switch or the cables. Return it to the supplier.
• If the power supply cable is damaged, it may only be replaced by MEDISANA, an authorised dealer or by qualified personnel to avoid any risk of danger.
• Only use the heating blanket for its intended use as in the instruction manual.
• Do not use the device on children or persons who are disabled, asleep or insensitive to heat (persons who cannot react on overheating).
• Children below the age of 3 years are not allowed to use this device, because they are not able to react on overheating.
• The device must not be used by young children over the age of 3 years, unless the control unit has been adjusted accordingly by its parents or legal guardians or unless the child has been well instructed how to use the control unit properly.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  Children shall not play with the appliance.
• Cleaning and user maintenance shall not be made by children without supervision.
• The heating blanket may not be operated while folded, creased or placed around the mattress.
• During use, the control switch and lead must not be placed on or under the heating blanket or be otherwise covered in any way.
• No safety pins or other pointed or sharp objects should be attached to the heating blanket or stuck into it.

• Never leave the heating blanket on when unattended.

• The device is only for private use and is not to be used in hospitals.

• Never handle a heating blanket that has fallen into water. Unplug it from the mains outlet immediately.

• Do not use the heating blanket in a damp or humid environment or if the heating blanket itself is damp. You may only use it again once it is completely dry.

• Never expose the control switch or leads to moisture of any kind.

• Keep the mains lead away from hot surfaces.

• Never carry, pull or twist the heating blanket by the mains lead and do not allow the lead to become tangled or snagged.

• Do not repair the heating blanket yourself in the event of damage or malfunction. Only have repairs carried out by an authorized specialist dealer or suitably qualified personnel.

• The heating blanket may only be operated with its special control unit.

• When storing the appliance, allow it to cool down before folding. When storing, do not place any objects on the electric blanket to prevent buckling.

Health tips and recomm dations

• Should you have any concerns about health issues, consult your doctor before using the heating blanket.
• Should you experience persistent pains in the muscles and joints, please inform your doctor. Persistent pains can be a symptom of serious illness.
• If you experience any pain or discomfort while using the unit, stop using it immediately.

Thank you very much

Thank you for your confidence in us and congratulations!

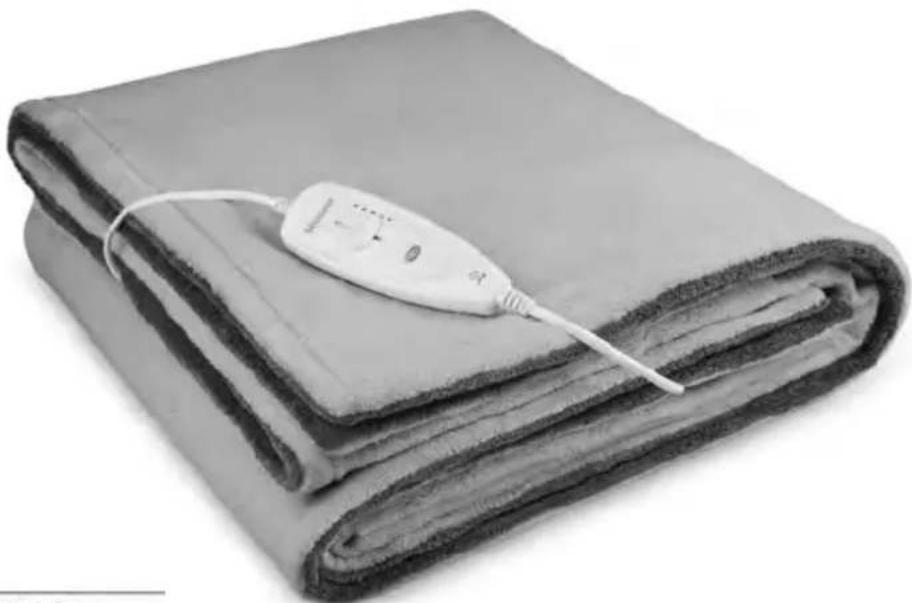

With the HB 675 Cosy heating blanket you have purchased a MEDISANA quality product.

To ensure the best results and long-term satisfaction with your MEDISANA HB 675 Cosy heating blanket, we recommend that you read the following operating and maintenance instructions carefully.

2.1 Items supplied and packaging

Please check first of all that the device is complete and is not damaged in any way. In case of doubt, do not use the appliance and contact your dealer or your service centre.

The following parts are included:

1 MEDISANA Cosy heating blanket HB 675 with control unit
- 1 Instruction manual

The packaging can be reused or recycled. Please dispose properly of any packaging material no longer required.

If you notice any transport damage during unpacking, please contact your dealer without delay.

WARNING

Please ensure that the polythene packing is kept away from the reach of children! Risk of suffocation!

2.2 Use

With the MEDISANA heating blanket HB 675 you can gently warm and relax your whole body. Snuggle up under the extra-soft heating blanket for a pleasant, cosy well-being. The heating blanket features an electric tempera-ture control that regulates precisely the warmth-supply according to the chosen setting (1-2-3-4). The two outer layers of the three-layer blanket are made of fluffy microfibre fleece. The easy-care material and the detachable operating element make the blanket hand-washable up to 30^

2.3 Operation

Plug the unit into the mains outlet and move the slider control from position 0 to position 1. Operation indicator lamp initially lights up green, then it flashes red and subsequently it lights up red for the remainder of the warm-up phase. After a few minutes you will be able to feel the heating blanket getting noticeably warmer. When the electric blanket reaches the set temperature, the lamp lights up green again. When the next warm-up phase begins, operation indicator lamp lights up red again.

If you require a higher temperature setting, move the switch to the next positions, 2 or 3, or to the maximum heat setting, position 4. Each time switch is moved, lamp lights up green and then flashes red according to the level at which the switch is set (two, three or four flashes). The lamp then lights up again constantly in red for the remainder of the warm-up phase.

Should the heating blanket get too warm for you, slide the switch back to a lower setting. To switch off the device, return the switch to position 0. The red power LED will go out, indicating that the unit is switched off. Now unplug the heating blanket from the mains outlet.

The heating blanket is designed in such a way that settings 1 and 2 are suitable for continuous use. Push the switch to position 1 or 2 if you want to use it in continuous operation. The appliance is equipped with an anti-overheating device. The heating blanket will switch off automatically after approx. 3 hours of continuous use. To switch it back on, first move the switch back to position 0 then back to the desired heat setting.

Unplug the heating blanket from the mains outlet when it is no longer in use.

3.1 Cleaning and maintenance

Correct

• Before washing the heating blanket, unplug it from the mains outlet and let it cool down.
• Unplug the control switch unit from the heating blanket using the connector on the underside.
• The electric blanket may be washed by hand according to the instructions on the label. Never immerse the control switch unit in water as moisture must not be allowed to get into the unit.
• To dry, lay the heating blanket flat on a moisture-absorbent towel or mat. When the heating blanket is completely dry, it should be reconnected to the control switch unit in the correct manner. The heating blanket may only be operated with its special control unit.
• When storing the appliance, allow it to cool down before folding. Store the heating blanket in a clean and dry place. When storing, do not place any objects on the electric blanket to prevent buckling.

3.2 Disposal

This product must not be disposed of together with domestic waste.

All users are obliged to hand in all electrical or electronic devices, regardless of whether or not they contain toxic substances, at a municipal or commercial collection point so that they can be disposed of in an environmentally acceptable manner.

Consult your municipal authority or your dealer for information about disposal.

3.3 Technical specifications

Name and model : MEDISANA Cosy heating blanket HB 675

Power supply 220-240 V~ 50/60 Hz

Heat output approx. 120 W

Automatic switch off: after approx. 3 hours

Switching levels 0-1-2-3-4

Dimensions approx. 200× 150cm

Weight approx. 1.7kg

Mains lead length approx. 2.3m

Item number : 60231

EAN number : 40 15588 60231 3

In accordance with our policy of continual product improvement, we reserve the right to make technical and optical changes without notice.

The current version of this instruction manual can be found under www.medisana.com

Warranty and repair terms

Please contact your dealer or the service centre in case of a claim under the warranty. If you have to return the unit, please enclose a copy of your receipt and state what the defect is.

The following warranty terms apply:

1. The warranty period for MEDISANA products is three years from date of purchase. In case of a warranty claim, the date of purchase has to be proven by means of the sales receipt or invoice.
2. Defects in material or workmanship will be removed free of charge within the warranty period.
3. Repairs under warranty do not extend the warranty period either for the unit or for the replacement parts.
4. The following is excluded under the warranty:

a. All damage which has arisen due to improper treatment, e.g. non-observance of the user instructions.
b. All damage which is due to repairs or tampering by the customer or unauthorised third parties.
c. Damage which has arisen during transport from the manufacturer to the consumer or during transport to the service centre.
d. Accessories which are subject to normal wear and tear.

1. Liability for direct or indirect consequential losses caused by the unit are excluded even if the damage to the unit is accepted as a warranty claim.

MEDISANA GmbH

Jagenbergstraße 19

41468 NEUSS GERMANY

The service centre address is shown on the attached leaflet.
