USER MANUAL Campus 32 E Wolf Garten

Original operating instructions 9

Line drawing of a robotic car with visible wheels and rotational arrows indicating motion (no text or symbols)

B click

Line drawing of a lawn mower with a hand adjusting the wheel, showing a circular inset highlighting the blade (no text or symbols present)

Line drawing of a lawn mower with a close-up inset showing hand positioning and tool path (no text or symbols)

Line drawing of a hand holding a tool over a device casing with multiple arrows indicating movement or force (no text or symbols present)

Diagram of a car climbing rope and cable assembly (no text or symbols)

Line drawing of a lawn mower being adjusted for a tool, showing hands operating the blade (no text or symbols)

Line drawing of a lawn mower with hand and wheel assembly (no text or symbols)

J 30 mm 50 mm 60 mm

Illustration of a person using a pressure cuff to lift a seated leg, with arrows indicating force direction (no text or symbols)

Line drawing of a lawn mower with grass blades and an arrow indicating clockwise motion (no text or symbols)

M

N 13-19 NM

Campus 32 E

1 2 3 4 4 5 Campus 10.1

D

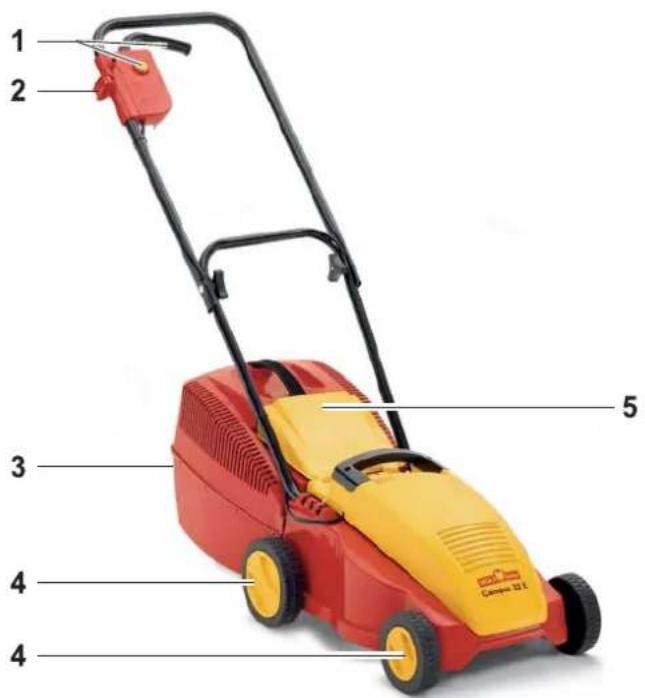

1 On/off switch
2 Cable tension relief
3 Grass collection basket
4 Cutting height adjustment
5 Cover

F

Congratulations on the purchase of your WOLF-Garten product

Read the user manual carefully and familiarise yourself with the operating elements and the correct operation of the equipment. The operator is responsible for accidents involving other persons and their property. Observe the notes, explanations and regulations.

Never allow children or other persons who are not familiar with the operating instructions to use the lawn-mower. Young persons under the age of 16 may not use the equipment. Local regulations can limit the minimum age of the operator.

Contents

Safety instructions 9

Assembly....10

Operation. 10

Maintenance....11

Faults and how to remedy ..... 12

Guarantee terms....12

Safety instructions

Significance of the symbols

Warning!

Read the operating instructions before using for the first time!

Keep third parties away from the danger area

Caution! - Sharp cutting blades - remove the plug from the mains before any maintenance work and if the cable is damaged!

Keep the connection cable away from the cutting tools!

General Notes

●This lawnmower is intended for the care of grass and lawn areas in private grounds. Because of physical danger to the operator or other persons, the lawnmower must not be used for other purposes.
- Do not mow the grass if persons, especially children and animals, are in the vicinity.
- Only mow the grass if the light conditions are suitable.

Before mowing

• Only mow the grass wearing sturdy shoes and long trousers.
  ●Never mow the grass in bare feet or wearing sandals.
• Check the ground where the lawnmower is to be used, and remove any items which could be picked up and thrown out by the lawnmower.
• Check the connection cable and the wire fitted to the outside of the mower for damage and ageing (brittleness). Use only if it is in perfect condition.
• Check the grass collection unit regularly for wear and deformation.
  ●Before use check (visually), whether the cutting tools and their fixings are blunt or damaged.
• Replace the cutting tools if they are blunt or damaged in complete sets to avoid imbalance (see „Maintenance“, page 11).

Cable

Caution! Risk of electrocution from damaged cables The fuse does not always respond if the cable is cut or damaged.

• Do not touch the cable before the plug has been removed from the plug socket.

• Damaged cables should be replaced completely. It is prohibited to mend the cable using insulating tape.

• Repairs to the cable should only be undertaken by an expert (see „Maintenance“, page 11).

• Attach the cable to the tension relief unit. Do not let it rub up against edges, points or sharp items.
• Do not squash the cable by putting it through door gaps or gaps in windows.
• Switching devices must not be removed or bridged out (e.g.strapping the switching lever to the guide bar).
• Use only extension cables with a minimum cross-section of 3 × 1, 5 ~m^2 mand a length of max. 25 ~m :
• When using rubber-sheathed cables, they must be of type HO 7 RN-F or heavier.
• When using PVC-sheathed cables, they must be of type HO5 VV-F or heavier (cables of this type are not suitable for continuous outdoor use - e.g. underground installation for the connection of an outdoor socket or pond pump, or outdoor storage).
  ●The cables must be water spray protected.

When mowing

- Do not tilt the mower when starting the motor unless it has to be tilted when starting. In this case, do not tilt it more than necessary and only lift the section that is away from the operator. Check continuously that both hands are in the working position before lowering the mower back to the ground.

- Keep the distance away provided by the handle linkage.

- Only switch the motor on if your feet are at a safe distance from the cutting tools.

- Ensure that it is standing securely. Never run, move forwards smoothly.

- Mowing on inclines: - Always mow at right angles to the incline, not up and down - Take particular care when changing direction. - Do not mow very steep ground

●Take particular care when mowing backwards and pulling the mower towards you.

• Switch the mower off when tilting or transporting it, e.g. from/to the lawn or over paths.
  ●Take care not to grab running cutters.
• Do not stand in front of the grass ejection opening.
  ●Before lifting or carrying the mower, switch the motor off and wait until the cutting tools have come to a standstill.
  ●Never open the protective cover if the motor is still running.
• Before removing the grass collection device: Switch the motor off and wait until the cutting tools come to a standstill. After emptying, fix the grass collection device carefully.
  ●Never run the mower over gravel—Stones will fly up!
• If possible, do not mow if the grass is wet.
  ● Under the following conditions the mower must be switched off, the mains plug must be removed and the mower must be stationary:
• adjust the cutting height
• when leaving the mower
  — when releasing blocked cutters
• in order to check the mower, to clean it and to work on it
• if foreign bodies are struck (check first whether the mower or cutting tools have been damaged. Only then should you remove the damage).
• if the mower is vibrating badly because of imbalance (switch off and look for the cause).
• if the connection wire is damaged during use.

Maintenance

Caution! Rotating cutters

Before all maintenance and cleaning tasks:

●Pull the mains plug out.
●Take care not to grab running cutters.

- Check all the visible fixing bolts and nuts regularly for tightness and retighten, particularly those of the cutter beam.

- Do not store the mower in damp rooms.

●For safety reasons, replace worn or damaged parts.

- Use only original WOLF-Garten spare parts, otherwise there is no guarantee that your mower complies with the safety regulations.

Disposal

Electrical equipment must not be placed in the household waste. The unit, accessories and packing material should be taken to an environment-friendly recycling unit.

Assembly

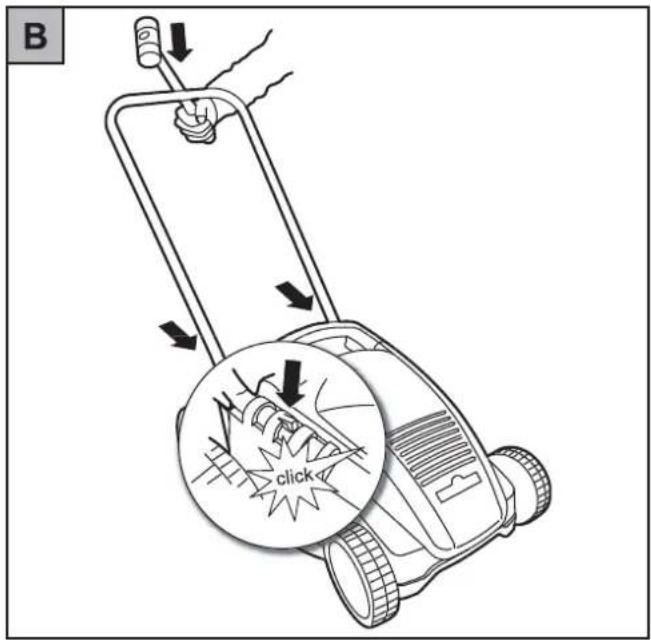

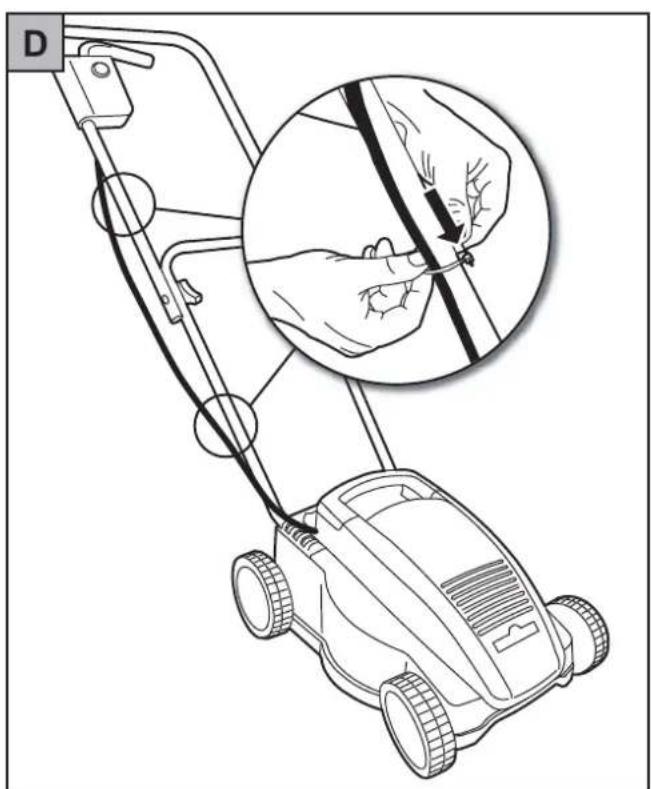

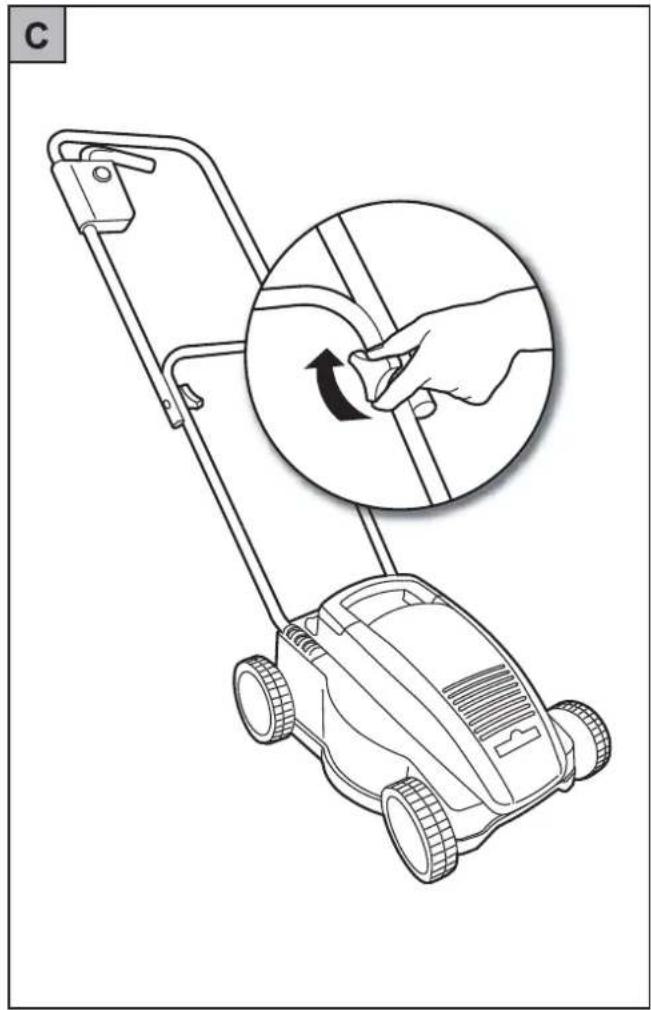

Fixing the grab handle A B C D

Caution!

When collapsing and unfolding the grab handle, the cable could be damaged.

●Take care that you do not kink the cable.
●See illustrations for assembly.

Operation

Operating times

• Please observe the regional regulations.
• Request the operating times from your local authorities.

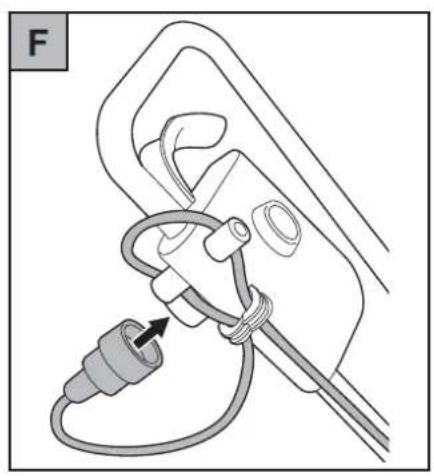

Insert the cable into the tension relief unit F

- Please insert the cable into the tension relief unit in accordance with the illustrations.

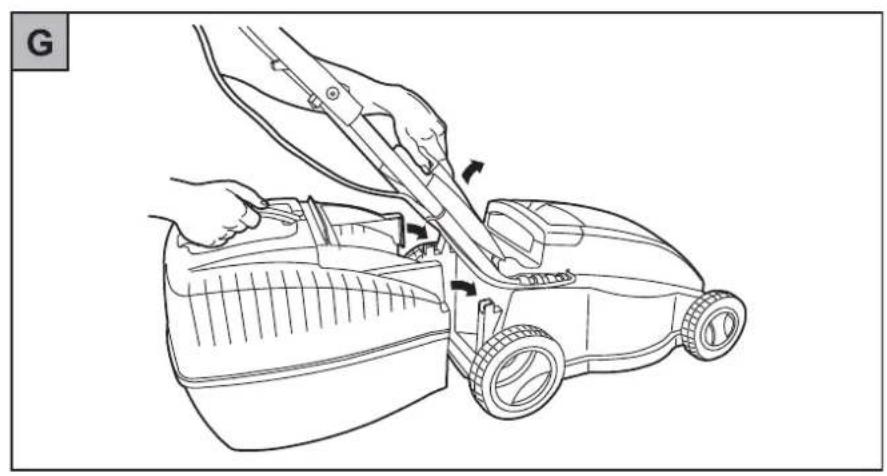

Fit the collecting basket G

Caution! Rotating cutters

Settings only to be carried out on the mower with the motor switched off and with the cutting tools at a standstill.

- Only insert the collection basket when your feet are at a safe distance from the cutting tools.

1. Lift the protection cover.
2. Hang the collection basket in the notches in the chassis (see arrow) using the hooks.
3. Apply the protection cover.

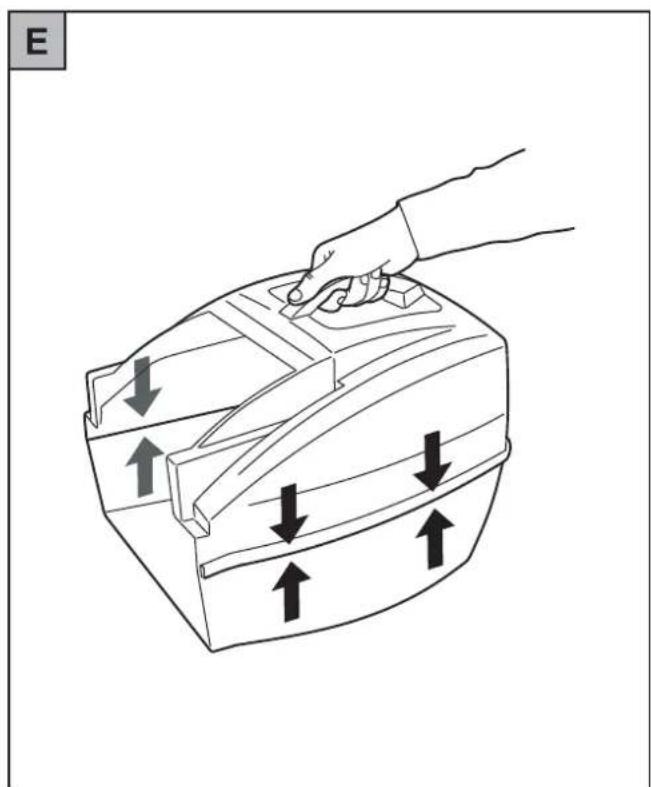

Fitting the collecting basket E

1. Insert the projections of the collecting basket upper section into the openings in the collecting basket lower section.
2. Push the collecting basket upper section evenly onto the collecting basket lower section. The collecting basket is securely located as soon as it clicks in position.

Setting the cutting height

Caution! Rotating cutters

Settings only to be carried out on the mower with the motor switched off and with the cutting tools at a standstill.

- switch the motor off and pull the plug out from the mains.

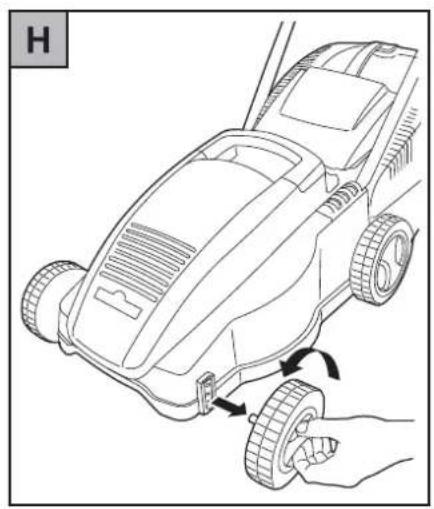

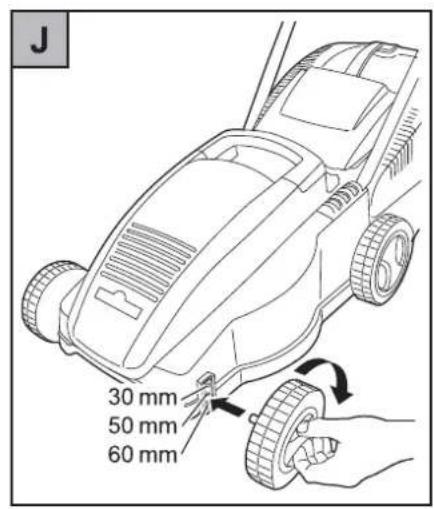

●Unscrew the wheels and set to the correct height .H J

●The wheels must all be at the same cutting height setting!

Cutting height- Grass condition

●Mow when the lawn is dry if possible, to protect the turf. If the lawn is wet and the grass is long, it may be better to mow with a higher cutting height.

Connection to the plug socket (230 Volt, 50 Hz)

- Only connect the mower to plug sockets having a 16 Amp. fuse (slow acting) (or LS Switch Type B).

Note: Residual current protection device

These protection devices protect against serious injury when touching damaged wires, insulation faults and in certain cases also when damaging wires under potential.

- We recommend that the mower only be connected to plug sockets which are protected by a residual current protection device (RCD) having a residual current of no more than 30 mA.

●There are retro-fitting sets for older installations. Consult your specialist electrician.

Switching the mower on/off

- Switch the mower on when standing on level ground.

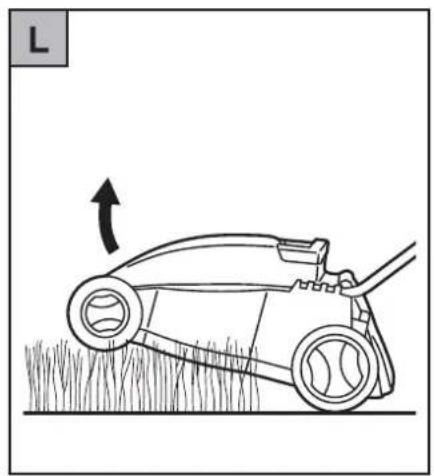

- Not in long grass—or tilt if necessary. L

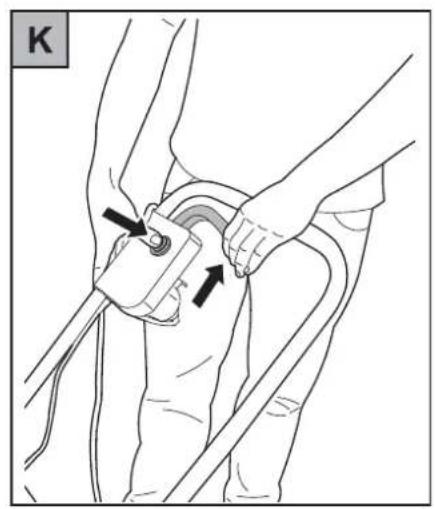

Motor on K

1. Push button (1) and hold it down.
2. Pull the bracket (2).
3. Release the button (1).

Maintenance

General

Caution! Rotating cutters

Before all maintenance and cleaning tasks:

●Pull the mains plug out.
●Take care not to grab running cutters.

Cleaning

●Always clean the lawnmower after each use with a handbrush. Simply stand it vertically on the collection basket.
●Never spray the mower with water.

Storage

• At the end of each mowing season, you should perform a complete cleaning operation on the mower.
  ●The mower should be checked by a WOLF-Garten customer service workshop in the autumn.
  ●Store the mower in a dry room.

Motor off K

●Release the bracket (2).

Tips for mowing

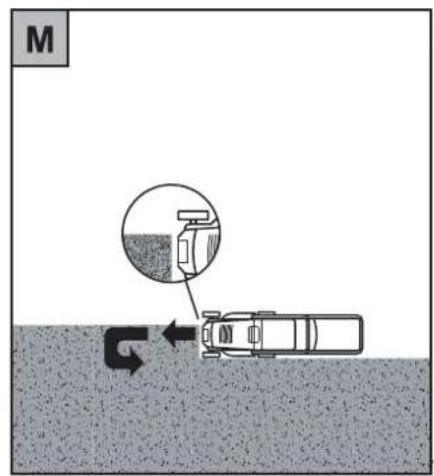

• In order to prevent stripes on the lawn, always overlap the tracks of the cut by a few centimetres M
  ●Always lay the cable securely on the terrace, paths or grass which has already been cut.

Emptying of Grassbox

The grassbox is full and should be emptied as soon as grass clippings remain uncollected on the ground behind your mower.

Attention! Rotary cutter blade

Undertake adjustments on the equipment only after the motor is switched off and the cutting tool has come to a standstill.

●Empty collection bag.
- Remove potential blockages in the cutting space before starting.

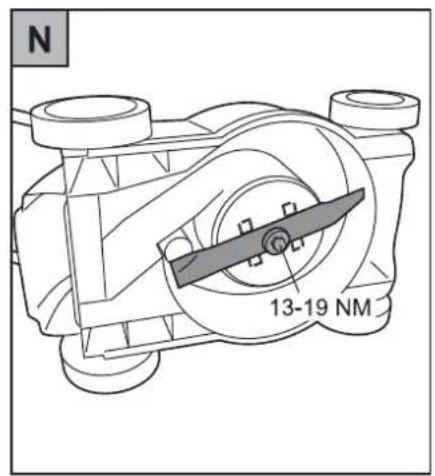

Changing the cutters N

- When performing any work on the cutters, coupling and cutter beam, pull the plug out and wear protective gloves.

Caution!

After the cutters have been sharpened there could be imbalance.

●Always have the cutters sharpened by a specialist workshop, since a balance test in accordance with the safety regulations must be carried out.

●Always have the cutters changed by a specialist workshop. A 19 mm torque wrench is an absolute must. Torque for tightening the bolts: 13 - 19 Nm . N
●Use only original WOLF-Garten spare parts.

Faults and how to remedy

		Help from (X)
Problem Possible cause		WOLFService Workshop	Self
Running rough, heavy vibration of the unit	Cutter faulty	X ---
	Cutter has come loose in the fixings	--- X
Motor will not run	House fuse faulty	--- X
	Cable damage:Caution! Risk of electrocution from damaged cablesThe fuse does not always respond if the cable is cut or damaged.Do not touch the cable before the plug has been removed from the plug socket.Damaged cables should be replaced completely It is prohibited to mend the cable using insulating tape.	X ---
Poor mowing/collection	Cutters blunt	X ---
	Collection basket blocked	--- X
	Inappropriate cutting height	--- X

If you are not sure, then always consult the WOLF service workshop.
Caution! Switch the mower off and pull the mains plug out before checking or working on the cutters.

Warranty

The warranty rules issued by our company or the importer apply to every country. As part of the warranty, we remedy malfunctions on your appliance free of charge provided that this malfunction is caused by a material or manufacturing defect. In the event of a warranty claim, please turn to your dealer or the nearest branch office.

OX6 OUR Bicester, Oxfordshire

0 18 69 36 36 36

0 18 69 36 36 20

H

MTD Hungária Kft

Dózsa György út 1

8248 Nemesvámos

06 88 51 55 00

06 88 50 55 20

NL

MTD Poland sp. z o.o.

UL. Ogrodnicza 1

84-252 Orle

058 57 20 701

058 57 20 699

RUS
