USER MANUAL 4341T MAKITA

The following show the symbols used for the tool. Be sure that you understand their meaning before use.

Symboles

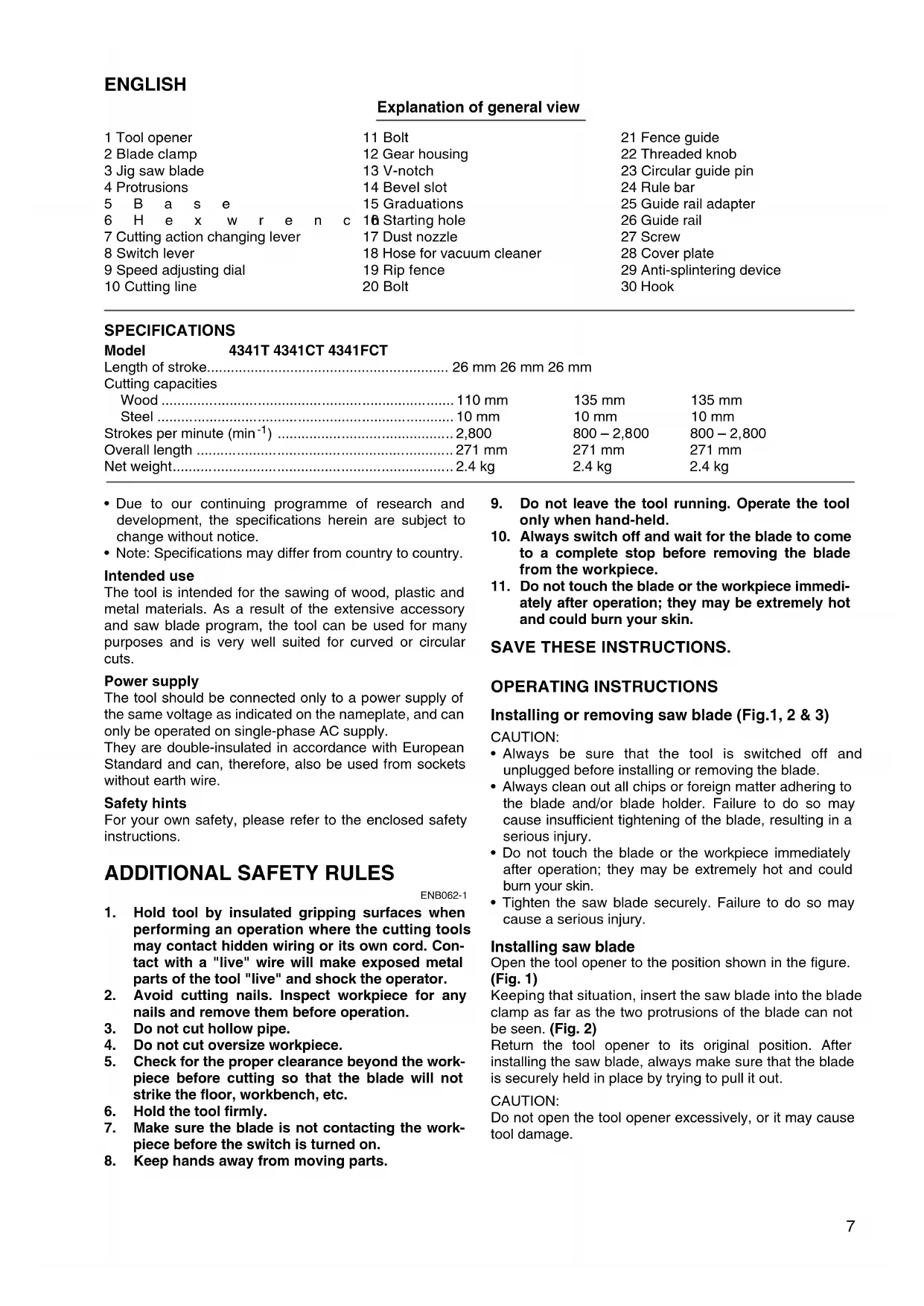

	Explanation of general view
1 Tool opener	11 Bolt	21 Fence guide
2 Blade clamp	12 Gear housing	22 Threaded knob
3 Jig saw blade	13 V-notch	23 Circular guide pin
4 Protrusions	14 Bevel slot	24 Rule bar
5 B a s e	15 Graduations	25 Guide rail adapter
6 H e x w r e n c	16 Starting hole	26 Guide rail
7 Cutting action changing lever	17 Dust nozzle	27 Screw
8 Switch lever	18 Hose for vacuum cleaner	28 Cover plate
9 Speed adjusting dial	19 Rip fence	29 Anti-splintering device
10 Cutting line	20 Bolt	30 Hook

SPECIFICATIONS

Model 4341T 4341CT 4341FCT

Length of stroke. 26 mm 26 mm 26 mm

Cutting capacities

Wood 110 mm 135 mm

Steel 10 mm 10 mm 10 mm

Strokes per minute (^-1) 2,800

Overall length 271 mm

Net weight 2.4 kg 2.4 kg 2.4 kg

• Due to our continuing programme of research and development, the specifications herein are subject to change without notice.
• Note: Specifications may differ from country to country.

Intended use

The tool is intended for the sawing of wood, plastic and metal materials. As a result of the extensive accessory and saw blade program, the tool can be used for many purposes and is very well suited for curved or circular cuts.

Power supply

The tool should be connected only to a power supply of the same voltage as indicated on the nameplate, and can only be operated on single-phase AC supply.

They are double-insulated in accordance with European Standard and can, therefore, also be used from sockets without earth wire.

Safety hints

For your own safety, please refer to the enclosed safety instructions.

ADDITIONAL SAFETY RULES

ENB062-1

1. Hold tool by insulated gripping surfaces when performing an operation where the cutting tools may contact hidden wiring or its own cord. Contact with a "live" wire will make exposed metal parts of the tool "live" and shock the operator.
2. Avoid cutting nails. Inspect workpiece for any nails and remove them before operation.
3. Do not cut hollow pipe.
4. Do not cut oversize workpiece.
5. Check for the proper clearance beyond the workpiece before cutting so that the blade will not strike the floor, workbench, etc.
6. Hold the tool firmly.
7. Make sure the blade is not contacting the workpiece before the switch is turned on.

8. Keep hands away from moving parts.

9. Do not leave the tool running. Operate the tool only when hand-held.

10. Always switch off and wait for the blade to come to a complete stop before removing the blade from the workpiece.
11. Do not touch the blade or the workpiece immediately after operation; they may be extremely hot and could burn your skin.

SAVE THESE INSTRUCTIONS.

OPERATING INSTRUCTIONS

Installing or removing saw blade (Fig.1, 2 & 3)

CAUTION:

• Always be sure that the tool is switched off and unplugged before installing or removing the blade.
• Always clean out all chips or foreign matter adhering to the blade and/or blade holder. Failure to do so may cause insufficient tightening of the blade, resulting in a serious injury.
• Do not touch the blade or the workpiece immediately after operation; they may be extremely hot and could burn your skin.
• Tighten the saw blade securely. Failure to do so may cause a serious injury.

Installing saw blade

Open the tool opener to the position shown in the figure. (Fig. 1)

Keeping that situation, insert the saw blade into the blade clamp as far as the two protrusions of the blade can not be seen. (Fig. 2)

Return the tool opener to its original position. After installing the saw blade, always make sure that the blade is securely held in place by trying to pull it out.

CAUTION:

Do not open the tool opener excessively, or it may cause tool damage.

Removing saw blade

CAUTION:

When you remove the saw blade, be careful not to hurt your fingers with the top of the blade or the tips of workpiece.

Open the tool opener to the position shown in the figure.

Pull the saw blade out toward the base. (Fig. 3)

NOTE:

Occasionally lubricate the roller.

Hex wrench storage (Fig. 4)

When not in use, the hex wrench can be conveniently stored.

Selecting the cutting action (Fig. 5)

This tool can be operated with an orbital or a straight line (up and down) cutting action. The orbital cutting action thrusts the blade forward on the cutting stroke and greatly increases cutting speed.

To change the cutting action, just turn the cutting action changing lever to the desired cutting action position.

Refer to the table below to select the cutting action.

Position	Cutting action Applications
0 Straight	light line cutting action	For cutting mild steel, stainless steel and plastics. For clean cuts in wood and plywood.
I Small	orbit cutting action For cutting mild steel, a aluminum and hard wood.
II Medium	orbit cutting action For cutting wood and plywood. For fast cutting in aluminum and mild steel.
III Large	orbit cutting action For fast cutting in wood and plywood.

Switch action (Fig. 6)

CAUTION:

Before plugging in the tool, always check to see that the tool is switched off.

To start the tool, slide the switch lever to the "l" position.
To stop the tool, slide the switch lever to the "O" position.

Speed adjusting dial (Fig. 7)

For 4341CT, 4341FCT only

The tool speed can be infinitely adjusted between 800 and 2,800 strokes per minute by turning the adjusting dial. Higher speed is obtained when the dial is turned in the direction of number 5; lower speed is obtained when it is turned in the direction of number 1. Refer to the table below to select the proper speed for the workpiece to be cut. However, the appropriate speed may differ with the type or thickness of the workpiece. In general, higher speeds will allow you to cut workpieces faster but the service life of the blade will be reduced.

Workpiece to be cut	Number on adjusting dial
Wood	4 – 5
Mild steel	3 – 5
Stainless steel	3 – 4
Aluminum	3 – 5
Plastics	1 – 4

CAUTION:

The speed adjusting dial can be turned only as far as 5 and back to 1. Do not force it past 5 or 1, or the speed adjusting function may no longer work.

For 4341CT, 4341FCT only

The tools equipped with electronic function are easy to operate because of the following features.

Constant speed control

Electronic speed control for obtaining constant speed. Possible to get fine finish, because the rotating speed is kept constant even under load condition.

Soft start feature

Safety and soft start because of suppressed starting shock.

Lighting up the lamps (For 4341FCT only)

CAUTION:

Do not look in the light or see the source of light directly.

To turn on the lamp, pull the trigger. Release the trigger to turn it off.

NOTE:

Use a dry cloth to wipe the dirt off the lens of lamp. Be careful not to scratch the lens of lamp, or it may lower the illumination.

Operation (Fig. 8)

CAUTION:

Always hold the tool base flush with the workpiece. Failure to do so may cause blade breakage, resulting in a serious injury.

Turn the tool on and wait until the blade attains full speed. Then rest the tool base flat on the workpiece and gently move the tool forward along the previously marked cutting line. When cutting curves, advance the tool very slowly.

Bevel cutting

CAUTION:

• Always be sure that the tool is switched off and unplugged before tilting the tool base.

With the tool base tilted, you can make bevel cuts at any angle between 0^ and 45^ (left or right). (Fig. 9)

Loosen the bolt on the back of the base with the hex wrench. Move the base so that the bolt is positioned in the center of the bevel slot in the base. (Fig. 10 & 11)

Tilt the base until the desired bevel angle is obtained. The V-notch of the gear housing indicates the bevel angle by graduations. Then tighten the bolt firmly to secure the base. (Fig. 11)

Front flush cuts (Fig. 12)

Loosen the bolt on the back of the tool base with the hex wrench, then move the tool base all the way back. Then tighten the bolt to secure the tool base.

Cutouts

Cutouts can be made with either of two methods A or B.

A) Boring a starting hole: For internal cutouts without a lead-in cut from an edge, pre-drill a starting hole 12mm or more in diameter. Insert the blade into this hole to start your cut. (Fig. 13)
B) Plunge cutting: You need not bore a starting hole or make a lead-in cut if you carefully do as follows.

1. Tilt the tool up on the front edge of the base, with the blade point positioned just above the workpiece surface. (Fig. 14)
2. Apply pressure to the tool so that the front edge of the base will not move when you switch on the tool and gently lower the back end of the tool slowly.
3. As the blade pierces the workpiece, slowly lower the base of the tool down onto the workpiece surface.
4. Complete the cut in the normal manner.

Finishing edges (Fig. 15)

To trim edges or make dimensional adjustments, run the blade lightly along the cut edges.

Metal cutting

Always use a suitable coolant (cutting oil) when cutting metal. Failure to do so will cause significant blade wear. The underside of the workpiece can be greased instead of using a coolant.

Dust extraction

The dust nozzle (accessory) is recommended to perform clean cutting operations. To attach the dust nozzle on the tool, insert the hook of dust nozzle into the hole in the base. (Fig. 16 & 17)

The dust nozzle can be installed on either left or right side of the base. Then connect a Makita vacuum cleaner to the dust nozzle. To remove the dust nozzle, follow the installing procedure in reverse. (Fig. 18)

CAUTION:

If you try to remove the dust nozzle forcibly, the hook of the dust nozzle can be diminished and removed unintentionally during operation.

Rip fence set (accessory)

CAUTION:

Always be sure that the tool is switched off and unplugged before installing or removing accessories.

1) Straight cuts (Fig. 19 & 20)

When repeatedly cutting widths of 160~mm or less, use of the rip fence will assure fast, clean, straight cuts. To install, insert the rip fence into the rectangular hole on the side of the tool base with the fence guide facing down. Slide the rip fence to the desired cutting width position, then tighten the bolt to secure it.

2) Circular cuts (Fig. 21 & 22)

When cutting circles or arcs of 170~mm or less in radius, install the rip fence as follows.

Insert the rip fence into the rectangular hole on the side of the tool base with the fence guide facing up. Insert the circular guide pin through either of the two holes on the fence guide. Screw the threaded knob onto the pin to secure the pin.

Now slide the rip fence to the desired cutting radius, and tighten the bolt to secure it in place. Then move the tool base all the way forward.

NOTE:

Always use blades No. B-17, B-18, B-26 or B-27 when cutting circles or arcs.

Guide rail adapter set (accessory)

When cutting parallel and uniform width or cutting straight, the use of the guide rail and the guide rail adapter will assure the production of fast and clean cuts. (Fig. 23)

To install the guide rail adapter, insert the rule bar into the square hole of the base as far as it goes. Secure the bolt with the hex wrench securely. (Fig. 24)

Install the guide rail adapter on the rail of the guide rail. Insert the rule bar into the square hole of the guide rail adapter. Put the base to the side of the guide rail, and secure the bolt securely. (Fig. 25)

CAUTION:

Always use blades No. B-8, B-13, B-16, B-17 or 58 when using the guide rail and the guide rail adapter.

Cover plate (Fig. 26)

Use the cover plate when cutting decorative veneers, plastics, etc. It protects sensitive or delicate surfaces from damage. Fit it on the back of the tool base.

Anti-splintering device (Fig. 27)

For splinter-free cuts, the anti-splintering device can be used. To install the anti-splintering device, move the tool base all the way forward and fit it from the back of tool base. When you use the cover plate, install the anti-splintering device onto the cover plate.

CAUTION:

The anti-splintering device cannot be used when making bevel cuts.

MAINTENANCE

CAUTION:

Always be sure that the tool is switched off and unplugged before carrying out any work on the tool.

To maintain product safety and reliability, repairs, maintenance or adjustment should be carried out by a Makita Authorized Service Center.

FRANÇAIS

Descriptif

4341T 4341CT 4341FCT

Hubhöhe 26 mm 26 mm 26 mm

Schnittleistung

Model 4341T 4341CT 4341FCT

Model 4341T 4341CT 4341FCT

Kun for 4341CT, 4341FCT

Kun for 4341CT, 4341FCT

Model 4341T 4341CT 4341FCT

Slagländg 26 mm 26 mm 26 mm

Sagkapacitet

Trä 110 mm

Stal 10 mm

Slag per minut (^-1) 2800

Total langd 271 mm

Nettovikt 2,4 kg

Endast for 4341CT, 4341FCT

Endast for 4341CT, 4341FCT

Malli 4341T 4341CT 4341FCT

Moyo yia 4341CT, 4341FCT

H taxutnta tou mnxavnpatoc nnpoeiva puthetai anepiopicta e 800 ka 2.800 diabpouw to aeioe nepiictpooh tou kavtpavpuoicns. Meyalutepn taxutnta enituyxavetai otav to kavtpav npiictpaefi ctn diuovcng tou vouepou 5; xanawtepn taxutnta enituyxavetai otav to kavtpav npiictpaefi ctn diuovcng tou vouepou 1. Avapeptheite ctov napakatw nivaka yia va eniEETe Tnv katalnnn Tachutnta yia katepyazoo evo kumatiou npoketiatva konei. Ostocw, n katalnnn taxutnta npopei va diaepei avaloya me tov tuio n To naoxc tou katepyazooevou kumatiou. Tevika, meyalutpecs taxutntec Ta cac nipseouv va koets katepyazoeva kumatia ypyopotepa aaaa th eattwoe i diapkeia aeitoupyiac tcacaaac

Moyo yid 4341CT, 4341FCT

Ta εpyaεia nou εiyai εφωδiacμεva με ηλεκτρονικηλειουργia εiyai εukoλa ctnv λειουργia λόγω των akoλouθων xapaktnpictikwv.

Euvexic eAeyxoc taxutntac

Hlektpovikoc Eeeyoc taxutntac yia eniteuEg ctaeepnctaxutntac.Eiva duvatov va yivei aeio fivipicma, yiati n nepiistpoikn taxutnta biatnpetai ctaeepn akoun kal uno suvthetac foptiou.

XapakTnpiotiko anaLou EkvivmuToC

Acaalec kai aanao Eekivnma loyw katactoanc tou tivaymuoc katato Eekivnua.

AvμaTwvλμnov (Móvo yid 4341FCT)

PPOEOXH:

Mn kuttate to oute va nynn c aneueiaq.

Tia va avapeTe Tn lacma, TpaBexTe Tn skavdaan. EaeuthetapeCTe Tn skavdaan yia va tn sbncte.

\SHMEIΩΣH:

Xpnnciounoiite eva steyv ophaqa yia va qkounizete touc pounous ano to fako tns launac. Ipocexte va un ypatcouviceteto fako tnc launac, diaopoptika 8u eio woc

Aeitoupyia (Eik. 8)

PPOEOXH:

NaVToE Kpatate Tn Bacn Tou mXavnmuToc Euypaumicevn e To KATEpyaOevo KOmuAt. EaV To npalaieiTe, nOpoei va npokntheo paucn Tnclambdae, e anotelacma soapop Taupuaticmo.

AvoiTe to uXavma kai npieveTe eXpi n lapa va anokTncsE vTEaWc TnV taXutnta TnC. Meta, akoumuNTe To uXavma oOioOppa cTo katepyaZoEvo Koupati kai kivnte anaTa to uXavma npoc Ta Eunpoc kata mKos Tns ypaumc konnc nou exi cnuaedutei ano npiv. Otav KoBete Kaunue, npoxpeicTe to uXavma nolu apya.

AoEotmuon

PPOEOXH:

NaVToE 3eBaiwveCTe oTI to uXavna eivai cBnstO kai bYalEvO ano Tnv npizapniv dWcTe Klaicn Ctn Bacn Tou uXavmuToC.

iovtac kIcN cTnv baCn Tou epyaIou, mnpoeite va kaVETe loEtouE C E onoiadnoTE ywvia eTaU 0^ kal 45 (apicTepa n dExiia). (Eik. 9)

XaIapwste to moulovi cto nicw epos tcg bacn G
e to Eaywoiko kleiDi. Metakivnstc te baacn etcu
wste to moulovi va evai tonoetnevo sto
kevtpo tnc loEnc cxicns ctn bacn.(Eik.10 ka 11)
Awste klcn ctn bacn mexpi va enituxte tnv
eniuuntho5yvia.

H E ykon V sTo nepiBnma tnc unxavnc 8eixvei Tnv loEyn ywvia eiaaBuaic. Meta sphiTe to moulovi ctaepa yia va aocfaicet e Tnv baCn. (Eik.11)

Eepo08iec eUthetapaumouevc konec (Eik.12)

Xaapwcte to moulovi cto nio w epoc tsbacn tou mnxavmuotc o To Eaywoki KkEiO, eT a metakivncte tn bacn Tou mnxavmuatoC expi Tepma npoc ta niow. Meta cphiite to mouoviyia va stepewcTe TN bacn Tou mnxavmuoC.

Anokonni

Anokonec mnpouv va yivouv e Tn ma n e Tnv aal ano tic e0doouc, A nB.

A) Me avolya tpunac EKKivncn; Ia ecwtepiKec anokonec xwpi apxiko koi o ano mia akpn, npo-tpunnte mua tpuna EKKivncns 12xla. n nepicsoTepo. Eicayte Tn lauma eca se autn tnv tpuna kal EKKivncte Tn konn cac.(Eik.13)
B) Konec i n c: x e i a c t a i v a o v o i t e Tpua Ekkivncn h va kavet Eia apxikn KOnn Eav npocextika kavete onwc akolouwsc.

Model 4341T 4341CT 4341FCT

These accessories or attachments are recommended for use with your Makita tool specified in this manual. The use of any other accessories or attachments might present a risk of injury to persons. The accessories or attachments should be used only in the proper and intended manner.

F ACCESSOIRES

ATTENTION:

EC-DECLARATION OF CONFORMITY

We declare under our sole responsibility that this product is in compliance with the following standards or standardized documents,

HD400, EN50144, EN55014, EN61000

in accordance with Council Directives, 73/23/EEC,

89/336/EEC and 98/37/EC.

FRANÇAISE

DECLARATION DE CONFORMITE CE

HD400, EN50144, EN55014, EN61000.

ITALIANO

Michigan Drive, Tongwell, Milton Keynes,

Bucks MK15 8JD, ENGLAND

PORTUGUES

DECLARACAO DE CONFORMIDADE DA CE

Declaramos sob inteira responsabilité que este produit obedece as seguintes normas ou documents normalizados,

HD400, EN50144, EN55014, EN61000

de accordo com as directivas 73/23/CEE, 89/336/CEE e 98/37/CE do Conselho.

DANSK

EU-DEKLARATION OM KONFORMITET

HD400, EN50144, EN55014, EN61000.

Yasuhiro Kanzaki CE 2001

Director Direktor

Direktor Johtaja

Direktor

Müdür

MAKITA INTERNATIONAL EUROPE LTD.

Michigan Drive, Tongwell, Milton Keynes,

Bucks MK15 8JD, ENGLAND

ENGLISH

Noise and Vibration

The typical A-weighted sound pressure level is 83 dB (A).

The noise level under working may exceed 85 dB (A).

• Wear ear protection. -

The typical weighted root mean square acceleration value is 8m / s^2

FRANÇAISE

Bruit et vibrations
