USER MANUAL Excellent S Selfstart Klippo

S	Safety	Line safety	Warning the risk of death.	Mail safety concern	Tues to reduce the risk of death.	Stress the risk of death.	For the end of the period, the risk of death is not being adjusted to death
DE	2013/04	Line safety and safety	Able to prevent the death.	No liability and	Pain a little to be able to keep the death in the past 10 years.	An emergency care system	The end of the period, the risk of death is not being adjusted to death
DE	2013/04	Line safety and safety	Able to prevent the death.	No liability and	Pain a little to be able to keep the death in the past 10 years.	An emergency care system	The end of the period, the risk of death is not being adjusted to death
SE	2013/11	Line safety and safety	Able to prevent the death.	No liability and	In order to be able to keep the death in the past 10 years.	Not working	The end of the period, the risk of death is not being adjusted to death
DE	2013/11	Beware of safety and safety	Able to prevent the death.	No liability and	Removal the past 10 years.	Washing water plant	Don't have a lot of water in the past 10 years.
DE	2013/12	Lack of the accident and death	Able to prevent the death.	Able to prevent the death.	Removal the past 10 years.	Washing water plant	If the death is not being affected by the accident and death is not being affected by the accident and death
E	2013/12	Line safety and safety	Able to prevent the death.	Able to prevent the death.	Able to prevent the death.	Washing water plant	If the death is not being affected by the accident and death is not being affected by the accident and death
PE	2013/12	Line safety and safety	Able to prevent the death.	Able to prevent the death.	Able to prevent the death.	Washing water plant	Able to prevent the death.
RE	2013/12	Line safety and safety	Able to prevent the death.	Able to prevent the death.	Able to prevent the death.	Washing water plant	Able to prevent the death.
E	2013/12	Line safety and safety	Able to prevent the death.	Able to prevent the death.	Able to prevent the death.	Washing water plant	Able to prevent the death.

Current Pre 21 S Excellent S Pre 19 S Excellent S 50 Excellent S Setbaut

(2) The following table of the Board of Directors (Chairman):

1. H'w Rq strd.

F H,φ(π)

20

H 11. q.m. I 1. Tavdar

1

K. Deyo

（一）本次股东大会的召集和召开程序

[Non-Text]

1

1. Cram de alou

K. Verte, 6.4 0. Dovelling

8、会议时间：

E. Akskuk

- Huguen malon

0

1. Peach

人

K. Nettah

PI

PL Risikovindra ombiandha

Прических

Dikr's own

Li band in the 2013-2014

Nabkin's history and goal

[1] 2014年1月1日（星期六）

电话：[phone]

In millions

Turkiewschu

Porto yards

NI

NE

2019年1月1日

The following

C.16.01

Hankleport

[Unreadable]

[Unreadable]

2014年12月

地址：

[Unreadable]

1

•

The following table is in English.

[Unreadable]

[Unreadable]

Arbokut w 0017

The book is a

(62) 1978-1-35

Candus

Sibet al.

1

F

L

Vee

head

(4)

Gux

Ca m

4.2

Virt.

Sino

40%

Technical line drawing of a mechanical device with no visible text or symbols

Close-up of a mechanical device with a curved handle and attached components (no visible text or symbols)

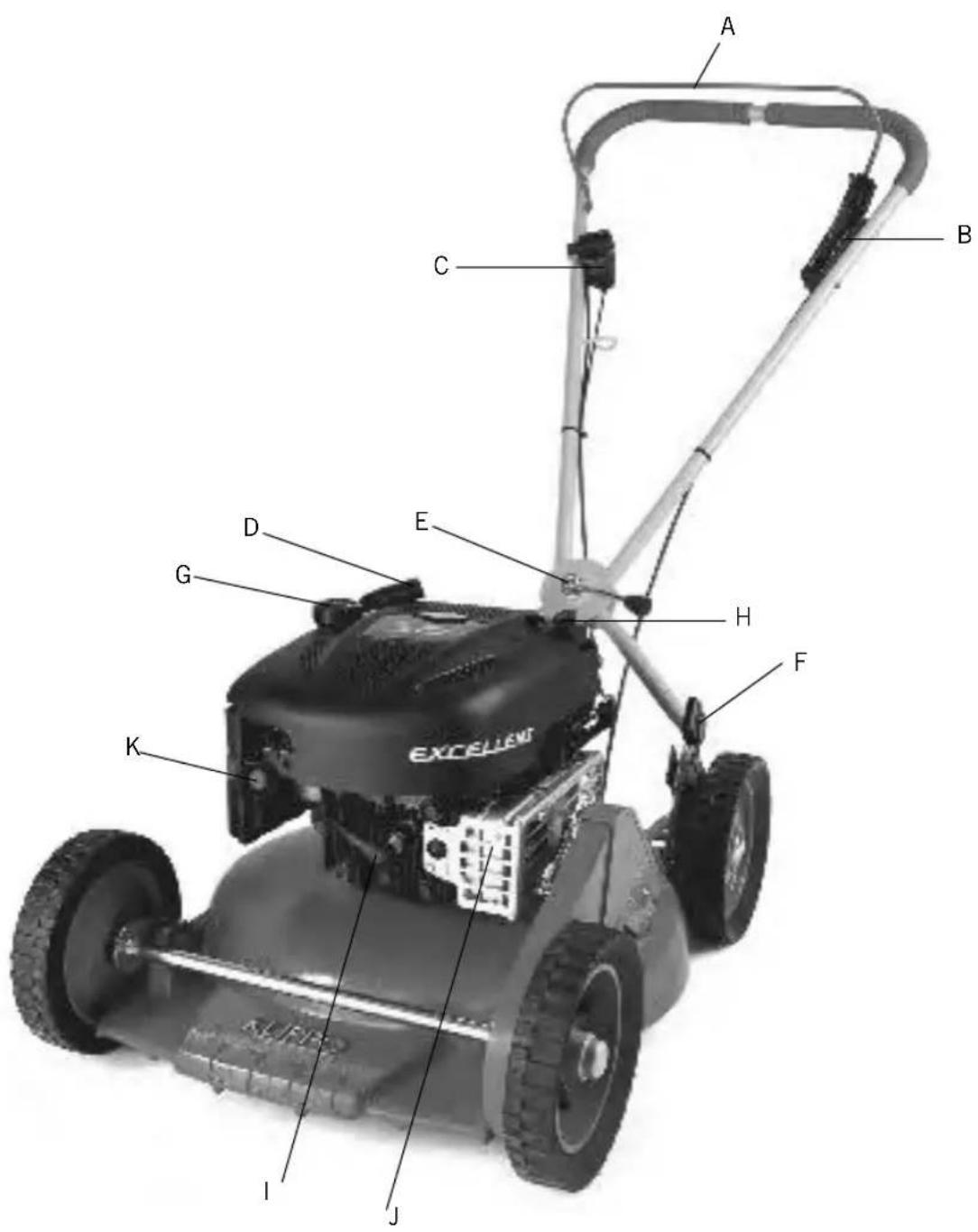

A B C D E G H F K EXCELLENS I J

Excellent S

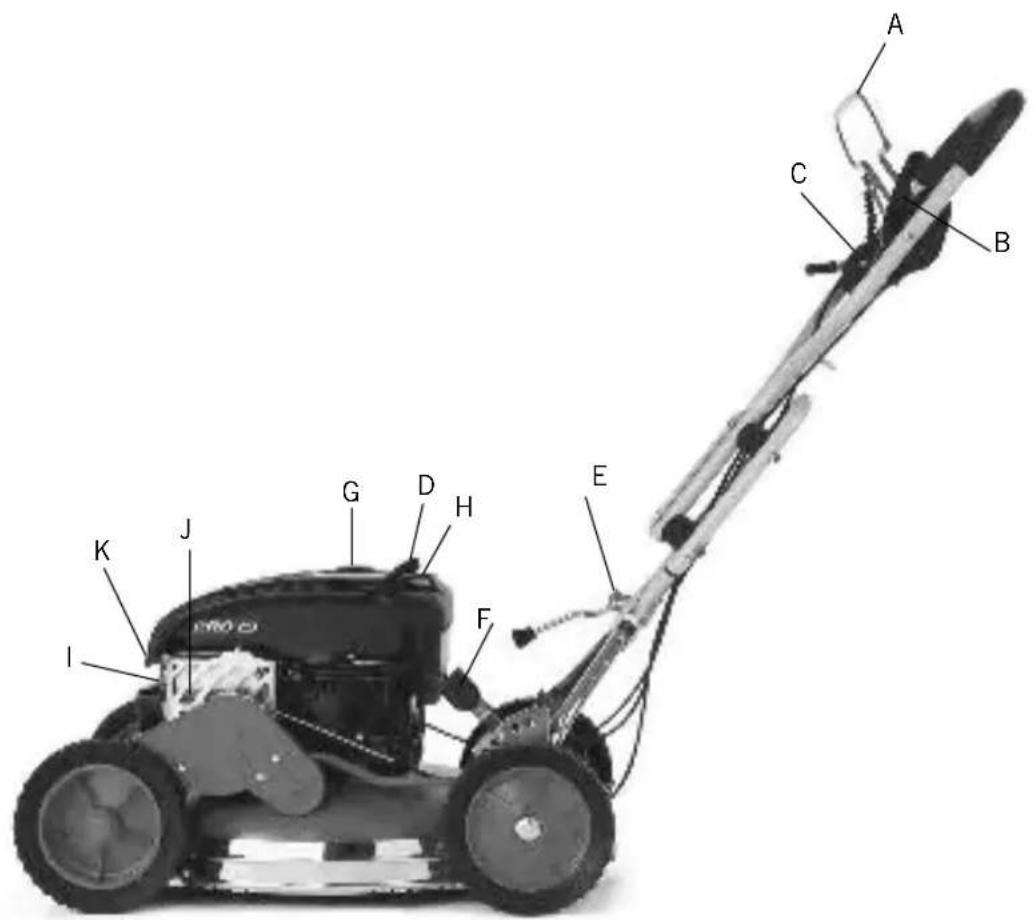

A C B E F H D G J K I

Anvisningar för KLIPPO GRÄSKLIPPARE

Modeller: Excellent S, Excellent S Selfstart, Excellent S SD, Comet, Pro 19 S och Pro 21 S.

Motorer: Briggs & Stratton; Quantum XLS 50, Intek Edge 60.

INNKJ∅RING, F∅RSTE OLJESKIFT

VEDLIKEHOLDSFORSKRIFTER

Excellent, Comet, Pro 19, Pro 21

MATERIAALPISPESIFIKAATIO

Runko SS 4261; 5,3 kg

TEKNISET TIEDOT KLIPPO Pro 21 S

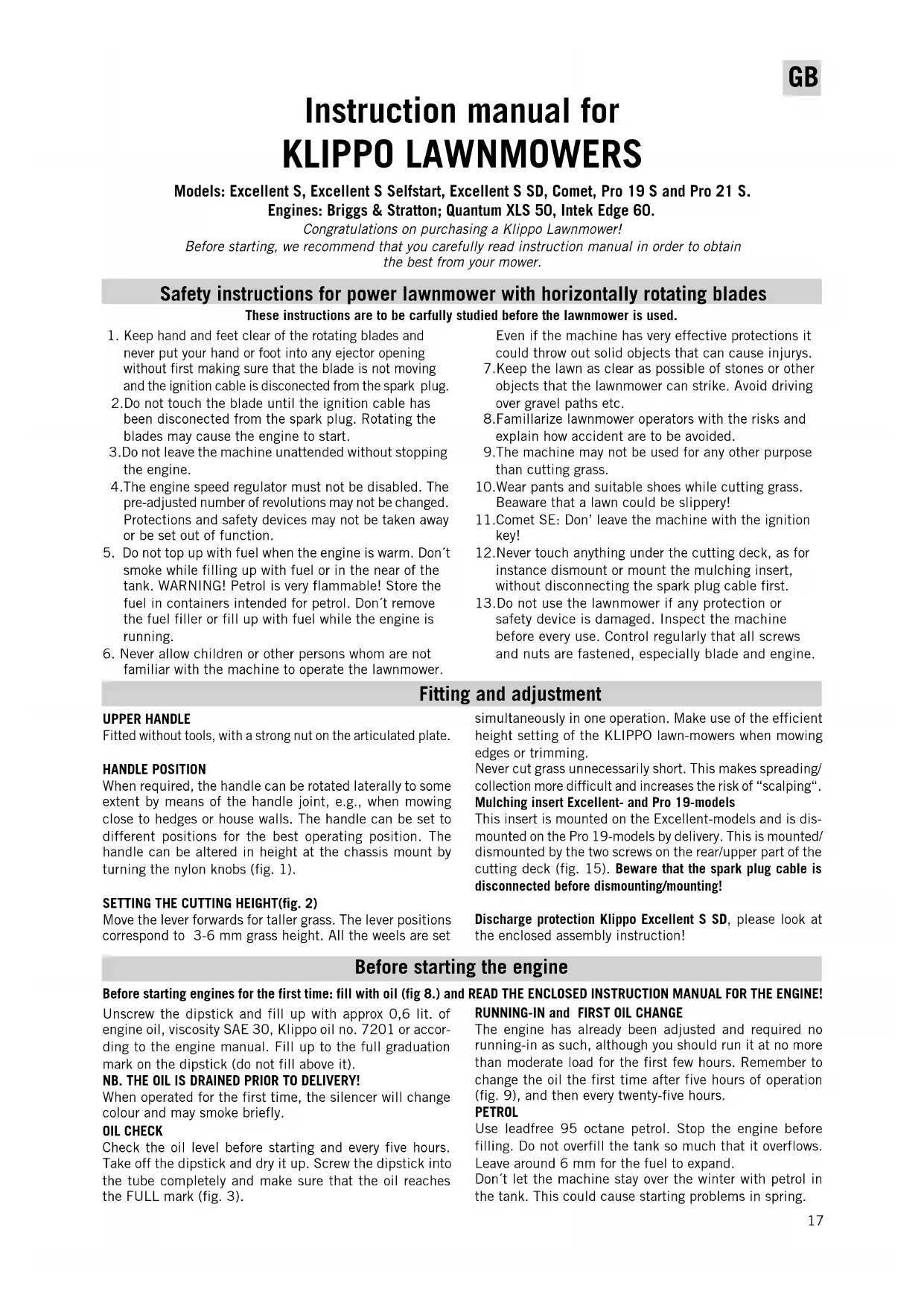

Instruction manual for KLIPPO LAWNMOWERS

Models: Excellent S, Excellent S Selfstart, Excellent S SD, Comet, Pro 19 S and Pro 21 S. Engines: Briggs & Stratton; Quantum XLS 50, Intek Edge 60.

Congratulations on purchasing a Klippo Lawnmower!

Before starting, we recommend that you carefully read instruction manual in order to obtain the best from your mower.

Safety instructions for power lawnmower with horizontally rotating blades

These instructions are to be carfully studied before the lawnmower is used.

1. Keep hand and feet clear of the rotating blades and never put your hand or foot into any ejector opening without first making sure that the blade is not moving and the ignition cable is disconnected from the spark plug.
2. Do not touch the blade until the ignition cable has been disconnected from the spark plug. Rotating the blades may cause the engine to start.
3. Do not leave the machine unattended without stopping the engine.
4. The engine speed regulator must not be disabled. The pre-adjusted number of revolutions may not be changed. Protections and safety devices may not be taken away or be set out of function.
5. Do not top up with fuel when the engine is warm. Don't smoke while filling up with fuel or in the near of the tank. WARNING! Petrol is very flammable! Store the fuel in containers intended for petrol. Don't remove the fuel filler or fill up with fuel while the engine is running.
6. Never allow children or other persons whom are not familiar with the machine to operate the lawnmower.

Even if the machine has very effective protections it could throw out solid objects that can cause injuries.

1. Keep the lawn as clear as possible of stones or other objects that the lawnmower can strike. Avoid driving over gravel paths etc.

2. Familiarize lawnmower operators with the risks and explain how accident are to be avoided.

3. The machine may not be used for any other purpose than cutting grass.

4. Wear pants and suitable shoes while cutting grass. Beaware that a lawn could be slippery!

5. Comet SE: Don' leave the machine with the ignition key!

6. Never touch anything under the cutting deck, as for instance dismount or mount the mulching insert, without disconnecting the spark plug cable first.

7. Do not use the lawnmower if any protection or safety device is damaged. Inspect the machine before every use. Control regularly that all screws and nuts are fastened, especially blade and engine.

Fitting and adjustment

UPPER HANDLE

Fitted without tools, with a strong nut on the articulated plate.

HANDLE POSITION

When required, the handle can be rotated laterally to some extent by means of the handle joint, e.g., when mowing close to hedges or house walls. The handle can be set to different positions for the best operating position. The handle can be altered in height at the chassis mount by turning the nylon knobs (fig. 1).

SETTING THE CUTTING HEIGHT(fig. 2)

Move the lever forwards for taller grass. The lever positions correspond to 3-6 mm grass height. All the weels are set simultaneously in one operation. Make use of the efficient height setting of the KLIPPO lawn-mowers when mowing edges or trimming.

Never cut grass unnecessarily short. This makes spreading/collection more difficult and increases the risk of "scalping".

Mulching insert Excellent- and Pro 19-models

This insert is mounted on the Excellent-models and is dismounted on the Pro 19-models by delivery. This is mounted/dismounted by the two screws on the rear/upper part of the cutting deck (fig. 15). Beware that the spark plug cable is disconnected before dismounting/mounting!

Discharge protection Klippo Excellent S SD, please look at the enclosed assembly instruction!

Before starting the engine

Before starting engines for the first time: fill with oil (fig 8.) and READ THE ENCLOSED INSTRUCTION MANUAL FOR THE ENGINE!

Unscrew the dipstick and fill up with approx 0,6 lit. of engine oil, viscosity SAE 30, Klippo oil no. 7201 or according to the engine manual. Fill up to the full graduation mark on the dipstick (do not fill above it).

NB. THE OIL IS DRAINED PRIOR TO DELIVERY!

When operated for the first time, the silencer will change colour and may smoke briefly.

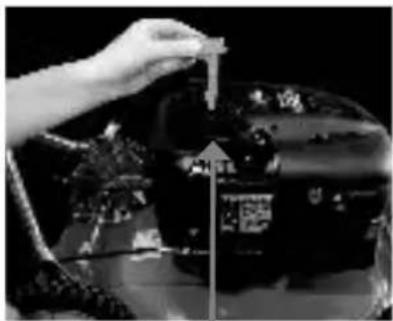

OIL CHECK

Check the oil level before starting and every five hours. Take off the dipstick and dry it up. Screw the dipstick into the tube completely and make sure that the oil reaches the FULL mark (fig. 3).

RUNNING-IN and FIRST OIL CHANGE

The engine has already been adjusted and required no running-in as such, although you should run it at no more than moderate load for the first few hours. Remember to change the oil the first time after five hours of operation (fig. 9), and then every twenty-five hours.

PETROL

Use leadfree 95 octane petrol. Stop the engine before filling. Do not overfill the tank so much that it overflows. Leave around 6 mm for the fuel to expand.

Don't let the machine stay over the winter with petrol in the tank. This could cause starting problems in spring.

Starting the engine

MODELS WITHOUT ELECTRIC START

1. Starting a cold engine: Set the throttle control to full speed position (hare). Push the Prime-starter (fig. 4) throughly three times. It is placed in the front of the engine. When starting a warm engine, normally pushing the prime-starter is unnecessary.
2. The security bail (fig. 5b) must be in operating position, by starting and operating.
3. Give the staring string a powerful lug. By cold weather it could be necessary to repeat the procedure. If the engine has got too much petrol, try to start with the throttle control in idle position (turtle). If the engine still doesn't start, take off the spark plug and clean it and try again.

Excellent Selfstart: Please follow the special starting instruction!

COMET SE

When starting for the first time, the battery may not be sufficiently charged. In that case start the engine with the starting string and then charge the battery with the charger supplied. Refer to "Maintenance", "Battery charging".

ELECTRIC STARTER (fig. 12) (before starting for the first time, connect the battery cable, fig. 13)

Follow the starting instructions above according to point 1 and 2 then turn the ignition key on the handle clockwise. Hold the key in this position until the engine starts, release it when it has done so and move the controls to the operating position.

STOP

COMET is stopped by dropping the security bail (fig. 5b), the engine stops and the drive will be disengaged, or through moving the drive-control (fig. 5c) to stop (backwards-upwards). The engine will then be running but the drive is disengaged. To engage the drive again - move the drive-control forwards-down-wards.

Excellent S, Pro 19 S and Pro 21 S is stopped by dropping the safety bail (fig. 5b). If you just want to stop the transmission while the engine is running, drop the safety bail just a little bit until the transmission control is dropping. To engage the transmission again, push the transmission control forwards (fig. 5c).

General remarks

Tidy up the lawn before mowing. Solid objects laying in the grass are dangerous to hit with blade and are worning out the blades unnecessarily.

A lawnmower must not be driven into solid objects, check the lawn for any concealed pipes and mark their position. Drive the lawnmower calmly and methodically, e.g., in continuous circles and always in such a way that you even out any stripes. Mow in different directions every time.

TIPS ON MOWING

Experts agree that it is the best to trim only one third of the length of the grass at one time, as this stimulates its growth and gives a tougher and greener lawn.

See to that the blades are in good condition. If they are worn the cut will be uneven and the grass will be yellow in the section surface. Mow often. An ornamental lawn should be mown twice a week but never do so when the grass is wet with rain or dew, as it makes spreading more difficult.

ADVANTAGES OF FRONT-WHEEL DRIVE

The entire lawnmower is more manoeuvrable and can turn, reverse and mow close to trees etc. Just depress the handle and allow the front wheels to spin in the air. Mowing can also be done with front-wheel drive disengaged.

Maintenance

NB. To prevent accidental engine starting, always disconnect the ignition cable when the engine or lawnmower is being serviced!

The machine should be left to an authorized KLIPPO-workshop after every season. Machines with catalytic converter should be left to an authorized KLIPPO-workshop at least ever third year or every 100 operating hours, whichever occurs first.

MAINTENANCE INSTRUCTIONS

Keep the top underneath of the lawnmower clean and wipe off any grass before it dries. When working underneath the machine place the machine with the spark plug upwards and disconnect the ignition cable. Tighten all mounting bolts from time to time and lubricate catches and axles after every season. Bare-metal parts should be rubbed down with a rag dipped in anti-corrosion oil. Routine servicing every fifty hours is recommended in cases of professional use. Use only KLIPPO original spare parts and accessoires. (It's a condition for the CE-marking).

CUTTER BLADE SYSTEM

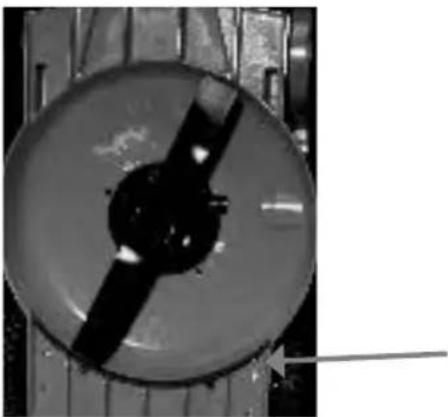

Fig. 6: Blade plate with 4 pcs replaceable lower cutter tongues and two replaceable upper blades, standard at the Comet. Mulcherblade, standard at Excellent, Pro 19 and Pro 21. Compact-blade, standard at Excellent S SD.

Blade replacement: Firm blade/Blade plate

A robust cup spring presses the blade plate/blade against a friction washer. A 14 mm ring spanner or sockel is recommended for removal of the blade bolt, which has a conventional right-hand thread. To assemble, tighten the bolt firmly and carefully knock the sockel onto it with a hammer. The blade also functions as a flywheel. If it slips the engine may run unevenly or be difficult to start, e.g., may backfire. N.B. To avoid vibration, fit the blade with the markings on the blade mount facing the side of the blade. See fig. 7.

Blade replacement: Cutter tongues/upper blades (fig. 6)

First run the lawnmower until it is out of fuel, remove the cable from the spark plug and lift the lawnmower with the sparkplug upwards. Clean out the "keyhole" in the plate and scrape off any grass remains. A retaining spring can now be seen through the keyhole. Press the spring upwards slightly and at the same knock or press on the blade so that it loosens. Check that the mounting roller for the new blade slides into the keyhole and is retained by the spring. Tap it where required. Centrifugal force will retain the blade in the correct position when the engine is running.

Replacement of upper blade of the blade plate

Unscrew the blade plate from the shaft, loosen the nut and remove the blade and spacer washer. NB. These are located below and above the blade. Tighten the nut when fitting the new blade. Refit the blade plate.

VIBRATIONS

Never run a lawnmower if it vibrates abnormally. If a blade on the plate is damaged, also replace the opposite blade. NB. If a blade is damaged and a spare is missing, also remove the opposite blade. Combiblade: if a blade is damaged, replace it.

AIR CLEANER SERVICE

(fig. 8 and 9) Quantum- and Intek-engines

Clean the element every three months or every twenty-five hours, whichever comes first. NB. Clean the element more frequently when operating under dusty conditions.

1. Loosen the screw and lower the cover as shown in the figure.
2. Carefully remove the element.
3. Clean the element by carefully knocking it against a flat surface. If it is heavily soiled, it must be replaced.
4. Replace the element, close the cover and tighten firmly.

NORMAL OIL CHANGE

Unscrew the dipstick and place the lawn-mower in such a position as to allow the oil to run out. This can be done most easily when the engine is warm and the fuel tank is empty.

REPLACEMENT AND ADJUSTMENT OF V-BELTS (fig. 14)

1. Remove the cover from the gearbox (4 pcs screws). Clean out any dirt in the gear housing.
2. Remove the hub from the front wheel by the transmission, prising it out carefully with a screwdriver. Unscrew the locking screw and remove the wheel.
3. Lift off the belt from the pulley 1936. Before installing the new belt, check that the inner pulley runs easily on the shaft. If not, spray a little rustdissolving oil between and behind the pulleys and put a little grease on the shaft. Mount the new belt and make sure that is is correctly located by the belt adjustment ball bearing. 1471.
4. Adjustment: The belt can be adjusted by moving the ball bearing 1471 upwards or downwards. When the lawnmower has been in use for some hours the belt will have been stretched and it should be readjusted.
5. Screw the cover in position on the gearbox and test-drive the lawnmower.

THE BATTERY (Comet SE) is a 12-volt lead-acid battery that does not normally require maintenance and is charged during operation.

If repeated starting attempts are made without the engine starting, the battery may have been discharged and starting will have to be done manually with the starting string. A completely discharged battery can be recharged by means of the charger supplied with the lawnmower. NB. The battery may require charging at some point during the mowing season and absolutely prior to winter storage.

CHARGING THE BATTERY (Comet SE)

1. Disassemble the connector on to the cable by the battery (fig. 13).
2. Connect the battery cabel to the charger and connect the latter to a 220 v 50 Hz wall socket.
3. After charging, which may take up to 24 hours in the case of a completely flat battery, disconnect the charger and reconnect the battery to the engine cable.

NB. Do not charge at temperatures below +5°C.

NB! A used lead-acid battery must not be disposed of in household refuse and should be handed in at you nearest service workshop.

TROUBLESHOOTING

If the engine does not start, check the following:

1. That there is fresh petrol in the tank.
2. Control that the brake cable is correctly adjusted.
3. That the spark plug is not fouled with soot and the gap is correct (it should be 0,7-0,8 mm).
4. Is the blade properly fastened?
5. Is the air filter blocked with dirt? Clean or change it! If the engine fails to start after these measures, contact your nearest service workshop.
6. Does the cutting result being bad and the blades of the grass being uneven in cut area? Change the blade of the lawnmower! Also the collecting is influenced by a worn blade.

CLEANING

Place the lawnmower with the spark plug upwards. First run until the tank is half empty, otherwise petrol will leak out through the venting hole in the tank cap. Beware of the environment and the fire danger! NB. Never flush the lawnmower with a high-pressure cleaner.

WINTER STORAGE

Run until no more petrol is left and change the oil. Then pour one spoonful of oil into the spark-plug hole and turn over the engine so that the oil is distributed. Clean the air filter and gear housing. Store the lawnmower indoors in a dry spot. Charge the battery with the charger.

Assurance of conformity

Klippo original spare parts have to be used if the CE-marking should be valid.

The undersigned, Roger Klotz, c/o Klippo AB, Knivgatan 3 - 7, SE-212 28 Malmö, Sweden, do hereby certify that the following lawnmowers conform to the essential health and safety requirements in the Directive 98/37/EEC and EN836 and conform to the demands of the Directive 2000/14/EG regarding noise and Directive 89/336 concerning electromagnetic compatibility.

Tested accordingly to EN836 and ISO11094.

The judgement of the conformity of the Directive 2000/14/EG has been done according to Annex VI in the mentioned Directive.

Type: Rotary lawnmower with combustion engine

Manufactured by: Klippo AB

Brand: Klippo

Technical responsible: Anders Björkqvist

Tested at: Svensk Maskinprovning AB, Fyrisborgsgatan 3, SE-754 50 Uppsala, Sweden Notified body no: 0404

Model Serial Engine Engine- Measured Guaranteed Operators- Blade Cutting type number -volume noise level noise level noise level -power dB(A) dB(A) type dB(A) cm cc/hp
Excellent S	K05630	B&S Quantum 50	190/5,0	92	96	81	Mulcherblade	48
Exc S Selfstart	K05640	B&S Quantum 50TM	190/5,0	92	96	81	Mulcherblade	48
Exc S SD	K05660	B&S Quantum 50	190/5,0	95	96	85	Mulcherblade	48
Pro 19 S	K06720	B&S Intek Edge 60	190/6,0	91	96	79	Mulcherblade	48
Pro 19 S	K06750	B&S Intek 55	170/5,5	92	96	79	Mulcherblade	48
Comet S	K03000	B&S Quantum 50	190/5,0	92	100	82	Blade plate	53
Comet SE	K03100	B&S Quantum 50ES	190/5,0	93	100	82	Blade plate	53
Pro 21 S	K08110	B&S Intek 60	190/6,0	92	100	82	Mulcherblade	53
Pro 21 S	K08120	B&S Intek 55	170/5,5	92	100	82	Mulcherblade	53

Vibration level: See Technical specifications, page 44!

Issued in Malmö, Sweden 22th of september 2005

B

Roger Klotz, Managing Director, Klippo AB

*According to SS-EN ISO 5349/2

S 1. Modell, typnummer 7. Tändstift 13. Vevhus 3. Skyddsgaller 9. Förgasare 14. Oljesump 4. Oljesticka 11. Starthandtag 15. Luftfilter 6. Ljuddämpare 12. Bensintank 16. Bensinpäfyllning

DK 1. Model, typenummer 7. Tændrør 13. Krumtaphus 3. Beskyttelsegitter 9. Karburator 14. Oliesump 4. Oliepind 11. Starthåndtag 15. Luftfilter 6. Lyddæmper 12. Benzintank 16. Benzinpäfyldning

N 1. Modell, typenummer 7. Tennplugg 12. Benzintank 3. Beskyttelse gitter 8. Sylindertopp 13. Vevhus 4. Oljepinne 9. Forgasser 14. Oljesump 6. Lyddemper 10. Veivaksel 15. Luftfilter 11. Starthåndtag 16. Bensinpäfyllning

SF 1. Mallin tyyppinumero 7. Sylytystulppa 12. Poittoainetankki 3. Turvallisuusohjet 8. Sylinterinkansi 13. Vaihteisto 4. Öljytlikko 9. Kaasutin 14. Oljykamrnio 6. Äänenvairnennin 10. Vetoakseli 15. Ilmansuodatin 11. Käynnistyskahva 16. Polttoaineen lisäys

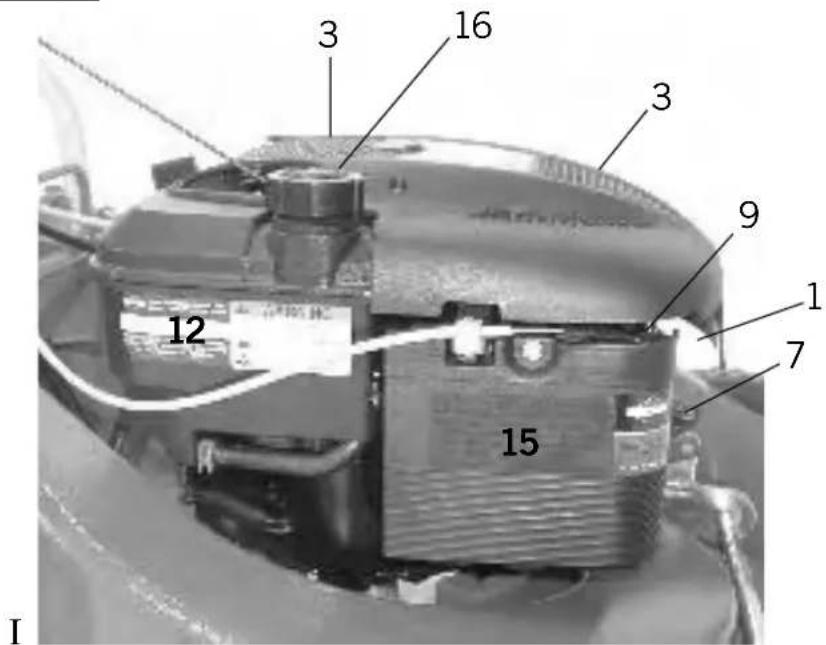

1 2 3 3 16 9 1 7 12 15 I

Briggs & Stratton Quantum 50 (Comet, Comet SE, Excellent S, Excellent S Selfstart, Excellent S SD)

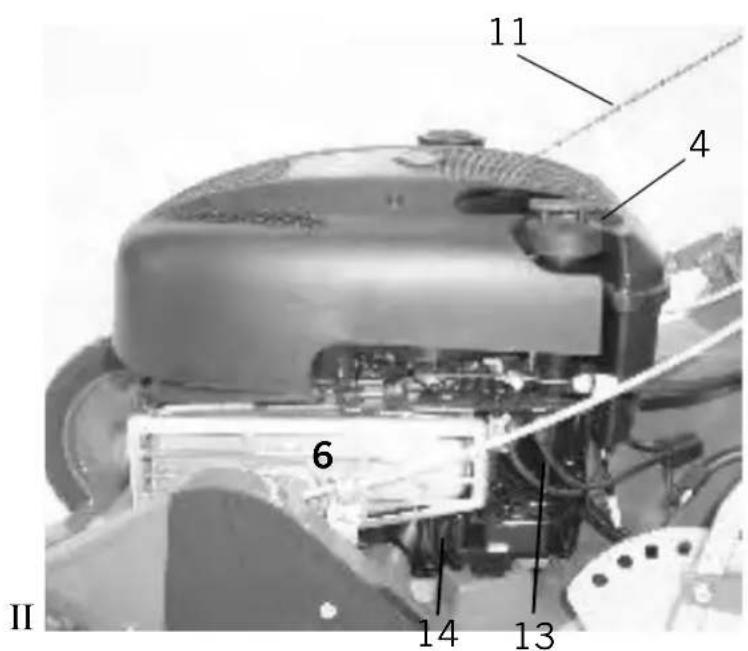

11 4 6 14 13 II

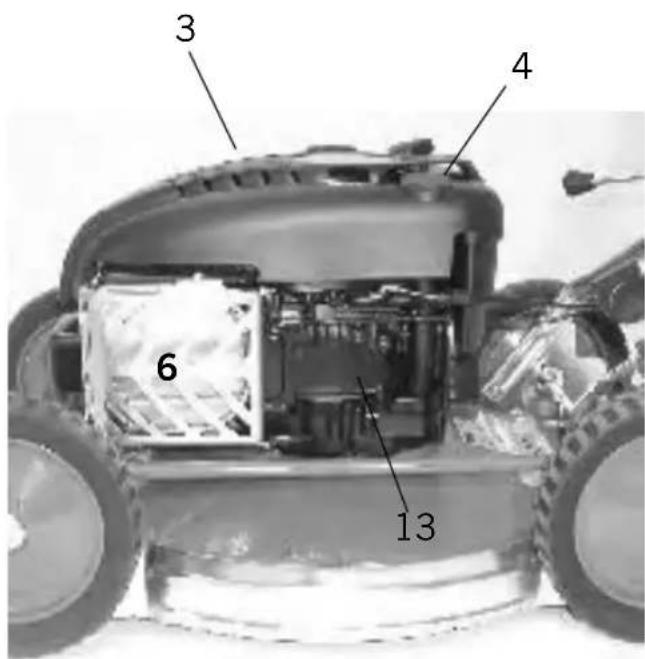

3 4 6 13

VII

\$

1. Modell, typnummer 7. Tändstift 13. Vevhus
2. Skyddsgaller 9. Förgasare 14. Oljesump
3. Oljesticka 11. Starthandtag 15. Luftfilter
4. Ljuddämpare 12. Bensintank 16. Bensinpåfyllning

DK

Abstract grayscale pattern with vertical streaks and a central horizontal line (no text or symbols)

Normal gräsmatta Normal lawn

Close-up of a circular mechanical component with internal blades and central hub, mounted on a wooden frame (no visible text or symbols)

• Mulcherinsats
• Mulching insert

Abstract grayscale pattern with vertical streaks and no discernible text or symbols

Close-up of a hand pressing a component on a mechanical part, with no visible text or symbols

1.

Hand holding a small object over a dark surface, with an arrow pointing upward (no visible text or symbols)

5.

1.

Close-up of a hand operating a mechanical device with a ruler and paper sheets (no visible text or symbols)

1.

Close-up of a circular mechanical component with internal features and a central hole (no visible text or symbols)

Close-up of a mechanical component with a dark central area and a light beam, showing no visible text or symbols.

Art nr: 000023

NOTES

A B C D E G H F K EXCELLENS I J

Excellent S

A C B E F H D G J K I
