USER MANUAL SKO 50 C2 SILVERCREST

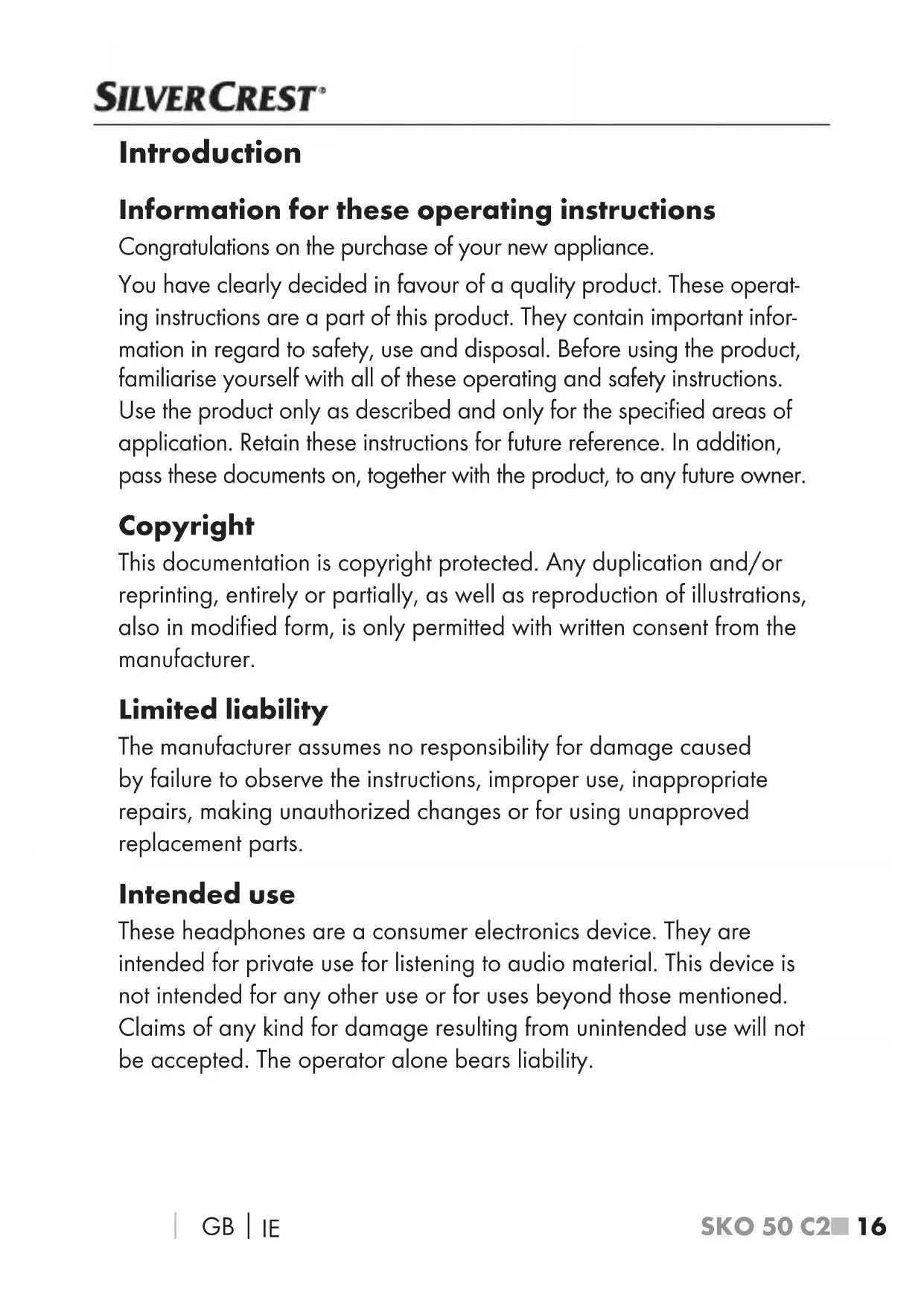

Introduction Information for these operating instructions Congratulations on the purchase of your new appliance. You have clearly decided in favour of a quality product. These operat- ing instructions are a part of this product. They contain important infor- mation in regard to safety, use and disposal. Before using the product, familiarise yourself with all of these operating and safety instructions. Use the product only as described and only for the specified areas of application. Retain these instructions for future reference. In addition, pass these documents on, together with the product, to any future owner. Copyright This documentation is copyright protected. Any duplication and/or reprinting, entirely or partially, as well as reproduction of illustrations, also in modified form, is only permitted with written consent from the manufacturer. Limited liability The manufacturer assumes no responsibility for damage caused by failure to observe the instructions, improper use, inappropriate repairs, making unauthorized changes or for using unapproved replacement parts. Intended use These headphones are a consumer electronics device. They are intended for private use for listening to audio material. This device is not intended for any other use or for uses beyond those mentioned. Claims of any kind for damage resulting from unintended use will not be accepted. The operator alone bears liability.SKO 50 C2 GB

 17 ■ Warnings In these extant operating instructions the following warnings are used: DANGER A warning at this risk level indicates a potentially dangerous situation. Failure to avoid this hazardous situation could result in physical injury or death. ► Follow the directives in this warning to avoid personal injuries. TAKE NOTE A warning at this risk level signifies potential property damage. If the situation is not avoided it can lead to property damage. ► Follow the directives in this warning to avoid property damage. NOTICE ► A notice signifies additional information that assists in the handling of the device.SKO 50 C2■ 18 

Safety In this chapter you will receive important safety information regarding the handling of the device. These headphones comply with the prescribed safety regulations. Incorrect usage can lead to personal injury and property damage. Risk of hearing damage DANGER Risks as a result of extremely high sound levels! Loud music can lead to hearing damage. ► Avoid extreme sound levels, especially over long periods of time, when you are using these headphones. Risk of accidents DANGER Danger through impaired perception! ► Acoustical warning and indication signals and environmental noises can sound different when you are wearing these headphones. Make yourself aware of how these signals deviate in their sound so that you can recognise the signals in the appropriate situations. ► Do not use the headphones while driving a vehicle, riding a bicycle, operating machinery or in any other situation in which impaired perception of ambient noise could put you or other people in danger. Please also observe the statutory provisions and regulations of the country in which you are using the headphones.SKO 50 C2 GB

 19 ■ Basic Safety Instructions For safe handling of the headphones pay heed to the following safety information: ■ Before use, check the headphones for visible external damage. Do not operate headphones that are damaged or have been dropped. ■ Protect the cable against damage, for example caused by sharp edges, hot areas, clamping or crushing. ■ Damaged cables or connections should be replaced by authorised qualified personnel or by the Customer Service department. ■ Children and individuals who, due to their physical, intellectual or motor abilities, are incapable of operating the headphones safely must only use them under the supervision or direction of a responsible person. Permit children to use the headphones only under supervision.

DANGER! The packaging material is not a toy. Keep plastic sheeting, bags and all other packaging material away from children. There is a risk of suffocation. ■ Repairs to the headphones may only be carried out by authorised specialist personnel or by the Customer Service department. Incompetent repairs may result in risks for the user. In addition, warranty claims become void. ■ Repairs to the headphones during the warranty period may only be carried out by a Customer Service department authorised by the manufacturer, otherwise no additional warranty claims can be considered for subsequent damages. ■ Do not carry out any unauthorised reconstruction or customisation to the headphones. ■ Protect the headphones from moisture and penetration by liquids. ■ Keep the headphones away from open flames (e.g. candles) at all times.SKO 50 C2■ 20 

Commissioning Items supplied The following components are included in delivery (see fold-out page): ● Headphones ● These operating instructions (symbol image) ♦ Remove all packaging materials. NOTICE ► Check the contents to ensure that they are complete and for visible damage. ► If the delivery is not complete, or is damaged due to defective packaging or through transportation, contact the Service Hotline (see chapter Service). Disposal of the packaging The packaging protects the headphones from transport damage. The packaging materials are selected from the point of view of their environmental friendliness and disposal technology and are therefore recyclable. The recirculation of packaging into the material circuit saves on raw material and reduces generated waste. Dispose of packaging material that is no longer needed in compliance with the regionally established regulations.SKO 50 C2 GB

3.5 mm jack socket for connection of second headphones

3.5mm Jackplug Handling and operation Putting the headphones on ♦ When putting the headphones on, please note the side markings “R” (right) and “L” (left) on the inside of the head band

so that the headphones sit comfortably on your head and the ear pieces +

cover the ears. Using the headphones You can connect the headphones to a variety of playback devices (e.g. CD, DVD, MP3 players, hi-fi systems, PCs and laptops). To listen to music, proceed as follows: ♦ Insert the 3.5 mm jack plug

into the socket on the playback device. ♦ Switch the playback device on and adjust the sound volume to minimum. ♦ Place the headphones on your head as described in the section “Putting the headphones on”. ♦ Then adjust the sound volume on the playback device to the desired level.SKO 50 C2■ 22 

Connecting the second headphones The headphones are provided with a 3.5 mm jack socket on the right-hand earpiece. You can connect a second pair of headphones there to share your listening experience with friends. ♦ If you wish to use a second pair of headphones, insert the jack plug from the second headphones into the 3.5 mm jack socket

on the right-hand earpiece

TAKE NOTE ► Never connect more than one set of additional headphones to the 3.5 mm jack

as the low impedance of the headphones could damage the playback device. ► Never connect a second playback device to the 3.5 mm jack

as the playback device or the headphones could be damaged. Storage of the headphones These headphones are equipped with rotating and tilting ear pieces, so as to be able to fold them together and save storage space. To fold the headphones together, proceed as follows: ♦ Rotate the two earpieces +

Do not allow any liquids to penetrate inside the earclip head- phones. This could cause irreparable damage to them. ► Do not use aggressive or abrasive cleaning agents, as these can damage the appliance surfaces. ♦ Wipe the outer surfaces of the headphones with a slightly damp cloth. Storage when not in use ♦ Store the headphones in a dry environment. Troubleshooting Malfunction causes and remedies The following table will help with localizing and remedying minor malfunctions: Defect Possible cause Solution No sound is coming from the head- phones The playback device is not switched on. Switch the playback device on. The volume control of the playback device is set to minimum volume. Turn the volume up on the playback device. The 3.5 mm jackplug

is not fully inserted into the playback device's headphone socket. Insert the 3.5 mm jack- plug

fully into the socket.SKO 50 C2■ 24 

Defect Possible cause Solution Sound is com- ing only from one side of the headphones. The Stereo-Balance- Control on the playback device is incorrectly adjusted. Adjust it to the setting you desire. The 3.5 mm jackplug

is not fully inserted into the playback device's headphone socket. Insert the 3.5 mm jack- plug

fully into the socket. NOTICE ► If you cannot solve the problem with the aforementioned methods please contact the Customer Service department. Disposal The symbol of a crossed-out wheelie bin means that this product is subject to European Directive 2012/19/EU and may not be disposed of in the domestic waste. The product must be taken to a dedicated collection point for electrical and electronic appliances. This disposal is free of charge for the user. You will be helping to protect both the environment and your per- sonal health and recycling valuable raw materials. More information on disposal and the nearest collection point is available from your town council.SKO 50 C2 GB

 25 ■ Appendix Technical data Frequency response 20 Hz – 20 kHz Impedance 32 Ω ± 4 Ω Sensitivity approx. 100 dB ± 5 dB at 1 kHz Input power max. 50 mW Broadband voltage identification (WBCV) approx. 100 mV ± 10 % Stereo-Jackplug 3.5 mm Cable length approx. 140 cm Dimensions (W x H x D) approx. 19.5 cm x 19 cm x 7.5 cm Weight approx. 195 g Operating temperature 5°C – 35 °C Storage Temperature 0°C – 45 °C Humidity (no condensation) ≤ 75 % Notes on the EU Declaration of Conformity Regarding conformity with essential requirements and other relevant provisions, this appliance complies with RoHS Directive 2011/65/EU. The complete EU Declaration of Conformity is available from the importer.SKO 50 C2■ 26 

Kompernass Handels GmbH warranty Dear Customer, This appliance has a 3-year warranty valid from the date of purchase. If this product has any faults, you, the buyer, have certain statutory rights. Your statutory rights are not restricted in any way by the war- ranty described below. Warranty conditions The validity period of the warranty starts from the date of purchase. Please keep your original receipt in a safe place. This document will be required as proof of purchase. If any material or production fault occurs within three years of the date of purchase of the product, we will either repair or replace the product for you at our discretion. This warranty service is dependent on you presenting the defective appliance and the proof of purchase (receipt) and a short written description of the fault and its time of occurrence. If the defect is covered by the warranty, your product will either be repaired or replaced by us. The repair or replacement of a product does not signify the beginning of a new warranty period. Warranty period and statutory claims for defects The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking. Repairs carried out after ex- piry of the warranty period shall be subject to a fee. Scope of the warranty This appliance has been manufactured in accordance with strict qual- ity guidelines and inspected meticulously prior to delivery. The warranty covers material faults or production faults. The warranty does not extend to product parts subject to normal wear and tearSKO 50 C2 GB

 27 ■ or fragile parts such as switches, batteries, baking moulds or parts made of glass. The warranty does not apply if the product has been damaged, improperly used or improperly maintained. The directions in the oper- ating instructions for the product regarding proper use of the product are to be strictly followed. Uses and actions that are discouraged in the operating instructions or which are warned against must be avoided. This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifications / repairs which have not been carried out by one of our authorised Service centres. Warranty claim procedure To ensure quick processing of your case, please observe the follow- ing instructions: Ŷ Please have the till receipt and the item number (e.g. IAN 12345) available as proof of purchase. Ŷ You will find the item number on the type plate, an engraving on the front page of the instructions (bottom left), or as a sticker on the rear or bottom of the appliance. Ŷ If functional or other defects occur, please contact the service department listed either by telephone or by e-mail. Ŷ You can return a defective product to us free of charge to the ser- vice address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred. You can download these instructions along with many other manuals, product videos and software on www.lidl-service.com.SKO 50 C2■ 28
